  1. Chapter 9 The spine: Objectives • Explain how anatomical structure affects movement capabilities of the spine • Identify factors influencing relative mobility and stability of different regions of the spine • Explain the ways in which spine is adapted to carry out its biomechanical functions • Explain the relationship between muscle location and the nature and effectiveness of muscle action in the trunk • Describe the biomechanical contributions to common injuries of the spine

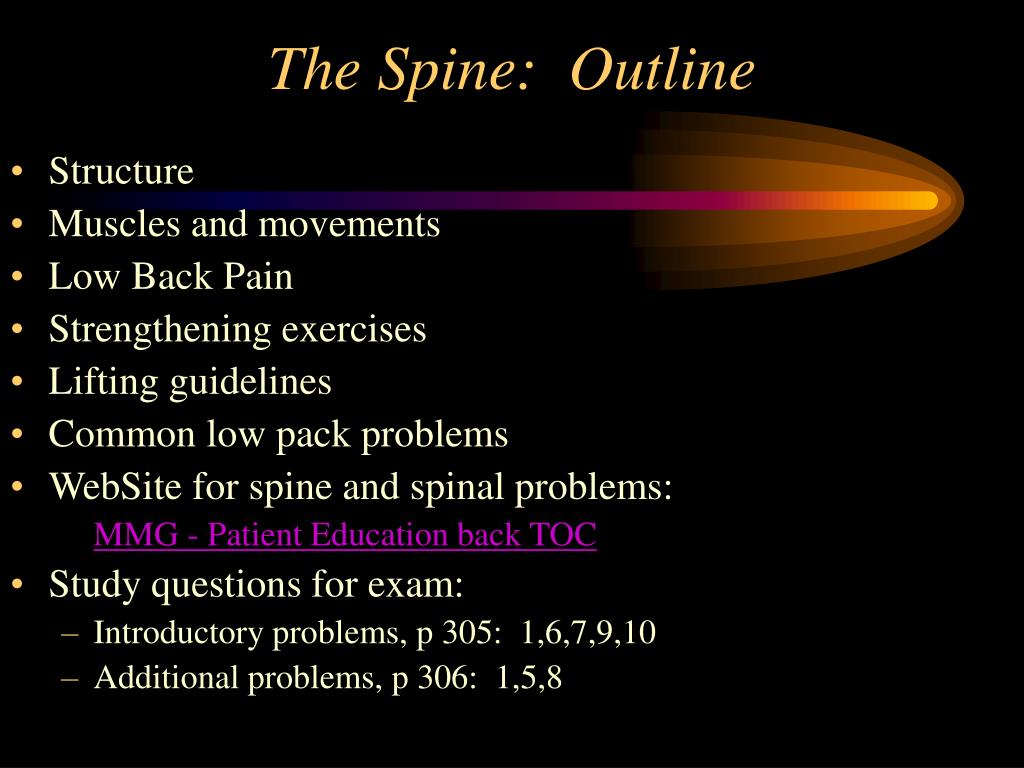

  2. The Spine: Outline • Structure • Muscles and movements • Low Back Pain • Strengthening exercises • Lifting guidelines • Common low pack problems • WebSite for spine and spinal problems: MMG - Patient Education back TOC • Study questions for exam: • Introductory problems, p 305: 1,6,7,9,10 • Additional problems, p 306: 1,5,8

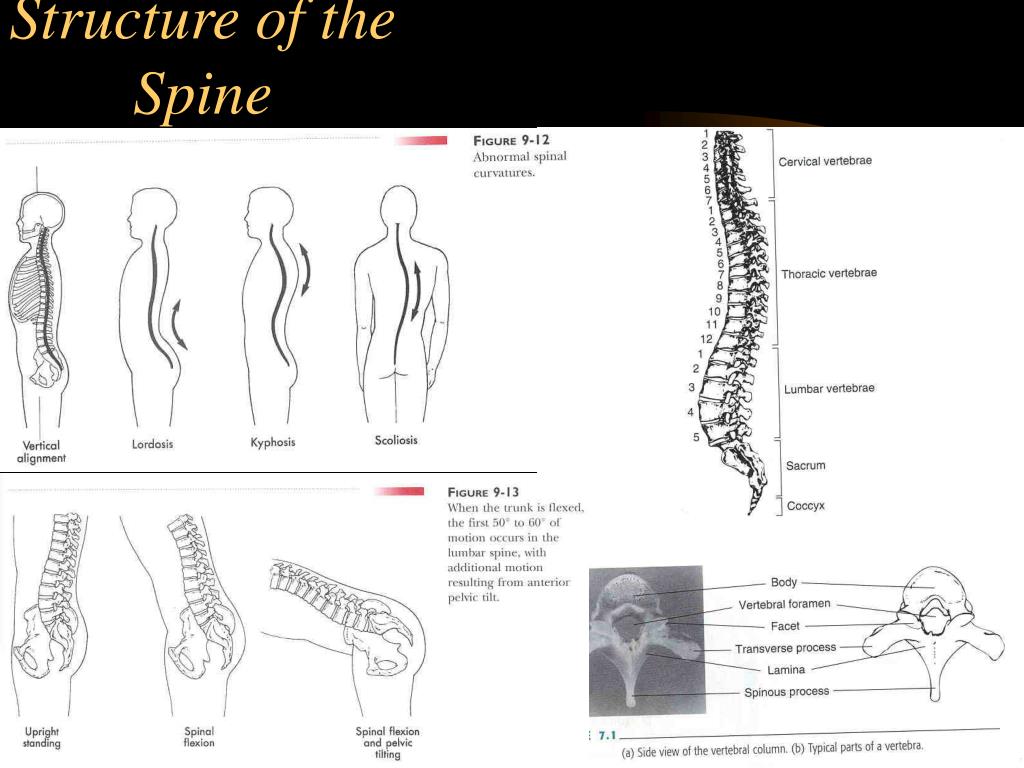

  3. Structure of the Spine

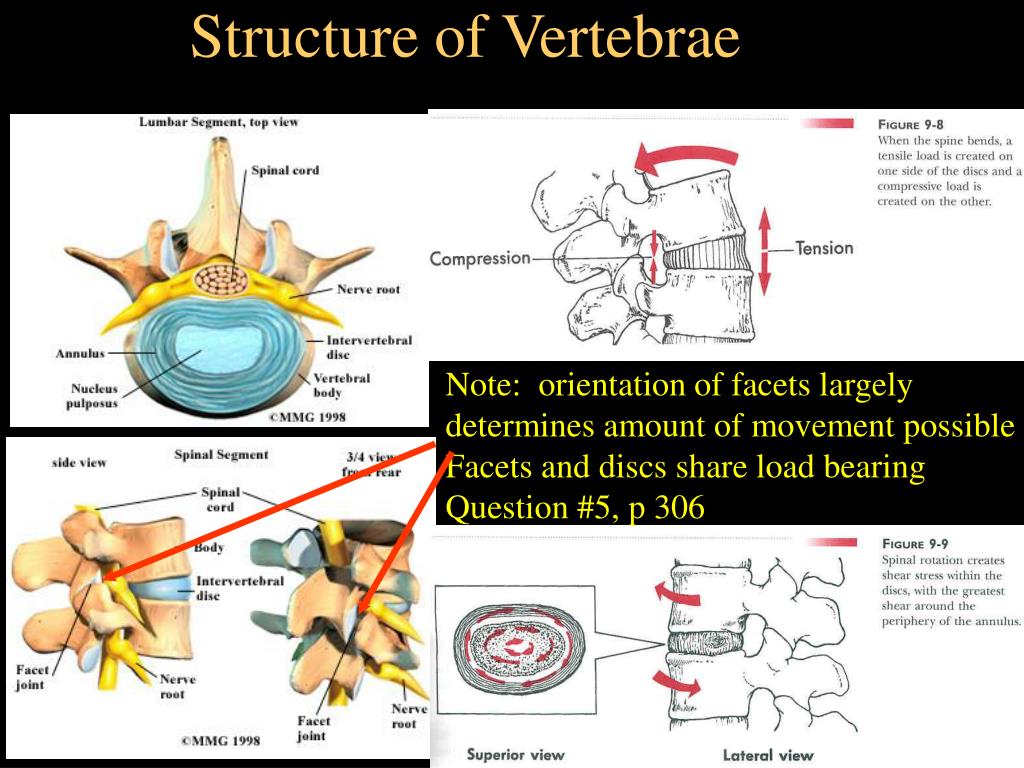

  4. Structure of Vertebrae Note: orientation of facets largely determines amount of movement possible Facets and discs share load bearing Question #5, p 306

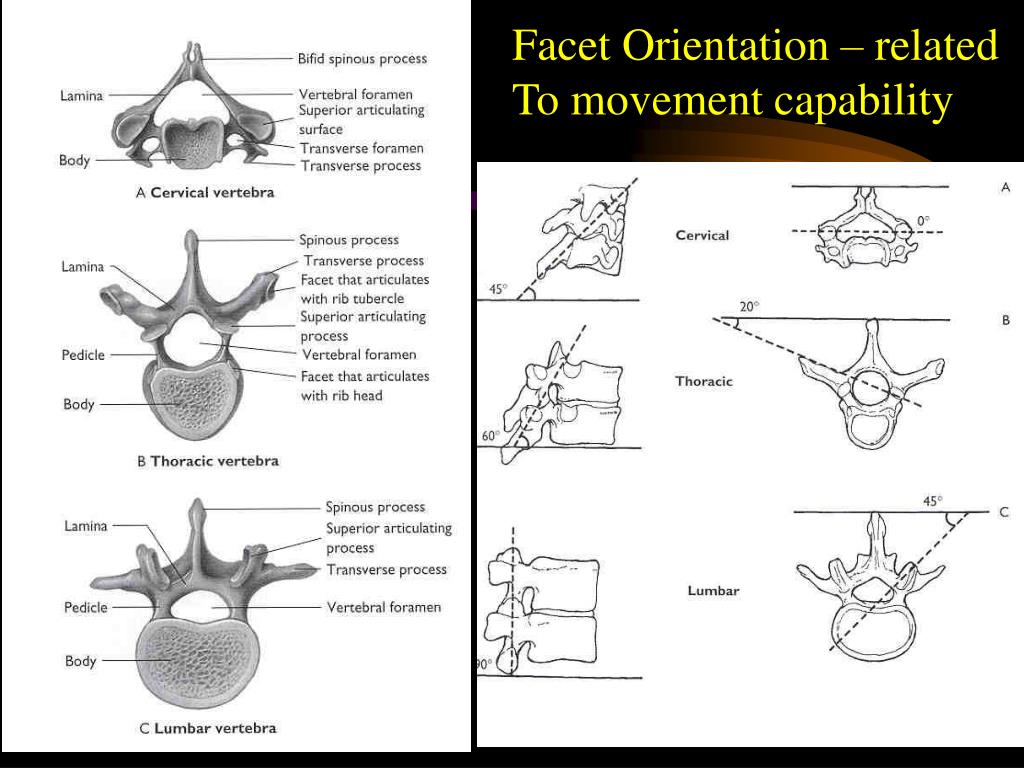

  5. Facet Orientation – related To movement capability

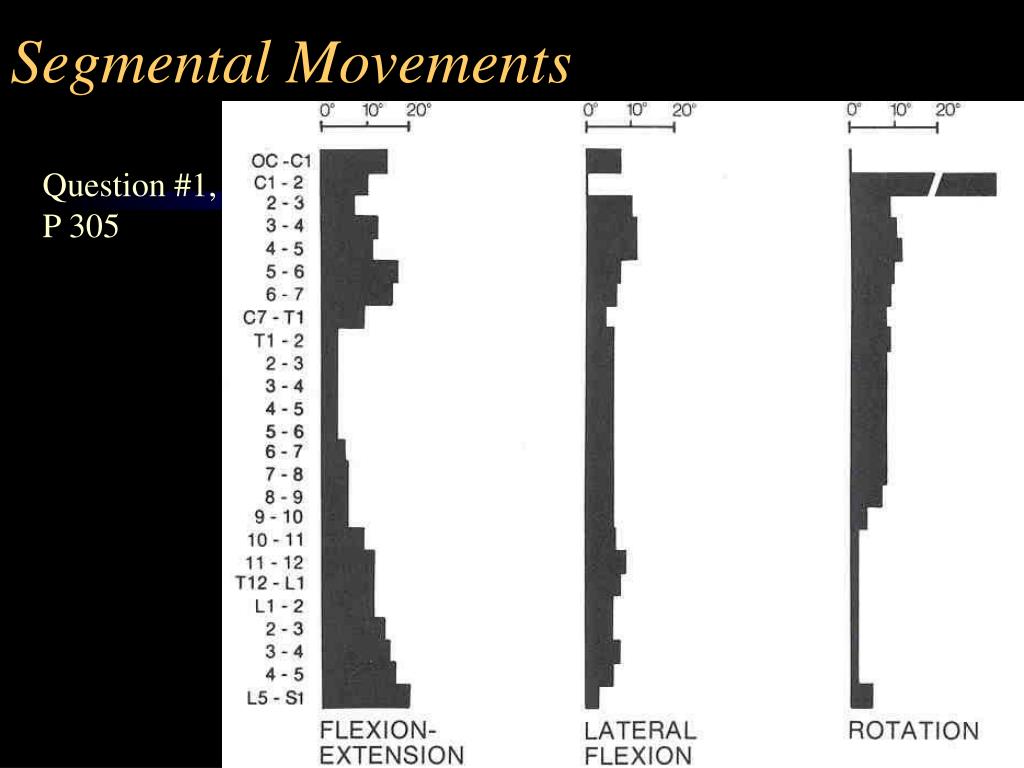

  6. Segmental Movements Question #1, P 305

  7. The Spine: Muscles • Spinal flexors – abdominal muscles • Rectus abdominis • External and internal obliques • Spinal extensors • Splenius cervicis and capitis (cervical) • Erector spinae (lumbar and thoracic) • Quadratus lumborum (lumbar)

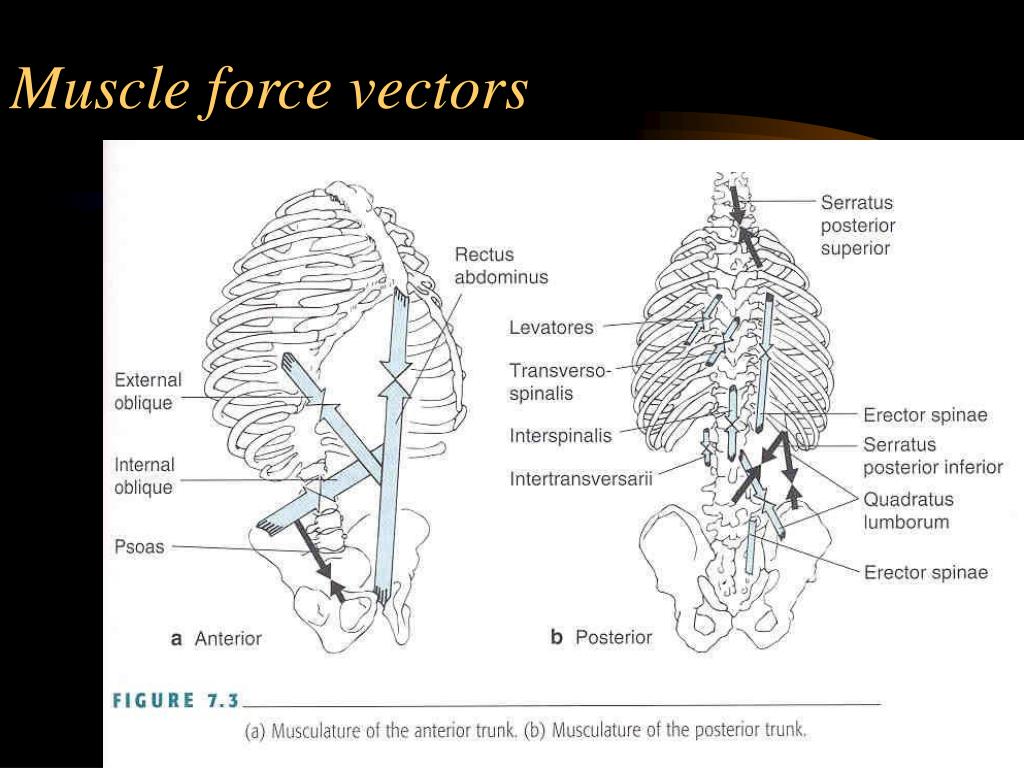

  8. Muscle force vectors

  9. Flexion Exercises • Effect of • Anchoring feet? • Bending knees? • Placement of hands and arms? • Inclined board?

  10. Back Extension Exercises to Avoid: Good morning exercise: Hyperextended back:

  11. Recommended Extension Exercise

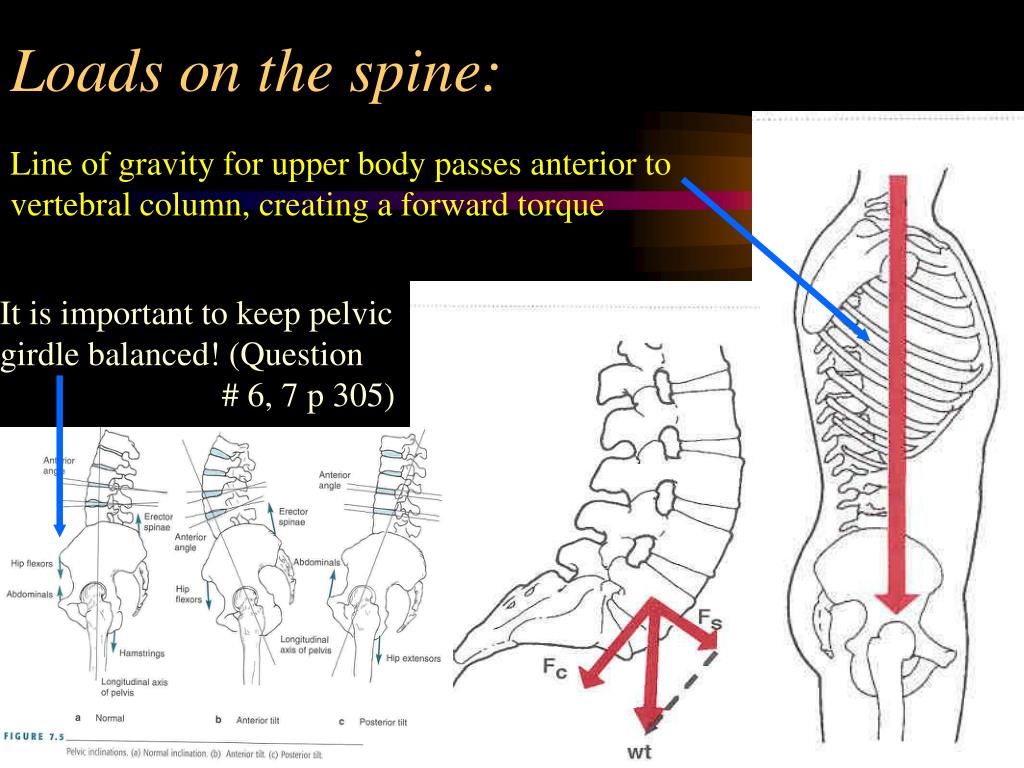

  12. Loads on the spine: Line of gravity for upper body passes anterior to vertebral column, creating a forward torque It is important to keep pelvic girdle balanced! (Question # 6, 7 p 305)

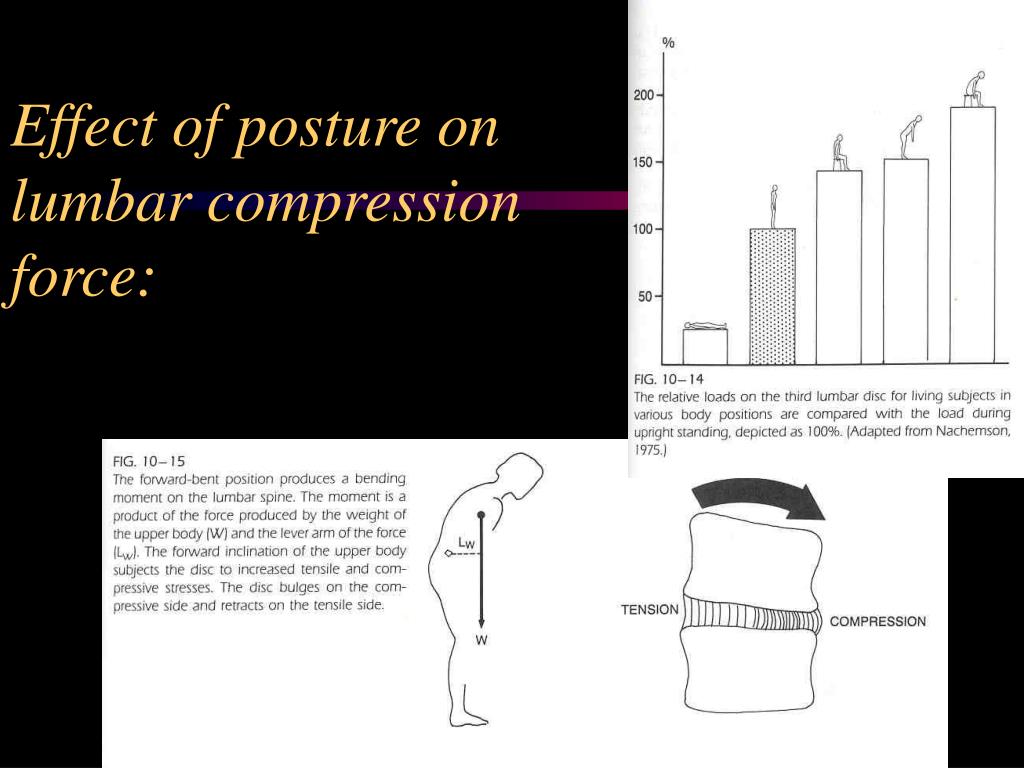

  13. Effect of posture on lumbar compression force:

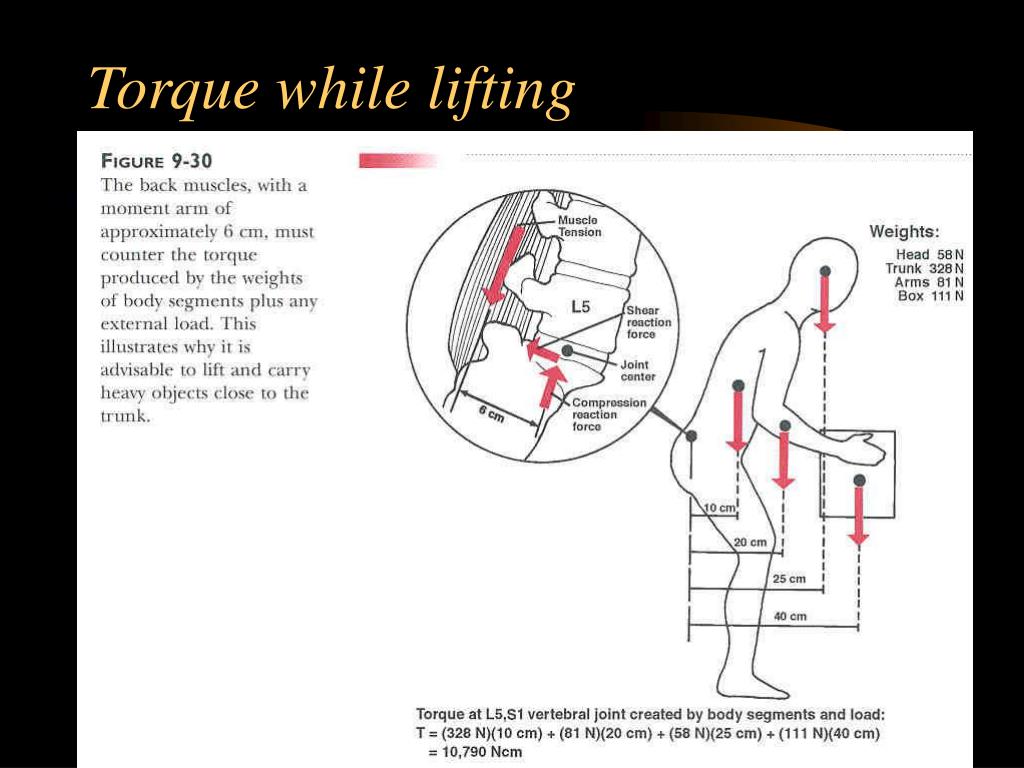

  14. Torque while lifting

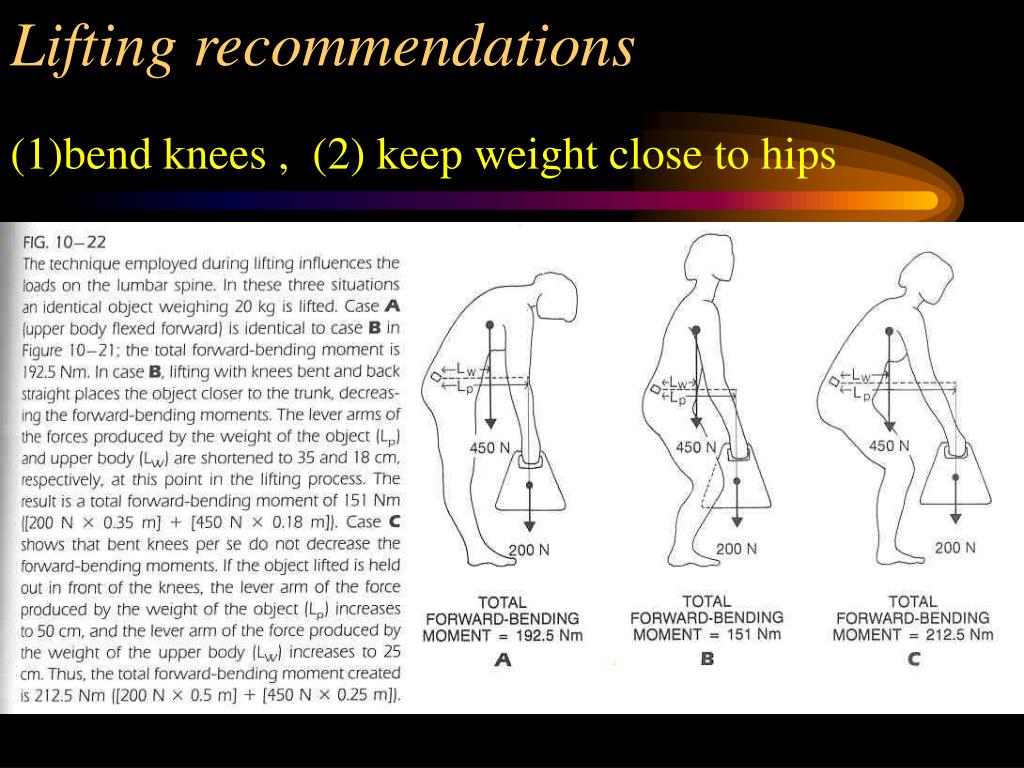

  15. Lifting recommendations (1)bend knees , (2) keep weight close to hips

  16. (3) Avoid lifting while twisting and asymmetrical frontal plane loading of the trunk– it places 3 times more stress on the spine (question #9, p 205)(4) Avoid rapid, jerking motion while lifting Lifting recommendations

  17. Common Spinal Injuries • Lumbar spinal injury is by far the most prevalent of all areas of the spine • Low back pain is most common and most expensive injury in work place • Low back pain is usually related to mechanical stress • 60% of cases are ideopathic

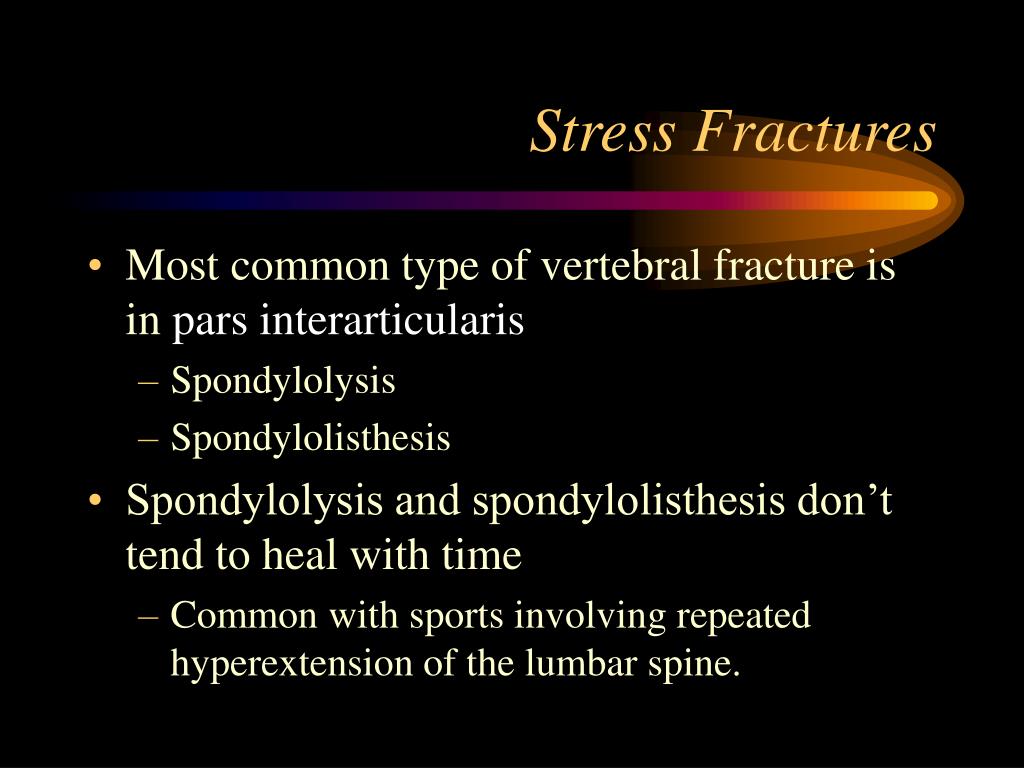

  18. Stress Fractures • Most common type of vertebral fracture is in pars interarticularis • Spondylolysis • Spondylolisthesis • Spondylolysis and spondylolisthesis don’t tend to heal with time • Common with sports involving repeated hyperextension of the lumbar spine.

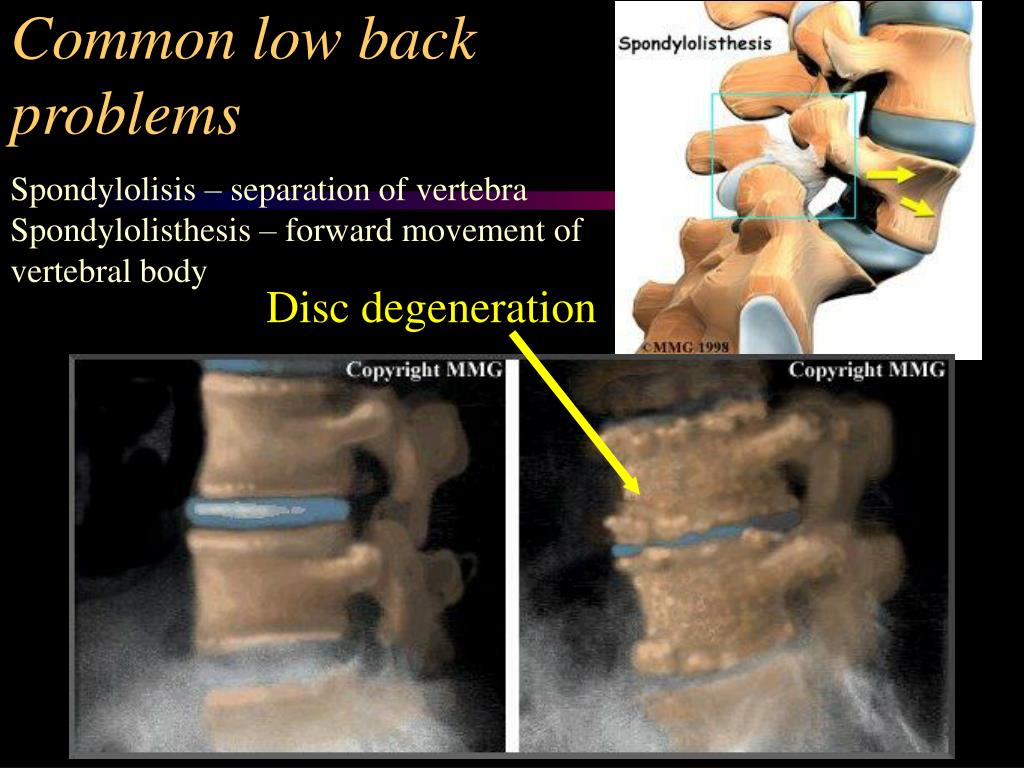

  19. Common low back problems Spondylolisis – separation of vertebra Spondylolisthesis – forward movement of vertebral body Disc degeneration

  20. Disc Herniations • Cause of 1-5% back pain cases • Protrusion of part of nucleus pulposus from the annulus. • Traumatic or stress related. • Common sites: between 5th-6th and 6th-7th cervical vertebrae and 4th-5th lumbar and 5th lumbar and 1st sacral. • Sensory nerves supplying anterior and posterior longitudinal ligaments generate pain signals.

  21. Two common causes of low back pain • Illustrations below are from: MMG - Patient Education back TOC Compressive, or neurogenic: Symptoms are referred due to Spinal nerve compression Mechanical - localized pain due to Damage to facets, discs, and/or soft tissue
