GEO Architecture and Data Committee Architecture Workshop

1. GEO Architecture and Data CommitteeArchitecture Workshop Hosted by the European Commission At the Joint Research Centre February 2008

2. Architecture Workshop Opening Plenary

3. Architecture Workshop Welcome to JRC and logistic Alessandro Annoni Head of Spatial Data Infrastructures Unit Joint Research Centre European Commission

4. The EU Institutions Court of Justice INFSO RTD JRC SG. RELEX ENTR ENV ... ... ... ... …. ... ... …. IPSC IPTS IRMM ….. IES Committee of the Regions Court of Auditors The Council of Ministers The European Parliament Economic and Social Committee The college of Commissioners The European Commission

5. Mission of the Joint Research Centre … to provide customer-driven scientific and technical support for the conception, development, implementation and monitoring of EU policies … …the JRC functions as a reference centre of science and technology for the EU, independent of private and national interests...

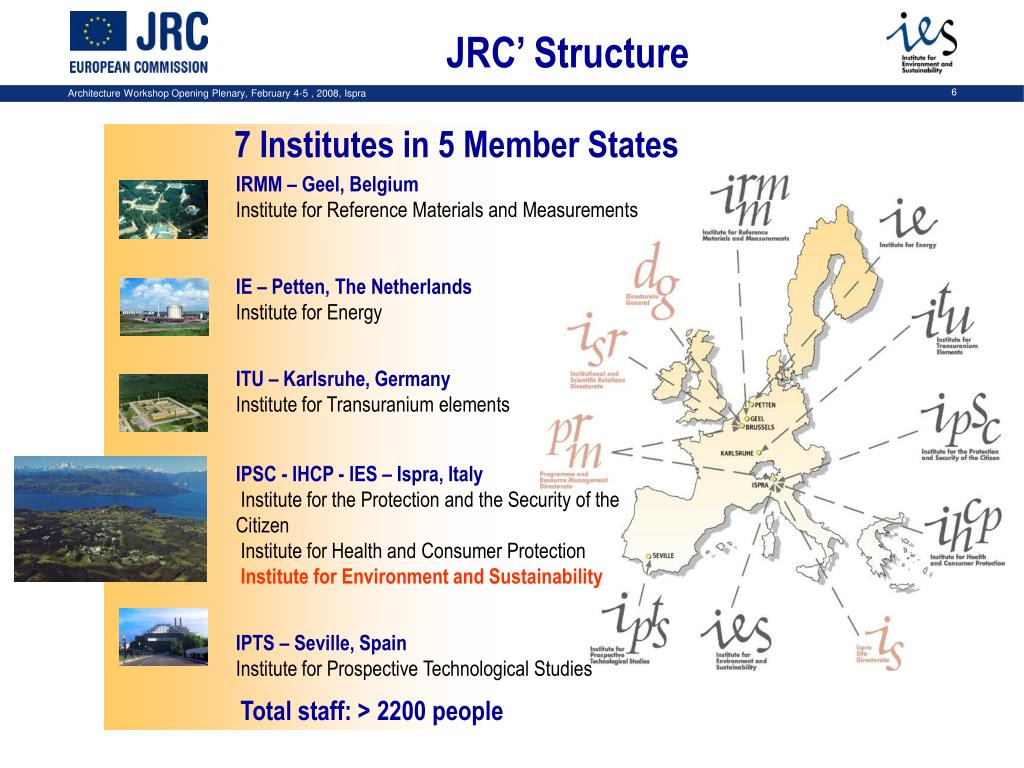

6. 7 Institutes in 5 Member States • IRMM – Geel, Belgium • Institute for Reference Materials and Measurements • IE – Petten, The Netherlands • Institute for Energy ITU – Karlsruhe, Germany Institute for Transuranium elements IPSC - IHCP - IES – Ispra, Italy Institute for the Protection and the Security of the Citizen Institute for Health and Consumer Protection Institute for Environment and Sustainability • IPTS – Seville, Spain • Institute for Prospective Technological Studies Total staff: > 2200 people JRC’ Structure

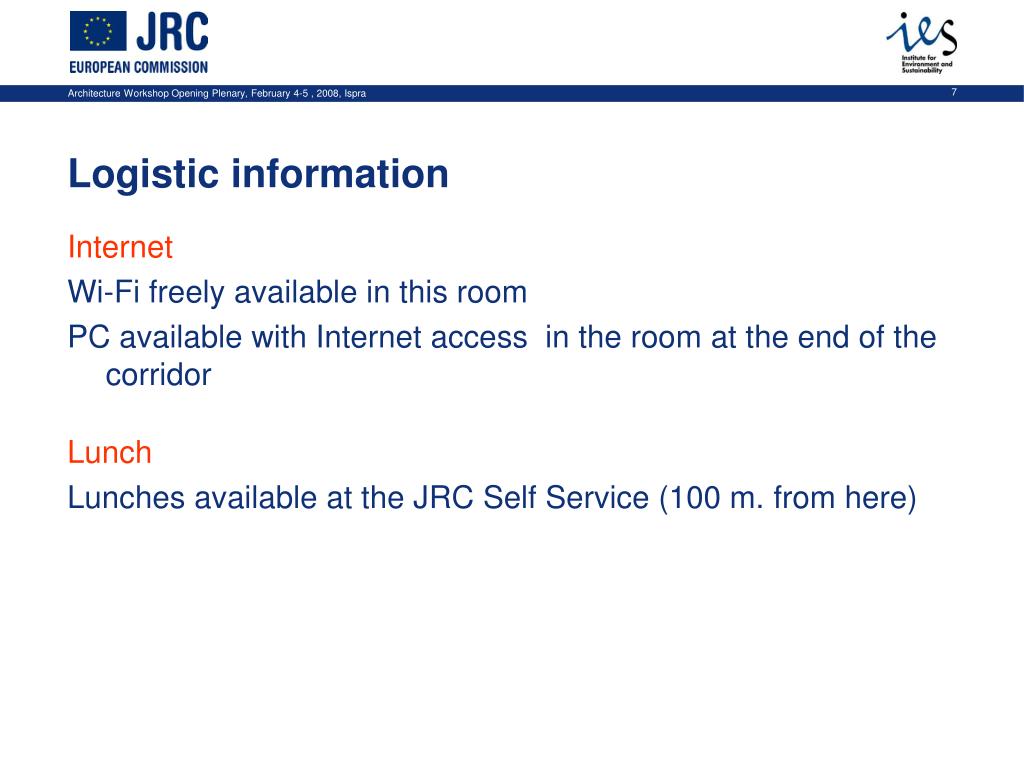

7. Logistic information • Internet • Wi-Fi freely available in this room • PC available with Internet access in the room at the end of the corridor • Lunch • Lunches available at the JRC Self Service (100 m. from here)

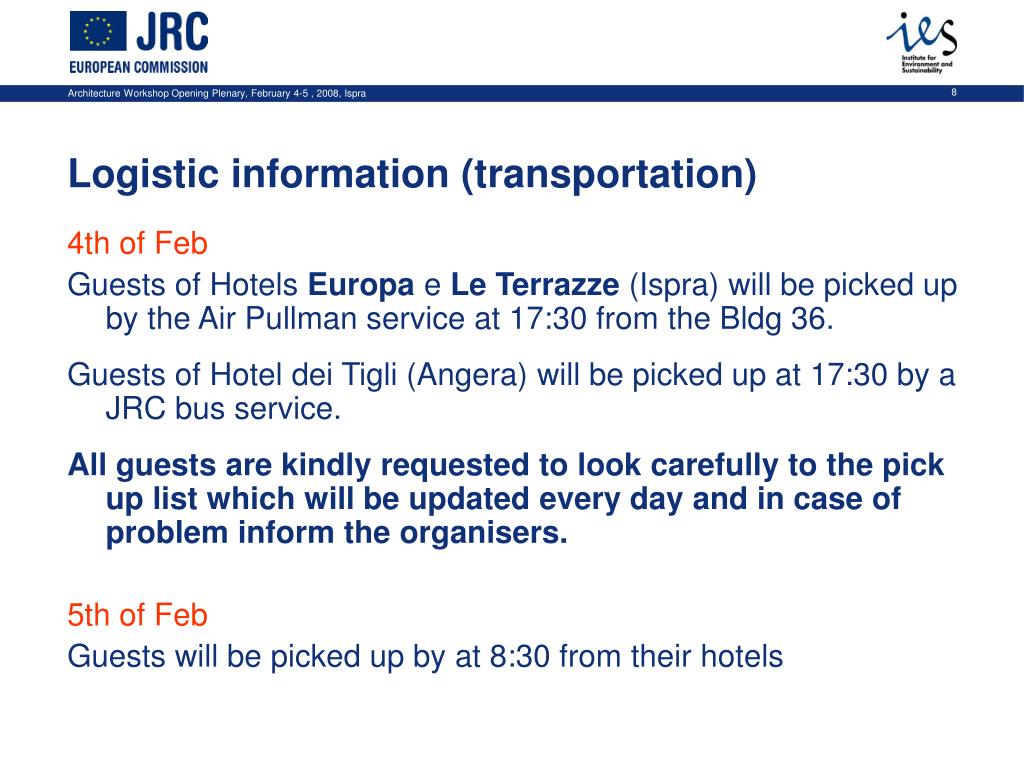

8. Logistic information (transportation) • 4th of Feb • Guests of Hotels Europa e Le Terrazze (Ispra) will be picked up by the Air Pullman service at 17:30 from the Bldg 36. • Guests of Hotel dei Tigli (Angera) will be picked up at 17:30 by a JRC bus service. • All guests are kindly requested to look carefully to the pick up list which will be updated every day and in case of problem inform the organisers. • 5th of Feb • Guests will be picked up by at 8:30 from their hotels

9. Recap of 2007 - Initial Operating Capability for the GEOSS Core Architecture George Percivall, et. al.

10. GEOSS Core Architecture Initial Operating Capability (IOC) • Core Architecture • GEO Web Portal, Clearinghouse, and Registry • Process to register, discover and use services • GEOSS Interoperability Arrangements • During 2007, GEO ADC guided development of IOC through its core tasks: • AR-07-01 - Enabling Deployment of Architecture • AR-07-02 - Architecture Implementation Pilot • Results demonstrated at EO Summit and GEO-IV

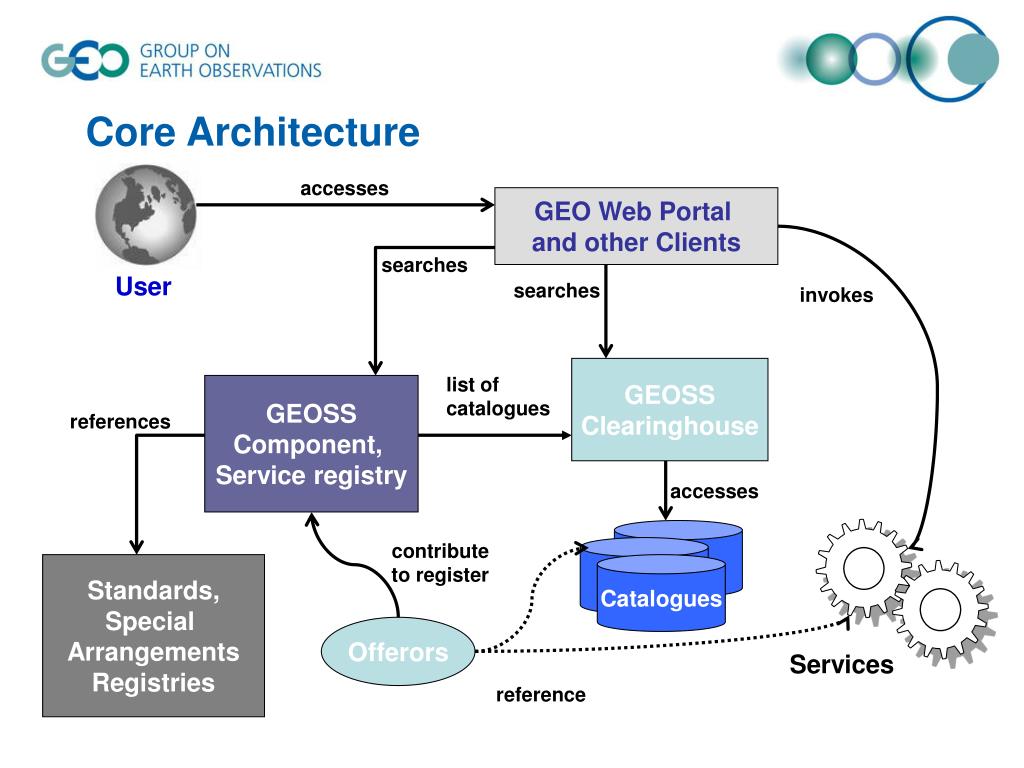

11. Services Catalogues Core Architecture accesses GEO Web Portal and other Clients searches User searches invokes GEOSS Clearinghouse list of catalogues GEOSS Component, Service registry references accesses contribute to register Standards, Special Arrangements Registries Offerors reference

12. AI Pilot Milestones - 2007 • Call for Participation (CFP) • CFP Preparation based on RFIs February & March • CFP Release April 13 • CFP Responses Due May 11 • Pilot Kickoff meeting June 5&6 • Hosted at ESA-ESRIN • Deploy, Integrate, Test 4 mo. June to September • Demo Capture Workshop September 10&11 • Core Architecture Implementation Report November

13. GEO Task AR-07-02GEO Architecture Implementation Pilot - 2007 • Demonstrated effective development process: • CFP, Kickoff, Execution, etc. • Approximately 120 organizations • Established effective communication methods • For international coordination • Produced Screencasts of Initial Operating Capability • www.ogcnetwork.net/AIPdemos • Prepared “Core Architecture Implementation Report”

14. Geographic distribution of CFP-2007 Responses

15. GEOSS Architecture Status • Architecture initially defined in CFP, April 2007 • Validated through ADC core tasks, etc. • Deployed, tested and demonstrated in 2007 • Component types and interactions confirmed • Recommendations for Interoperability Arrangements • Consistent with GEOSS Strategic Guidance Document and Tactical Guidance Document

16. GEOSS Engineering Architecture

17. GEOSS Initial Operating Capability (IOC) • IOC established in 2007 • 64 Components & 75 Services registered (21 Nov 07) • Process and components for registration; SIF • User interfaces to services • GEO Web Portals (3), Community Portals (27) and Application Clients (13) • Several organizations capable of providing • GEO Web Portal solutions • GEOSS Clearinghouse solutions

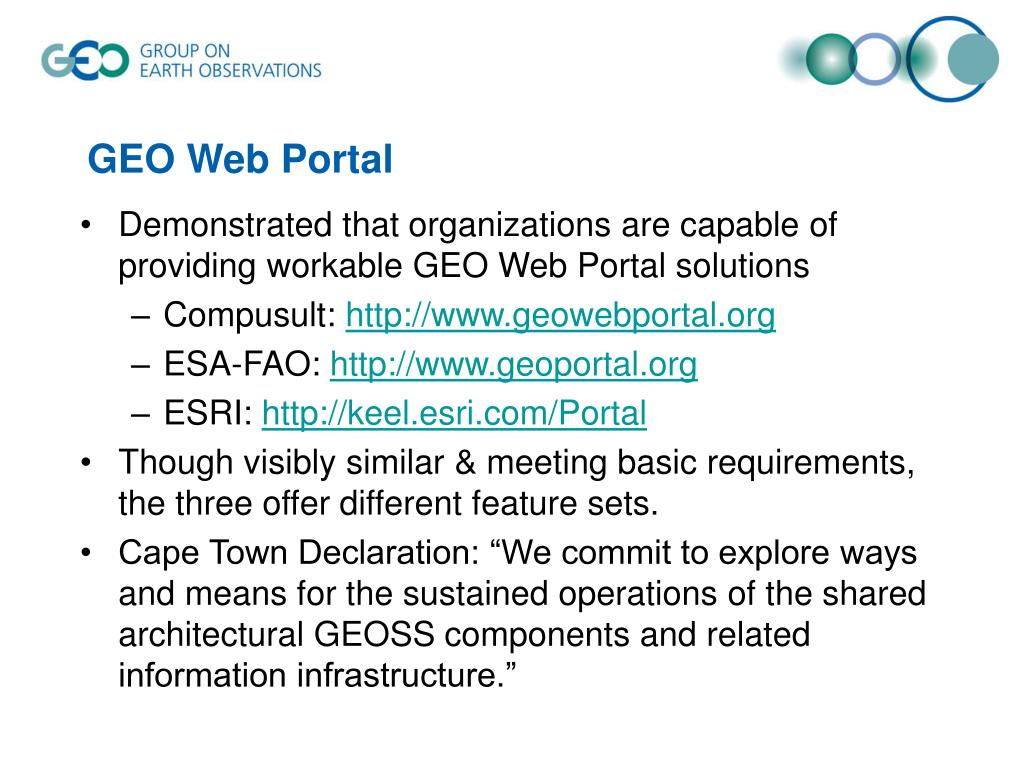

18. GEO Web Portal • Demonstrated that organizations are capable of providing workable GEO Web Portal solutions • Compusult: http://www.geowebportal.org • ESA-FAO: http://www.geoportal.org • ESRI: http://keel.esri.com/Portal • Though visibly similar & meeting basic requirements, the three offer different feature sets. • Cape Town Declaration: “We commit to explore ways and means for the sustained operations of the shared architectural GEOSS components and related information infrastructure.”

19. GEOSS Architecture - Further Development • Increase collaboration with GEO Committees, Communities of Practice and relevant GEO Tasks. • Broader international participation • Increase commitment to Operational requirements to support persistence • Portal, Clearinghouse and other services • Add Sensor Component Types • Task, acquire and process observations • Inter-calibration scenario, e.g., CEOS • Workflow for observation processing and decision support, e.g., Fed Earth Observation (FedEO) pilot

20. AR-07-02 Task Definition • Task Sheet slightly revised at ADC-5, September 2007 • Architecture Implementation Pilot emphasis retained: Portals, Clearinghouse, Catalogues, and Services • Including sensor interoperability services • Two items added • Persistent Infrastructure for Service Integration • GEOSS User and Architecture Workshops

21. GEO Architecture Workshop • February 4&5, 2008 • Co-located at JRC Ispra with ADC-6 • Purpose: Consensus building in support of CFP • Topics • Scenario candidates: defined with UIC & CoP • Begin refinement of the CFP-2007 architecture • Sustained operations for information components • Other Implementation Report topics

22. UIC/ADC Collaboration Ellsworth LeDrew GEO UIC Co-Chair

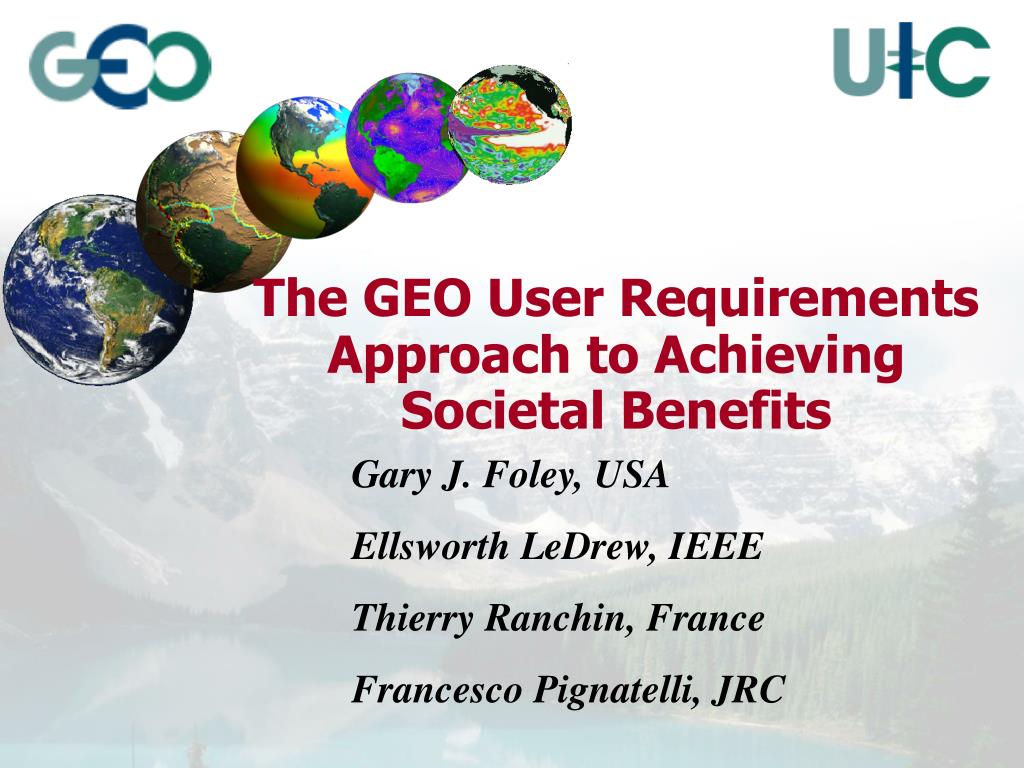

23. The GEO User Requirements Approach to Achieving Societal Benefits Gary J. Foley, USA Ellsworth LeDrew, IEEE Thierry Ranchin, France Francesco Pignatelli, JRC

24. Terms of Reference- GEO User Interface Committee Goal To engage users in the development and implementation of a sustained GEOSS that provides the data and information required within and among the nine societal benefit areas as specified by user groups on national, regional and global scales Also a specific goal to address cross-cutting issues and oversee the Communities of Practice (CPs), ensuring continuity & avoiding duplication.

25. UIC Objectives Enable GEO to address in a systematic, targeted, focused and comprehensive way the needs and concerns of a broad range of user communities in developing and developed countries, across issues and trans-disciplinary needs, with a particular focus on fostering new or less organized communities. Enable GEO, in the implementation of GEOSS, to engage a continuum of users, from producers to the final beneficiaries of the data and information Facilitate linkages and partnerships between established Communities of Practice (CoP) and new user groups or organizations interested in collaborating.

26. The GEOSS Architecture Users and Scientific Communities Served By GEOSS Common Approaches Systems within their Mandates UIC Goal Organize this side of the GEOSS Architecture

27. A user-led community of stakeholders, from providers to the final beneficiaries of Earth observation data and information, with a common interest in specific aspects of societal benefits to be realized by GEOSS implementation. The Communities of Practice will be self organized and will include stakeholders required to achieve benefits. Communities of Practice:What are They?

28. Communities of Practice Each CP will have slightly different objectives but of necessity there will be common objectives such as: To provide a forum for discussion and to identify, gather, and seek agreement on their particular user community requirements; To identify linkages and opportunities for collaborative strategic and technical projects. Coordinate the target delivery to enable the realization of societal benefits To advise the User Interface Committee, GEO Plenary and all other CPs on matters relating to their particular area of interest or societal benefit. Objectives:

29. Development of GEO Communities of Practice The Current GEO Communities of Practice Air Quality and Health: May 5, Toronto Energy: Coastal ecosystems: IGOS-P Forests Geohazards Water Cycle: IGOS-P Water & Health Biodiversity

30. An Example Community of Practice Air Quality & Health The Public

31. UIC & the GEO Workplan Tasks The main focus of the UIC to date is on Task US-06-01 Other tasks are assigned to the UIC so that the Committee can draw from these tasks the following: User communities to engage User requirements identified in the conduct of the task Involvement in Communities of Practice

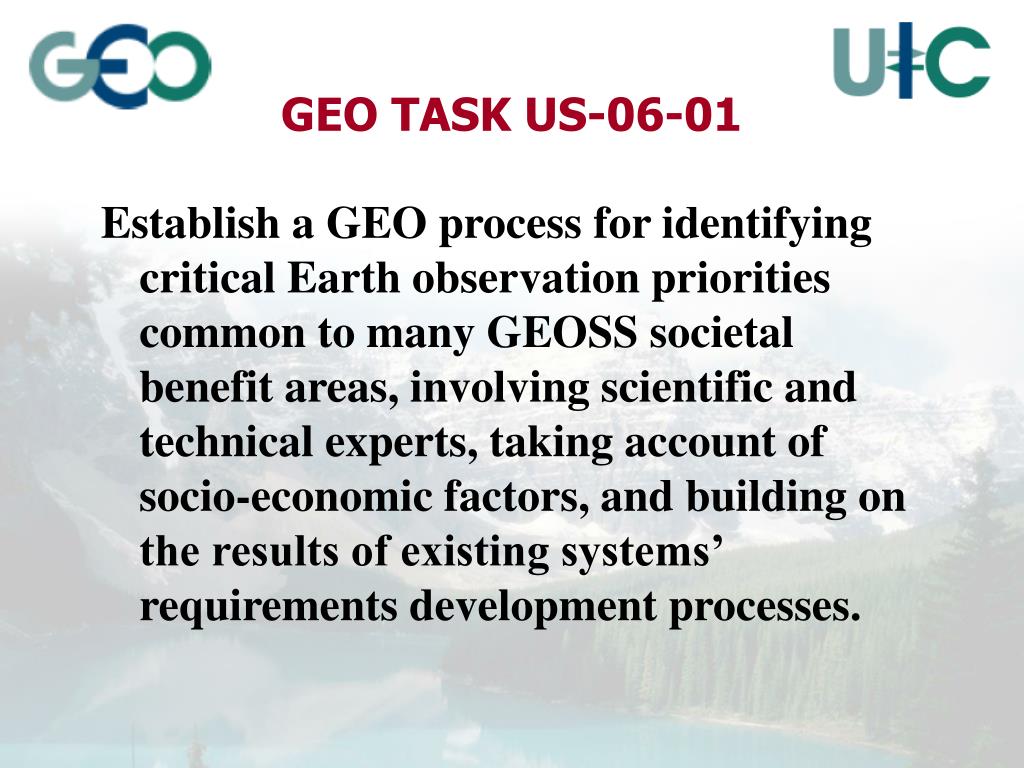

32. GEO TASK US-06-01 Establish a GEO process for identifying critical Earth observation priorities common to many GEOSS societal benefit areas, involving scientific and technical experts, taking account of socio-economic factors, and building on the results of existing systems’ requirements development processes.

33. UIC Meeting August, 2007A Process for TASK US-06-01 The User Requirements Gathering Processes Presentation by Dr. Lawrence Friedl User Needs and System Performance Utility (UNSPU) Proposed Functional Specifications Presentation by Dr. Hans-Peter Plag

34. The User Requirements Gathering Processes A 2-year timeline of US-06-01 activities . How an “Advisory Group” and an “Analyst” will work together to develop the priorities within each SBA. The analyst will be the primary coordinator and organizer of the activity to meet the schedules, and will interact with and utilize the Advisory Group for each SBA. UIC’s Refined Process in nine steps. Explanation that the process “harvests” observation needs expressed in existing documents.

35. Progress since August 2007 Completion of Improving Management of Energy Resources, the Strategic 5-10 Year Plan by the GEO Energy CP, Oct. 12, 2007 Initiation of US-06-01 work by analysts for Energy SBA – lead IEEE Biodiversity SBA – lead USEPA Health SBA – lead USEPA

36. What’s Next Completion of the first round of user requirements gathering by August 2008. Next meetings of the UIC Toronto, May, 2008 TBD, September, 2008

37. Evolving Links to ADC 2 – 3 April, 2007, Scope of potential demonstration projects reviewed by George Percivall at UIC meeting, Geneva. ADC/UIC co-sponsorship of Workshop in Yellowknife in association with Canadian IPY GeoNorth program entitled “The Impact of Climate Change and Variability on Energy Development and Biodiversity in the Arctic”. Included Demonstration Projects. “Kick the Tires” workshop on Air Quality as part of UIC Committee meeting (6-8 May, Toronto) held on May 5. Announcement forthcoming after details to be worked out this week.

38. GEOSS User & Architecture Workshop Series - Summary of Proceedingshttp://www.ieee-earth.org/default.taf?menu=conferences&feature=geossworkshops&title=GEOSS%20Workshops Francoise Pearlman IEEE

39. GEOSS User & Architecture Workshop Series For Proceedings go to http://www.ieee-earth.org and select conferences

40. Denver-06 Climate Barcelona-07 SoS interop. & biodiversity Goa-06 Water & Health Seoul-05 Disasters Yellowknife-07 Climate & biodiversity Corte-06 Energy & Ecosystems Boulder-07 Energy Beijing-06 Energy San Diego-07 Comm & Networks Honolulu-07 SoS Engineering & Architecture Kuala-Lumpur-07 Disasters San Jose Costa Rica-07 Agriculture Canberra-07 Models Ouagodougou-07 Water & health Tshwane-05 Disasters & water GEOSS Architecture and Societal Benefit Areas Addressed in 15 Workshops

41. Workshops supporting organizations

42. IEEE GEOSS Workshop • The User and the GEOSS Architecture XIV Organized by: Dr. Changyong Cao - NOAA/NESDIS, Washington DC Prof. Al Gasiewski – University of Colorado, Boulder, CO Dr. Siri Jodha Singh Khalsa – University of Colorado NSIDC, Boulder, CO Dr. Jay Pearlman – The Boeing Corporation Mr. Ivan Petiteville – ESA A typical Proceedings includes • Workshop Flyer • Description • Agenda • Briefings • Breakout Session Reports • Conclusions Selected briefings Are recorded and Available on the ICEO Site under Resources (Audio & slide lectures) Demonstrations material And video clips are uploaded To the OGC Web site

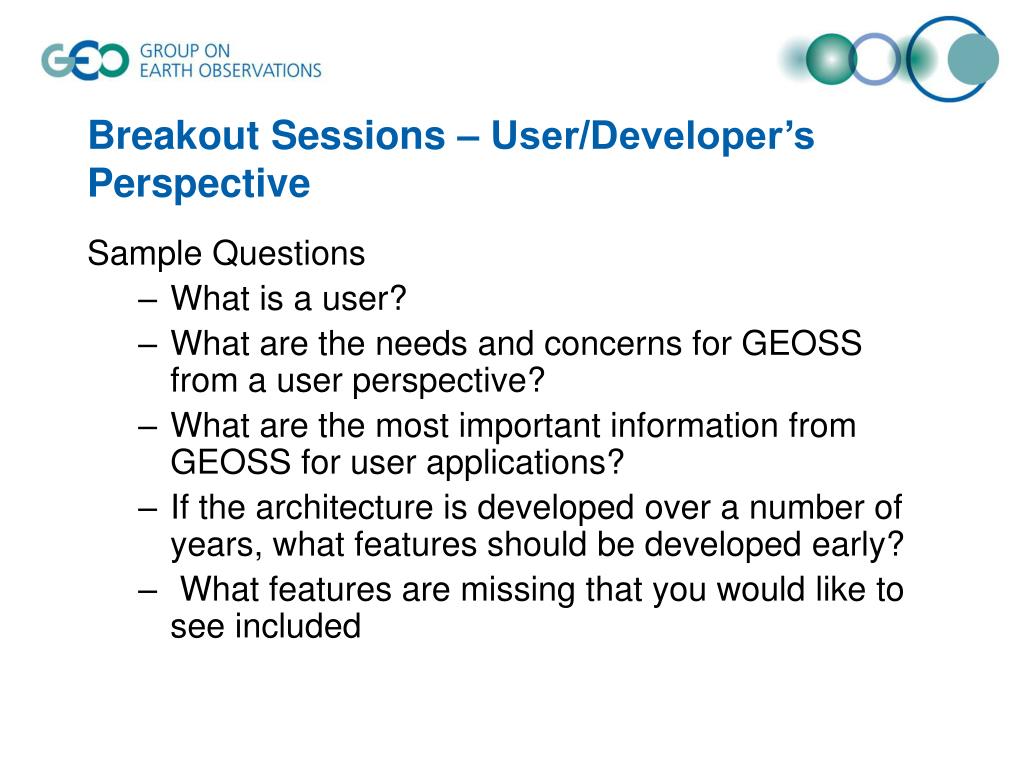

43. Breakout Sessions – User/Developer’s Perspective Sample Questions • What is a user? • What are the needs and concerns for GEOSS from a user perspective? • What are the most important information from GEOSS for user applications? • If the architecture is developed over a number of years, what features should be developed early? • What features are missing that you would like to see included

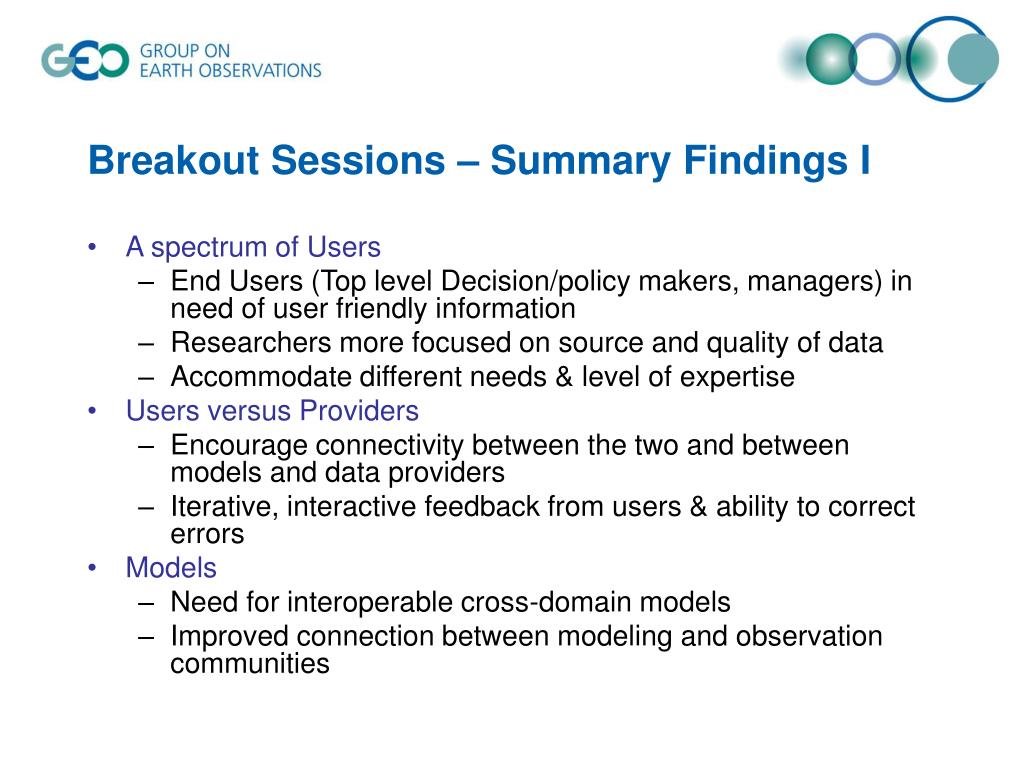

44. Breakout Sessions – Summary Findings I • A spectrum of Users • End Users (Top level Decision/policy makers, managers) in need of user friendly information • Researchers more focused on source and quality of data • Accommodate different needs & level of expertise • Users versus Providers • Encourage connectivity between the two and between models and data providers • Iterative, interactive feedback from users & ability to correct errors • Models • Need for interoperable cross-domain models • Improved connection between modeling and observation communities

45. Breakout Sessions – Summary findings IIEmphasis on Data • Key data characteristics • Discovery, accessibility, distribution, visualization/layering, sharing • Data packaging • Clear documentation – especially when cutting across benefit areas • Standards • Meta-data • Frequently mentioned concerns • Timeliness (from real time to paleo-data) • Security/authentication (access to proprietary data...) • Quality (Trusted source; Quality Assurance and Control; Data lineage) • Continuity of data source • Compatibility • Sharing policies • Data distribution mechanism • Internet vs mobile access (including ad-hoc networking) • Feedback mechanism

46. Breakout Sessions – Summary Findings III • SoS Architecture key desired characteristics • Offer simple, seamless services • Supports high availability, reliability, security, authentication • Facilitate interoperability • Allows for technology evolution & new technology insertion • Thoughts on interoperability • Focus on connecting systems within a community • Interfaces are abstracted in “wrappers” developed cooperatively by Providers & Users • Include ontology in Interoperability registry • Build a little, test a little: demonstrations, prototypes and pilots are essential

47. Demos and Pilots • Demonstration of the core architecture • Service registration and discovery process • Application of the architecture to eight societal benefit scenarios • use of the portal candidates • Screencast videos of the demonstrations are available on-line: http://www.ogcnetwork.net/AIPdemos Demo team in Yellowknife, Canada

48. A look forward- Workshops for 2008 Quebec, Canada-08 Science Modeling & Data Policy Spain-08 Architecture Of GEOSS Kobe, Japan-08 Oceans & Water Toronto, Canada-08 UIC workshop Beijing, China-08 Air Quality & Health Boston, USA-08 Air Quality & coastal Ecosystems Honolulu, Hawaii-08 Communications For disaster management Accra, Ghana - 08 Water Security & Ecosystems

49. Plan for the Architecture Workshop
