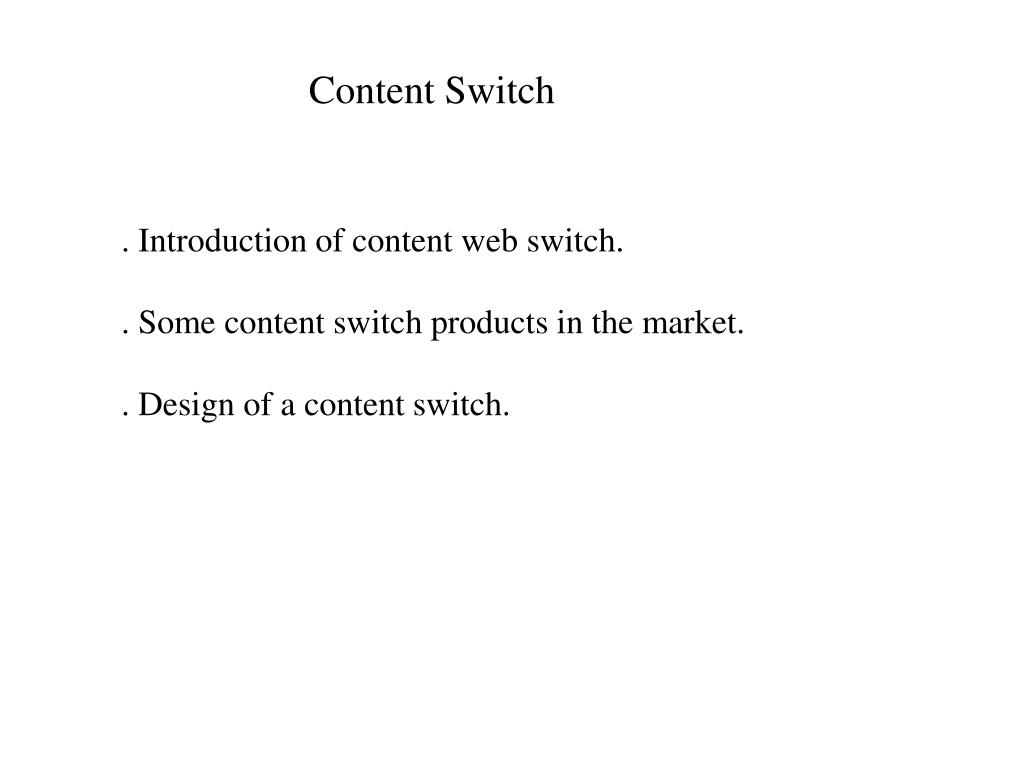

  1. Content Switch . Introduction of content web switch. . Some content switch products in the market. . Design of a content switch.

  2. Introduction of Content Switch (1) What is web server load balancing? .Distribute incoming request to achieve parallel services. . Transport layer load balancing, balancing the incoming request based on address and port number. . Application layer load balancing, redirecting the user request based on the content of the request. (e.g. url, http header…)

  3. Introduction of Content Switch (2) What is Content Switch? . An application layer load distribution. .A network device which routes the unique user request for specific content to the optimal server best able to handle the request. . For example, a Content Switch can classify the incoming request based on its url, http meta header, cookie value and so on.

  4. An example of Content Switch ArrowPoint Network Services (Support url and cookie-based switching) .Who the customer is based on user cookie located within HTTP header. . What information or transaction the customer is requesting. . Where best to service the customers.

  5. Component of Content Switch . Defining the rules. Determine the type of web content being request. . Rule matching process Identifying specific type of traffic, then routing that traffic to the location best able to serve the traffic or customer request.

  6. Two different design approach of Content Switch . Process content type classification and routing policy on application level. For example: application level proxies. . Process content type classification and routing policy on tcp/ip level. Need to modify operating system kernel. For example: using NAT to develop a content switch.

  7. Content Switch Products in Market (1) Cisco Content Engine 2.20(CE) . Cisco CE supports HTTP and HTTPS proxy server. . CE examines web request and makes the action decision such as block, cache, or proxy. . CE is worked in application level. . An example of the matching rules: rule no-cache url-regex\. *cgi-bin.* This rule configures that the incoming packets with the url matching the pattern “*cgi-bin” will not be forward to the proxy servers.

  8. Content Switch Products in Market (2) Intel Action/Classification Engines(ACEs) . ACE classifies incoming packets according to the predefined rule files. . ACE then triggers action in the associated action files. . ACE use Network Classification Language(NCL) to configure rules. . ACE is developed in tcp/ip level. . Example of NCL, Rule check_http{tcp&&(tcp.sport==80)}{action_scan()} . check_http is the name of the rule, {tcp&&(tcp.sport==80)} is class matching condition, and {action_scan()} is action function of this condition. . This rule means that incoming request with protocol=tcp and port=80 will go to action “action_scan()”. . NCL is simple for configuration.

  9. Design of the Content Switch . Architecture of Content Switch. . Matching rules and routing policy. . Flow chart.

  10. TCP/IP level Content Switch Architecture (1) NAT(network address translation) . Incoming and out going packets all pass through Content Switch. . Content Switch masquerades the ip address and port number of incoming and out going packets. . Content Switch uses delayed binding to connect with back server.

  11. TCP/IP level Content Switch Architecture (1) NAT Content Switch delayed binding delayed binding graph . Content Switch establishes a connection with client first. . When get data, choose a server to establish another connection, forward original syn msg, discard the ack from back server. . For the following data transmission, Content Switch only forward it after masquerades its ip address and port number.

  12. TCP/IP level Content Switch Architecture (2) IP Tunnel and IP Direct Routing . Content Switch accepts request and forward it to the choosed server. . The server then connects with client directly. . Delayed binding . . Need to modify back end server’s tcp protocol. . Faster than NAT approach.

  13. Content Switch Rules The contents should be covered : . Source IP address and TCP/UDP port number. . URL regular expression. . HTTP meta header. . SSL session ID. . Values of XML tags.

  14. Content Switch Rules (1) Examples of Content Switch Rules Cisco Network Based Application Recognition Foundry ServerIron Router(config)#class-map match-all http_secure Router(config)#match protocol secure-http Router(ifconfig)#class-map match any audio_video Router(config)#match protocol http mime “audio/*” Router(config)#match protocol http mime “video/*” Router(config)#policy-map e-express Router(config-pmap-c)#class http_secure Router(config-pmap-c)#bandwidth 32 Router(config-pmap-c)#class audio_video Router(config-pmap-c)#bandwidth 10 ServerIron(config)#url-map gifPolicy ServerIron(config-url-gifPolicy)#method suffix ServerIron(config-url-gifPolicy)#match “gif”1 ServerIron(config-gifPolicy)#default 2 ServerIron(config-gifPolicy)#exit If the suffix of url in the incoming packets is gif, route to server group 1, else route to server group 2. Intel IX-API SDK Rule check_src {ip.src==10.10.10.30} {action_A()} Rule check_http{tcp&&(tcp.sport==80)}{action_scan()} First define classes for secure http request and audio/video request, and then distribute the outbound bandwidth for each class. The meaning of rule check_src is: if source ip address is 10.10.10.30, then execute the action function “action_A()”.

  15. Content Switch Rules (2) . Precompiled Sequential configuration. . Easy to solve conflict problem. . To speed up the process of rule matching, we can do: - - - . Example ,

  16. Flow Chart of Content Switch (1) packet from client input to ip_input y masquerade ip addr port,seq. connection established? n n n n y UDP? TCP/SYN? TCP/data/ack forward ib packet y y deliver to upper layer create ACK back msg choose server choose server return masq UDP packet send back ACK to client masq SYN msg forward to server forward to server return

  17. Flow Chart of Content Switch (2) packet from back server input to ip_forward Connection established? SYN/ACK? msaq packet create connection hash table masq ip addr, port,seq. forward it forward as normal forward saved ip packet return
