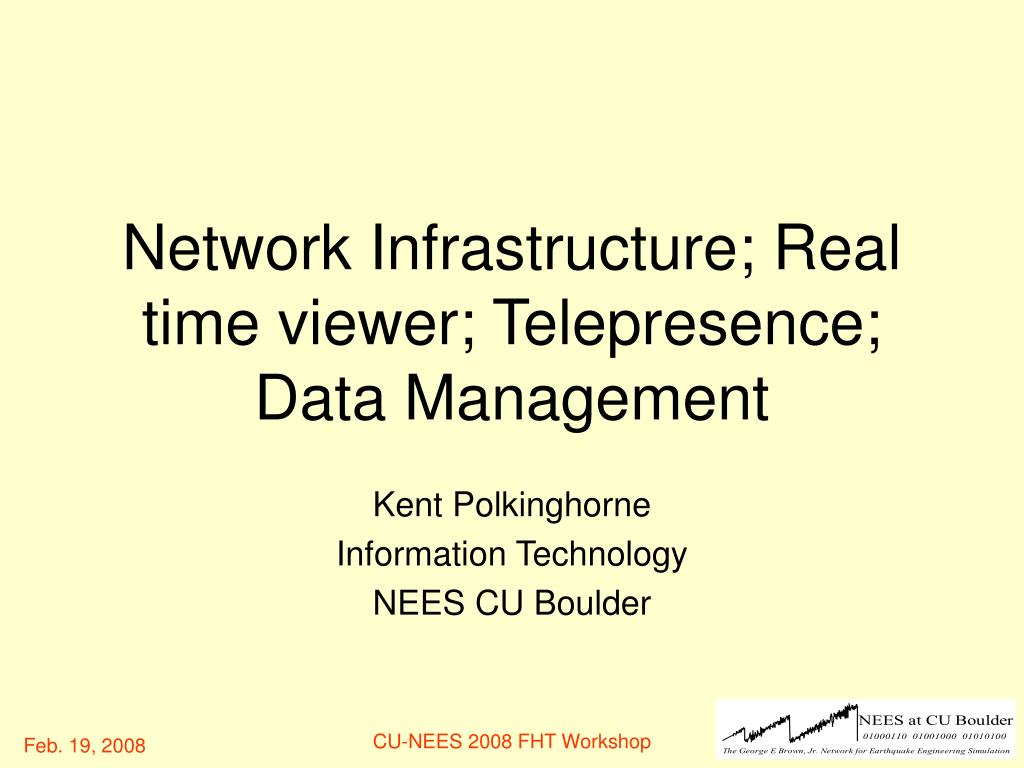

  1. Network Infrastructure; Real time viewer; Telepresence; Data Management Kent Polkinghorne Information Technology NEES CU Boulder CU-NEES 2008 FHT Workshop

  2. Data Sources • Local Data Storage • Remote Data Viewing CU-NEES 2008 FHT Workshop

  3. Probably shouldn’t mention Neespop at all since it sounds like nada pasa CU FHT Equipment Network SCRAMNet Deterministic Optical Network (14) Gigabit Ethernet LAN (2 x Cisco 3550 Switches) (13) Neespop.Colorado.Edu Remote Collaboration Host Real-time Computation Target (OpenSEES/ETS or Simulink) NI Supplementary Data Acquisition and Control System A/D’s Test Specimen Neestp.Colorado.Edu Telepresence Portal and Robotic Camera Control Real-time Simulation Target (Simulink) D/A’s FPGA Additional Computation Resources Videoconference / Telepresence Hardware MTS Digital Control System A/D’s High-speed Actuators Neesdaq.Colorado.Edu Data Turbine Server Local Data Repository Real-time Hosts Valve Drivers Video/Still Image Sources CU-NEES 2008 FHT Workshop

  4. Video and Image Data Network Gigabit Ethernet LAN Robotic PTZ Video Camera Robotic PTZ Video Camera Robotic PTZ Video Camera Neestp.Colorado.Edu Telepresence Portal and Robotic Camera Control Robotic PTZ Video Camera Robotic Still Camera Robotic Still Camera Host Robotic Still Camera Robotic Still Camera Neesdaq.Colorado.Edu Data Turbine Server Local Data Repository MiniDV Camera VIC 2D Image Correlation Host VIC 2D Camera CU-NEES 2008 FHT Workshop

  5. Robotic PTZ Video Cameras • Two fixed cameras at the north and south ends of lab • Two wireless cameras for experiment-specific viewing • Pan, tilt, and zoom controlled from telepresence portal • Video streams can be routed to Data Turbine server and viewed with the Real-time Data Viewer (RDV) • Up to 10 frames/second at 640x480 pixels CU-NEES 2008 FHT Workshop

  6. Robotic Still Image Cameras • Three Olympus C750 4.0 megapixel cameras on robotic pan/tilt bases • Controlled via LabVIEW GUI or web interface • Captured images fed into Data Turbine for viewing with RDV • Used for remotely viewing fine detail at low frame rates (10 seconds/frame) CU-NEES 2008 FHT Workshop

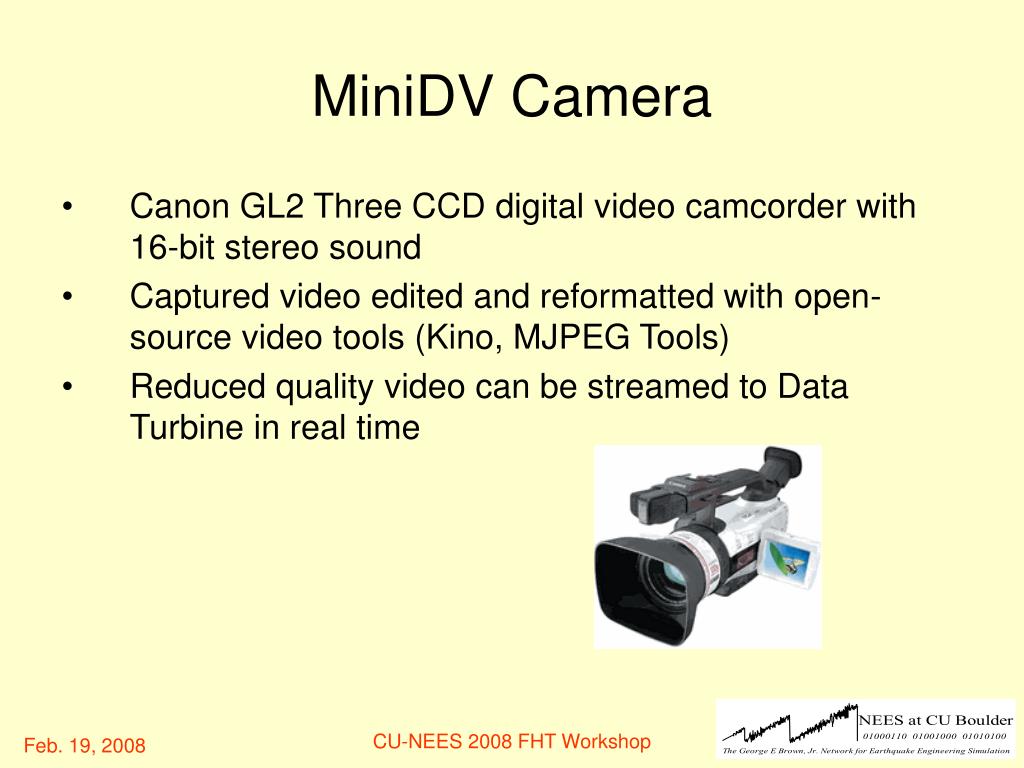

  7. MiniDV Camera • Canon GL2 Three CCD digital video camcorder with 16-bit stereo sound • Captured video edited and reformatted with open-source video tools (Kino, MJPEG Tools) • Reduced quality video can be streamed to Data Turbine in real time CU-NEES 2008 FHT Workshop

  8. Data Sources • Local Data Management • Remote Data Viewing CU-NEES 2008 FHT Workshop

  9. Local Data Flow MTS Digital Control System Researcher National Instruments Supplementary Data Acquisition and Control System Neesdaq.Colorado.Edu Real-time Streaming Data Local Data Repository NEES Central Repository Video/Still Image Sources 500 GB RAID 5 Disk Array OpenSEES and Simulink Real-time Hosts 2.5 TB Robotic Tape Library CU-NEES 2008 FHT Workshop

  10. Local Data Management • Data is moved from data sources to local data repository via network file system • Data from Data Turbine acquired with data sink tools • Local repository stored on redundant disk array with automatic tape backup • Data manually uploaded to NEES Central • Metadata manually uploaded to NEES Central CU-NEES 2008 FHT Workshop

  11. Data Sources • Local Data Management • Remote Data Viewing CU-NEES 2008 FHT Workshop

  12. Data Turbine • Numeric and image data is fed into the Ring Buffered Network Bus (RBNB) “Data Turbine” • Data Turbine is responsible for collecting and synchronizing data from data sources • Synchronized data is streamed to Real-time Data Viewer (RDV) clients • Synchronized data is also streamed to disk for later access CU-NEES 2008 FHT Workshop

  13. RDV • Used to view real-time, streaming data over a network from a Data Turbine Server • “Instant Replay” functionality with variable speed playback • Synchronizes numeric, video, and still image data • Allows user to overlay data from local PC onto streamed data • Developed by Buffalo NEES equipment site CU-NEES 2008 FHT Workshop

  14. RDV Time scale control Zoom timeline Real-time/ Pause control Global timeline Data Turbine server Numeric data graph Video channel list Numeric data channel list Video window CU-NEES 2008 FHT Workshop

  15. FlexTPS • Allows remote viewing and robotic control of live video over the internet using only a standard web browser • Digital Video Recorder (DVR) functionality allows video streams to be recorded and played back • Collaboration function allows video streams from local site and other NEES sites to be viewed together • Developed by University of Texas, Austin equipment site CU-NEES 2008 FHT Workshop

  16. FlexTPS • http://neestp.colorado.edu/portal Camera name Zoom control Camera section Tilt control Pan control Frame rate Snapshot button CU-NEES 2008 FHT Workshop

  17. Data Sources • Local Data Storage • Remote Data Viewing CU-NEES 2008 FHT Workshop
