More Electron Configuration Terms

More Electron Configuration Terms. Valence Electrons. The valence electrons of an atom are the total number of electrons that exist in the highest energy level (highest # coefficient). The max number of valence e- is 8  2 e- in the s sublevel  6 e- in the p sublevel.

yoshi-walls
Télécharger la présentation

More Electron Configuration Terms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

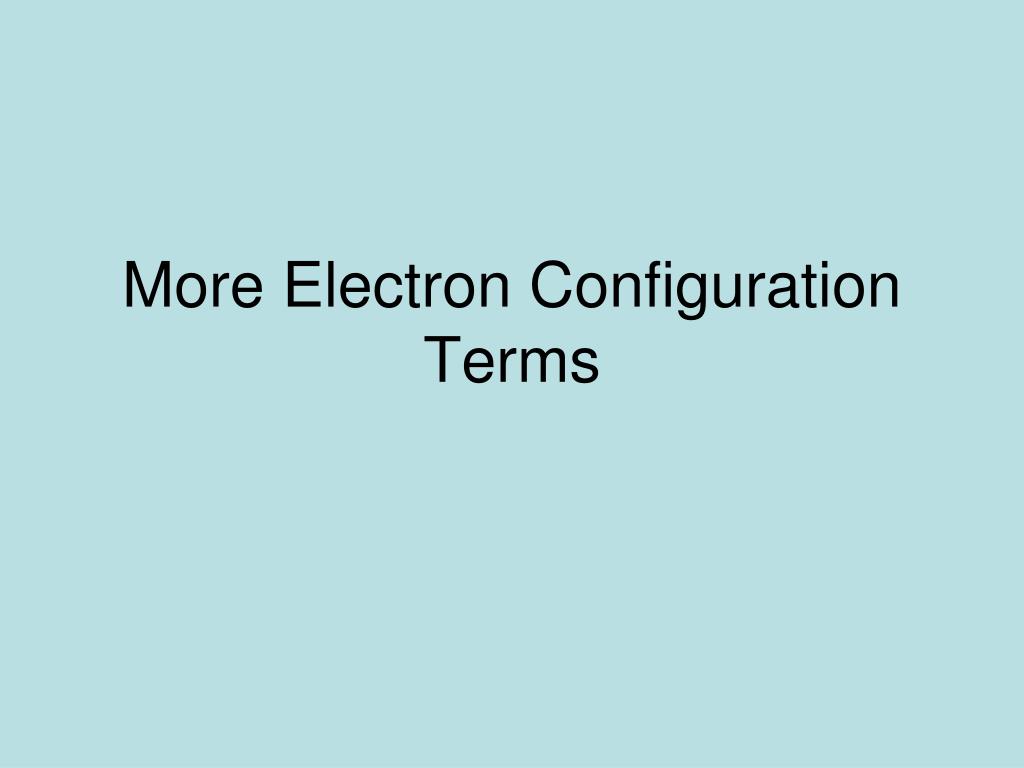

  1. More Electron Configuration Terms

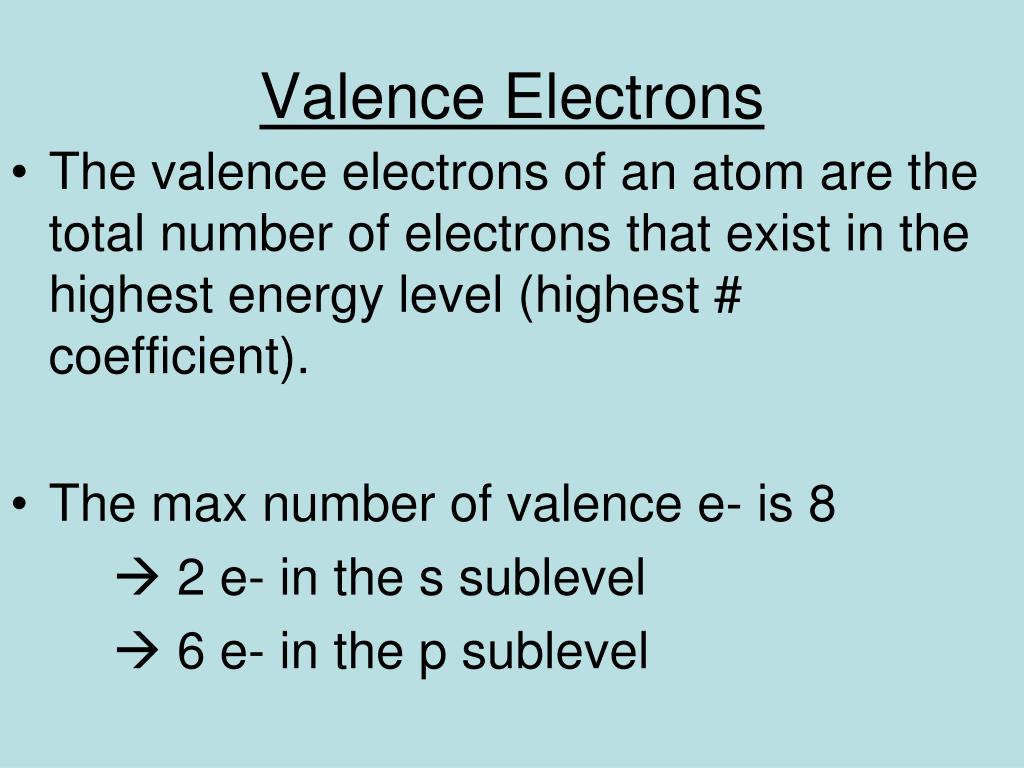

  2. Valence Electrons • The valence electrons of an atom are the total number of electrons that exist in the highest energy level (highest # coefficient). • The max number of valence e- is 8  2 e- in the s sublevel  6 e- in the p sublevel

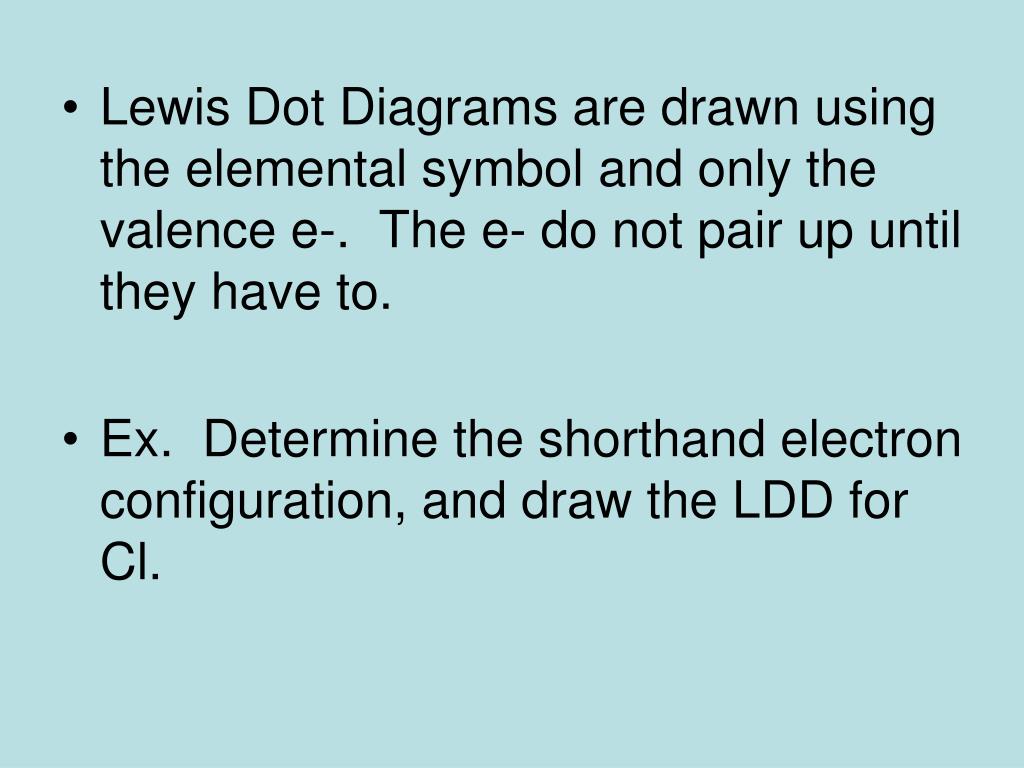

  3. Lewis Dot Diagrams are drawn using the elemental symbol and only the valence e-. The e- do not pair up until they have to. • Ex. Determine the shorthand electron configuration, and draw the LDD for Cl.

  4. Ions • Ions are formed when an atom gains or loses electrons. • Anions are negatively charged ions. They are created when electrons are added to an atom. Ex. Br – • Cations are positively charged ions. They are created from electron being taken from the atom. Ex. Ca2+

  5. You can show ions when writing electron configuration Ex. Ca2+ Br -

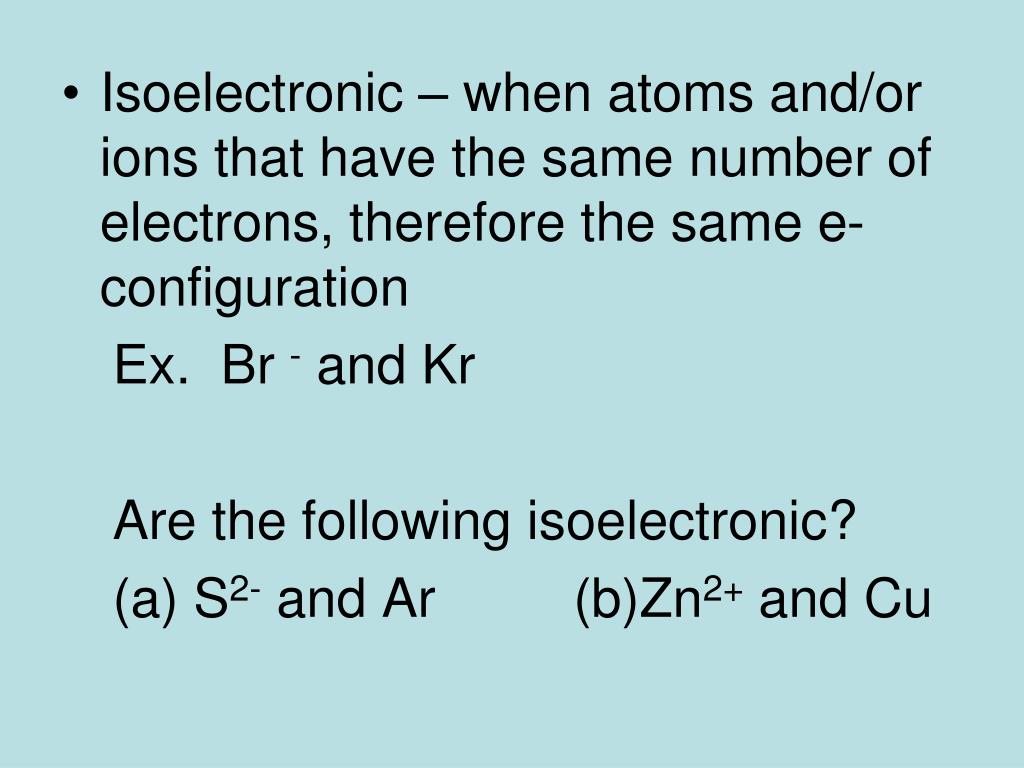

  6. Isoelectronic – when atoms and/or ions that have the same number of electrons, therefore the same e- configuration Ex. Br - and Kr Are the following isoelectronic? (a) S2- and Ar (b)Zn2+ and Cu
