  1. Interconnect and Packaging Chung-Kuan Cheng UC San Diego Lecture 8: Clock Meshes and Shunts

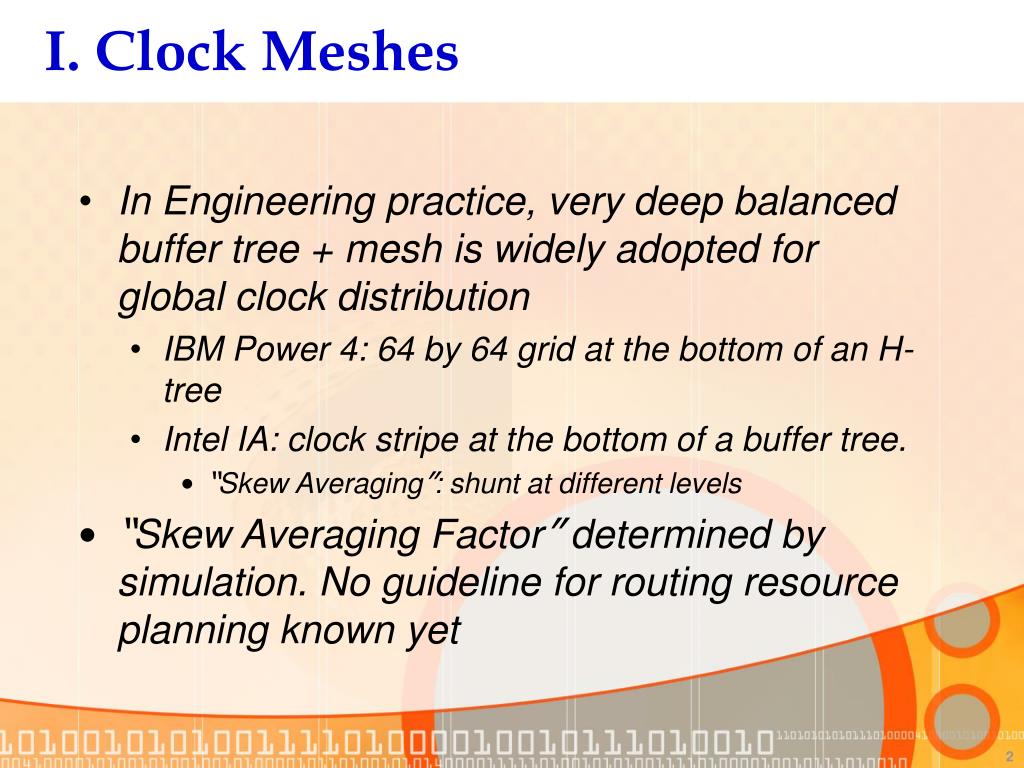

  2. I. Clock Meshes • In Engineering practice, very deep balanced buffer tree + mesh is widely adopted for global clock distribution • IBM Power 4: 64 by 64 grid at the bottom of an H-tree • Intel IA: clock stripe at the bottom of a buffer tree. • “Skew Averaging”: shunt at different levels • “Skew Averaging Factor” determined by simulation. No guideline for routing resource planning known yet

  3. I. Clock Mesh Example (1) • DEC Alpha 21264

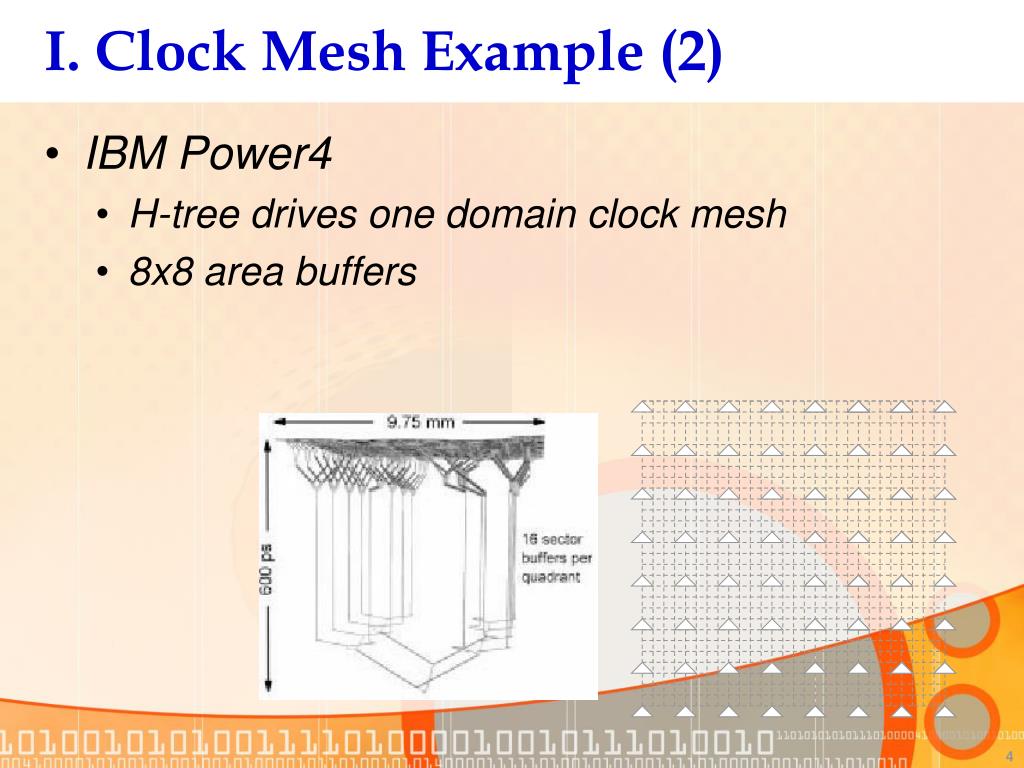

  4. I. Clock Mesh Example (2) • IBM Power4 • H-tree drives one domain clock mesh • 8x8 area buffers

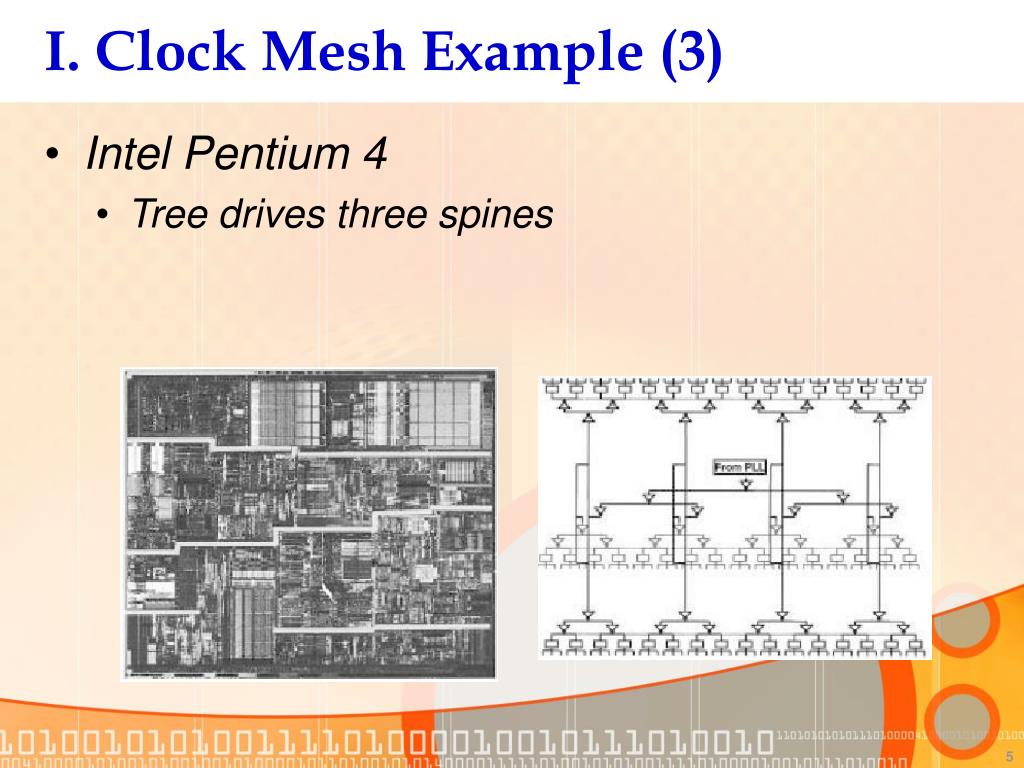

  5. I. Clock Mesh Example (3) • Intel Pentium 4 • Tree drives three spines

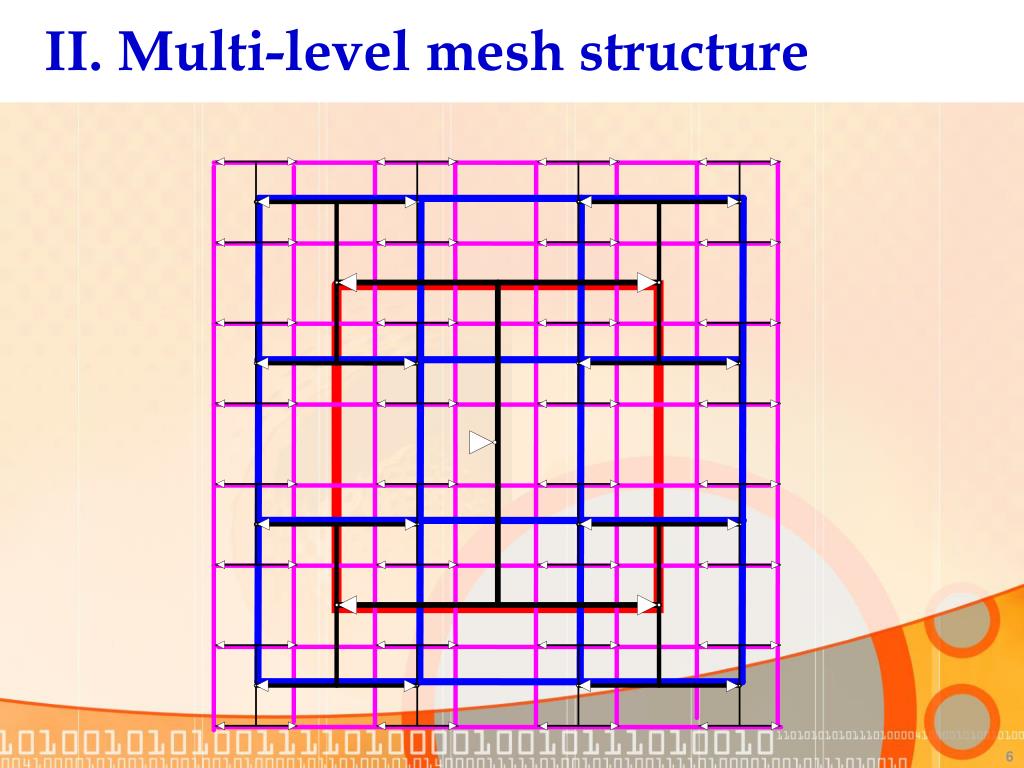

  6. II. Multi-level mesh structure

  7. II. Linear Variations Model • Process variation model • Transistor length • Wire width • Linear variation model • Power variation model • Supply voltage varies randomly (10%)

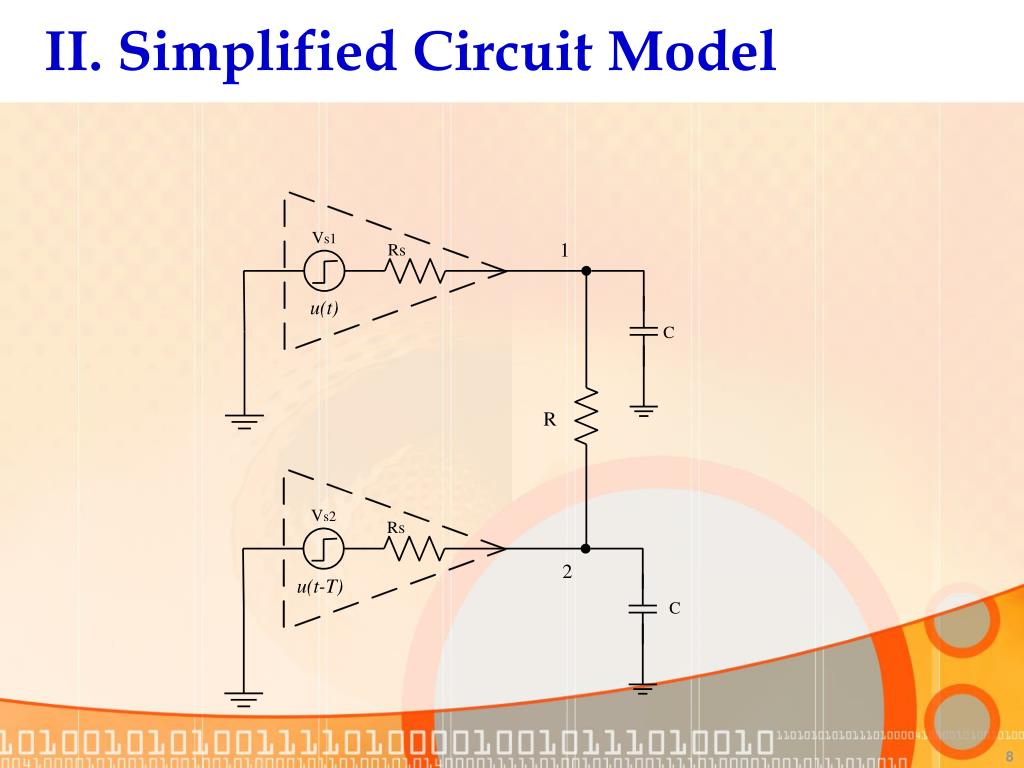

  8. II. Simplified Circuit Model

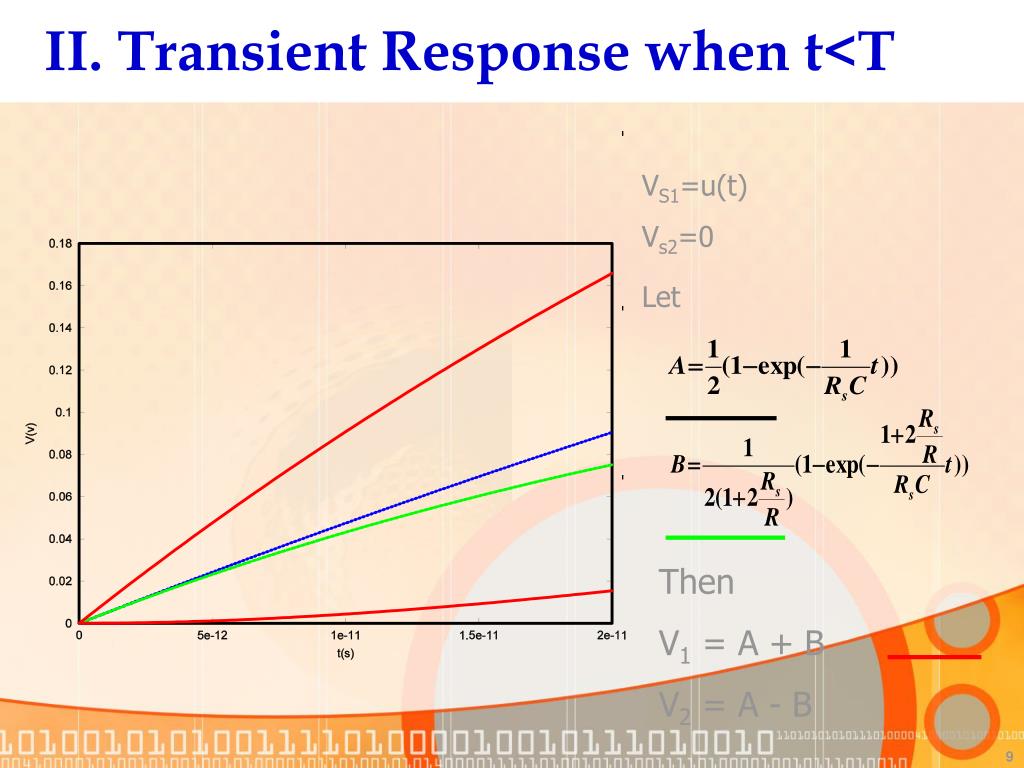

  9. II. Transient Response when t<T VS1=u(t) Vs2=0 Let Then V1 = A + B V2 = A - B

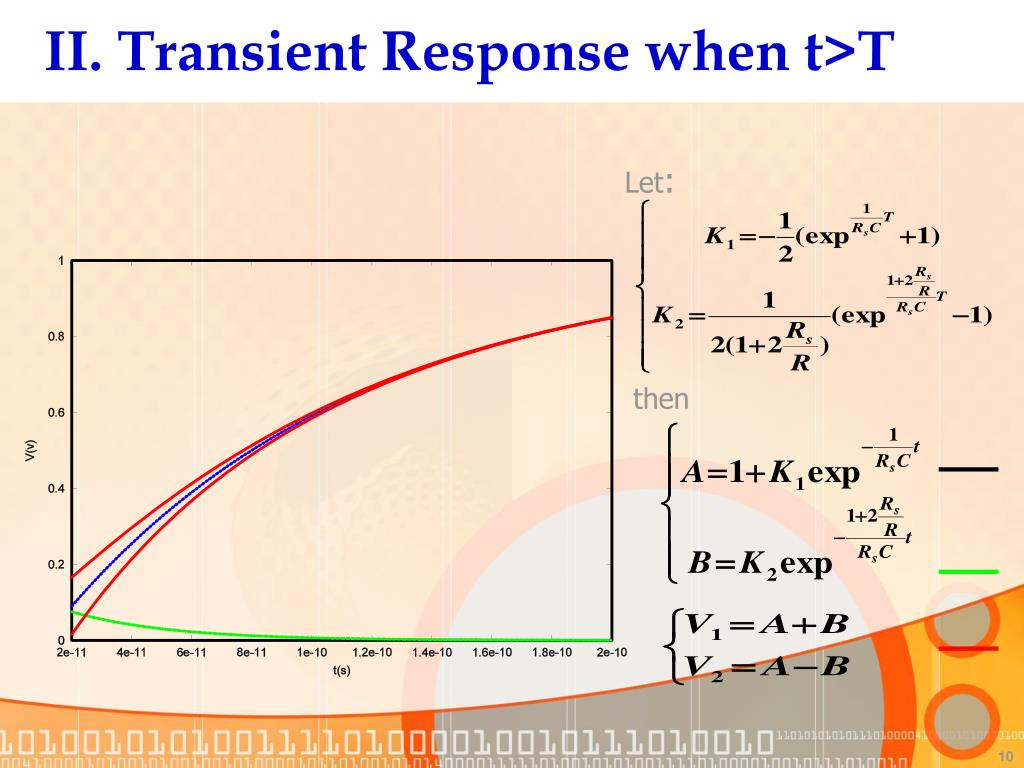

  10. II. Transient Response when t>T Let: then

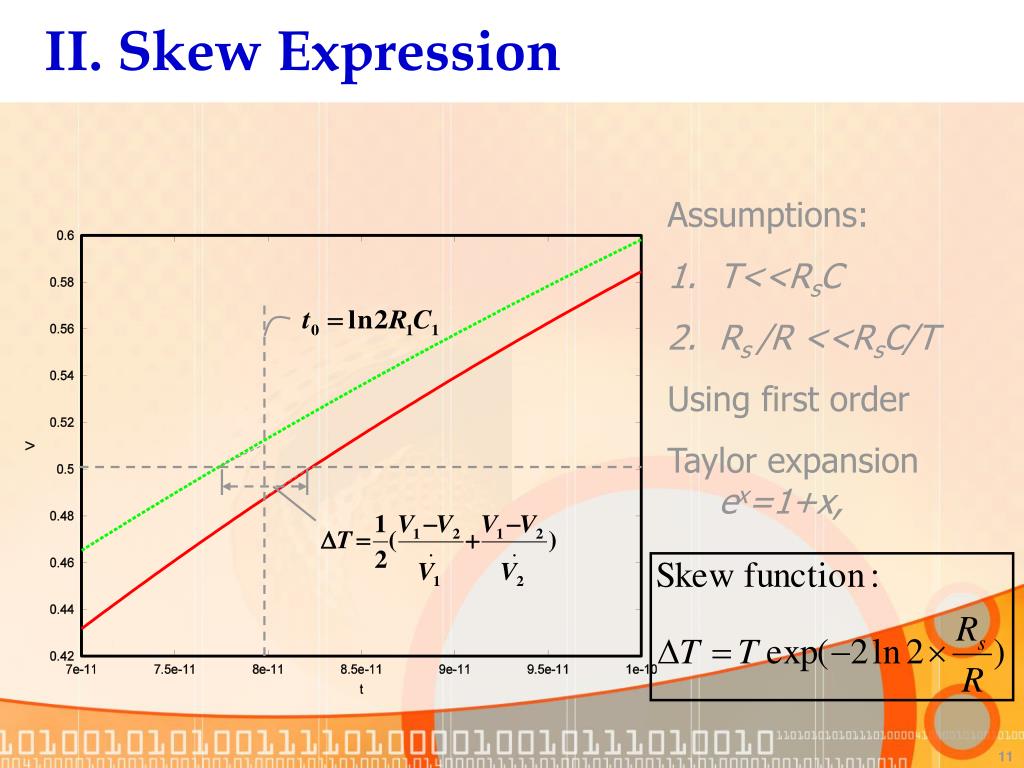

  11. II. Skew Expression • Assumptions: • T<<RsC • Rs /R <<RsC/T • Using first order • Taylor expansion ex=1+x,

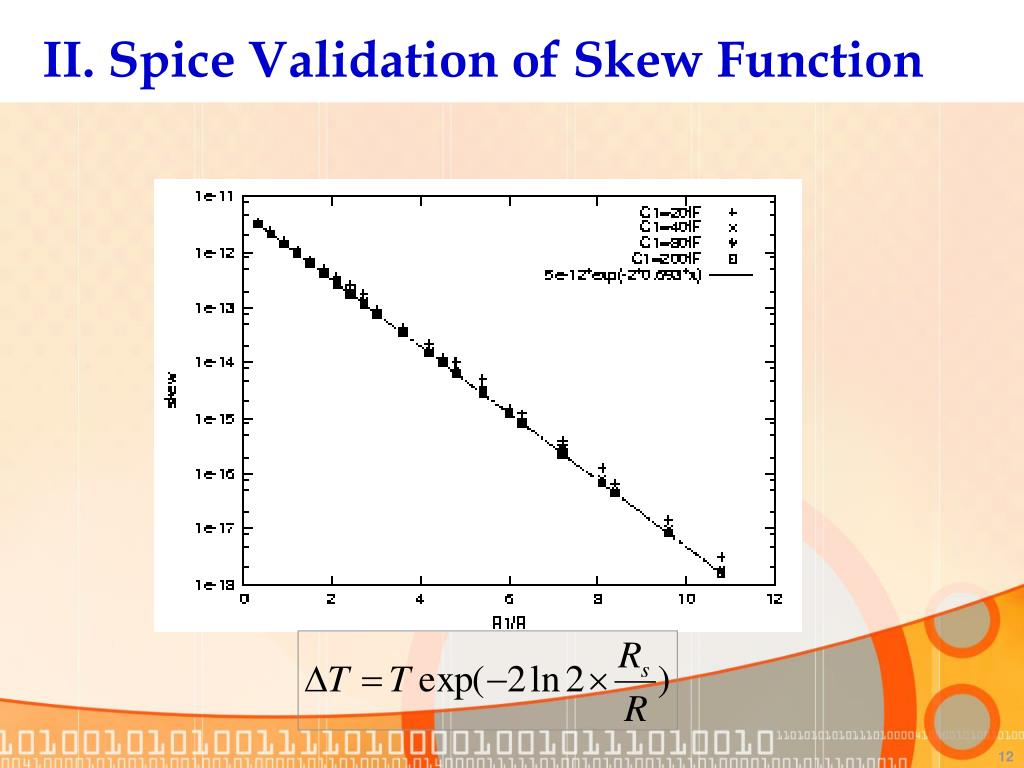

  12. II. Spice Validation of Skew Function

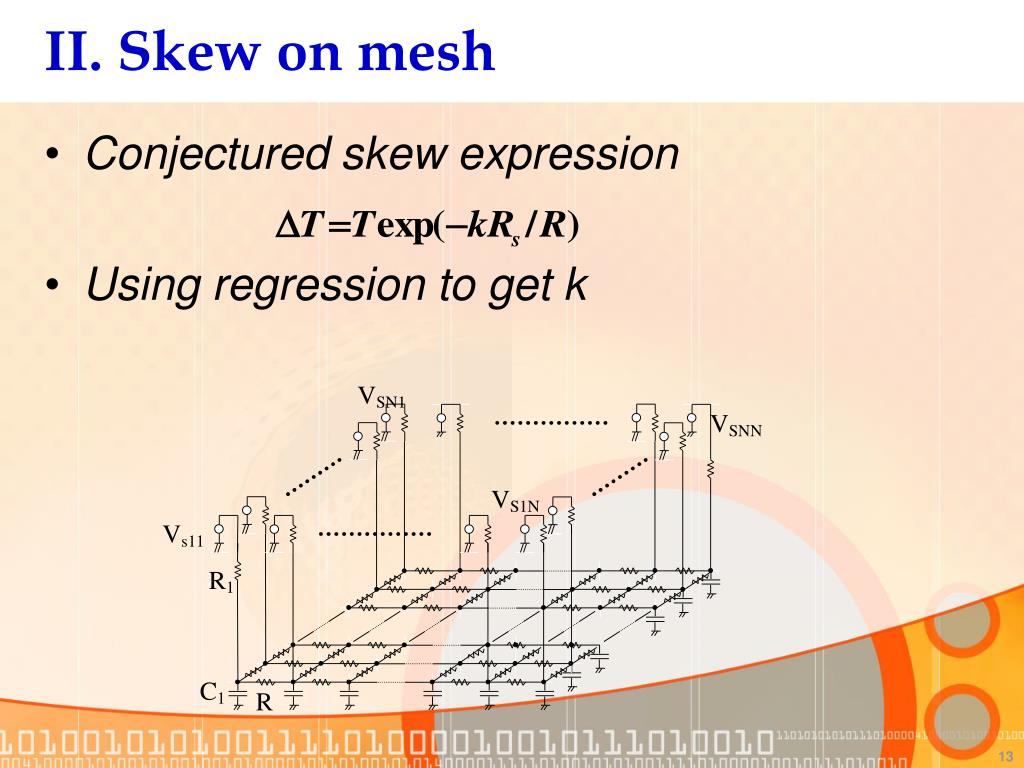

  13. II. Skew on mesh • Conjectured skew expression • Using regression to get k

  14. II. K values for n by n meshes

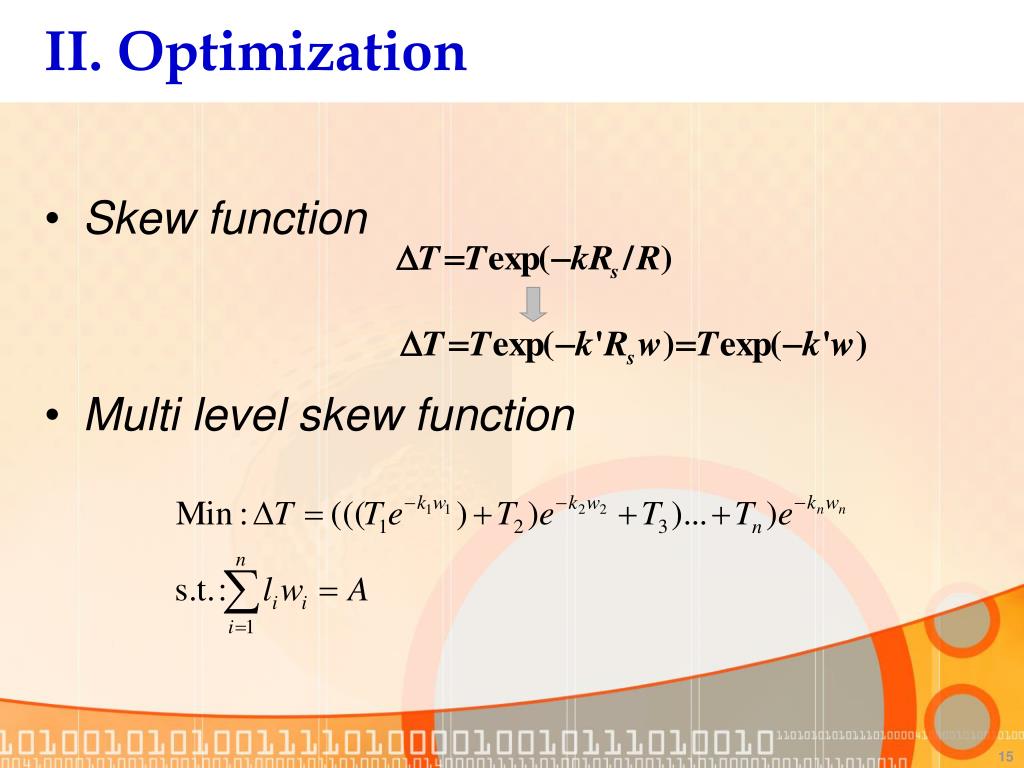

  15. II. Optimization • Skew function • Multi level skew function

  16. III. Experimental Settings GND + - GND • Die size 1cm by 1cm • 100nm copper technology • Ground Shielded Differential Signal Wires for Global Clock Distribution • Routing area is normalized to the area of a 16 by 16 mesh with minimal wire width

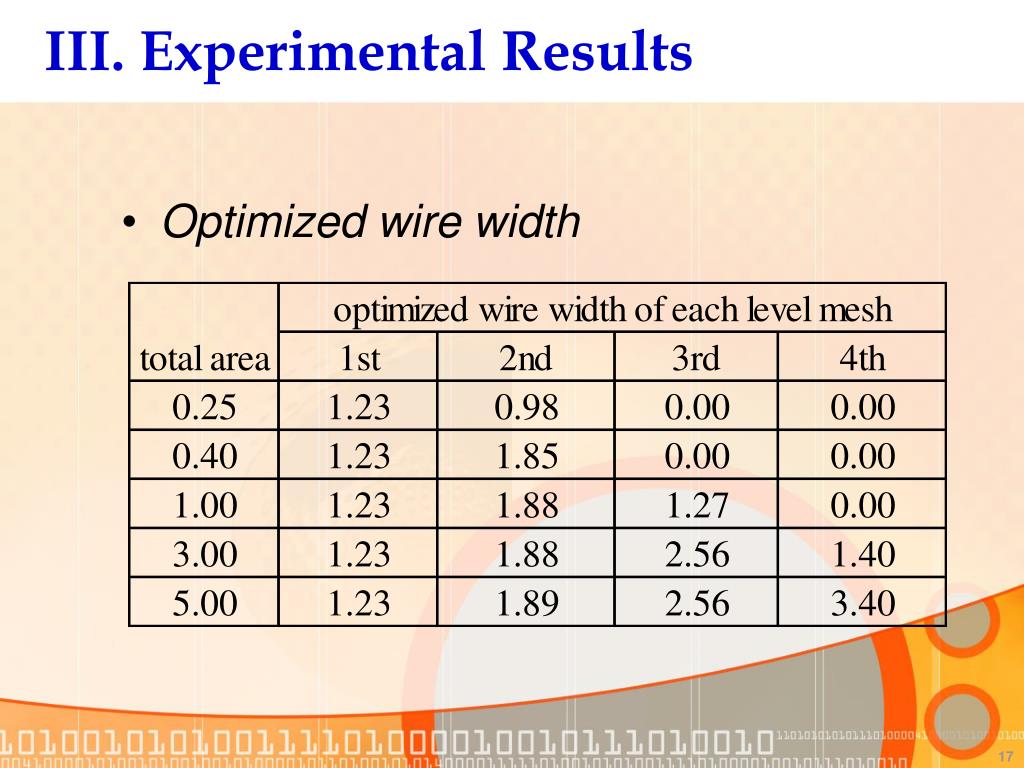

  17. III. Experimental Results • Optimized wire width

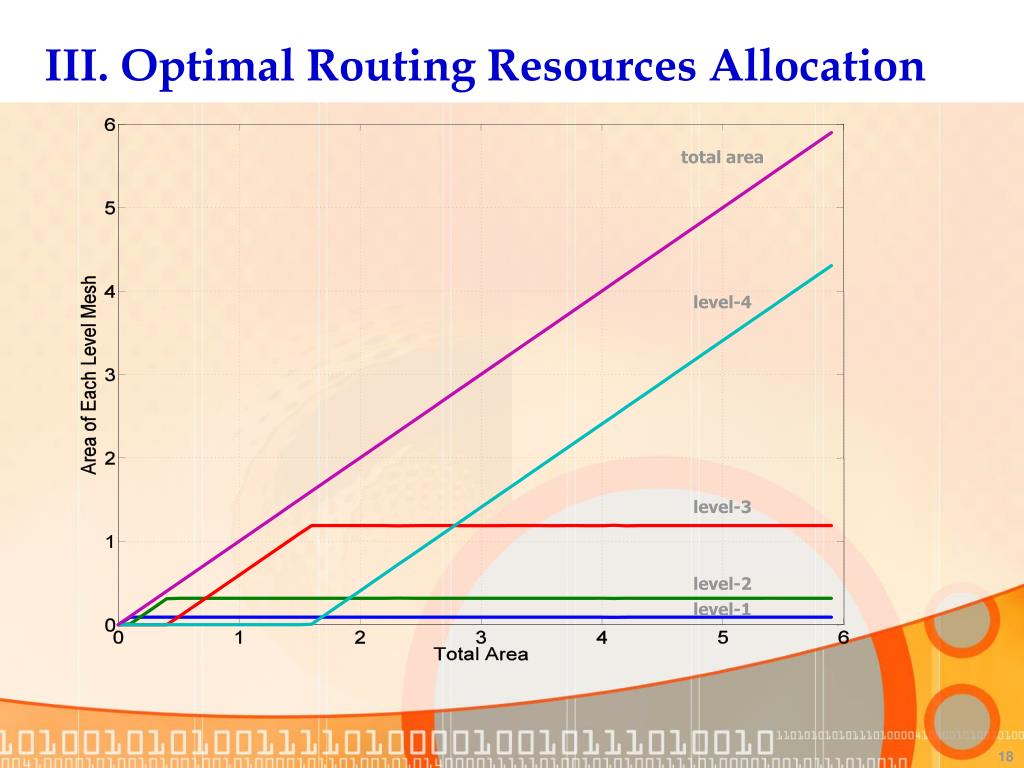

  18. III. Optimal Routing Resources Allocation total area level-4 level-3 level-2 level-1

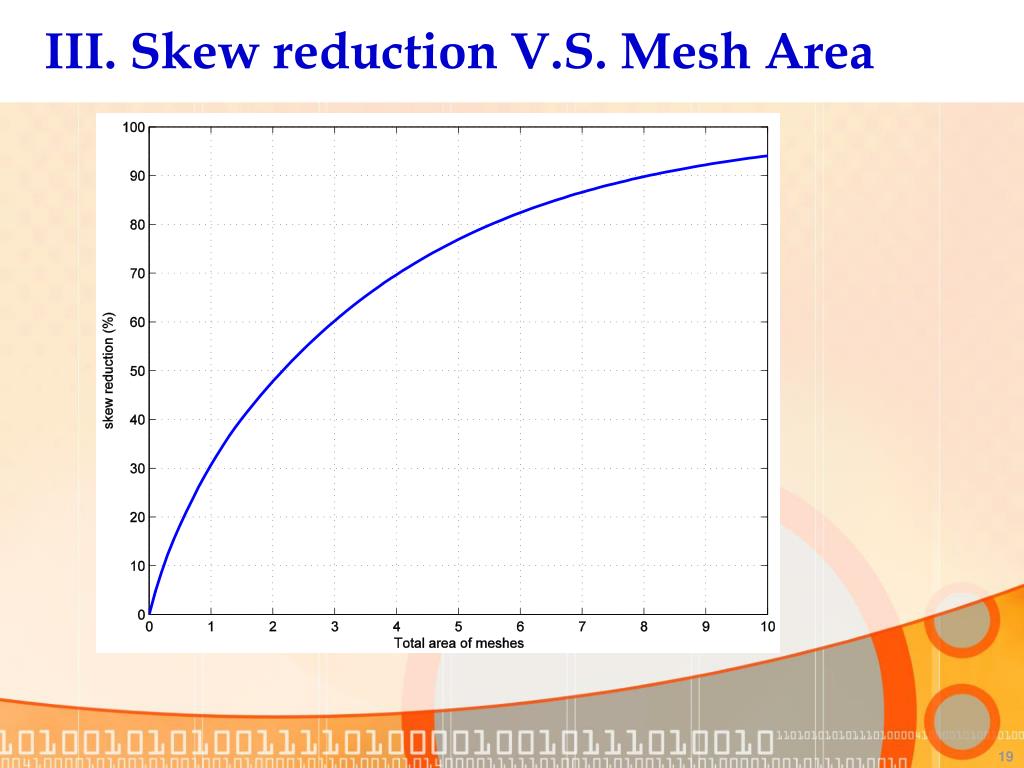

  19. III. Skew reduction V.S. Mesh Area

  20. III. Experiments—Optimized Skew

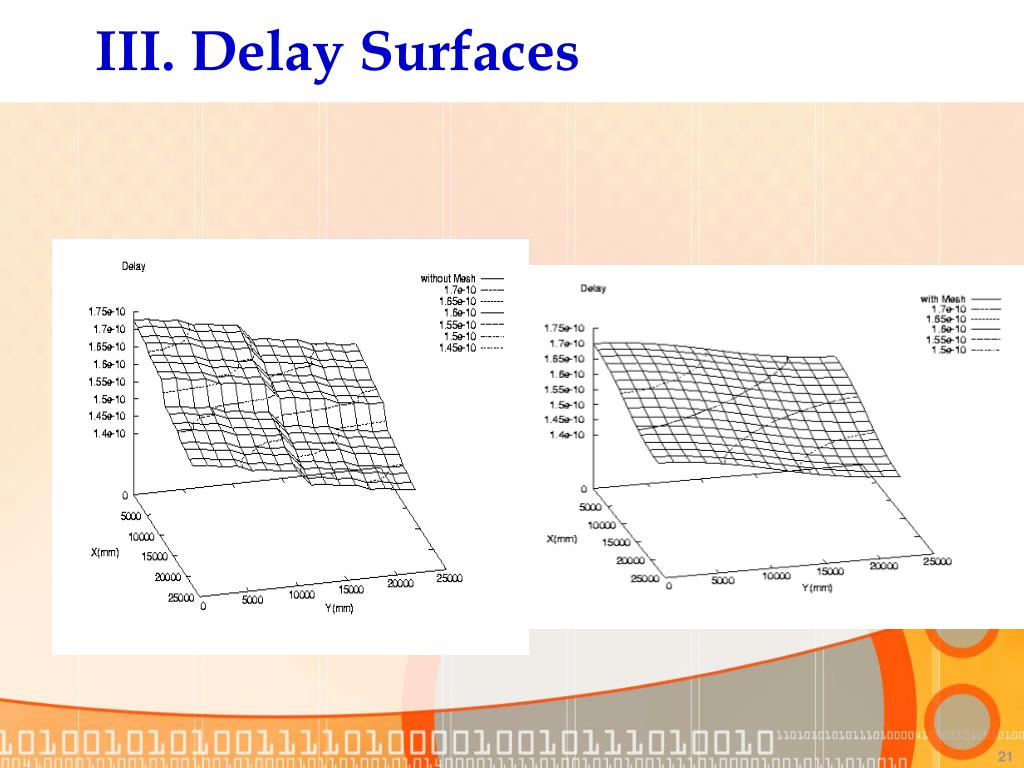

  21. III. Delay Surfaces

  22. III. Robustness Against Supply Voltage Variations

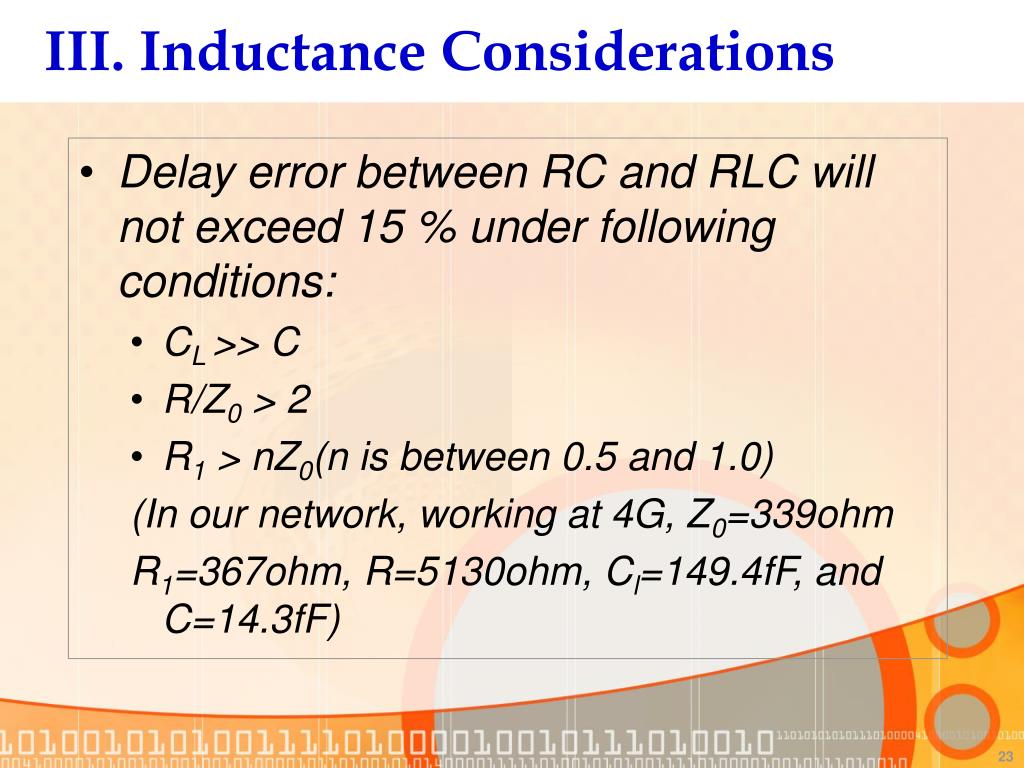

  23. III. Inductance Considerations • Delay error between RC and RLC will not exceed 15 % under following conditions: • CL >> C • R/Z0 > 2 • R1 > nZ0(n is between 0.5 and 1.0) (In our network, working at 4G, Z0=339ohm R1=367ohm, R=5130ohm, Cl=149.4fF, and C=14.3fF)

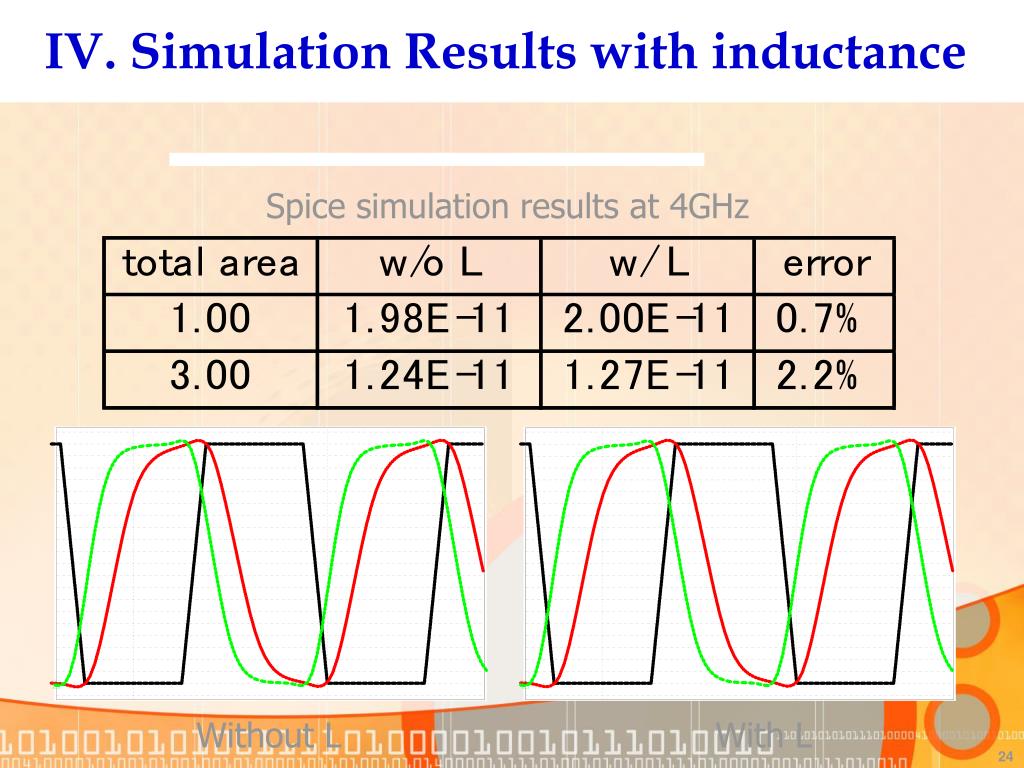

  24. IV. Simulation Results with inductance Spice simulation results at 4GHz Without L With L

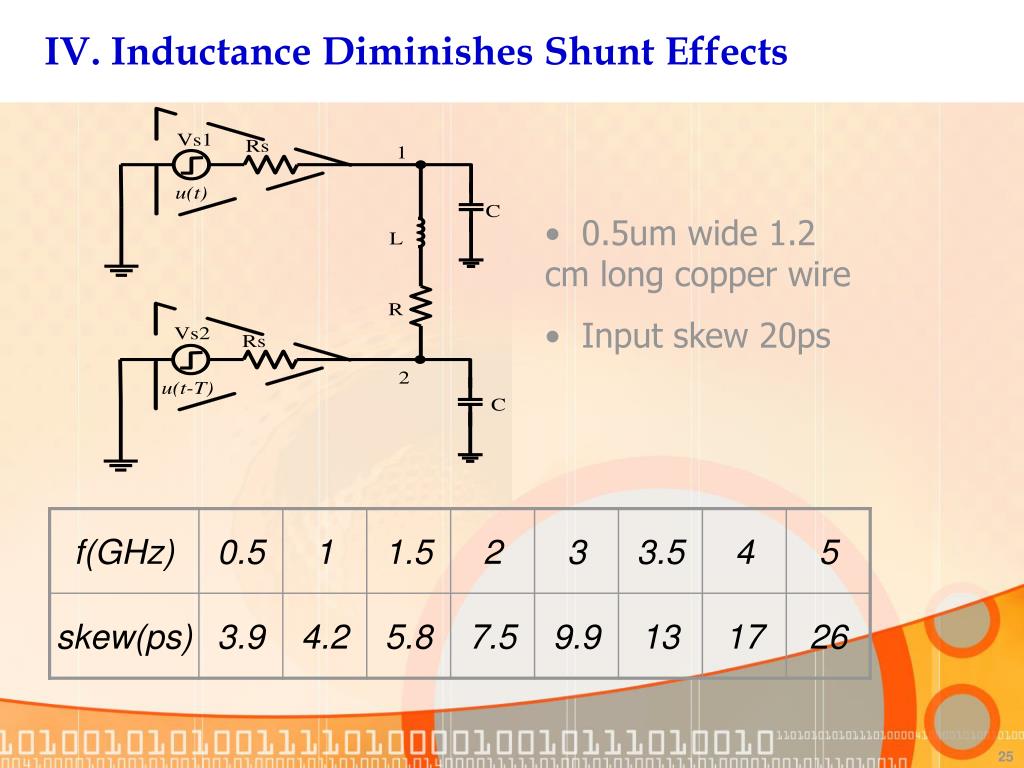

  25. IV. Inductance Diminishes Shunt Effects • 0.5um wide 1.2 cm long copper wire • Input skew 20ps
