  1. WHAT’S NEWWITH AIR MOVERS AND SHAKERS

  2. PRESENTATION FOCUS • To provide an update on the latest features available on SKC Air Samplers • To make you an AIR MOVER AND SHAKER!

  3. WHAT’S MOVING AND SHAKING…ELECTRONIC FLOW CONTROL SKC Isothermal Flow Sensor A patented† flow control sensor from SKC measures the pressure drop across a tube, compares it to a calibration stored in the pump memory, and constantly adjusts the pump motor to maintain the required flow to within ± 3%. † U.S. Patent No. 5,892,160

  4. SKC ISOTHERMAL FLOW SENSOR • Meaures the flow rate directly and maintains the flow through a closed-loop system. • Achieves the set flow immediately without a lot of fluctuation and a long settling time. • Adjusts for variations in temperature and atmospheric pressure.

  5. WHAT’S MOVING AND SHAKING…PUMP FLOW CALIBRATION • New SKC pumps will display the flow rate on the display screen as measured by the internal flow sensor • Calibration can be verified by an external primary flow standard and adjusted.

  6. WHAT’S MOVING AND SHAKING…PUMP FLOW CALIBRATION SKC CalChek® • This SKC patented* feature allows a CalChek capable SKC pump and Defender or DryCal® DC-Lite primary flow calibrator to communicate directly. • When connected, the pump adjusts the flow until the displayed values of both agree.* U.S. Patent Nos. 6,227,031 and 6,363,769

  7. WHAT’S MOVING AND SHAKING…PUMP PROGRAMMABILITY Keyboard control, Real-time data display • Start and stop date and time • Total sample time • Flow rate and air volume • Temperature and atmospheric pressure • Battery status

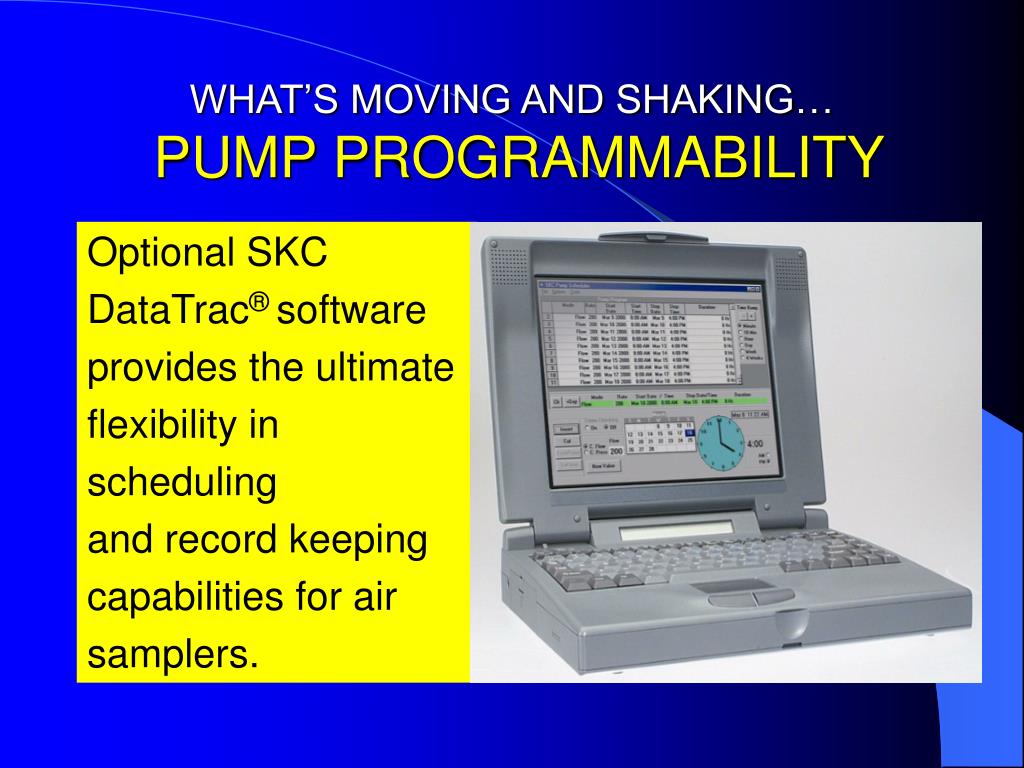

  8. WHAT’S MOVING AND SHAKING…PUMP PROGRAMMABILITY Optional SKC DataTrac®software provides the ultimate flexibility in scheduling and record keeping capabilities for air samplers.

  9. SKC DATATRAC SOFTWAREREAL-TIME SAMPLE SETUP View, Set, or Reset: • Hold/run status • Accumulated run time and air volume • Temperature and atm. pressure • Flow correction factors based on external calibration

  10. SKC DATATRAC SOFTWARESAMPLE SETUP WINDOW Record: • Sample identification • Method/media • Calibration data • Environmental conditions • Analysis results

  11. SKC DATATRAC SOFTWAREPUMP SCHEDULER WINDOW Program: • Sampling intervals • Start/stop date, time, and flow rates • Create a sampling schedule

  12. SKC DATATRAC SOFTWARESAMPLE HISTORY WINDOW Record, View, Save, or Print: • Run times • Flow rates • Air volumes • Changes in operational status

  13. WHAT’S MOVING AND SHAKING…PUMP BATTERIES Advancements in battery technology • Nickel-metal hydride • Lithium-ion • Small in size • High in power • No memory effect • Allow AC operation

  14. WHAT’S MOVING AND SHAKING…PUMP FLOW OPTIONS Longer run times By utilizing new battery technology and optimizing the pump pneumatics for reduced power requirements, extended run times for 10 to 12 hour workplace sampling or 24-hour indoor air assessments can be achieved.

  15. WHAT’S MOVING AND SHAKING…BATTERY CHARGERS • Users want small, portable chargers that work for multiple pumps. • The new SKC PowerFlex® is a revolutionary, patented‡ charging technology. • Charges up to 5 different SKC personal pumps by inserting pump-specific cables into the charger box • No need to carry multiple chargers for multiple types of SKC pumps‡ Patented by Galaxy Power, Inc.

  16. SKC POWERFLEX • Smart - continuously monitors charging voltage and automatically switches to trickle mode at full charge • Convenient - patented technology does not promote memory and discharging is not required, even on NiCad batteries • Space Age - technology used on the NASA space shuttle

  17. GET PLUGGED INTOPOWERFLEX!

  18. WHAT’S MOVING AND SHAKING…PUMP ERGONOMICS Low Noise • The noise levels of sampling pumps are being reduced so they can be used to sample in homes during sleeping hours.

  19. WHAT’S MOVING AND SHAKING…PUMP ERGONOMICS Ruggedness • Air samplers have to be able to withstand the rigors of everyday life in a home or workplace including impact and water resistance.

  20. WHAT’S MOVING AND SHAKING…PUMP ERGONOMICS Small Footprint • Air samplers have to be of a reasonable size and weight to be worn by a person for a 24-hour period, including children and the elderly.

  21. WHAT’S MOVING AND SHAKING…AT SKC

  22. LELAND LEGACY® PUMP

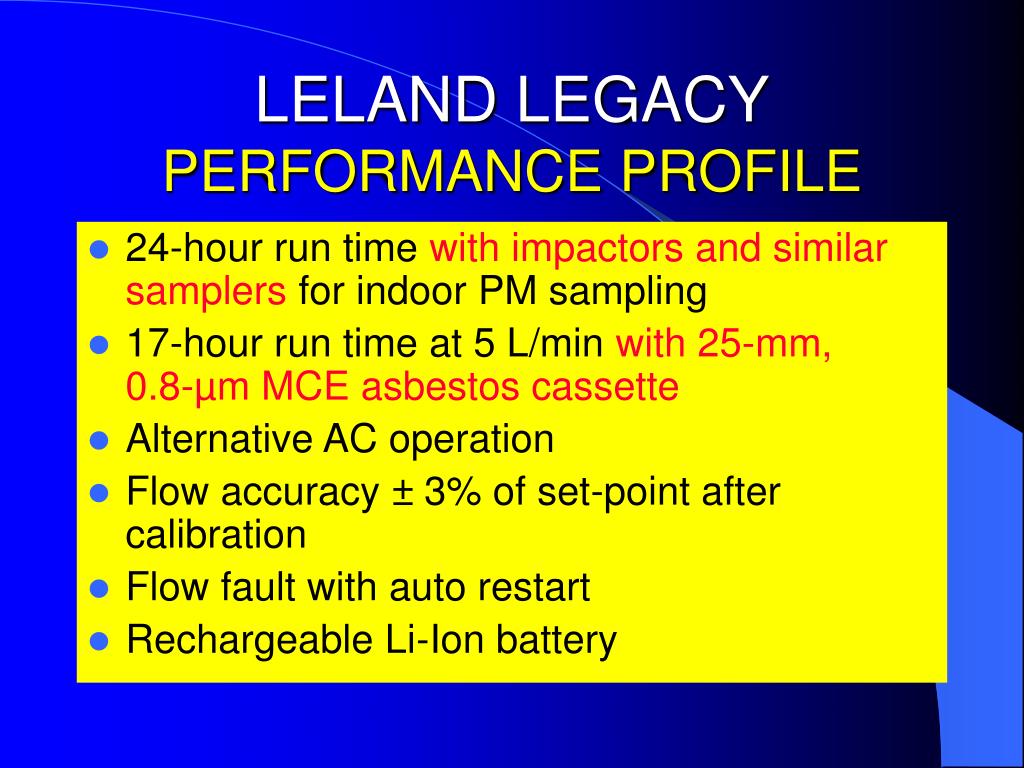

  23. LELAND LEGACYPERFORMANCE PROFILE • 24-hour run time with impactors and similar samplers for indoor PM sampling • 17-hour run time at 5 L/min with 25-mm, 0.8-µm MCE asbestos cassette • Alternative AC operation • Flow accuracy ± 3% of set-point after calibration • Flow fault with auto restart • Rechargeable Li-Ion battery

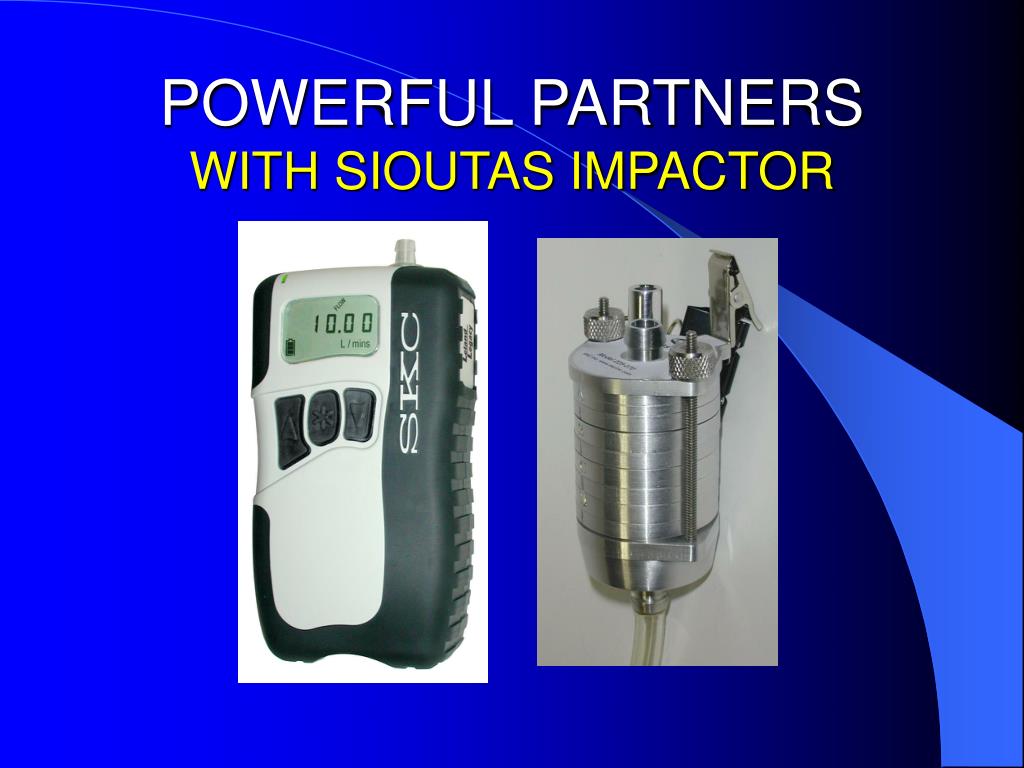

  24. POWERFUL PARTNERSWITH SIOUTAS IMPACTOR

  25. LELAND LEGACYPERFORMANCE PROFILE • Pump Serial Number • Flow Rate • Air Volume • Temperature • Atmospheric Pressure • Time of Day • Run Time Display Options

  26. Noise Levels 52 dB in noise-reducing pouch at 10 L/min and 12 inch H20 bp (measured 1 meter from pump) Ruggedness Impact, dust, and water resistant LELAND LEGACYPERFORMANCE PROFILE

  27. LELAND LEGACYHIGH TECH OPTIONS DATATRAC SOFTWARE CALCHEK CAPABLE

  28. QUICKTAKE® 30 • Portable air sampler designed for bioaerosol sampling and other particulate sampling from 10 to 30 L/min.

  29. QUICKTAKE 30PERFORMANCE PROFILE • Small footprint at 4.8 pounds (2.2 kg) • Constant flow from 10 to 30 L/min • Optional sampling wand • Li-Ion battery provides 5 hours run time • AC charger/adapter for extended runs • Programmable timer • Keyboard control

  30. QUICKTAKE 30BIOAEROSOL APPLICATIONS 5 hours at 15 L/min 4 hours at 28.3 L/min

  31. QUICKTAKE 30 OTHER APPLICATIONS • 14 hours at 10 L/min with 37-mm, 0.8-µm MCE filter • 1.5 hours at 10 L/min with 25-mm, 0.8-µm MCE filter

  32. AIRCHEK® 2000HIGH TECH SIMPLICITY • SKC’s PC compatible pump designed with all of the latest features and automation for low and high flow sampling from 5 to 3250 ml/min.

  33. AIRCHEK 2000PERFORMANCE PROFILE • Lightweight at 22 ounces (624 grams) • Constant flow for high flow sampling • Multiple flow for low flow sampling • Electronic flow control using internal sensor • Flow accuracy ± 3% of set-point after calibration • Flow fault with auto restart

  34. Display Options: Flow Rate, Run Time Air Volume Battery Status Time of Day Flow Fault Temperature Atm. Pressure Programming Options: Manual 3-button programmability PC programmability using DataTrac for AirChek 2000 AIRCHEK 2000PERFORMANCE PROFILE

  35. AIRCHEK 2000HIGH TECH ACCESSORIES POWERFLEX CHARGER CALCHEK CAPABLE

  36. AIRCHEK 2000APPLICATIONS

  37. AIRCHEK 2000 TECHNOLOGY • A Smart Pump • Put one on your belt • Become a Smarty Pants 

  38. AIRCHEK XR5000 • Supercharged Li-Ion battery power • Xtended range to 5 L/min • Xtended run times • Xtra easy operation

  39. THANK YOU FOR YOUR ATTENTION! Congratulations! You are now an AIR MOVER AND SHAKER!
