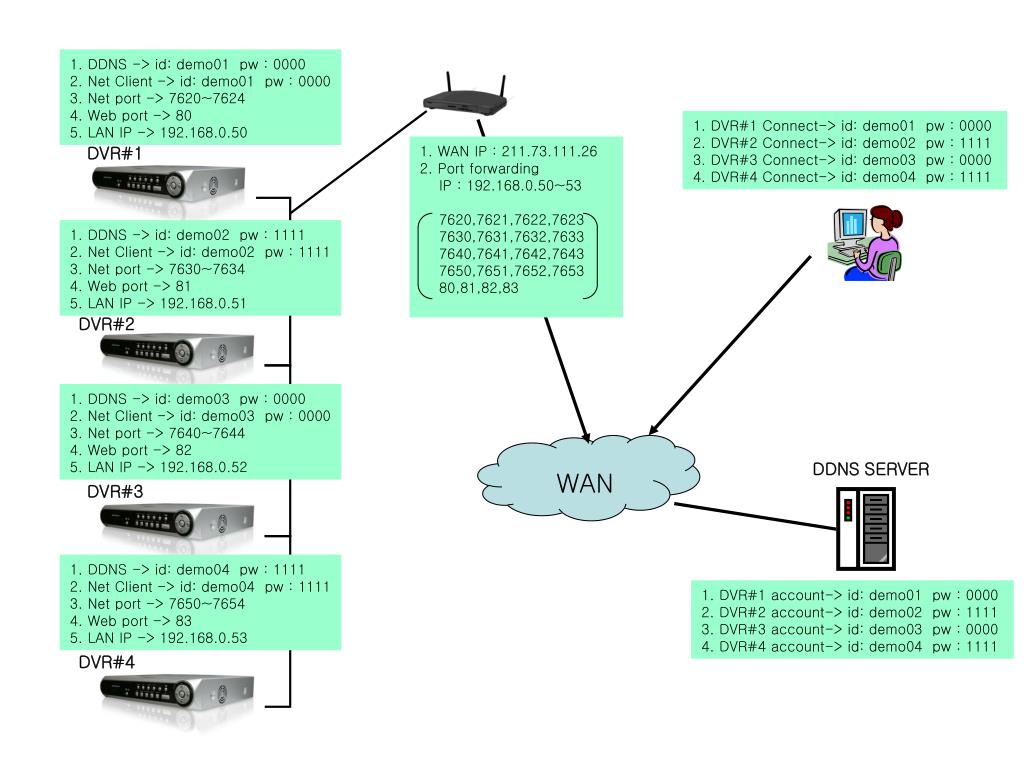

  1. WAN 1. DDNS -> id: demo01 pw : 0000 2. Net Client -> id: demo01 pw : 0000 3. Net port -> 7620~7624 4. Web port -> 80 5. LAN IP -> 192.168.0.50 1. DVR#1 Connect-> id: demo01 pw : 0000 2. DVR#2 Connect-> id: demo02 pw : 1111 3. DVR#3 Connect-> id: demo03 pw : 0000 4. DVR#4 Connect-> id: demo04 pw : 1111 DVR#1 1. WAN IP : 211.73.111.26 2. Port forwarding IP : 192.168.0.50~53 7620,7621,7622,7623 7630,7631,7632,7633 7640,7641,7642,7643 7650,7651,7652,7653 80,81,82,83 1. DDNS -> id: demo02 pw : 1111 2. Net Client -> id: demo02 pw : 1111 3. Net port -> 7630~7634 4. Web port -> 81 5. LAN IP -> 192.168.0.51 DVR#2 1. DDNS -> id: demo03 pw : 0000 2. Net Client -> id: demo03 pw : 0000 3. Net port -> 7640~7644 4. Web port -> 82 5. LAN IP -> 192.168.0.52 DDNS SERVER DVR#3 1. DDNS -> id: demo04 pw : 1111 2. Net Client -> id: demo04 pw : 1111 3. Net port -> 7650~7654 4. Web port -> 83 5. LAN IP -> 192.168.0.53 1. DVR#1 account-> id: demo01 pw : 0000 2. DVR#2 account-> id: demo02 pw : 1111 3. DVR#3 account-> id: demo03 pw : 0000 4. DVR#4 account-> id: demo04 pw : 1111 DVR#4
