Particles by example

1. Particles by example Bas Zalmstra Maarten Wiedenhof TigranGasparian

3. Who are these guys? Abbey Games • Bas Zalmstra • Programmer • Maarten Wiedenhof • Artist

4. Who are these guys?

7. Contents • Talk • Why Particles? • Tools • The basics • Adding effects • Emitter Shapes • Blending • Particle Hierarchy • Optimization • Fluids • Lunch • Workshop

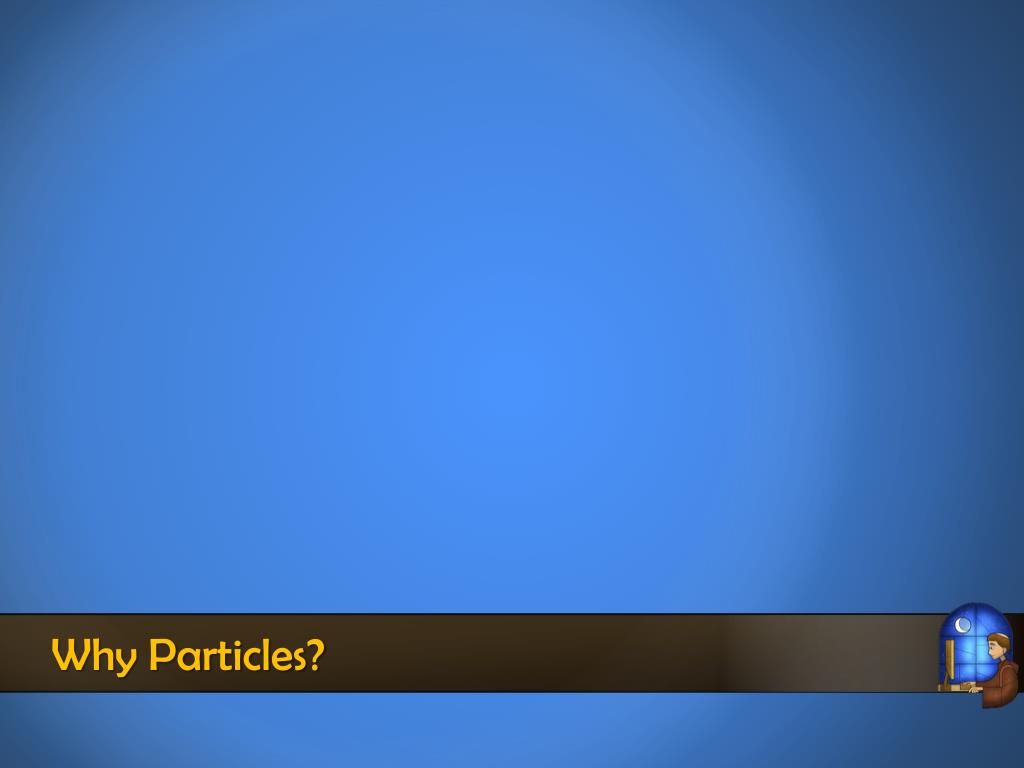

8. Why Particles?

10. Rami Ismail – “You can never have enough particles”

13. Tools

14. Tools • Programming each individual effects sucks • Introducing: Particler • Used to create all particles in Reus and in this presentation

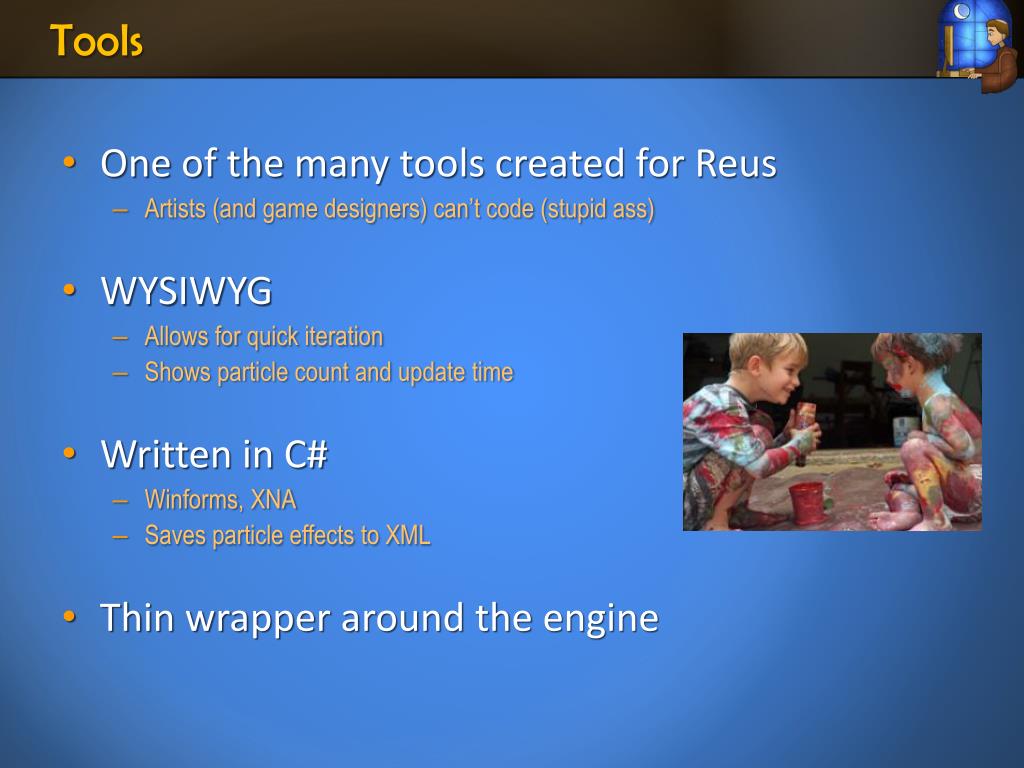

15. Tools • One of the many tools created for Reus • Artists (and game designers) can’t code (stupid ass) • WYSIWYG • Allows for quick iteration • Shows particle count and update time • Written in C# • Winforms, XNA • Saves particle effects to XML • Thin wrapper around the engine

16. The Basics The basics

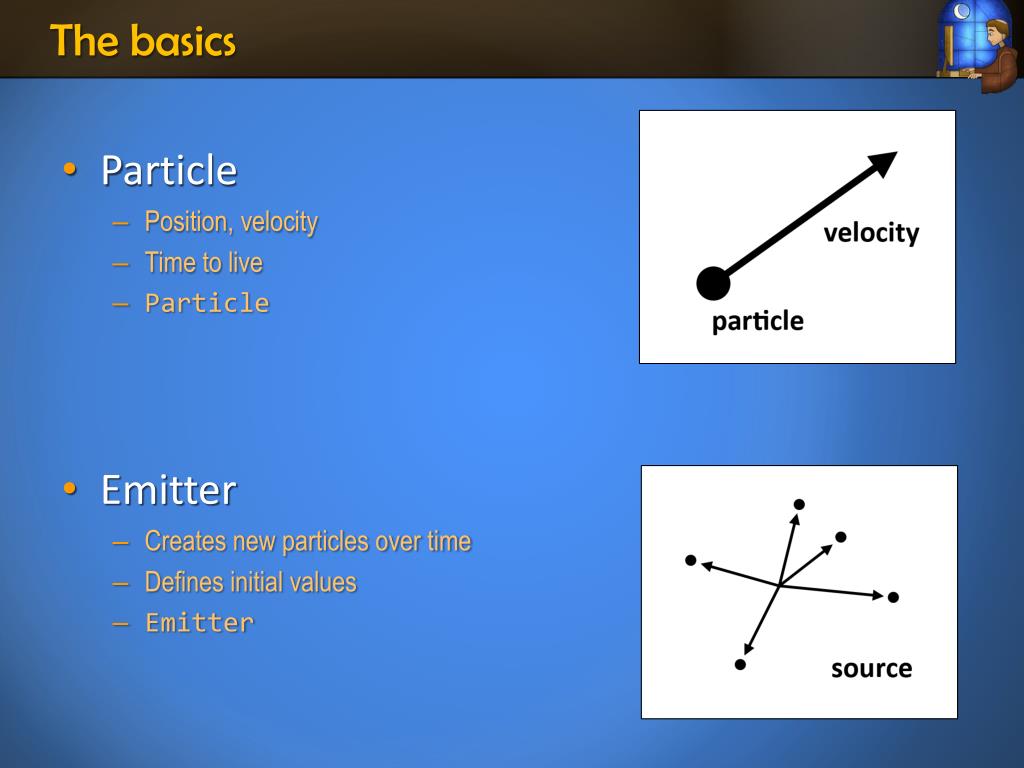

17. The basics • Particle • Position, velocity • Time to live • Particle • Emitter • Creates new particles over time • Defines initial values • Emitter

18. Emitter • Spawns new particles • Everything based on Parameters • Number of particles to spawn • Random velocity • Random color • Random lifetime • Texture

19. Code void Update(floatdeltaTime) { // Remove dead particles foreach(Particle p inactiveParticles) { p.TimeToLive -= deltaTime; if(p.TimeToLive <= 0) Remove(p); } // Spawn new particles    Emit(deltaTime); // Move each particle; ds=dt*vforeach(Particle p inactiveParticles) p.Position += p.Velocity * deltaTime;}

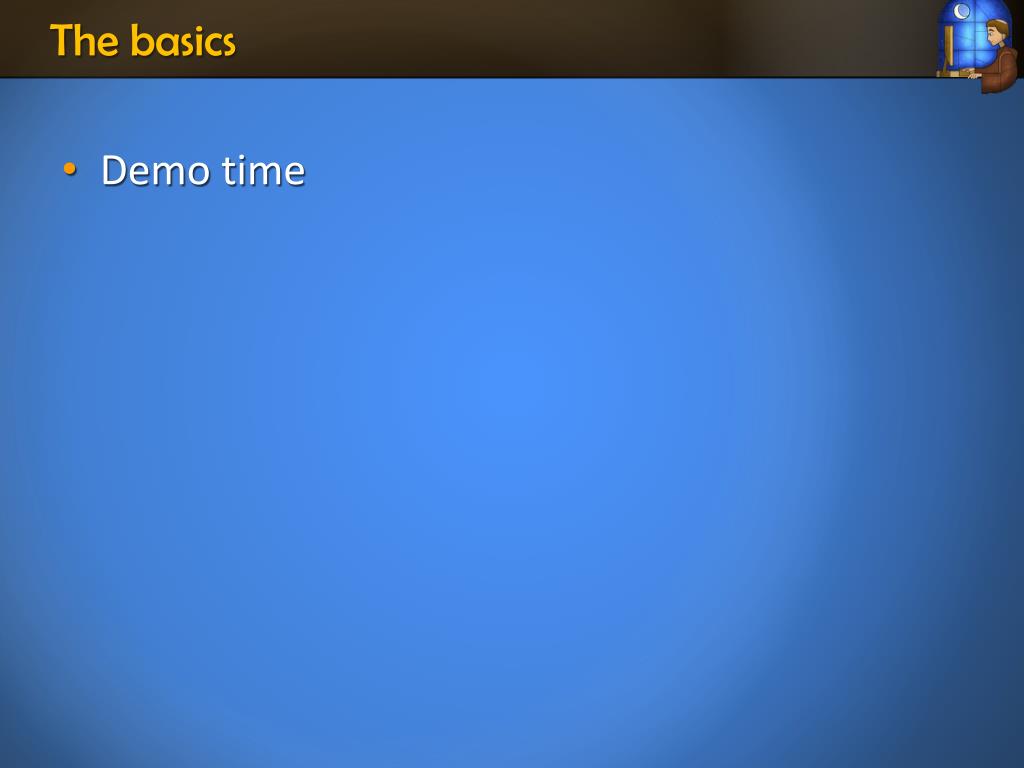

20. The basics • Demo time

21. The Basics Adding effects

22. Effects • Currently looks static & repeating • Lets apply some effects • Change size over time • Change color over time • Add some form of gravity

23. Effects • Demo time

24. Size • Linear interpolate size over lifetime of particle • Vector2.Lerp(Vector2 a, Vector2 b, float x) voidApplyScale(Vector2 beginSize, Vector2 endSize, Particle p) { p.Size = Vector2.Lerp( beginSize, endSize, p.TimeToLife / p.TotalLifeTime);}

25. Fade • Linear interpolate color over lifetime of particle voidApplyFading(Color beginColor, Color endColor, Particle p) { p.Color = Color.Lerp( beginColor, endColor, p.TimeToLife / p.TotalLifeTime);}

26. Fade • Can also use 1D Gradient • Sample random color • Sample over time

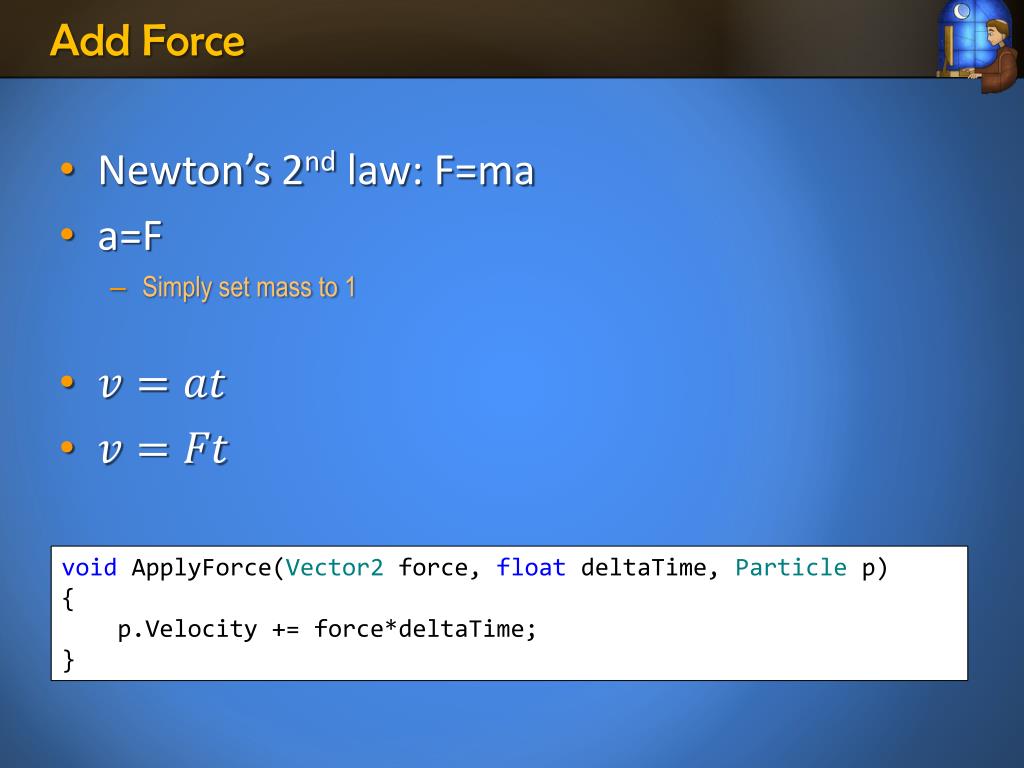

27. Add Force • Newton’s 2nd law: F=ma • a=F • Simply set mass to 1 voidApplyForce(Vector2force, floatdeltaTime, Particlep) { p.Velocity+= force*deltaTime; }

28. Combine void Update(floatdeltaTime) { // Remove dead particles foreach(Particle p in activeParticles) { p.TimeToLive -= deltaTime; if(p.TimeToLive <= 0) Remove(p); } // Spawn new particles    Emit(deltaTime); // Modify Particles foreach(Particlep inactiveParticles) { ApplyScale(beginSize, endSize, p); ApplyFading(beginColor, endColor, p); ApplyForce(force, deltaTime, p); } // Move each particle; ds=dt*vforeach(Particle p in activeParticles) p.Position += p.Velocity * deltaTime;}

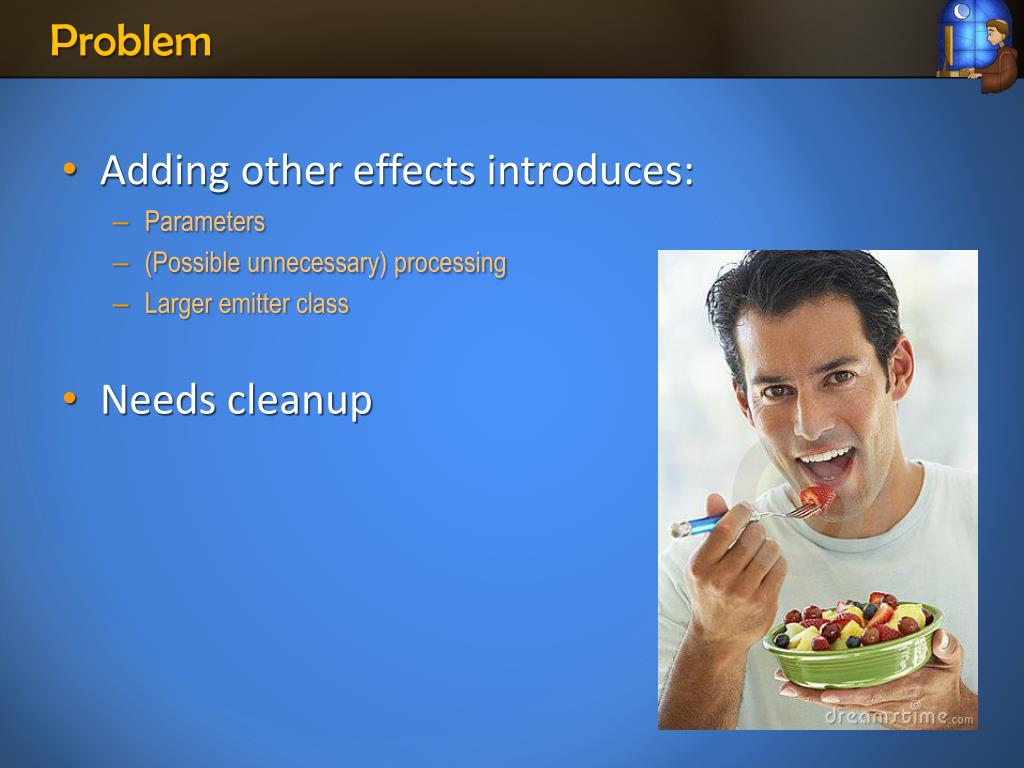

29. Problem • Adding other effects introduces: • Parameters • (Possible unnecessary) processing • Larger emitter class • Needs cleanup

30. Solution • Extract to class: Modifier • ForceModifier • ScaleModifier • ColorModifier • Pro’s: • Separation of code! (Code metrics++) • Plugins • Pay only for what you need (processing wise) • Con: • Extra virtual member call (slower, however, negligible)

31. Extract to class void Update(floatdeltaTime) { // Remove dead particles foreach(Particle p in activeParticles) { p.TimeToLive -= deltaTime; if(p.TimeToLive <= 0) Remove(p); } // Spawn new particles    Emit(deltaTime); // Modify Particles foreach(Modifier mod inmodifiers) mod.Update(deltaTime, activeParticles); // Move each particle; ds=dt*vforeach(Particle p in activeParticles) p.Position += p.Velocity * deltaTime;}

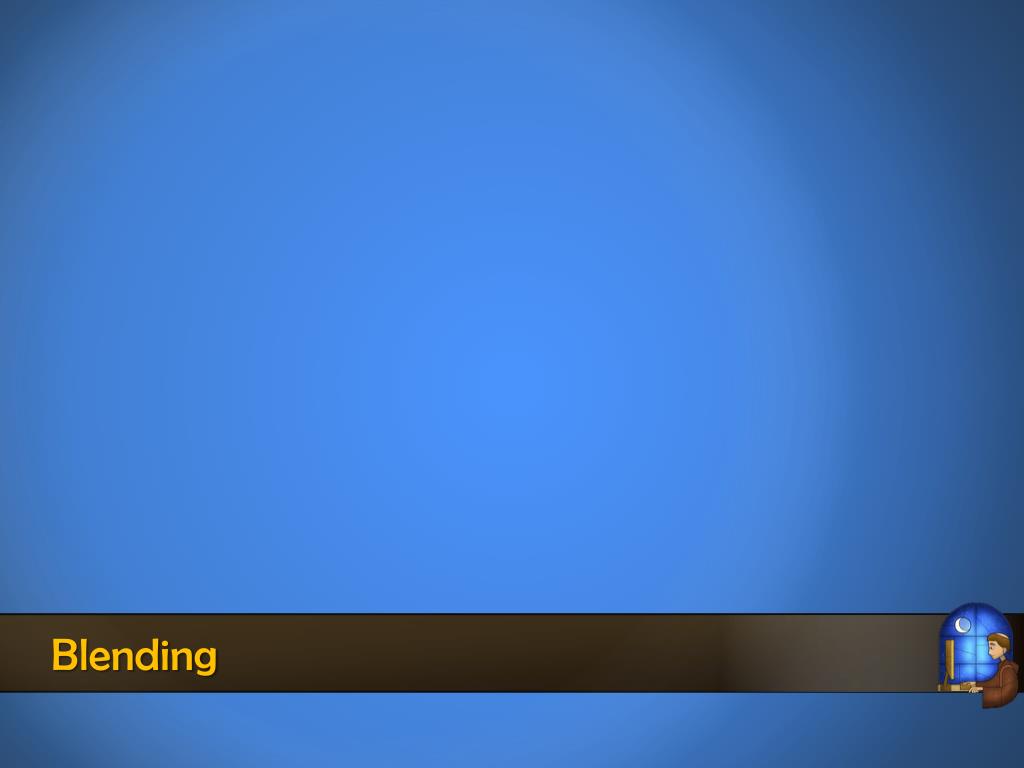

32. Blending

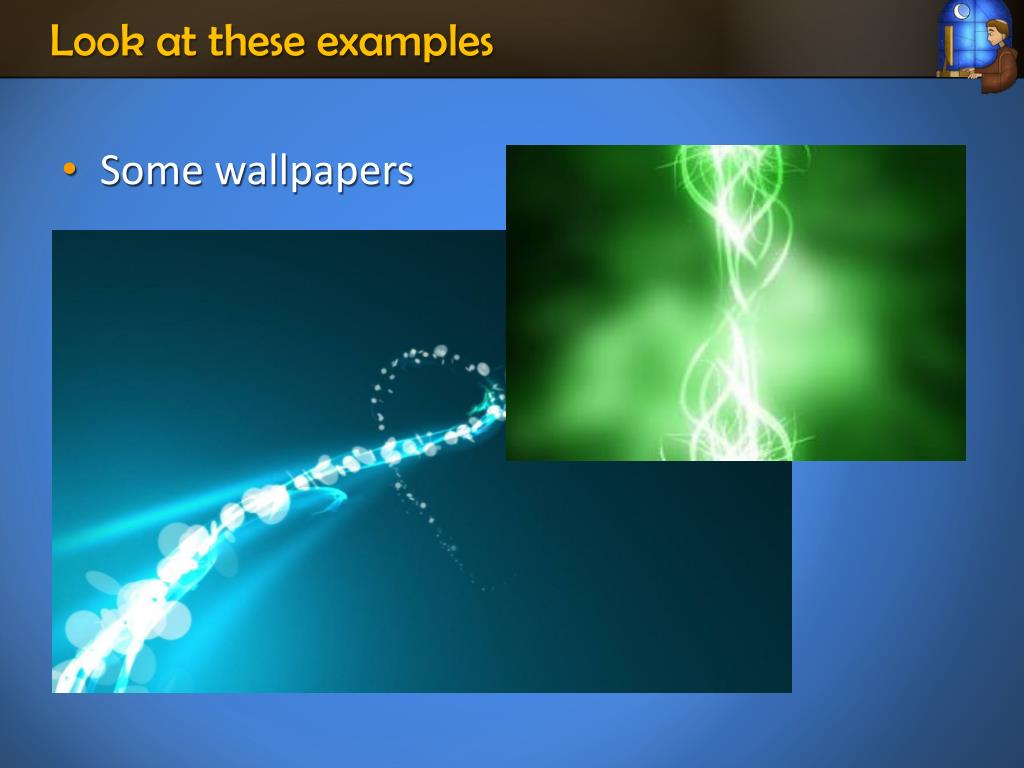

33. Look at these examples • Some wallpapers

34. Opacity, Transparency, Alpha component • Confusing terminology • 100% transparent = 0% opaque = 0% alpha = “invisible” • 0% transparent = 100% opaque = 100% alpha = “fully visible” • Alpha blending • result = Lerp(destination, source, source.alpha) • Additive blending • result = destination + source • Many particle systems use additive blending! • Fire, energy, electricity, light, etc.

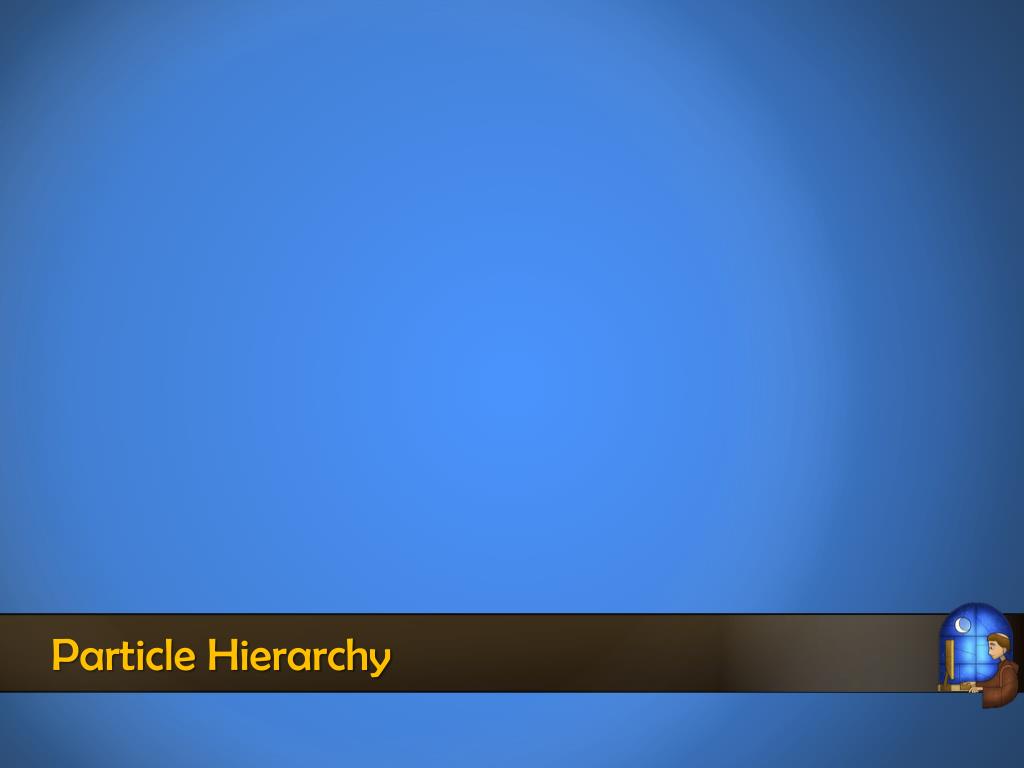

35. Particle Hierarchy

36. Particle Hierarchy • Particles emitting particles! • You can have properties inherited onto the child particles • As always, avoid cycles 

37. Optimization

38. Optimization • Working with 1000+ particles can get slow • Especially if manipulated every frame • Avoid copying all particles • Using unsafe context • Use multithreading

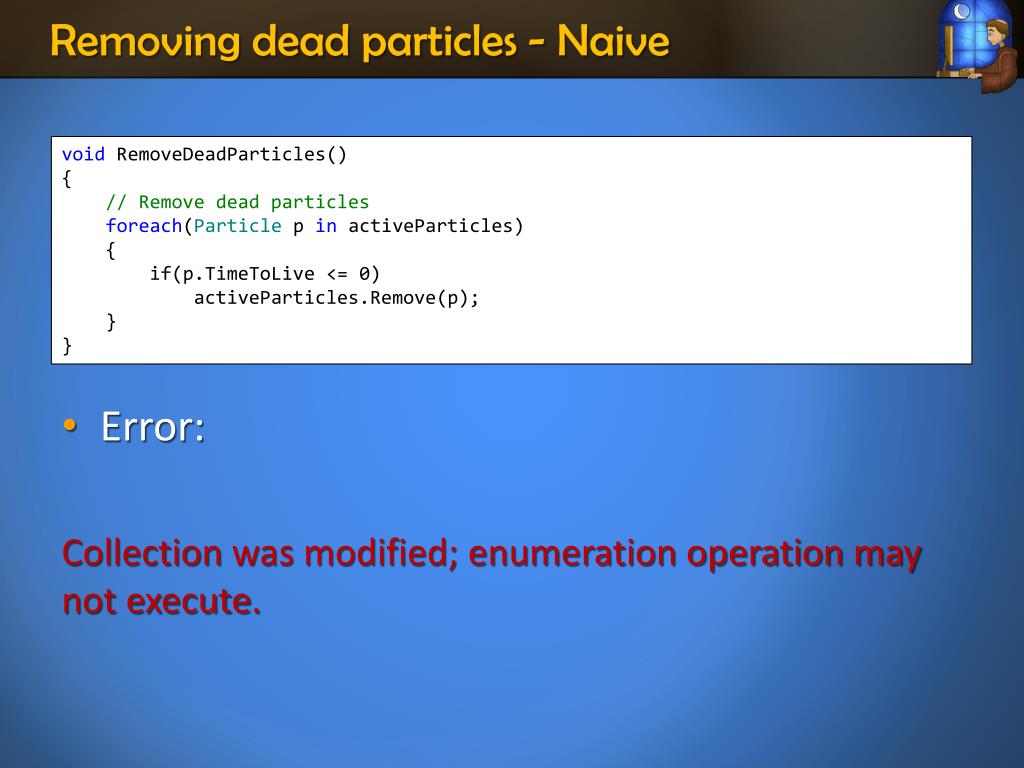

39. Removing dead particles - Naive • Error: Collection was modified; enumeration operation may not execute. voidRemoveDeadParticles() { // Remove dead particles foreach(Particle p inactiveParticles) { if(p.TimeToLive <= 0) activeParticles.Remove(p); }}

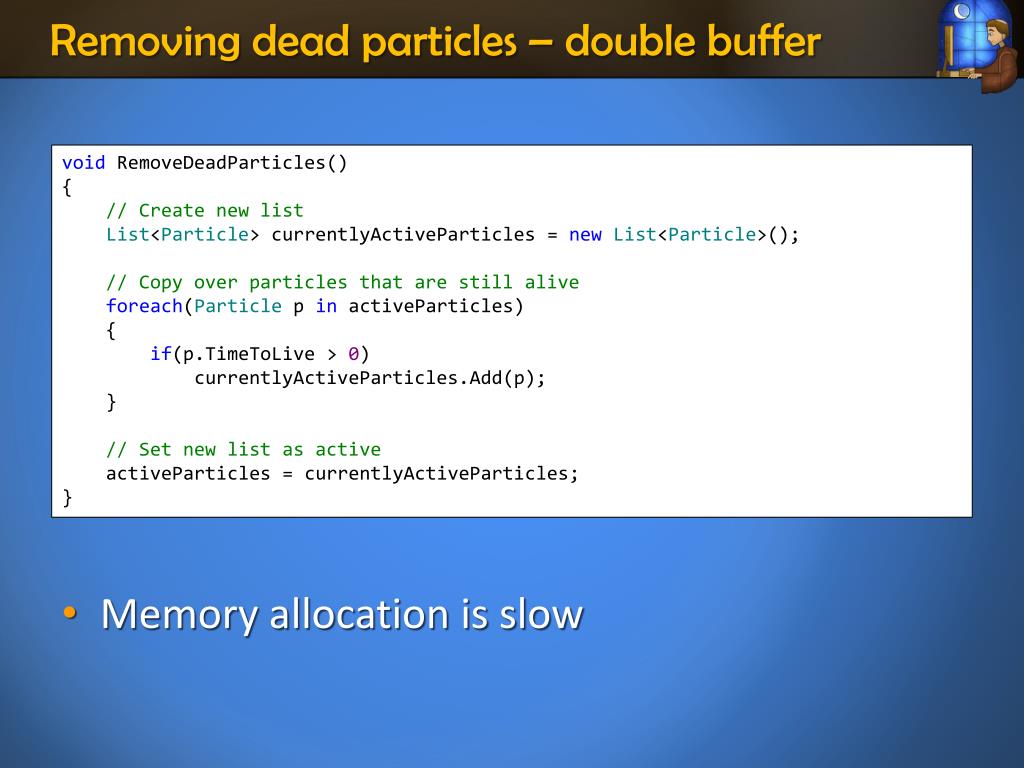

40. Removing dead particles – double buffer • Memory allocation is slow voidRemoveDeadParticles() { // Create new listList<Particle> currentlyActiveParticles = newList<Particle>(); // Copy over particles that are still aliveforeach(Particle p inactiveParticles)     { if(p.TimeToLive> 0) currentlyActiveParticles.Add(p);     } // Set new list as activeactiveParticles = currentlyActiveParticles;}

41. Removing dead particles – smart copy • Probably more life particles than dead ones • Remove instead of add voidRemoveDeadParticles() { // Copy over particles that are still alive intnextAliveParticle = 0;for(inti = 0; i < activeParticles.Length; ++i)    { if(p.TimeToLive> 0) activeParticles[nextAliveParticle++] = activeParticles[i];    } }

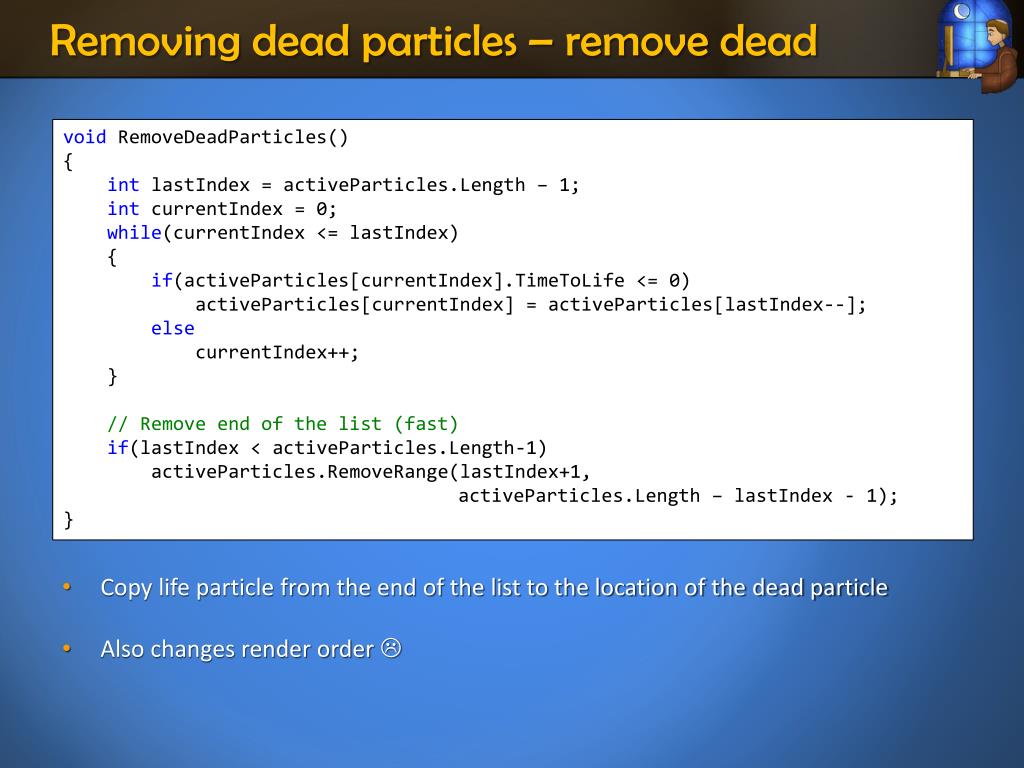

42. Removing dead particles – remove dead voidRemoveDeadParticles() { intlastIndex = activeParticles.Length – 1; intcurrentIndex = 0; while(currentIndex <= lastIndex)    { if(activeParticles[currentIndex].TimeToLife <= 0) activeParticles[currentIndex] = activeParticles[lastIndex--]; else currentIndex++;     } // Remove end of the list (fast) if(lastIndex < activeParticles.Length-1) activeParticles.RemoveRange(lastIndex+1, activeParticles.Length – lastIndex - 1); } • Copy life particle from the end of the list to the location of the dead particle • Also changes render order 

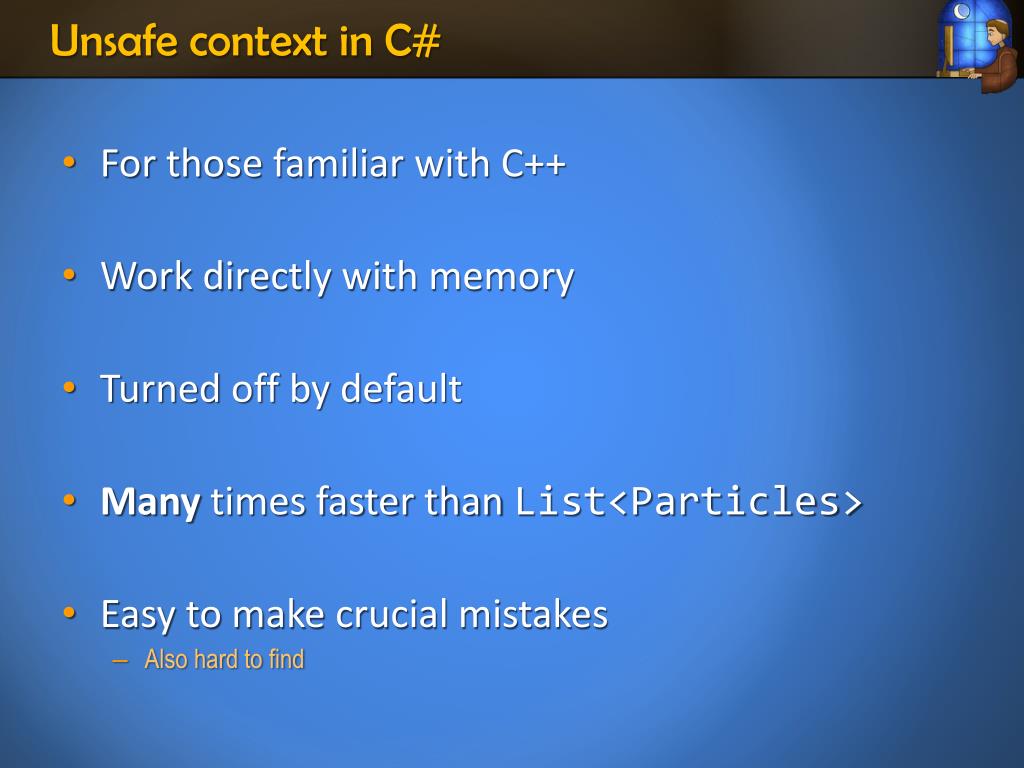

43. Unsafe context in C# • For those familiar with C++ • Work directly with memory • Turned off by default • Many times faster than List<Particles> • Easy to make crucial mistakes • Also hard to find

44. Multithreading • Particle systems can easily be multithreaded • As long as particles don’t interact with each other • Spread computation over multiple cores • Can easily be done with Parallel.ForEach or Parallel.For • Watch out for overhead • Not very usefull for small number of particles.

45. Multithreading voidMoveParticles(floatdeltaTime) { // Move each particle; ds=dt*vforeach(Particle p inactiveParticles) p.Position += p.Velocity * deltaTime;} voidMoveParticlesMultithreaded(floatdeltaTime) { // Move each particle; ds=dt*v Parallel.ForEach(activeParticles, p => { p.Position += p.Velocity * deltaTime; });}

46. Fluids

47. There are other ways • We showed you today • Individual particles, with properties, moving about • For smoke, atmospheric systems and fluids, a different approach can be used

48. A grid of points • Each point holds values • Points never move • Evenly distributed • Every point influences its neighbors • Compare • Lagrangian: track individual particles flowing through space • Eulerian: keep track of static points, with values flowing through them

49. Buy Reus

50. Workshop ideas • Additional emitter properties • Texture animation • Funky color • Rotation
