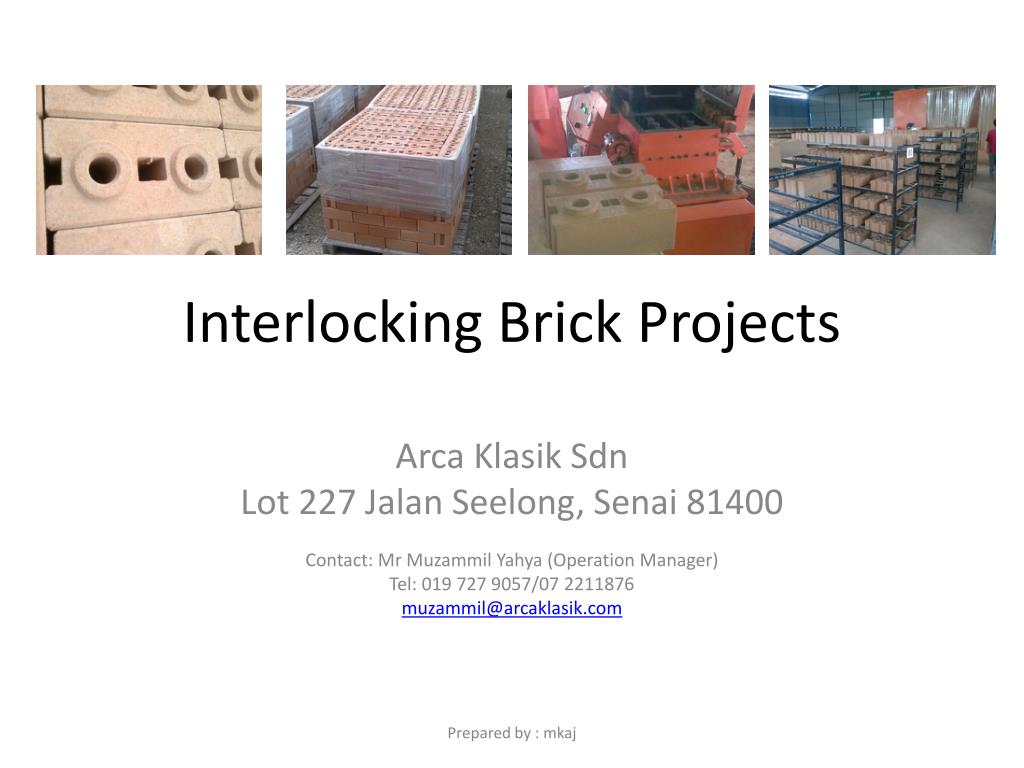

  1. Interlocking Brick Projects ArcaKlasikSdn Lot 227 JalanSeelong, Senai 81400 Contact: MrMuzammilYahya (Operation Manager) Tel: 019 727 9057/07 2211876 muzammil@arcaklasik.com Prepared by : mkaj

  2. Brick Making Process • Drying (the clay soil) • Crushing the clay soil to finer grain • Mixing of clay soil + cement + granite dust • Pressing (moulding) • Curing • Storing Prepared by : mkaj

  3. Drying (the clay soil) Raw Clay soil Spread on the floor to dry Dry stock Prepared by : mkaj

  4. Crushing the clay soil to finer grain Dry clay on raised platform Crushing Machine Fine clay soil Fine clay stock Ready for mixing process Prepared by : mkaj

  5. Mixing of clay soil + cement + granite dust + water Dry clay stock Regular/grey cement White cement Granite Dust Mixer Precast brick material Ready for moulding process Prepared by : mkaj

  6. Pressing (moulding) Hydraulic Pressing Machine Mould – 2-way press Preparing the mould Filling the mould Ready for pressing Completed process Ready! Prepared by : mkaj

  7. Curing Natural curing - with twice daily water sprinkling Prepared by : mkaj

  8. Storing Ready for shipment Prepared by : mkaj

  9. Projects • The brick making process is manual, labor intensive. • There are rooms for improvements. Suggested class projects: • Clay Soil Drying • Clay Soil Crushing System • Mixing System • Brick Moulding System • Brick Curing System • Stacking System Prepared by : mkaj
