OXIDATION-REDUCTION REACTIONS (REDOX)

OXIDATION-REDUCTION REACTIONS (REDOX). A Change in Charge Clic k here to start the podcast. REDOX BASICS. transfer of electrons between two atoms. Na. F. Oxidation Numbers. the ox. # of free elements is ZERO (including diatomics like O 2 and polyatomics like P 4 or S 8 )

zelia
Télécharger la présentation

OXIDATION-REDUCTION REACTIONS (REDOX)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. OXIDATION-REDUCTION REACTIONS (REDOX) A Change in Charge Click here to start the podcast

  2. REDOX BASICS • transfer of electrons between two atoms Na F

  3. Oxidation Numbers • the ox. # of free elements is ZERO (including diatomics like O2 and polyatomics like P4 or S8) • the ox. # of a monatomic ion = its charge (like Na+1) • Other elements: • O = -2 (except in peroxide, each O = -1) • H = +1 (except in metal hydrides, then H = -1) • Halogens = -1 (except when central atom of polyatomic ions, like ClO3-1)

  4. Identify the oxidation number for the underlined element • H2O • H2O2 • FeSO4 • FeSO4 • HClO • HClO2 • HClO3 • HClO4 Click here for answers

  5. Is it Oxidation or Reduction or neither? • Silver ions change to raw (elemental) silver • Hydrogen gas changes to hydrogen ions • Blue CrCl2 changes to green CrCl3 • Yellow K2CrO4 changes to orange K2Cr2O7 Click here for answers

  6. Oxidation-Reduction Reactions Single Replacement: Zn(s) + HCl(aq) ZnCl2(aq) + H2(g) Synthesis: Mg(s) + O2(g)  MgO(s) Decomposition: Fe2O3(s)  Fe(s) + O2(g) Combustion: CH4(g) + O2(g)  CO2(g) + H2O(g) These types of reactions can be balanced by inspection

  7. Redox reactions in acid/base solutions MnO4- + S2O3-2 + H+ Mn+2 + SO4-2 + H2O Br2 + OH-  Br- + BrO3- + H2O S8 + O2 + H2O  SO4-2 + H+ These will be balanced using the method of half-reactions

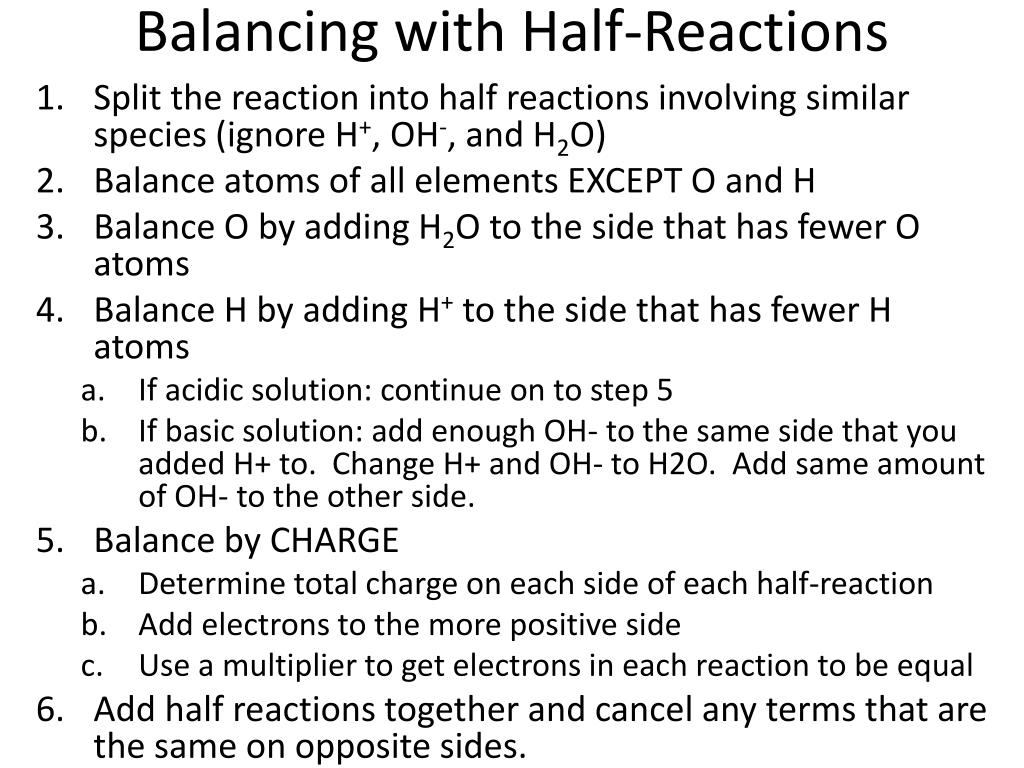

  8. Balancing with Half-Reactions • Split the reaction into half reactions involving similar species (ignore H+, OH-, and H2O) • Balance atoms of all elements EXCEPT O and H • Balance O by adding H2O to the side that has fewer O atoms • Balance H by adding H+ to the side that has fewer H atoms • If acidic solution: continue on to step 5 • If basic solution: add enough OH- to the same side that you added H+ to. Change H+ and OH- to H2O. Add same amount of OH- to the other side. • Balance by CHARGE • Determine total charge on each side of each half-reaction • Add electrons to the more positive side • Use a multiplier to get electrons in each reaction to be equal • Add half reactions together and cancel any terms that are the same on opposite sides.

  9. MnO4- + S2O3-2 + H+ Mn+2 + SO4-2 + H2O

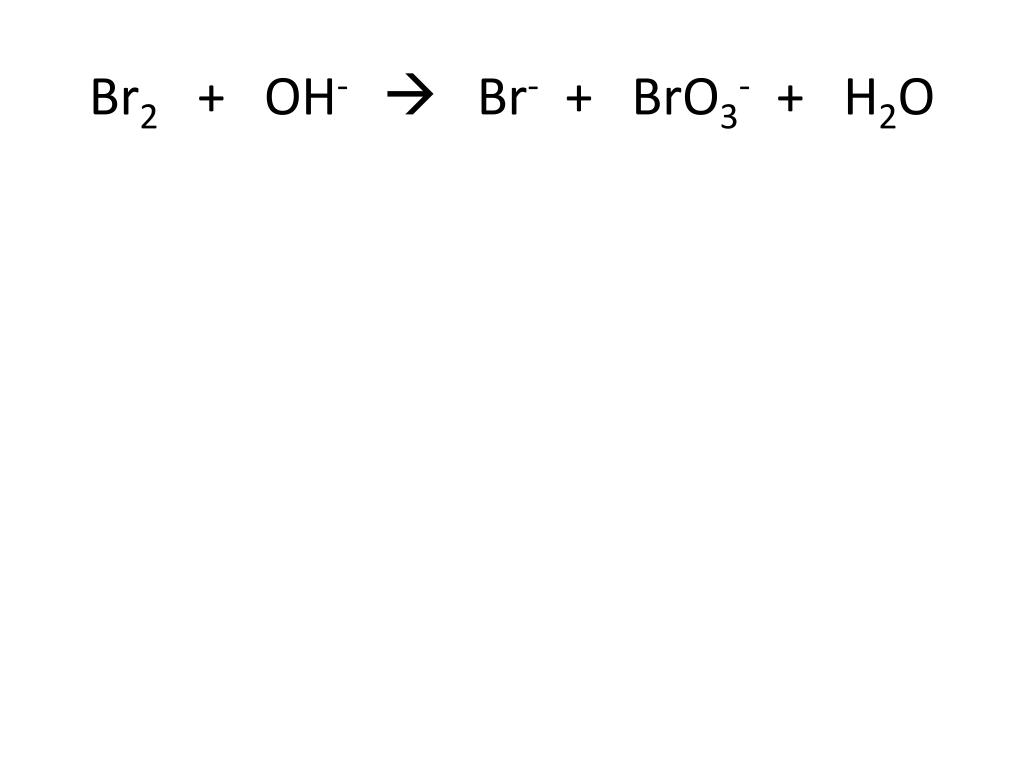

  10. Br2 + OH-  Br- + BrO3- + H2O

  11. Fe+2 + Cr2O7-2 Fe+3 + Cr+3 (in acidic solution) Click here for answers

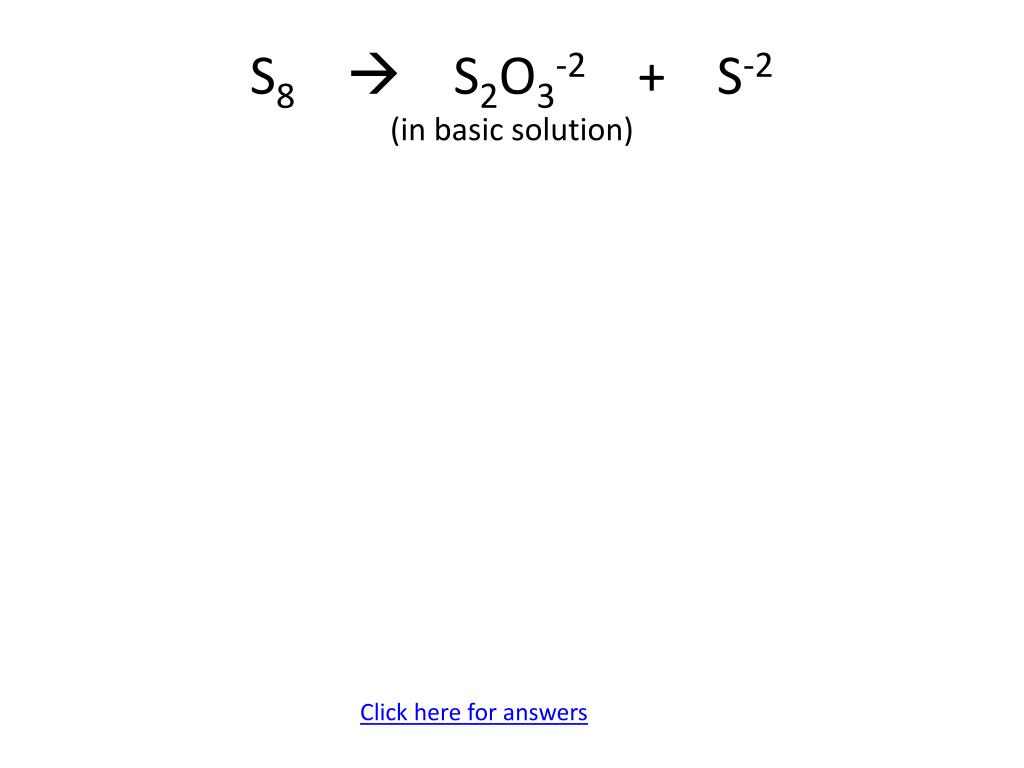

  12. S8  S2O3-2 + S-2(in basic solution) Click here for answers
