  1. “Understanding Computers” Intro to GIS Fall 2004

  2. Tools of the Trade • Right tool for the Right job • What’s inside the box? • How do they do what they do? • Aren’t all computers (PC’s) the same? • Why won’t my programs do what they are supposed to do? • What is a “Network”?

  3. Tools of the Trade Cont’d. • Operating Systems • Drivers • Components • CPU’s (Processors) • CISC • RISC • FPGA • Hard Drives (configurations) • Motherboards (configurations) • BUS Speeds • RAM (Random Access Memory) • RAMBUS • DDR • SIMMS DIMMS DRAM SDRAM & EIEIO • Video Cards • AGP • PCI Express • Video RAM

  4. Operating Systems • Windows • MacOS • Unix • Linux • IBM OS2

  5. Operating Systems Cont’d. • Windows • DOS • 3.11 • 95 • 98 • Me • NT4 • XP • 2000

  6. Operating Systems Cont’d. • MacOS • Apple/ II / llE / Mac / G3 / G4 / Ipod • OS1 – OS9 • OSX (Jaguar) Ultimately will integrate with some flavor of Unix

  7. Operating Systems Cont’d • Unix • Berkeley • Solaris • X Windows • Gave rise to Linux

  8. Operating Systems • Linux • 1st Open source OS • Created by Linus Torvold • Developed by Users • Number 1 OS used by Servers as of 2002 • Free OS • Multiple flavors • SuSe • Red Hat • Mandrake • Others

  9. Drivers • Drivers are executable programs that contain the operating instructions for that particular component. • Drivers are usually updated to reflect either new OS’s or some innovation in the hardware. • Note * The newest driver is not always the best • Drivers will often have the extension .dll (dynamic link library), older drivers may have the extension .drv

  10. CPU’s • CISC • Complex Instruction Set Chip • Intel / AMD Processors / Silicon Graphics (SGI) • RISC • Reduced Instruction Set Chip • Motorola / Mac / Sun Microsystems / Silicon Graphics (SGI) • Transmeta Carusoe • FPGA • Fully Programmable Gated Array

  11. CPU’s • Speed • Clock cycles measured in Hertz • 1 Hz = 1 clock cycle • 1 kHz = 1000 clock cycles (Kilo) (thousand) • 1 MHz = 1,000,000 clock cycles (Mega) (million) • 1 GHz = 1,000,000,000 clock cycles (Giga) (billion) • 1 THz = 1,000,000,000,000 clock cycles (Terra) (trillion) • 1 PHz = 1,000,000,000,000,000 clock cycles (Pieta) (quadrillion) Fastest computer “today” built by NEC for Japan 37 TFLOPS (Terra FLOPS) (FLOPS=floating operations per second=cycle)

  12. CPU’s • Chipsets • Configuration of CPU • Will tell you what type of RAM/Motherboards the CPU is compatible with • Intel 845E vs. Intel 850PG • Athlon vs. Duron • Celeron vs. Pentium • P4 vs. Xeon • Opteron vs. FX 51/53

  13. Hard Drives • 4 Factors to consider • Classification • DMA / UDMA / ATA / SCSI • Size • Bit Vs. Byte • 8 bits = 1 byte • Binary = base2 • Working drives • Total Drive Space • Speed • Bus Speed (data transfer rate listed in MHz) • Spin Rate (listed in rpm’s) • Configuration (multiple HD’s) • RAID - Redundant Array of Independent (or Inexpensive) Disks • Various configurations

  14. Motherboards • Various Makes and Models • BIOS / ROM / PROM / EPROM • Must be compatible with CPU Type and RAM Type • Various Slots • ISA • PCI • AGP • AGM • USB 1, 2 • IEEE1394 Firewire • PS/2 • EIDE BUS Connections • RAM Pin configurations • CPU Slot configurations • Onboard Sound • Onboard Network Interface • RAID connectors

  15. RAM (Random Access Memory) • Simms (Single Inline Memory Modules) • Dimms (Dual Inline Memory Modules) • RDRAM (RAMBUS) • PC400 / PC800 / PC1036 • Only for Intel chipsets • Very Expensive (price has come down) • DDR (Double Data Rate) • DDR133 / DDR266 / DDR333 / DDR400 • Started as an inexpensive alternative to RAMBUS • Was exclusively AMD however, now there are specific Intel chipsets that will allow the use of DDR RAM

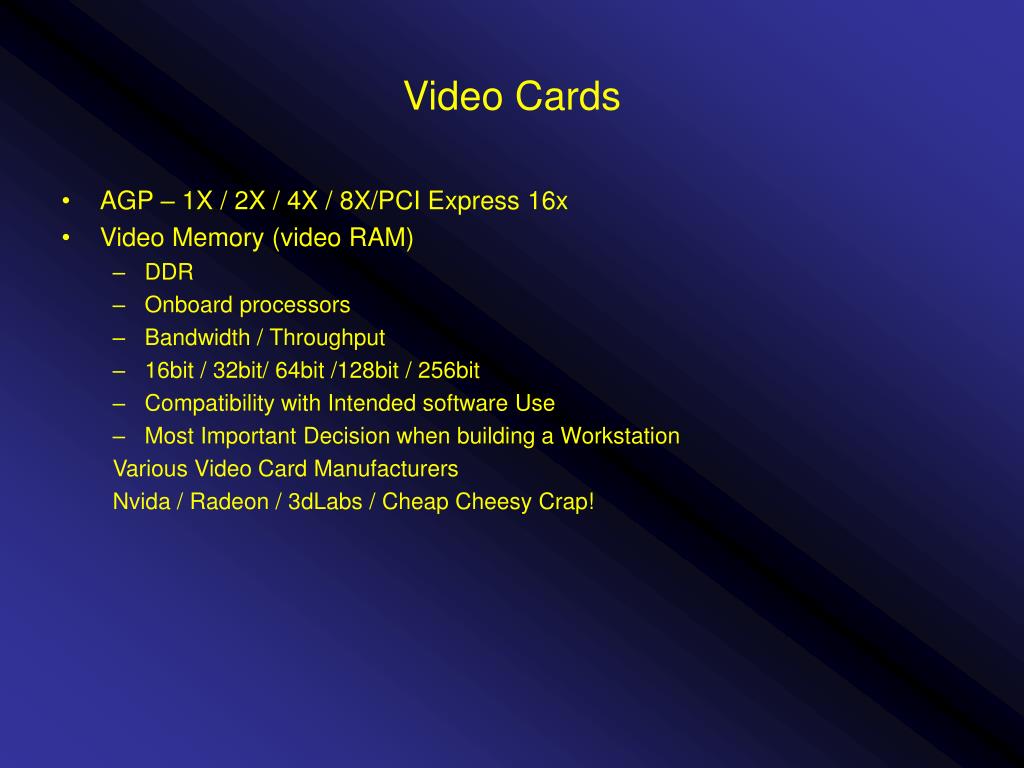

  16. Video Cards • AGP – 1X / 2X / 4X / 8X/PCI Express 16x • Video Memory (video RAM) • DDR • Onboard processors • Bandwidth / Throughput • 16bit / 32bit/ 64bit /128bit / 256bit • Compatibility with Intended software Use • Most Important Decision when building a Workstation Various Video Card Manufacturers Nvida / Radeon / 3dLabs / Cheap Cheesy Crap!

  17. Tools of the Trade Cont’d. • Slots • ISA • PCI / PCI32 / PCIX • AGP 4x / 8x • Cooling Systems • Power Supply • NIC Cards

  18. Tools of the Trade Cont’d. • Peripherals • Monitors • Size • Resolution • Printers/Plotters • Keyboards • Ergo? • Hotkeys • Mice • Trackballs • Castrated Mouse

  19. Tools of the Trade Cont’d • Care and Feeding of the Computer • Cleaning • Location • Maintenance
