CSCI 6962: Server-side Design and Programming

CSCI 6962: Server-side Design and Programming. The NetBeans and Visual Studio IDEs. Tools We will be Using. J2EE: Glassfish web container Java programming language NetBeans IDE ASP: Microsoft Visual Studio All are free downloads (see textbooks/podcasts).

zenda
Télécharger la présentation

CSCI 6962: Server-side Design and Programming

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

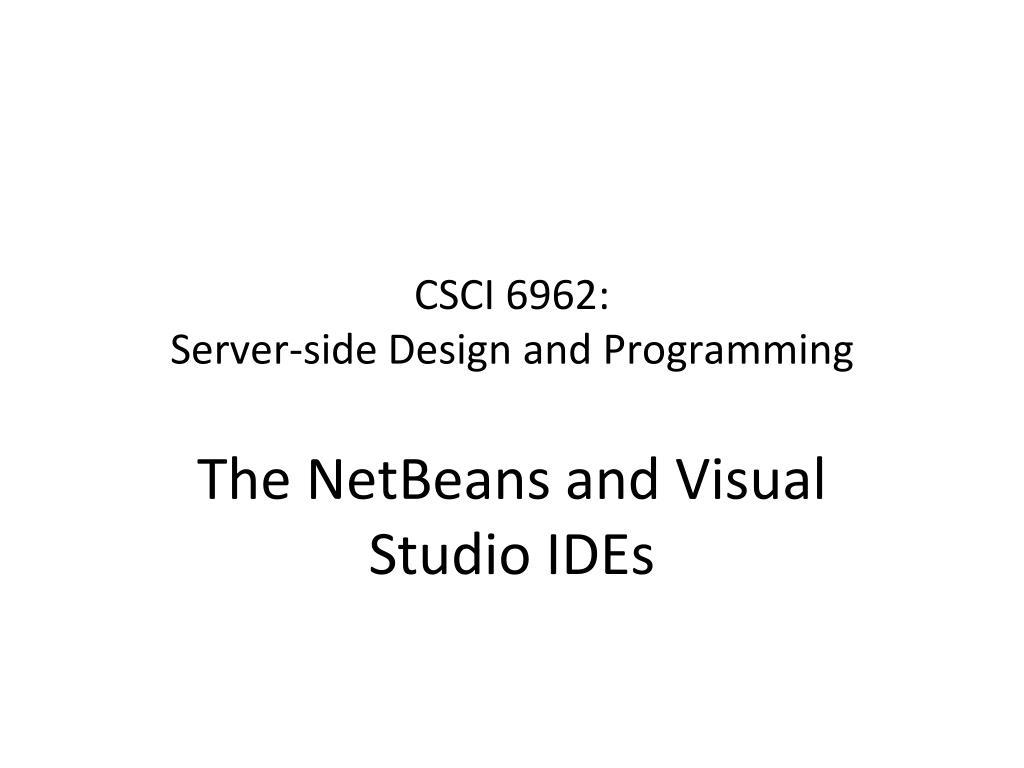

  1. CSCI 6962: Server-side Design and Programming The NetBeansand Visual Studio IDEs

  2. Tools We will be Using • J2EE: • Glassfish web container • Java programming language • NetBeans IDE • ASP: • Microsoft Visual Studio All are free downloads(see textbooks/podcasts)

  3. Integrated Development Environment • Environment for all phases of program development • Editing code (with hints) • Compiling code • Running/debugging code • Web development tools • Integrated web container for web site testing • Integrated database server • NetBeans (includes Glassfish server) • MS Visual Studio (includes IIS server)

  4. Using an IDE for Web Development • Client/Server on same computer • Simplest way to develop site • Can export to actual web server later Port 8080 request (to http:// localhost:8080) IDE Web container Dynamicweb page in JSF/ASP Browser Execute code to create page in html start Html page response

  5. The NetBeans IDE • Download and install Java Development Kit (JDK) • http://www.oracle.com/technetwork/java/javase/downloads • Get version withoutNetBeans • Will want to get directly from NetBeans • Download and install NetBeans IDE • www.netbeans.org/downloads • Get version that includes J2EE (web development tools)

  6. Downloading Java • Need Java Development Kit (JDK) • http://www.oracle.com/technetwork/java/javase/downloads • Choose version withoutNetBeans

  7. Downloading NetBeans

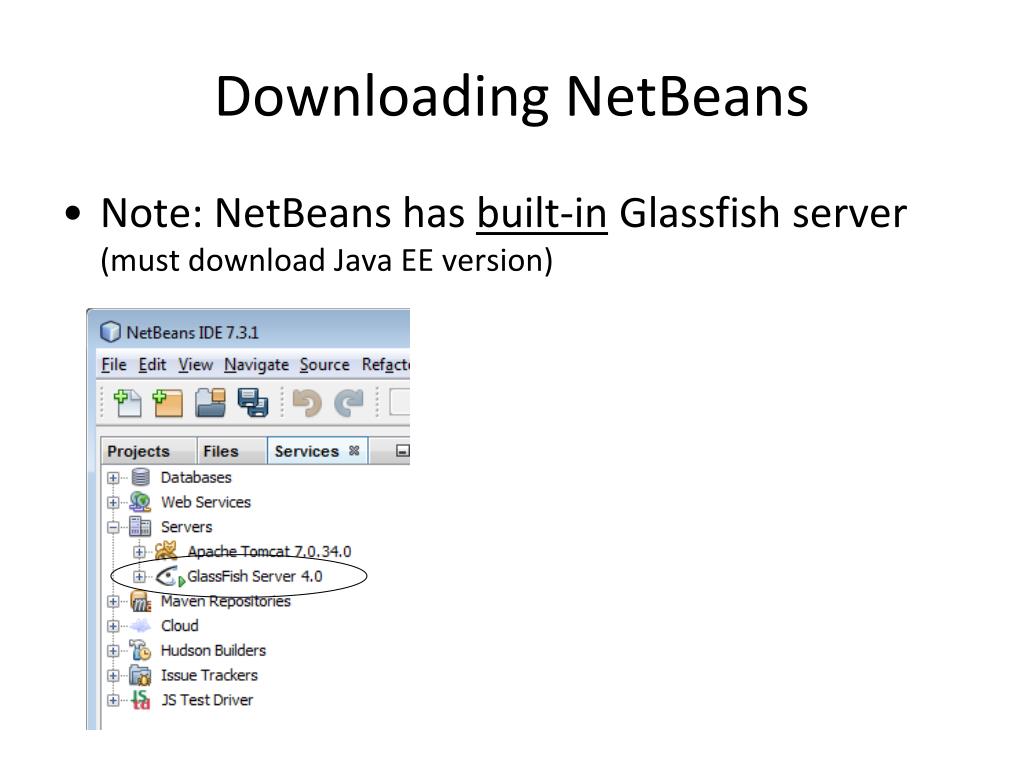

  8. Downloading NetBeans • Note: NetBeans has built-in Glassfish server(must download Java EE version)

  9. Creating a Web Application • In NetBeans: File  New Project • Choose Web and Web Application

  10. Creating a Web Application • Give your project a name (I called this one “WidgetSite”) • Give it a location (I have put it in a directory called 6962) • Make sure it is set as the Main Project

  11. Creating a Web Application • The final page shows information (such as which server this project uses) • Can change to external server if desired

  12. Creating a Web Application NetBeans creates an initial web site Structure shown in the project window Creates an initial index.jsp page (default home page of the new site) The index.jsp is initially just a “Hello world” page

  13. Running a Web Application • Running the site opens the index.jsp page in the default browser

  14. Visual Studio Express • IDE for developing ASP applications • Express version is free download • http://www.visualstudio.com/downloads/download-visual-studio-vsChoose Visual StudioExpress 2013 for Web • Will need to registerwith MicroSoft to usefor more than 30 days

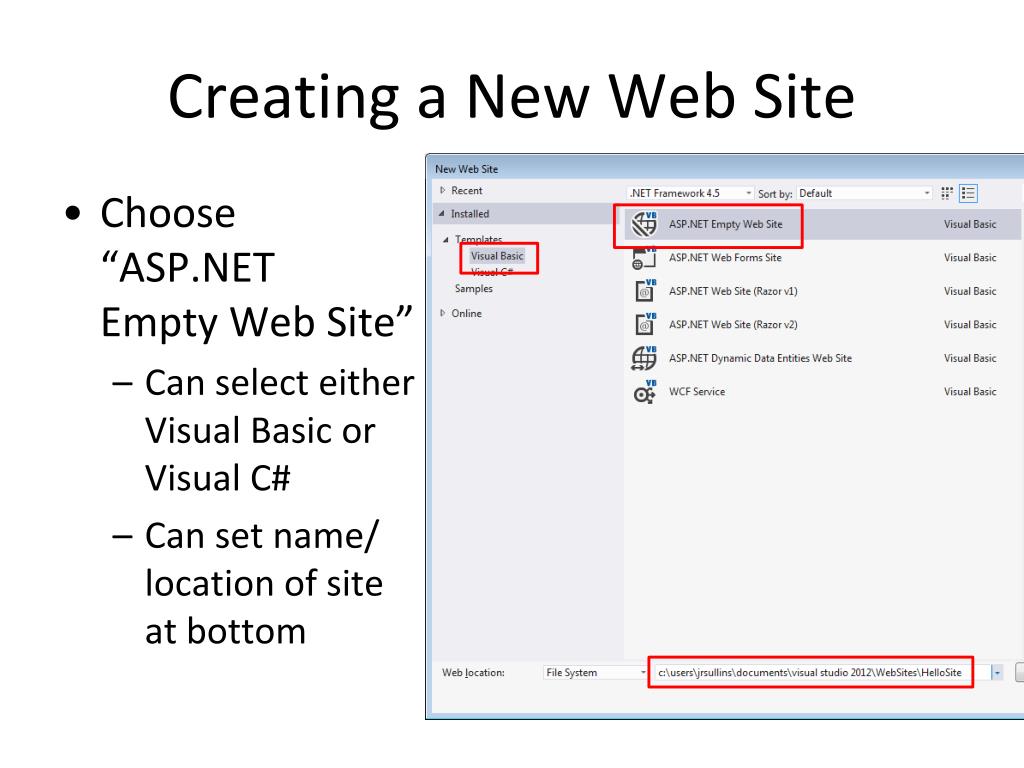

  15. Creating a New Web Site • Choose “ASP.NET Empty Web Site” • Can select either Visual Basic or Visual C# • Can set name/location of site at bottom

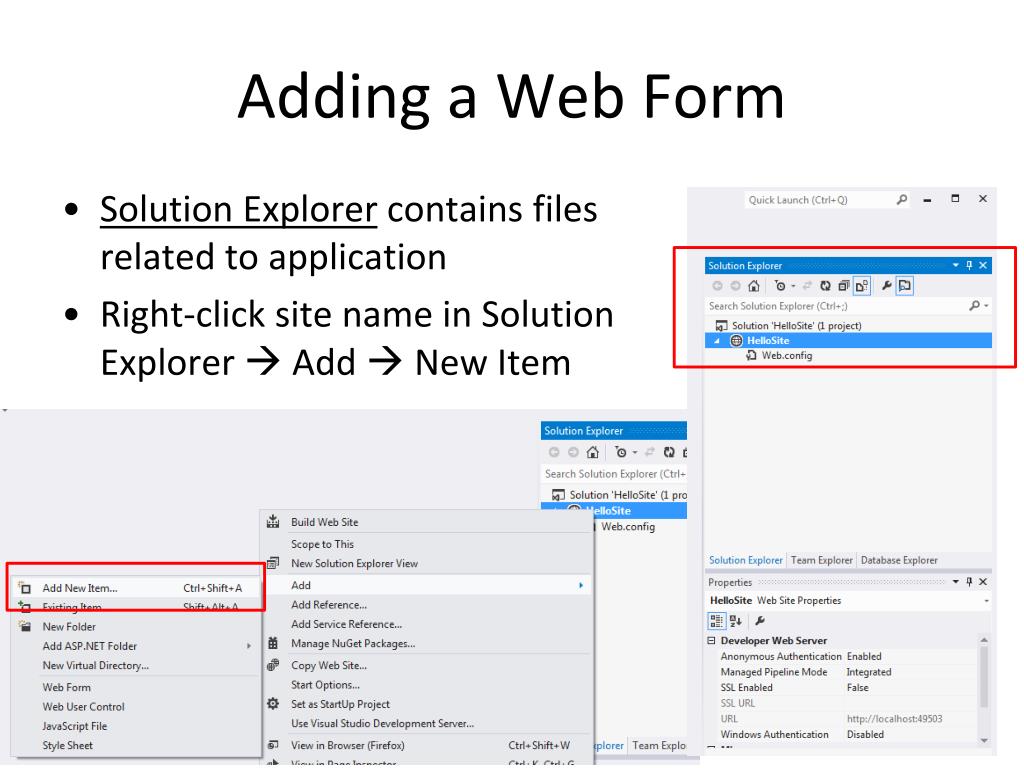

  16. Adding a Web Form • Solution Explorer contains files related to application • Right-click site name in Solution Explorer  Add  New Item

  17. Adding a Web Form • Select Web Form • Choose name of file • Default.aspxdefault initialfile (like index.xhtml)

  18. Editing Web Form • Can insert text into html source of new web form

  19. Viewing the Web Page • Simplest method: Cntrl-F5 • Runs page in default browser
