1. ECE 4331, Fall, 2009 Zhu Han Department of Electrical and Computer Engineering Class 21 Nov.5th, 2009

2. Encryption • Encryption is a translation of data into a secret code. • Encryption is the most effective way to achieve data security. • To read an encrypted file, you must have access to a secret key that enables you to decrypt it. • Unencrypted data is called plain text; encrypted data is referred to as cipher (text). • Encryption can be used to ensure secrecy, but other techniques are still needed to make communications secure: authentication, authorization, and message integrity.

3. Encryption • Message integrity - both parties will always wish to be confident that a message has not been altered during transmission. The encryption makes it difficult for a third party to read a message, but that third party may still be able to alter it in a useful way. • Authentication is a way to ensure users are who they say they are - that the user who attempts to perform functions in a system is in fact the user who is authorized to do so. • Authorization protects computer resources (data, files, programs, devices) by allowing those resources to be used by resource consumers having been granted authority to use them.Digital rights management etc.

4. Encryption – cipher taxonomy CIPHERS ROTORMACHINES CLASSICALCIPHERS MODERN CIPHERS PRIVATE KEY SUPERPOSITION Quantum CIPHERS PUBLIC KEY TRANSPOSITION Wireless Physical Layer Security

5. Transposition Method • Da Vinci’s code • Ex. I am a student I m s u e t a a t d n

6. Substitution Method • Shift Cipher (Caesar’s Cipher) I CAME I SAW I CONQUERED H BZLD H TZV H BNMPTDSDC Julius Caesar to communicate with his army Language, wind talker

7. Rotor Machine • The primary component is a set of rotors, also termed wheels or drums, which are rotating disks with an array of electrical contacts on either side. The wiring between the contacts implements a fixed substitution of letters, scrambling them in some complex fashion. On its own, this would offer little security; however, after encrypting each letter, the rotors advance positions, changing the substitution. By this means, a rotor machine produces a complex polyalphabetic substitution cipher. • German Enigma machine used during World War II for submarine. Movie U571, Italian Job

8. Key

9. Public Key System - RSA • Named after its inventors Ron Rivest, Adi Shamir and Len Adleman • Base on Number Theory y=ex (mod N) => x=?? • If the size of N is 100, it takes 100 billion years to decipher with 1GHz computer. • Applications • Digital Signatures • Digital Cash: Movie, swordfish • Timestamping Services: Movie, entrapment • Election • Movie, mercury rising

10. Encryption – cipher taxonomy • Historical pen and paper ciphers used in the past are sometimes known as classical ciphers. They include substitution ciphers and transposition ciphers. • During the early 20th century, more sophisticated machines for encryption were used, rotor machines, which were more complex than previous schemes. • Encryption methods can be divided into symmetric key algorithms and asymmetric key algorithms. In a symmetric key algorithm (DES, AES), the sender and receiver must have a shared key set up in advance and kept secret from all other parties; the sender uses this key for encryption, and the receiver uses the same key for decryption. • In an asymmetric key algorithm(RSA), there are two separate keys: a public key is published and enables any sender to perform encryption, while a private key is kept secret by the receiver and enables him to perform decryption.

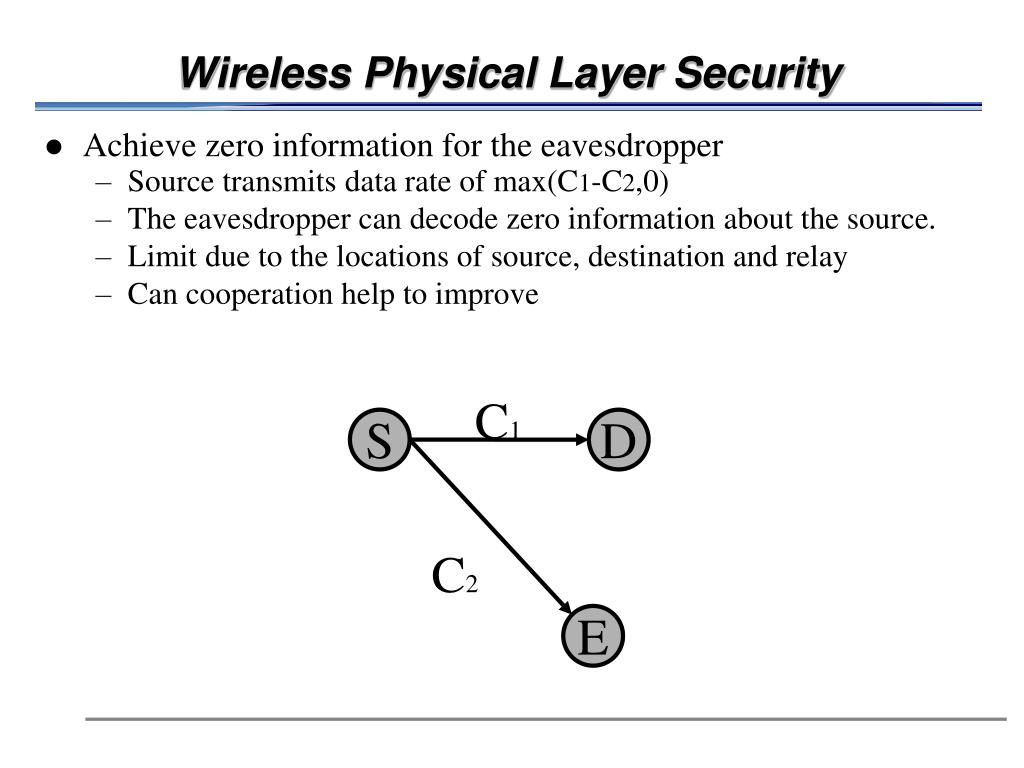

11. Wireless Physical Layer Security • Achieve zero information for the eavesdropper • Source transmits data rate of max(C1-C2,0) • The eavesdropper can decode zero information about the source. • Limit due to the locations of source, destination and relay • Can cooperation help to improve C1 S D C2 E

12. Quantum Cryptography • Use physics law, if the signal is measured (eavesdropped), the receiver can always detected.

13. Mission is really impossible When you see it, the information has been already changed

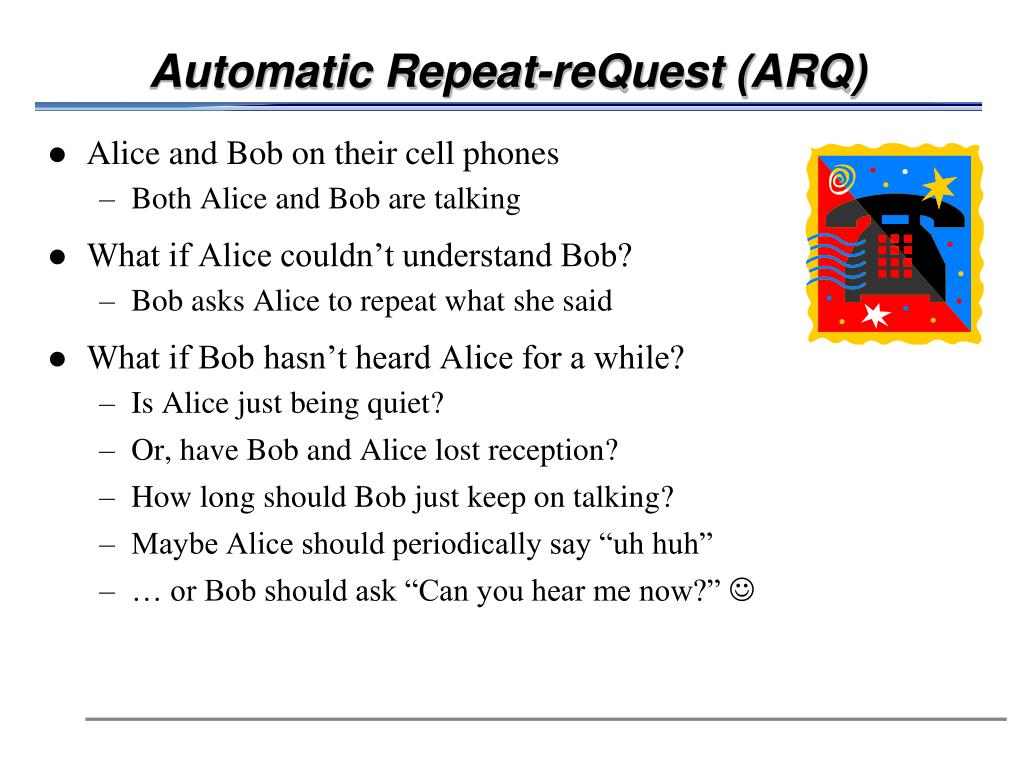

14. Automatic Repeat-reQuest (ARQ) • Alice and Bob on their cell phones • Both Alice and Bob are talking • What if Alice couldn’t understand Bob? • Bob asks Alice to repeat what she said • What if Bob hasn’t heard Alice for a while? • Is Alice just being quiet? • Or, have Bob and Alice lost reception? • How long should Bob just keep on talking? • Maybe Alice should periodically say “uh huh” • … or Bob should ask “Can you hear me now?” 

15. ARQ • Acknowledgments from receiver • Positive: “okay” or “ACK” • Negative: “please repeat that” or “NACK” • Timeout by the sender (“stop and wait”) • Don’t wait indefinitely without receiving some response • … whether a positive or a negative acknowledgment • Retransmission by the sender • After receiving a “NACK” from the receiver • After receiving no feedback from the receiver

16. Error Correcting Codes • Adding redundancy to the original message • To detect and correct errors • Crucial when it’s impossible to resend the message (interplanetary communications, storage..) and when the channel is very noisy (wireless communication) Message = [1 1 1 1] Message = [1 1 0 1] Noise = [0 0 1 0]

17. Types of Error Correcting Codes • Repetition Code • Linear Block Code, e.g. Hamming • Cyclic Code, e.g. CRC • BCH and RS Code • Convolutional Code • Tradition, Viterbi Decoding • Turbo Code • LDPC Code • Coded Modulation • TCM • BICM

18. Repetition Code • Simple Example: reduce the capacity by 3 Recovered state

19. Parity Check • Add one bit so that xor of all bit is zero • Send, correction, miss • Add vertically or horizontally • Applications: ASCII, Serial port transmission

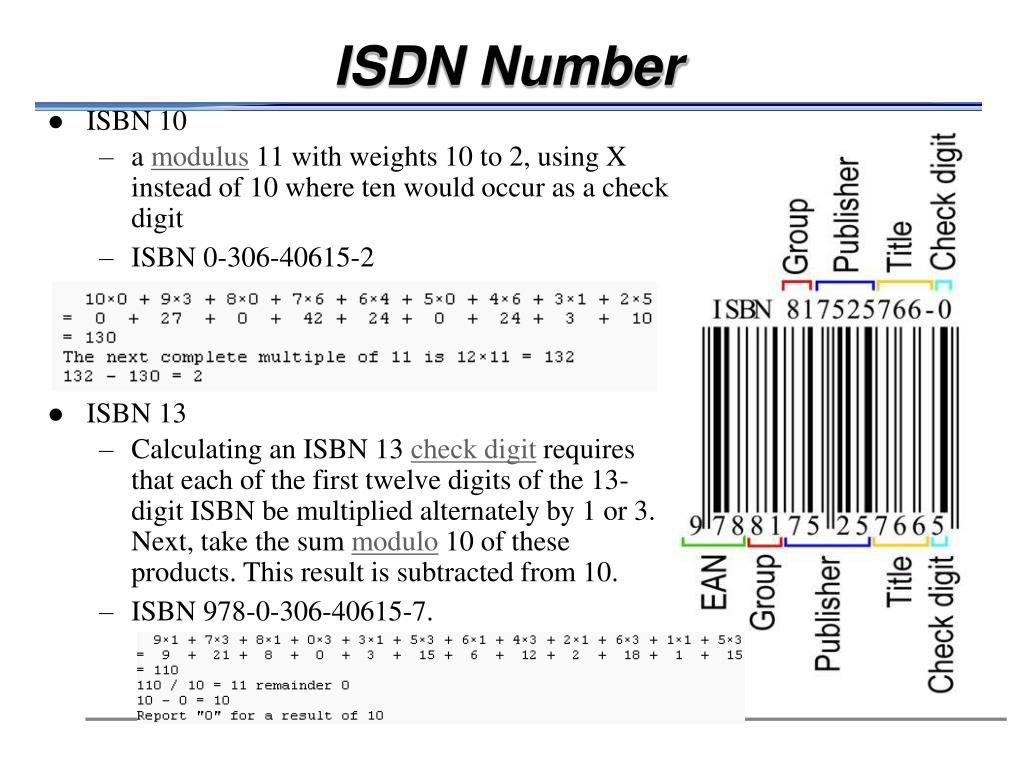

20. ISDN Number • ISBN 10 • a modulus 11 with weights 10 to 2, using X instead of 10 where ten would occur as a check digit • ISBN 0-306-40615-2 • ISBN 13 • Calculating an ISBN 13 check digit requires that each of the first twelve digits of the 13-digit ISBN be multiplied alternately by 1 or 3. Next, take the sum modulo 10 of these products. This result is subtracted from 10. • ISBN 978-0-306-40615-7.

21. Hammings Solution • A type of Linear Block Code • Encoding: H(7,4) Multiple Checksums Message=[a b c d] r= (a+b+d) mod 2 s= (a+b+c) mod 2 t= (b+c+d) mod 2 Code=[r s a t b c d] • Coding rate: 4/7 • Smaller, more redundancy, the better protection. • Difference between detection and correction Message=[1 0 1 0] r=(1+0+0) mod 2 =1 s=(1+0+1) mod 2=0 t=(0+1+0) mod 2 =1 Code=[ 10 1 1 0 1 0 ]

22. Error Detection Ability Stochastic Simulation: 100,000 iterations Add Errors to (7,4) data No repeat randoms Measure Error Detection Results: • Error Detection • One Error: 100% • Two Errors: 100% • Three Errors: 83.43% • Four Errors: 79.76%

23. A B C A B C A C How it works: 3 dots Only 3 possible words Distance Increment = 1 One Excluded State (red) Two valid code words (blue) It is really a checksum. • Single Error Detection • No error correction This is a graphic representation of the “Hamming Distance”

24. Hamming Distance • Definition: • The number of elements that need to be changed (corrupted) to turn one codeword into another. • The hamming distance from: • [0101] to [0110] is 2 bits • [1011101] to [1001001] is 2 bits • “butter” to “ladder” is 4 characters • “roses” to “toned” is 3 characters

25. Another Dot The code space is now 4. The hamming distance is still 1. Allows: Error DETECTION for Hamming Distance = 1. Error CORRECTION for Hamming Distance =1 For Hamming distances greater than 1 an error gives a false correction.

26. Even More Dots Allows: Error DETECTION for Hamming Distance = 2. Error CORRECTION for Hamming Distance =1. • For Hamming distances greater than 2 an error gives a false correction. • For Hamming distance of 2 there is an error detected, but it can not be corrected.

27. Multi-dimensional Codes • Code Space: • 2-dimensional • 5 element states • Circle packing makes more efficient use of the code-space

28. Cannon Balls • http://wikisource.org/wiki/Cannonball_stacking • http://mathworld.wolfram.com/SpherePacking.html Efficient Circle packing is the same as efficient 2-d code spacing Efficient Sphere packing is the same as efficient 3-d code spacing Efficient n-dimensional sphere packing is the same as n-code spacing

29. Example • Visualization of eight code words in a 6-typle space

30. Another Example: Encoding To encode our message But why? we multiply this matrix You can verify that: Hamming[1 0 0 0]=[1 0 0 0 0 1 1] Hamming[0 1 0 0]=[0 1 0 0 1 0 1] Hamming[0 0 1 0]=[0 0 1 0 1 1 0] Hamming[0 0 0 1]=[0 0 0 1 1 1 1] By our message Where multiplication is the logical AND And addition is the logical XOR

31. Example: Add noise • If our message is Message = [0 1 1 0] • Our Multiplying yields Code = [0 1 1 0 0 1 1] Lets add an error, so Pick a digit to mutate Code => [0 1 0 0 0 1 1]

32. Example: Testing the message The matrix used to decode is: To test if a code is valid: • Does Decoder*CodeT =[0 0 0] • Yes means its valid • No means it has error/s • We receive the erroneous string: Code = [0 1 0 0 0 1 1] • We test it: Decoder*CodeT =[0 1 1] • And indeed it has an error

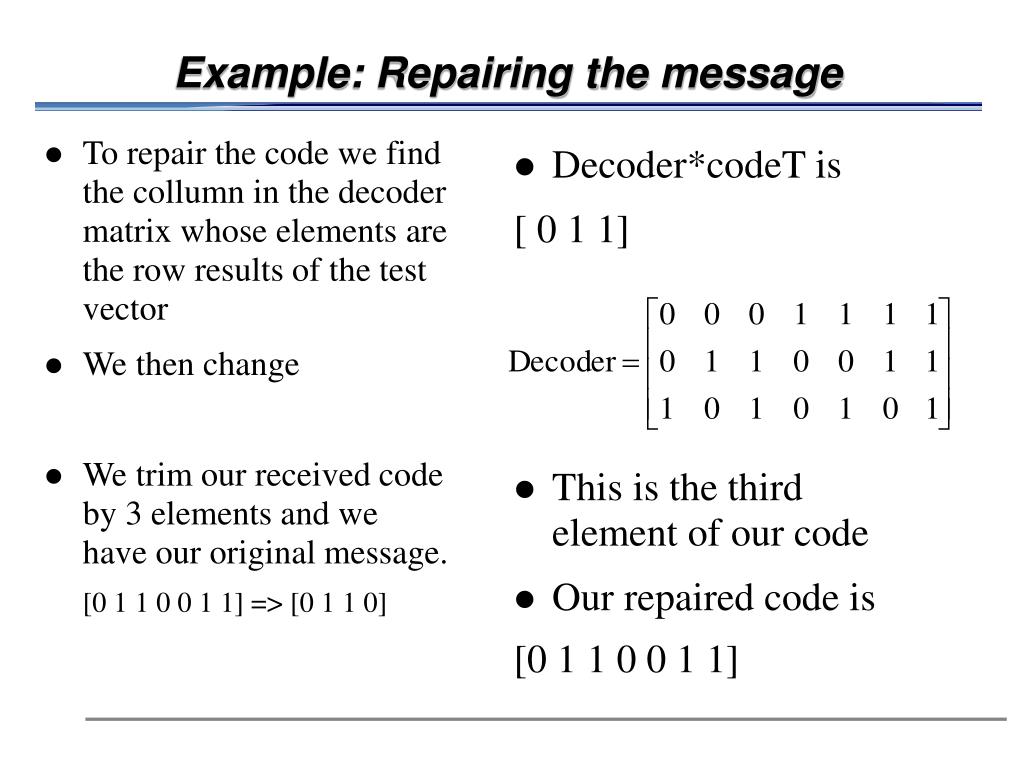

33. Example: Repairing the message • To repair the code we find the collumn in the decoder matrix whose elements are the row results of the test vector • We then change • We trim our received code by 3 elements and we have our original message. [0 1 1 0 0 1 1] => [0 1 1 0] • Decoder*codeT is [ 0 1 1] • This is the third element of our code • Our repaired code is [0 1 1 0 0 1 1]

34. Coding Gain • Coding Rate R=k/n, k, no. of message symbol, n overall symbol • Word SNR and bit SNR • For a coding scheme, the coding gain at a given bit error probability is defined as the difference between the energy per information bit required by the coding scheme to achieve the given bit error probability and that by uncoded transmission.

35. Coding Gain Example

36. Encoder/Decoder of Linear Code • Encoder: just xor gates • Decoder: Syndrome

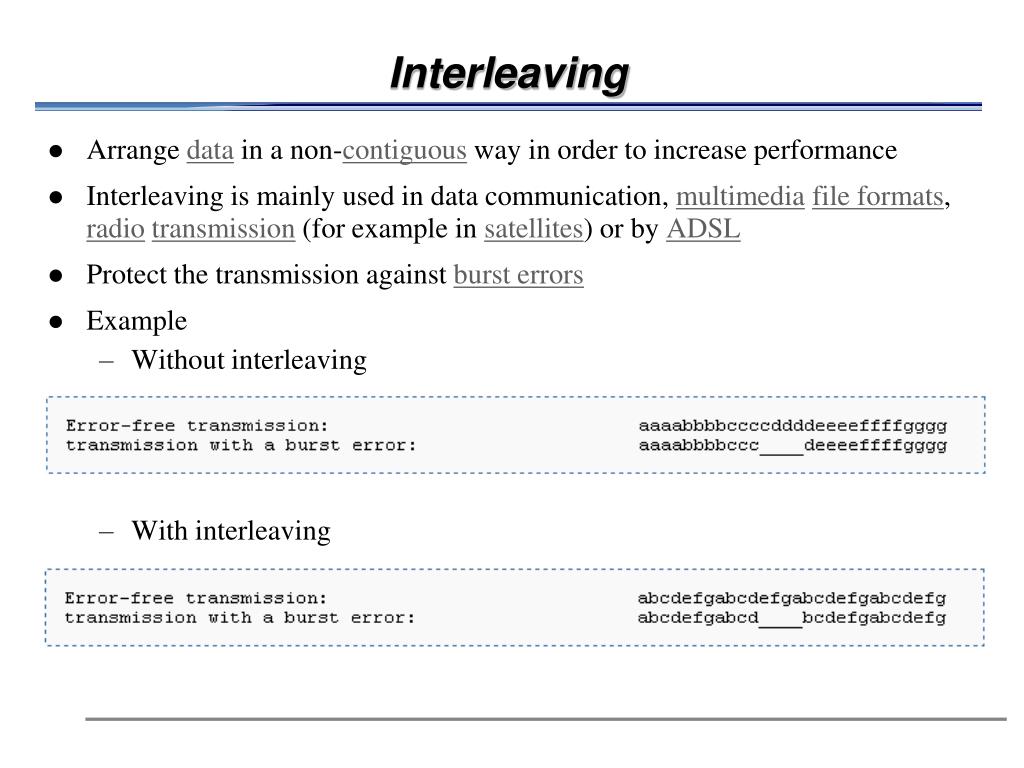

37. Interleaving • Arrange data in a non-contiguous way in order to increase performance • Interleaving is mainly used in data communication, multimediafile formats, radiotransmission (for example in satellites) or by ADSL • Protect the transmission against burst errors • Example • Without interleaving • With interleaving

38. ARQ, FEC, HEC • ARQ • Forward Error Correction (error correct coding) • Hybrid Error Correction Error detection code tx rx ACK/NACK Error correction code tx rx Error detection/ Correction code tx rx ACK/NACK
