3.4 Equal friction method

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 3.4 Equal friction method • This method of sizing is used for supply, exhaust and return air duct system and employs the same friction lose per foot of length for the entire system. • The equal friction method is superior to velocity reduction since it requires less balancing for symetrical layouts. • If a design has a mixture of short and long runs, the shortest run requires considerable dampering.

  2. Such a system is difficult to balance since the equal friction method makes no provision for equalizing pressure drops in branches or for providing the same static pressure behind each air terminal. • This method establishes an equal friction drop for each 100 ft of duct throughout the duct system.

  3. Ducts are sized for a constant pressure loss per unit length • Using 0.1 inWG / 100 ft as recommended source.

  4. Equal Friction Method Procedure Step 1 Select starting velocity at fan discharge duct. Selected velocity should not be more than recommended velocity.

  5. Step 2 Obtain circular duct diameter and friction loss from Circular Duct Friction Chart by using air velocity and airflow.

  6. Step 3 Select equivalent rectangular duct size. Using the circular duct diameter and equivalent area based on available space.

  7. Step 4 Select the next duct section by maintaining the same friction loss rate which has been obtained in previous duct section. Cross check the velocity should not exceed the recommended velocity. Repeat the method for consecutive section

  8. Formula Equivalent Lengths of Round Duct Elbow :- Regain Where Vd = duct velocity Vf = fan outlet velocity Loss is in.WG

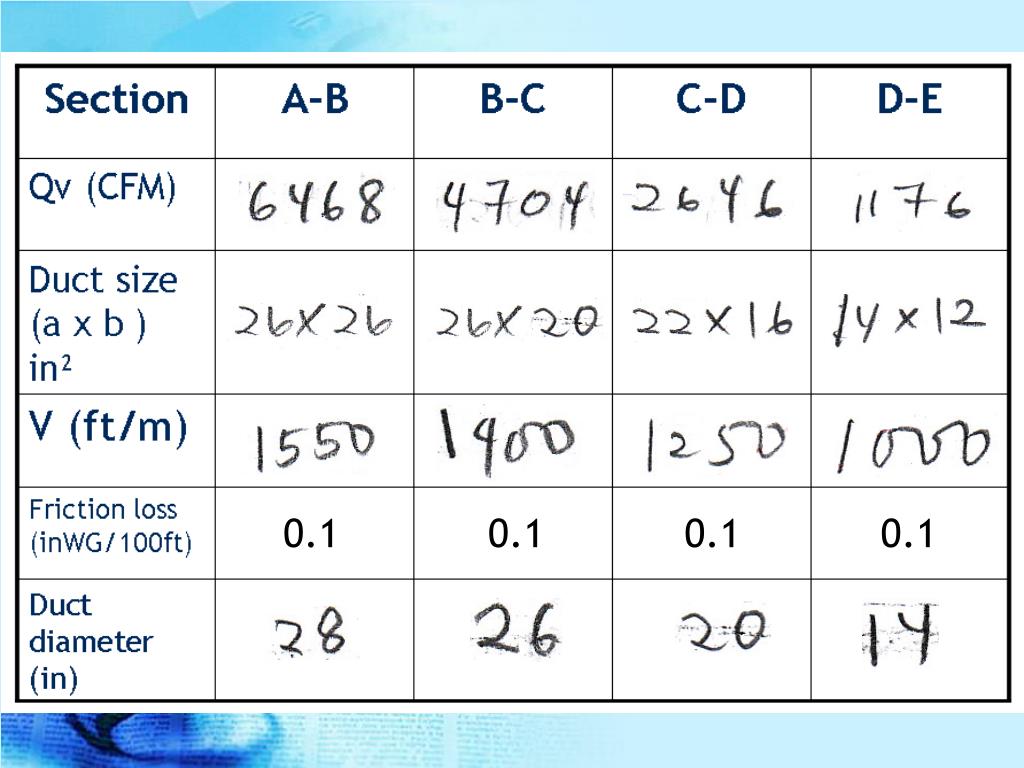

  9. Example: • Given a simple ducting layout, calculate using duct calculator the values of Qv, V, rectangular duct and round duct size using equal friction method.

  10. 0.1 0.1 0.1 0.1
