Implicit Dictionaries with O(1) Modifications per Update and Fast Search

1. Implicit Dictionaries with O(1) Modifications per Update and Fast Search Gianni Franceschini and Ian Munro • Elements kept in 1stn positions of an array • Data plus constant number of words • Any “structural information” must be encoded in the ordering of the data • Perform insertions, deletions and searches • Comparison model … a talk about models

2. Previous Work: Partial Orders First approach: Arrange elements according to a fixed partial order (truncated to n positions) 72 63 55 51 22 13 68 62 32 19 9 44 33 22 17 21 18 14 13 13 12 10 11 2 3 Use the standard pairing function Like a heap … but each element has 2 parents: above and left

3. Previous Work: Partial Orders First approach: Arrange elements according to a fixed partial order (truncated to n positions) 72 63 55 51 22 13 68 62 32 19 9 44 21 22 17 33 18 14 13 12 10 11 2 3 Search(x): From bottom left corner move up or right depending on x:A[i] Search(51)

4. Previous Work: Partial Orders First approach: Arrange elements according to a fixed partial order (truncated to n positions) 72 63 55 51 22 13 68 62 32 19 9 4466 2144 22 17 33 1821 14186614 13 12 10 11 2 3 Search(x): From bottom left corner move up or right depending on x:A[i] Insert(x): n++; Put new value in A[n]; move it up or left as needed. Insert(66)

5. Previous Work: Partial Orders First approach: Arrange elements according to a fixed partial order (truncated to n positions) 72 63 55 51 22 13 68 62 32 19 9 44 21 22 17 33 18 14 13 12 10 11 2 3 Method is OPTIMAL if we restrict to partial orders. Search: must inspect longest antichain Update: must move longest chain Search × Update ≥ n

6. Previous Work: Rotations and Encodings • Sorted/Rotated Lists 2 4 3 7 8 6 13 14 10 11 21 24 26 37 17 • O(lg n) search; O(√n) update • Defeats partial order lower bound • Improve to o(nє) (Frederickson) • Encoding Pointers 1 2 9 8 12 23 67 89 91 99  01000011 • Leads to O(lg2n) method

7. Previous Results: More Lower Bounds & Attempts • A natural conjecture … tradeoff based on number of total orders between search time (fast for few orders) and update time (lots of orders means you can move to one ‘easily”). Unlikely …O(lg n) search with √(n!) orders. • Update cost (moves plus exchanges) O(1)  search cost Ω(nε) {Update cost does not include search}(Borodin, Fich, Meyer auf der Heide, Upfal & Wigderson)

8. This Millenium: Results from Pisa • Several papers (key players Franceschini & Grossi)) O(lg n) time and also cache oblivious • But still leaves open the idea of o(lg n) moves on an update .. and still fast in terms of comparisons. Borodin et al had conjectured “no”.

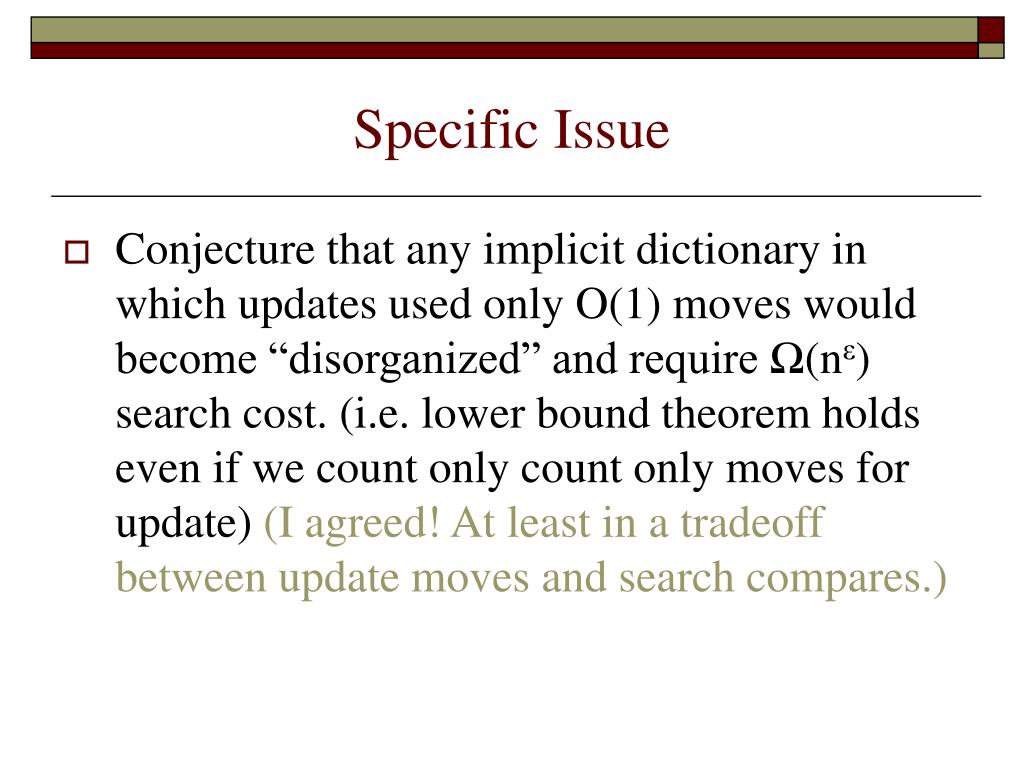

9. Specific Issue • Conjecture that any implicit dictionary in which updates used only O(1) moves would become “disorganized” and require Ω(nε) search cost. (i.e. lower bound theorem holds even if we count only count only moves for update) (I agreed! At least in a tradeoff between update moves and search compares.)

10. The Results Here • Thm:  an implicit dictionary using O(lg n) comparisons to search in the worst case and updates in O(1) exchanges and O(lg n) compares in the amortized sense. • Thm:  an implicit dictionary using O(lg3n) comparisons to search in the worst case and updates in O(1) exchanges and O(lg3n) compares in the worst case.

11. The Proofs • Builds heavily on previous implicit encodings and also from “usual model” techniques for maintaining balanced trees with O(1) pointer updates (Levcopoulos & Overmars similar ideas to Dietz & Sleator) • Complex & detailed … see the paper • Can bounds be improved to O(lg n) worst case? … probably
