  1. Chapter 4 Processor Architecture Y86 Instruction Set Architecture Instructor: Dr. Hyunyoung Lee Texas A&M University • Based on slides provided by Randal E. Bryant, CMU

  2. Why Learn Processor Design? • Intellectually interesting, stimulating, important: we need to (and want to) know the inner workings of a system! Processor design requires creating a simple and regular structure to perform a complex task. • Understanding how the processor works aids in understanding how the overall computer system works. E.g., how to create an image of a huge memory with a very fast access time. • Need to design hardware systems that contain processors. E.g., embedded systems such as automobile and appliances. • You may be actually working on a processor design!

  3. Chapter Outline • Background • Instruction sets • Logic design • Sequential Implementation • A simple, but not very fast processor design • Pipelining • Get more things running simultaneously • Pipelined Implementation • Make it work • Advanced Topics • Performance analysis • High performance processor design

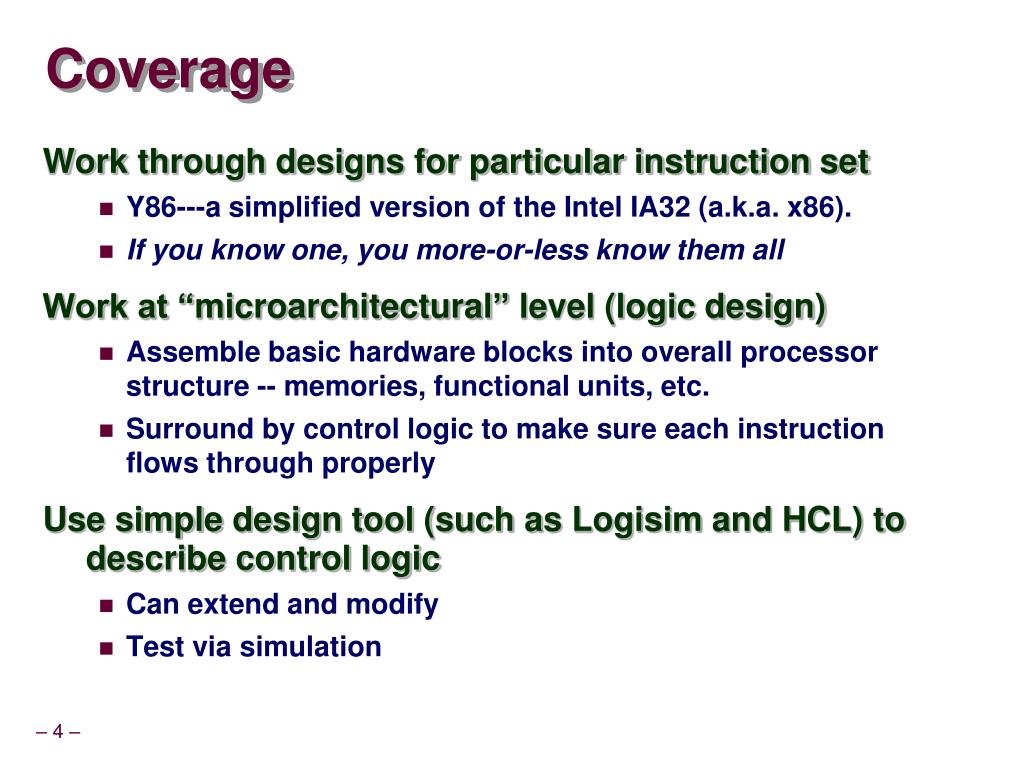

  4. Coverage • Work through designs for particular instruction set • Y86---a simplified version of the Intel IA32 (a.k.a. x86). • If you know one, you more-or-less know them all • Work at “microarchitectural” level (logic design) • Assemble basic hardware blocks into overall processor structure -- memories, functional units, etc. • Surround by control logic to make sure each instruction flows through properly • Use simple design tool (such as Logisim and HCL) to describe control logic • Can extend and modify • Test via simulation

  5. Application Program Compiler OS ISA CPU Design Circuit Design Chip Layout Instruction Set Architecture • Assembly Language View • Processor state • Registers, memory, … • Instructions • addl, pushl, ret, … • How instructions are encoded as bytes • Layer of Abstraction • Above: how to program machine • Processor executes instructions in a sequence • Below: what needs to be built • Use variety of tricks to make it run fast • E.g., execute multiple instructions simultaneously

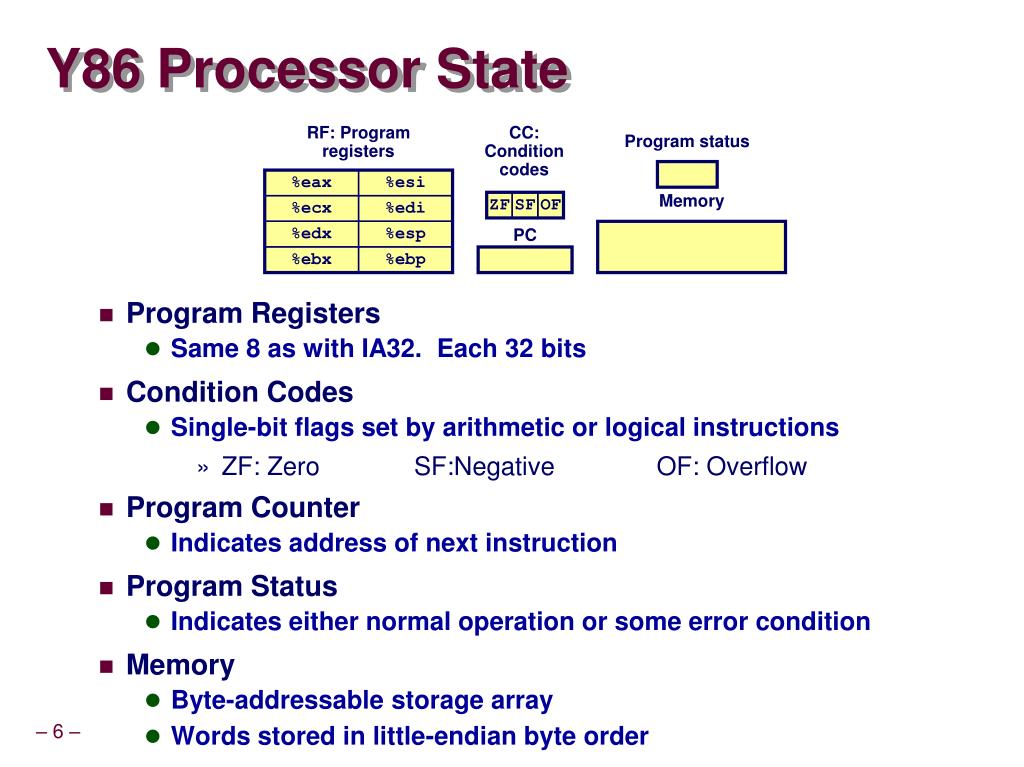

  6. Y86 Processor State RF: Program registers CC: Condition codes Program status • Program Registers • Same 8 as with IA32. Each 32 bits • Condition Codes • Single-bit flags set by arithmetic or logical instructions • ZF: Zero SF:Negative OF: Overflow • Program Counter • Indicates address of next instruction • Program Status • Indicates either normal operation or some error condition • Memory • Byte-addressable storage array • Words stored in little-endian byte order %eax %esi Memory ZF SF OF %ecx %edi %edx %esp PC %ebx %ebp

  7. Y86 Instructions • Format • 1–6 bytes of information read from memory • Can determine instruction length from first byte • Not as many instruction types, and simpler encoding than with IA32 • Each accesses and modifies some part(s) of the program state • Only 4-byte integer operations • “Word” means 4-byte data

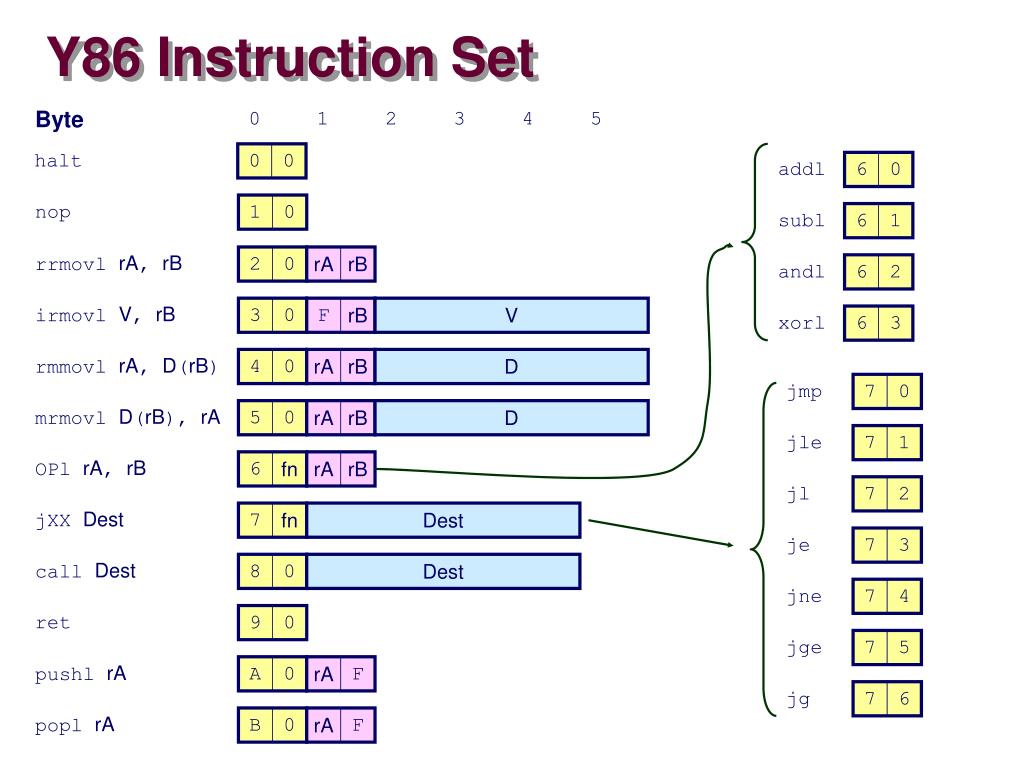

  8. Byte 0 1 2 3 4 5 nop 1 0 addl 6 0 halt 0 0 subl 6 1 rrmovlrA, rB 2 0 rA rB andl 6 2 irmovl V, rB 3 0 F rB V xorl 6 3 rmmovl rA, D(rB) 4 0 rA rB D jmp 7 0 mrmovl D(rB), rA 5 0 rA rB D jle 7 1 OPl rA, rB 6 fn rA rB jl 7 2 jXX Dest 7 fn Dest je 7 3 call Dest 8 0 Dest jne 7 4 ret 9 0 jge 7 5 pushl rA A 0 rA F jg 7 6 popl rA B 0 rA F Y86 Instruction Set

  9. %eax 0 %esi 6 %ecx 1 %edi 7 %edx 2 %esp 4 %ebx 3 %ebp 5 Encoding Registers • Each register has 4-bit ID • Same encoding as in IA32 • Register ID 15 (0xF) indicates “no register” • Is used in the hardware design

  10. Generic Form Encoded Representation addl rA, rB 6 0 rA rB Instruction Example • Addition Instruction • Add value in register rA to that in register rB • Store result in register rB • Note that Y86 only allows addition to be applied to register data • Set condition codes based on result • e.g., addl %eax,%esi Encoding: 60 06 • Two-byte encoding • First indicates instruction type • Second gives source and destination registers

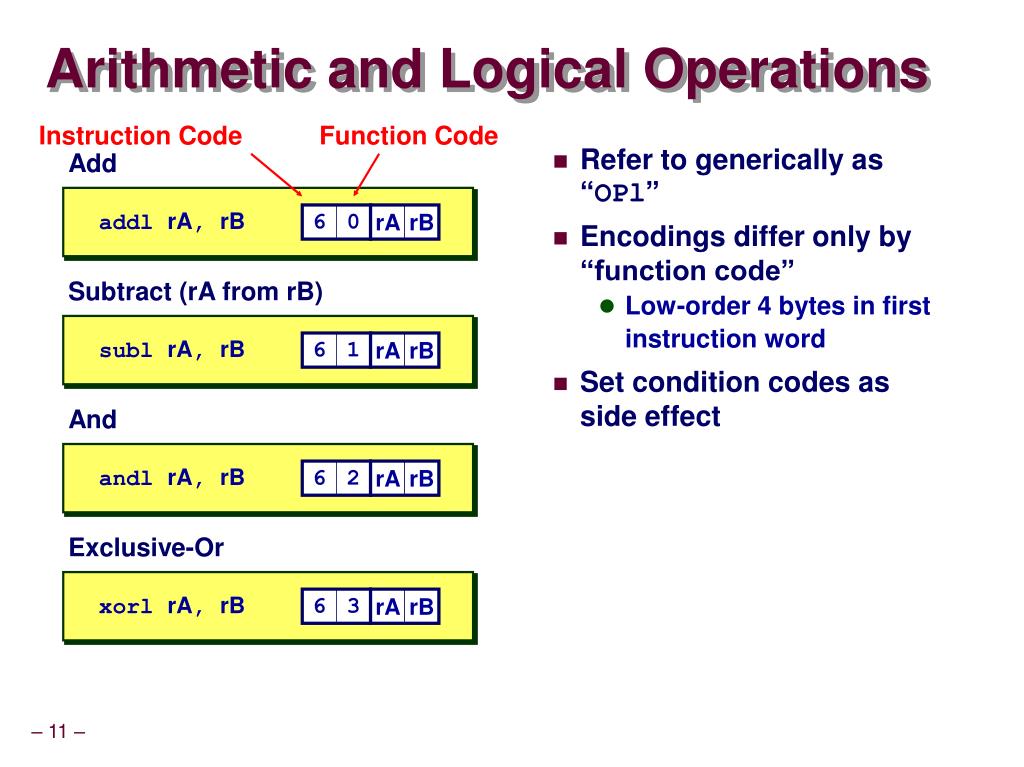

  11. Instruction Code Function Code addl rA, rB xorl rA, rB andl rA, rB subl rA, rB 6 6 6 6 2 3 1 0 rA rA rA rA rB rB rB rB Arithmetic and Logical Operations • Refer to generically as “OPl” • Encodings differ only by “function code” • Low-order 4 bytes in first instruction word • Set condition codes as side effect Add Subtract (rA from rB) And Exclusive-Or

  12. rA F rA rB rB rB 4 3 2 5 0 0 0 0 rA rB mrmovl D(rB), rA irmovl V, rB rmmovl rA, D(rB) D V D Move Operations • Like the IA32 movl instruction • Simpler format for memory addresses • Give different names to keep them distinct Register --> Register rrmovl rA, rB Immediate --> Register Register --> Memory Memory --> Register

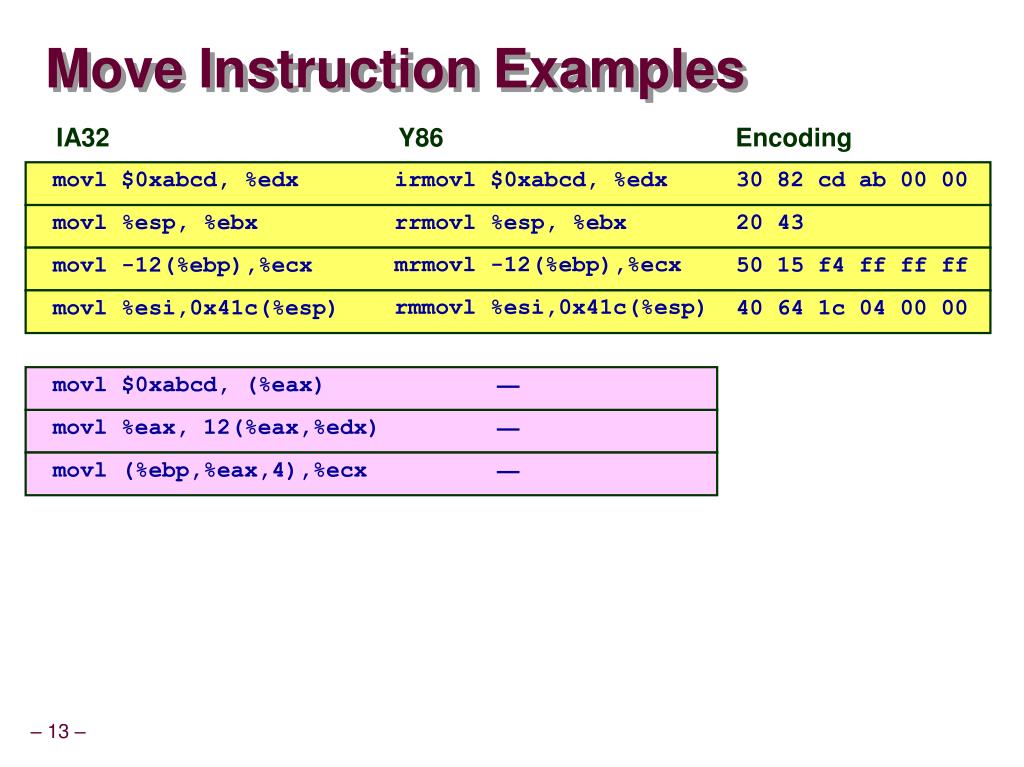

  13. Move Instruction Examples IA32 Y86 Encoding movl $0xabcd, %edx irmovl $0xabcd, %edx 30 82 cd ab 00 00 movl %esp, %ebx rrmovl %esp, %ebx 20 43 movl -12(%ebp),%ecx mrmovl -12(%ebp),%ecx 50 15 f4 ff ff ff movl %esi,0x41c(%esp) rmmovl %esi,0x41c(%esp) 40 64 1c 04 00 00 movl $0xabcd, (%eax) — movl %eax, 12(%eax,%edx) — movl (%ebp,%eax,4),%ecx —

  14. Jump When Equal Jump When Not Equal Jump Unconditionally Jump When Greater Jump When Greater or Equal Jump When Less or Equal Jump When Less jge Dest jl Dest je Dest jmp Dest jg Dest jne Dest jle Dest Dest Dest Dest Dest Dest Dest Dest 7 7 7 7 7 7 7 0 4 3 2 1 5 6 Jump Instructions • Refer to generically as “jXX” • Encodings differ only by “function code” • Based on values of condition codes • Same as IA32 counterparts • Encode full destination address • Unlike PC-relative addressing seen in IA32

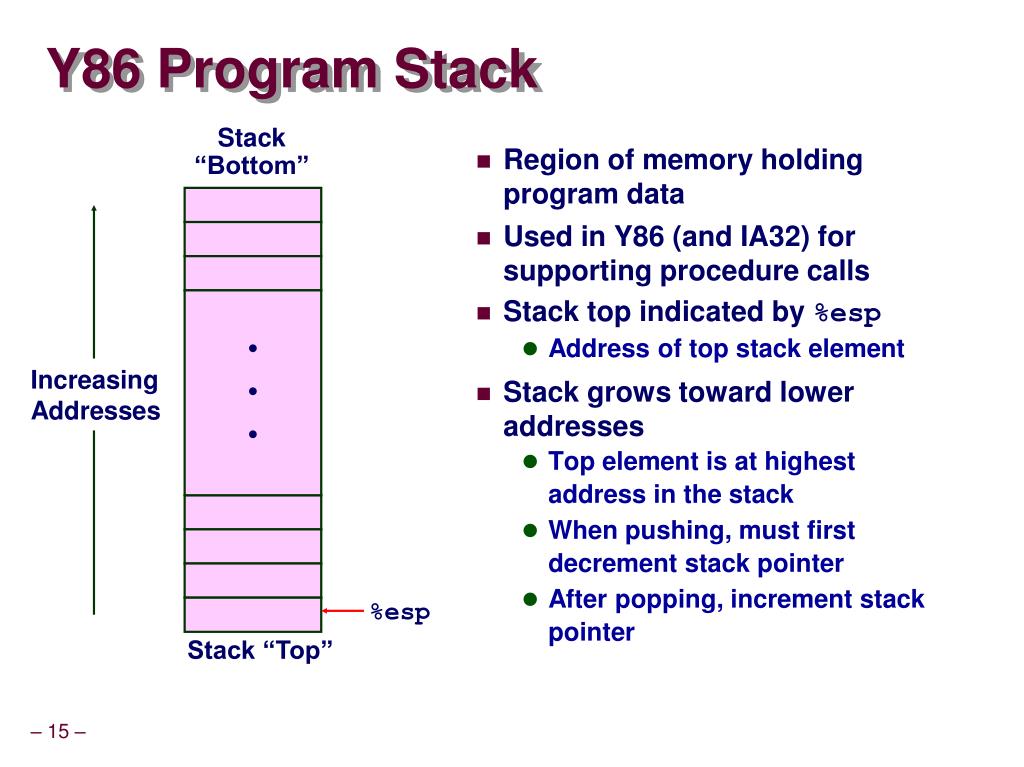

  15. Y86 Program Stack Stack “Bottom” • Region of memory holding program data • Used in Y86 (and IA32) for supporting procedure calls • Stack top indicated by %esp • Address of top stack element • Stack grows toward lower addresses • Top element is at highest address in the stack • When pushing, must first decrement stack pointer • After popping, increment stack pointer • • • Increasing Addresses %esp Stack “Top”

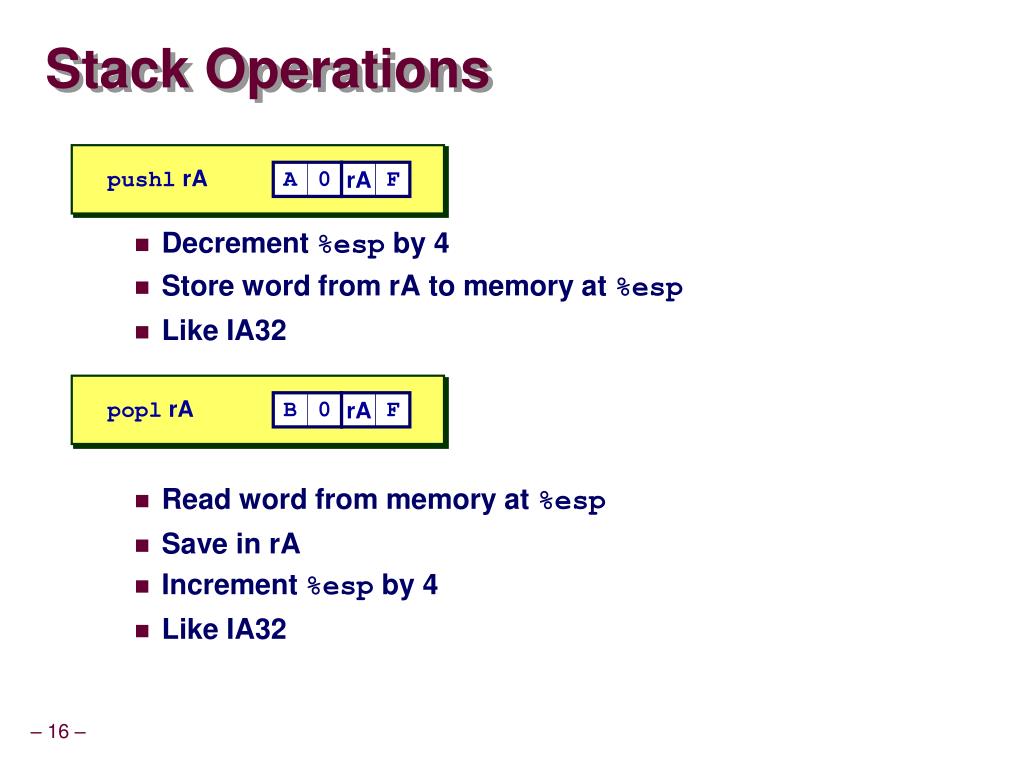

  16. pushl rA popl rA A rA B rA 0 F 0 F Stack Operations • Decrement %esp by 4 • Store word from rA to memory at %esp • Like IA32 • Read word from memory at %esp • Save in rA • Increment %esp by 4 • Like IA32

  17. call Dest Dest ret 8 9 0 0 Subroutine Call and Return • Push address of next instruction onto stack • Start executing instructions at Dest • Like IA32 • Pop value from stack • Use as address for next instruction • Like IA32

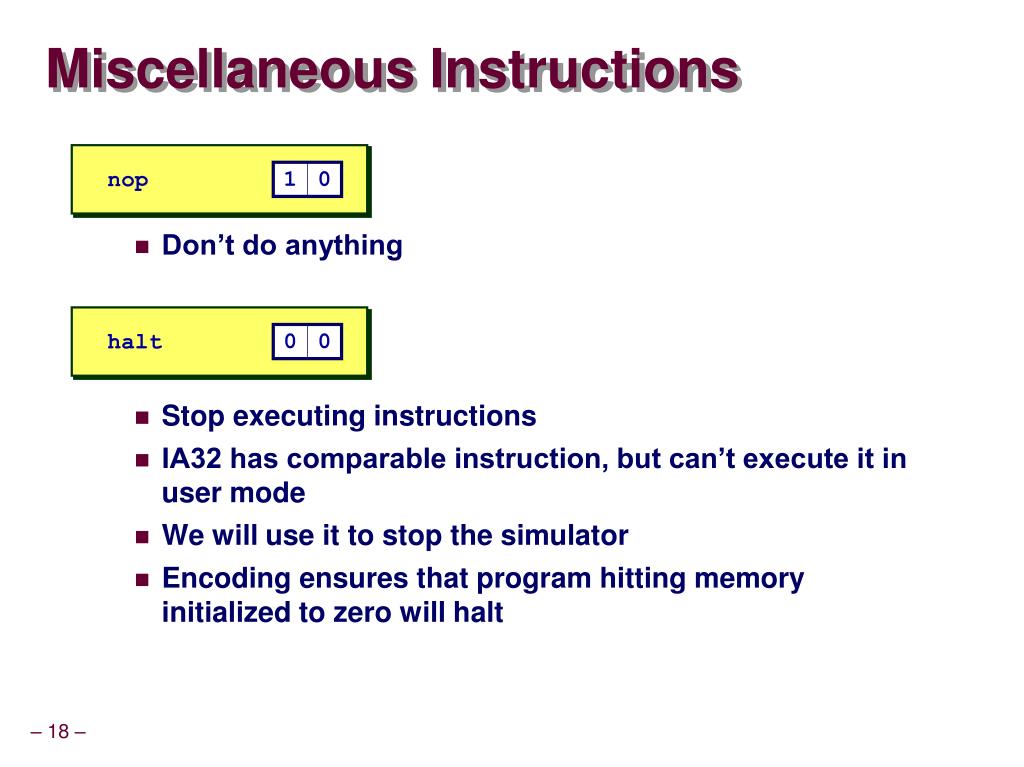

  18. nop halt 1 0 0 0 Miscellaneous Instructions • Don’t do anything • Stop executing instructions • IA32 has comparable instruction, but can’t execute it in user mode • We will use it to stop the simulator • Encoding ensures that program hitting memory initialized to zero will halt

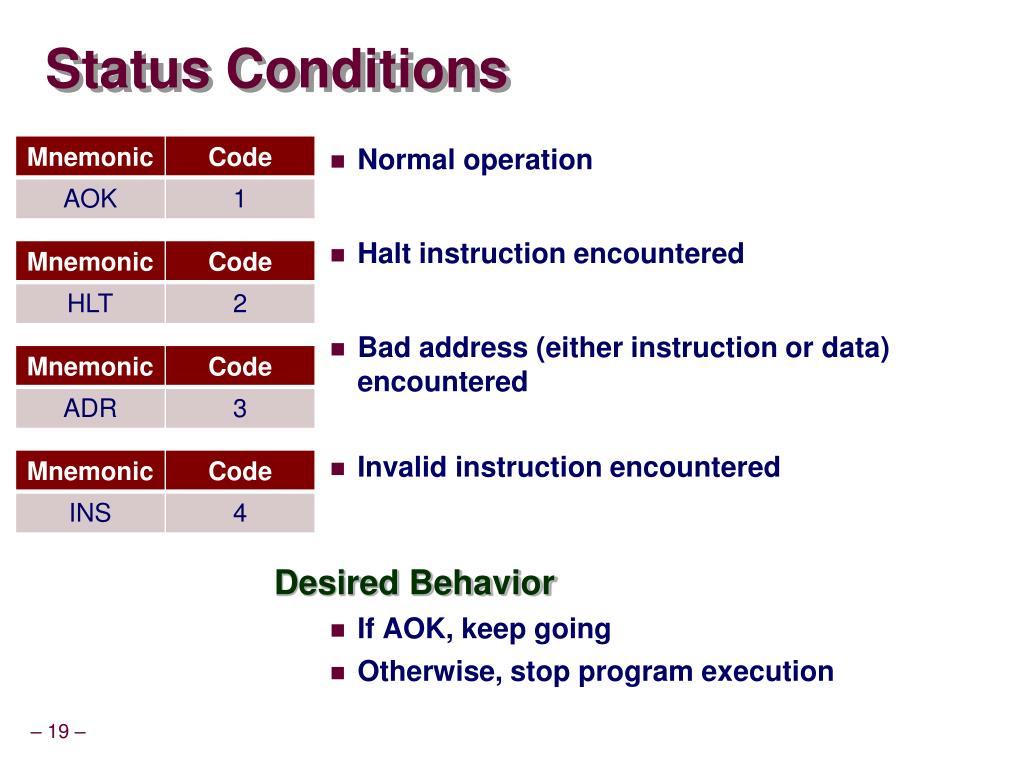

  19. Status Conditions • Normal operation • Halt instruction encountered • Bad address (either instruction or data) encountered • Invalid instruction encountered • Desired Behavior • If AOK, keep going • Otherwise, stop program execution

  20. a 5043 6125  3 7395 0 Writing Y86 Code • Try to Use C Compiler as Much as Possible • Write code in C • Compile for IA32 with gcc –O1 –S • Transliterate into Y86 • Coding Example • Find number of elements in null-terminated list int len1(int a[]);

  21. First Try Write typical array code Compile with gcc –O1 -S Problem Hard to do array indexing on Y86 Since don’t have scaled addressing modes Y86 Code Generation Example /* Find number of elements in null-terminated list */ int len1(int a[]) { int len; for (len = 0; a[len]; len++) ; return len; } L5: incl %eax cmpl $0, (%edx,%eax,4) jne L5

  22. Second Try Write with pointer code Compile with gcc –O1 -S Result Don’t need to do indexed addressing Y86 Code Generation Example #2 /* Find number of elements in null-terminated list */ int len2(int a[]) { intlen = 0; while (*a++) len++; return len; } .L11: incl %ecx movl (%edx), %eax addl $4, %edx testl %eax, %eax jne .L11

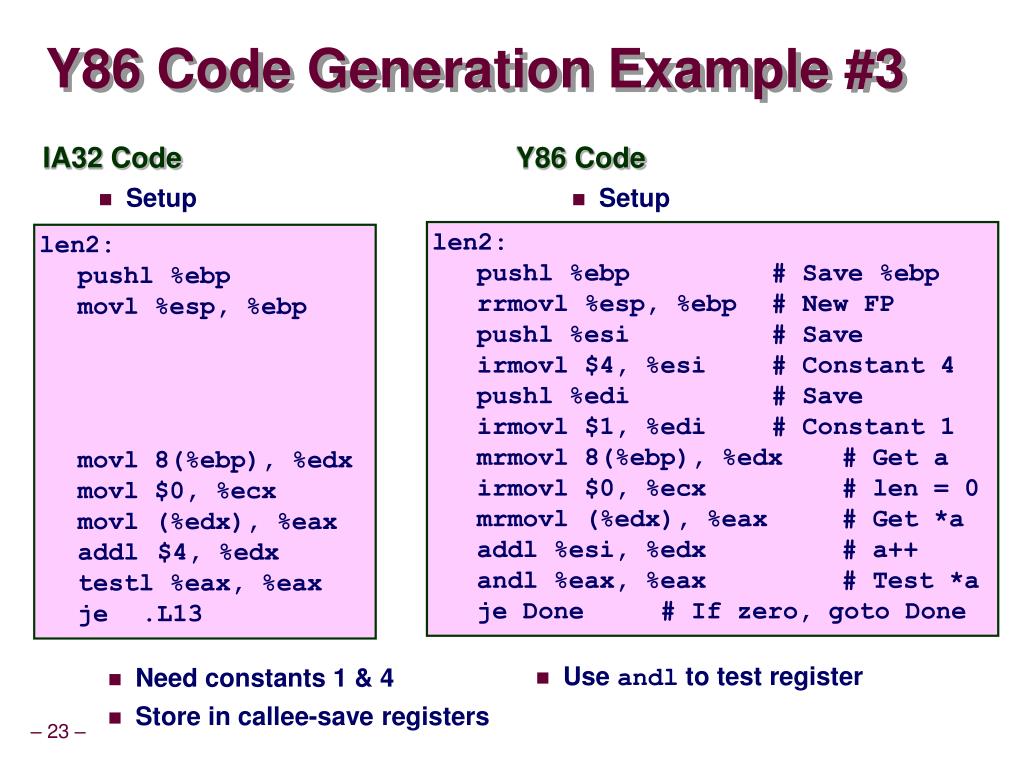

  23. IA32 Code Setup Y86 Code Setup Y86 Code Generation Example #3 len2: pushl %ebp # Save %ebp rrmovl %esp, %ebp # New FP pushl %esi # Save irmovl $4, %esi # Constant 4 pushl %edi # Save irmovl $1, %edi # Constant 1 mrmovl 8(%ebp), %edx # Get a irmovl $0, %ecx # len = 0 mrmovl (%edx), %eax # Get *a addl %esi, %edx # a++ andl %eax, %eax # Test *a je Done # If zero, goto Done len2: pushl %ebp movl%esp, %ebp movl8(%ebp), %edx movl$0, %ecx movl(%edx), %eax addl $4, %edx testl%eax, %eax je .L13 • Need constants 1 & 4 • Store in callee-save registers • Use andl to test register

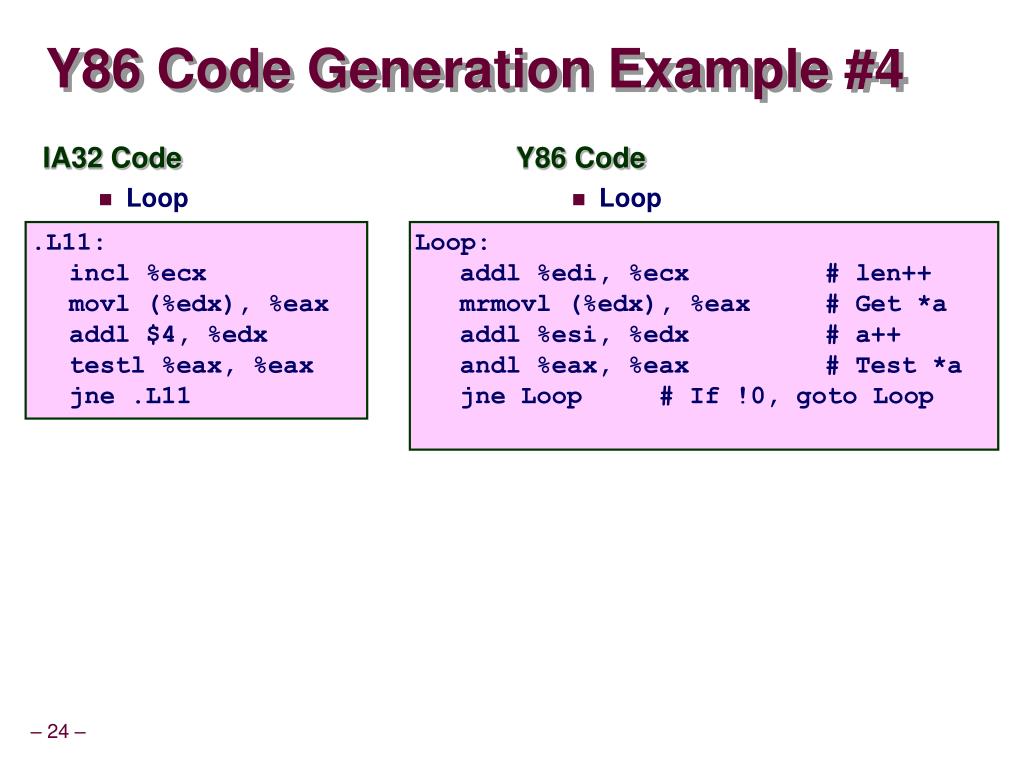

  24. IA32 Code Loop Y86 Code Loop Y86 Code Generation Example #4 .L11: incl%ecx movl(%edx), %eax addl$4, %edx testl%eax, %eax jne.L11 Loop: addl %edi, %ecx # len++ mrmovl (%edx), %eax # Get *a addl %esi, %edx # a++ andl %eax, %eax # Test *a jne Loop # If !0, goto Loop

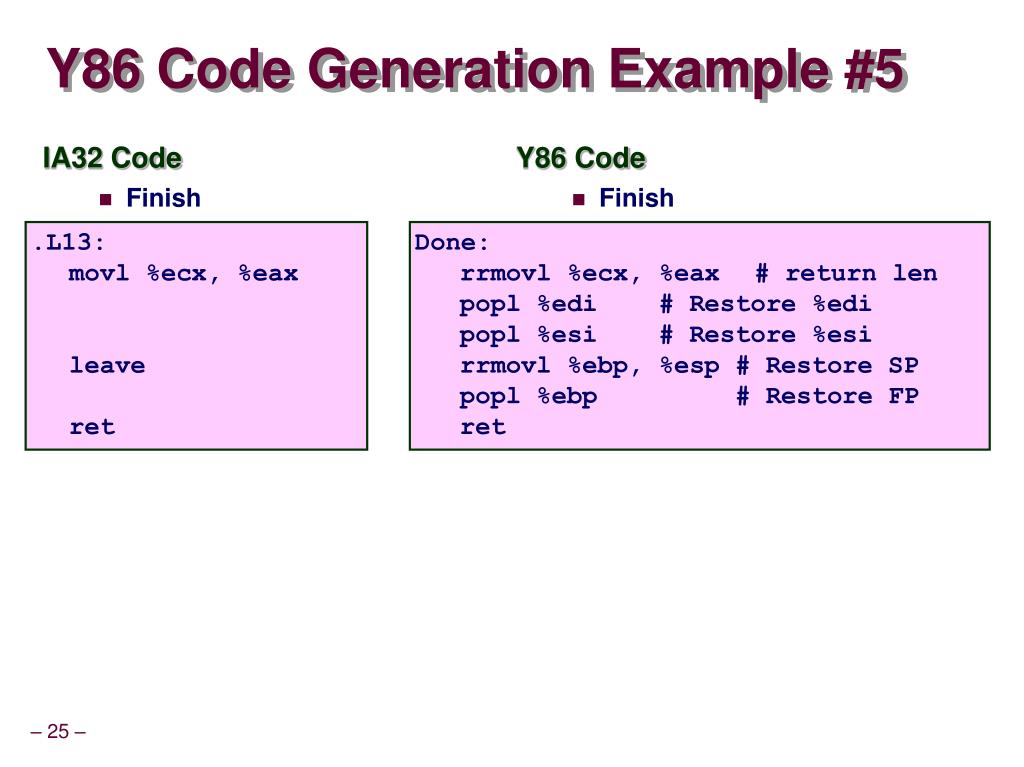

  25. IA32 Code Finish Y86 Code Finish Y86 Code Generation Example #5 .L13: movl%ecx, %eax leave ret Done: rrmovl %ecx, %eax # return len popl %edi # Restore %edi popl %esi # Restore %esi rrmovl %ebp, %esp# Restore SP popl %ebp # Restore FP ret

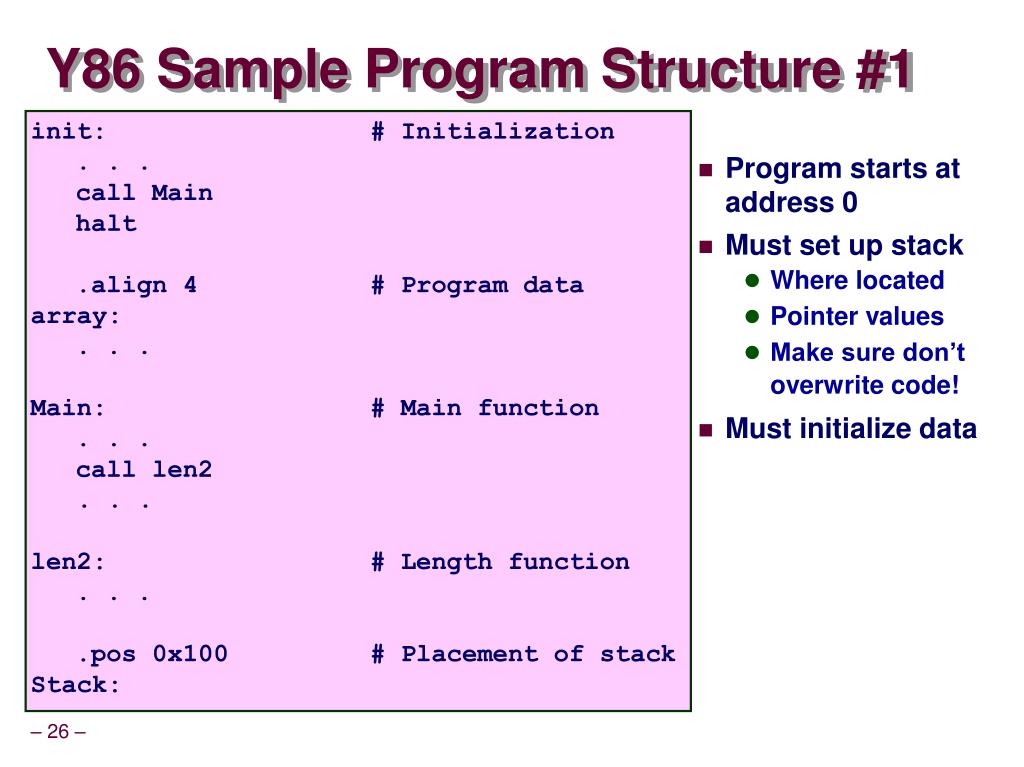

  26. Y86 Sample Program Structure #1 init: # Initialization . . . call Main halt .align 4 # Program data array: . . . Main: # Main function . . . call len2 . . . len2: # Length function . . . .pos 0x100 # Placement of stack Stack: • Program starts at address 0 • Must set up stack • Where located • Pointer values • Make sure don’t overwrite code! • Must initialize data

  27. Y86 Program Structure #2 init: irmovl Stack, %esp # Set up SP irmovl Stack, %ebp # Set up FP call Main # Execute main halt # Terminate # Array of 4 elements + terminating 0 .align 4 array: .long 0x000d .long 0x00c0 .long 0x0b00 .long 0xa000 .long 0 • Program starts at address 0 • Must set up stack • Must initialize data • Can use symbolic names

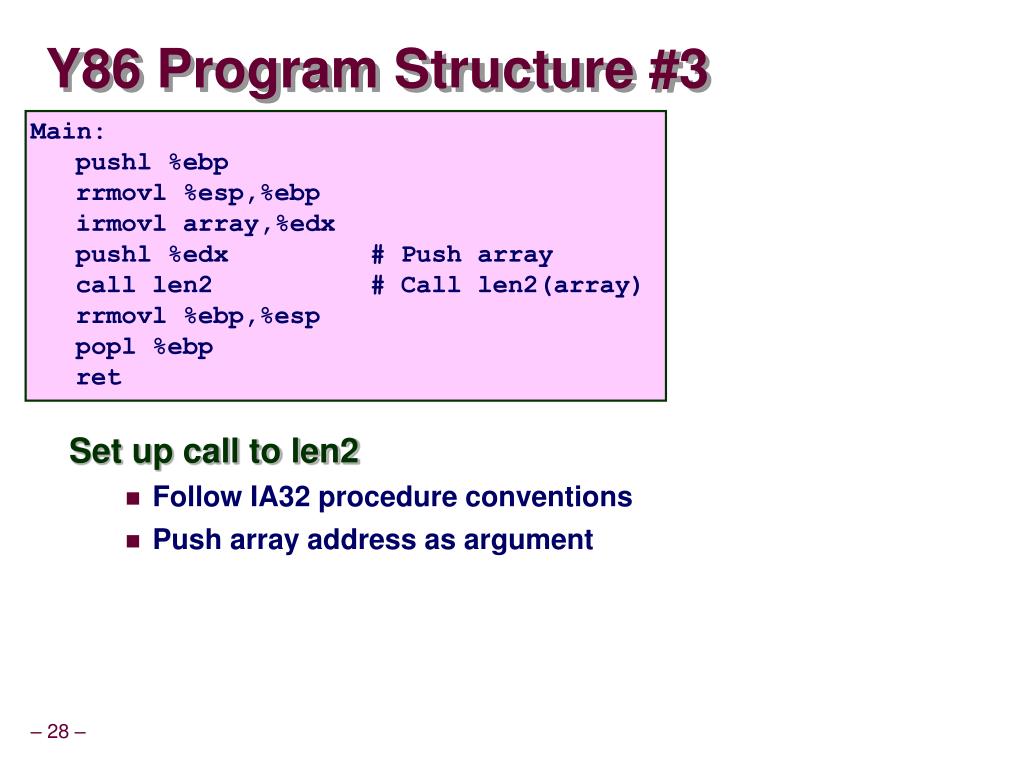

  28. Y86 Program Structure #3 Main: pushl %ebp rrmovl %esp,%ebp irmovlarray,%edx pushl %edx # Push array call len2 # Call len2(array) rrmovl %ebp,%esp popl %ebp ret • Set up call to len2 • Follow IA32 procedure conventions • Push array address as argument

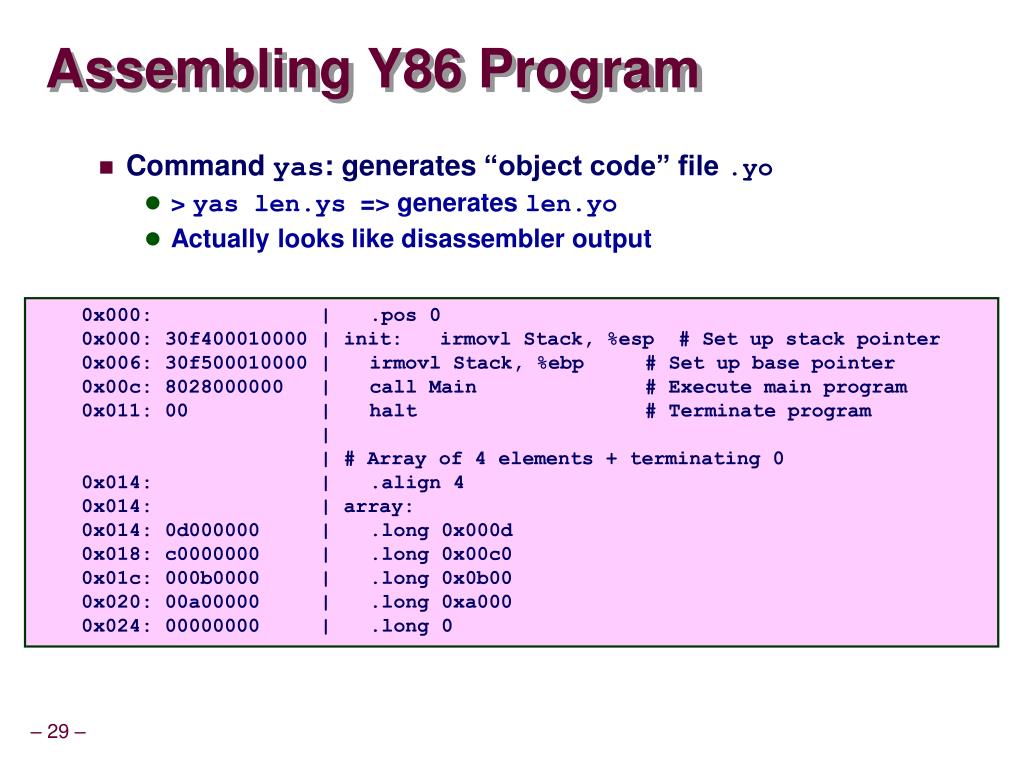

  29. Assembling Y86 Program • Command yas: generates “object code” file .yo • > yaslen.ys => generates len.yo • Actually looks like disassembler output • 0x000: | .pos 0 • 0x000: 30f400010000 | init: irmovl Stack, %esp # Set up stack pointer • 0x006: 30f500010000 | irmovl Stack, %ebp # Set up base pointer • 0x00c: 8028000000 | call Main # Execute main program • 0x011: 00 | halt # Terminate program • | • | # Array of 4 elements + terminating 0 • 0x014: | .align 4 • 0x014: | array: • 0x014: 0d000000 | .long 0x000d • 0x018: c0000000 | .long 0x00c0 • 0x01c: 000b0000 | .long 0x0b00 • 0x020: 00a00000 | .long 0xa000 • 0x024: 00000000 | .long 0

  30. Simulating Y86 Program • Instruction set simulator (yis) • > yislen.yo • Computes effect of each instruction on processor state • Prints changes in state from original • Stopped in 50 steps at PC = 0x11. Status 'HLT', CC Z=1 S=0 O=0 • Changes to registers: • %eax: 0x00000000 0x00000004 • %ecx: 0x00000000 0x00000004 • %edx: 0x00000000 0x00000028 • %esp: 0x00000000 0x00000100 • %ebp: 0x00000000 0x00000100 • Changes to memory: • 0x00ec: 0x00000000 0x000000f8 • 0x00f0: 0x00000000 0x00000039 • 0x00f4: 0x00000000 0x00000014 • 0x00f8: 0x00000000 0x00000100 • 0x00fc: 0x00000000 0x00000011

  31. CISC Instruction Sets • Complex Instruction Set Computer • Dominant style through mid-80’s • Stack-oriented instruction set • Use stack to pass arguments, save program counter • Explicit push and pop instructions • Arithmetic instructions can access memory • addl %eax, 12(%ebx,%ecx,4) • requires memory read and write • Complex address calculation • Condition codes • Set as side effect of arithmetic and logical instructions • Philosophy • Add instructions to perform “typical” programming tasks

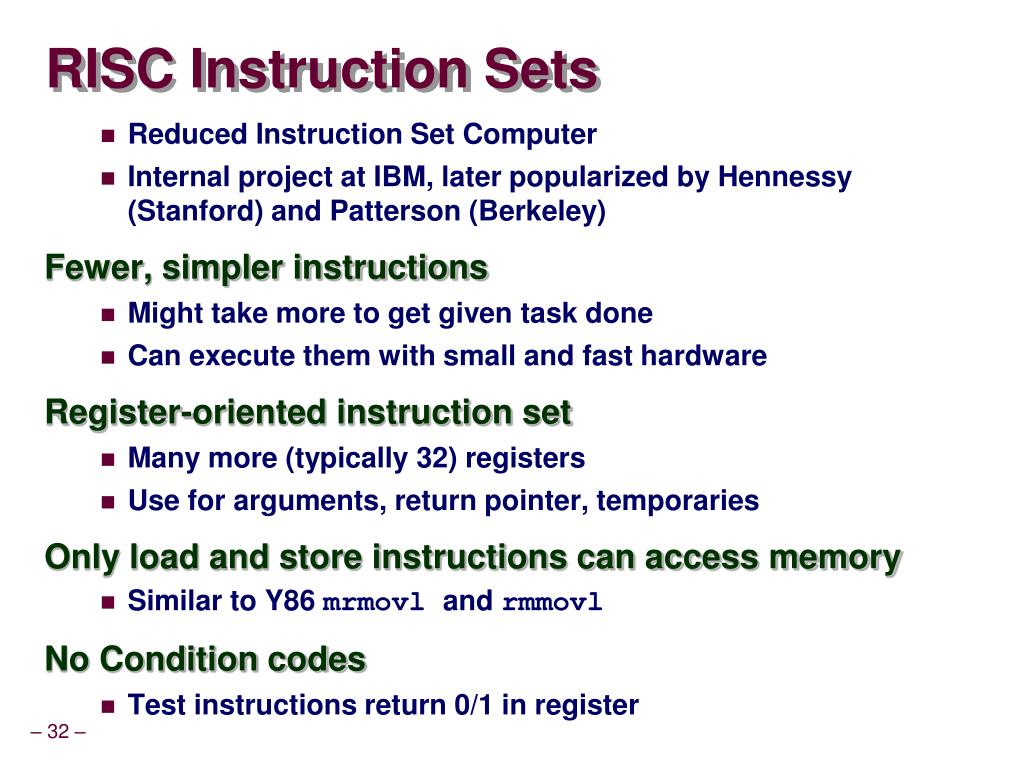

  32. RISC Instruction Sets • Reduced Instruction Set Computer • Internal project at IBM, later popularized by Hennessy (Stanford) and Patterson (Berkeley) • Fewer, simpler instructions • Might take more to get given task done • Can execute them with small and fast hardware • Register-oriented instruction set • Many more (typically 32) registers • Use for arguments, return pointer, temporaries • Only load and store instructions can access memory • Similar to Y86 mrmovl and rmmovl • No Condition codes • Test instructions return 0/1 in register

  33. CISC vs. RISC • Original Debate • Strong opinions! • CISC proponents---easy for compiler, fewer code bytes • RISC proponents---better for optimizing compilers, can make run fast with simple chip design • Current Status • For desktop processors, choice of ISA not a technical issue • With enough hardware, can make anything run fast • Code compatibility more important • For embedded processors, RISC makes sense • Smaller, cheaper, less power • Most cell phones use ARM processor

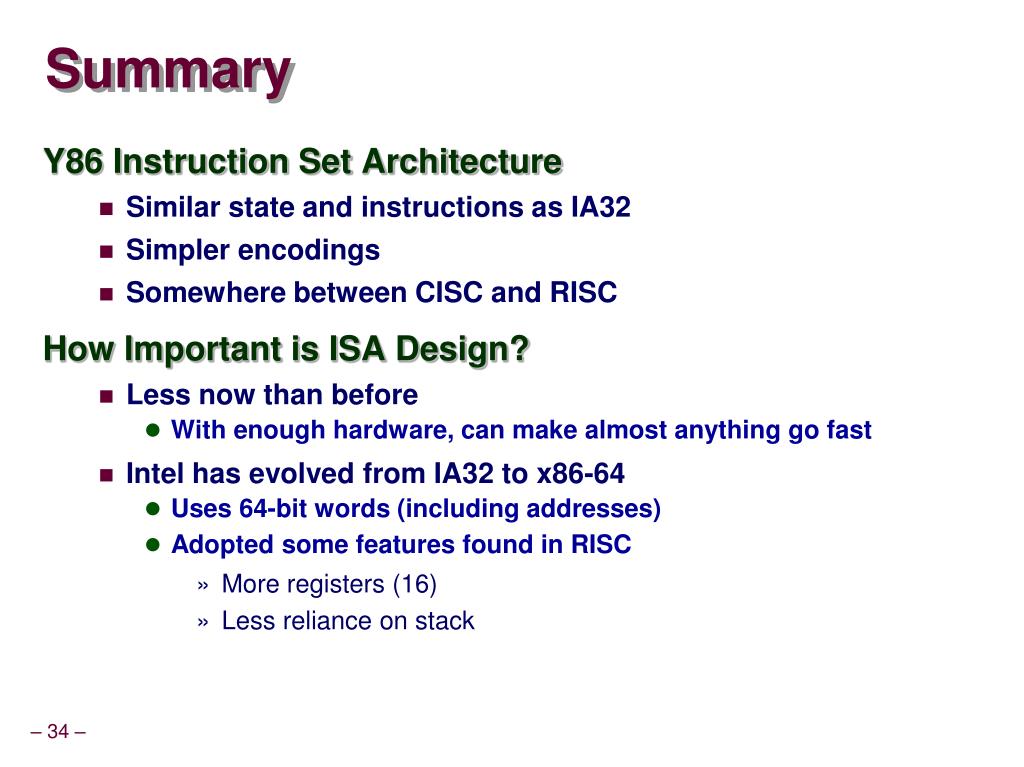

  34. Summary • Y86 Instruction Set Architecture • Similar state and instructions as IA32 • Simpler encodings • Somewhere between CISC and RISC • How Important is ISA Design? • Less now than before • With enough hardware, can make almost anything go fast • Intel has evolved from IA32 to x86-64 • Uses 64-bit words (including addresses) • Adopted some features found in RISC • More registers (16) • Less reliance on stack
