Overview of the gLite middleware

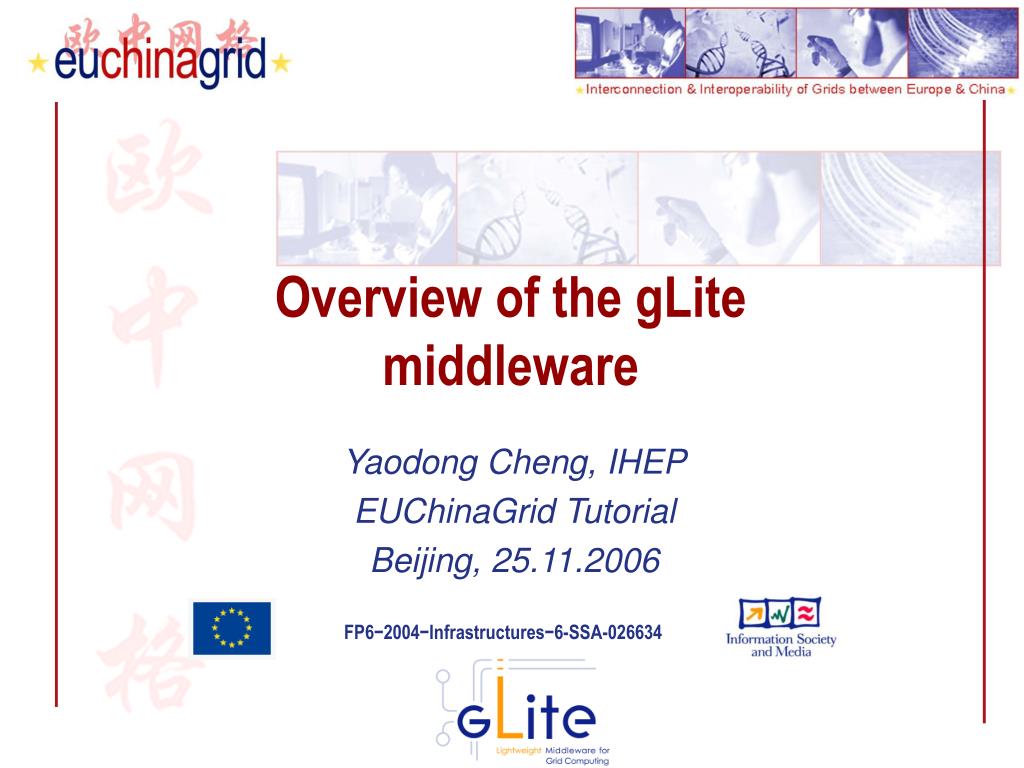

1. Overview of the gLite middleware Yaodong Cheng, IHEP EUChinaGrid Tutorial Beijing, 25.11.2006

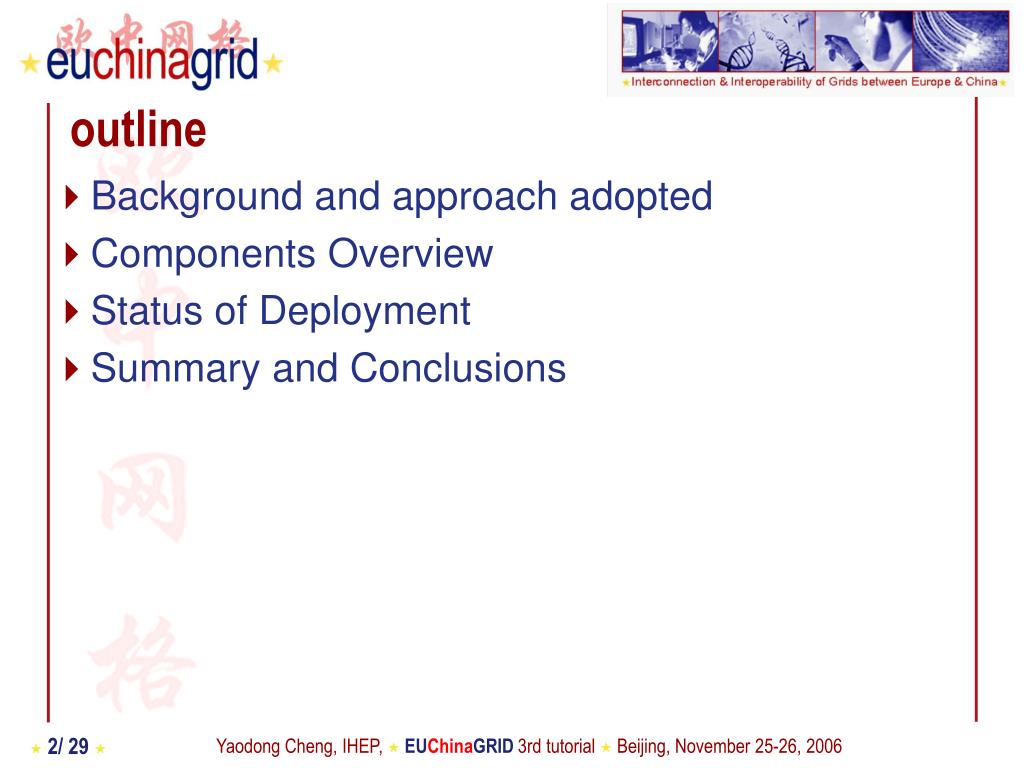

2. outline • Background and approach adopted • Components Overview • Status of Deployment • Summary and Conclusions

3. Grid Aim • Grid Systems & Applications aim is to: • Integrate • Virtualise • Manage RESOURCEs and SERVICEs across different Vos VO: Virtual Organization – Individuals and/or Institutes having direct access to resources

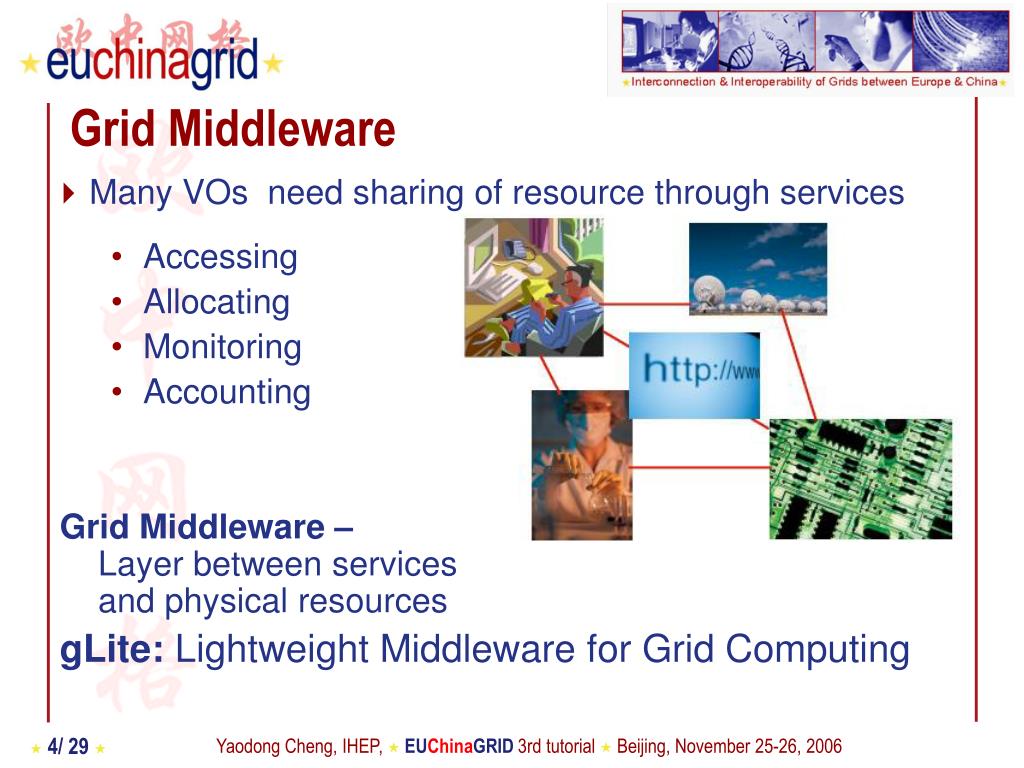

4. Many VOs need sharing of resource through services Accessing Allocating Monitoring Accounting Grid Middleware –Layer between servicesand physical resources gLite: Lightweight Middleware for Grid Computing Grid Middleware

5. gLite Background • gLite (pronounced "gee-lite") : next generation Lightweight middleware for grid computing • Exploit experience and existing components from: • GGF(Global Grid Forum)/OGF(Open Grid Forum) • Open Grid Services Architecture - OGSA • VDT (Condor, globus) 、EDG/LCG、AliEN、… • gLite is a distribution that combines components from many different providers!

6. gLite Architecture • The gLite Grid services follow a Service Oriented Architecture • facilitate interoperability among Grid services • allow easier compliance with upcoming standards • Pluggable components • Architecture is not bound to specific implementations • services are expected to work together • services can be deployed and used independently • Business friendly open source license • Plan to switch to Apache-2

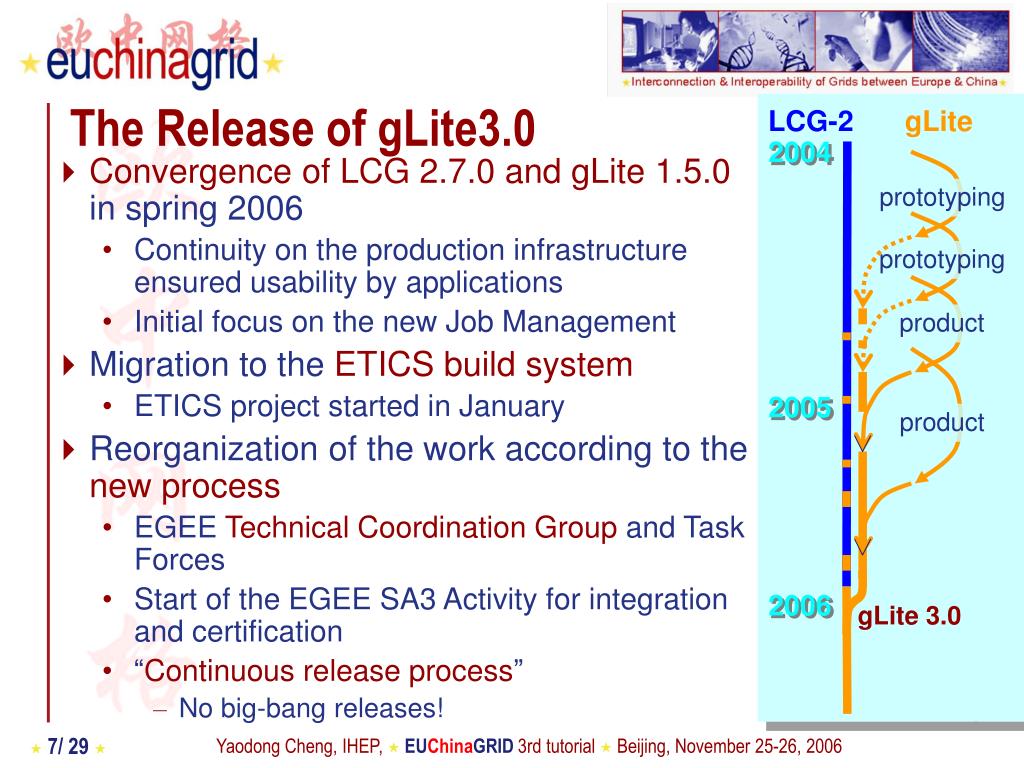

7. LCG-2 gLite 2004 prototyping prototyping product 2005 product 2006 gLite 3.0 The Release of gLite3.0 • Convergence of LCG 2.7.0 and gLite 1.5.0 in spring 2006 • Continuity on the production infrastructure ensured usability by applications • Initial focus on the new Job Management • Migration to the ETICS build system • ETICS project started in January • Reorganization of the work according to the new process • EGEE Technical Coordination Group and Task Forces • Start of the EGEE SA3 Activity for integration and certification • “Continuous release process” • No big-bang releases!

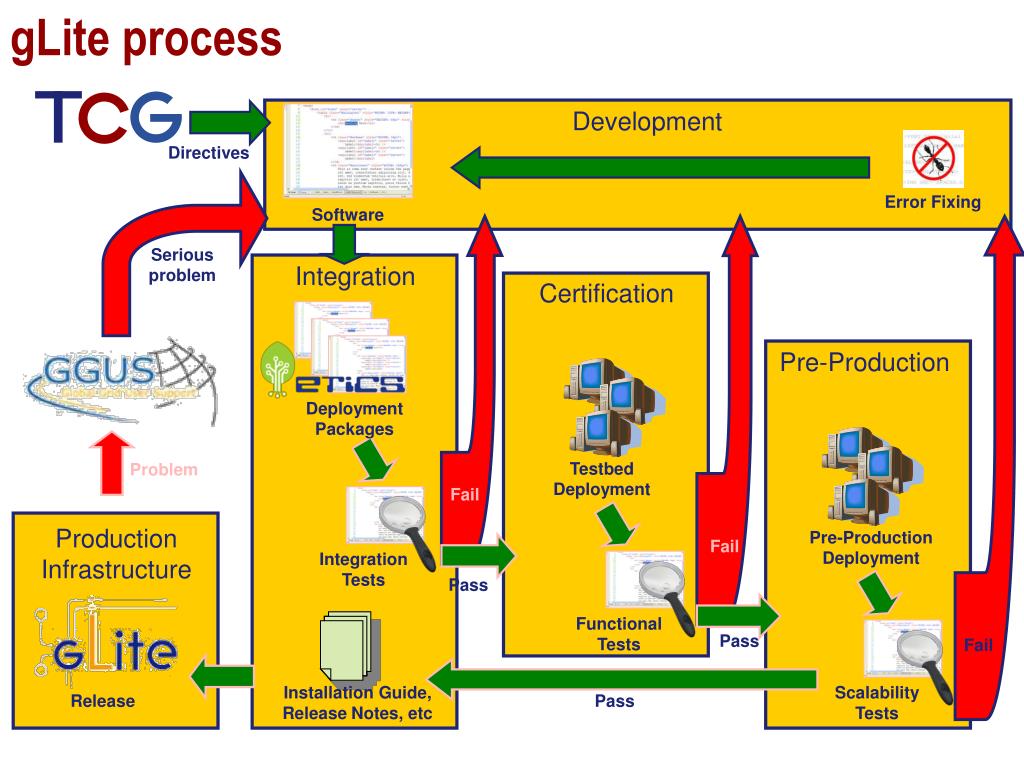

8. gLite process Development Directives Error Fixing Software Serious problem Integration Certification Pre-Production Deployment Packages Testbed Deployment Problem Fail Production Infrastructure Pre-Production Deployment Fail Integration Tests Pass Functional Tests Pass Fail Installation Guide, Release Notes, etc Scalability Tests Release Pass

9. TCG & EMT • The EGEE Technical Coordination Group (TCG) defines the priorities for middleware development and certification • Members from LHC experiments and other EGEE-NA4 applications, and form EGEE Technical activities • Collects requirements from the applications • Prioritizes the requirements • Approves the JRA1 and SA3 work plans (Focus on short term) • The Engineering Management Team (EMT) coordinates the production of gLite releases • Members from SA3, JRA1, SA1 and VDT • Decides what and when to release components and patches • Follows critical bugs fixing individually • Works according to TCG directives

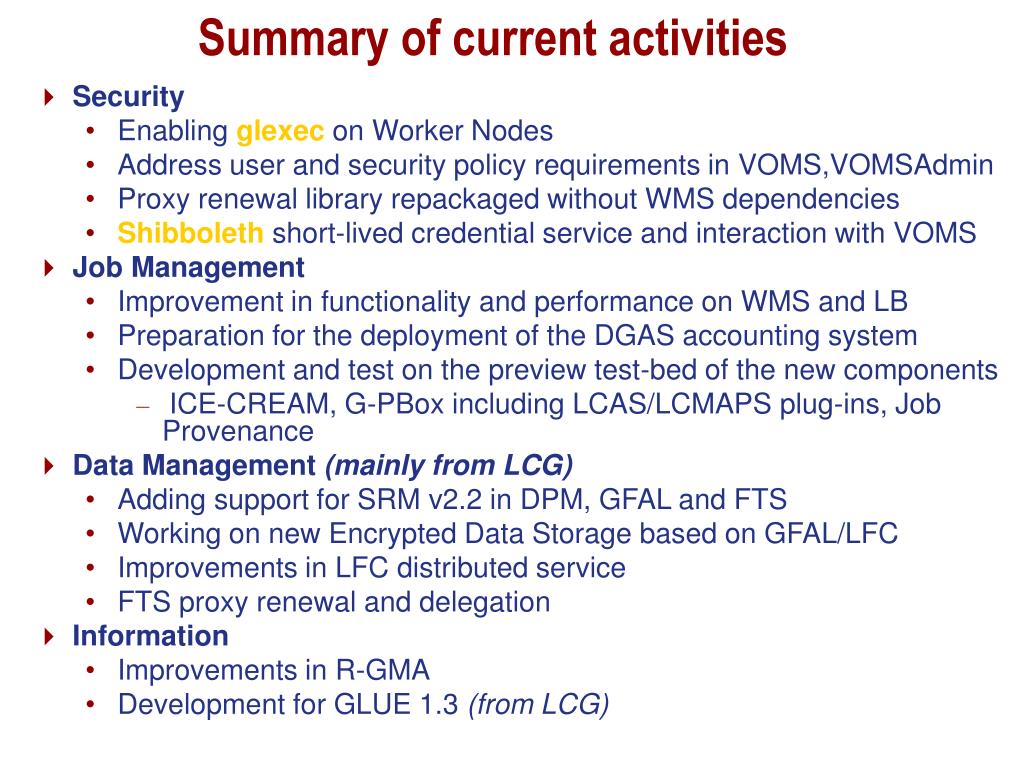

10. Summary of current activities • Security • Enabling glexec on Worker Nodes • Address user and security policy requirements in VOMS,VOMSAdmin • Proxy renewal library repackaged without WMS dependencies • Shibboleth short-lived credential service and interaction with VOMS • Job Management • Improvement in functionality and performance on WMS and LB • Preparation for the deployment of the DGAS accounting system • Development and test on the preview test-bed of the new components • ICE-CREAM, G-PBox including LCAS/LCMAPS plug-ins, Job Provenance • Data Management (mainly from LCG) • Adding support for SRM v2.2 in DPM, GFAL and FTS • Working on new Encrypted Data Storage based on GFAL/LFC • Improvements in LFC distributed service • FTS proxy renewal and delegation • Information • Improvements in R-GMA • Development for GLUE 1.3 (from LCG)

11. Middleware in EGEE Applications • Applications have access both to Higher-level Grid Services and to Foundation Grid Middleware • Higher-Level Grid Services are supposed to help the users building their computing infrastructure but should not be mandatory • Foundation Grid Middleware will be deployed on the EGEE infrastructure • Must be complete and robust • Should allow interoperation with other major grid infrastructures • Should not assume the use of Higher-Level Grid Higher-Level Grid Services Workload Management Replica Management Visualization Workflows Grid economies etc. Foundation Grid Middleware Security model and infrastructure Computing (CE) & Storage Elements (SE) Accounting Information providers and monitoring

12. Grid Foundation: Security • Authentication based on X.509 PKI infrastructure • Certificate Authorities (CA) issue (long lived) certificates identifying individuals (much like a passport) • Commonly used in web browsers to authenticate to sites • Trust between CAs and sites is established (offline) • In order to reduce vulnerability, on the Grid user identification is done by using (short lived) proxies of their certificates • Proxies can • Be delegated to a service such that it can act on the user’s behalf • Include additional attributes (like VO information via the VO Membership Service VOMS) • Be stored in an external proxy store (MyProxy) • Be renewed (in case they are about to expire)

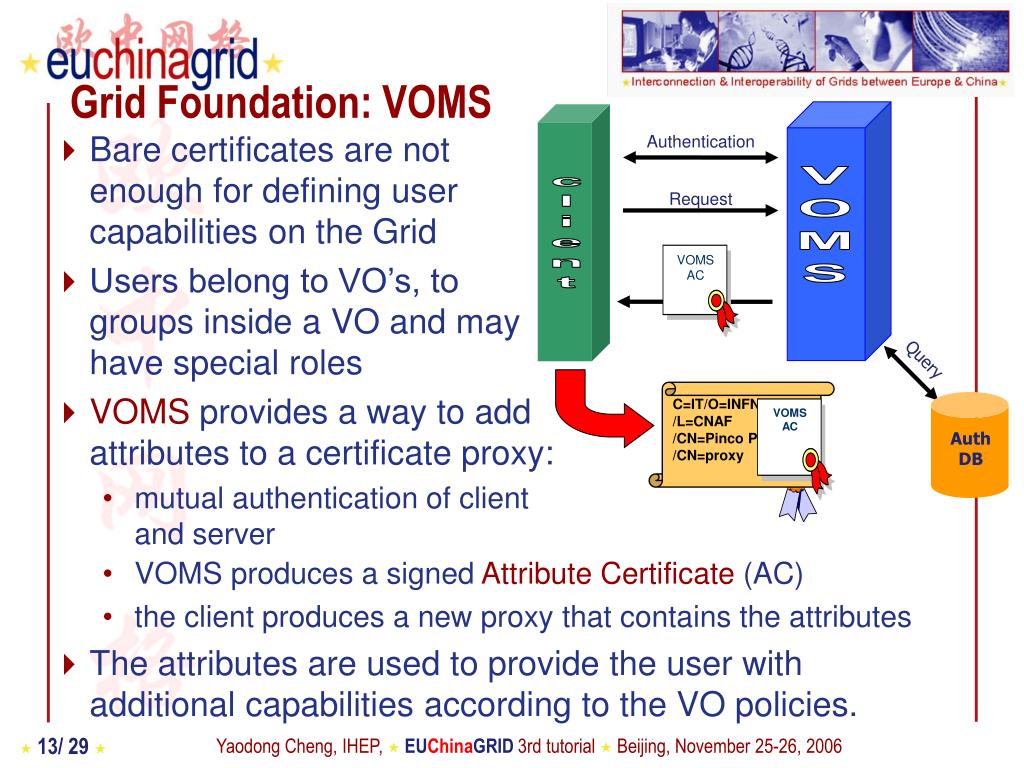

13. Bare certificates are not enough for defining user capabilities on the Grid Users belong to VO’s, to groups inside a VO and may have special roles VOMS provides a way to add attributes to a certificate proxy: mutual authentication of client and server VOMS produces a signed Attribute Certificate (AC) the client produces a new proxy that contains the attributes The attributes are used to provide the user with additional capabilities according to the VO policies. Authentication Request OK C=IT/O=INFN /L=CNAF/CN=Pinco Palla/CN=proxy Query AuthDB VOMSAC VOMSAC VOMS client Grid Foundation: VOMS

14. 2171 LDAP 2172 LDAP 2173 LDAP Update DB & Modify DB Swap DBs 2170 Port Fwd 2170 Port Fwd Grid foundation: Information Systems • Generic Information Provider (GIP) • Provides LDIF information about a grid service in accordance to the GLUE Schema • BDII • LDAP database that is updated by a process • More than one DBs is used separate read and write • A port forwarder is used internally to select the correct DB GIP Cache Provider Plugin LDIF File Config File

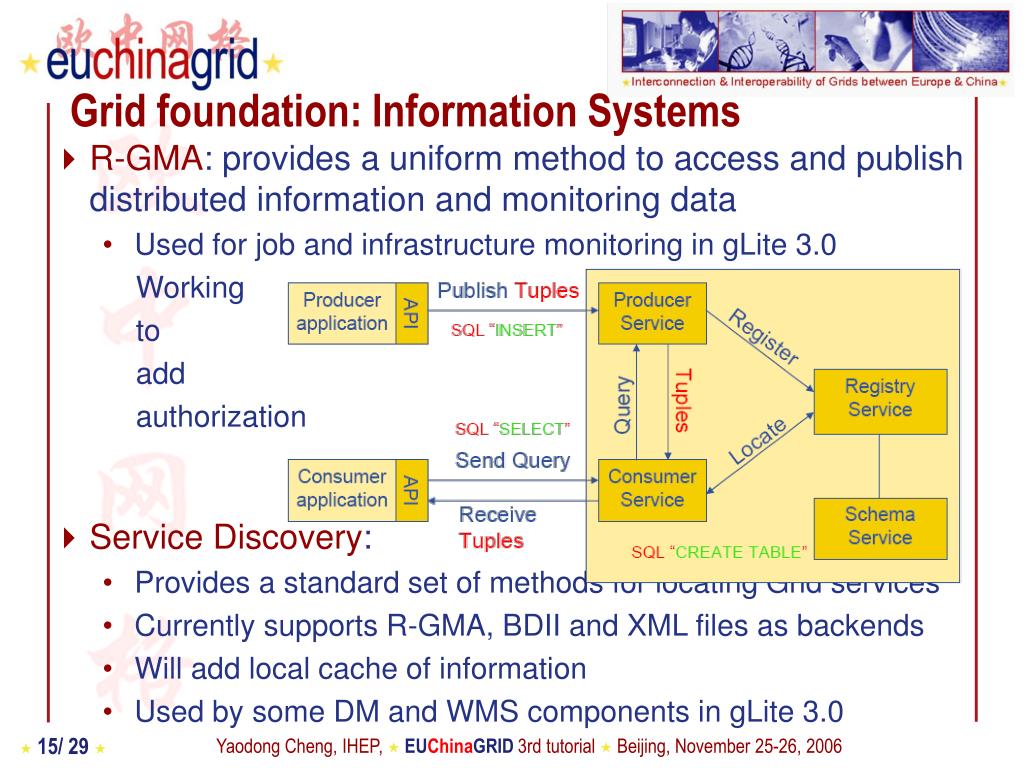

15. Grid foundation: Information Systems • R-GMA: provides a uniform method to access and publish distributed information and monitoring data • Used for job and infrastructure monitoring in gLite 3.0 Working to add authorization • Service Discovery: • Provides a standard set of methods for locating Grid services • Currently supports R-GMA, BDII and XML files as backends • Will add local cache of information • Used by some DM and WMS components in gLite 3.0

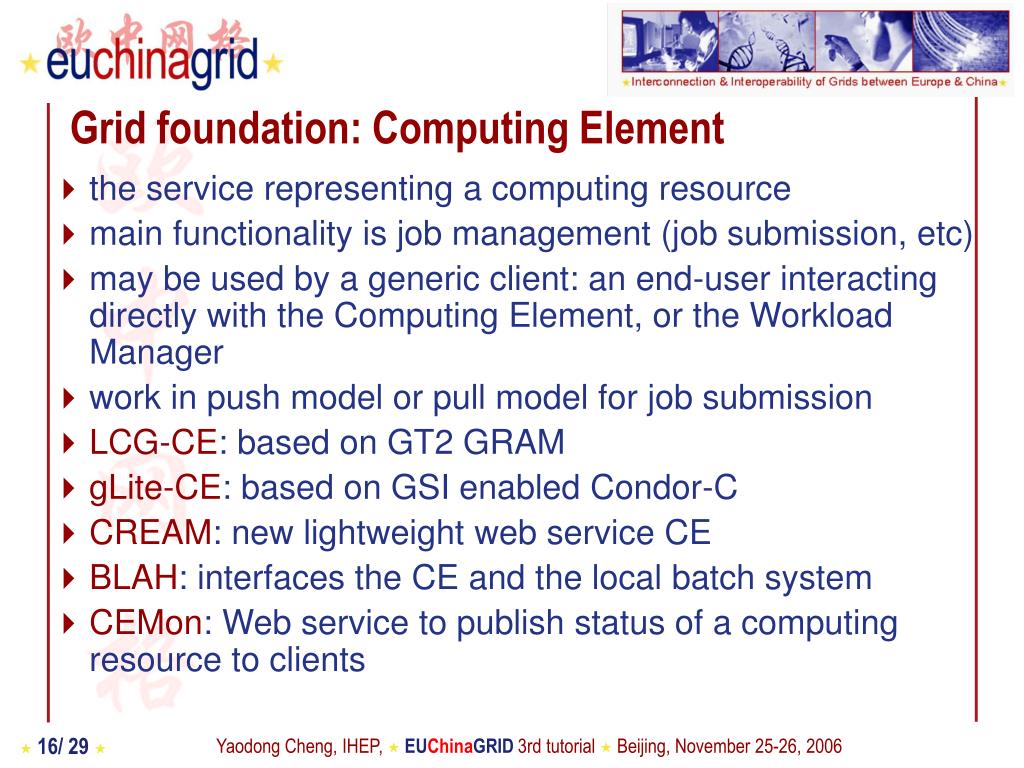

16. Grid foundation: Computing Element • the service representing a computing resource • main functionality is job management (job submission, etc) • may be used by a generic client: an end-user interacting directly with the Computing Element, or the Workload Manager • work in push model or pull model for job submission • LCG-CE: based on GT2 GRAM • gLite-CE: based on GSI enabled Condor-C • CREAM: new lightweight web service CE • BLAH: interfaces the CE and the local batch system • CEMon: Web service to publish status of a computing resource to clients

17. Grid foundation: Storage Element • Storage Element • Common interface: SRMv1,migrating to SRMv2 • Various implementation from LCG and other external projects • disk-based: DPM, dCache; tape-based: Castor, dCache • Posix-like file access: • Grid File Access Layer (GFAL) by LCG • Support for ACL in the SRM layer • Support for SRMv2.2 is added now. • gLite I/O • Support for ACLs from the file catalog and interfaced to Hydra for data encryption • Not certified in gLite 3.0. To be dismissed when all functionalities are in GFAL.

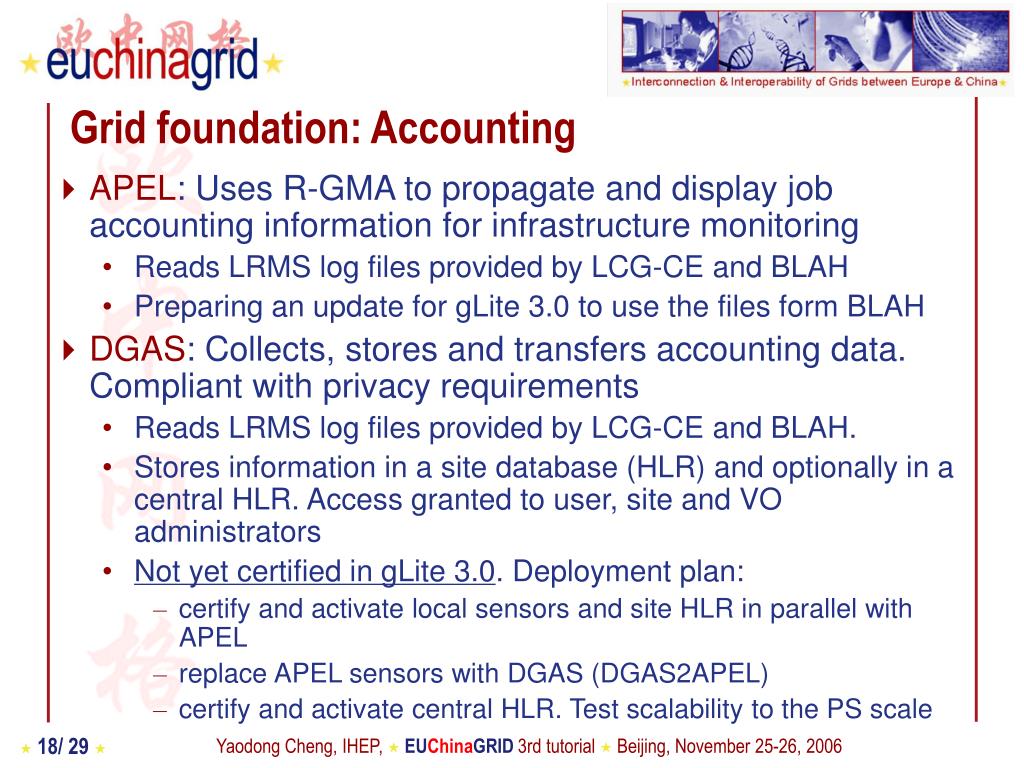

18. Grid foundation: Accounting • APEL: Uses R-GMA to propagate and display job accounting information for infrastructure monitoring • Reads LRMS log files provided by LCG-CE and BLAH • Preparing an update for gLite 3.0 to use the files form BLAH • DGAS: Collects, stores and transfers accounting data. Compliant with privacy requirements • Reads LRMS log files provided by LCG-CE and BLAH. • Stores information in a site database (HLR) and optionally in a central HLR. Access granted to user, site and VO administrators • Not yet certified in gLite 3.0. Deployment plan: • certify and activate local sensors and site HLR in parallel with APEL • replace APEL sensors with DGAS (DGAS2APEL) • certify and activate central HLR. Test scalability to the PS scale

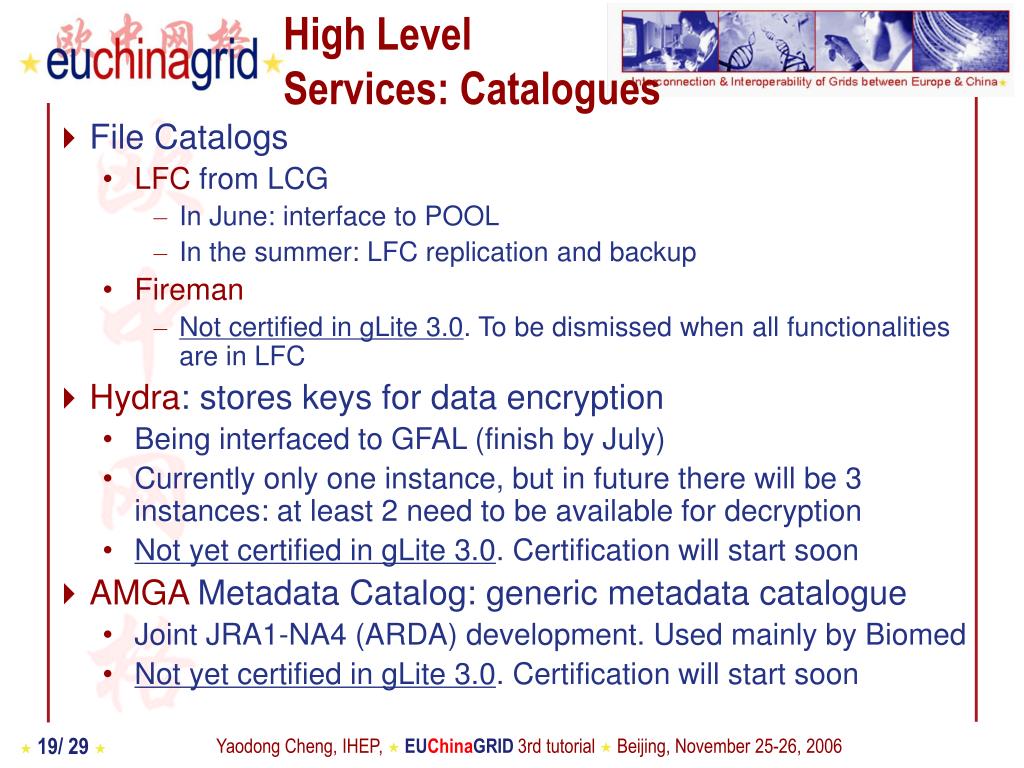

19. High Level Services: Catalogues • File Catalogs • LFC from LCG • In June: interface to POOL • In the summer: LFC replication and backup • Fireman • Not certified in gLite 3.0. To be dismissed when all functionalities are in LFC • Hydra: stores keys for data encryption • Being interfaced to GFAL (finish by July) • Currently only one instance, but in future there will be 3 instances: at least 2 need to be available for decryption • Not yet certified in gLite 3.0. Certification will start soon • AMGA Metadata Catalog: generic metadata catalogue • Joint JRA1-NA4 (ARDA) development. Used mainly by Biomed • Not yet certified in gLite 3.0. Certification will start soon

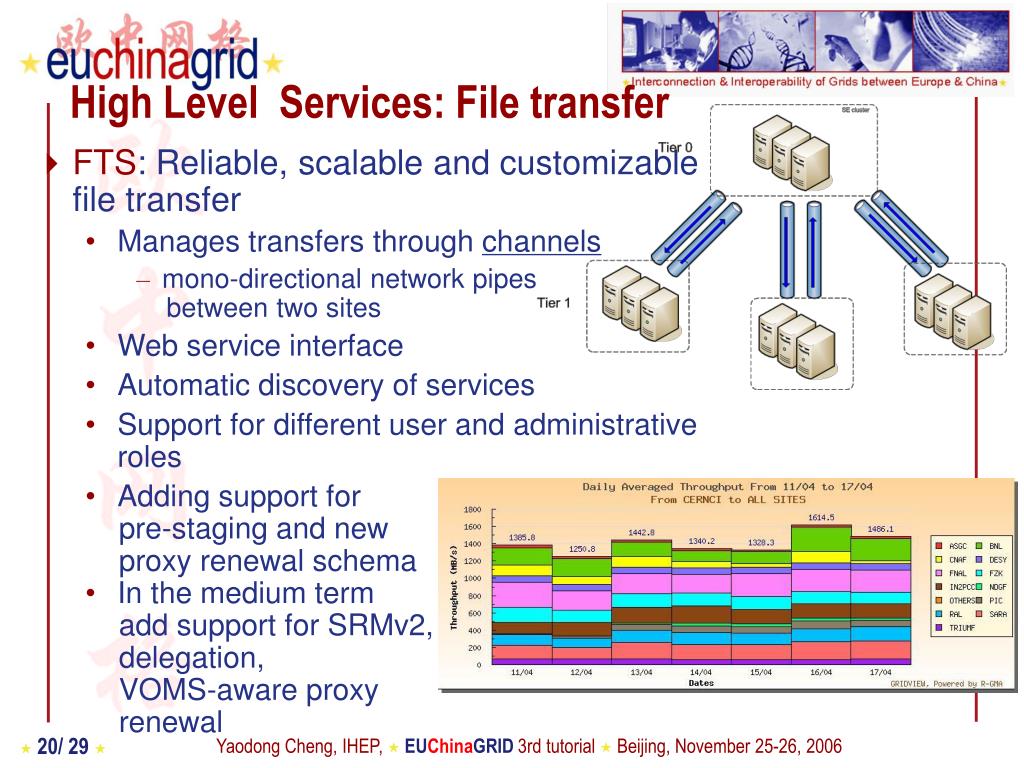

20. High Level Services: File transfer • FTS: Reliable, scalable and customizable file transfer • Manages transfers through channels • mono-directional network pipes between two sites • Web service interface • Automatic discovery of services • Support for different user and administrative roles • Adding support for pre-staging and new proxy renewal schema • In the medium term add support for SRMv2, delegation, VOMS-aware proxy renewal

21. High Level Services: Workload management • WMS helps the user accessing computing resources • Resource brokering, management of job input/output, ... • LCG-RB: GT2 + Condor-G • To be replaced when the gLite WMS proves reliability • gLite WMS: Web service (WMProxy) + Condor-G • Management of complex workflows (DAGs) and compound jobs • bulk submission and shared input sandboxes • support for input files on different servers (scattered sandboxes) • Support for shallow resubmission of jobs • Job File Perusal: file peeking during job execution • Supports collection of information from CEMon, BDII, R-GMA and from DLI and StorageIndex data management interfaces • Support for parallel jobs (MPI) when the home dir is not shared • Deployed for the first time on the PS with gLite 3.0

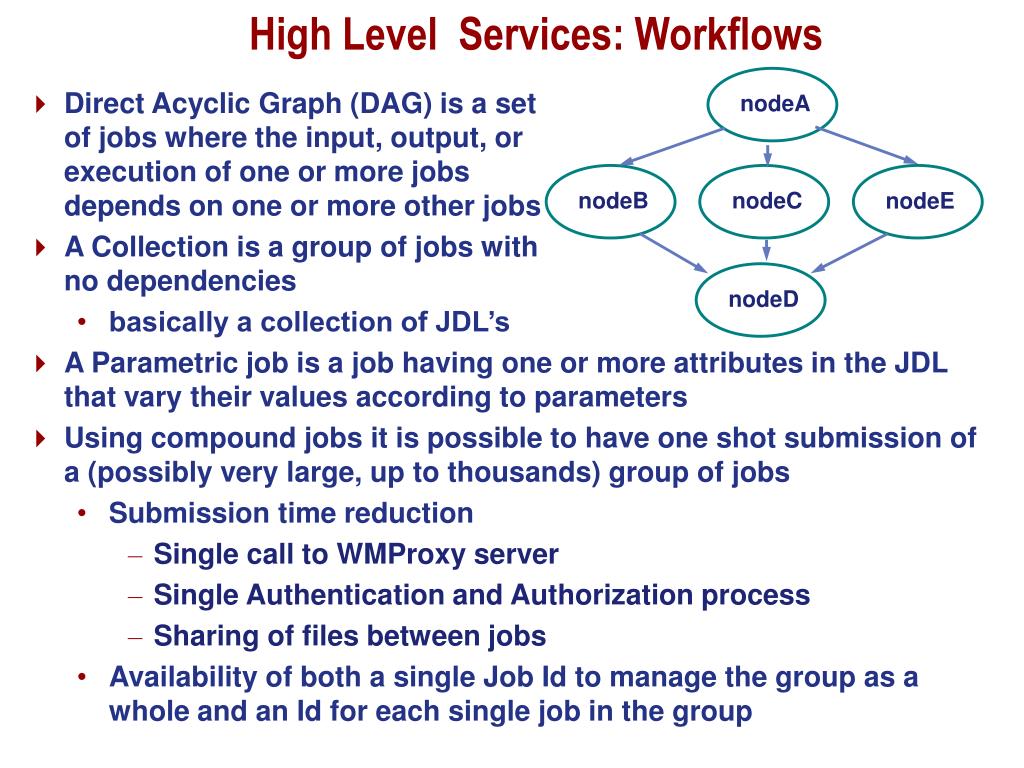

22. Direct Acyclic Graph (DAG) is a set of jobs where the input, output, or execution of one or more jobs depends on one or more other jobs A Collection is a group of jobs with no dependencies basically a collection of JDL’s A Parametric job is a job having one or more attributes in the JDL that vary their values according to parameters Using compound jobs it is possible to have one shot submission of a (possibly very large, up to thousands) group of jobs Submission time reduction Single call to WMProxy server Single Authentication and Authorization process Sharing of files between jobs Availability of both a single Job Id to manage the group as a whole and an Id for each single job in the group nodeA nodeB nodeC nodeE nodeD High Level Services: Workflows

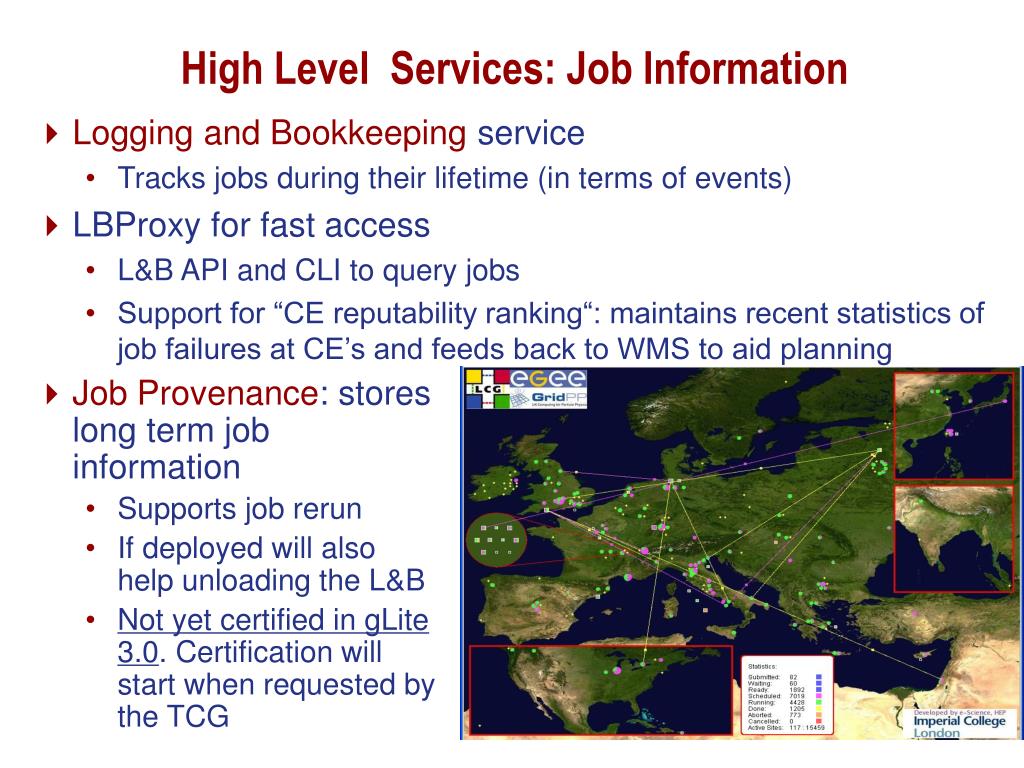

23. Logging and Bookkeeping service Tracks jobs during their lifetime (in terms of events) LBProxy for fast access L&B API and CLI to query jobs Support for “CE reputability ranking“: maintains recent statistics of job failures at CE’s and feeds back to WMS to aid planning Job Provenance: stores long term job information Supports job rerun If deployed will also help unloading the L&B Not yet certified in gLite 3.0. Certification will start when requested by the TCG High Level Services: Job Information

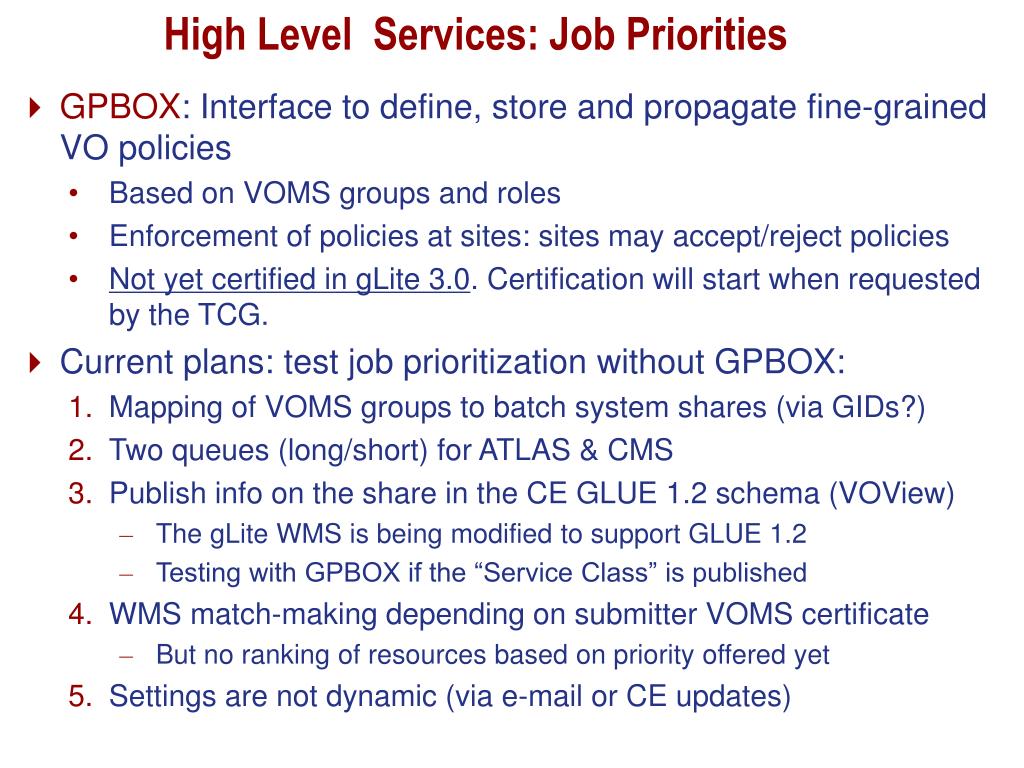

24. High Level Services: Job Priorities • GPBOX: Interface to define, store and propagate fine-grained VO policies • Based on VOMS groups and roles • Enforcement of policies at sites: sites may accept/reject policies • Not yet certified in gLite 3.0. Certification will start when requested by the TCG. • Current plans: test job prioritization without GPBOX: • Mapping of VOMS groups to batch system shares (via GIDs?) • Two queues (long/short) for ATLAS & CMS • Publish info on the share in the CE GLUE 1.2 schema (VOView) • The gLite WMS is being modified to support GLUE 1.2 • Testing with GPBOX if the “Service Class” is published • WMS match-making depending on submitter VOMS certificate • But no ranking of resources based on priority offered yet • Settings are not dynamic (via e-mail or CE updates)

25. Status of gLite Deployment • gLite-3.0.0 was released on 4th May.Stage upgrade site from LCG 2.7 • The T1 centers should all have upgraded before 23rd May • The deadline for All other sites (in particular T2s) in SC4 is 31st May. • LCG resources (14/06/2006) • Active Sites: 182 • Available CPU: 30534 • Available Storage (TB): 9018

26. gLite development plan • Complete migration to VDT 1.3.X and support for SL(C)4 and 64-bit • Complete migration to the ETICS build system • Work according to work plans available at: https://twiki.cern.ch/twiki/bin/view/EGEE/EGEEgLiteWorkPlans • In particular: • Continue work on making all services VOMS-aware • Including job priorities • Improve error reporting and logging of services • Improve performances, in particular WMS and LB • Support for all batch systems in the production infrastructure on the CE • Use the information pass-through by BLAH to control job execution on CE • Complete support to SRM v2.2 • Complete the new Encrypted Data Storage based on GFAL/LFC • Complete and test glexec on Worker Nodes • Standardization of usage records for accounting • Interoperation with other projects and adherence to standards • Collaboration with EUChinaGrid on IPv6 compliance

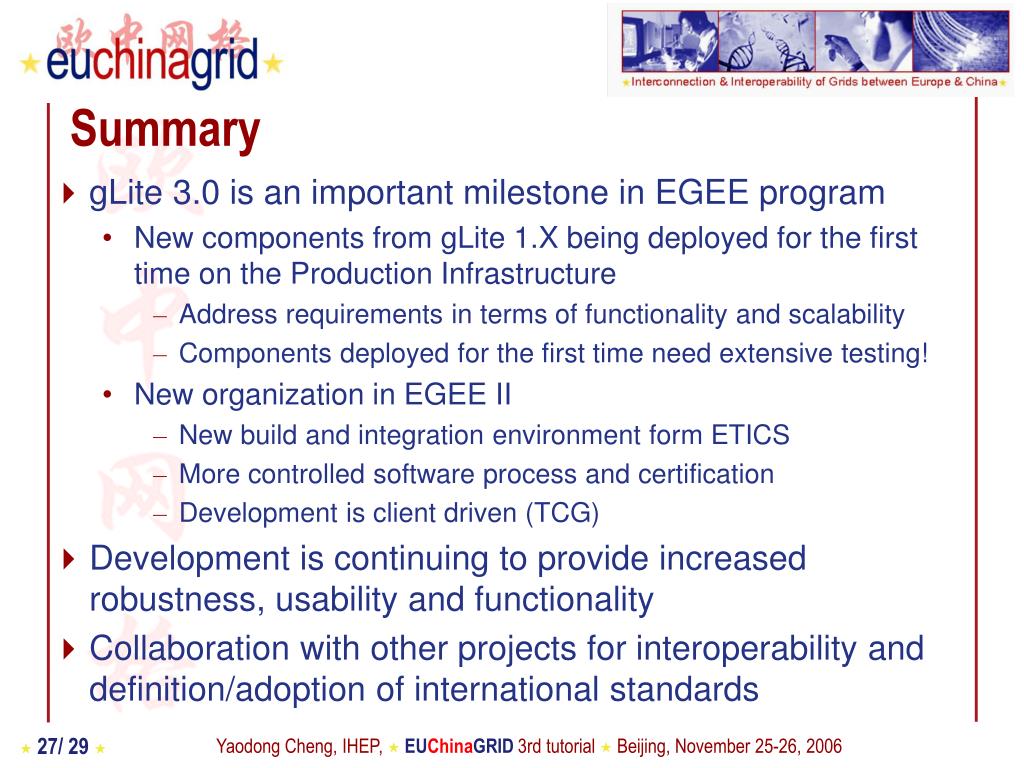

27. Summary • gLite 3.0 is an important milestone in EGEE program • New components from gLite 1.X being deployed for the first time on the Production Infrastructure • Address requirements in terms of functionality and scalability • Components deployed for the first time need extensive testing! • New organization in EGEE II • New build and integration environment form ETICS • More controlled software process and certification • Development is client driven (TCG) • Development is continuing to provide increased robustness, usability and functionality • Collaboration with other projects for interoperability and definition/adoption of international standards

28. Further information • EGEE http://cern.ch/egee • gLite http://cern.ch/glite • euchinagrid: http://www.euchinagrid.org
