1 / 53

Ecorse Creek 1996 Toxicity Testing

Ecorse Creek 1996 Toxicity Testing. Prepared by: StreamTeam O.L.of Mt. Carmel H.S. in cooperation with the Michigan Department of Environmental Quality (MDEQ). With special contributions from : Southgate Anderson H.S. and RIverview H.S. STREAMTEAM ‘96-’97.

zudora
Télécharger la présentation

Ecorse Creek 1996 Toxicity Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

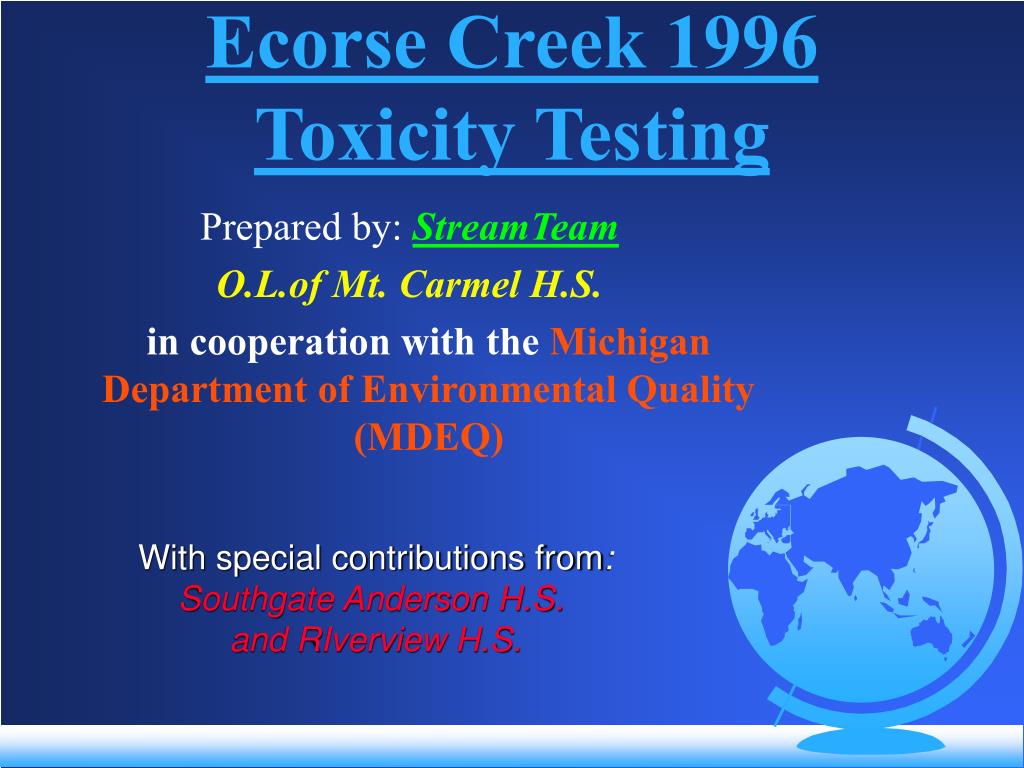

  1. Ecorse Creek 1996 Toxicity Testing Prepared by: StreamTeam O.L.of Mt. Carmel H.S. in cooperation with the Michigan Department of Environmental Quality (MDEQ) With special contributions from: Southgate Anderson H.S. and RIverview H.S.

  2. STREAMTEAM ‘96-’97 • Data/Graphs/Trends: Heavy Metals/PAH Sediment Concentrations in South Branch of Ecorse Creek • Data/Graphs/Trends: Heavy Metals/PAH Sediment Concentrations in North Branch of Ecorse Creek • Aquatic Invertebrate Study (w/Heavy Metal Comparisons): S.B. Ecorse Creek • Mt. Carmel H.S. Water Quality Testing: S.B. Ecorse Creek • Aquatic Invertebrate Populations (in relation to pH/DO Parameters): S.B. Ecorse Creek • Aquatic Invertebrate Study (w/Relationship to Heavy Metals): S.B. Ecorse Creek/Detroit Metro. Airport Upstream-Downstream Comparisons • Total Coliform Study: Ecorse Creek/Detroit River • Brodhead U.S. Marine Base: Drinking Water Analysis (for Pb)

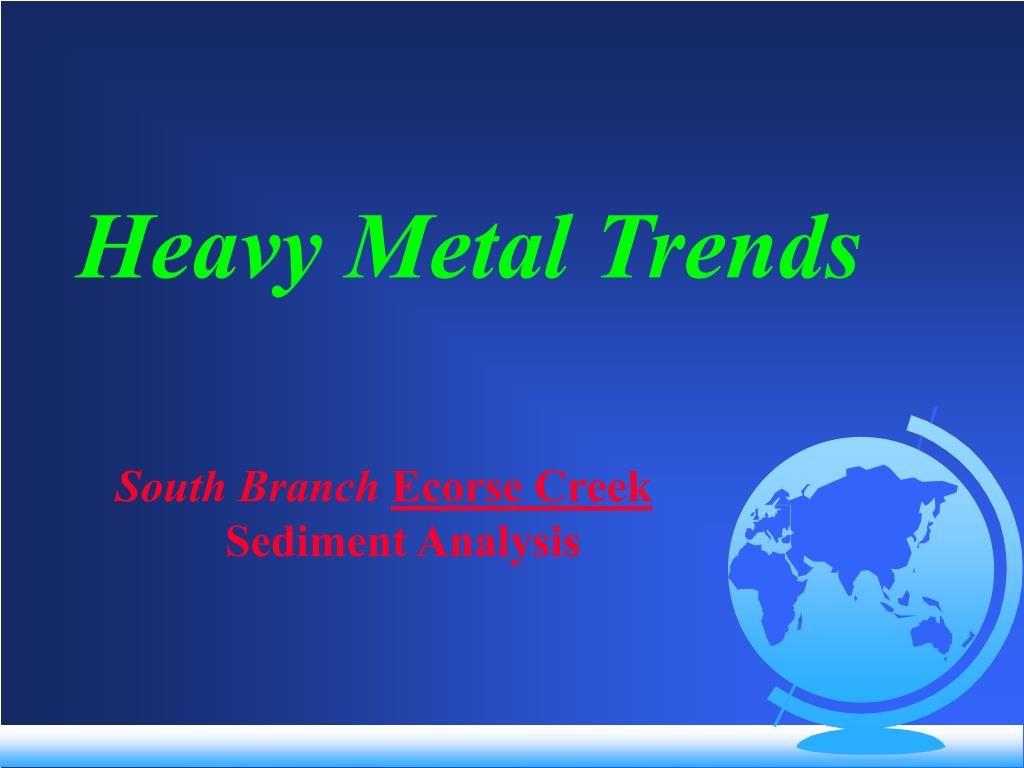

  3. Heavy Metal Trends South BranchEcorse Creek Sediment Analysis

  4. Ecorse C. (S.B.) Sed. Data • StreamTeam/DEQ Heavy Metals/Organics Testing (SPRING 1996) • Site DescriptionHeavy Metals (mg/Kg) • As Cd Cr Cu Fe PbMn • 01/Main: Jefferson 9.44.58513331000237650 • 03/SB: 544 N. Drive 9.5 3.5 59 101 29000 180 605 • 04/SB: Beaver Park 8.9 2.5 49 82 27000 177 555 • 05/SB: Dix 4.8 <2 29 37 16800 103 585 • 06/SB: Telegraph 1.4 <2 11 9.5 5550 25 150 • 07/SB: Beech-Daly 3.5 <2 16 13 10500 25 330 • 08/Harrison-Wick 6.8 3 47 76 22500 113 575 • 09/SB:H-Hildebrandt 9.1 5.580128290006051300 • 10/SB: H-Goddard 4.3 <2 31 21 12600 29 280 • ERM (Effects Range Median) 85 9.6 145 390 40000 110 1100

  5. Ecorse C. (S.B.) Sed. Data • StreamTeam/DEQ Heavy Metals/Organics Testing (SPRING 1996) • Site DescriptionHeavy Metals (mg/Kg)Syn. Organics • Hg Ni Zn MgCo PCBPAH • 01/Main: Jefferson 0.4935790 17700 9.5 0 11.04 • 03/SB: 544 N. Drive 0.39345951790010 0 5.26 • 04/SB: Beaver Park 0.21 29 470 17800 10 0 7.96 • 05/SB: Dix 0.09 14 190 11400 <5 0 10.44 • 06/SB: Telegraph <.05 <5 59 3300 <5 0 9.46 • 07/SB: Beech-Daly <.05 8.5 95 7650 <5 0 7.26 • 08/Harrison-Wick 0.15 23 430 16600 8 0 10.73 • 09/SB:H-Hildebrandt 0.18 31 67522000 9 0 5 • 10/SB: H-Goddard <.05 14 110 7950 <5 0 7.43 • ERM (Effects Range M.) 1.3 50 270 Not Available 0.4 35

  6. Ecorse Creek S.B. 4.3 9.1 6.8 3.5 1.4 4.8 8.9 9.5 9.4 85

  7. Ecorse Creek S.B. <2 5.5 3 <2 <2 <2 2.5 3.5 4.5 9.6

  8. Ecorse Creek S.B. 29 605 113 25 25 103 177 180 237 110

  9. Ecorse Creek S.B. 31 80 47 16 11 29 49 59 85 145

  10. Ecorse Creek S.B. 21 128 76 13 9.5 37 82 101 133 390

  11. Ecorse Creek S.B. <.05 .18 .15 <.05 <.05 .09 .21 .39 .49 1.3

  12. Ecorse Creek S.B. 12,600 29,000 22,500 10,500 5,550 16,800 27,000 29,000 31,000 40,000

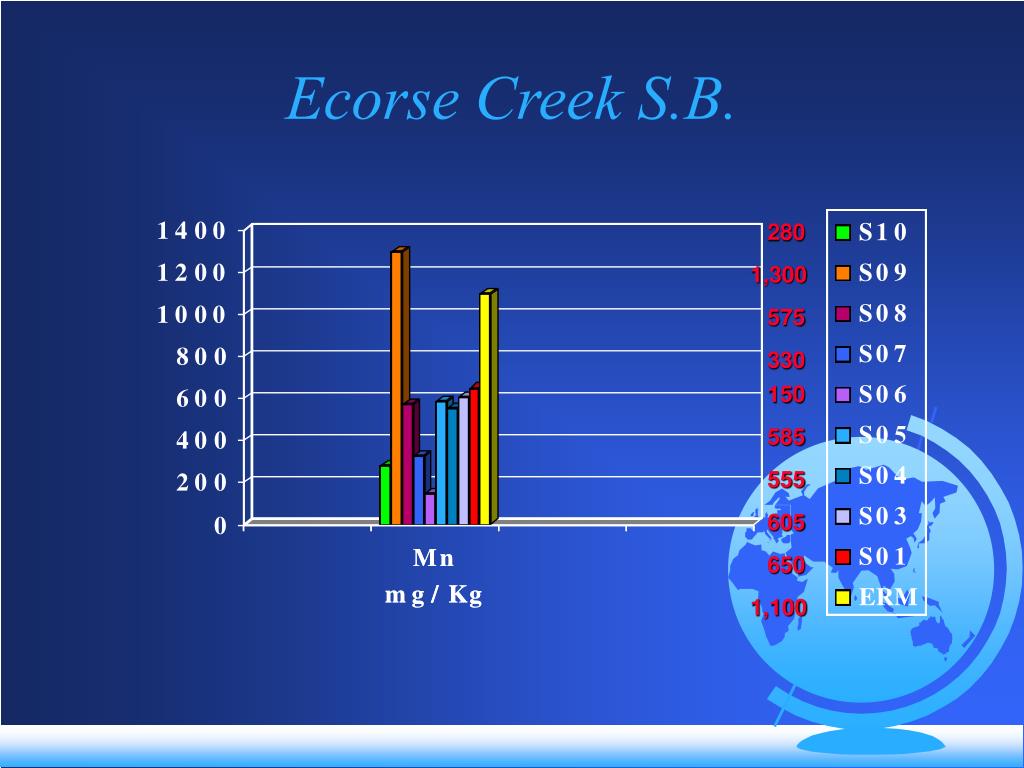

  13. Ecorse Creek S.B. 280 1,300 575 330 150 585 555 605 650 1,100

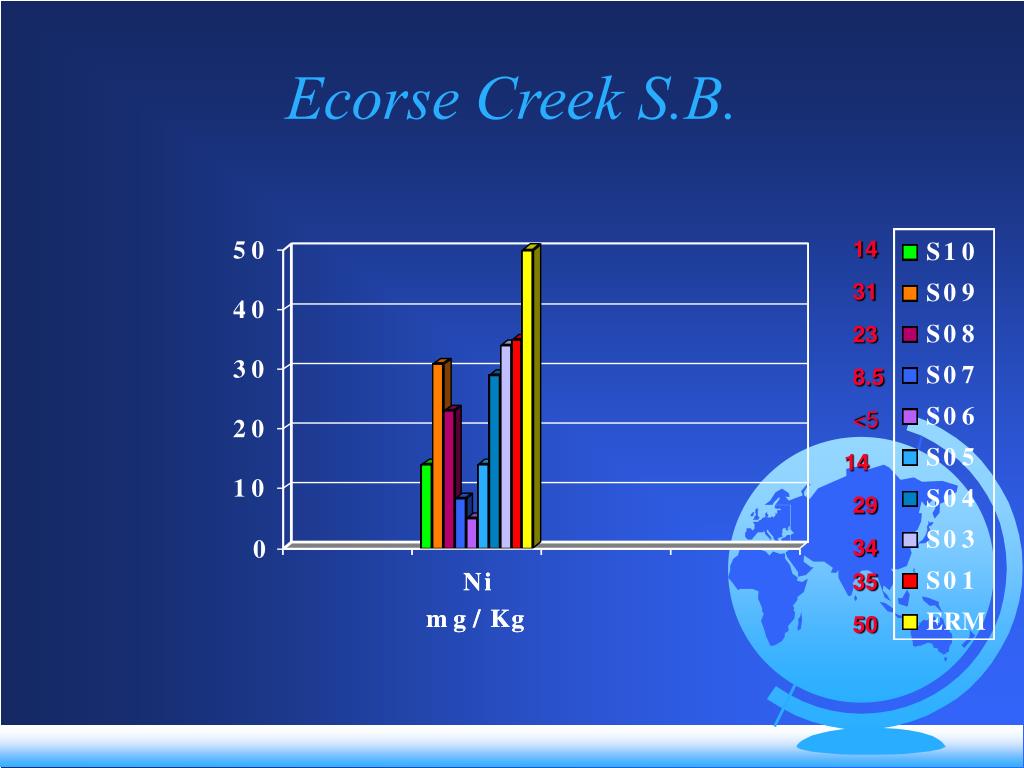

  14. Ecorse Creek S.B. 14 31 23 8.5 <5 14 29 34 35 50

  15. Ecorse Creek S.B. 110 675 430 95 59 190 470 595 790 270

  16. Ecorse Creek S.B. 7,950 22,000 16,600 7,650 3,300 11,400 17,800 17,900 17,700 NotGiven

  17. Ecorse Creek S.B. 7.43 5 10.73 7.26 9.46 10.44 7.96 5.26 11.04 35

  18. Heavy Metal Trends North Branch Ecorse Creek Heavy Metal Analysis

  19. Ecorse C. (N.B.) Sed. Data • StreamTeam/DEQ Heavy Metals/Organics Testing (SPRING 1996) • Site Description Heavy Metals (mg/Kg) AsCdCrCuFePbMn • 01/Main: Jefferson 9.5 4.5 8513331000237 650 • 11/NB:Council--LeBl. 104.59110427000268705 • 12/NB:Southfield 8.5 4.5 83 98 22900 265760 • 17/NB:E. Telegraph 4.9 <2 32 44 14800 119 535 • 18/NB:Beech-Daly 5.5 3 42 54 15800 154 673 • 19/NB:Beverly 3.9 <2 15 14 12700 17 200 • 20/NB:E. Middlebelt 4.8 <2 18 25 12100 66.3 290 • Eff. Range Med. (E.R.M.) 85 9.6 145 390 40000 110 1100

  20. Ecorse C. (N.B.) Sed. Data • StreamTeam/DEQ Heavy Metals/Organics Testing (SPRING 1996) Site DescriptionHeavy Metals (mg/Kg)Synthetic Organics Hg NiZnMgCoPCBPAH • 01/Main: Jefferson 0.4935790177009.5 0 11.04 • 11/NB:Council--LeBl. 0.2831725147008.5 0 40.8 • 12/NB:Southfield 0.22 27 605 14300 7 0 42.25 • 17/NB:E. Telegraph 0.14 17 320 10000 <5 0 17.9 • 18/NB:Beech-Daly 0.13 17 370 10100 <5 0 36.18 • 19/NB:Beverly <.05 12 80.2 4300 5.9 0 0 • 20/NB:E. Middlebelt <.05 12 160 7100 <5 0 8.93 • Eff. Range Med. (E.R.M.) 1.3 50 270 Not Given 0.4 35

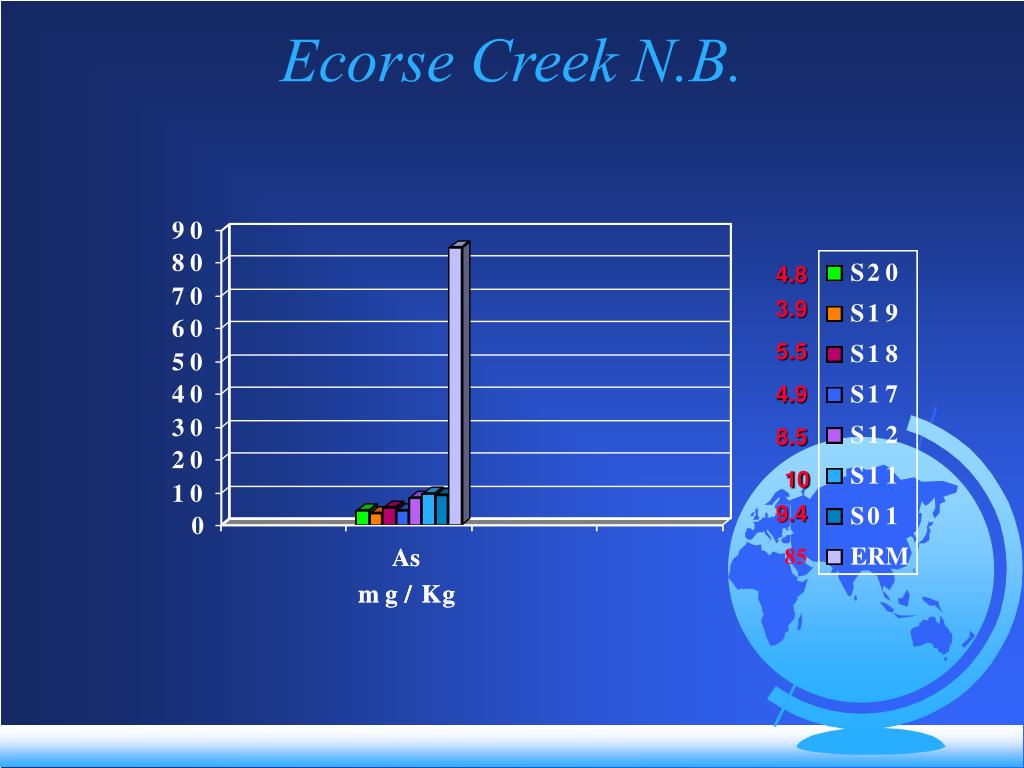

  21. Ecorse Creek N.B. 4.8 3.9 5.5 4.9 8.5 10 9.4 85

  22. Ecorse Creek N.B. <2 <2 3 <2 4.5 4.5 4.5 9.6

  23. Ecorse Creek N.B. 18 15 42 32 83 91 85 145

  24. Ecorse Creek N.B. 25 14 54 44 98 108 133 390

  25. Ecorse Creek N.B. 12,100 12,700 15,800 14,800 22,900 27,000 31,000 40,000

  26. Ecorse Creek N.B. 66.3 17 154 119 265 268 237 110

  27. Ecorse Creek N.B. 290 200 673 535 760 705 650 1,100

  28. Ecorse Creek N.B. <.05 <.05 .13 .14 .22 .28 .49 1.3

  29. Ecorse Creek N.B. 12 12 17 17 27 31 35 50

  30. Ecorse Creek N.B. 160 80.2 370 320 605 725 790 270

  31. Ecorse Creek N.B. 7,100 4,300 10,100 10,000 14,300 14,700 17,700 Not given

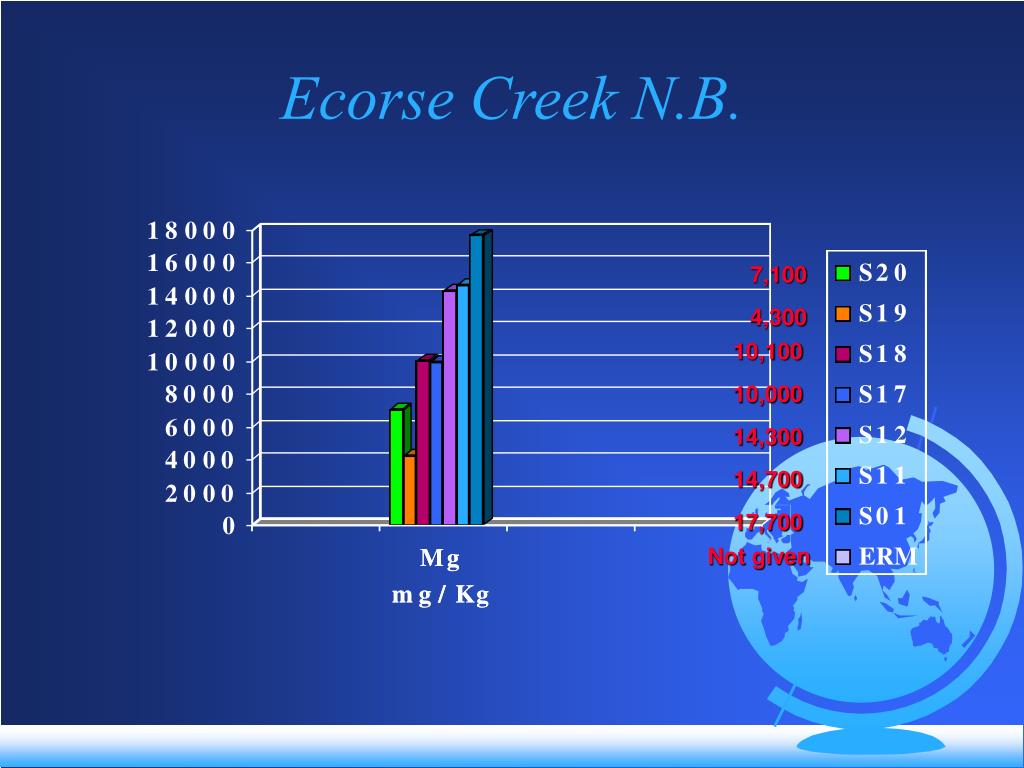

  32. Ecorse Creek N.B. 8.93 0 36.18 17.9 42.25 40.8 11.04 35

  33. South B. of Ecorse Creek • Aquatic Invertebrates • Effects of Heavy Metals on Aquatic Invertebrate Populations

  34. E. Creek (S.B.) Aq. Inv. • E. Creek Aq. Inv. Study Fall ‘96

  35. E. Creek (S.B.): Effect of Heavy Metals on Total Organisms

  36. E. Creek (S.B.): Effect of Heavy Metals on Biodiversity

  37. O.L. of Mt. Carmel H.S. Water Quality Testing Further Testing of the Ecorse Creek for Heavy Metal Trends

  38. E. Creek: M.C. Sed. Pore Water Testing ‘96 496 220 40 30.72 4.32 2.56 2.40 1.20 0.15 0

  39. pH/DO Parameters and their relationship to Aquatic Invertebrate Populations

  40. E. Creek (S.B.): DO/pH/Invertebrates

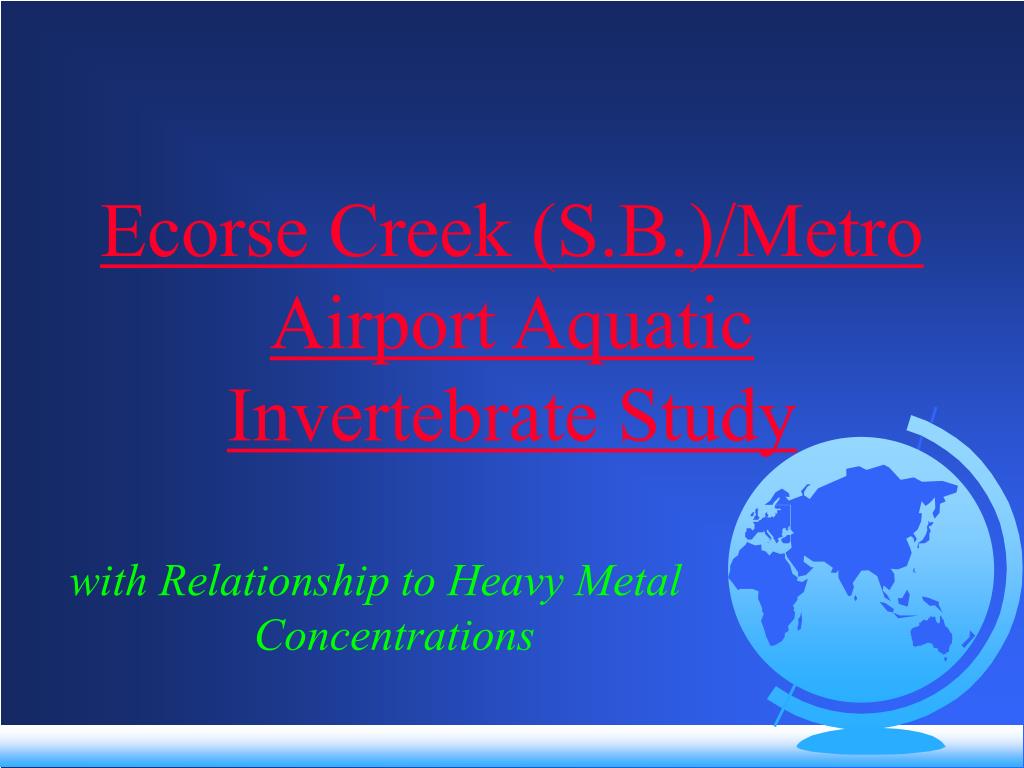

  41. Ecorse Creek (S.B.)/Metro Airport Aquatic Invertebrate Study with Relationship to Heavy Metal Concentrations

  42. Airport Aquatic Invertebrate Study

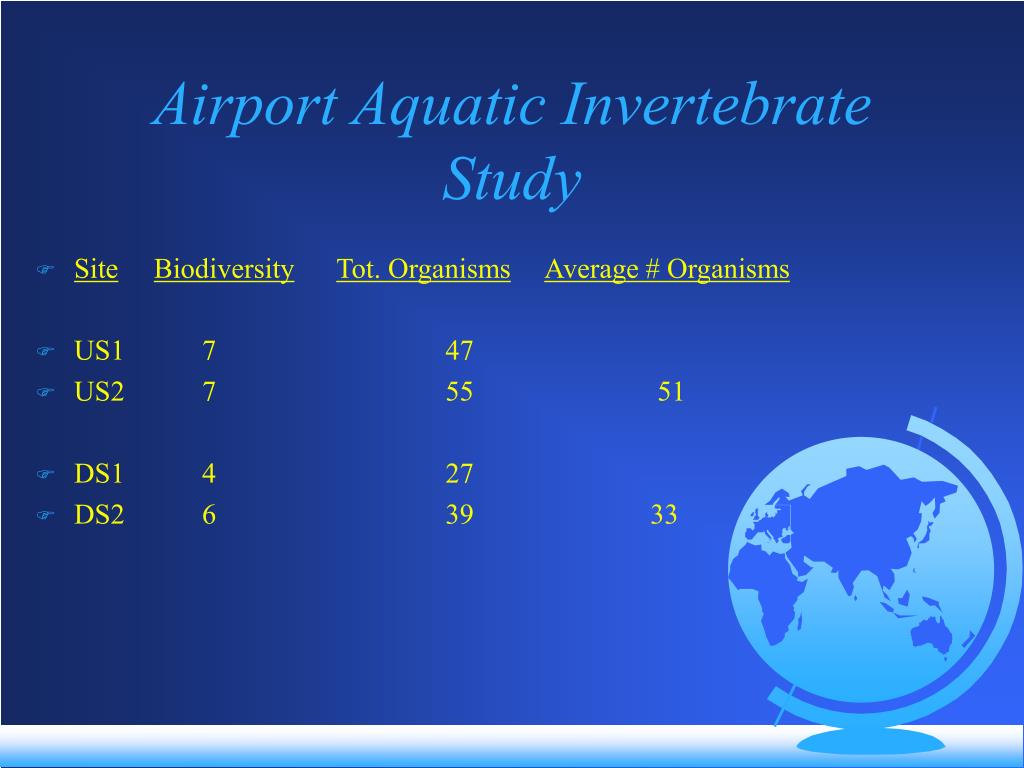

  43. Airport Aquatic Invertebrate Study • SiteBiodiversityTot. OrganismsAverage # Organisms • US1 7 47 • US2 7 55 51 • DS1 4 27 • DS2 6 39 33

  44. Airport Upstream-Downstream Heavy Metal Concentrations

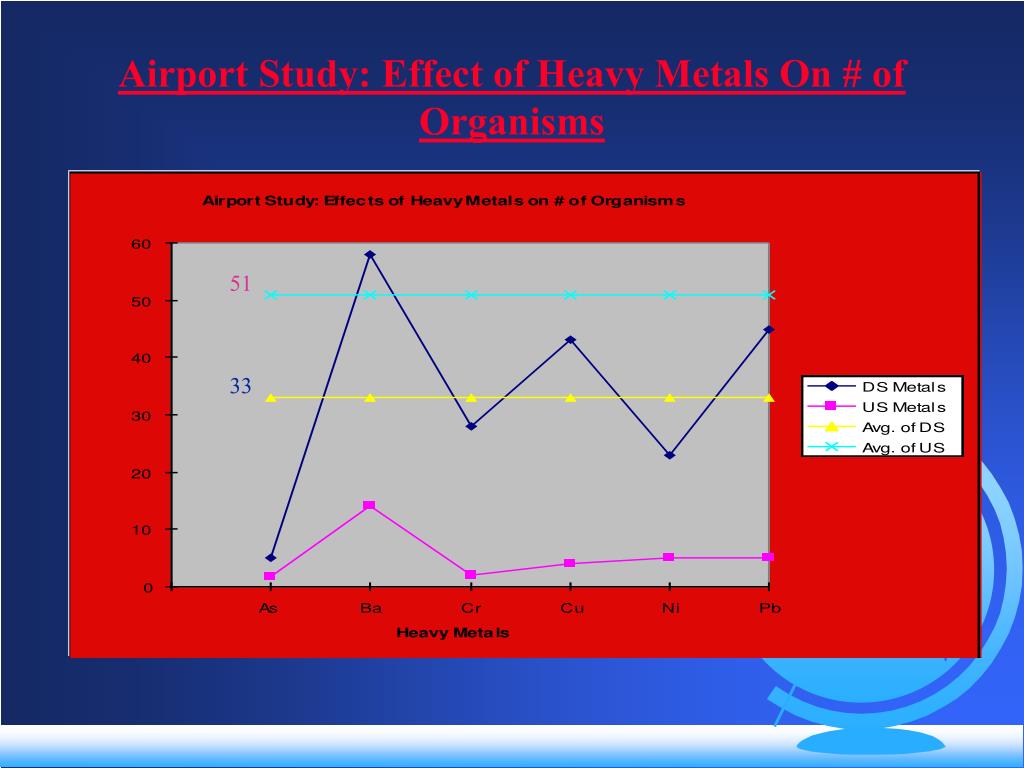

  45. Airport Study: Effect of Heavy Metals On # of Organisms 51 33

  46. Total Coliform Testing in the Ecorse Creek and Detroit River

  47. Total Coliform Testing

  48. Coliforms

  49. United States Marine Corps. Base: Brodhead--Detroit, MI. Lead Testing of Potable Water Supplies: Feb. ‘97

  50. Brodhead U.S. Marine Corps. Base: Lead Testing F.’97

More Related
