XFlow is a high-fidelity Computational Fluid Dynamics (CFD) software part of SIMULIAu2019s Fluids Simulation portfolio that saves engineering time with easier to use GUI, automatic lattice creation, simplified set-up and offers value at all stages of the modeling process. XFlow offers particle-based Lattice-Boltzmann technology for high fidelity Computational Fluid Dynamics (CFD) applications as a part of SIMULIAu2019s Fluids Simulation portfolio.

6863
Télécharger la présentation

XFlow - VIAS3D - 3DEngineering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

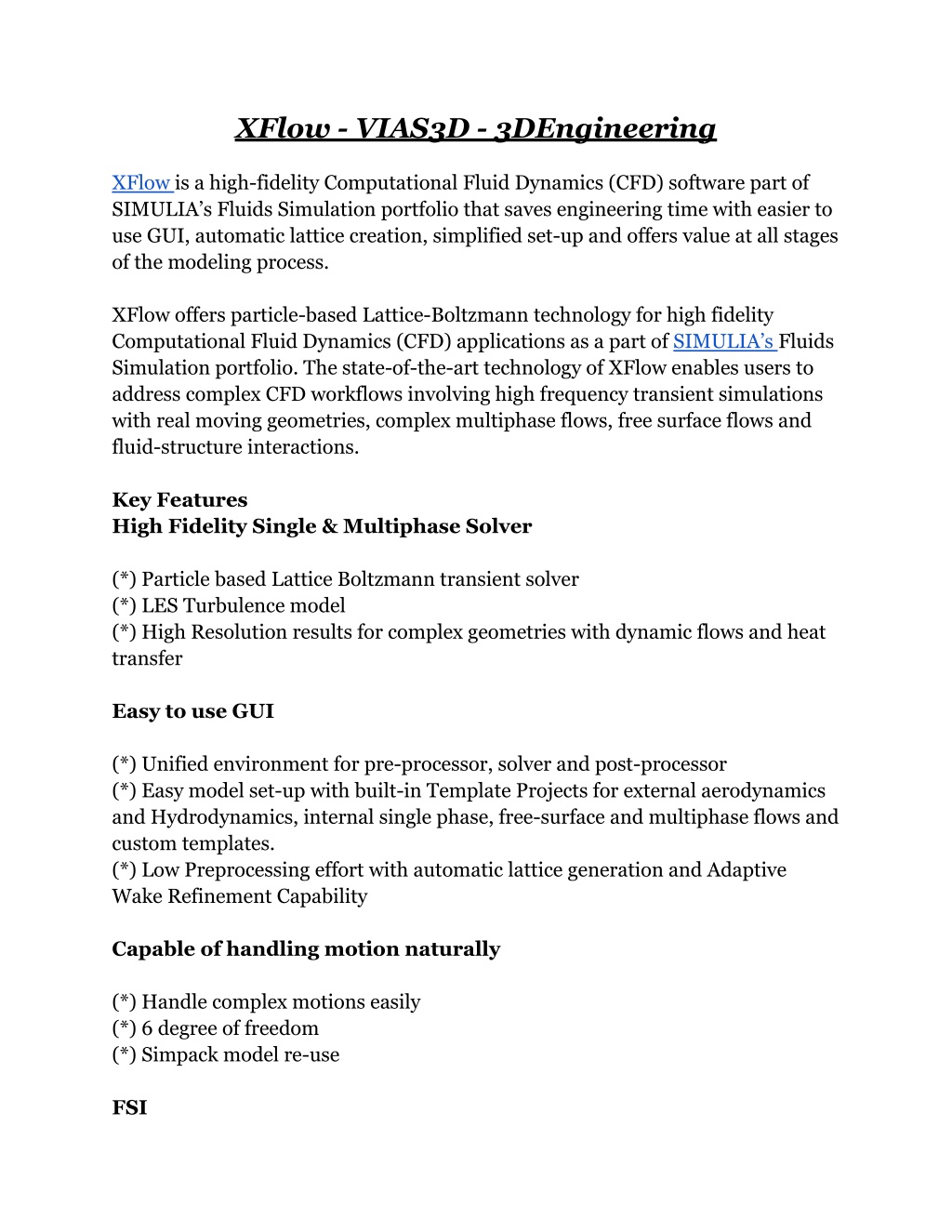

  1. XFlow - VIAS3D - 3DEngineering XFlow is a high-fidelity Computational Fluid Dynamics (CFD) software part of SIMULIA’s Fluids Simulation portfolio that saves engineering time with easier to use GUI, automatic lattice creation, simplified set-up and offers value at all stages of the modeling process. XFlow offers particle-based Lattice-Boltzmann technology for high fidelity Computational Fluid Dynamics (CFD) applications as a part of SIMULIA’s Fluids Simulation portfolio. The state-of-the-art technology of XFlow enables users to address complex CFD workflows involving high frequency transient simulations with real moving geometries, complex multiphase flows, free surface flows and fluid-structure interactions. Key Features High Fidelity Single & Multiphase Solver (*) Particle based Lattice Boltzmann transient solver (*) LES Turbulence model (*) High Resolution results for complex geometries with dynamic flows and heat transfer Easy to use GUI (*) Unified environment for pre-processor, solver and post-processor (*) Easy model set-up with built-in Template Projects for external aerodynamics and Hydrodynamics, internal single phase, free-surface and multiphase flows and custom templates. (*) Low Preprocessing effort with automatic lattice generation and Adaptive Wake Refinement Capability Capable of handling motion naturally (*) Handle complex motions easily (*) 6 degree of freedom (*) Simpack model re-use FSI

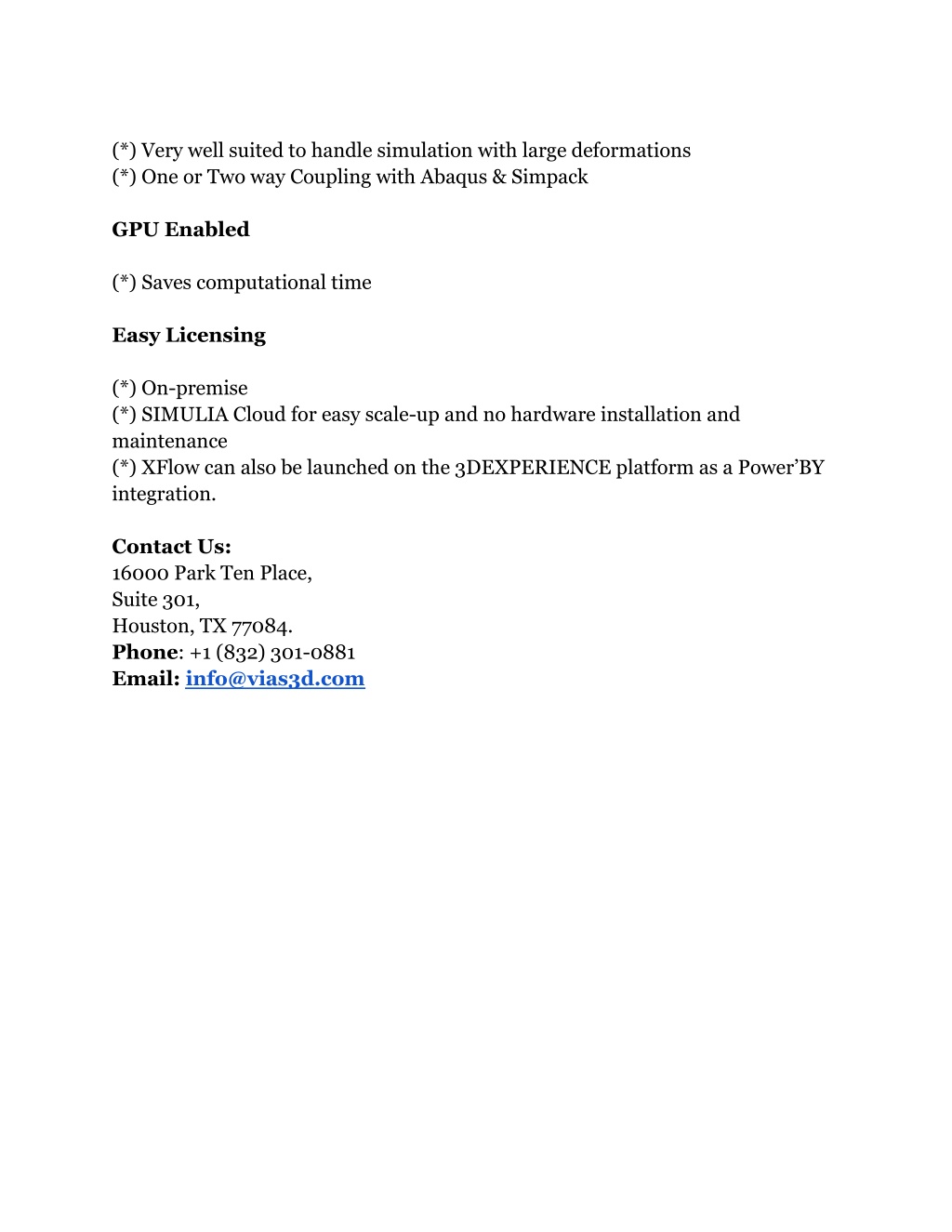

  2. (*) Very well suited to handle simulation with large deformations (*) One or Two way Coupling with Abaqus & Simpack GPU Enabled (*) Saves computational time Easy Licensing (*) On-premise (*) SIMULIA Cloud for easy scale-up and no hardware installation and maintenance (*) XFlow can also be launched on the 3DEXPERIENCE platform as a Power’BY integration. Contact Us: 16000 Park Ten Place, Suite 301, Houston, TX 77084. Phone: +1 (832) 301-0881 Email: info@vias3d.com
