Can a Touch Screen Really Withstand Every Flight Challenge

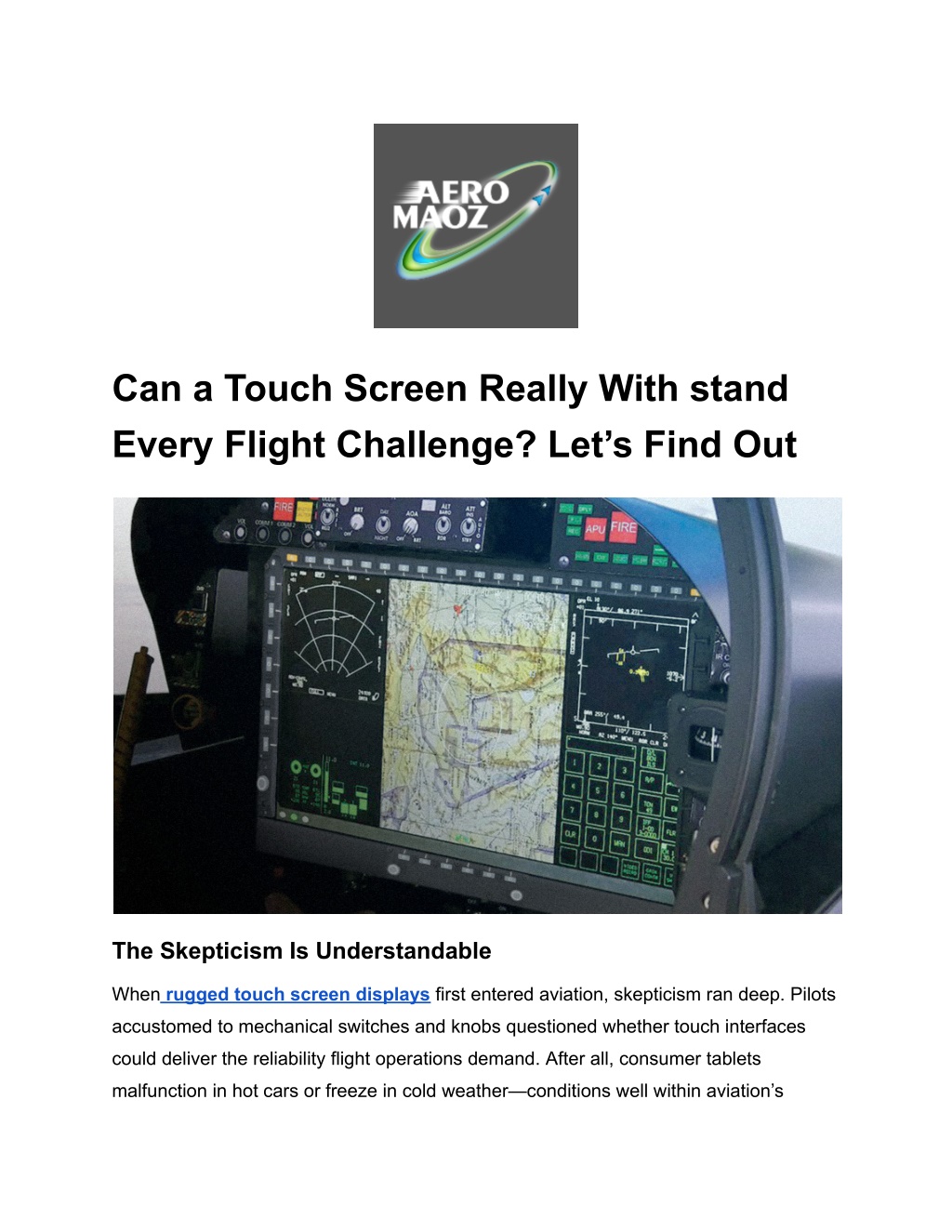

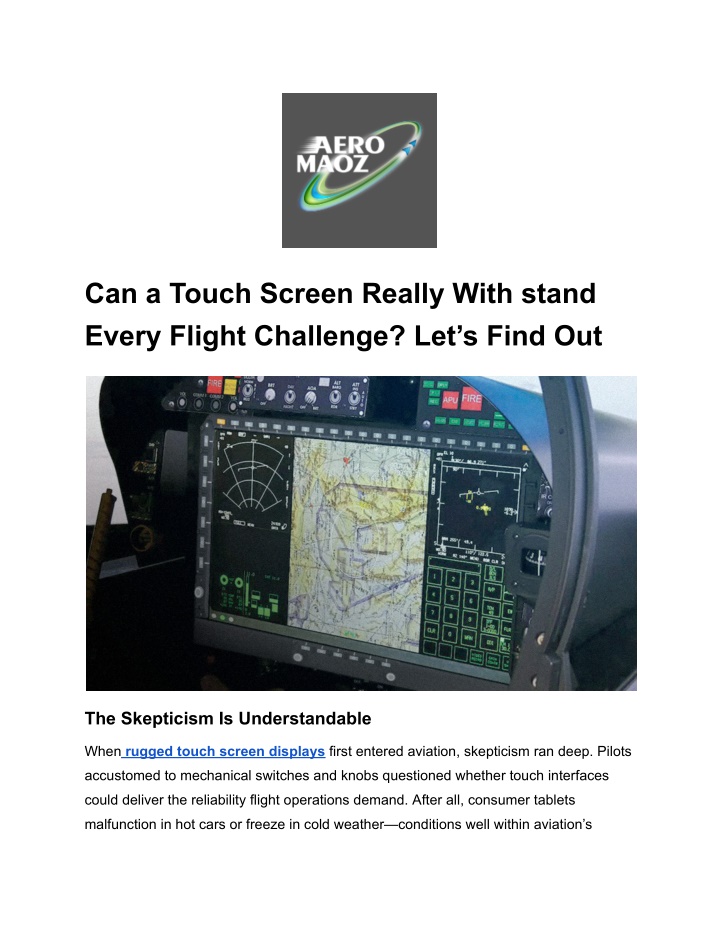

1. Can a Touch Screen Really With stand Every Flight Challenge? Let’s Find Out The Skepticism Is Understandable When rugged touch screen displays first entered aviation, skepticism ran deep. Pilots accustomed to mechanical switches and knobs questioned whether touch interfaces could deliver the reliability flight operations demand. After all, consumer tablets malfunction in hot cars or freeze in cold weather—conditions well within aviation’s

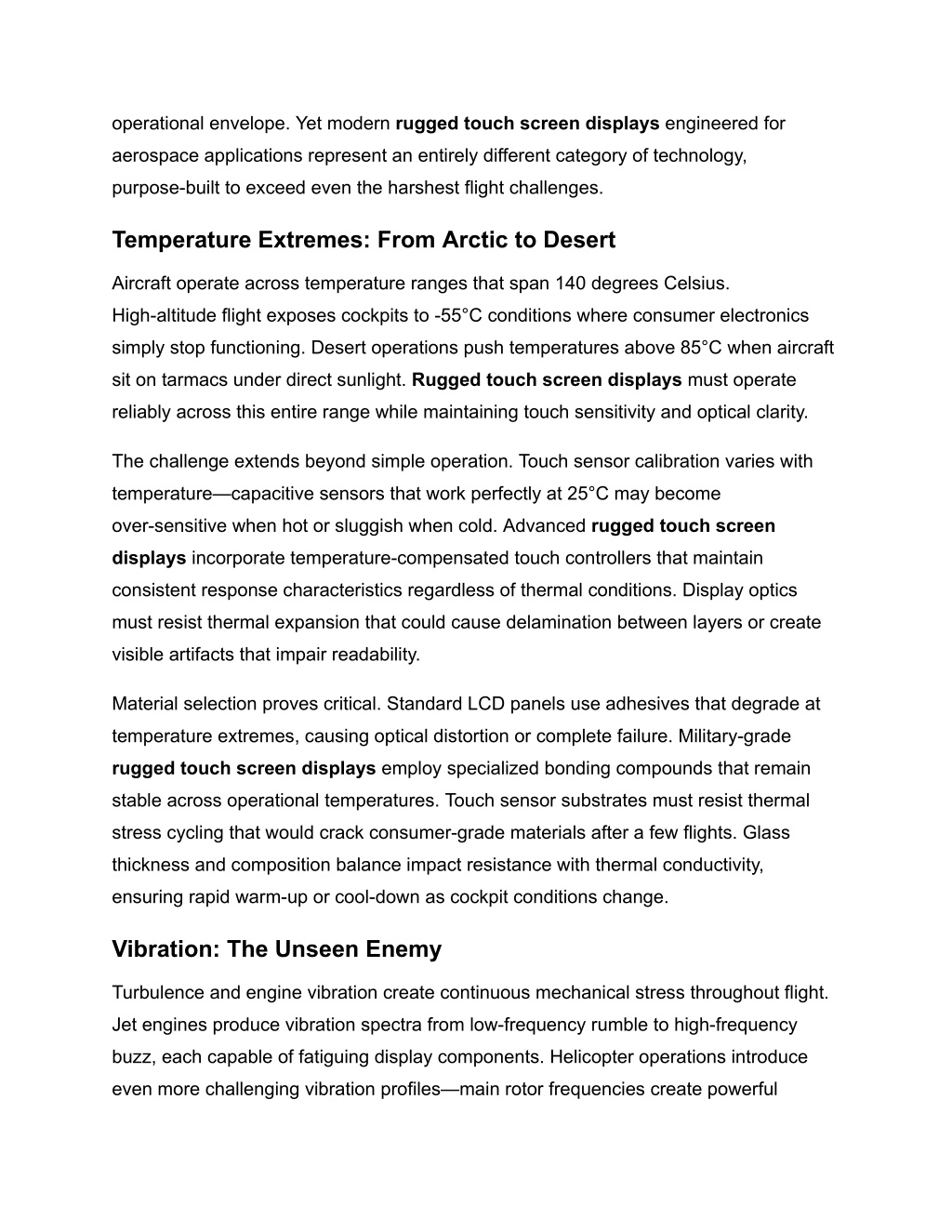

2. operational envelope. Yet modern rugged touch screen displays engineered for aerospace applications represent an entirely different category of technology, purpose-built to exceed even the harshest flight challenges. Temperature Extremes: From Arctic to Desert Aircraft operate across temperature ranges that span 140 degrees Celsius. High-altitude flight exposes cockpits to -55°C conditions where consumer electronics simply stop functioning. Desert operations push temperatures above 85°C when aircraft sit on tarmacs under direct sunlight. Rugged touch screen displays must operate reliably across this entire range while maintaining touch sensitivity and optical clarity. The challenge extends beyond simple operation. Touch sensor calibration varies with temperature—capacitive sensors that work perfectly at 25°C may become over-sensitive when hot or sluggish when cold. Advanced rugged touch screen displays incorporate temperature-compensated touch controllers that maintain consistent response characteristics regardless of thermal conditions. Display optics must resist thermal expansion that could cause delamination between layers or create visible artifacts that impair readability. Material selection proves critical. Standard LCD panels use adhesives that degrade at temperature extremes, causing optical distortion or complete failure. Military-grade rugged touch screen displays employ specialized bonding compounds that remain stable across operational temperatures. Touch sensor substrates must resist thermal stress cycling that would crack consumer-grade materials after a few flights. Glass thickness and composition balance impact resistance with thermal conductivity, ensuring rapid warm-up or cool-down as cockpit conditions change. Vibration: The Unseen Enemy Turbulence and engine vibration create continuous mechanical stress throughout flight. Jet engines produce vibration spectra from low-frequency rumble to high-frequency buzz, each capable of fatiguing display components. Helicopter operations introduce even more challenging vibration profiles—main rotor frequencies create powerful

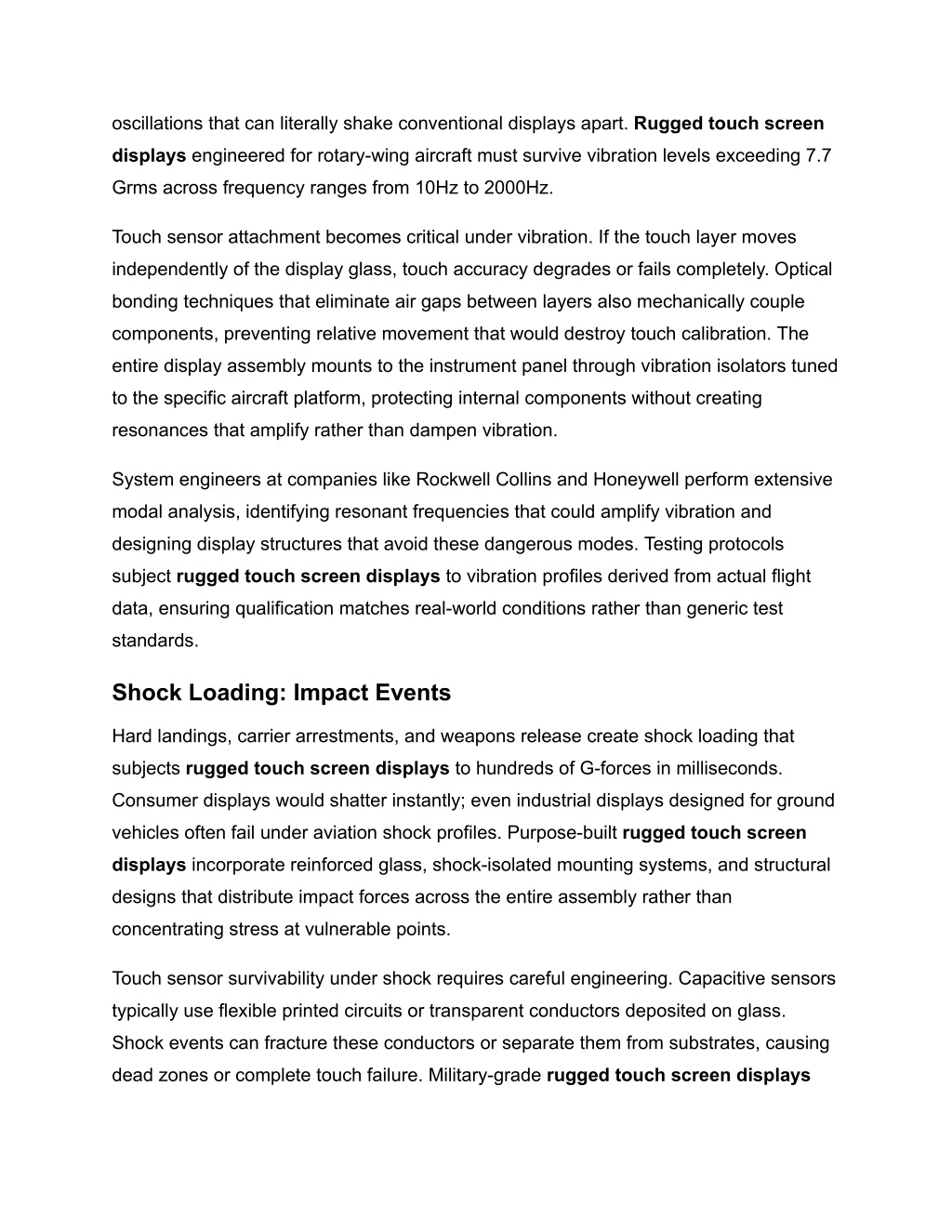

3. oscillations that can literally shake conventional displays apart. Rugged touch screen displays engineered for rotary-wing aircraft must survive vibration levels exceeding 7.7 Grms across frequency ranges from 10Hz to 2000Hz. Touch sensor attachment becomes critical under vibration. If the touch layer moves independently of the display glass, touch accuracy degrades or fails completely. Optical bonding techniques that eliminate air gaps between layers also mechanically couple components, preventing relative movement that would destroy touch calibration. The entire display assembly mounts to the instrument panel through vibration isolators tuned to the specific aircraft platform, protecting internal components without creating resonances that amplify rather than dampen vibration. System engineers at companies like Rockwell Collins and Honeywell perform extensive modal analysis, identifying resonant frequencies that could amplify vibration and designing display structures that avoid these dangerous modes. Testing protocols subject rugged touch screen displays to vibration profiles derived from actual flight data, ensuring qualification matches real-world conditions rather than generic test standards. Shock Loading: Impact Events Hard landings, carrier arrestments, and weapons release create shock loading that subjects rugged touch screen displays to hundreds of G-forces in milliseconds. Consumer displays would shatter instantly; even industrial displays designed for ground vehicles often fail under aviation shock profiles. Purpose-built rugged touch screen displays incorporate reinforced glass, shock-isolated mounting systems, and structural designs that distribute impact forces across the entire assembly rather than concentrating stress at vulnerable points. Touch sensor survivability under shock requires careful engineering. Capacitive sensors typically use flexible printed circuits or transparent conductors deposited on glass. Shock events can fracture these conductors or separate them from substrates, causing dead zones or complete touch failure. Military-grade rugged touch screen displays

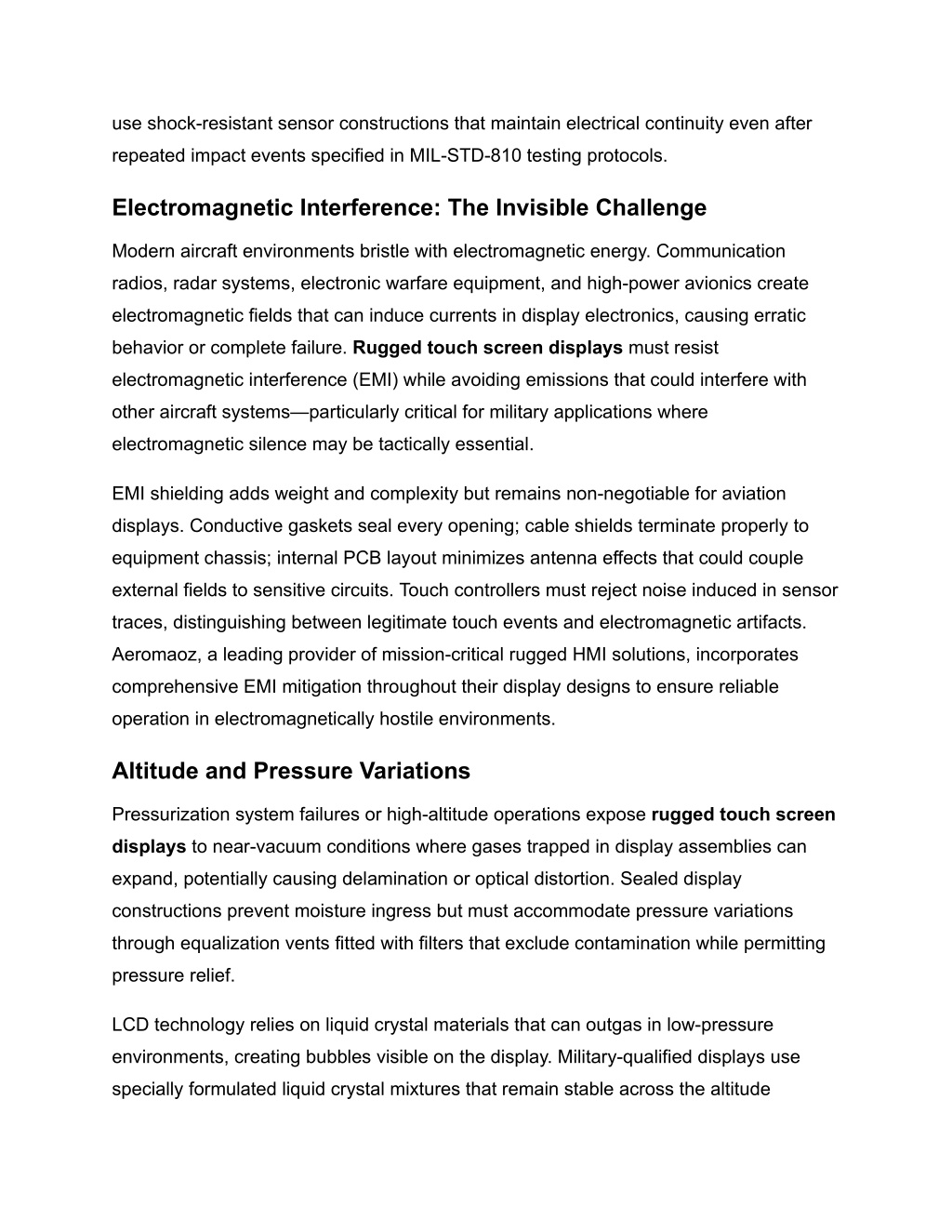

4. use shock-resistant sensor constructions that maintain electrical continuity even after repeated impact events specified in MIL-STD-810 testing protocols. Electromagnetic Interference: The Invisible Challenge Modern aircraft environments bristle with electromagnetic energy. Communication radios, radar systems, electronic warfare equipment, and high-power avionics create electromagnetic fields that can induce currents in display electronics, causing erratic behavior or complete failure. Rugged touch screen displays must resist electromagnetic interference (EMI) while avoiding emissions that could interfere with other aircraft systems—particularly critical for military applications where electromagnetic silence may be tactically essential. EMI shielding adds weight and complexity but remains non-negotiable for aviation displays. Conductive gaskets seal every opening; cable shields terminate properly to equipment chassis; internal PCB layout minimizes antenna effects that could couple external fields to sensitive circuits. Touch controllers must reject noise induced in sensor traces, distinguishing between legitimate touch events and electromagnetic artifacts. Aeromaoz, a leading provider of mission-critical rugged HMI solutions, incorporates comprehensive EMI mitigation throughout their display designs to ensure reliable operation in electromagnetically hostile environments. Altitude and Pressure Variations Pressurization system failures or high-altitude operations expose rugged touch screen displays to near-vacuum conditions where gases trapped in display assemblies can expand, potentially causing delamination or optical distortion. Sealed display constructions prevent moisture ingress but must accommodate pressure variations through equalization vents fitted with filters that exclude contamination while permitting pressure relief. LCD technology relies on liquid crystal materials that can outgas in low-pressure environments, creating bubbles visible on the display. Military-qualified displays use specially formulated liquid crystal mixtures that remain stable across the altitude

5. envelope from sea level to 50,000+ feet. Optical coatings must resist outgassing that would contaminate touch sensors or optical surfaces, degrading performance over operational lifetimes measured in decades. The Verdict: Technology Meets Challenge Can rugged touch screen displays withstand every flight challenge? Modern aerospace-grade displays conclusively answer: yes. Through advanced materials, rigorous engineering, and exhaustive testing, today’s rugged touch screen displays deliver reliability that equals or exceeds traditional mechanical interfaces while providing the enhanced functionality modern aviation demands. The skepticism was understandable but is now demonstrably unfounded—touch technology has definitively proven itself capable of meeting aviation’s most demanding requirements.
