Multimedia Databases

Multimedia Databases Possible solutions to the R limitations

Topics Covered • Why multimedia is a problem for databases • Support for searching • Types of Databases • Relational Databases and Multimedia • Example - Access • Object Relational Databases and Multimedia • Example - Oracle • Object Oriented Databases and Multimedia • Example - Jasmine

The problem - recap • Data increasingly means not just numbers and small strings but multimedia data as well – structured (text, images, video, audio, VR, etc.) • Databases promise: • well structured data organisation • efficient storage of large amounts of data • querying • transactional support for concurrent users • If you include multimedia data • multimedia is large and may swamp other data • multimedia data structures are completely different from standard database structures • multimedia data structures do not easily lend themselves to content-based searching

Data integration • Databases already integrate various kinds of data, numbers, dates, small text strings. • They do this by the use of domains • i.e. each atomic value in the database belongs to one of a small number of types • each type has two aspects: • a range of values which are acceptable • some operations which are available

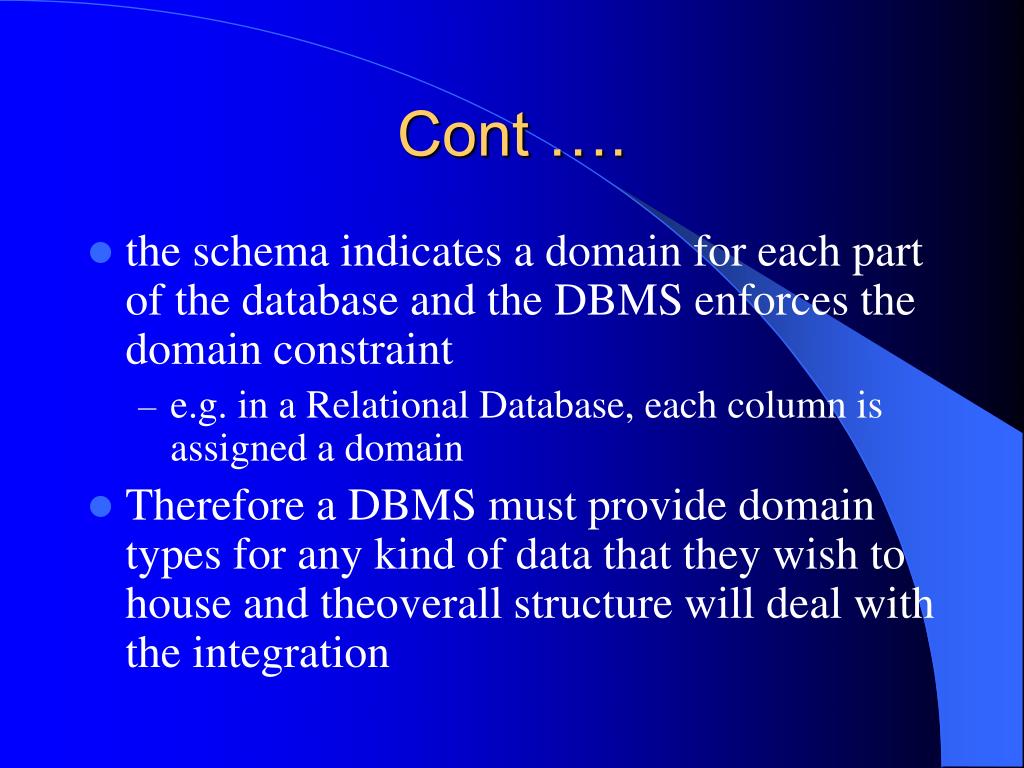

Cont …. • the schema indicates a domain for each part of the database and the DBMS enforces the domain constraint • e.g. in a Relational Database, each column is assigned a domain • Therefore a DBMS must provide domain types for any kind of data that they wish to house and theoverall structure will deal with the integration

Domain types of MM data • DBMS typically provide three different kinds of domain for multimedia data: • large object domains, sequences of data often of two kinds • Binary Large Objects – BLOBs – which are an unstructured sequence of bytes • Character Large Objects – CLOBs – which are an unstructured sequence of characters • file references – instead of holding the data, a file reference contains a link to the data (OLE in Access) • genuine multimedia data types – (Oracle and Jasmine)

Cont … • There is an important difference between the last of these and the first two: • multimedia data types present the possibility of exploiting the structure of the data for querying and manipulation • large objects at best allow you to extract sections or to concatenate them • file references mean that the DBMS has no access the data at all

Querying MM data • A DBMS permits a user to search the database by content e.g. give the name of the student with matriculation number 0123456 We would like to do the same with multimedia data e.g. give the pictures painted by Picasso or sound files with female singer hitting top C • With standard data this is easy – numeric and string operators are well understood With multimedia data this is more difficult and requires some method of identifying contents of which there are two kinds:

Cont … • automatic identification • an algorithm takes the data and returns a measure which can be compared – e.g. of blackness • manual identification • a person examines the data and catalogues it – e.g. in a table of pictures, there is a column for the picture and another for the painter

Types of Database • There are three kinds of DBMS that might be used for housing multimedia data. • Relational DBMS store everything as First Normal Form tables • all data items are atomic and are held in rectangular tables • data can only be related if they are in one or in two records connected by a common value (foreign key) • records are identified only by content • it is difficult (if not impossible) to extend the set of domains

Cont … • Object-oriented DBMS store everything as classes of objects • all data is held as components of objects (like Java variables) • data is related by object reference (i.e. one class variable has a type which is another class and the values of that variable are instances of that class) • the set of classes is extensible and so you can freely create domains

Cont … • Object-relational DBMS are fundamentally relations but are not First Normal Form • the values in cells can be object references as well as atomic values • new types can be defined

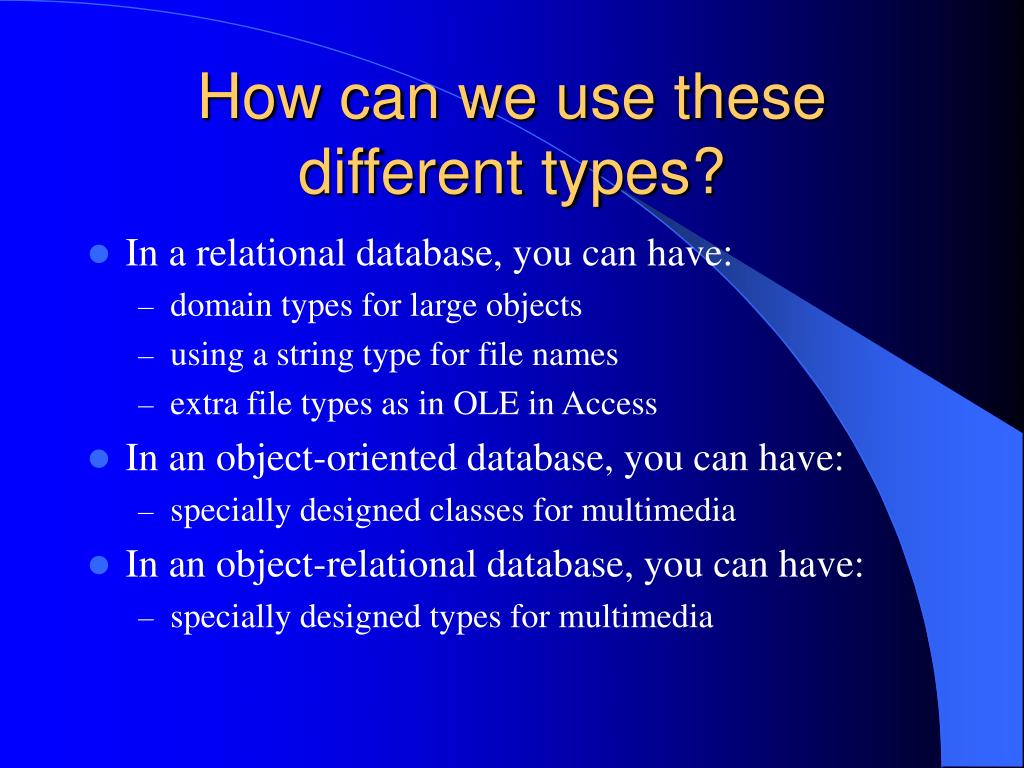

How can we use these different types? • In a relational database, you can have: • domain types for large objects • using a string type for file names • extra file types as in OLE in Access • In an object-oriented database, you can have: • specially designed classes for multimedia • In an object-relational database, you can have: • specially designed types for multimedia

R type database e.g. Access and OLE • Object Linking and Embedding was Microsoft’s first architecture for integrating files of different types: • Each file type in Windows is associated with an application It is possible to place a file of one type inside another: • either by wholly embedding the data in which case it is rendered by a plug-in associated with the program • or by placing a link to the data in which case it is rendered by calling the original program • Access works with this system by providing a domain type for OLE • • There’s not much you can do with OLE fields since the data is in a format that Access does not understand • • You can plug the foreign data into a report or a form and little else

R databases e.g. BFILEs in Oracle • The BFILE datatype provides access to BLOB files of up to 4 gigabytes that are stored in file systems outside an Oracle database. • The BFILE datatype allows read-only support of large binary files; you cannot modify a file through Oracle. Oracle provides APIs to access file data.

Large Object Types in Oracle and SQL3 • Oracle and SQL3support three large object types: • BLOB - The BLOB domain type stores unstructured binary data in the database. BLOBs can store up to four gigabytes of binary data. • CLOB – The CLOB domain type stores up to four gigabytes of single-byte character set data • NCLOB - The NCLOB domain type stores up to four gigabytes of fixed-width and varying width multi-byte national character set data * SQL3 is a significant extension to standard SQL which turns into a full object-based language

Cont … • These types support • Concatenation – making up one LOB by putting two of them together • Substring – extract a section of a LOB • Overlay – replace a substring of one LOB with another • Trim – removing particular characters (e.g. whitespace) from the beginning or end • Length – returns the length of the LOB • Position – returns the position of a substring in a LOB • Upper and Lower – turns a CLOB or NCLOB into upper or lower case • LOBs can only appear in a where clause using “=”, “<>” or “like” and not in group by or order by at all

Large Object Types in MySQL MySQL has four BLOB and four CLOB (called TEXT in MySQL) domain types: • TINYBLOB and TINYTEXT – store up to 256 bytes • BLOB and TEXT – store up to 64K bytes • MEDIUMBLOB and MEDIUMTEXT – store up to 16M bytes • LONGBLOB and LONGTEXT – store up to 4G bytes

Oracle interMedia Audio, Image, and Video • Oracle interMedia supports multimedia storage, retrieval, and management of: • BLOBs stored locally in Oracle8i onwards and containing audio, image, or video data • BFILEs, stored locally in operating system-specific file systems and containing audio, image or video data • URLs containing audio, image, or video data stored on any HTTP server such as Oracle Application Server, Netscape Application Server, Microsoft Internet Information Server, Apache HTTPD server, and Spyglass servers • Streaming audio or video data stored on specialized media servers such as the Oracle Video Server

The Object Relational Multimedia Domain Types in interMedia • interMedia provides the ORDAudio, ORDImage, and ORDVideo object types and methods for: • updateTime ORDSource attribute manipulation • manipulating multimedia data source attribute information • extracting attributes from multimedia data • getting and managing multimedia data from Oracle interMedia, Web servers, and other servers • performing a minimal set of manipulation operations on multimedia data (images only)

Cont … • The properties available are: • ORDImage – the height, width, data size of the on-disk image, file type, image type,compression type, and MIME type • ORDAudio – the format, encoding, number of channels, sampling rate, sample size,compression type, and audio duration • ORDVideo – the format, frame size, frame resolution, frame rate, video duration, number of frames, compression type, number of colours, and bit rate

Cont … • Oracle also stores metadata including: • source type, location, and source name • MIME type and formatting information • characteristics such as height and width of an image, number of audio channels, video frame rate, pay time, etc.

OO databases – e.g. Jasmine • Jasmine is an Object-Oriented database and has an application known as Studio is its development environment • It comes with a number of built in classes include four multimedia classes: • Picture - • Image – • Video – • Audio - • These come with manipulation and compression facilities They also have been made to fit well with Java Media Framework

conclusions • At present you can not do much with MM data, there are two reasons for this: 1. It is very large • indexing on multimedia data is not reasonable nor is storing a default value • other retrieval may be slowed down • transactions may be compromised 2. The properties are not well understood or implementable in reasonable time • what does it mean to say that one image is before another in order therefore there are few operators in the where clause that work

Cont .. • At the moment, there is no reason for putting multimedia data into a relational database • it just slows everything down • and you can’t do very much • You could use an object relational or object oriented database • now you can do more • but the products are immature • and everything will be slow

Cont … • There are three main reasons for integrating multimedia data with a database: • 1. Cataloguing the data • a column for file names is good enough • 2. Decorating Reports • The OLE approach works well here Otherwise a file name column and a simple application for generating the reports would do • 3. Web Applications • Again a file name column is good enough

Multimedia Databases
