Top 5 Benefits of Additive Manufacturing in Tooling Applications

1. Top 5 Benefits of Additive Manufacturing in Tooling Applications Traditional tooling methods have dominated manufacturing for decades, but they come with a familiar frustration: engineers often wait 6-12 weeks for a single mold iteration while burning through budgets that can reach $50,000 or more. Additive manufacturing tooling is changing that equation entirely. Whether you're developing plastic injection mould tooling for a new medical device or need rapid iterations for consumer products, additive manufacturing (AM) offers a compelling alternative that's transforming how companies approach tooling services. In this article, you'll discover five proven benefits of using additive manufacturing for tooling applications—from dramatic time savings to design freedoms impossible with conventional machining. We'll explore real-world applications, examine the technologies making this possible, and show you when AM tooling makes the most sense for your next project. Understanding Additive Manufacturing in Tooling Context Before diving into the benefits, it's important to understand what additive manufacturing tooling actually means in practical terms. Unlike subtractive manufacturing that machines away material from solid blocks, AM builds tooling layer by layer using technologies like Carbon Digital Light Synthesis (DLS), stereolithography (SLA), or selective laser sintering (SLS).

2. For molding tooling applications, this means creating injection mold inserts, jigs, fixtures, and other production aids directly from 3D CAD files. Modern AM materials can withstand hundreds to thousands of injection molding cycles, making them viable for bridge production and low-volume manufacturing—not just prototyping. The technology has matured significantly. According to a 2024 Wohlers Report, the additive manufacturing industry grew 17.5% year-over-year, with tooling applications representing one of the fastest-growing segments. This growth reflects increasing confidence in AM's reliability for production environments. Benefit #1: Dramatically Reduced Lead Times The most immediate advantage of additive manufacturing tooling is speed. Traditional CNC-machined tooling requires programming, multiple setups, and lengthy machining times. A complex mold insert might take 4-8 weeks from design approval to first shots. Additive manufacturing compresses this timeline to days. A Carbon DLS mold insert can often be designed, printed, and ready for injection molding trials within 3-5 business days. For engineers facing aggressive time-to-market pressures, this acceleration is transformative. Real-world impact: A medical device manufacturer we work with reduced their tooling iteration cycle from 10 weeks to 8 days using additive manufacturing for prototype mold inserts. This allowed them to test five design variations in the time previously required for one, ultimately leading to a better final product and faster FDA submission. The speed advantage extends beyond initial fabrication. When design changes are needed—and they almost always are—AM tooling can be revised and reprinted in the same compressed timeframe. There's no need to scrap expensive steel tooling or wait for a machine shop's queue to clear. Benefit #2: Significant Cost Reduction for Low-Volume Production Cost is often the deciding factor in tooling decisions, and here additive manufacturing offers compelling economics for specific scenarios. While high-volume production still favors traditional steel tooling, low to medium volumes (typically under 10,000 parts) often make more financial sense with AM. Traditional plastic injection mould tooling can cost $15,000-$100,000+ depending on complexity, cavity count, and material. In contrast, additive manufacturing tooling typically ranges from $500-$5,000 per cavity, representing a 90% reduction in upfront investment for many applications. Consider the break-even analysis: if you need 2,000 parts for a market test, spending $40,000 on steel tooling means $20 per part in tooling cost alone—before material and

3. molding expenses. An AM mold insert at $2,000 drops that to $1 per part, making the project economically viable. Beyond direct tooling costs, AM eliminates many hidden expenses. There are no minimum order quantities from tool shops, no storage costs for expensive steel molds between production runs, and no lengthy quoting processes. For companies managing multiple product lines or seasonal products, these secondary savings add up quickly. Benefit #3: Design Freedom and Optimization Impossible with Traditional Methods This is where additive manufacturing truly differentiates itself. Conventional machining is constrained by tool access—every surface must be reachable by a cutting tool, limiting geometric possibilities. Additive manufacturing removes these constraints entirely. Conformal cooling channels represent the most valuable design freedom for molding tooling. Traditional molds use straight drilled cooling lines that follow the easiest machining paths, not optimal thermal management paths. AM allows cooling channels to follow the part geometry precisely, maintaining uniform mold temperatures and reducing cycle times. A 2023 study published in the Journal of Manufacturing Processes found that conformal cooling channels in AM tooling reduced injection molding cycle times by 15-40% compared to conventional cooling. For high-volume production, even a 20% cycle time reduction translates to substantial throughput increases and lower per-part costs. Beyond cooling, AM enables complex core-and-cavity geometries that would require multiple pieces or impossible undercuts with traditional machining. Lattice structures can reduce tool weight without sacrificing strength. Integrated features like ejector pins, date stamps, or texture can be built directly into the tool rather than added as secondary operations. For precise tooling solutions requiring tight tolerances on complex geometries, this design freedom allows engineers to optimize for function rather than manufacturing limitations. Benefit #4: Rapid Iteration and Design Validation Engineering is inherently iterative. The first design is rarely the final design, especially when optimizing for design for manufacturing (DFM) or design for assembly (DFA). Additive manufacturing tooling embraces this reality by making iteration fast and affordable. When you can produce a functional mold insert in days rather than weeks, the entire development process changes. Engineers can test multiple design variations in parallel, gather real-world molding data, and make informed decisions based on actual parts rather than simulations alone. This benefit is particularly valuable for:

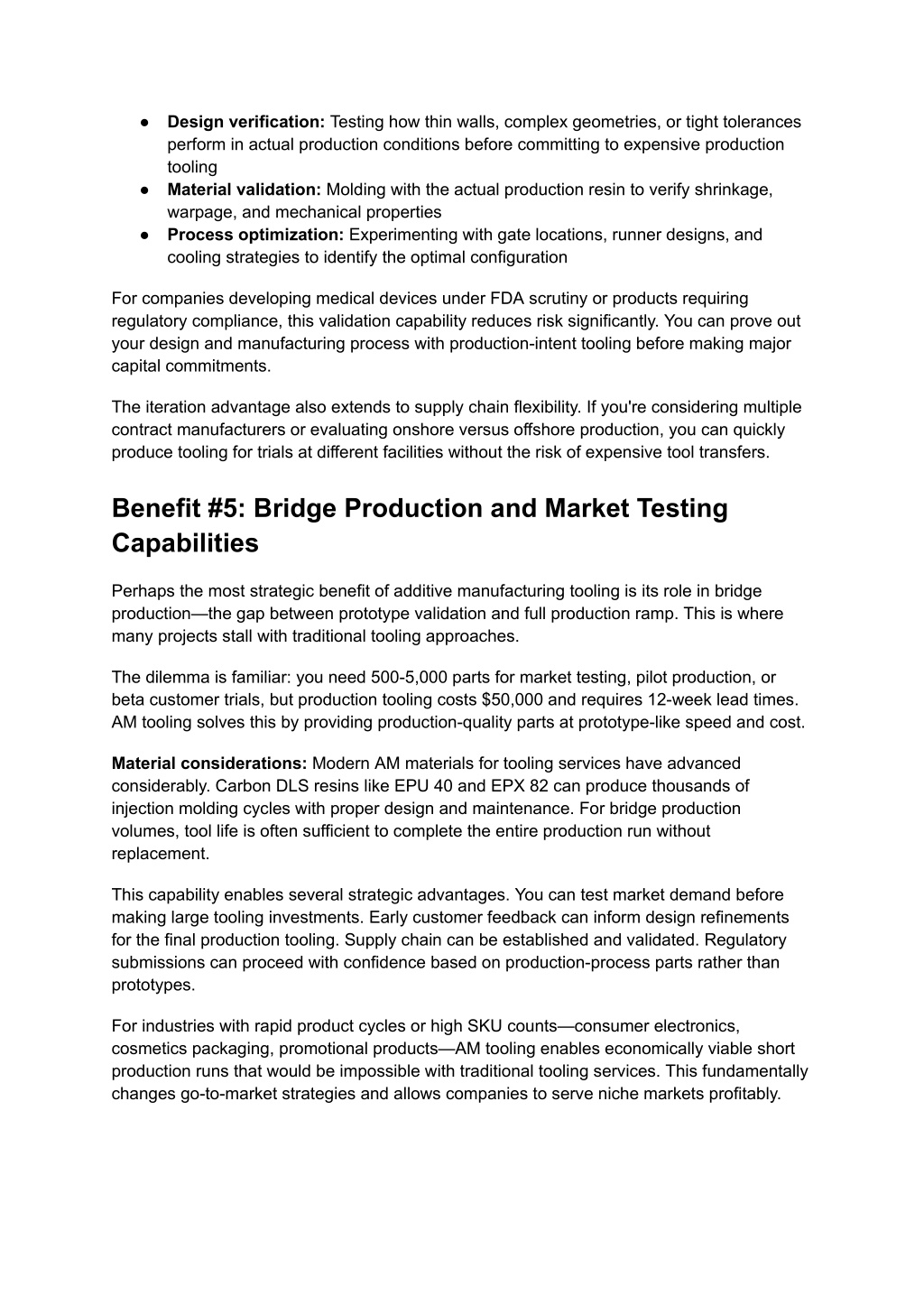

4. ● Design verification: Testing how thin walls, complex geometries, or tight tolerances perform in actual production conditions before committing to expensive production tooling ● Material validation: Molding with the actual production resin to verify shrinkage, warpage, and mechanical properties ● Process optimization: Experimenting with gate locations, runner designs, and cooling strategies to identify the optimal configuration For companies developing medical devices under FDA scrutiny or products requiring regulatory compliance, this validation capability reduces risk significantly. You can prove out your design and manufacturing process with production-intent tooling before making major capital commitments. The iteration advantage also extends to supply chain flexibility. If you're considering multiple contract manufacturers or evaluating onshore versus offshore production, you can quickly produce tooling for trials at different facilities without the risk of expensive tool transfers. Benefit #5: Bridge Production and Market Testing Capabilities Perhaps the most strategic benefit of additive manufacturing tooling is its role in bridge production—the gap between prototype validation and full production ramp. This is where many projects stall with traditional tooling approaches. The dilemma is familiar: you need 500-5,000 parts for market testing, pilot production, or beta customer trials, but production tooling costs $50,000 and requires 12-week lead times. AM tooling solves this by providing production-quality parts at prototype-like speed and cost. Material considerations: Modern AM materials for tooling services have advanced considerably. Carbon DLS resins like EPU 40 and EPX 82 can produce thousands of injection molding cycles with proper design and maintenance. For bridge production volumes, tool life is often sufficient to complete the entire production run without replacement. This capability enables several strategic advantages. You can test market demand before making large tooling investments. Early customer feedback can inform design refinements for the final production tooling. Supply chain can be established and validated. Regulatory submissions can proceed with confidence based on production-process parts rather than prototypes. For industries with rapid product cycles or high SKU counts—consumer electronics, cosmetics packaging, promotional products—AM tooling enables economically viable short production runs that would be impossible with traditional tooling services. This fundamentally changes go-to-market strategies and allows companies to serve niche markets profitably.

5. Selecting the Right Additive Manufacturing Technology for Your Tooling Application Not all additive manufacturing technologies are equally suited for tooling applications. The choice depends on your specific requirements for accuracy, surface finish, material properties, and production volume. Carbon DLS (Digital Light Synthesis) offers the best combination of speed, accuracy, and material properties for most injection molding tooling. The technology produces isotropic parts with excellent surface finish and mechanical properties suitable for demanding applications. Stereolithography (SLA) provides high accuracy and smooth surfaces, making it suitable for low-volume tooling where extreme precision matters more than ultimate toughness. Selective Laser Sintering (SLS) excels for jigs, fixtures, and tooling that doesn't require the finest surface finish but needs exceptional thermal stability and durability. For plastic injection mould tooling specifically, Carbon DLS has emerged as the preferred technology due to its combination of speed, durability, and thermal management capabilities. The materials can withstand repeated thermal cycling and mechanical stresses inherent in injection molding. When Additive Manufacturing Tooling Makes Sense (And When It Doesn't) Being strategic about when to use AM tooling versus traditional methods is crucial. Additive manufacturing excels in specific scenarios: ● Production volumes under 10,000 parts ● Complex geometries benefiting from conformal cooling ● Rapid development cycles requiring multiple iterations ● Bridge production before full production ramp ● Market testing with production-process parts ● Products with uncertain demand forecasts Traditional steel tooling remains superior for: ● High-volume production exceeding 50,000+ parts ● Extremely abrasive materials requiring maximum tool hardness ● Applications where tool life must exceed 1 million cycles ● Products with decade-long stable production runs Many sophisticated manufacturers use a hybrid approach: AM tooling for development and initial production, then transition to steel tooling once volumes justify the investment. This strategy captures the benefits of both approaches while minimizing risk and upfront investment.

6. Implementing Additive Manufacturing Tooling in Your Workflow Successfully integrating additive manufacturing tooling requires some process adjustments. Design engineers should work closely with manufacturing partners who understand both AM capabilities and injection molding requirements. Key implementation considerations include: Draft angles may be less critical than with traditional machining, but ejection still matters. Cooling channel design should leverage conformal cooling opportunities while maintaining structural integrity. Material selection for AM tooling should match thermal and mechanical requirements of the molding application. Most importantly, partner selection matters enormously. Choose tooling services with demonstrated experience in both additive manufacturing and injection molding. The best outcomes come from manufacturers who can optimize designs for AM production while ensuring the resulting tools will perform reliably in production environments. Conclusion: The Strategic Advantage of Additive Manufacturing Tooling Additive manufacturing tooling delivers five compelling benefits that are reshaping how forward-thinking companies approach product development: dramatic lead time reductions, significant cost savings for appropriate volumes, unprecedented design freedom, rapid iteration capabilities, and bridge production flexibility. Together, these advantages create a strategic competitive edge in markets where speed and adaptability matter. For engineers and product managers facing increasing pressure to innovate faster while controlling costs, precise tooling solutions enabled by additive manufacturing represent a proven path forward. The technology has matured beyond experimentation—it's now a production-ready capability delivering measurable business results. Ready to explore how additive manufacturing tooling can accelerate your next project? Contact Aprios Custom MFG to discuss your specific application and discover whether AM tooling makes sense for your production volumes, timeline, and budget requirements. FAQs Q: How long does additive manufacturing tooling last compared to traditional steel molds?

7. A: AM tooling lifespan depends on the material, part geometry, and molding conditions. Carbon DLS mold inserts typically last 500-5,000 injection molding cycles—sufficient for prototype validation and low-volume production. Steel tooling remains superior for high-volume production exceeding 50,000+ parts where tool life must reach hundreds of thousands or millions of cycles. Q: Can additive manufacturing tooling achieve the same tolerances as CNC-machined molds? A: Modern AM technologies like Carbon DLS can achieve tolerances of ±0.005" to ±0.010" depending on part size and geometry, which is sufficient for most molding applications. For extremely tight tolerances (±0.001"), post-processing operations or hybrid approaches combining AM with CNC finishing may be necessary. Always discuss specific tolerance requirements with your manufacturing partner during design review. Q: What materials can be injection molded using additive manufacturing tooling? A: Most commodity thermoplastics work well with AM tooling, including ABS, PC, PP, PE, and nylon. Glass-filled and mineral-filled resins are more challenging due to their abrasive nature but can be molded with proper tool design and material selection. Highly aggressive materials or those requiring extremely high melt temperatures may still require traditional steel tooling for adequate tool life. Q: Is additive manufacturing tooling cost-effective for production volumes? A: AM tooling is most cost-effective for production volumes between 100 and 10,000 parts. Below 100 parts, direct 3D printing of end-use parts may be more economical. Above 10,000 parts, traditional steel tooling typically offers better per-part economics. The break-even point varies based on part complexity, material, and production timeline—detailed cost analysis should guide your decision. Q: How does lead time for AM tooling compare to traditional machining? A: Additive manufacturing tooling typically requires 3-7 business days from design approval to first molded parts, compared to 4-12 weeks for traditional CNC-machined tooling. This 10x speed advantage enables rapid design iterations and significantly faster time-to-market, particularly valuable during product development and market validation phases.
