Chapter 10 Software of a Computer System

Chapter 10 Software of a Computer System 10.1 Application Software 172 10.2 System Software 174 Chapter 10 Software 10.1 Application Software Application software also called applications Programs that perform tasks for users A set of tools for completing a specific type of job

Anita
Télécharger la présentation

Chapter 10 Software of a Computer System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 10 Software of a Computer System 10.1 Application Software 172 10.2 System Software 174

  2. Chapter 10 Software 10.1 Application Software • Application software • also called applications • Programs that perform tasks for users • A set of tools for completing a specific type of job • 1. Productivity Software • 2. Graphic and Multimedia Software • 3. Home, Personal and Educational Software • 4. Communication Software

  3. 10.1 Application Software Application Software10.1.1 Productivity software • Productivity software • also called business software • Increases effectiveness/efficiency of routine clerical work • e.g. typing, calculation, charting, record handling, presentation and scheduling etc. • Including software for • Word processing • Spreadsheet • Accounting • Database • Presentation • Desktop publishing etc.

  4. 10.1 Application Software Application Software10.1.2Graphic and multimedia software • Graphic and multimedia software • Creating/editing multimedia elements • e.g. graphics, animation, sound and video • Including software for • computer-aided design • desktop publishing • vector/bitmap graphic editing • audio/video editing • multimedia authoring • Web page authoring etc.

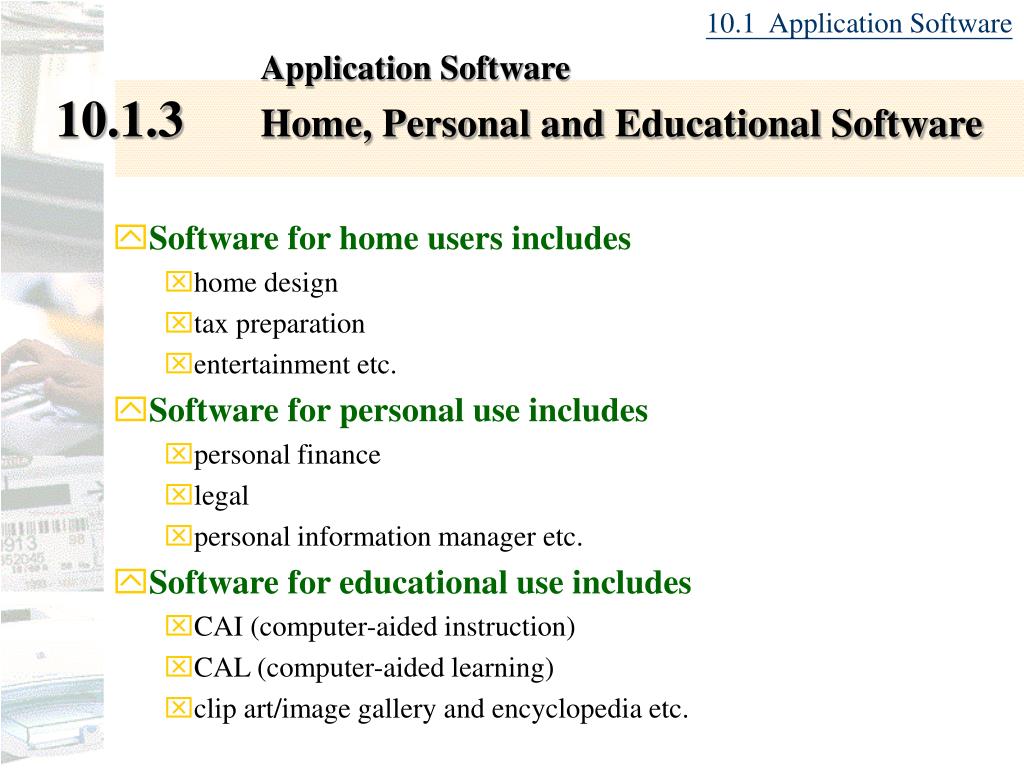

  5. 10.1 Application Software Application Software10.1.3Home, Personal and Educational Software • Software for home users includes • home design • tax preparation • entertainment etc. • Software for personal use includes • personal finance • legal • personal information manager etc. • Software for educational use includes • CAI (computer-aided instruction) • CAL (computer-aided learning) • clip art/image gallery and encyclopedia etc.

  6. 10.1 Application Software Application Software10.1.4Communication Software • Communication software • Enable people to communicate and share information with others • Including • e-mail • Web browsers • chat rooms • newsgroups • instant messaging • FTP programs etc.

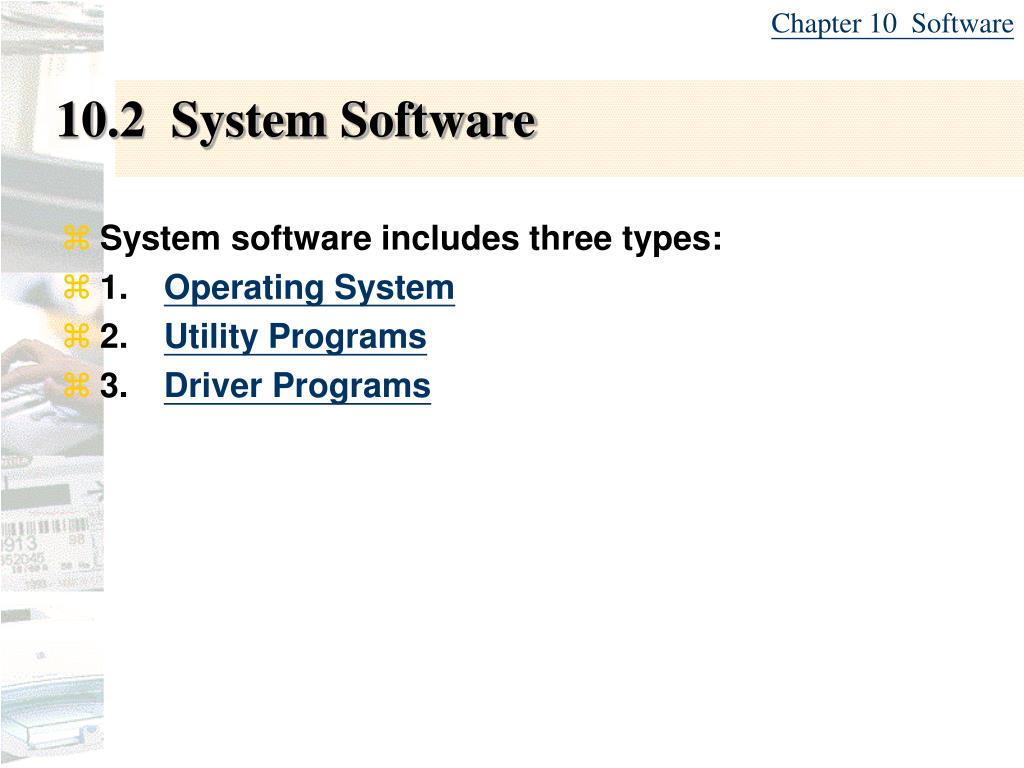

  7. Chapter 10 Software 10.2 System Software • System software includes three types: • 1. Operating System • 2. Utility Programs • 3. Driver Programs

  8. 10.2 System Software System Software10.2.1 Operating System(1) • Operating system (OS) • A set of programs • Controlling the operation of a computer system • Managing resources • Providing an interface between users and hardware • Without an OS, the programmer have to • handle ALL basic functions • e.g. displaying text on a screen, sending output to a printer or writing disk files

  9. 10.2 System Software System Software10.2.1 Operating System(2) • For the personal computers, the most popular operating systems are • Windows • MAC OS • Linux • IBM OS/2etc. • Functions of an OS 1. Controlling the operations of a computer system 2. Managing resources 3. Providing an user interface 4. Other tasks 5. Time-sharing

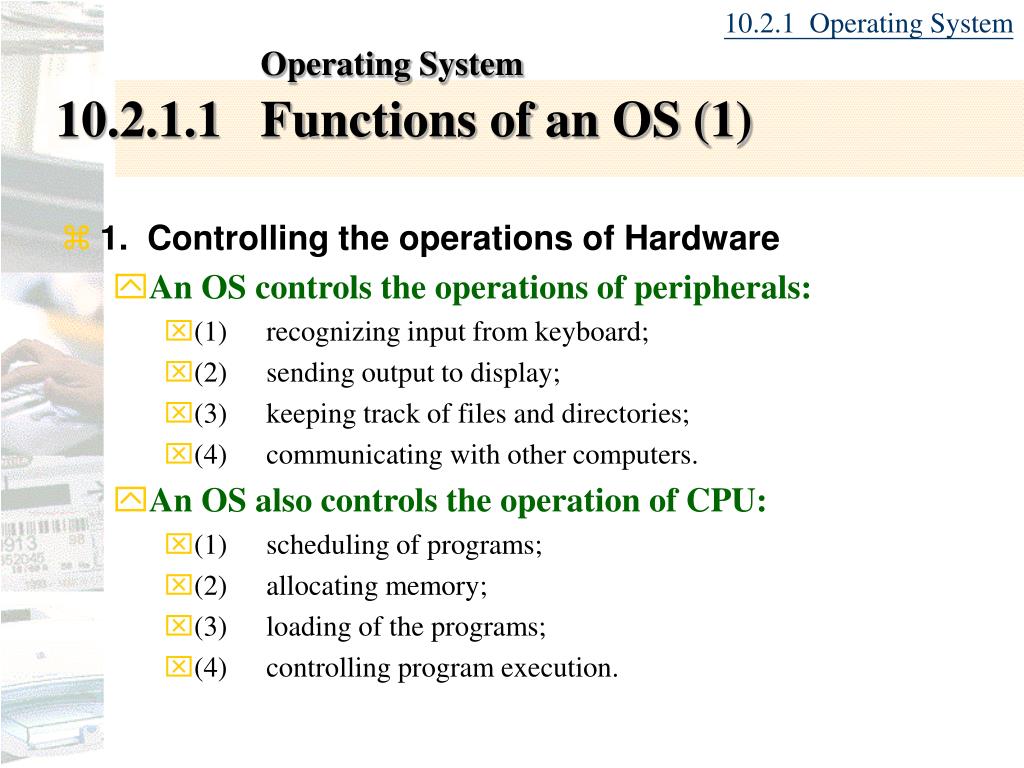

  10. 10.2.1 Operating System Operating System10.2.1.1 Functions of an OS (1) • 1. Controlling the operations of Hardware • An OS controls the operations of peripherals: • (1) recognizing input from keyboard; • (2) sending output to display; • (3) keeping track of files and directories; • (4) communicating with other computers. • An OS also controls the operation of CPU: • (1) scheduling of programs; • (2) allocating memory; • (3) loading of the programs; • (4) controlling program execution.

  11. 10.2.1 Operating System Operating System10.2.1.2 Functions of an OS (2) • 2. Managing resources • An executing program is known as a process • Conflicts occur between processes • when two or more processes require the same resource (such as memory or printer) • Sometimes may lead to system crash • Solution: OS handles all the requests and allocates the resources in an orderly manner to avoid crash and improve efficiency. • Multi-tasking • Load more than one program and switch from one program to another. • Through clipboard, data can be transferred between applications

  12. 10.2.1 Operating System Operating System10.2.1.3 Functions of an OS (3) • 3. User interface • provide an environment for users to access various parts of the computer system easily • Two types of user interface: • 1. Command line interface • 2. Graphical user interface

  13. 10.2.1 Operating System Operating System10.2.1.3 Functions of an OS (4) • 1. Command line interface • Using text to give instruction to the OS • User need to memorise a lot of instructions • 2. Graphical User Interface (GUI) • Displays information in windows • User interacts with the interface using pointing device • Commands from users are issued by clicking • menu, • icons, • buttons or • other graphical objects.

  14. 10.2.1 Operating System Operating System10.2.1.3 Functions of an OS (5) • The advantages of GUI are: (1) Intuitive, easy to use; (2) users need not learn a set of instructions to operate the system. • The disadvantages of GUI are: (1) Resource demanding uses a lot of processing power, memory, and disk space requires a good graphical display device; (2) Slow for the experienced users

  15. 10.2.1 Operating System Operating System10.2.1.4 Functions of an OS (6) • Other tasks of an OS include: • Monitoring performance • e.g. The memory and CPU usage. OS may warn users if the resources in the computer system get low. • Maintaining security • e.g. Allowing only authorised users to log on the system • Controlling the network • e.g. A File server controls access to a network and provides centralised storage area. • Communicating with other OS • e.g. A Web server may respond to computers with Windows or MAC OS

  16. 10.2.1 Operating System Operating System10.2.1.5 Functions of an OS (7) • 5. Time sharing • For large systems, • e.g. Mainframe/Minicomputer • Suppose there are 100 users, • each given a time slice of 0.01 s to interact with CPU • i.e. each user is served 0.01 s in every second. • However, all of them will think that they have sole use of the computer!

  17. 10.2 System Software System Software10.2.2 Utility programs (1) • Utility programs (or utilities) • Allowing users to manage devices and programs • Should be run regularly • Some come with the OS • Examples • File viewer, File compression utility, Diagnostic utility, Uninstaller, Disk scanner, File defragmenter, Backup utility, Screen saver, Anti-virus program

  18. 10.2.2 Utility Programs System Software10.2.2.1 Utility programs (2) • 1. File viewers • Displaying lists of directories and files in storage • Copying, deleting and renaming files • Example • File Explorer included in Windows.

  19. 10.2.2 Utility Programs System Software10.2.2.2 Utility programs (3) • 2. File compression utilities • Reducing the size of a file • while keeping the content unchanged • So that • files take up less storage space • faster file transmission • Examples • WinZip and Stuffit

  20. 10.2.2 Utility Programs System Software10.2.2.3 Utility programs (4) • 3. Diagnostic utilities • Diagnosing problems • Reporting errors • Suggesting course of action • Example • Dr. Watson (included in Windows)

  21. 10.2.2 Utility Programs System Software10.2.2.4-6 Utility programs (5) • 4. Uninstallers • Removing applications • 5. Disk scanners • Detecting and correcting problems on disks • 6. File defragmenters • Reorganising files and unused space on a hard disk • to improve file access

  22. 10.2.2 Utility Programs System Software10.2.2.7 Utility programs (6) • 7. Backup utilities • Copying selected files or entire hard disk • onto a removable storage medium, like a tape • The reverse of backup is restoring

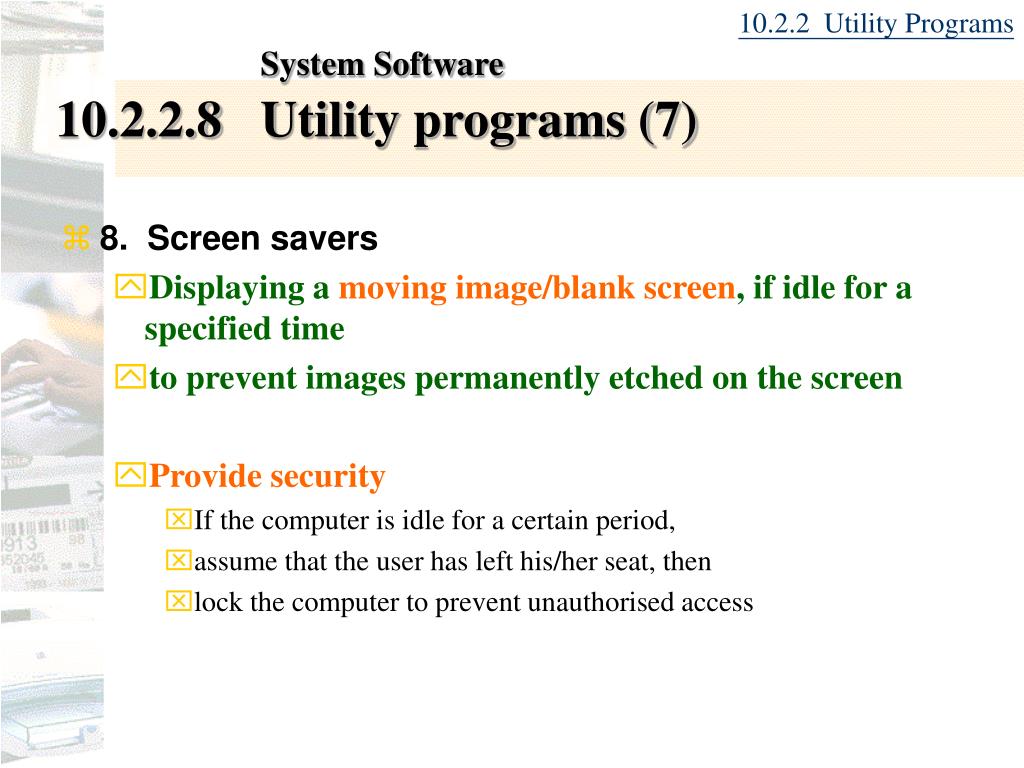

  23. 10.2.2 Utility Programs System Software10.2.2.8 Utility programs (7) • 8. Screen savers • Displaying a moving image/blank screen, if idle for a specified time • to prevent images permanently etched on the screen • Provide security • If the computer is idle for a certain period, • assume that the user has left his/her seat, then • lock the computer to prevent unauthorised access

  24. 10.2.2 Utility Programs System Software10.2.2.9 Utility programs (8) • 9. Anti-virus programs • Search the memory, hard disk and incoming files for viruses and • remove them • Ensure that e-mail attachment with virus will not be saved or executed • (For e-mail, viruses mainly exist in the attachement) • Auto-update feature • Download profiles of new viruses

  25. 10.2 System Software System Software10.2.3 Driver Programs • Driver programs • also called device drivers • Add-on codes for extending an OS • Once installed, becomes part of the OS • Designed for peripherals devices • Providing facts about the devices • A driver program may • exist in the OS or • come with the device
