_30°C_Upright_Freezer

DESCRIPTION

u00a0Fison -30u00b0C Upright Freezer is an intelligent microprocessor-controlled unit designed for long-term storage. It offers a net capacity of 1352L and a gross capacity of 1400L with a temperature range of -10u00b0C to -30u00b0C. It features a safety door lock to prevent unauthorized access to stored samples.

Télécharger la présentation

_30°C_Upright_Freezer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

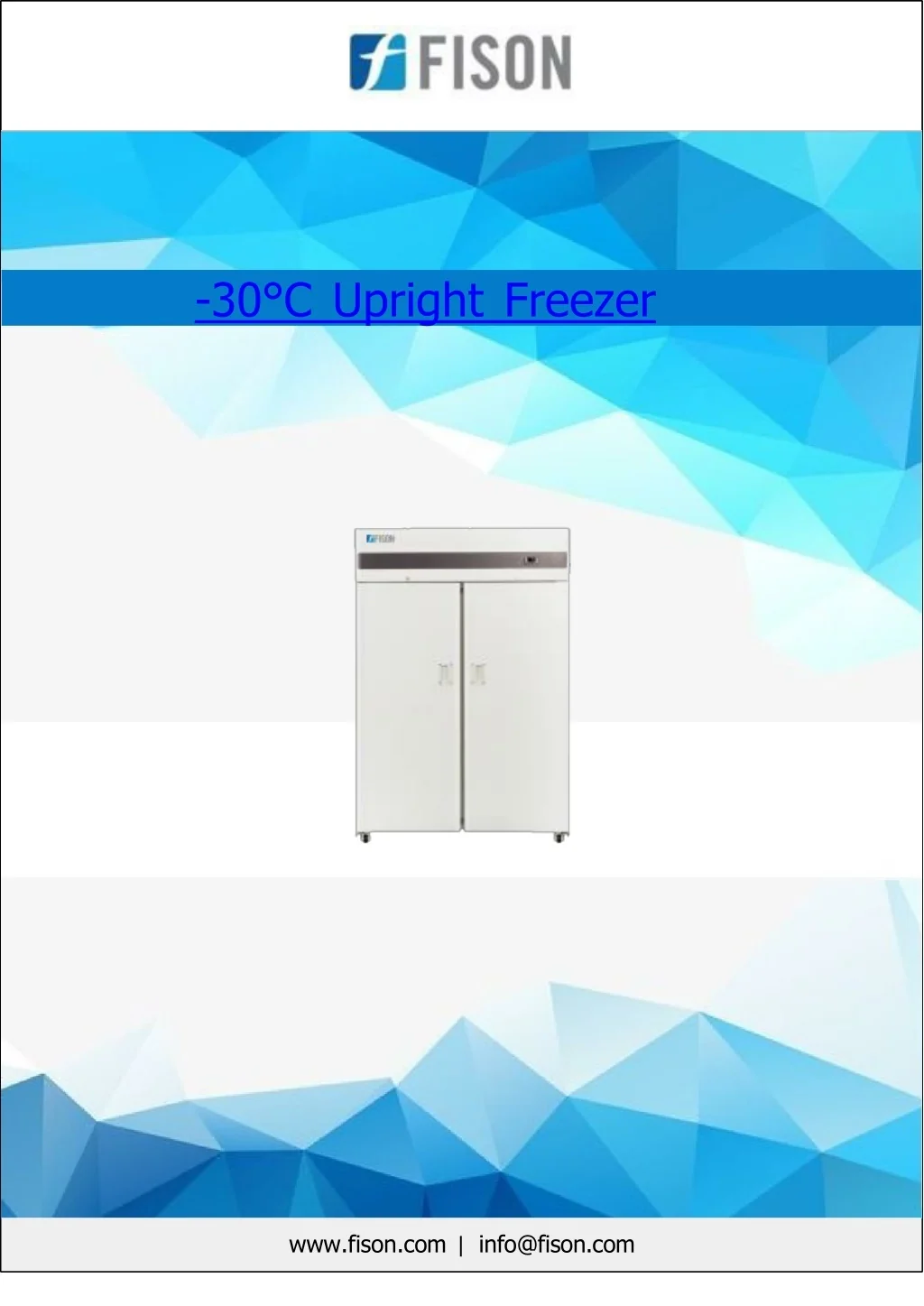

  1. -30°C Upright Freezer www.fison.com |info@fison.com

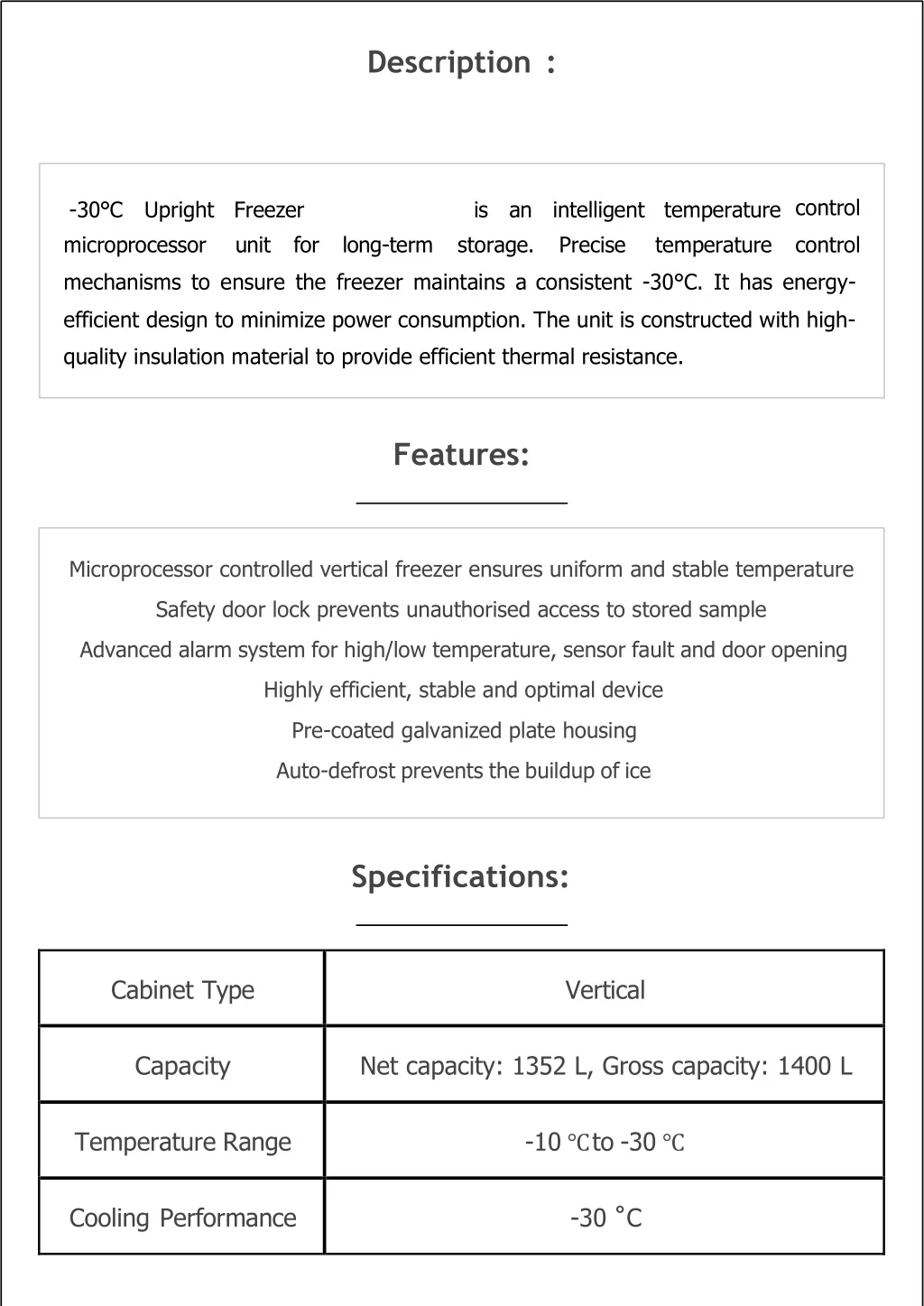

  2. Description : control -30°C Upright Freezer microprocessor is an intelligent temperature unit for long-term storage. Precise temperature control mechanisms to ensure the freezer maintains a consistent -30°C. It has energy- efficient design to minimize power consumption. The unit is constructed with high- quality insulation material to provide efficient thermal resistance. Features: Microprocessor controlled vertical freezer ensures uniform and stable temperature Safety door lock prevents unauthorised access to stored sample Advanced alarm system for high/low temperature, sensor fault and door opening Highly efficient, stable and optimal device Pre-coated galvanized plate housing Auto-defrost prevents the buildup of ice Specifications: Cabinet Type Vertical Capacity Net capacity: 1352 L, Gross capacity: 1400 L Temperature Range -10 ℃to -30 ℃ Cooling Performance -30 ˚C

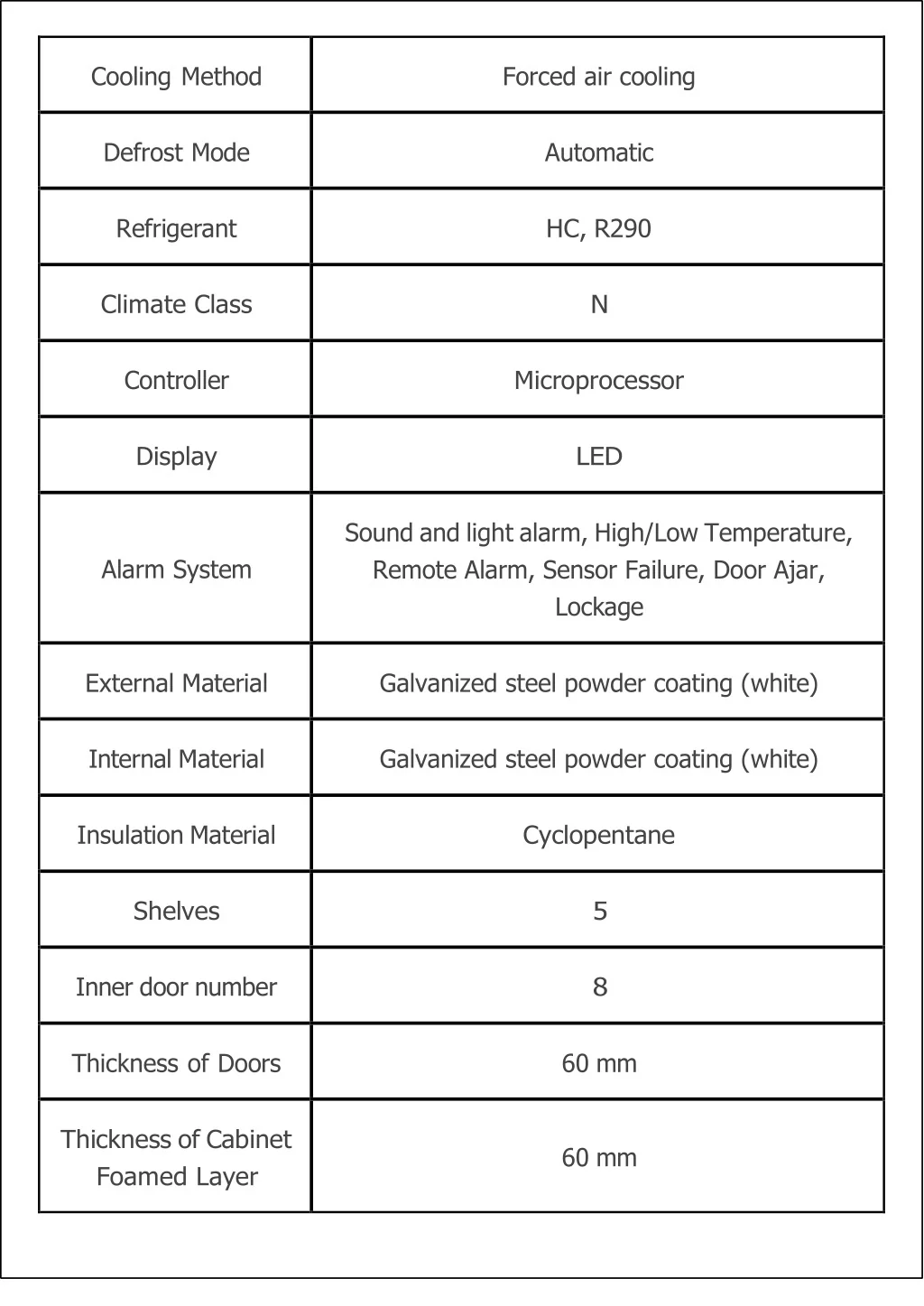

  3. Cooling Method Forced air cooling Defrost Mode Automatic Refrigerant HC, R290 Climate Class N Controller Microprocessor Display LED Sound and light alarm, High/Low Temperature, Remote Alarm, Sensor Failure, Door Ajar, Lockage Alarm System External Material Galvanized steel powder coating (white) Internal Material Galvanized steel powder coating (white) Insulation Material Cyclopentane Shelves 5 Inner door number 8 Thickness of Doors 60 mm Thickness of Cabinet Foamed Layer 60 mm

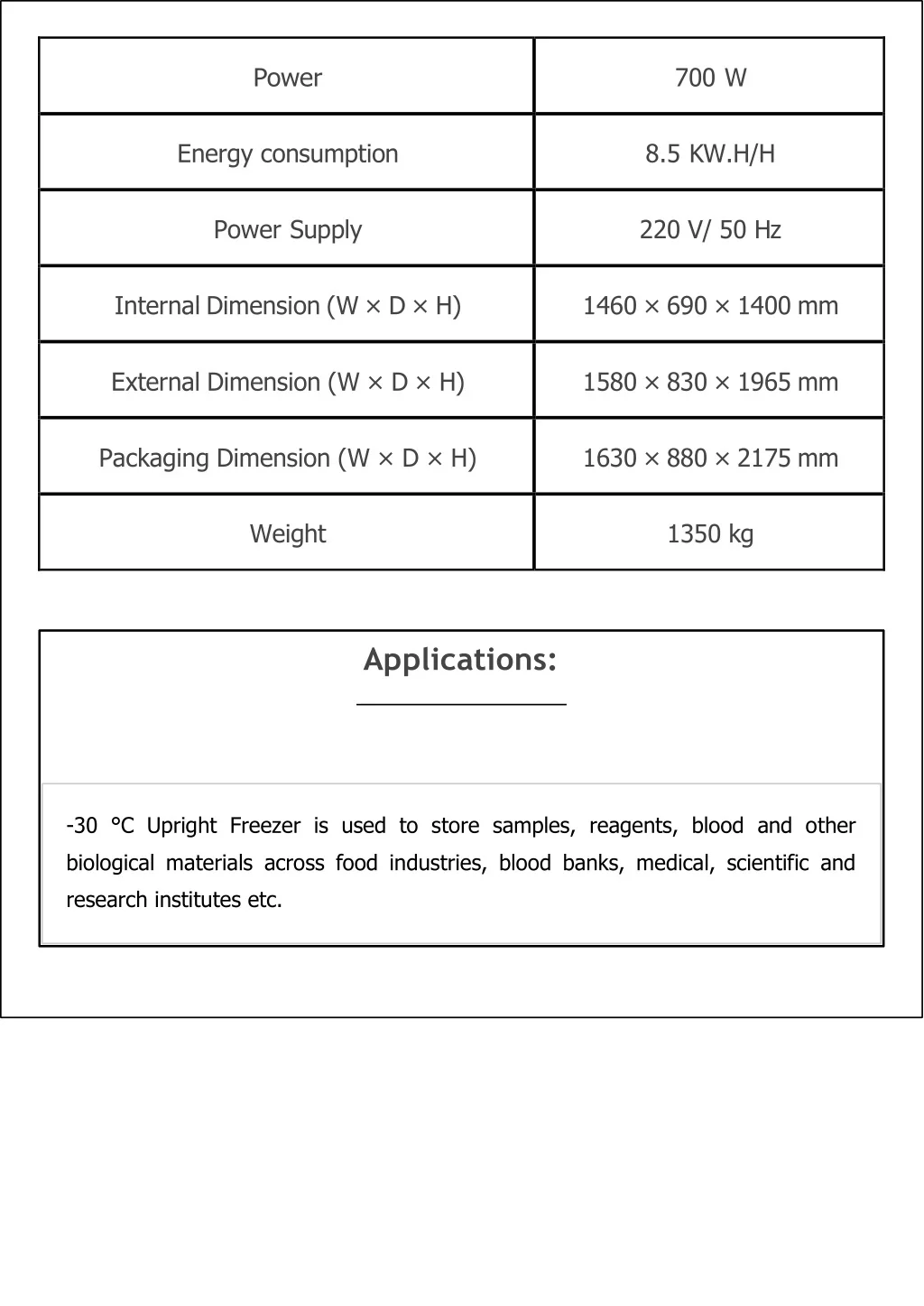

  4. Power 700 W Energy consumption 8.5 KW.H/H Power Supply 220 V/ 50 Hz Internal Dimension (W × D × H) 1460 × 690 × 1400 mm External Dimension (W × D × H) 1580 × 830 × 1965 mm Packaging Dimension (W × D × H) 1630 × 880 × 2175 mm Weight 1350 kg Applications: -30 °C Upright Freezer is used to store samples, reagents, blood and other biological materials across food industries, blood banks, medical, scientific and research institutes etc.

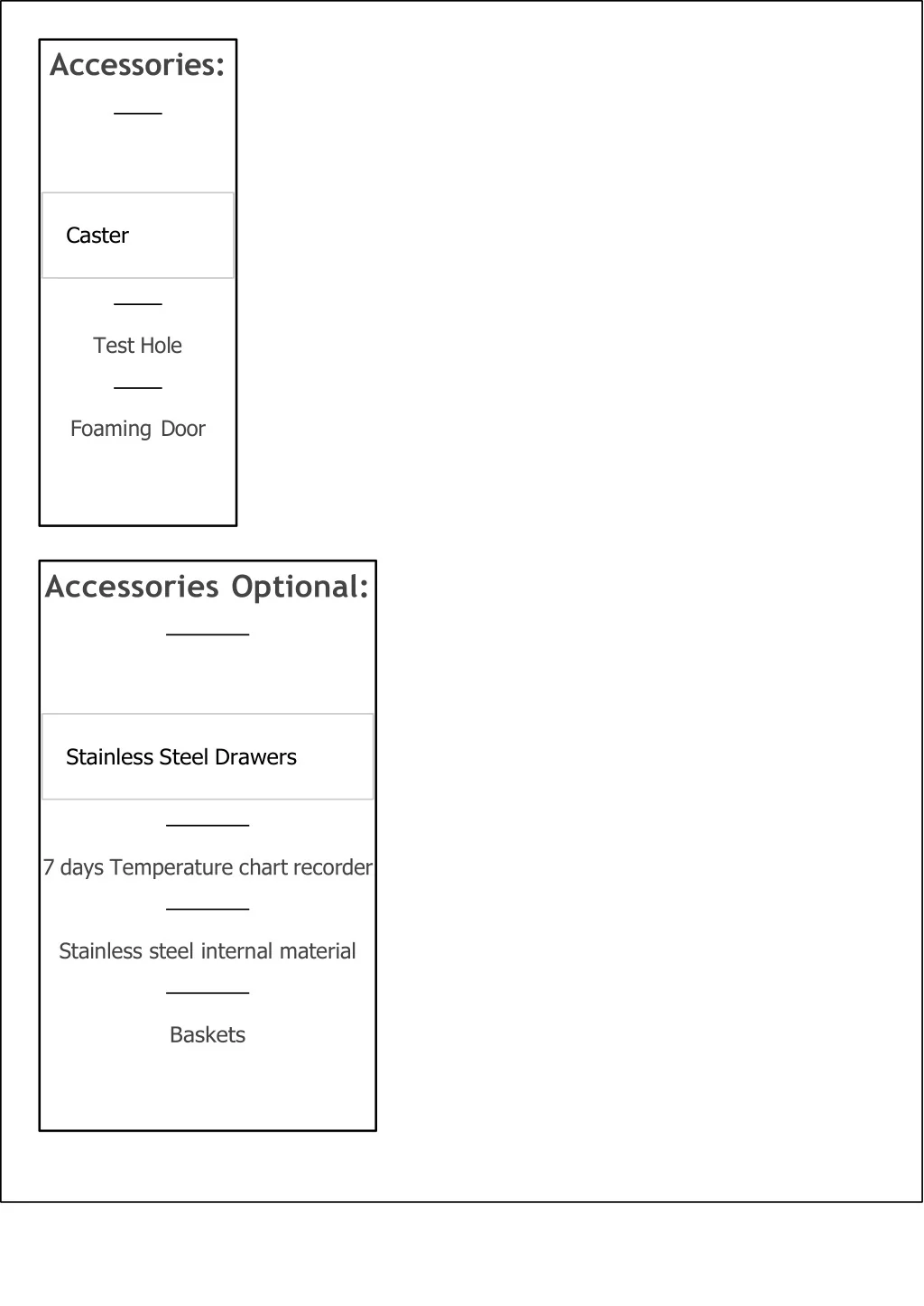

  5. Accessories: Caster Test Hole Foaming Door Accessories Optional: Stainless Steel Drawers 7 days Temperature chart recorder Stainless steel internal material Baskets

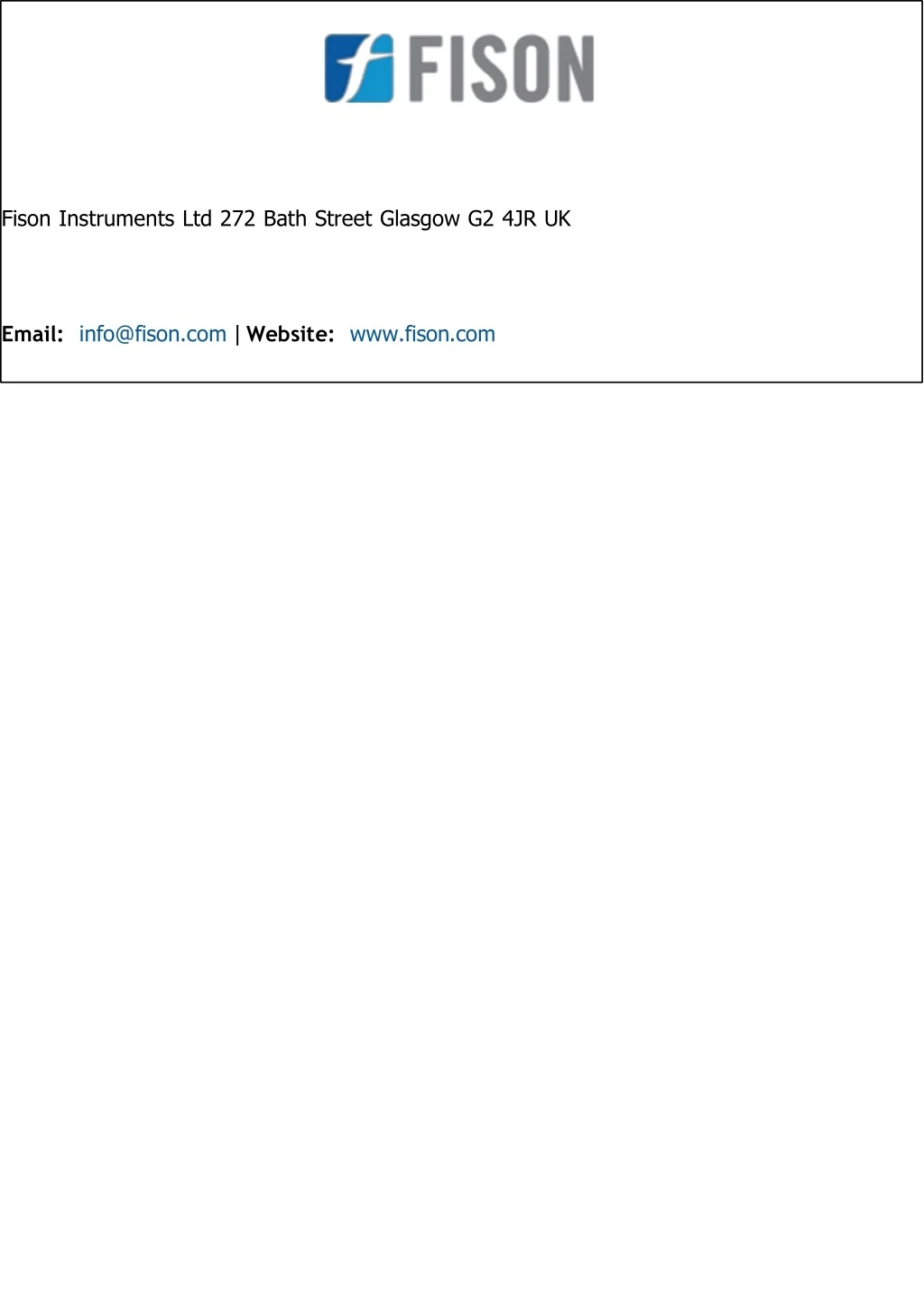

  6. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com | Website: www.fison.com
