-60°C Chest Freezer

DESCRIPTION

Fison -60u00b0C Chest Freezer is a 100L unit designed for long-term storage of biological products. It features a microprocessor controller and an adjustable temperature range of -10u00b0C to -60u00b0C. Using optimized cascaded refrigeration technology and a SECOP compressor, it ensures high-efficiency cooling.<br>

Télécharger la présentation

-60°C Chest Freezer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

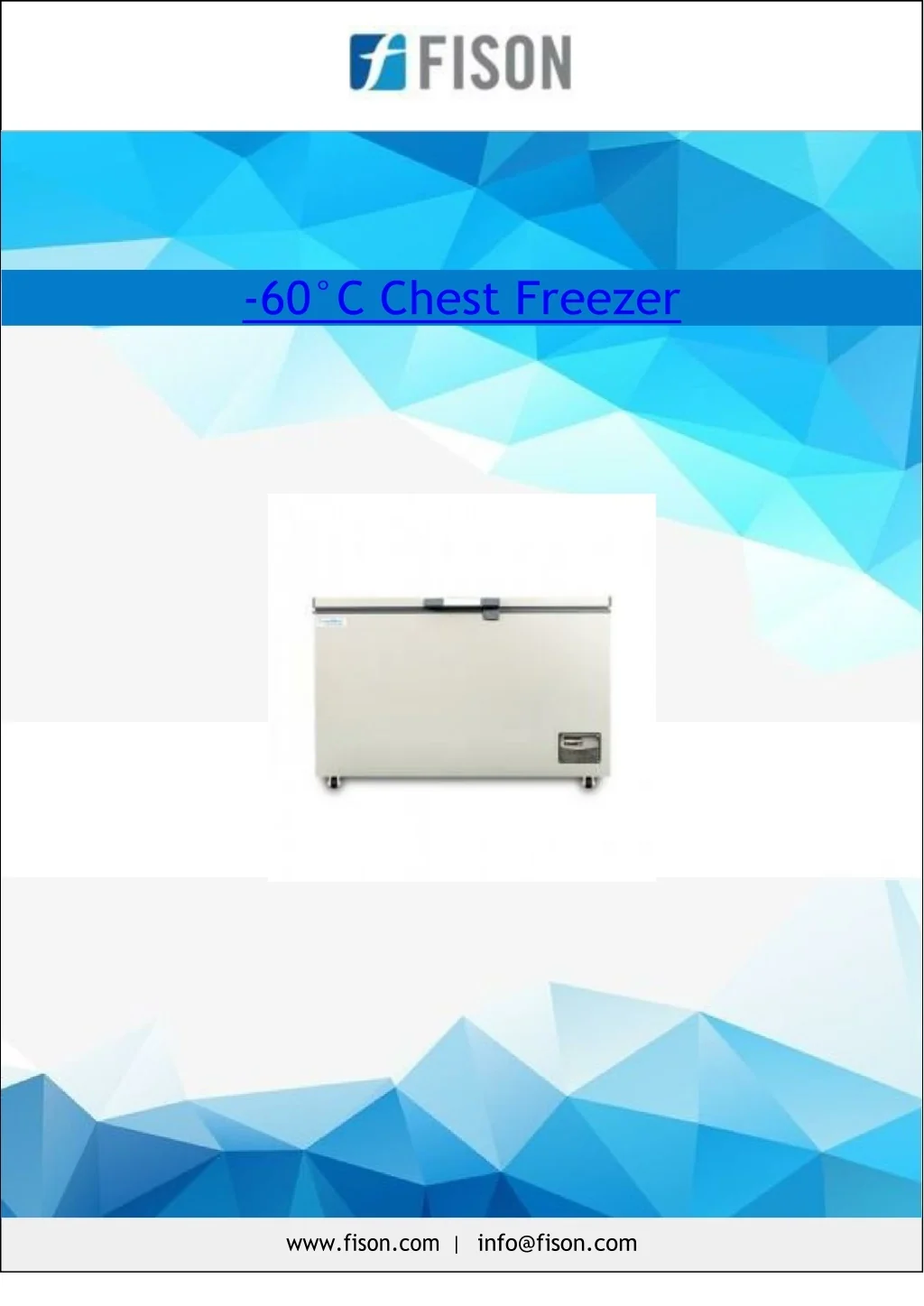

  1. -60°C Chest Freezer www.fison.com | info@fison.com

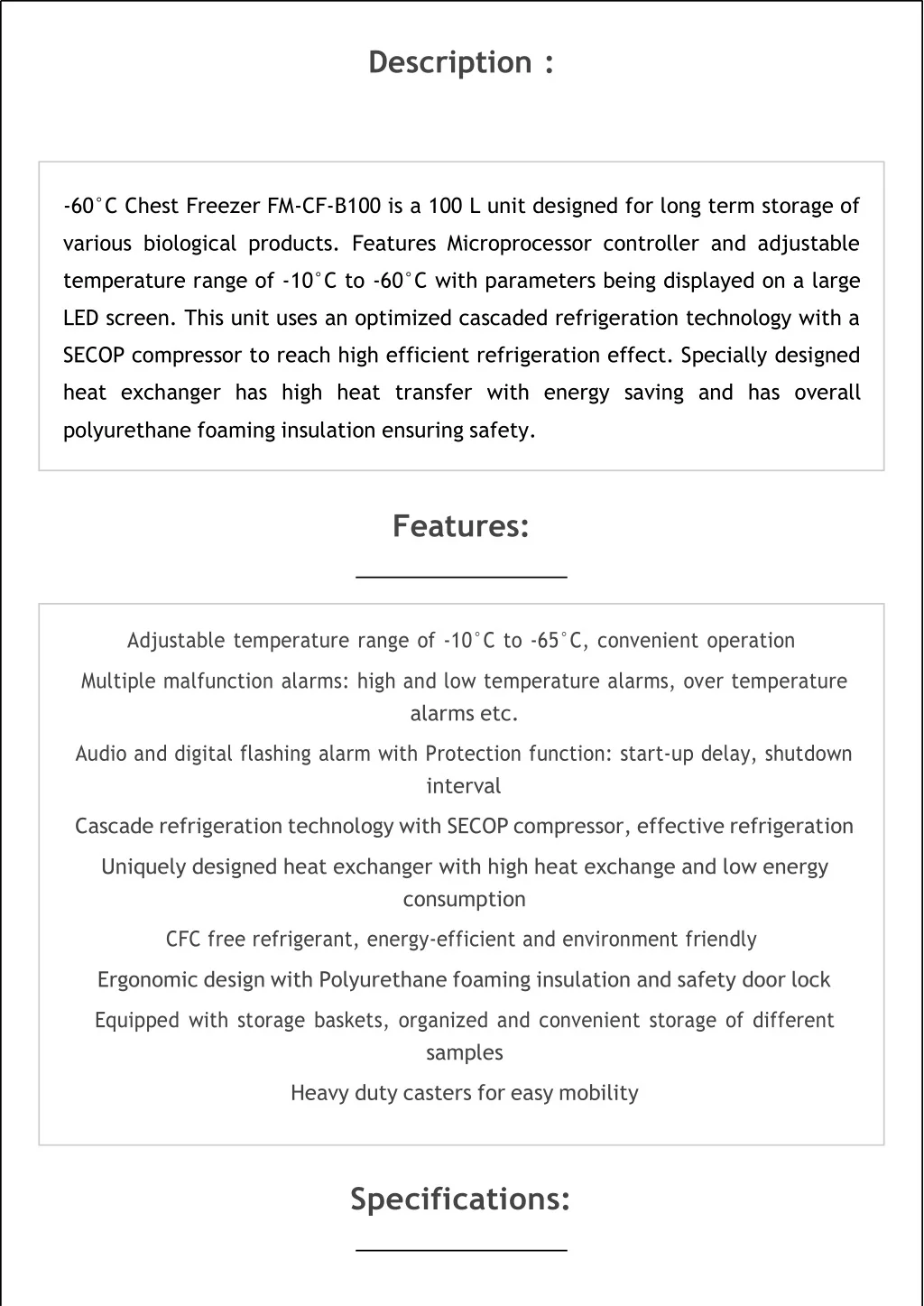

  2. Description : -60°C Chest Freezer FM-CF-B100 is a 100 L unit designed for long term storage of various biological products. Features Microprocessor controller and adjustable temperature range of -10°C to -60°C with parameters being displayed on a large LED screen. This unit uses an optimized cascaded refrigeration technology with a SECOP compressor to reach high efficient refrigeration effect. Specially designed heat exchanger has high heat transfer with energy saving and has overall polyurethane foaming insulation ensuring safety. Features: Adjustable temperature range of -10°C to -65°C, convenient operation Multiple malfunction alarms: high and low temperature alarms, over temperature alarms etc. Audio and digital flashing alarm with Protection function: start-up delay, shutdown interval Cascade refrigeration technology with SECOP compressor, effective refrigeration Uniquely designed heat exchanger with high heat exchange and low energy consumption CFC free refrigerant, energy-efficient and environment friendly Ergonomic design with Polyurethane foaming insulation and safety door lock Equipped with storage baskets, organized and convenient storage of different samples Heavy duty casters for easy mobility Specifications:

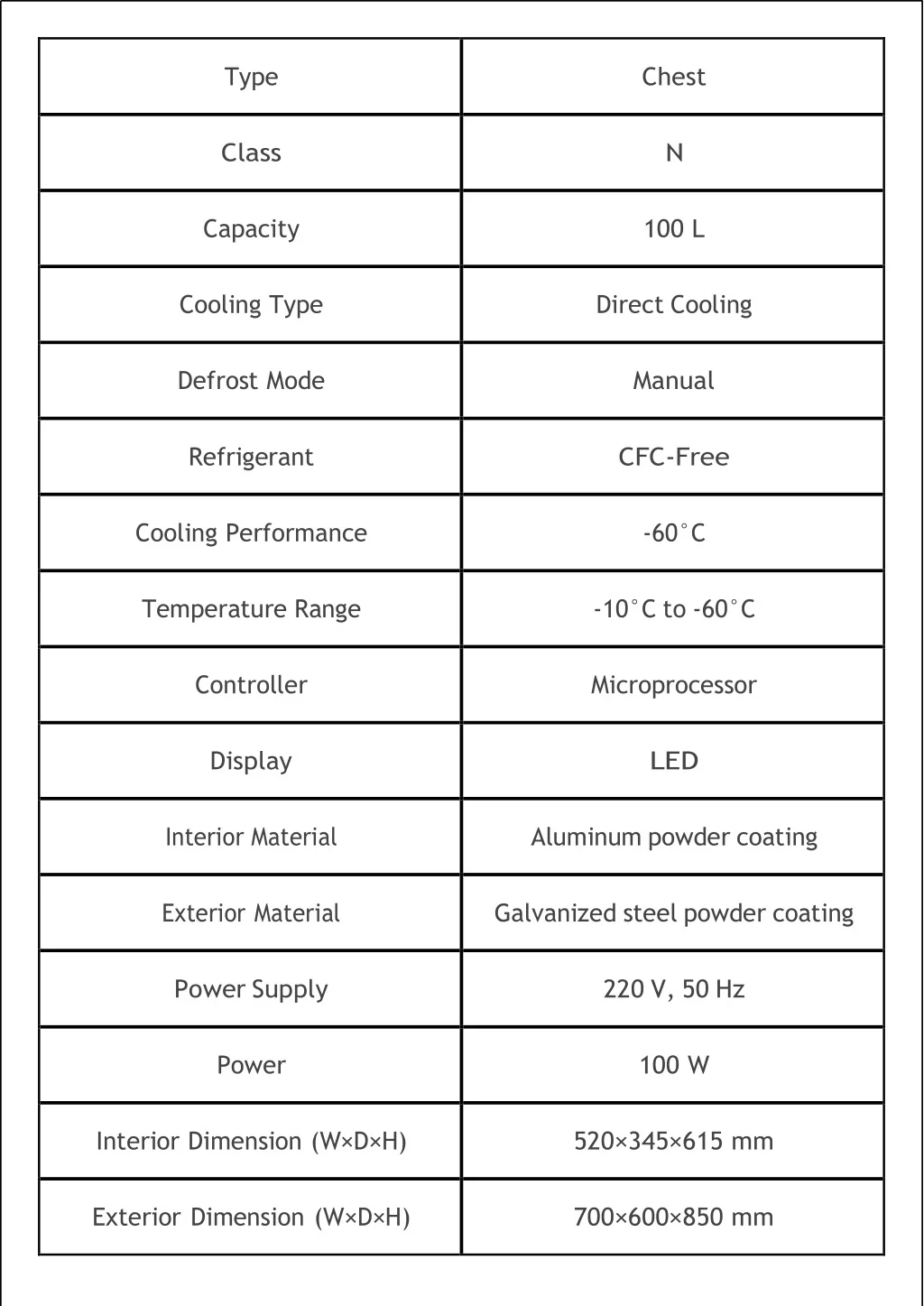

  3. Type Chest Class N Capacity 100 L Cooling Type Direct Cooling Defrost Mode Manual Refrigerant CFC-Free Cooling Performance -60°C Temperature Range -10°C to -60°C Controller Microprocessor Display LED Interior Material Aluminum powder coating Exterior Material Galvanized steel powder coating Power Supply 220 V, 50 Hz Power 100 W Interior Dimension (W×D×H) 520×345×615 mm Exterior Dimension (W×D×H) 700×600×850 mm

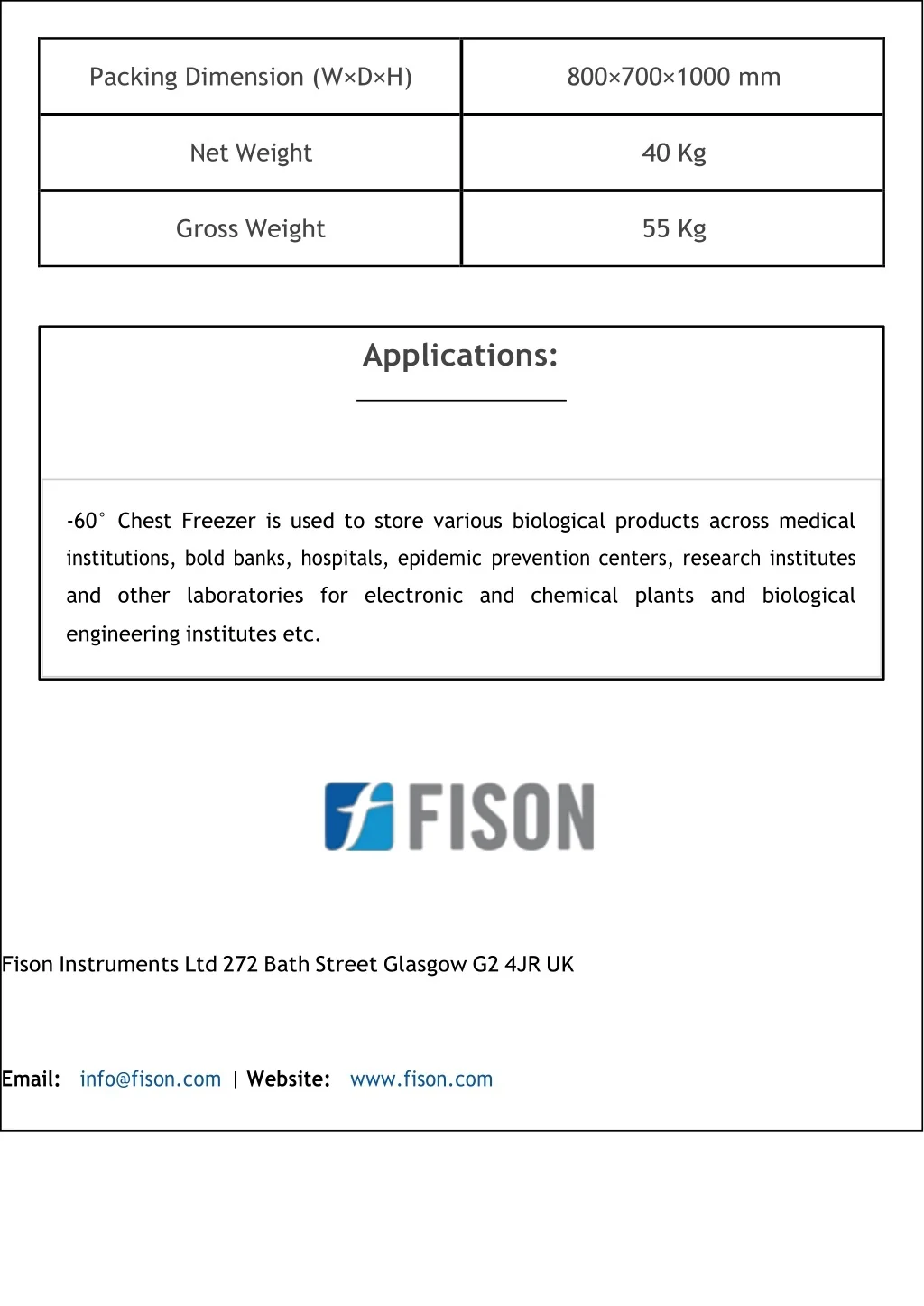

  4. Packing Dimension (W×D×H) 800×700×1000 mm Net Weight 40 Kg Gross Weight 55 Kg Applications: -60° Chest Freezer is used to store various biological products across medical institutions, bold banks, hospitals, epidemic prevention centers, research institutes and other laboratories for electronic and chemical plants and biological engineering institutes etc. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
