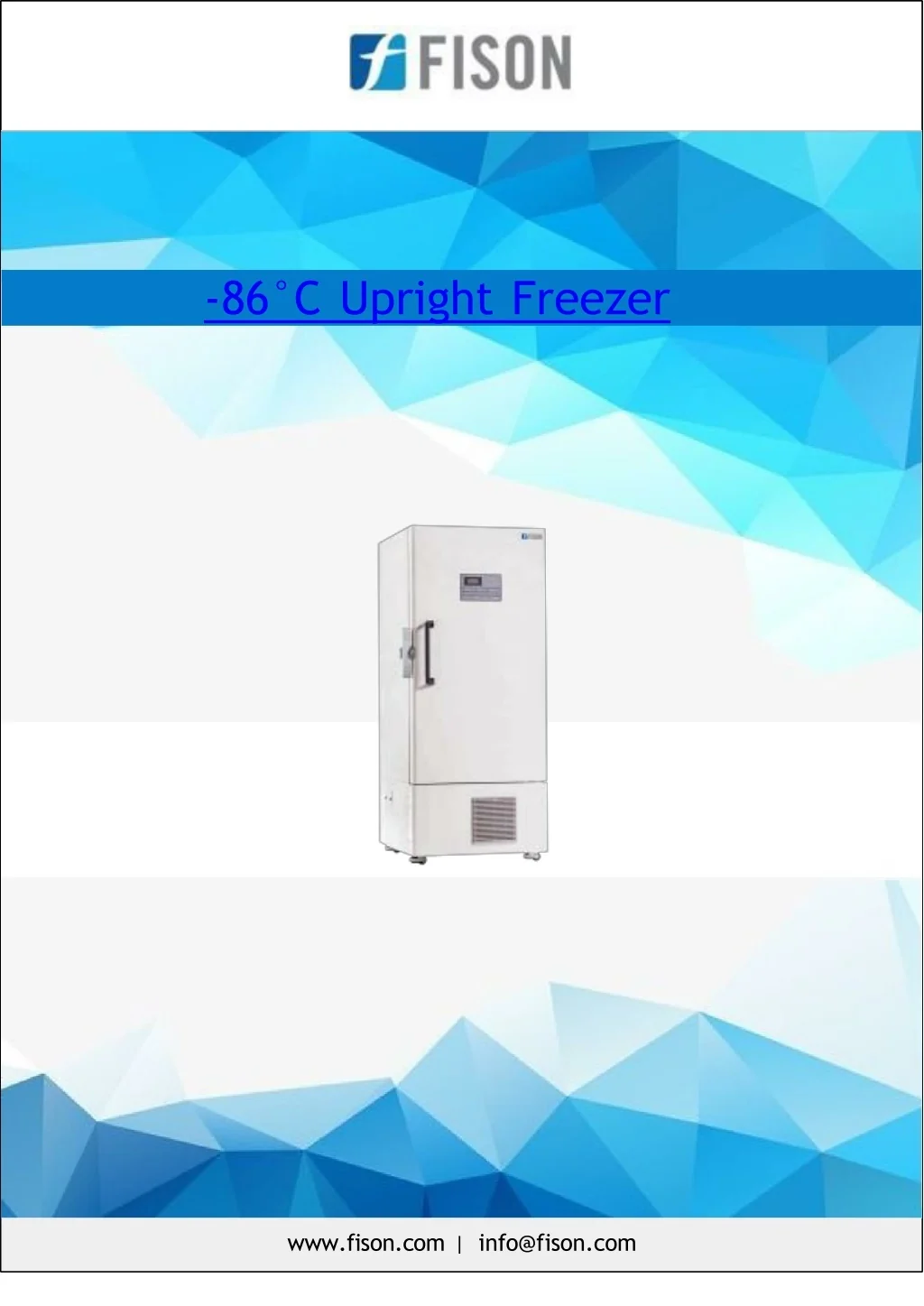

1. -86°C Upright Freezer www.fison.com | info@fison.com

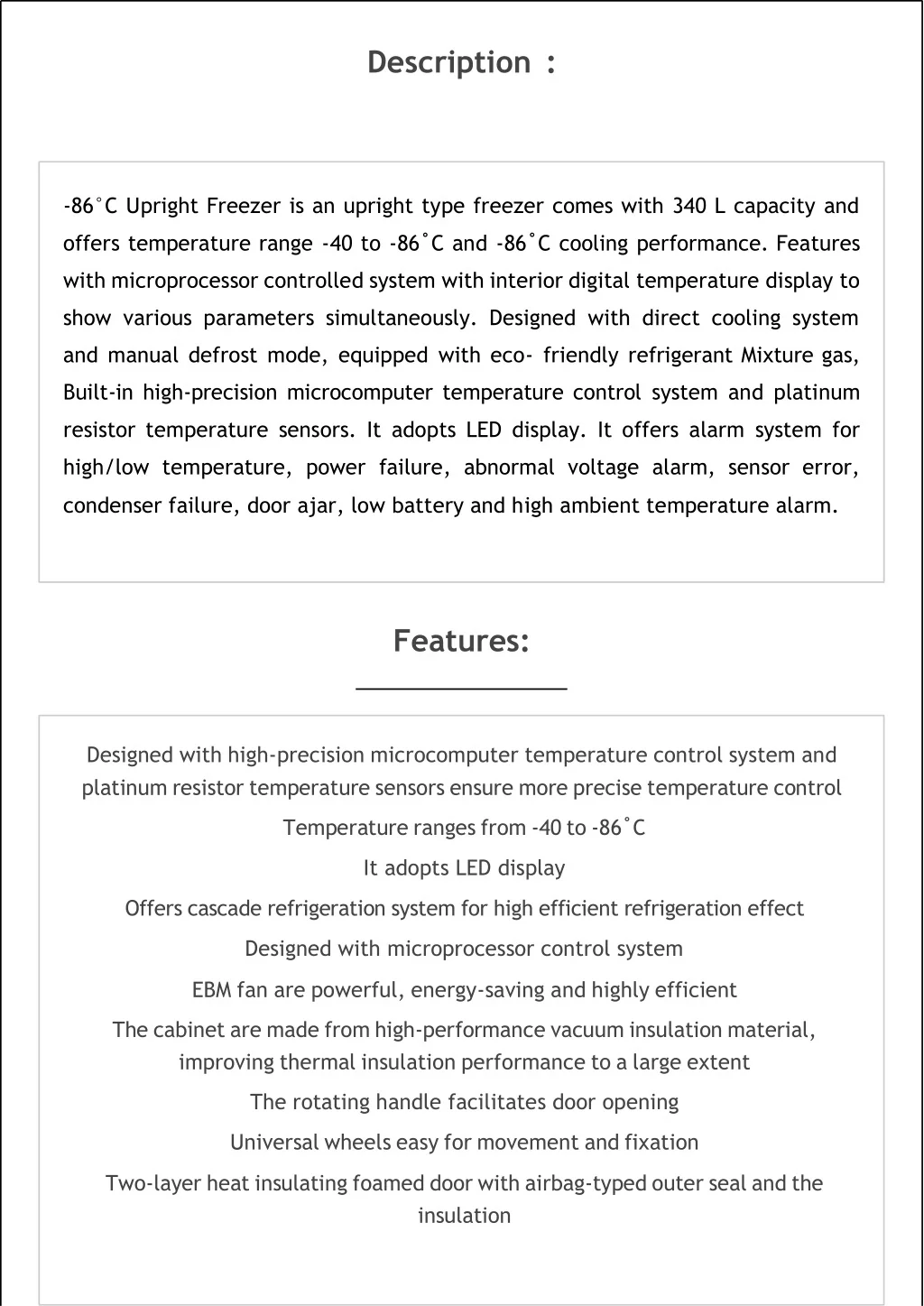

2. Description : -86°C Upright Freezer is an upright type freezer comes with 340 L capacity and offers temperature range -40 to -86˚C and -86˚C cooling performance. Features with microprocessor controlled system with interior digital temperature display to show various parameters simultaneously. Designed with direct cooling system and manual defrost mode, equipped with eco- friendly refrigerant Mixture gas, Built-in high-precision microcomputer temperature control system and platinum resistor temperature sensors. It adopts LED display. It offers alarm system for high/low temperature, power failure, abnormal voltage alarm, sensor error, condenser failure, door ajar, low battery and high ambient temperature alarm. Features: Designed with high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control Temperature ranges from -40 to -86˚C It adopts LED display Offers cascade refrigeration system for high efficient refrigeration effect Designed with microprocessor control system EBM fan are powerful, energy-saving and highly efficient The cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent The rotating handle facilitates door opening Universal wheels easy for movement and fixation Two-layer heat insulating foamed door with airbag-typed outer seal and the insulation

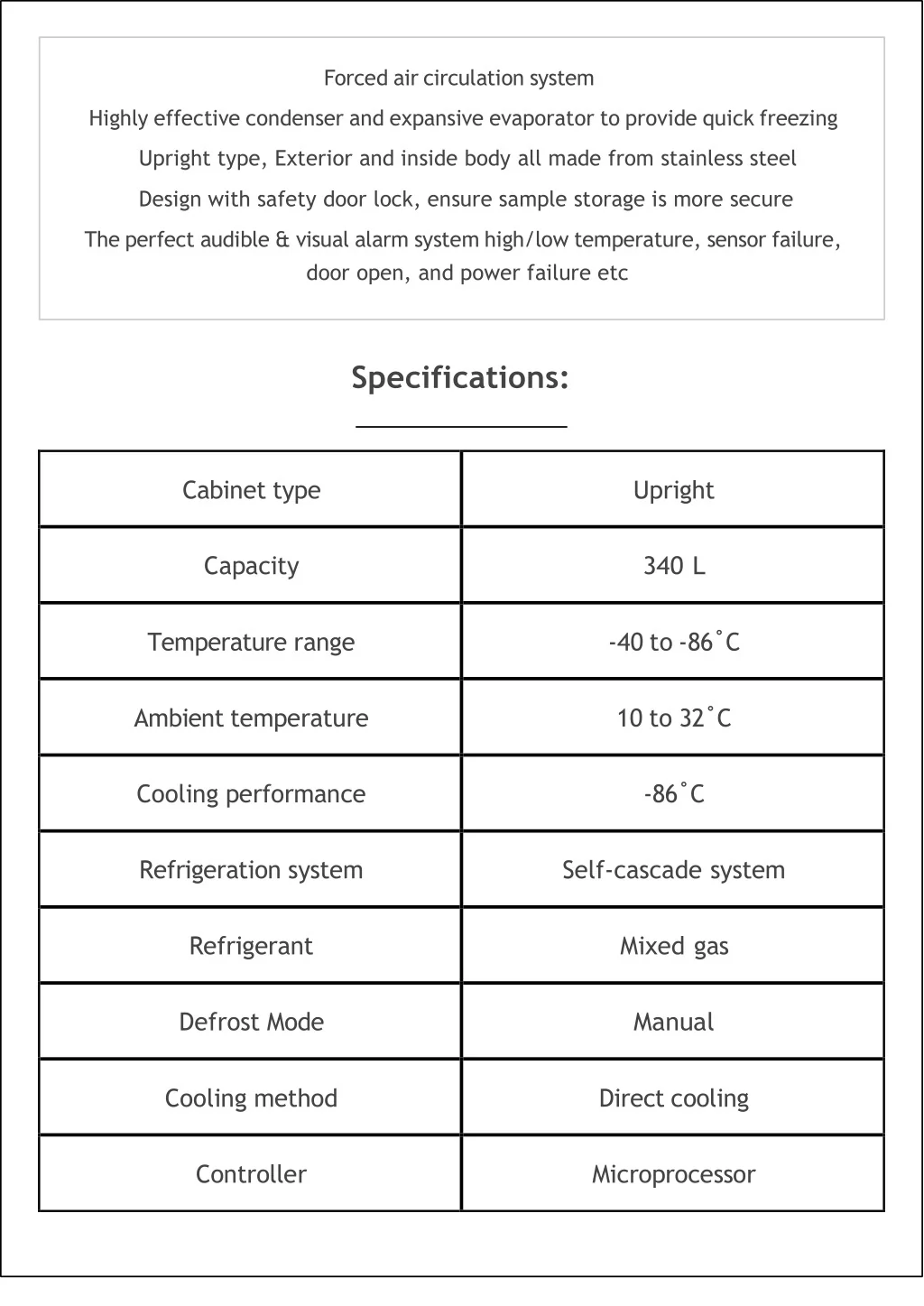

3. Forced air circulation system Highly effective condenser and expansive evaporator to provide quick freezing Upright type, Exterior and inside body all made from stainless steel Design with safety door lock, ensure sample storage is more secure The perfect audible & visual alarm system high/low temperature, sensor failure, door open, and power failure etc Specifications: Cabinet type Upright Capacity 340 L Temperature range -40 to -86˚C Ambient temperature 10 to 32˚C Cooling performance -86˚C Refrigeration system Self-cascade system Refrigerant Mixed gas Defrost Mode Manual Cooling method Direct cooling Controller Microprocessor

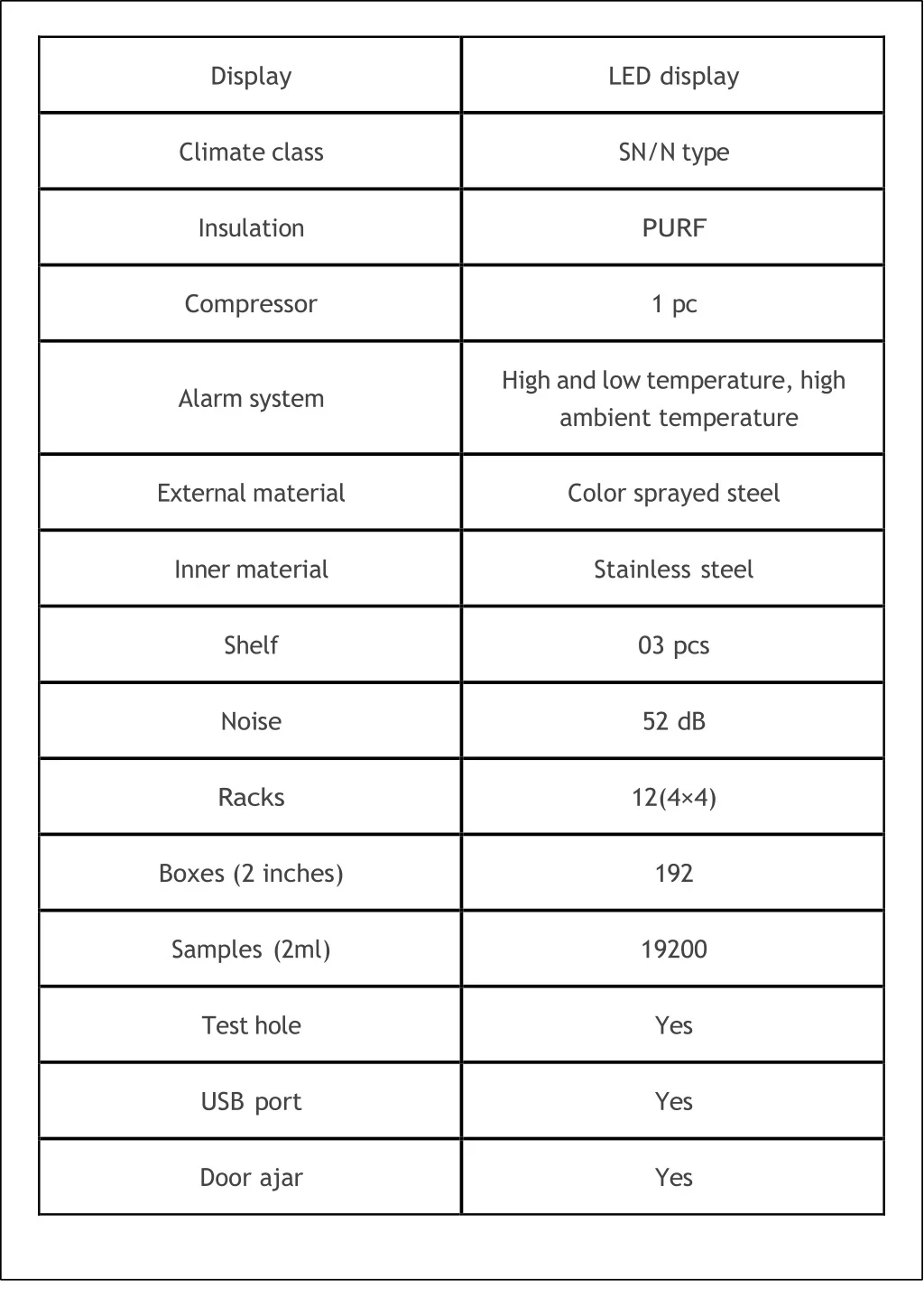

4. Display LED display Climate class SN/N type Insulation PURF Compressor 1 pc High and low temperature, high ambient temperature Alarm system External material Color sprayed steel Inner material Stainless steel Shelf 03 pcs Noise 52 dB Racks 12(4×4) Boxes (2 inches) 192 Samples (2ml) 19200 Test hole Yes USB port Yes Door ajar Yes

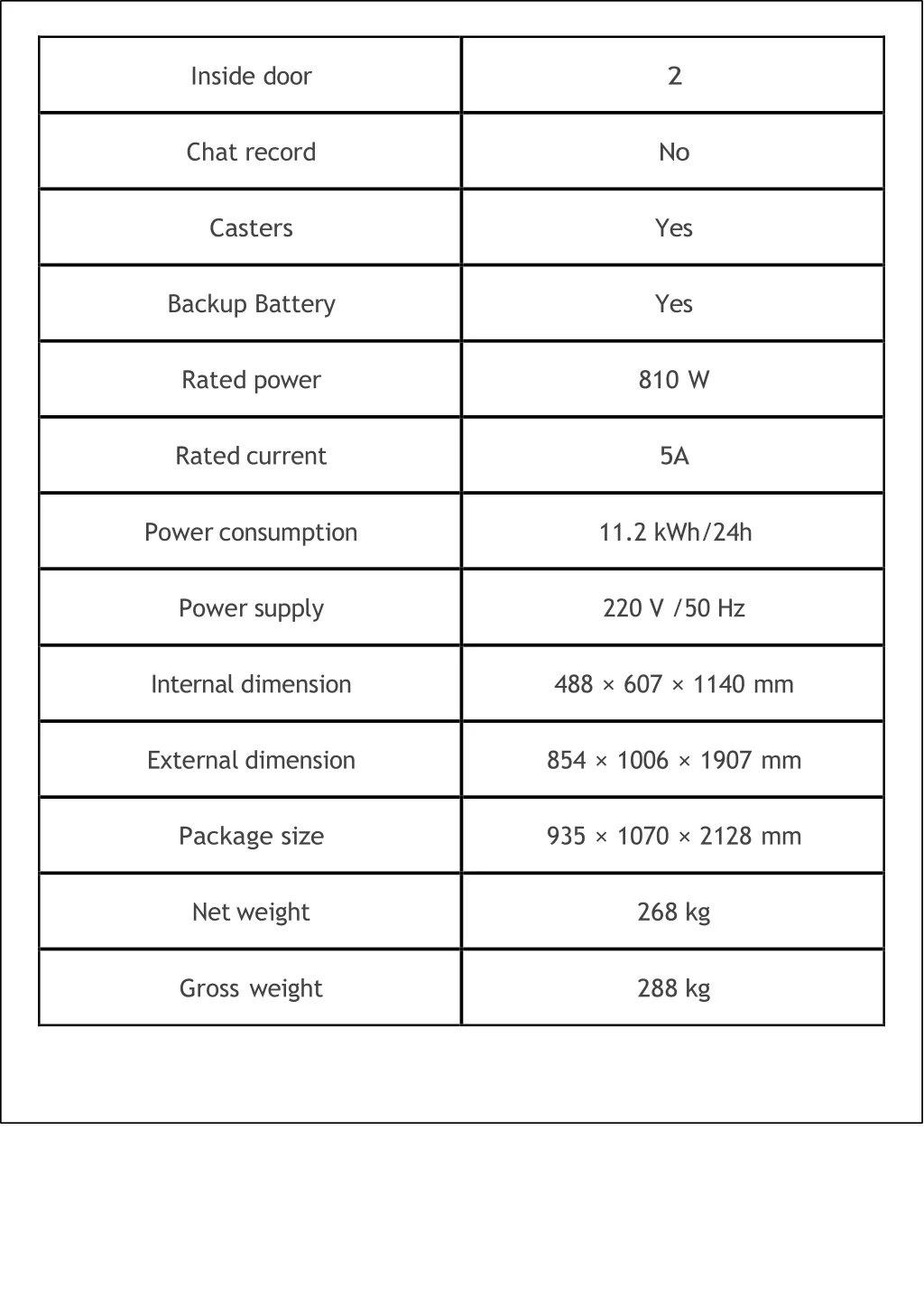

5. Inside door 2 Chat record No Casters Yes Backup Battery Yes Rated power 810 W Rated current 5A Power consumption 11.2 kWh/24h Power supply 220 V /50 Hz Internal dimension 488 × 607 × 1140 mm External dimension 854 × 1006 × 1907 mm Package size 935 × 1070 × 2128 mm Net weight 268 kg Gross weight 288 kg

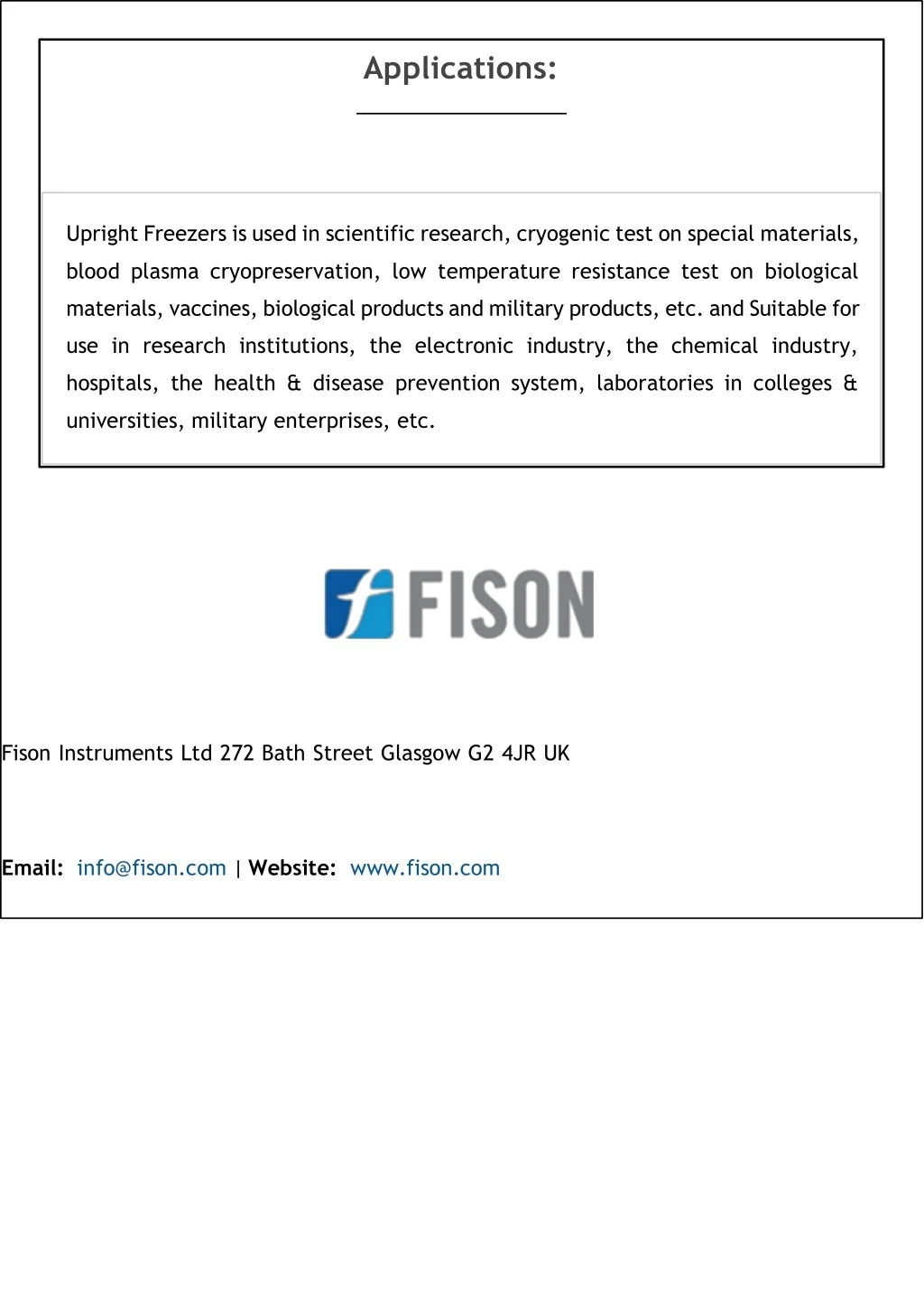

6. Applications: Upright Freezers is used in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. and Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
