Understanding 4-Axis CNC Machining: Precision, Process and Benefits

1. What is 4-Axis CNC Machining and Why Your Project Needs It In today’s competitive manufacturing environment, precision and efficiency determine success. Whether you’re designing high-performance automotive components, aerospace parts, or complex industrial assemblies, machining capabilities directly influence the quality, accuracy, and speed of your production process. Among advanced machining technologies, 4-Axis CNC Machining stands out as a critical capability for modern engineering projects. In this article, we’ll explain what 4-Axis CNC Machining is, how it works, its advantages over traditional machining, and why it may be the ideal solution for your next manufacturing project. What is 4-Axis CNC Machining? 4-Axis CNC Machining refers to a computer numerical control (CNC) process that extends the standard three-axis (X, Y, Z) motion with an additional rotational axis—typically known as the A-axis. This fourth axis allows the machine to rotate the workpiece while it is being machined, enabling more complex geometries and multi-surface machining in a single set-up. In practical terms, while a 3-axis machine can only move the cutting tool vertically and horizontally, a 4-axis machine can also rotate the workpiece around one axis. This rotation enables: ● Continuous contouring of complex shapes ● Machining on multiple sides without repositioning ● Higher precision on angled features At AQF India, our 4-Axis CNC systems integrate precision controls with reliable automation, ensuring that even the most demanding engineering specifications are met consistently. How Does 4-Axis CNC Machining Work? A typical 4-Axis CNC setup includes: ● Three Linear Axes (X, Y, Z): For forward/backward, left/right, and up/down movement

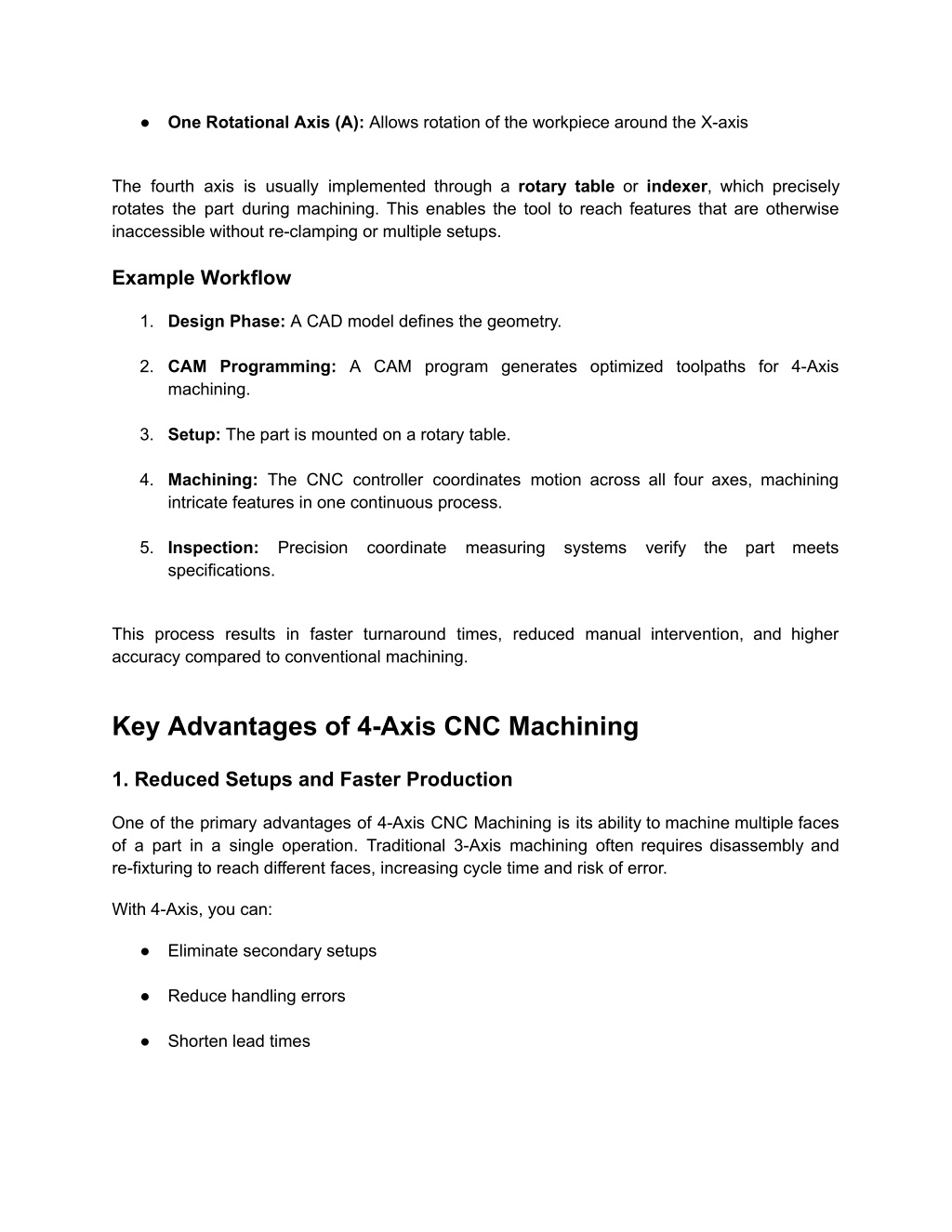

2. ● One Rotational Axis (A): Allows rotation of the workpiece around the X-axis The fourth axis is usually implemented through a rotary table or indexer, which precisely rotates the part during machining. This enables the tool to reach features that are otherwise inaccessible without re-clamping or multiple setups. Example Workflow 1. Design Phase: A CAD model defines the geometry. 2. CAM Programming: A CAM program generates optimized toolpaths for 4-Axis machining. 3. Setup: The part is mounted on a rotary table. 4. Machining: The CNC controller coordinates motion across all four axes, machining intricate features in one continuous process. 5. Inspection: Precision coordinate measuring systems verify the part meets specifications. This process results in faster turnaround times, reduced manual intervention, and higher accuracy compared to conventional machining. Key Advantages of 4-Axis CNC Machining 1. Reduced Setups and Faster Production One of the primary advantages of 4-Axis CNC Machining is its ability to machine multiple faces of a part in a single operation. Traditional 3-Axis machining often requires disassembly and re-fixturing to reach different faces, increasing cycle time and risk of error. With 4-Axis, you can: ● Eliminate secondary setups ● Reduce handling errors ● Shorten lead times

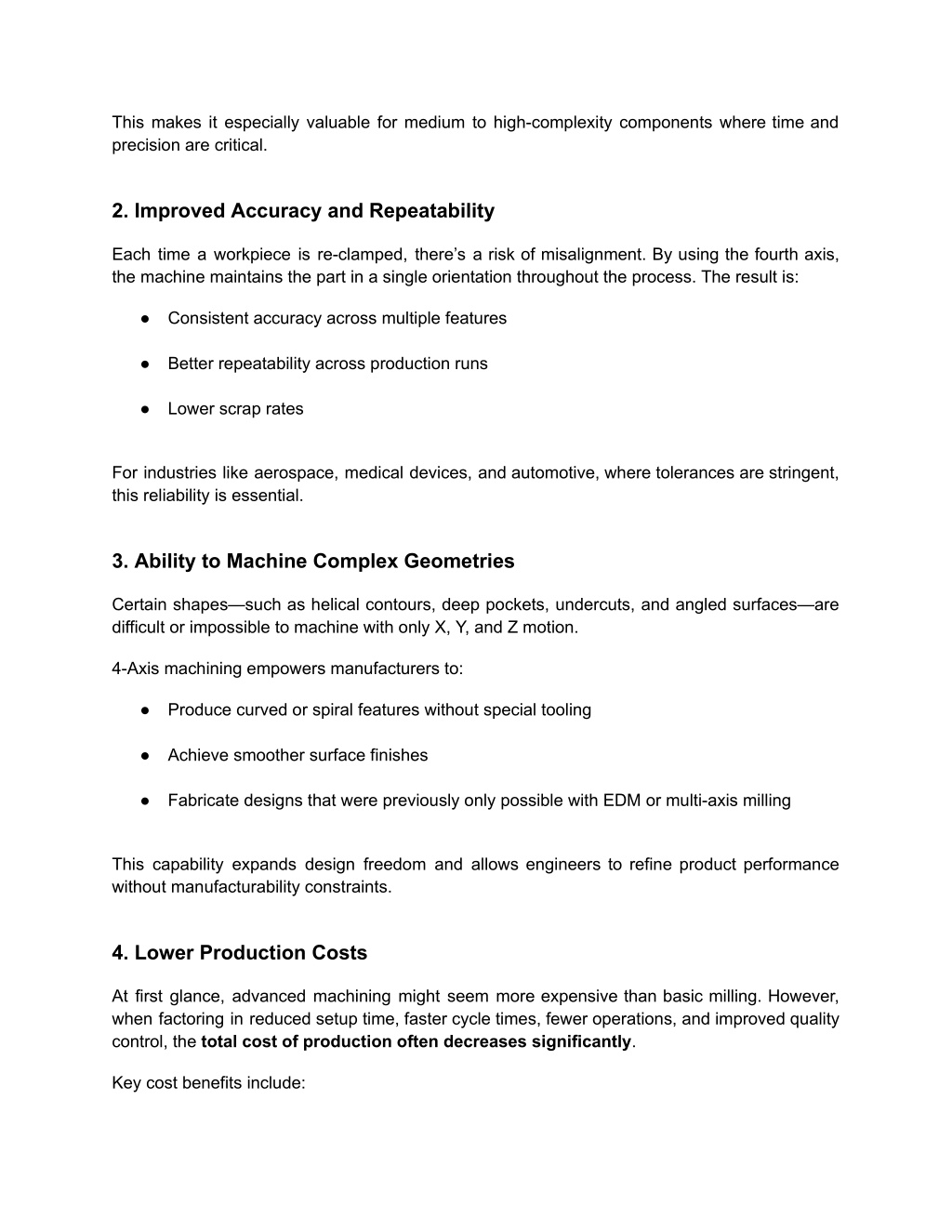

3. This makes it especially valuable for medium to high-complexity components where time and precision are critical. 2. Improved Accuracy and Repeatability Each time a workpiece is re-clamped, there’s a risk of misalignment. By using the fourth axis, the machine maintains the part in a single orientation throughout the process. The result is: ● Consistent accuracy across multiple features ● Better repeatability across production runs ● Lower scrap rates For industries like aerospace, medical devices, and automotive, where tolerances are stringent, this reliability is essential. 3. Ability to Machine Complex Geometries Certain shapes—such as helical contours, deep pockets, undercuts, and angled surfaces—are difficult or impossible to machine with only X, Y, and Z motion. 4-Axis machining empowers manufacturers to: ● Produce curved or spiral features without special tooling ● Achieve smoother surface finishes ● Fabricate designs that were previously only possible with EDM or multi-axis milling This capability expands design freedom and allows engineers to refine product performance without manufacturability constraints. 4. Lower Production Costs At first glance, advanced machining might seem more expensive than basic milling. However, when factoring in reduced setup time, faster cycle times, fewer operations, and improved quality control, the total cost of production often decreases significantly. Key cost benefits include:

4. ● Less labor for part handling ● Fewer inspections and rework ● Reduced tooling changes ● Shorter time-to-market This combination improves ROI for both prototyping and full production. 5. Integration with Additive and Hybrid Processes In modern manufacturing settings, 4-Axis CNC machining can integrate seamlessly with: ● Additive manufacturing (DMLS, SLS) ● Secondary finishing operations ● Assembly-ready production workflows This adaptability allows manufacturers to optimize the entire production ecosystem rather than individual machines. When Should You Choose 4-Axis CNC Machining? 4-Axis CNC Machining should be considered when your project includes any of the following: ● Complex geometries that require angled surface machining ● High precision requirements with strict tolerances ● Multiple faces to be machined in one operation ● Reduced lead times and faster production delivery ● Consistent repeatability across large batches Examples of ideal applications include:

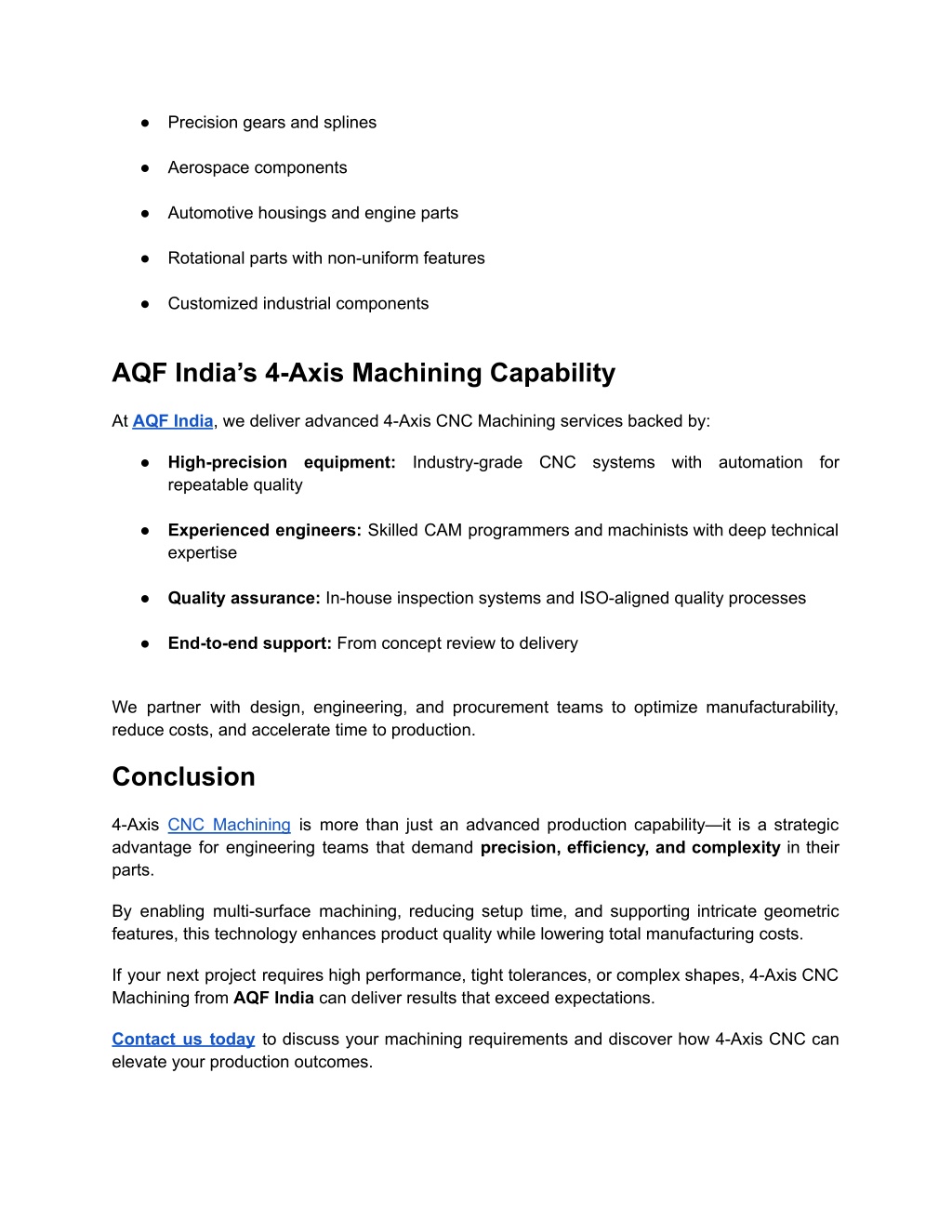

5. ● Precision gears and splines ● Aerospace components ● Automotive housings and engine parts ● Rotational parts with non-uniform features ● Customized industrial components AQF India’s 4-Axis Machining Capability At AQF India, we deliver advanced 4-Axis CNC Machining services backed by: ● High-precision equipment: Industry-grade CNC systems with automation for repeatable quality ● Experienced engineers: Skilled CAM programmers and machinists with deep technical expertise ● Quality assurance: In-house inspection systems and ISO-aligned quality processes ● End-to-end support: From concept review to delivery We partner with design, engineering, and procurement teams to optimize manufacturability, reduce costs, and accelerate time to production. Conclusion 4-Axis CNC Machining is more than just an advanced production capability—it is a strategic advantage for engineering teams that demand precision, efficiency, and complexity in their parts. By enabling multi-surface machining, reducing setup time, and supporting intricate geometric features, this technology enhances product quality while lowering total manufacturing costs. If your next project requires high performance, tight tolerances, or complex shapes, 4-Axis CNC Machining from AQF India can deliver results that exceed expectations. Contact us today to discuss your machining requirements and discover how 4-Axis CNC can elevate your production outcomes.
