  1. Cardiovascular System Chapter 11

  2. Anatomy of the Heart • Location and Size • The size of the heart is slightly larger than a person’s fist • Apex – the pointed end of the heart • Base – the broad portion of the heart Base Apex

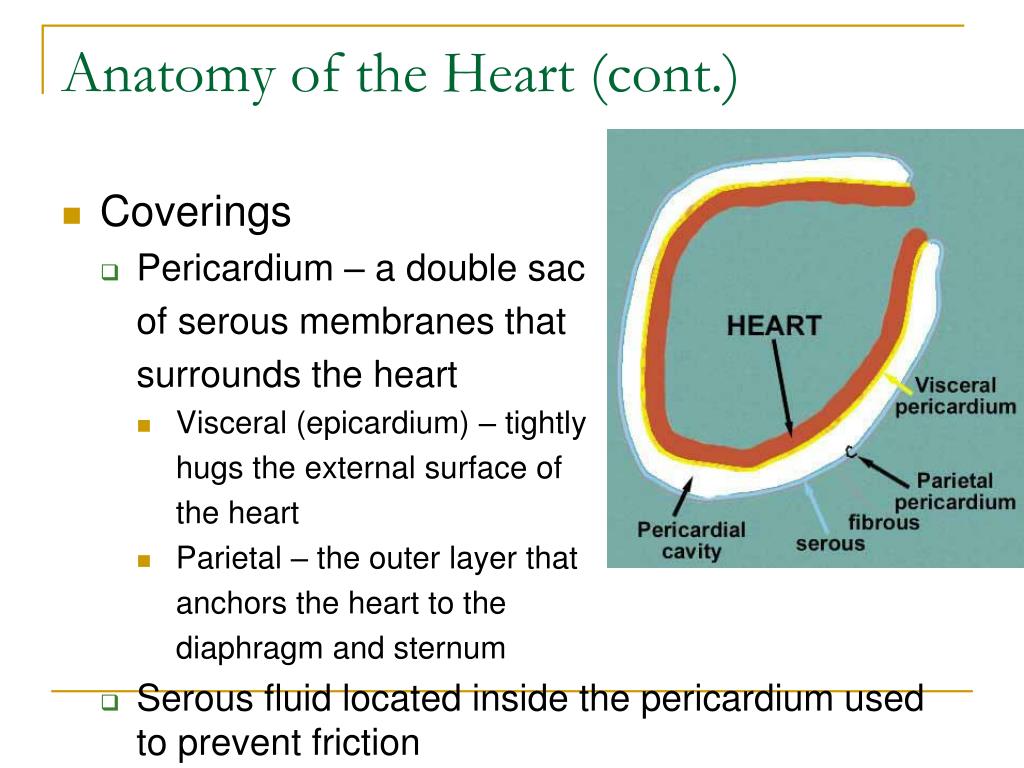

  3. Anatomy of the Heart (cont.) • Coverings • Pericardium – a double sac of serous membranes that surrounds the heart • Visceral (epicardium) – tightly hugs the external surface of the heart • Parietal – the outer layer that anchors the heart to the diaphragm and sternum • Serous fluid located inside the pericardium used to prevent friction

  4. Anatomy of the Heart (cont.) • Walls • Epicardium – the outermost layer of the heart • Myocardium – the middle layer (a muscle) that actually contracts • Endocardium – the innermost layer that lines the heart’s chambers

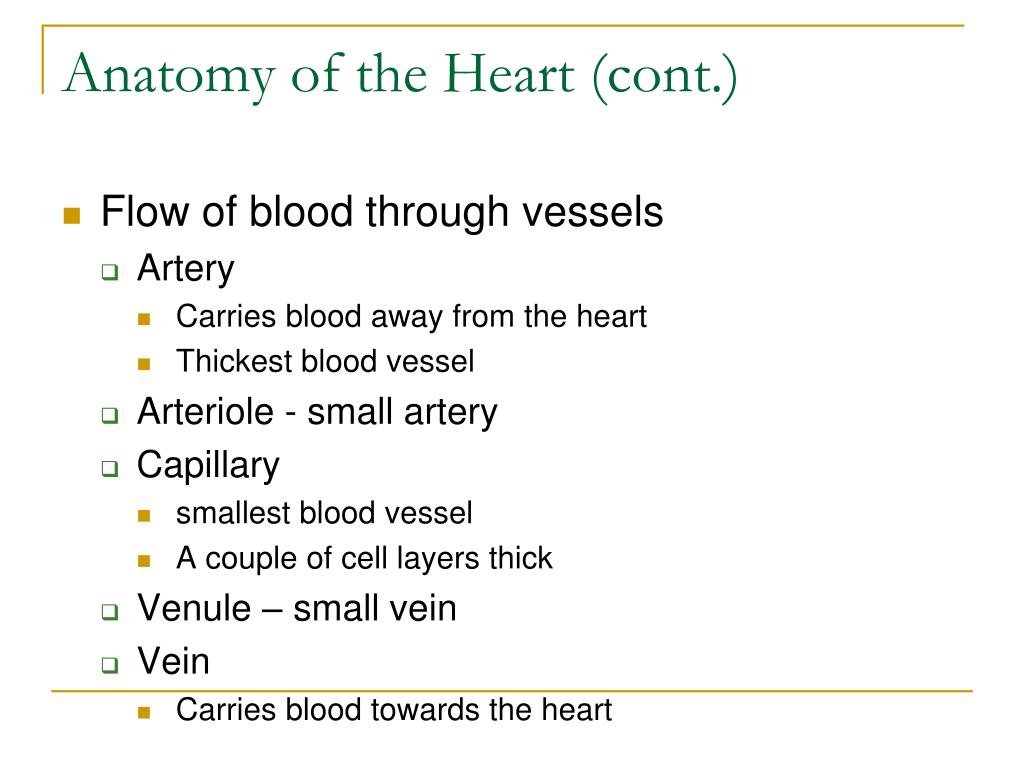

  5. Anatomy of the Heart (cont.) • Flow of blood through vessels • Artery • Carries blood away from the heart • Thickest blood vessel • Arteriole - small artery • Capillary • smallest blood vessel • A couple of cell layers thick • Venule – small vein • Vein • Carries blood towards the heart

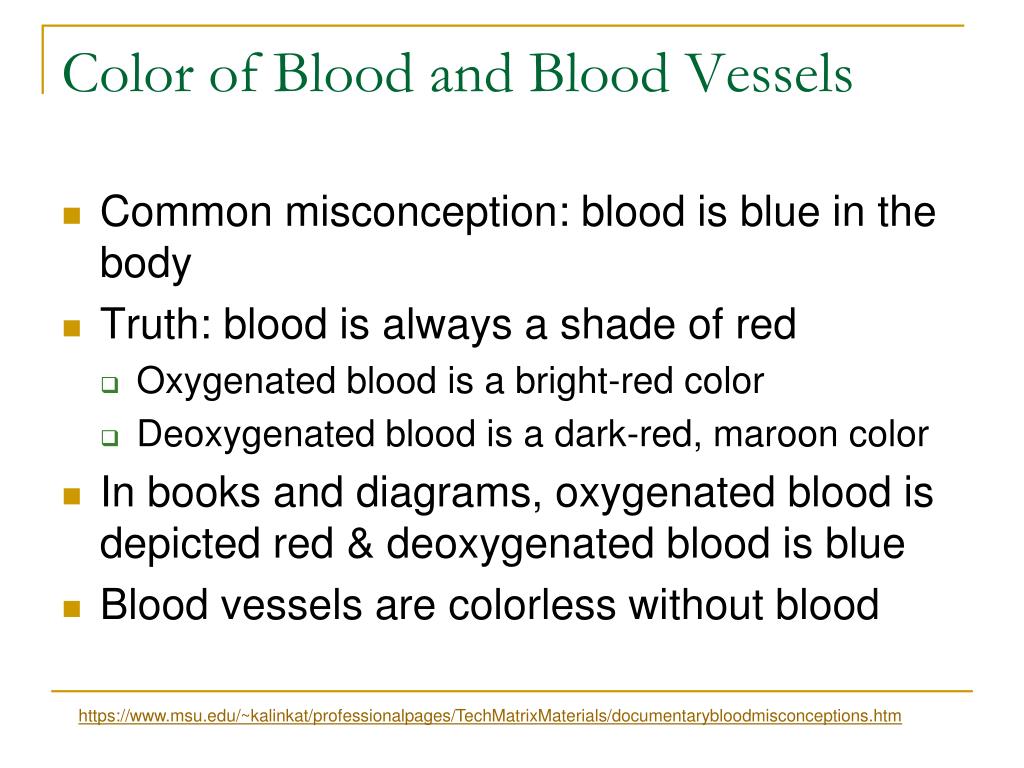

  6. Color of Blood and Blood Vessels • Common misconception: blood is blue in the body • Truth: blood is always a shade of red • Oxygenated blood is a bright-red color • Deoxygenated blood is a dark-red, maroon color • In books and diagrams, oxygenated blood is depicted red & deoxygenated blood is blue • Blood vessels are colorless without blood https://www.msu.edu/~kalinkat/professionalpages/TechMatrixMaterials/documentarybloodmisconceptions.htm

  7. Anatomy of the Heart (cont.) • Chambers and Vessels • http://science.nationalgeographic.com/science/health-and-human-body/human-body/heart-article.html • http://www.texasheartinstitute.org/HIC/anatomy/Anatomy.cfm

  8. Flow of Blood Through Heart • 1. Superior vena cava – carries deoxygenated blood from the head, neck, and arms into the right atrium

  9. Flow of Blood Through Heart • 1. Inferior vena cava – carries deoxygenated blood from the legs and other lower parts of the body into the right atrium

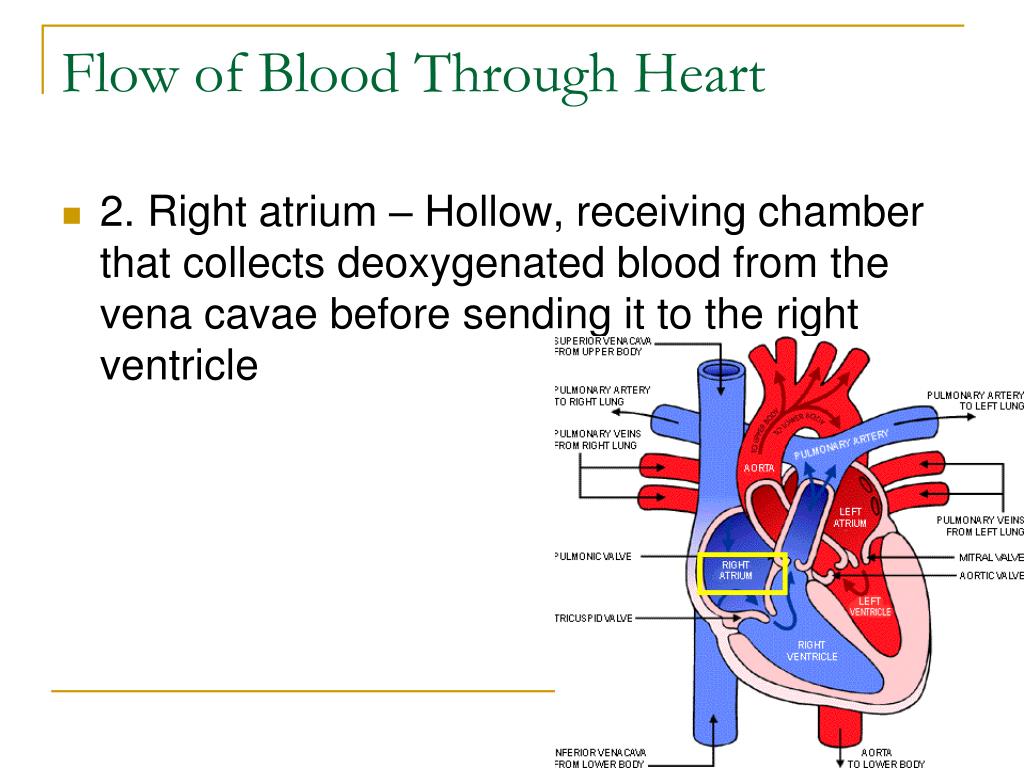

  10. Flow of Blood Through Heart • 2. Right atrium – Hollow, receiving chamber that collects deoxygenated blood from the vena cavae before sending it to the right ventricle

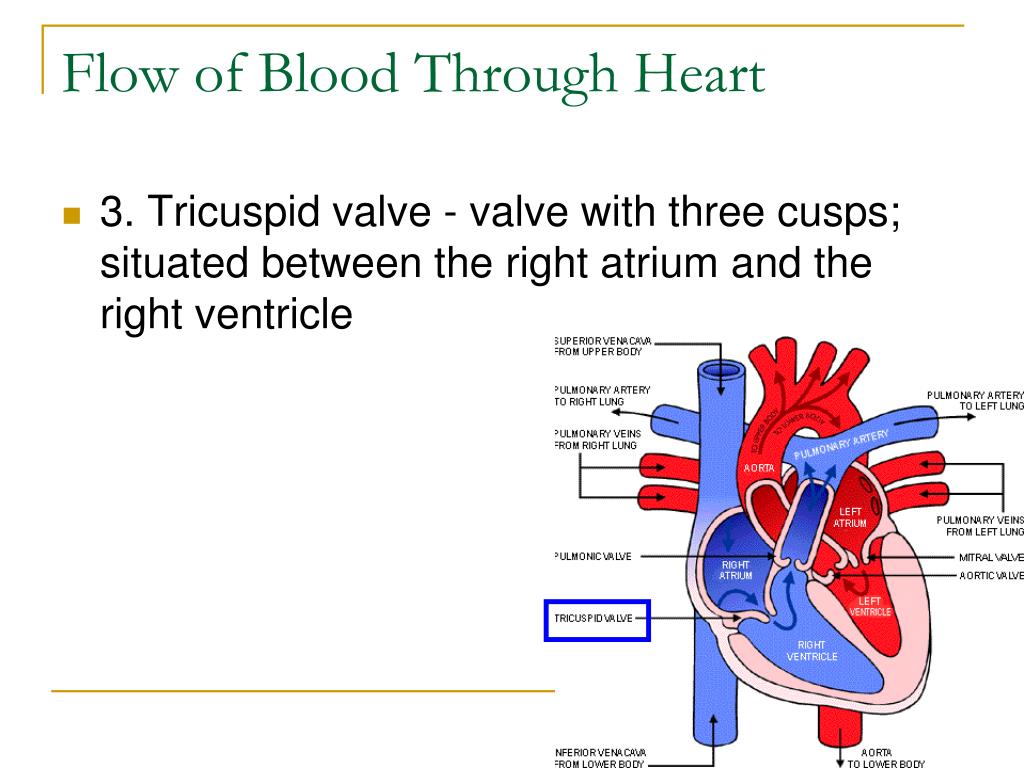

  11. Flow of Blood Through Heart • 3. Tricuspid valve - valve with three cusps; situated between the right atrium and the right ventricle

  12. Flow of Blood Through Heart • 4. Right ventricle – muscular, hollow chamber that collects deoxygenated blood from the right atrium before sending it to the pulmonary artery

  13. Flow of Blood Through Heart • 5. Pulmonary semilunar valve – a valve between the right ventricle and the pulmonary artery; prevents blood from flowing from the artery back into the heart

  14. Flow of Blood Through Heart • 6. Pulmonary artery – carries deoxygenated blood from the right ventricle to the lungs

  15. Flow of Blood Through Heart • 7. Lungs – Location where deoxygenated blood becomes oxygenated

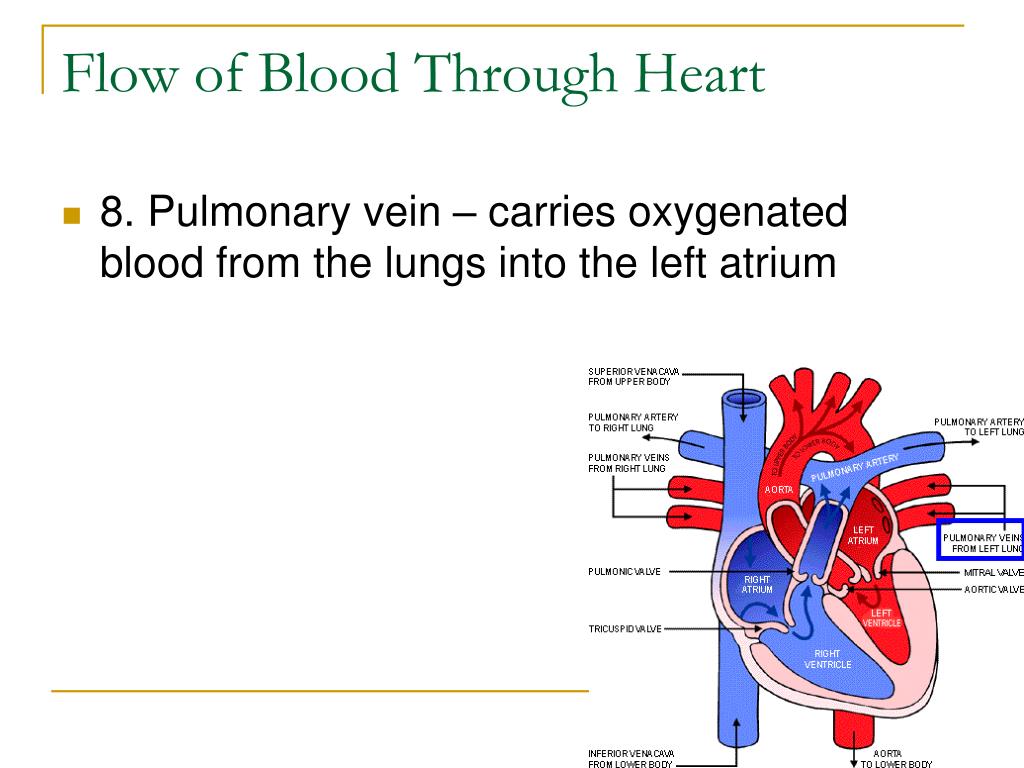

  16. Flow of Blood Through Heart • 8. Pulmonary vein – carries oxygenated blood from the lungs into the left atrium

  17. Flow of Blood Through Heart • 9. Left atrium – Hollow, receiving chamber that collects oxygenated blood from the pulmonary vein before sending it to the left ventricle

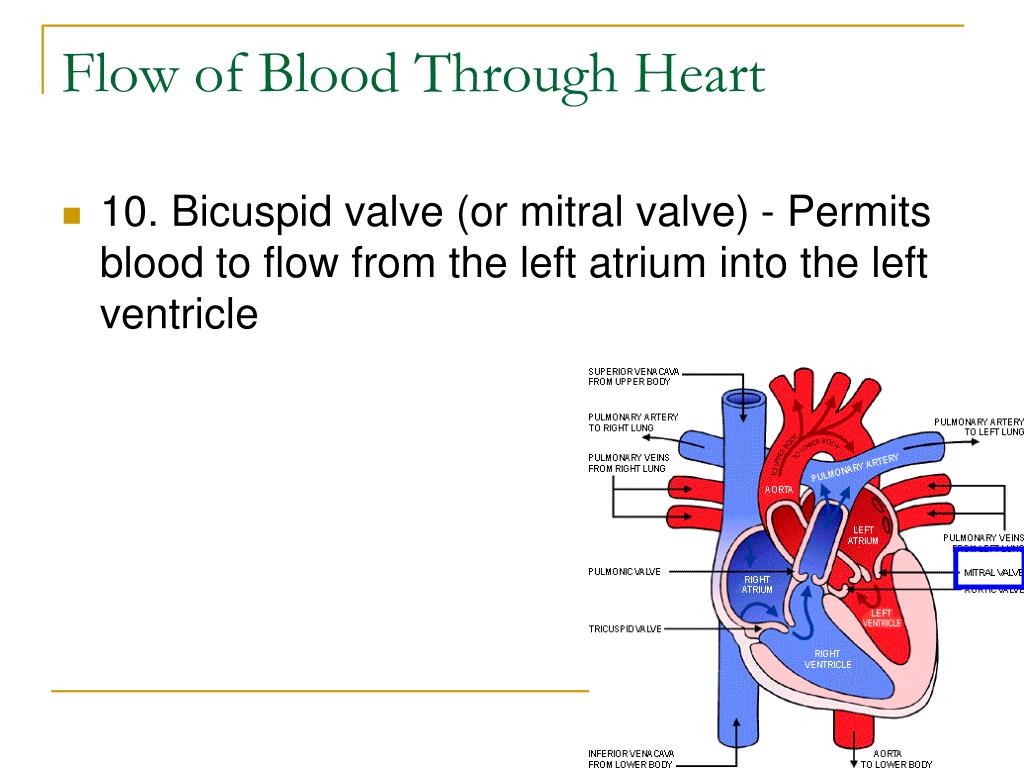

  18. Flow of Blood Through Heart • 10. Bicuspid valve (or mitral valve) - Permits blood to flow from the left atrium into the left ventricle

  19. Flow of Blood Through Heart • 10. Bicuspid valve (or mitral valve) • This valve is called the mitral valve because it has two flaps (cusps) and looks like a bishop's miter or headdress

  20. Flow of Blood Through Heart • 11. Left ventricle – muscular, hollow chamber that collects oxygenated blood from the left atrium before sending it to the aorta

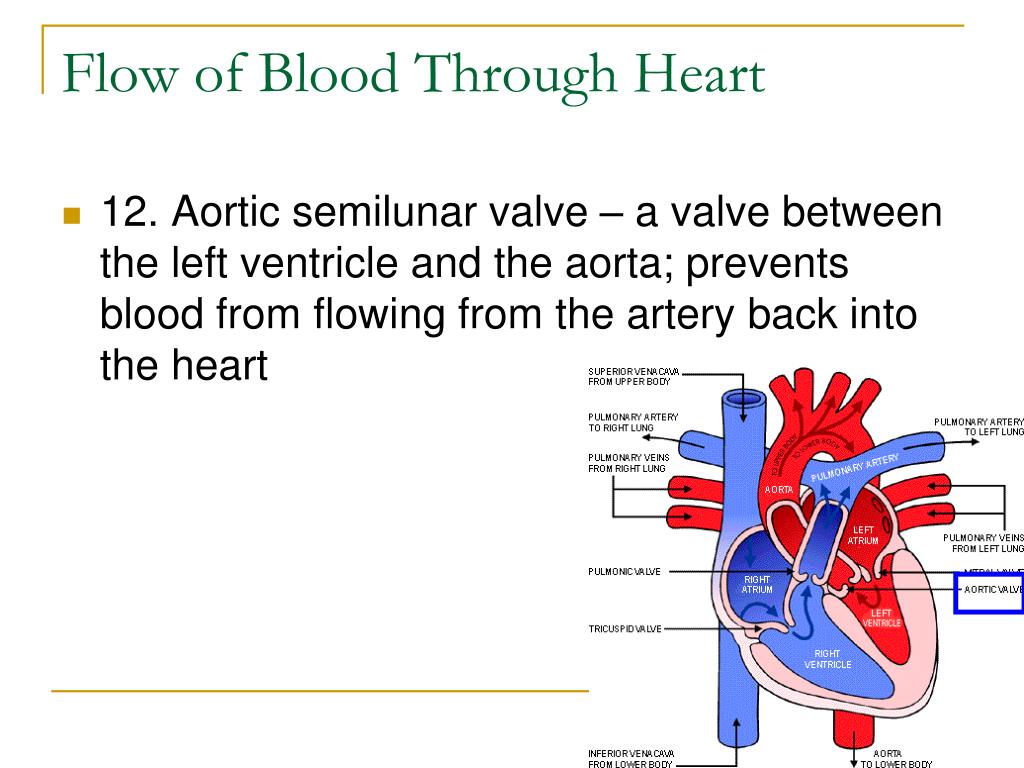

  21. Flow of Blood Through Heart • 12. Aortic semilunar valve – a valve between the left ventricle and the aorta; prevents blood from flowing from the artery back into the heart

  22. Flow of Blood Through Heart • 13. Aorta – Large artery that distributes oxygenated blood from the heart to the rest of the body

  23. Exterior Structures • Coronary arteries – vessels that provide the heart muscle with the oxygenated blood it needs to keep tissues healthy Coronary Artery Disease

  24. Internal Structures • Septum – a dividing wall or partition

  25. Papillary muscles – the rounded muscular projections attached to the chordae tendineae in the ventricles of the heart Internal Structures

  26. Chordae tendineae (or heart strings) – cord-like tendons that connect the papillary muscles to the tricuspid valve and bicuspid valve Internal Structures Chordae tendineae

  27. Bicuspid valve Pulmonary Semilunar Valve Aortic Semilunar Valve Chordae tendineae Septum

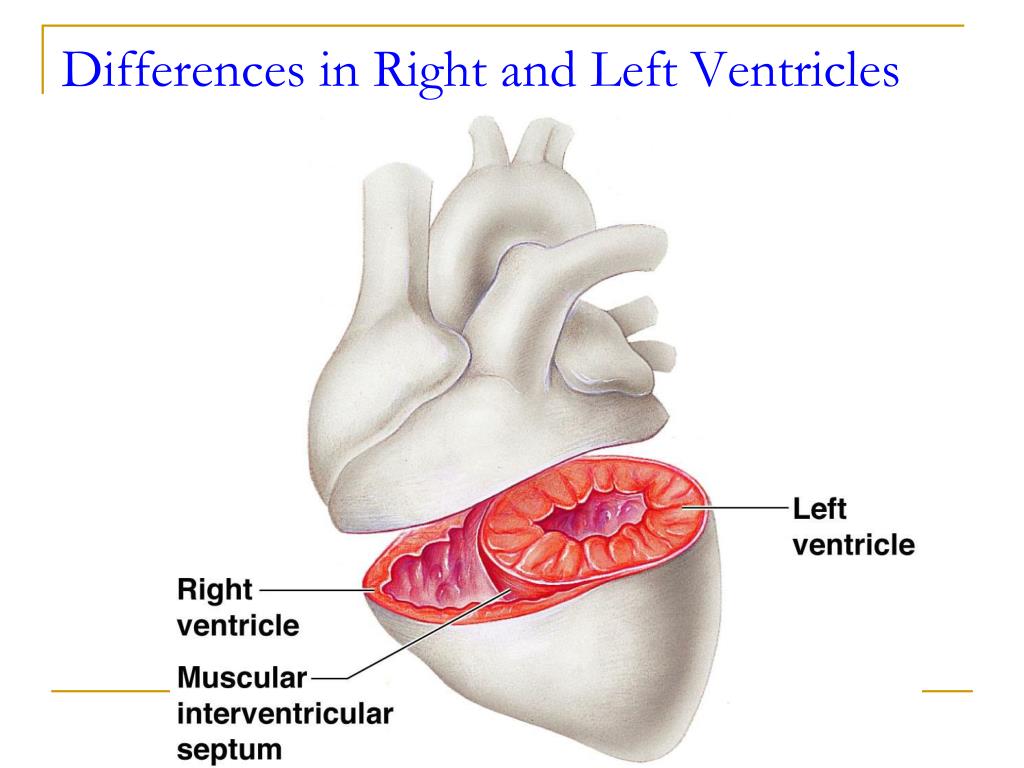

  28. Differences in Right and Left Ventricles

  29. (Bicuspid Valve) Pulmonary Semilunar Valve Aortic Semilunar Valve Left

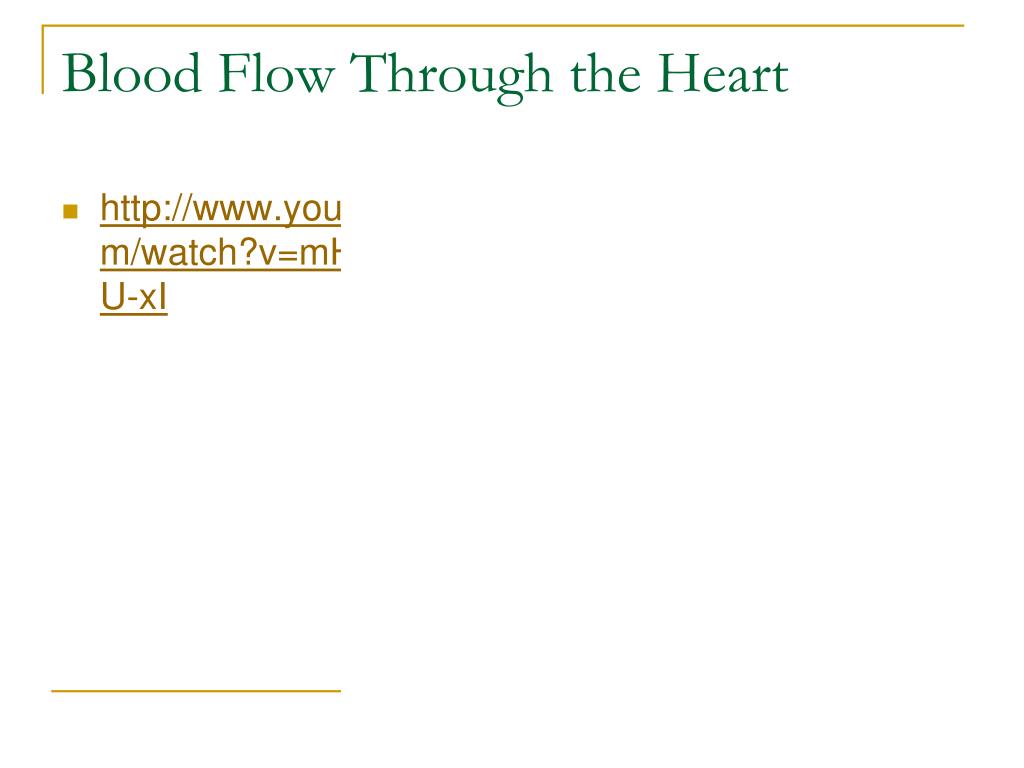

  30. Blood Flow Through the Heart • http://www.youtube.com/watch?v=mH0QTWzU-xI

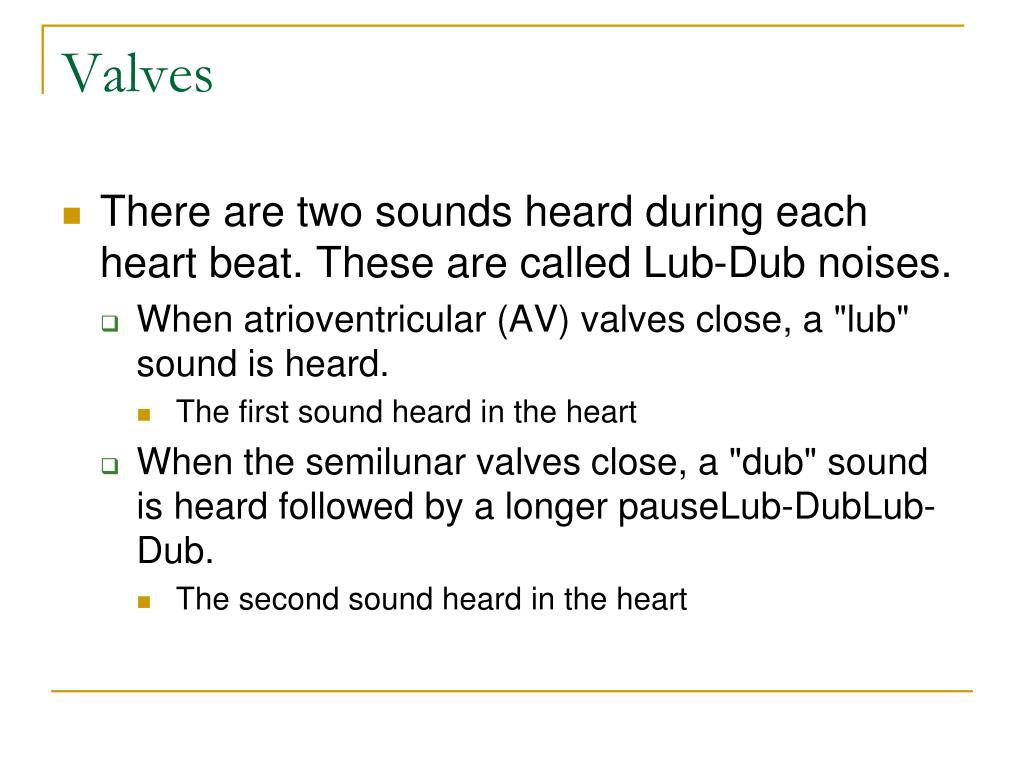

  31. Valves • There are two sounds heard during each heart beat. These are called Lub-Dub noises. • When atrioventricular (AV) valves close, a "lub" sound is heard. • The first sound heard in the heart • When the semilunar valves close, a "dub" sound is heard followed by a longer pause­Lub-Dub­­Lub-Dub. • The second sound heard in the heart

  32. Murmurs • If the valves do not close properly and leak, the sound will not be clear but blurred. • This sound is more of a Lub-Shhh-Dub or Lub-Dub Rumble.

  33. Varicose Veins • A.K.A “spider veins” • Varicose veins are gnarled, enlarged veins. • Caused by valves in blood vessels not closing properly and pooling of blood causes the veins to swell

  34. Cardiac Circulation • Pulmonary circulation • Pulmonary - lungs • Located on the right side of the heart • Deoxygenated side • Systemic circulation • Systemic - body • Located on the left side of the heart • Oxygenated side

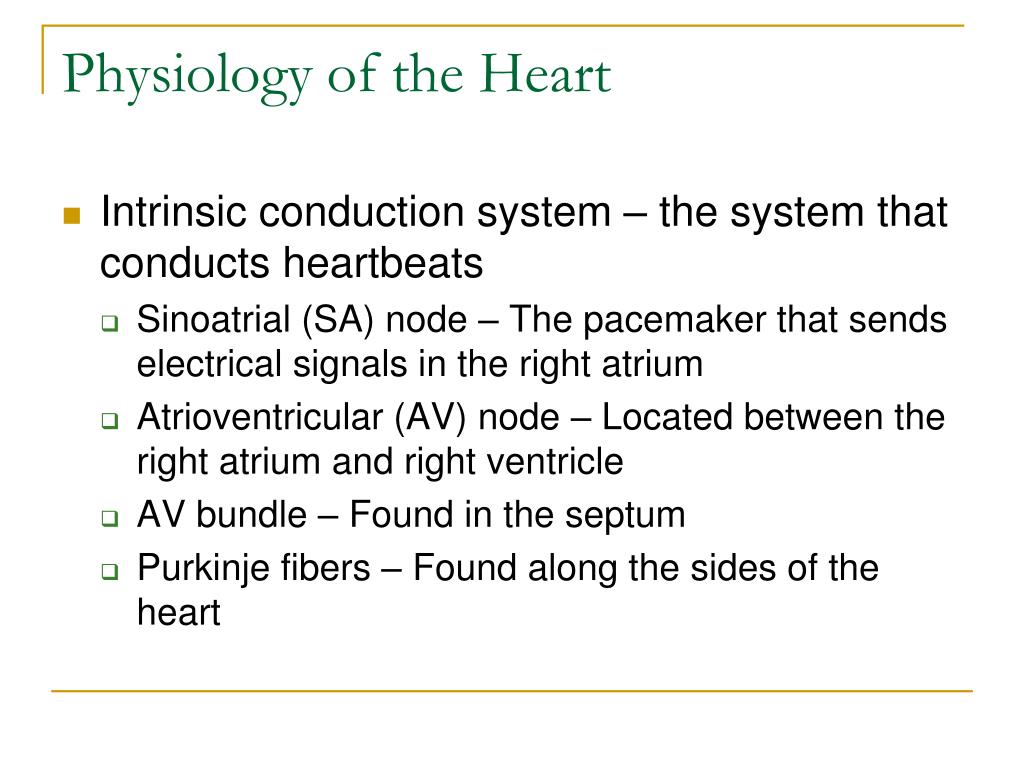

  35. Physiology of the Heart • Intrinsic conduction system – the system that conducts heartbeats • Sinoatrial (SA) node – The pacemaker that sends electrical signals in the right atrium • Atrioventricular (AV) node – Located between the right atrium and right ventricle • AV bundle – Found in the septum • Purkinje fibers – Found along the sides of the heart

  36. Heart Attack and Treatments • http://science.nationalgeographic.com/science/health-and-human-body/human-body/heart-article.html

  37. Cardiac Output • Cardiac output (CO) – Amount of blood pumped by each ventricle of the heart in one minute • Stroke volume (SV) – Volume of blood pumped by each ventricle in one contraction (each heartbeat) • About 70 mL of blood is pumped out of the left ventricle with each heartbeat • Usually remains relatively constant • Heart rate (HR) – Typically 75 beats per minute

  38. Cardiac Output • CO = HR  SV • CO = HR (75 beats/min)  SV (70 mL/beat) • CO = 5250 mL/min • Changing heart rate is the most common way to change cardiac output
