  1. Stephanie Weirich Cornell University Resource Bound Certification Joint work with Karl Crary, CMU

  2. Problem • Sometimes code runs too long • How do we prevent it?

  3. Enforcement Methods • Run the code, and if it takes too long, kill it • Look at the code and decide how long it will take • Annotations on the code can makes this process decidable

  4. Dynamic Method • Can decide how long is too long on the fly (even while the code is running) • Code producer does not have to write code in any particular language (or include annotations) • May be expensive to enforce

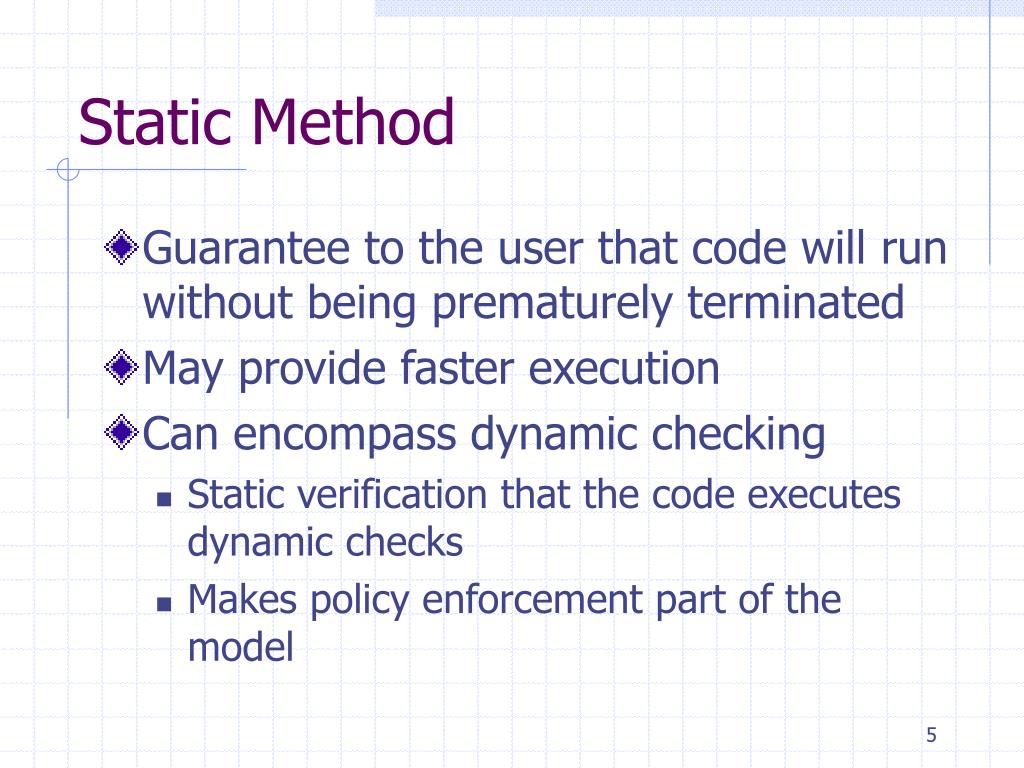

  5. Static Method • Guarantee to the user that code will run without being prematurely terminated • May provide faster execution • Can encompass dynamic checking • Static verification that the code executes dynamic checks • Makes policy enforcement part of the model

  6. Annotations • What annotations can we use for execution time verification?

  7. Base Language • Type-Safe version of C • all pointer accesses checked for NULL • no pointer arithmetic • safe memory-management (garbage-collection or region-based) • tagged unions

  8. Caveat • Most examples in this talk will look like functional programming • Intension is to verify a low-level language (such as type-safe assembly language) • Don’t have to trust the compiler • Hopefully annotation methodologies are general enough that people can be clever

  9. Certification of Running Time • Simplification: Only count function calls and loop iterations • Functions and loops annotated with the cost of execution int add1(int x)<0> { return x+1; } int add3(int x)<3> { x = add1(x); x = add1(x); return add1(x); }

  10. Example • Function-typed arguments can influence the running time int foo(int f(int x)<3>)<8> { return f(1)*f(3); } • But can restrict how the code is used foo(add1); foo(add3);

  11. Abstract Time • Useful to abstract the time annotation int foo (int f(int x)<k>) <2k+2> { return f(1) * f(3); } foo (add1); // k=0, takes 2 steps + 1 for call foo (add3); // k=3, takes 8 steps + 1 for call

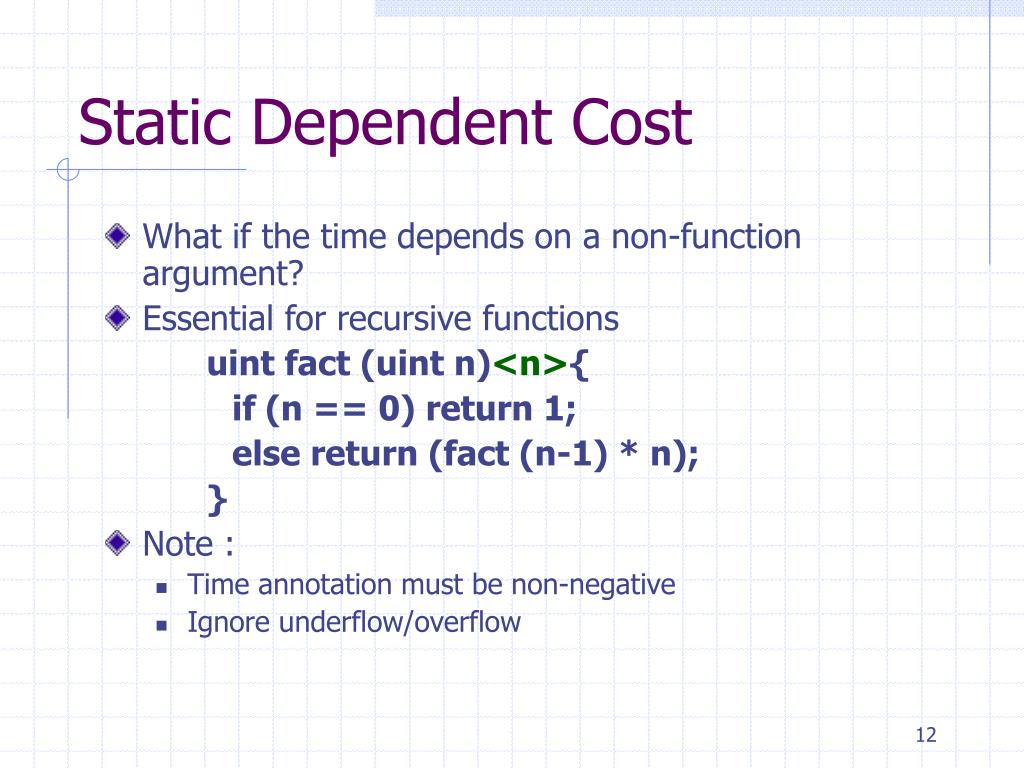

  12. Static Dependent Cost • What if the time depends on a non-function argument? • Essential for recursive functions uint fact (uint n)<n>{ if (n == 0) return 1; else return (fact (n-1) * n); } • Note : • Time annotation must be non-negative • Ignore underflow/overflow

  13. Size • What if the argument is not a uint or a function? • Option: Pre-defined mapping from structured data values to their “sizes”

  14. Example - List struct list { const uint val; const struct list* next; } • The size of a list is its length • Simplifying assumption - The members of the struct are const so that we do not have to track aliasing.

  15. Sumf int sumf (uint f(uint)<k>; struct list* x; int acc) <length(x)*(k+2)> { if (x == NULL) return acc; else { int acc2 = acc + f (x->val); struct list* x2 = x -> next; sumf (f, x2, acc2); } }

  16. Calling Sumf sumf(add3, NULL,0); // 0*(3+2) + 1 struct list* x = new { val = 5; next = NULL }; sumf(add3, x,0) // 1*(3+2) + 1

  17. Size • What if the time of f is dependent? uint sumf (uint f(uint y)<y>; struct list* x; uint acc) <length(x)*(??+2)> { if (x == null) return acc; else { uint acc2 = acc + f (x->val); struct list* x2 = x -> next; sumf (f, x2, acc2); } }

  18. User-defined size • Need a programming language to express the mapping between datatypes and the time to iterate over them • Expressive enough to represent structured data, and functions over that data • Not so expressive that equivalence is undecidable • Need a way to connect dynamic data with a representation in this language

  19. Decidable, Expressive Language • Typed-lambda calculus with products, sums and primitive recursion over inductive types • Syntax of functional programming language ML • Terminology • Dynamic language -- Type-safe C • Static language -- this annotation language

  20. Static Language • Natural numbers (of type nat) and arithmetic operations • 3+4 , 5*x • Higher-order functions • fn (x : nat) => (fn (y :nat) => x+y) • (of type nat  (nat  nat) ) • Tuples • (3,5) : nat  nat

  21. Static Language • Sums and recursive types notated with datatypes datatype bool = False | True fun not (b:bool) = case b of True => False | False => True

  22. Primitive Recursion • datatypes can recursively mention name only in positive positions  datatype foo = Bar of foo | Baz of foo * foo datatype foo = Bar of foo  foo  datatype foo = Bar of (foo  int)  foo

  23. Primitive Recursion • Recursive functions over these datatypes can only call themselves on subterms of their arguments datatype foo = Bar of foo | Baz of foo * foo fun iter (x : foo) = case x of Bar(w) => iter(x) | Baz(y,z) => iter(y)

  24. List Representation datatype list = Null | Cons of nat * list fun time(m : list) = case m of Nil => 0 | Cons(val, next) => val+2+time(next)

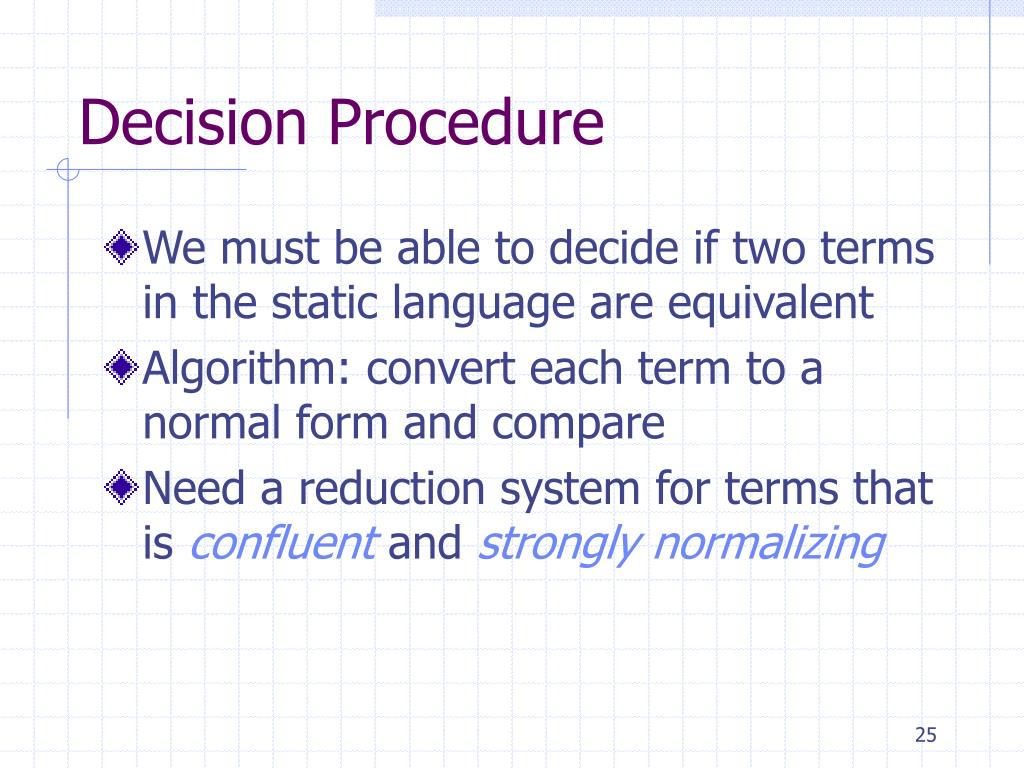

  25. Decision Procedure • We must be able to decide if two terms in the static language are equivalent • Algorithm: convert each term to a normal form and compare • Need a reduction system for terms that is confluent and strongly normalizing

  26. Reduction Rules • Sample Reduction rules • 3 + 4 --> 7 • M + 0 --> M • case Ci M of C1 x1 => N1 | C2 x2 => N2 --> Ni [M/xi] • (fun f x => M ) N --> M[N/x, (fun f x => M)/f]

  27. Connecting the Languages • We must be able to use this static language to describe the values of the dynamic language • Use the type system to enforce that a dynamic term matches a static description

  28. Singleton Types • nat represents unsigned ints • Connect constants in the two languages • If m : nat , form singleton type uint<m> uint<3> x;  x = 3;  x = 4;

  29. Using fact • New type of factorial uint fact(uint<m> x)<m>; fact(3); // takes time 3+1 uint<n> x; fact(x); // takes time n+1

  30. Pointer Types • Consider pointer types • int* Either a reference to an int or null • int@ Must be a reference • int<0> Must be a null pointer • Want to refine the type of a variable // x has type int* if (x == NULL) { // x has type int<0> } else { // x has type int@ }

  31. Enforcement types • Static representation of integer pointers datatype ptr = Null | Ptr intptr(m) = case m of Null => int<0> | Ptr => int@ • If x : intptr(Ptr) then we know x is not NULL

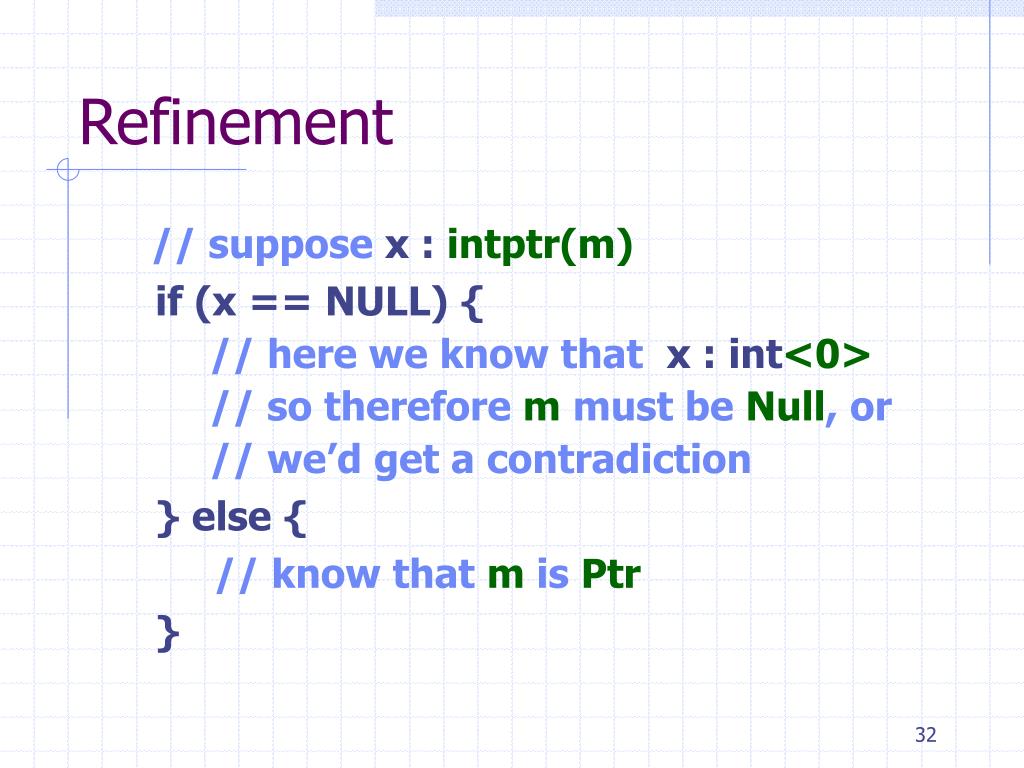

  32. Refinement // suppose x : intptr(m) if (x == NULL) { // here we know that x : int<0> // so thereforemmust beNull, or // we’d get a contradiction } else { // know thatmisPtr }

  33. List Enforcement Type datatype list = Null | Cons( nat, list) replist(m) = case m of Null => int<0> | Cons(val,next) => struct { const uint<val> val; const replist(next) rest }@

  34. Using Enforcement Types // if x has typereplist(m) if (x == NULL) { // again x : int<0> } else { // m must be Cons (val, next) // x:{const int<val> val; // const replist(next) rest }@ } • We’ve used a comparison in the dynamic code to increase our knowledge of the static representation

  35. User-defined Size • Iterate over list, calculating a nat to represent execution time fun time(m : list) = case m of Nil => 0 | Cons(val, next) => val+2+time(next)

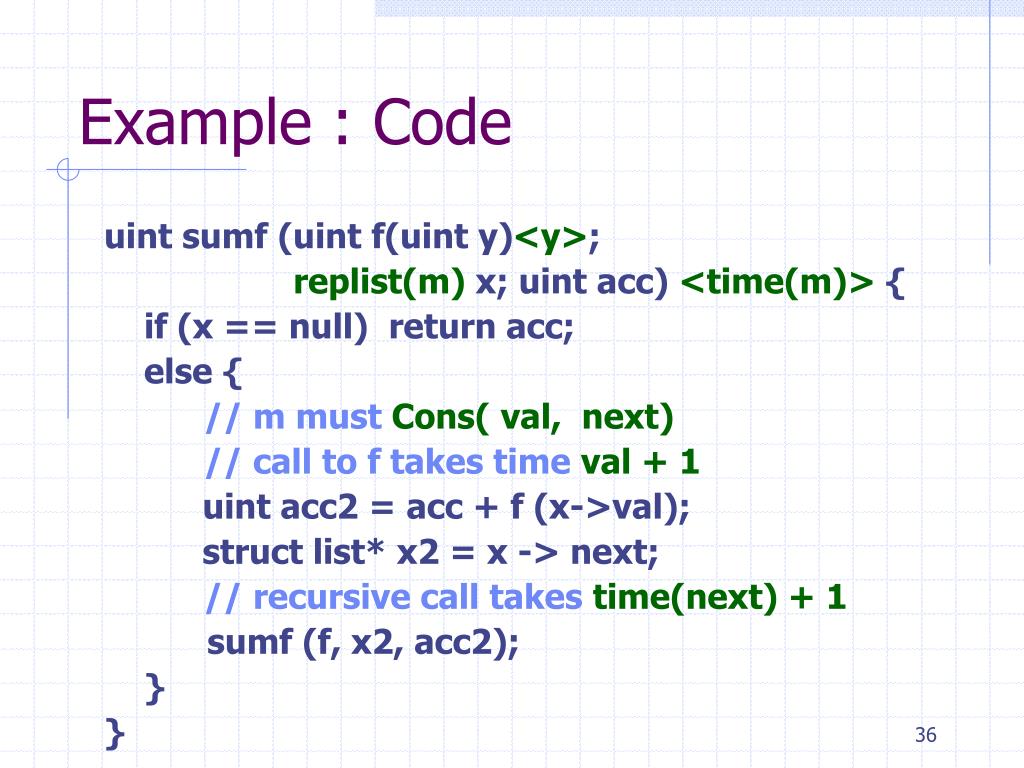

  36. Example : Code uint sumf (uint f(uint y)<y>; replist(m) x; uint acc) <time(m)> { if (x == null) return acc; else { // m must Cons( val, next) // call to f takes time val + 1 uint acc2 = acc + f (x->val); struct list* x2 = x -> next; // recursive call takes time(next) + 1 sumf (f, x2, acc2); } }

  37. Other Resources • “Effect notation” int f(int)<3> doesn’t generalize to resources that can be recovered (e.g. space) • Alternative: Augment the operational semantics with a virtual clock that winds down as the program executes

  38. Virtual Clocks • Function types specify starting and ending times • (int,12) f(int, 15) starts at time 15 and finishes at time 12 • Use polymorphism to abstract starting times • (int, n) f(int,n+3) runs in 3 steps - it is equivalent to int f(int)<3>

  39. Recoverable Resources Consider: (int, n+12) f (int, n+15) vs. (int, n) f (int,n+3) If the resource is free-space: • the first function may allocate as many as 15 units, as long as it releases 12 of them before returning. • The second function only requires a minimum of 3 units of free-space to execute.

  40. Upper Bound • Sometimes it is enough just to know an upper bound of the running time. • It is an approximation to help when static analysis fails. • Add the instruction waste to the language to increment the virtual clock • No run-time effect

  41. Waste example bool member (int x; replist(m) w) <length(m)>{ if (w == NULL) return false; else // m=Cons( val , next) if (x == w->val) { waste <next>; return true; } else { return member( w->next ); } }

  42. TALres • We have implemented a similar system within the Typed Assembly Language framework • Clock contained in a virtual register, decremented on backwards jumps • TAL already has a sophisticated type constructor language • Added sum and inductive kinds and refinement procedure for comparison instructions • Operations on static natural numbers

  43. Source Language • Prototype implementation: PopCron • Resembles C + timing annotations • No separation between static and dynamic languages • Compiler to TALres • creates representations of datatypes and their enforcement types

  44. The real details • Static and dynamic language are really two levels of the same language • Static language is embedded in the dynamic language as a language of type constructors • Types of dynamic language are constants in the static language • Types of static language are referred to as kinds

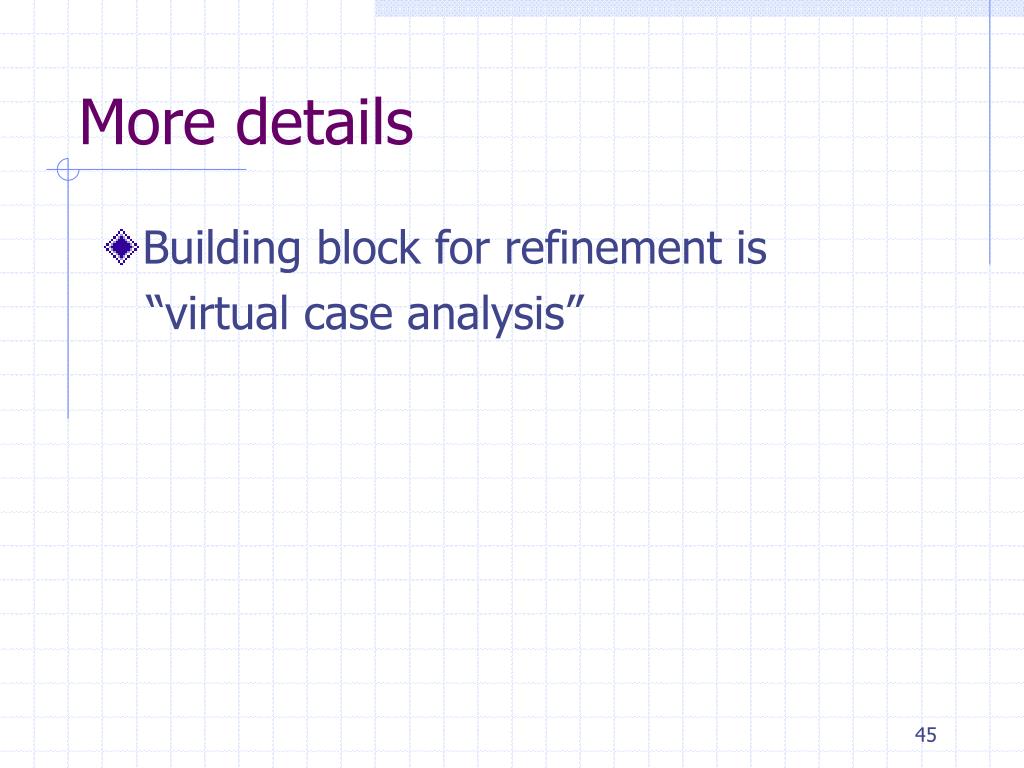

  45. More details • Building block for refinement is “virtual case analysis”

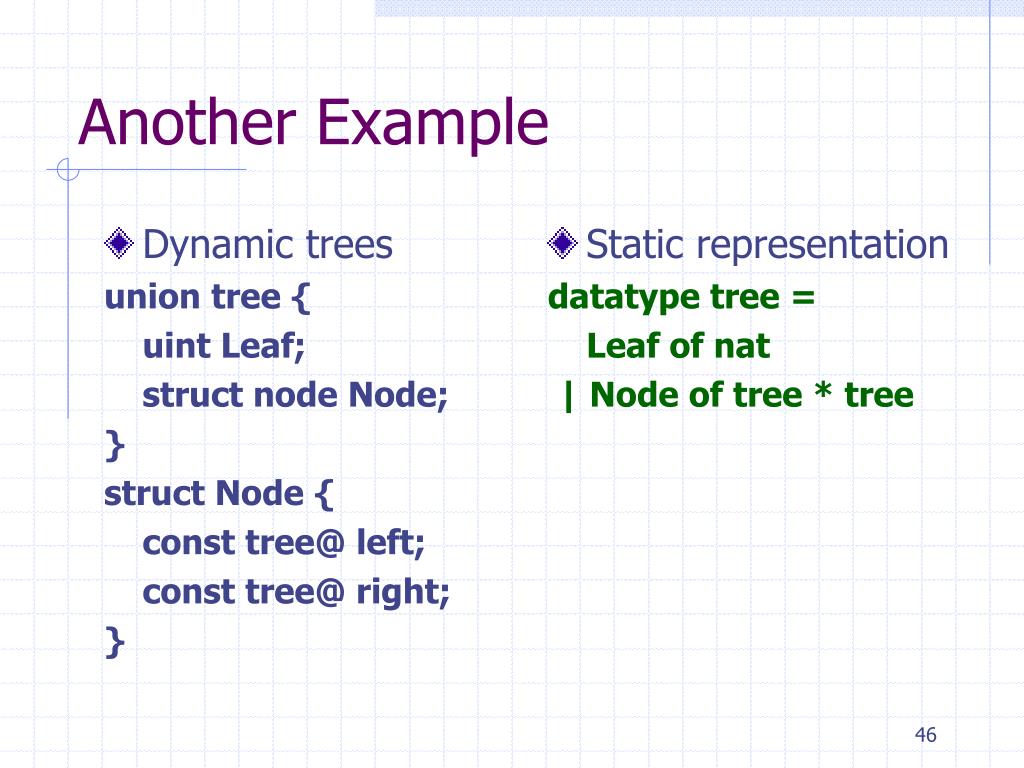

  46. Dynamic trees union tree { uint Leaf; struct node Node; } struct Node { const tree@ left; const tree@ right; } Static representation datatype tree = Leaf of nat | Node of tree * tree Another Example

  47. Tree example size (t : tree) = case t of Leaf(x) => x +1 | Node (left, right) => size(left) + size(right) + 2 uint sumf (uint f(uint<k>)<k>; reptree(t) t) <size(t)> { switch t { case Leaf(x): return f(x); case Node(x): return sumf(x.left) + sumf(x.right); } }

  48. Enforcement type for trees reptree (tree) = case tree of Leaf x => union { uint<x> Leaf; empty Node;} | Node (left, right) => union { empty Leaf; struct { const reptree(left)@ left; const reptree(right)@ right; } Node; }

  49. Virtual Case switch t { case Leaf(x): // Suppose at runtime we could examine the static // representation case t of Leaf (x) => This is the only branch that could occur Node (x) => …as here x is of type empty

  50. Virtual Case switch t { case Leaf(x): // Since one branch is impossible we don’t need to // specify it vcase t of Leaf(x) => // binds x in following code • This case statement is virtual because we know what branch will be taken -- no run time effect
