  1. How most People Know LSU

  2. LSU Chem Images Macro Lab SAACS Meet & Greet

  3. LSU Chem Images Team Exam Team Meeting STSC Putting The P In Ph.D. Grad Students and REU’s in San Diego

  4. LSU Graduate Students Factoids • 127 Ph.D. students; 7 M.S. students (62 female, 72 male) • 70 US Citizens: 32 African Americans; 2 Hispanic Americans; 1 Asian American • 64 International Students from 20 different countries:1 (Benin), 1 (Bulgaria), 21 (China), 3 (Cyprus), 1 (France), • 1 (Ghana), 4 (India), 1 (Iran), 9 (Kenya), 4 (Korea), • 3 (Mexico), 1 (Nicaragua), 1 (Philippines), 3 (Romania), • 2 (Saudi Arabia), 1 (Senegal), 1 (Sierra Leone), 1 (Tanzania), 4 (Turkey), 1 (Vietnam) • 15 special State Fellowship Holders • 6 NSF and 3 NIH Fellows • Former students employed at:Companies (e.g., ExxonMobil, Dow, Dupont, Abbott, Air Products, GE, Syngenta, Proctor & Gamble, Pfizer, Ferro, Martin Marietta, Chevron)National & Private Research Labs (e.g., NIST, Pacific Northwest National Lab, Fox-Chase Cancer Center)Colleges & Universities (e.g., Mississippi State, Fayetteville State, Houston Baptist, Univ. of Texas Pan-Am, Many International) A NOBEL SUCCESS Chemistry graduate students and postdocs from around the world meet with Nobel Laureates to discuss research, discovery, and life in general MADELEINE JACOBS, C&EN WASHINGTON LUNCHTIME U.S. delegates (from left) Vernessa M. Edwards, Robin Macaluso, and Michael W. Blair took a break from the meeting.

  5. Enough about LSULet’s Talk about Undergraduate Student Research • Ask and ye shall receive. • NSF REU Sites (many of them all across the U.S., including several at LSU). • Just Google NSF REU or send me an e-mail: chruss@lsu.edu • Private non-profit (e.g., Howard Hughes) • Industrial (many companies)

  6. Graduate Studies • Are you Ph.D. material? • Heavily subsidized. Rumors of starving graduate students are not true. • Does it pay off? • In Chemistry? • Why not Chemical Engineering? • Why not Polymer Science or Materials Science? • Why not MD-PHD? • Why not Interdisciplinary?

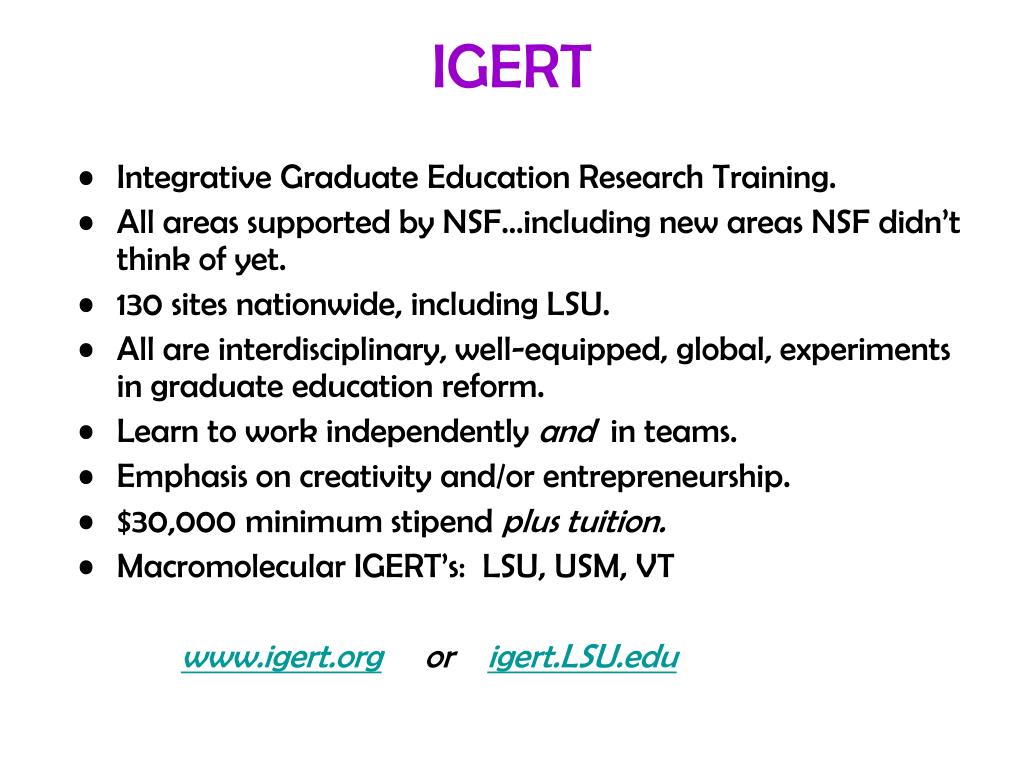

  7. IGERT • Integrative Graduate Education Research Training. • All areas supported by NSF…including new areas NSF didn’t think of yet. • 130 sites nationwide, including LSU. • All are interdisciplinary, well-equipped, global, experiments in graduate education reform. • Learn to work independently and in teams. • Emphasis on creativity and/or entrepreneurship. • $30,000 minimum stipend plus tuition. • Macromolecular IGERT’s: LSU, USM, VT www.igert.org or igert.LSU.edu

  8. Macromolecules for The Dementedand methods for their study Help from Keunok Yu, Jirun Sun, Bethany Lyles, George Newkome and LSU’s Alz-Hammer’s Research Team Krispy Kreme Donut Day, September 2003 Supported by National Institutes of Health-AG, NSF-DMR and NSF-IGERT • How Alzheimer’s happens • Attempts to prevent or reverse it • Characterization challenges • Alzheimer’s model systems with materials implications

  9. Amyloid Diseases • Several diseases are caused by the misfolding of proteins into self-associating structures (fibrils) w/ predominantly b-sheet secondary structure • Alzheimer’s Disease: Amyloid b-protein (Abin neurons/brain • Type II Diabetes: amylin in Islets of Langerhans • Mad Cow Disease (BSE): PrpSc in brain --transmittable by protein aggregates • Huntington’s Disease, triplet repeat expansion: (Gln)n

  10. Positron emission tomography Age: 20 -- 80 Normal -- 80 AD Postmortem Coronal Sections Normal Alzheimer’s

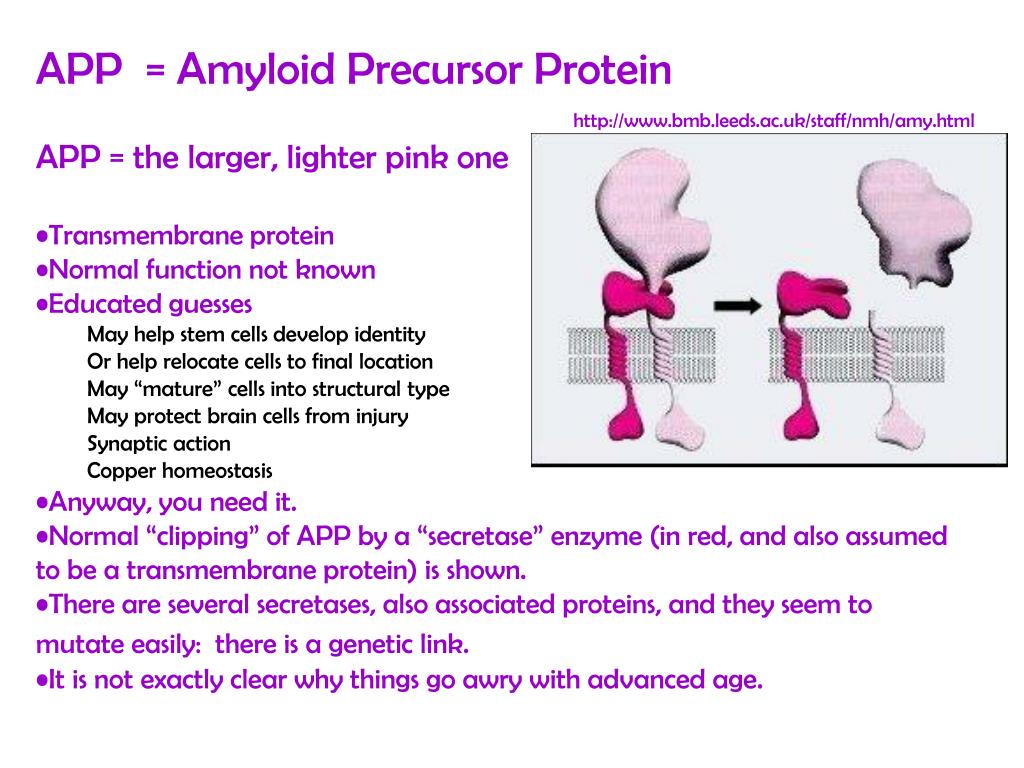

  11. APP = Amyloid Precursor Protein • APP = the larger, lighter pink one • Transmembrane protein • Normal function not known • Educated guesses • May help stem cells develop identity • Or help relocate cells to final location • May “mature” cells into structural type • May protect brain cells from injury • Synaptic action • Copper homeostasis • Anyway, you need it. • Normal “clipping” of APP by a “secretase” enzyme (in red, and also assumed to be a transmembrane protein) is shown. • There are several secretases, also associated proteins, and they seem to mutate easily: there is a genetic link. • It is not exactly clear why things go awry with advanced age. http://www.bmb.leeds.ac.uk/staff/nmh/amy.html

  12. Clipping APP the right & wrong ways NH2 terminus Incorrect Correct Feature article by Vernon M. IngramAmerican Scientist on-LineVol. 91, #4 July-August 2003http://www.americanscientist.org/template/IssueTOC/issue/394

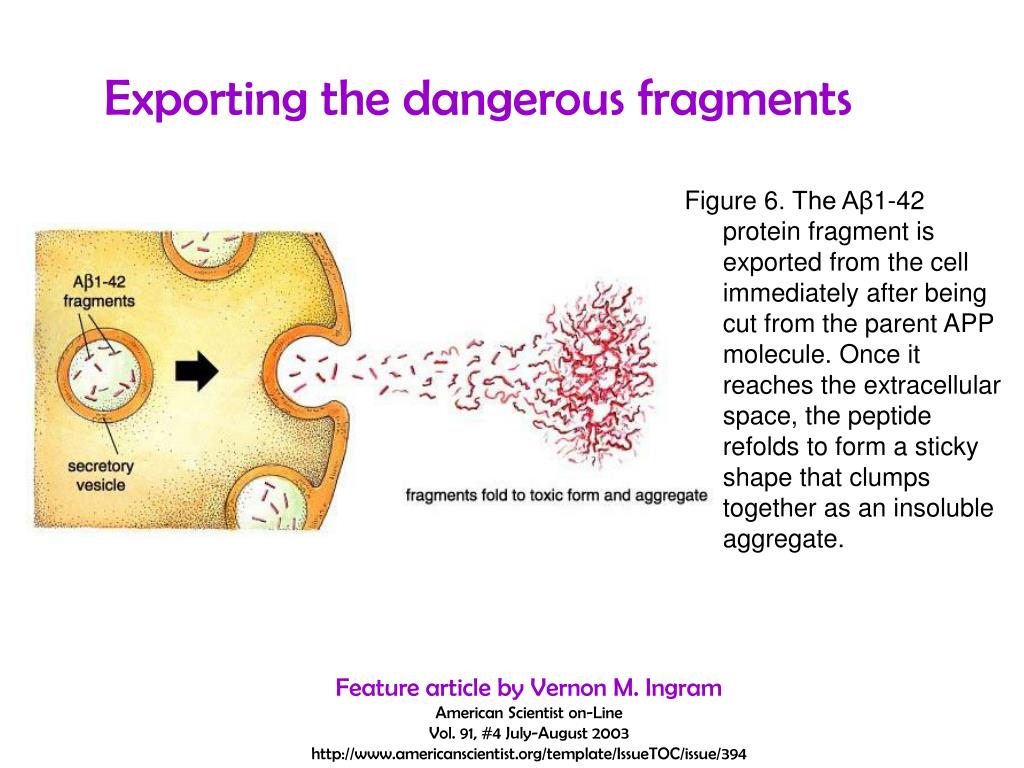

  13. Feature article by Vernon M. IngramAmerican Scientist on-LineVol. 91, #4 July-August 2003http://www.americanscientist.org/template/IssueTOC/issue/394 Exporting the dangerous fragments

  14. Amyloid hypothesis: fibrils or protofibrils cause cell death, possibly as the body’s own defenses tries to clear such “foreign” matter. Peter Lansbury Group http://focus.hms.harvard.edu/1998/June4_1998/neuro.html Competing hypothesis: channel formation disrupts Ca+2 metabolism

  15. Introduction of Varying Salts to Increase β-amyloid Aggregation, Ab10-35 NaCl NaNO3 NaF 10 mm x 10 mm scanning probe microscope images (on mica) of 300 mM Ab10–35 incubated for 8 days at room temperature in 15 mM phosphate buffer containing 50 mM salt.

  16. Alz-Hammer’s Team goal: Mediate the Aggregation of Ab R = regular H = hydrophobic

  17. Peptide-based Mediation Requires a Specific Sequence • Hydrophobic KLVFF region is responsible for β-amyloid aggregation • Incorporation of such region for β-sheet breaking or capping H-(Lys)-Val-Leu-Phe-Phe-(Lys)6-NH2 A peptide construct incorporating the KLVFF region developed by Professor Regina Murphy at the University of Wisconsin-Madison

  18. Peptide-based Inhibitors of Ab Fibrillogenesis

  19. K L V F F MCP 1 K L V F F MCP 2 LSU Peptide-based Mediators AMY-1 x = 1, y = 6 AMY-2 x = 6, y = 1 AMY-3 x = 1, y = 1 Mediators Developed by Professor Robert Hammer & Professor Mark McLaughlin

  20. Synthesis & Vetting of Peptidewith aaAA-Blocker MALDI-MS of purified peptide Calc’d for (M + Na) = 1731.3 HPLC of crude peptide

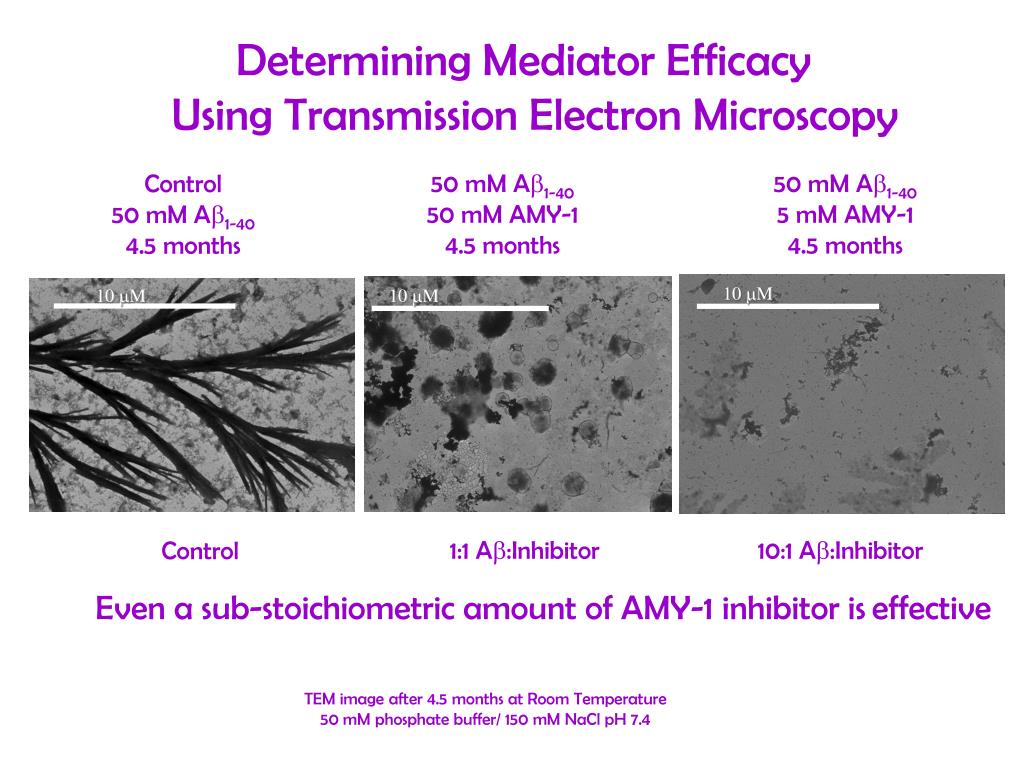

  21. 10 mM 10 mM Determining Mediator Efficacy Using Transmission Electron Microscopy 50 mM Ab1-40 50 mM AMY-1 4.5 months 50 mM Ab1-40 5 mM AMY-1 4.5 months Control 50 mM Ab1-40 4.5 months 10 mM 1:1 Ab:Inhibitor 10:1 Ab:Inhibitor Control Even a sub-stoichiometric amount of AMY-1 inhibitor iseffective TEM image after 4.5 months at Room Temperature 50 mM phosphate buffer/ 150 mM NaCl pH 7.4

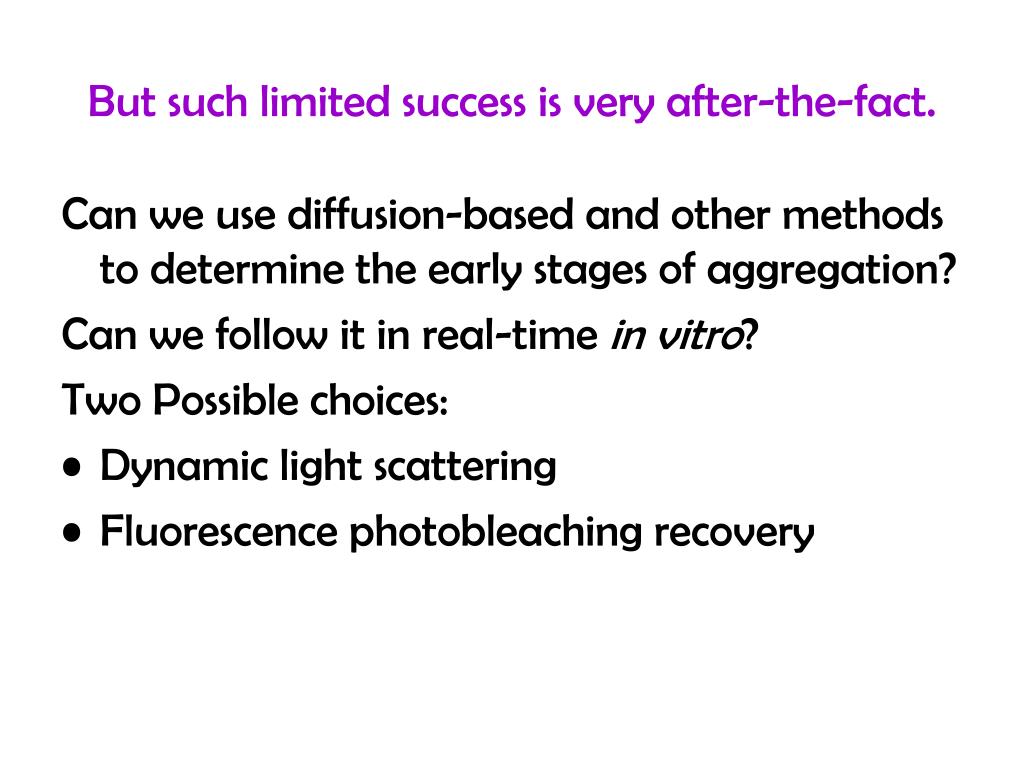

  22. But such limited success is very after-the-fact. Can we use diffusion-based and other methods to determine the early stages of aggregation? Can we follow it in real-time in vitro? Two Possible choices: • Dynamic light scattering • Fluorescence photobleaching recovery

  23. A series of dynamic light scattering runs can identify a peptide that has an effect on large fibrils.

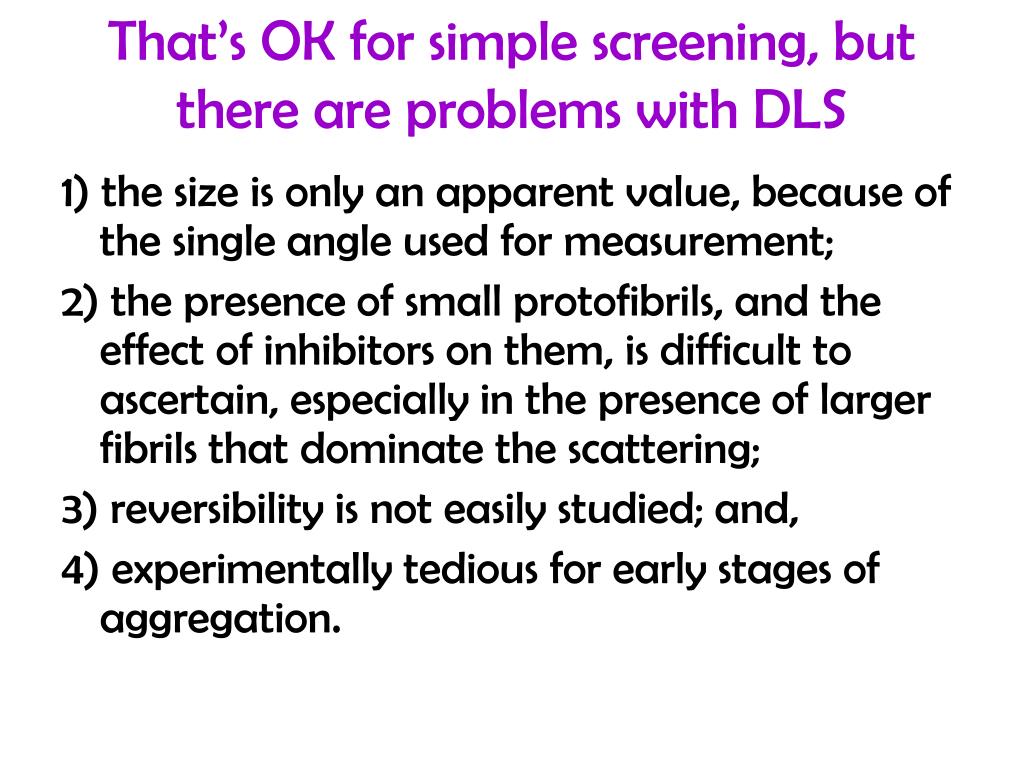

  24. That’s OK for simple screening, but there are problems with DLS 1) the size is only an apparent value, because of the single angle used for measurement; 2) the presence of small protofibrils, and the effect of inhibitors on them, is difficult to ascertain, especially in the presence of larger fibrils that dominate the scattering; 3) reversibility is not easily studied; and, 4) experimentally tedious for early stages of aggregation.

  25. Modulation FPR Device Lanni & Ware, Rev. Sci. Instrum. 1982 SCOPE 5-10% bleach depth PA IF c * TA/PVD PMT D S * X * M DM RR OBJ * M ARGON ION LASER AOM * = computer link

  26. Cue The Movie

  27. Labeling β-Amyloid fragment 1-43 When fluorescein is attached, we call it L-Ab Fluorescein has about 7% the mass of Ab. Sticht, H.; Bayer, P.; Willbold, D.; Dames, S.; Hilbich, C.; Beyreuther, K.; Frank, R.; Rösch, P.Eur. J. Biochem. 1995, 233, 293-298.

  28. Sodium Fluorescein Dye Theoretical/Experimental D0 for monomeric β-amyloid1-40 Diffusion Results – Great Reproducibility But Dye Shrinks it…and may stabilize against aggregation. 100 μM Mixture β-amyloid1-40 in phosphate buffer – pH 2.7, 6.9 and 11 Theory/Experimental result for monomeric Ab1-40 from: Massi, F.; Peng, J.W.; Lee, J.P.; Straub, J.E. Stimulation Study of the Structure and Dynamics of the Alzheimer’s Amyloid Peptide Congener in Solution. Biophysical Journal2001, 80, 31-44.

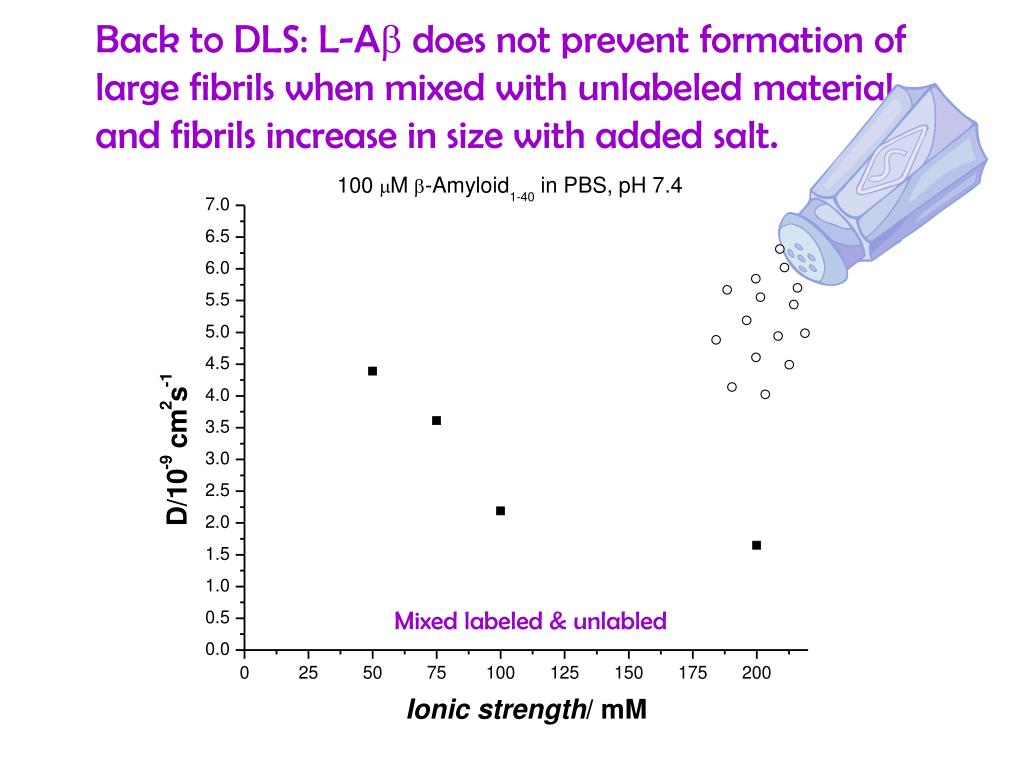

  29. Back to DLS: L-Ab does not prevent formation of large fibrils when mixed with unlabeled material and fibrils increase in size with added salt. Mixed labeled & unlabled

  30. Epifluorescence also shows L-Ab is actually incorporated into macrofibers. Bottom Line: we think L-Ab is OK to study.

  31. Two FPR Contrast Decay Modes are Often Observed: Fast = small; Slow = large.

  32. Cover slip Sample Pump PTFE spacer Dialysis membrane O-ring Exchange Fluid Doing More Experiments Faster with Less Precious Amyloid: Dialysis FPR

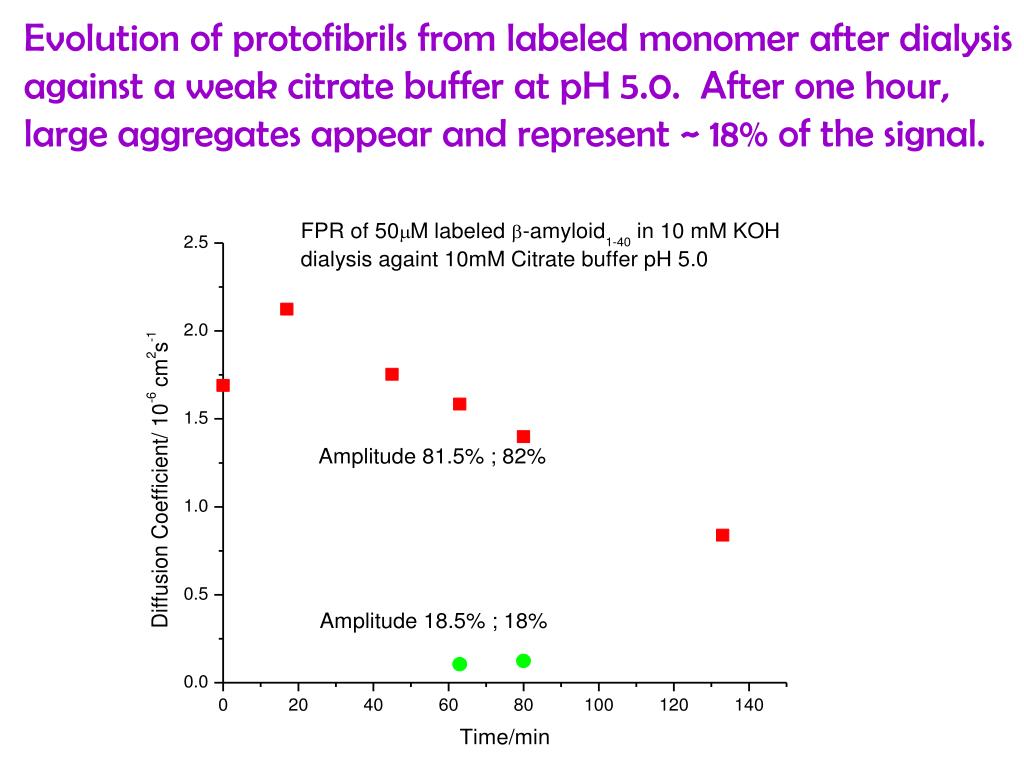

  33. Evolution of protofibrils from labeled monomer after dialysis against a weak citrate buffer at pH 5.0. After one hour, large aggregates appear and represent ~ 18% of the signal.

  34. Finding a convenient buffer for controlled self assembly. This run is at pH 4 Acetate Buffer. Adding calcium hastens aggregation. Amplitudes

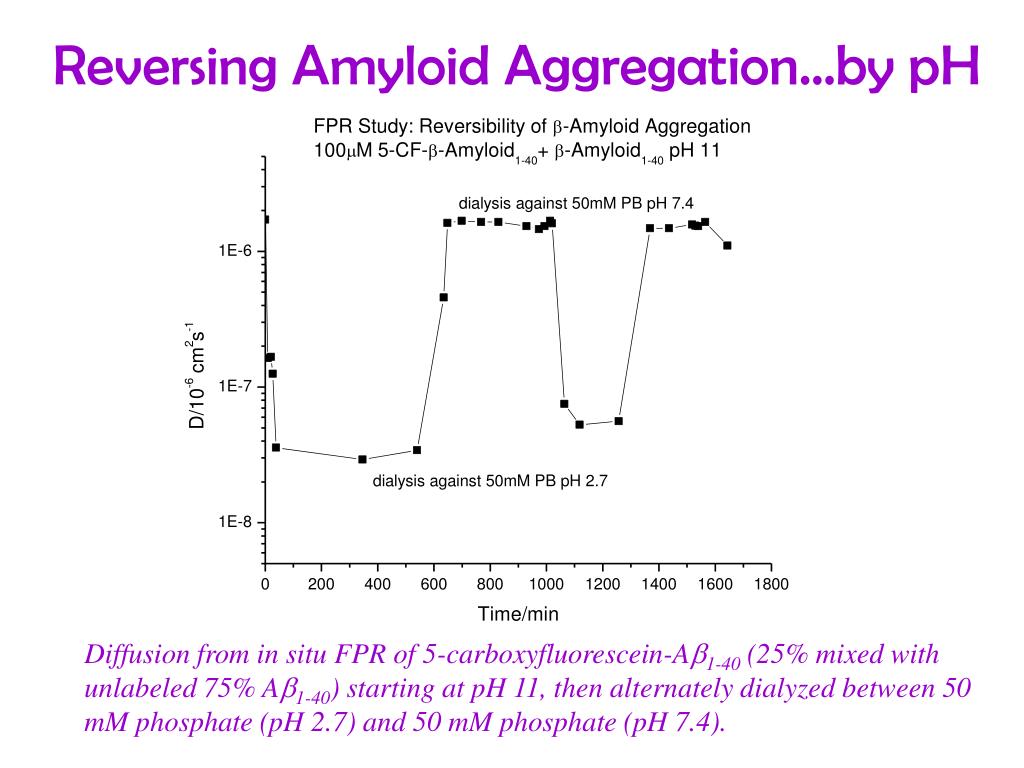

  35. Reversing Amyloid Aggregation…by pH Diffusion from in situ FPR of 5-carboxyfluorescein-Ab1-40 (25% mixed with unlabeled 75% Ab1-40) starting at pH 11, then alternately dialyzed between 50 mM phosphate (pH 2.7) and 50 mM phosphate (pH 7.4).

  36. Ab = $400,000/gram Need cheaper model systems. They also have materials applications. Bolaform amphiphiles have a dumb-bell shape. hydrophilic hydrophilic hydrophobic

  37. Arborol example: [9]-10-[9] 9 watery hydroxyl groups 10 oily methylene groups

  38. z I(q) = S(q)P(qr) N-1 N+N-1 2N+(N-1) 3N+(N-1) (back) 5 N+5 2N+5 3N+5 (back) 3 N+3 2N+3 3N+3 (back) 1 N+1 2N+1 3N+1 (back) Origin(0,0,0) 4N+1 4N+2 2N+2 3N+2 (back) 2 N+2 2N+4 3N+4 (back) 4 N+4 a 2N+6 3N+6 (back) 6 N+6 3N 4N (back) N 2N x y b radius, r Stacked dumbbell model Based on molecular modeling, SAXS, FF-SEM, DSC, AFM, POM…and common sense.

  39. Synthesis of Inhibitor [9]-6

  40. Self-assembly of [9]-12-[9]Starting point is “extruded” fibers Rh from linear fit of gamma vs q2 of DLS data at five angles: 40, 50, 60, 70 and 90.

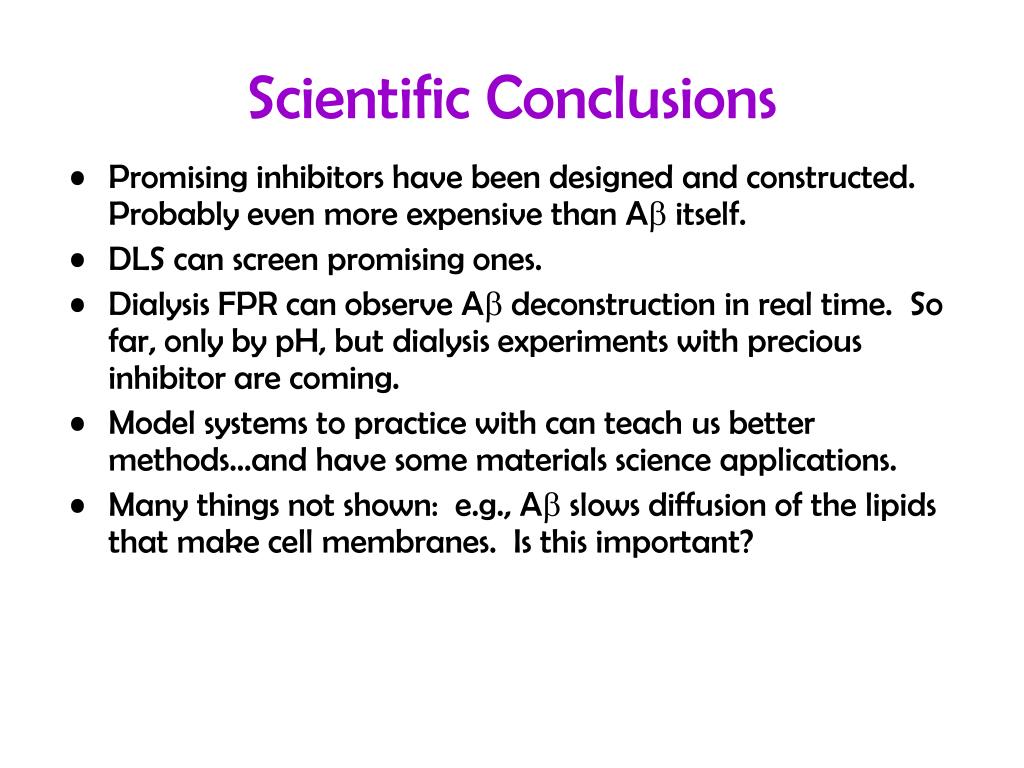

  41. Scientific Conclusions • Promising inhibitors have been designed and constructed. Probably even more expensive than Ab itself. • DLS can screen promising ones. • Dialysis FPR can observe Ab deconstruction in real time. So far, only by pH, but dialysis experiments with precious inhibitor are coming. • Model systems to practice with can teach us better methods…and have some materials science applications. • Many things not shown: e.g., Ab slows diffusion of the lipids that make cell membranes. Is this important?

  42. Broader Conclusions • Membrane proteins (or fragments) are hard to study. • Don’t expect a cure soon and you won’t be disappointed. • Take your statins once the doctor tells you to start, then hope for the best. • Science in the service of practical problems is increasingly multidisciplinary. • Scientists spend a lot more time scratching their heads and wondering what’s going on than it must seem from textbooks.

  43. Discussion Points • We have spent $1.4 M for this research (so far). • Perhaps 10 papers will appear eventually. • About six Ph.D. students will be trained. • Could 100,000 teams like ours (that’s 2000 in every state!) cure Alzheimer’s, Mad Cow, Huntington’s and other related afflictions?

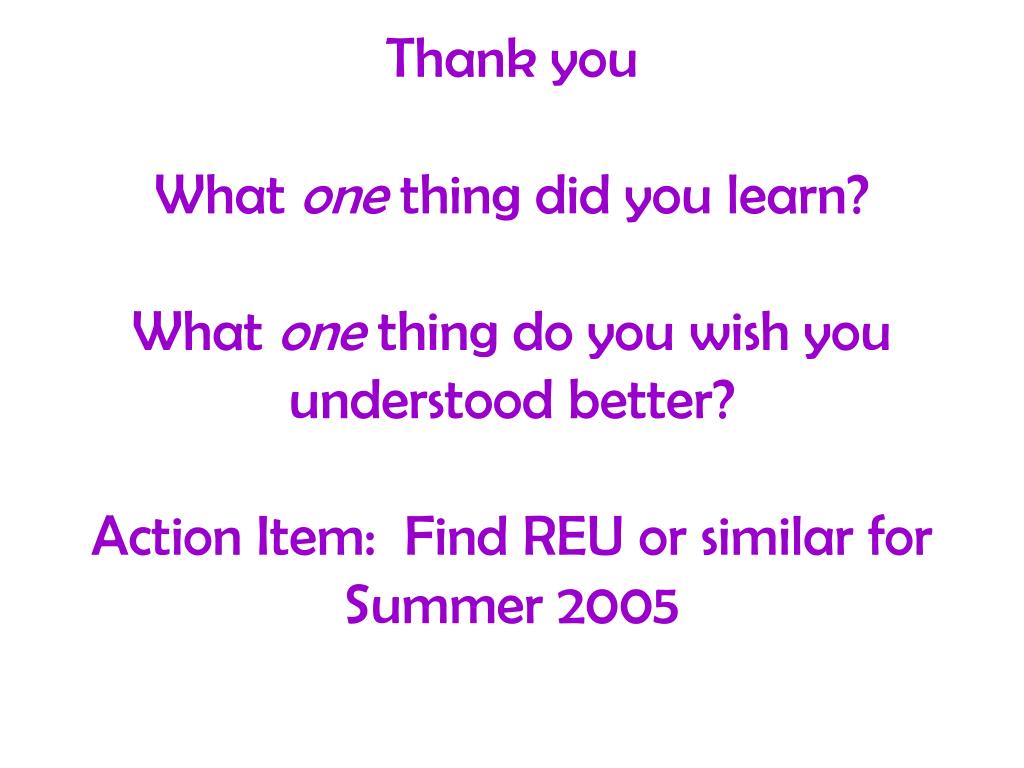

  44. Thank youWhat one thing did you learn?What one thing do you wish you understood better?Action Item: Find REU or similar for Summer 2005

  45. Synthesis ( illustrated for [9]-10-[9] )

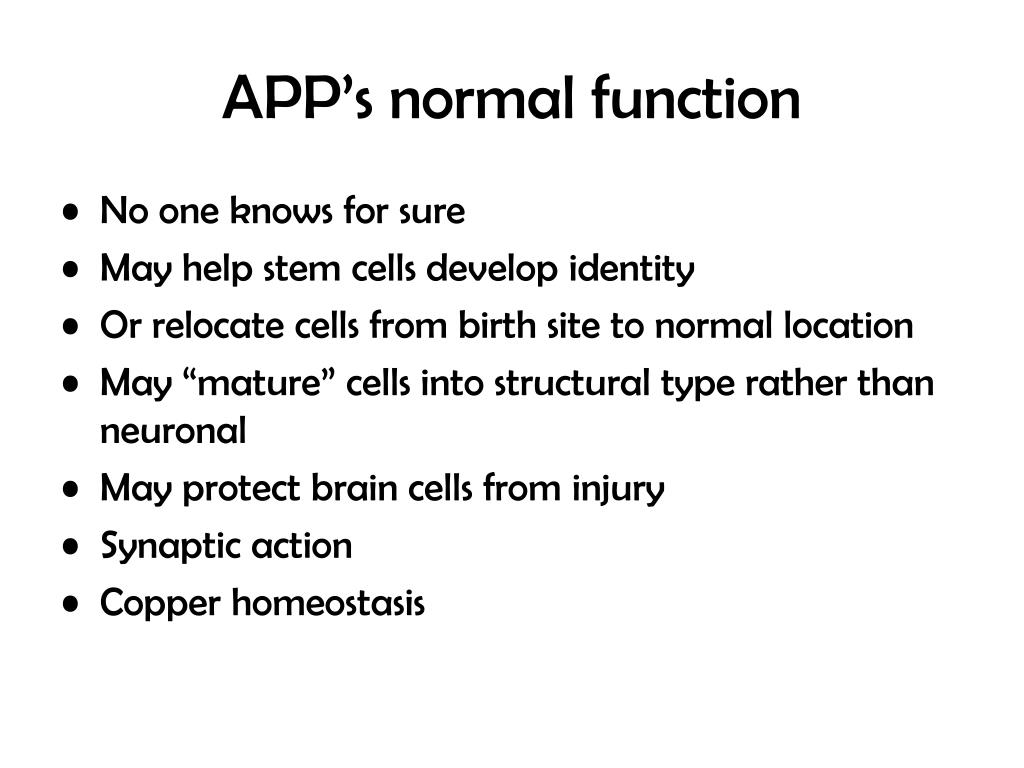

  46. APP’s normal function • No one knows for sure • May help stem cells develop identity • Or relocate cells from birth site to normal location • May “mature” cells into structural type rather than neuronal • May protect brain cells from injury • Synaptic action • Copper homeostasis

  47. http://www.bmb.leeds.ac.uk/staff/nmh/amy.html
