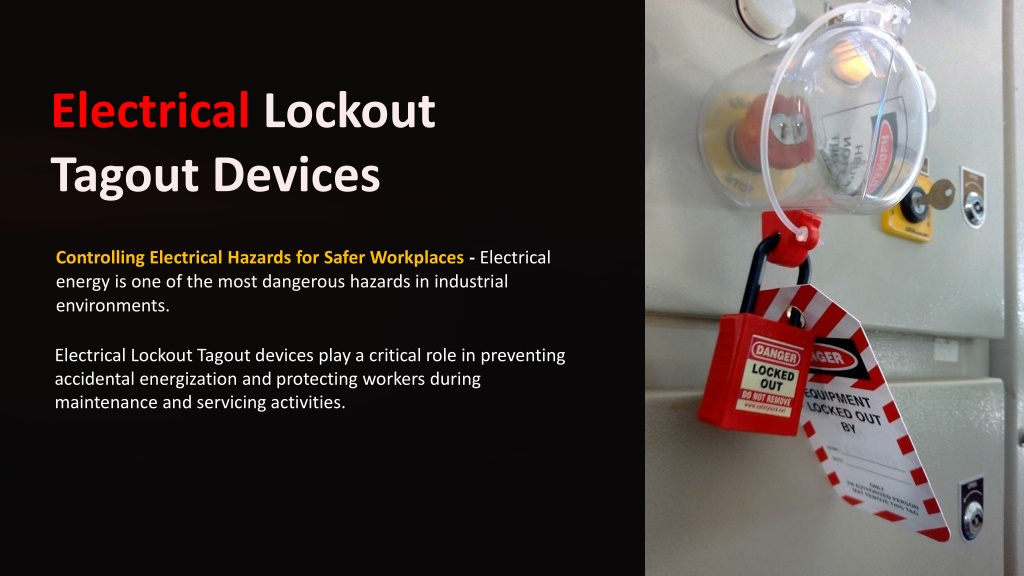

  1. ElectricalLockout Tagout Devices Controlling Electrical Hazards for Safer Workplaces - Electrical energy is one of the most dangerous hazards in industrial environments. Electrical Lockout Tagout devices play a critical role in preventing accidental energization and protecting workers during maintenance and servicing activities. www.safetylock.net

  2. The HiddenDangers of Electrical Energy Electrical energy represents one of the most lethal hazards in industrial settings, capable of causing electric shock, severe burns, devastating arc flash incidents, and workplace fatalities. High-Risk Areas • Circuit breakers and electrical panels • Control switches and push buttons Many accidents occur during servicing activities when electrical equipment isn't properly isolated from energy sources. • Plugs, sockets, and power connections • Distribution boards and switchgear

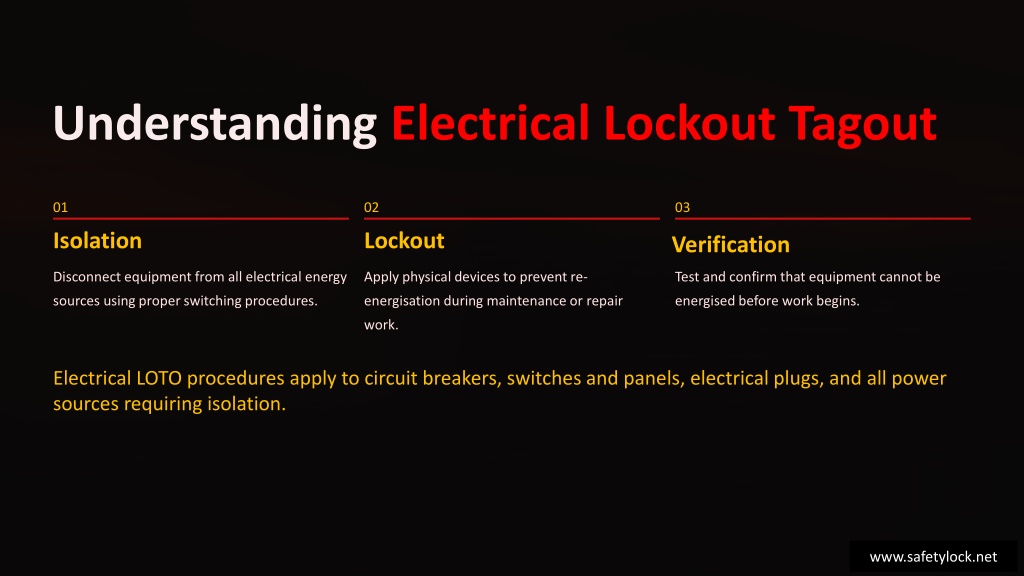

  3. Understanding ElectricalLockout Tagout 01 02 03 Isolation Lockout Verification Disconnect equipment from all electrical energy sources using proper switching procedures. Apply physical devices to prevent re-energisation during maintenance or repair work. Test and confirm that equipment cannot be energised before work begins. Electrical LOTO procedures apply to circuit breakers, switches and panels, electrical plugs, and all power sources requiring isolation. www.safetylock.net

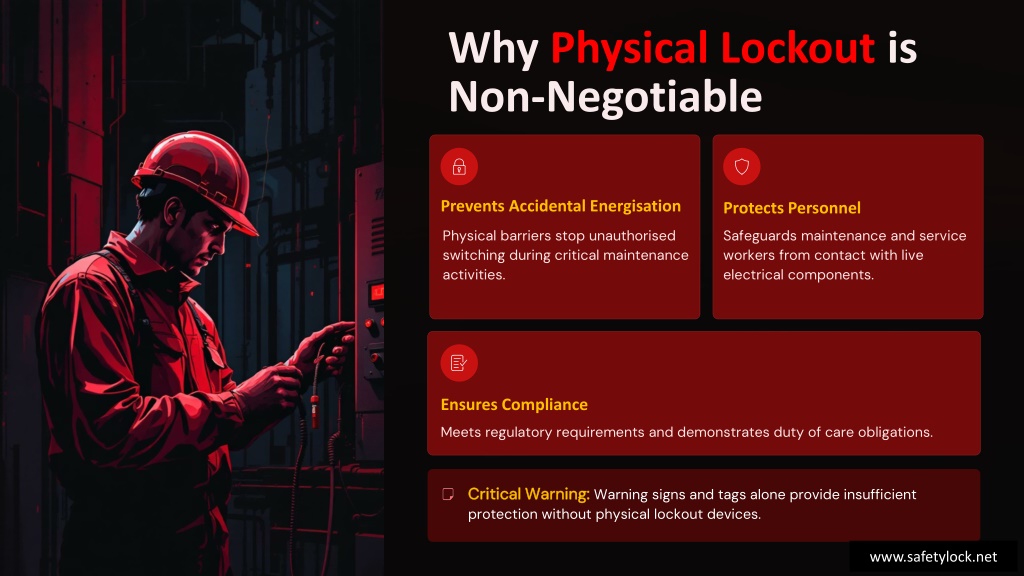

  4. Why Physical Lockout is Non-Negotiable Prevents Accidental Energisation Protects Personnel Physical barriers stop unauthorised switching during critical maintenance activities. Safeguards maintenance and service workers from contact with live electrical components. Ensures Compliance Meets regulatory requirements and demonstrates duty of care obligations. Critical Warning:Warning signs and tags alone provide insufficient protection without physical lockout devices. www.safetylock.net

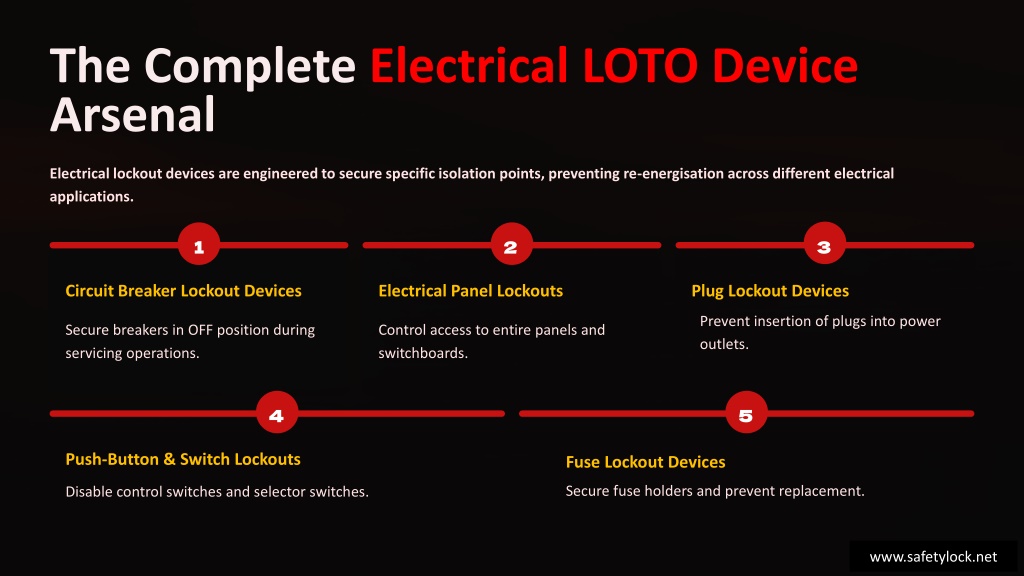

  5. The Complete ElectricalLOTO Device Arsenal Electrical lockout devices are engineered to secure specific isolation points, preventing re-energisation across different electrical applications. 1 2 3 Circuit Breaker Lockout Devices Electrical Panel Lockouts Plug Lockout Devices Prevent insertion of plugs into power outlets. Secure breakers in OFF position during servicing operations. Control access to entire panels and switchboards. 4 5 Push-Button & Switch Lockouts Fuse Lockout Devices Secure fuse holders and prevent replacement. Disable control switches and selector switches. www.safetylock.net

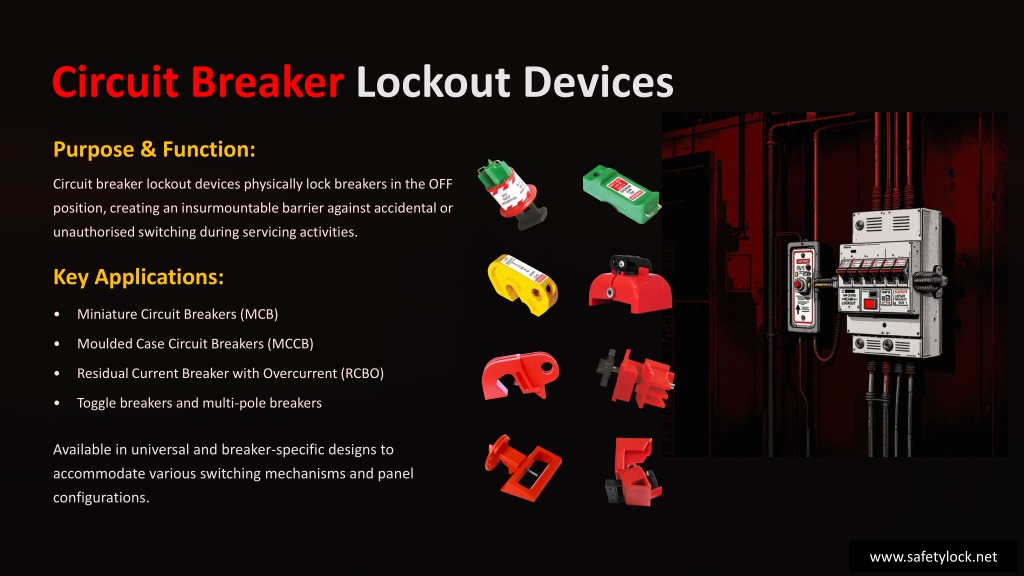

  6. Circuit BreakerLockoutDevices Purpose & Function: Circuit breaker lockout devices physically lock breakers in the OFF position, creating an insurmountable barrier against accidental or unauthorised switching during servicing activities. Key Applications: • Miniature Circuit Breakers (MCB) • Moulded Case Circuit Breakers (MCCB) • Residual Current Breaker with Overcurrent (RCBO) • Toggle breakers and multi-pole breakers Available in universal and breaker-specific designs to accommodate various switching mechanisms and panel configurations. www.safetylock.net

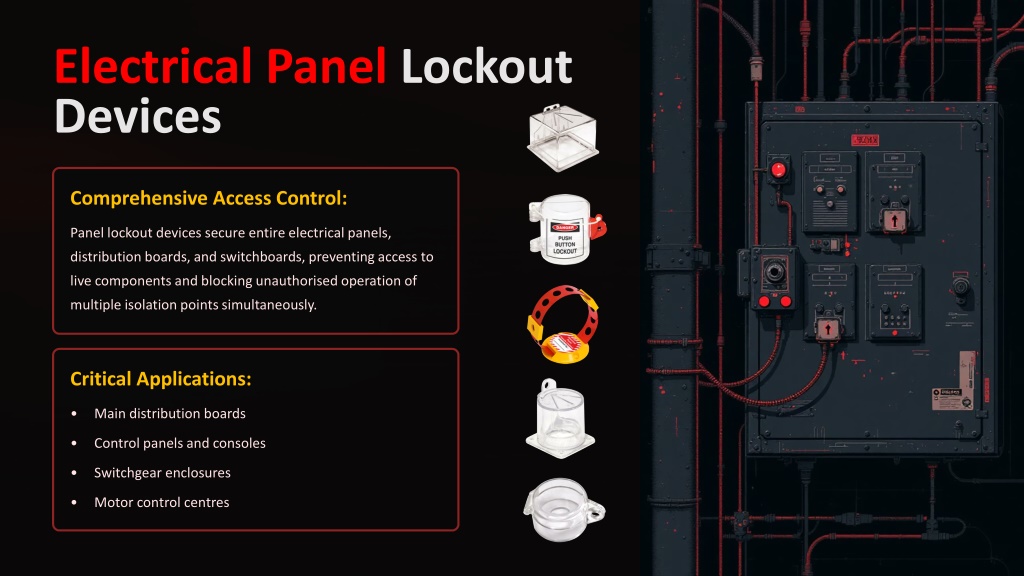

  7. Electrical Panel Lockout Devices Comprehensive Access Control: Panel lockout devices secure entire electrical panels, distribution boards, and switchboards, preventing access to live components and blocking unauthorised operation of multiple isolation points simultaneously. Critical Applications: • Main distribution boards • Control panels and consoles • Switchgear enclosures • Motor control centres

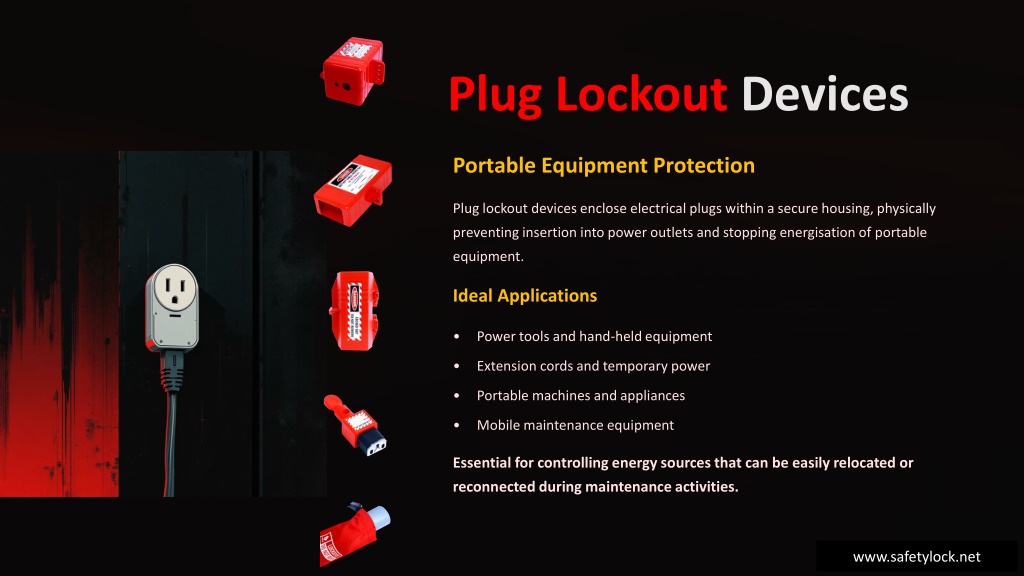

  8. Plug LockoutDevices Portable Equipment Protection Plug lockout devices enclose electrical plugs within a secure housing, physically preventing insertion into power outlets and stopping energisation of portable equipment. Ideal Applications • Power tools and hand-held equipment • Extension cords and temporary power • Portable machines and appliances • Mobile maintenance equipment Essential for controlling energy sources that can be easily relocated or reconnected during maintenance activities. www.safetylock.net

  9. Push-Button & SwitchLockout Devices Push-Button Lockouts Selector Switch Lockouts Secure emergency stop buttons, start/stop controls, and momentary switches on control panels and machinery interfaces. Prevent operation of rotary switches, selector switches, and multi-position controls during de-energisation procedures. These devices maintain equipment in a safe, de-energised state throughout maintenance and repair operations, preventing inadvertent activation. www.safetylock.net

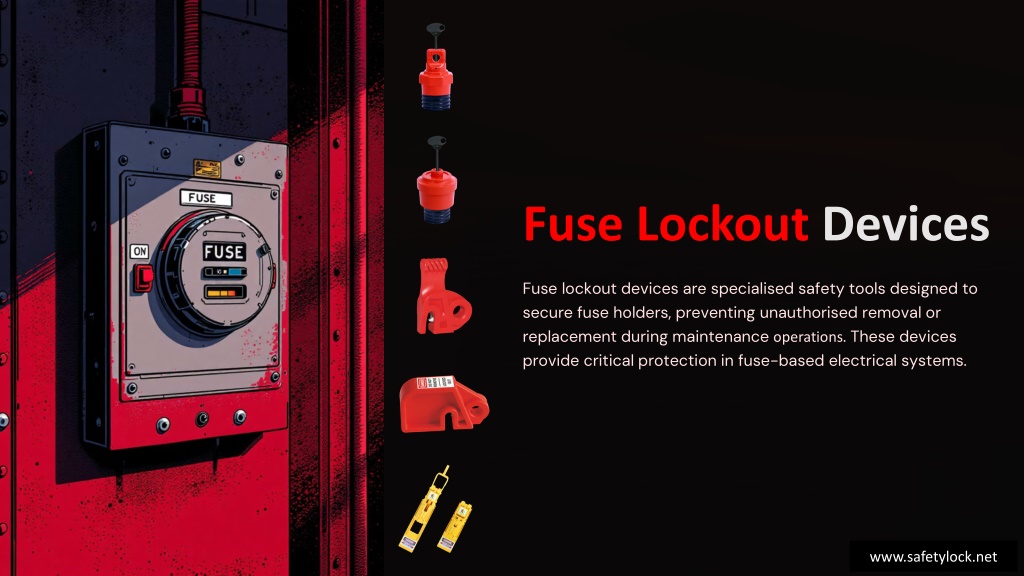

  10. Fuse LockoutDevices Fuse lockout devices are specialised safety tools designed to secure fuse holders, preventing unauthorised removal or replacement during maintenance operations. These devices provide critical protection in fuse-based electrical systems. www.safetylock.net

  11. Where Fuse LockoutDevices Are Used Fuse Boxes Control Circuits Legacy Systems Primary application in industrial and commercial fuse box installations where circuits must be isolated safely. Essential for protecting workers servicing control systems and automated equipment with fused connections. Critical for maintaining safety standards in older electrical installations still relying on fuse-based protection. www.safetylock.net

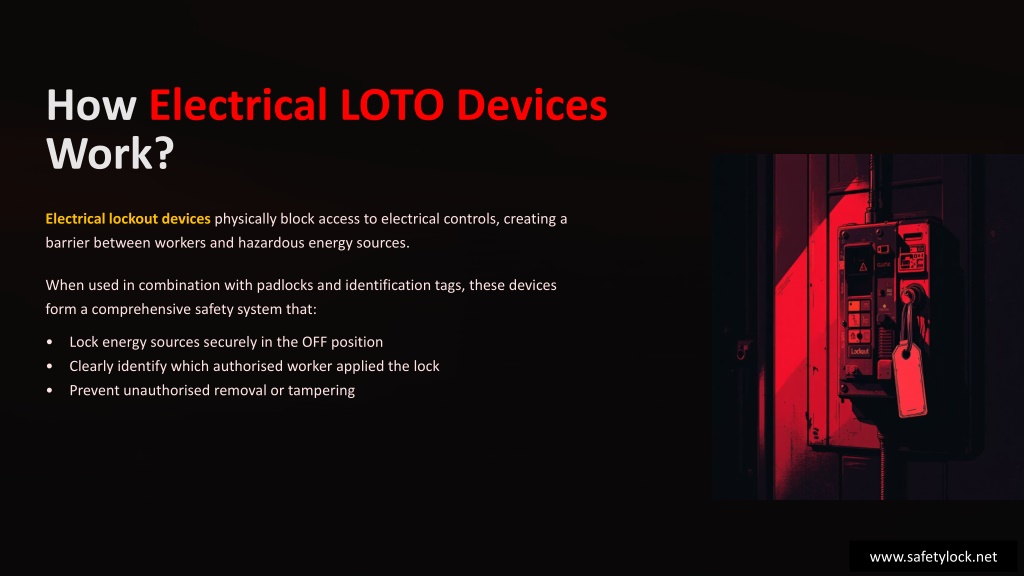

  12. HowElectrical LOTO Devices Work? Electrical lockout devices physically block access to electrical controls, creating a barrier between workers and hazardous energy sources. When used in combination with padlocks and identification tags, these devices form a comprehensive safety system that: • Lock energy sources securely in the OFF position • Clearly identify which authorised worker applied the lock • Prevent unauthorised removal or tampering www.safetylock.net

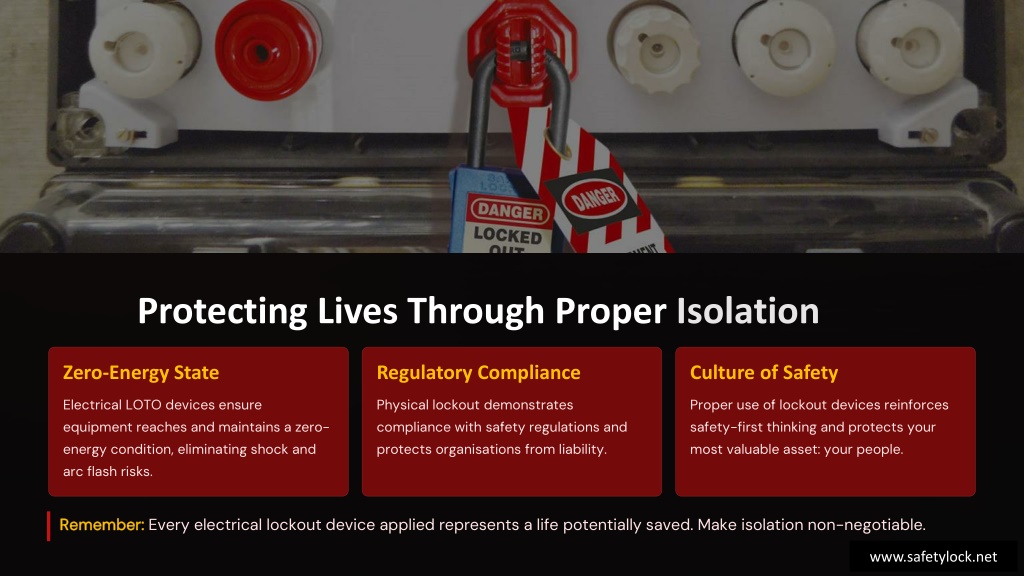

  13. Protecting Lives Through Proper Isolation Zero-Energy State Regulatory Compliance Culture of Safety Electrical LOTO devices ensure equipment reaches and maintains a zero-energy condition, eliminating shock and arc flash risks. Physical lockout demonstrates compliance with safety regulations and protects organisations from liability. Proper use of lockout devices reinforces safety-first thinking and protects your most valuable asset: your people. Remember: Every electrical lockout device applied represents a life potentially saved. Make isolation non-negotiable. www.safetylock.net

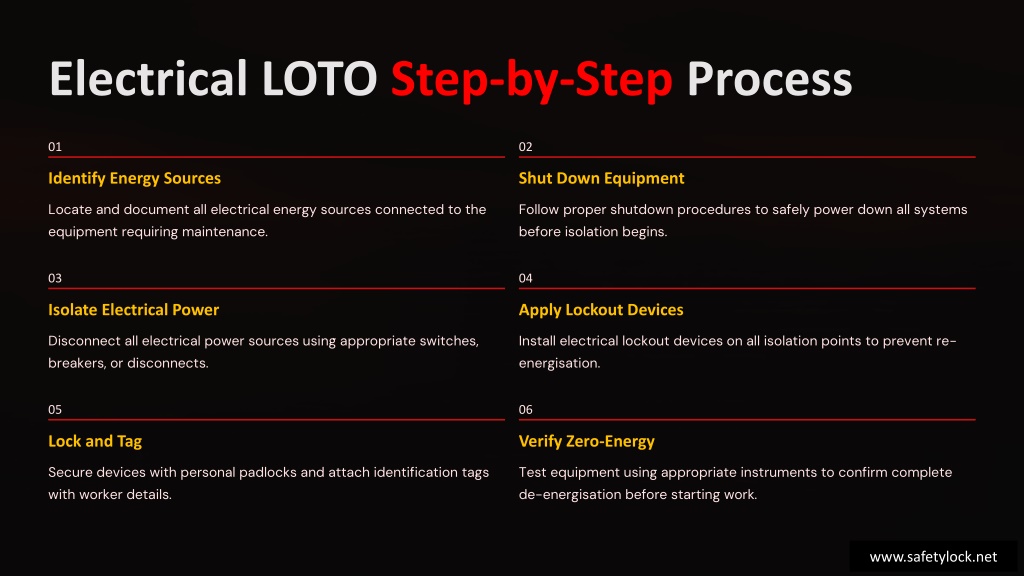

  14. Electrical LOTOStep-by-StepProcess 01 02 Identify Energy Sources Shut Down Equipment Locate and document all electrical energy sources connected to the equipment requiring maintenance. Follow proper shutdown procedures to safely power down all systems before isolation begins. 03 04 Isolate Electrical Power Apply Lockout Devices Disconnect all electrical power sources using appropriate switches, breakers, or disconnects. Install electrical lockout devices on all isolation points to prevent re-energisation. 05 06 Lock and Tag Verify Zero-Energy Secure devices with personal padlocks and attach identification tags with worker details. Test equipment using appropriate instruments to confirm complete de-energisation before starting work. www.safetylock.net

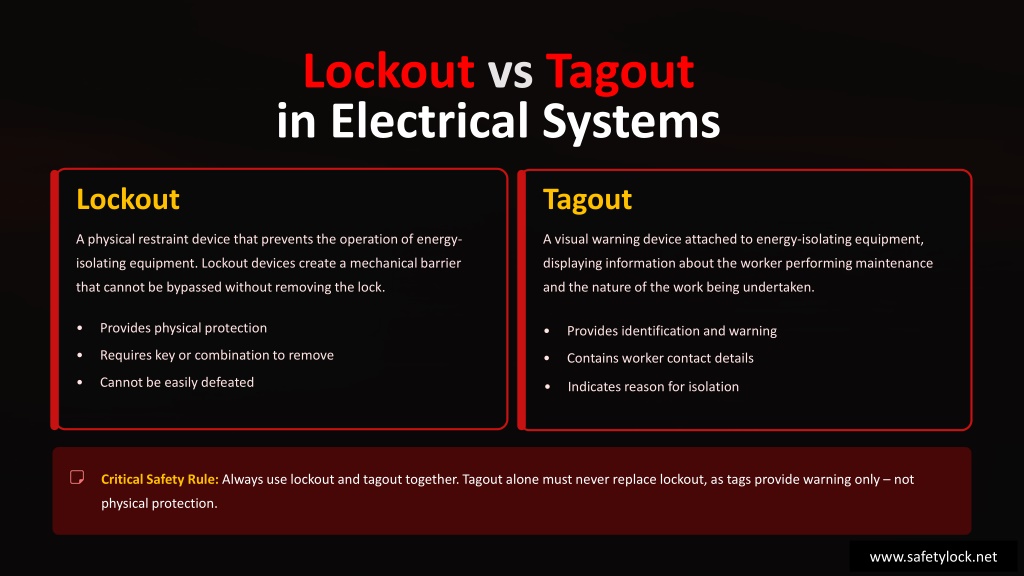

  15. LockoutvsTagout in Electrical Systems Lockout Tagout A physical restraint device that prevents the operation of energy-isolating equipment. Lockout devices create a mechanical barrier that cannot be bypassed without removing the lock. A visual warning device attached to energy-isolating equipment, displaying information about the worker performing maintenance and the nature of the work being undertaken. • Provides physical protection • Provides identification and warning • Requires key or combination to remove • Contains worker contact details • Cannot be easily defeated • Indicates reason for isolation Critical Safety Rule:Always use lockout and tagout together. Tagout alone must never replace lockout, as tags provide warning only – not physical protection. www.safetylock.net

  16. Who Is Authorised to Perform ElectricalLOTO? Electrical LOTO implementation involves clearly defined roles and responsibilities. Understanding these roles ensures accountability and maintains the integrity of safety systems. Authorised Employees Affected Employees Other Personnel Trained personnel qualified to apply lockout devices, verify isolation, and perform maintenance work on de-energised equipment. Workers who operate equipment or work in areas where LOTO procedures are being implemented. Must be notified before procedures begin. All other employees and contractors must recognise and respect lockout devices. Never attempt to remove or bypass LOTO equipment. www.safetylock.net

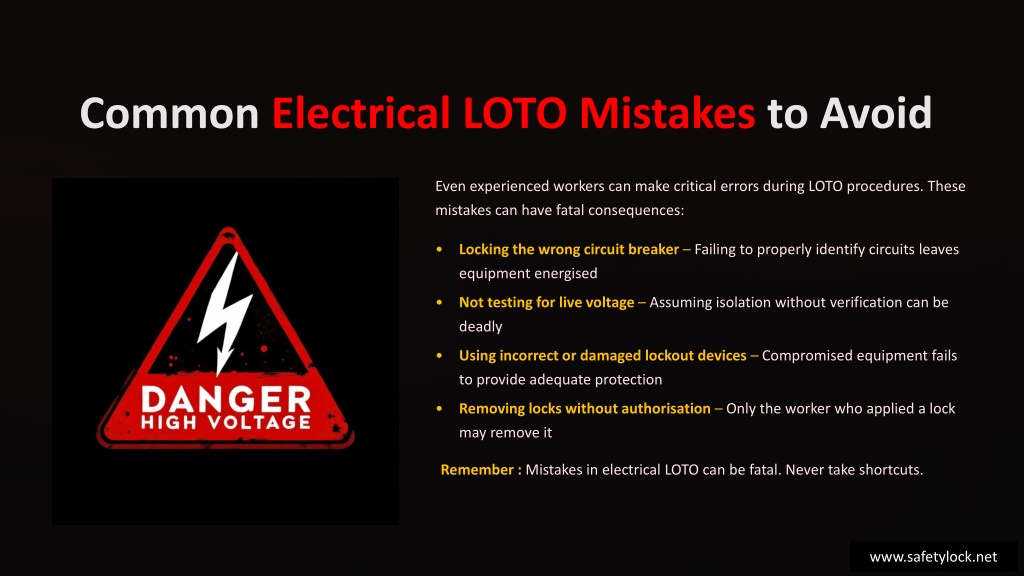

  17. Common Electrical LOTO Mistakes to Avoid Even experienced workers can make critical errors during LOTO procedures. These mistakes can have fatal consequences: • Locking the wrong circuit breaker – Failing to properly identify circuits leaves equipment energised • Not testing for live voltage – Assuming isolation without verification can be deadly • Using incorrect or damaged lockout devices – Compromised equipment fails to provide adequate protection • Removing locks without authorisation – Only the worker who applied a lock may remove it Remember : Mistakes in electrical LOTO can be fatal. Never take shortcuts. www.safetylock.net

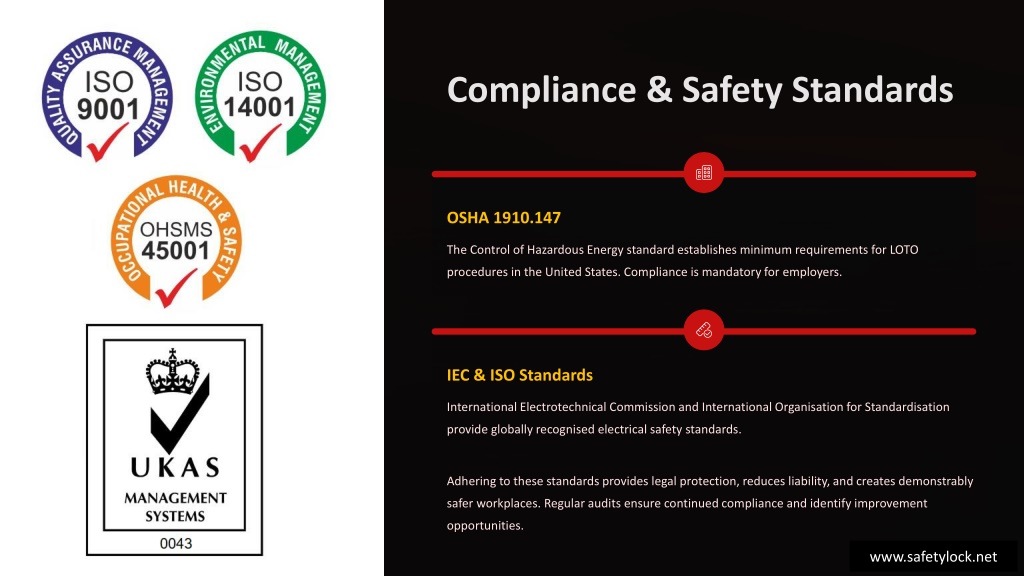

  18. Compliance & Safety Standards OSHA 1910.147 The Control of Hazardous Energy standard establishes minimum requirements for LOTO procedures in the United States. Compliance is mandatory for employers. IEC & ISO Standards International Electrotechnical Commission and International Organisation for Standardisation provide globally recognised electrical safety standards. Adhering to these standards provides legal protection, reduces liability, and creates demonstrably safer workplaces. Regular audits ensure continued compliance and identify improvement opportunities. www.safetylock.net

  19. Best Practices for Electrical LOTO Safety Standardise Devices Colour-Code & Label Use consistent, approved electrical lockout devices across all facilities. Standardisation reduces confusion and improves compliance rates. Implement colour-coded locks and comprehensive labelling systems. Visual identification speeds recognition and prevents mix-ups. Train Regularly Inspect & Audit Conduct ongoing training for all authorised and affected employees. Skills deteriorate without practice and refresher courses. Perform routine inspections of lockout devices and periodic audits of LOTO procedures. Identify deficiencies before incidents occur. Consistency strengthens electrical safety systems. When best practices become standard operating procedures, safety becomes embedded in workplace culture. www.safetylock.net

  20. The Benefits of Proper Electrical LOTO Implementing comprehensive electrical lockout tagout procedures delivers measurable improvements across multiple dimensions of workplace performance: 40% 95% 85% Accident Reduction Efficiency Gain Worker Confidence Structured procedures improve maintenance efficiency, reducing downtime by an average of 40% Properly implemented LOTO programmes can reduce electrical accidents and injuries by up to 85% Employees report significantly higher confidence levels when working with properly isolated equipment Safety and Productivity Work Together: Electrical lockout tagout devices are essential tools for controlling electrical hazards. By selecting appropriate devices and following proper procedures, organisations protect lives, equipment, and operations. Electrical safety is a responsibility - not an option.
