  1. Introduction to SNP and Haplotype Analysis Yao-Ting Huang Kun-Mao Chao Algorithms and Computational Biology Lab, Department of Computer Science & Information Engineering, National Taiwan University, Taiwan.

  2. Genetic Variations • The genetic variations in DNA sequences (e.g., insertions, deletions, and mutations) have a major impact on genetic diseases and phenotypic differences. • All humans share 99% the same DNA sequence. • The genetic variations in the coding region may change the codon of an amino acid and alters the amino acid sequence.

  3. Single Nucleotide Polymorphism • A Single Nucleotide Polymorphisms (SNP), pronounced “snip,” is a genetic variation when a single nucleotide (i.e., A, T, C, or G) is altered and kept through heredity. • SNP: Single DNA base variation found >1% • Mutation: Single DNA base variation found <1% C T T A G C T T C T T A G C T T 99.9% 94% C T T A G T T T C T T A G T T T 0.1% 6% SNP Mutation

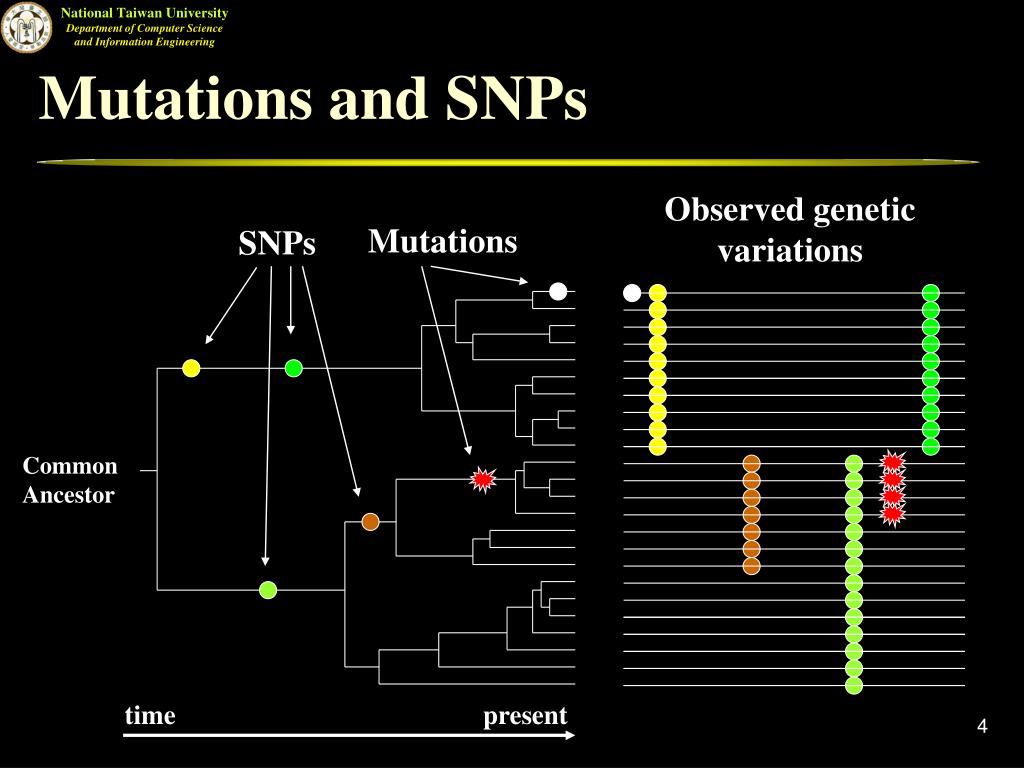

  4. Mutations SNPs time present Mutations and SNPs Observed genetic variations Common Ancestor

  5. Single Nucleotide Polymorphism • SNPs are the most frequent form among various genetic variations. • 90% of human genetic variations come from SNPs. • SNPs occur about every 300~600 base pairs. • Millions of SNPs have been identified (e.g., HapMap and Perlegen). • SNPs have become the preferred markers for association studies because of their high abundance and high-throughput SNP genotyping technologies.

  6. Single Nucleotide Polymorphism A SNP is usually assumed to be a binary variable. The probability of repeat mutation at the same SNP locus is quite small. The tri-allele cases are usually considered to be the effect of genotyping errors. The nucleotide on a SNP locus is called a major allele (if allele frequency > 50%), or a minor allele (if allele frequency < 50%). A C T T A G C T T T: Major allele 94% C: Minor allele A C T T A G C T C 6%

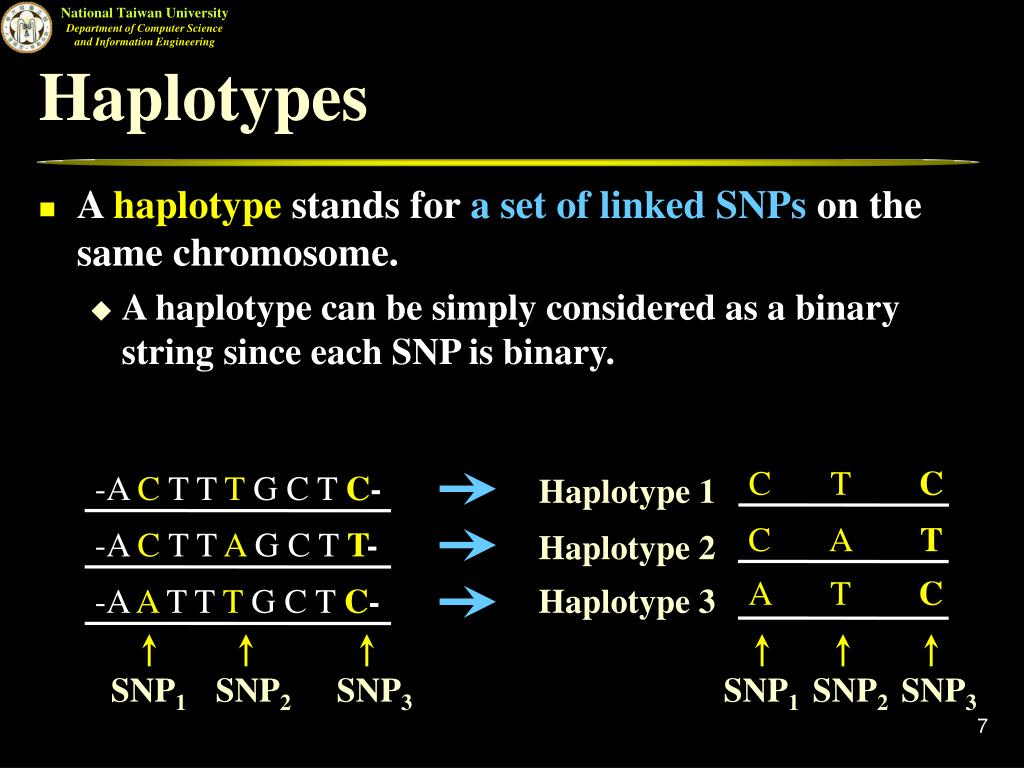

  7. CTC Haplotype 1 -A C T T A G C T T- -A C T T T G C T C- CAT Haplotype 2 ATC -A A T T T G C T C- Haplotype 3 SNP1 SNP2 SNP3 SNP1 SNP2 SNP3 Haplotypes • A haplotype stands for a set of linked SNPs on the same chromosome. • A haplotype can be simply considered as a binary string since each SNP is binary.

  8. A G C T A T A T AC GT C G C G SNP1 SNP2 SNP1 SNP2 SNP1 SNP2 SNP1 SNP2 Haplotype data Genotype data Genotypes • The use of haplotype information has been limited because the human genome is a diploid. • In large sequencing projects, genotypesinstead of haplotypes are collected due to cost consideration.

  9. A G C T AC GT SNP1 SNP2 SNP1 SNP2 Genotype data A G A T C T C G SNP1 SNP2 SNP1 SNP2 Problems of Genotypes • Genotypesonly tell us the alleles at each SNP locus. • But we don’t know the connection of alleles at different SNP loci. • There could be several possible haplotypes for the same genotype. or We don’t know which haplotype pair is real.

  10. Research Directions of SNPs and Haplotypes in Recent Years SNPDatabase HaplotypeInference Tag SNPSelection … MaximumParsimony Perfect Phylogeny Statistical Methods Haplotype block LD bin PredictionAccuracy

  11. Haplotype Inference • The problem of inferring the haplotypes from a set of genotypes is called haplotype inference. • This problem is already known to be not only NP-hard but also APX-hard. • Most combinatorial methods consider the maximum parsimony model to solve this problem. • This model assumes that the real haplotypes in natural population is rare. • The solution of this problem is a minimum set of haplotypesthat can explain the given genotypes.

  12. A G A T A A G h3 h1 G1 T A C C T C G h4 h2 SNP1 SNP2 A T h1 T G2 A T T h1 SNP1 SNP2 A T A G C G C T A T Maximum Parsimony • Find a minimum set of haplotypes to explain the given genotypes. or

  13. Related Works • Statistical methods: • Niu, et al. (2002) developed a PL-EM algorithm called HAPLOTYPER. • Stephens and Donnelly (2003) designed a MCMC algorithm based on Gibbs sampling called PHASE. • Combinatorial methods: • Gusfield (2003) proposed an integer linear programming algorithm. • Wang and Xu (2003) developed a branching and bound algorithm called HAPAR to find the optimal solution. • Brown and Harrower (2004) proposed a new integer linear formulation of this problem.

  14. Our Results • We formulated this problem as an integer quadratic programming (IQP) problem. • Weproposed an iterative semidefinite programming (SDP) relaxation algorithm to solve the IQP problem. • This algorithm finds a solution of O(log n) approximation. • We implemented this algorithm in MatLab and compared with existing methods. • Huang, Y.-T., Chao, K.-M., and Chen, T., 2005, “An Approximation Algorithm for Haplotype Inference by Maximum Parsimony,” Journal of Computational Biology, 12: 1261-1274.

  15. A A T T A A G h1 h1 G1 T C A C C G G h2 h2 SNP1 SNP2 A T h1 T G2 A T T h1 SNP1 SNP2 Problem Formulation • Input: • A set of n genotypes and m possible haplotypes. • Output: • A minimum set of haplotypes that can explain the given genotypes.

  16. Integer Quadratic Programming (IQP) • Define xi as an integer variable with values 1 or -1. • xi = 1 if the i-th haplotype is selected. • xi = -1 if the i-th haplotype is not selected. • Minimizing the number of selected haplotypes is to minimize the following integer quadratic function:

  17. A C 1 1 G1 SNP1 SNP2 A A T G G h3 h1 T C C G T h2 h4 Integer Quadratic Programming (IQP) • Each genotype must be resolved by at least one pair of haplotypes. • For genotype G1, the following integer quadratic function must be satisfied. Suppose h1 and h2 are selected or

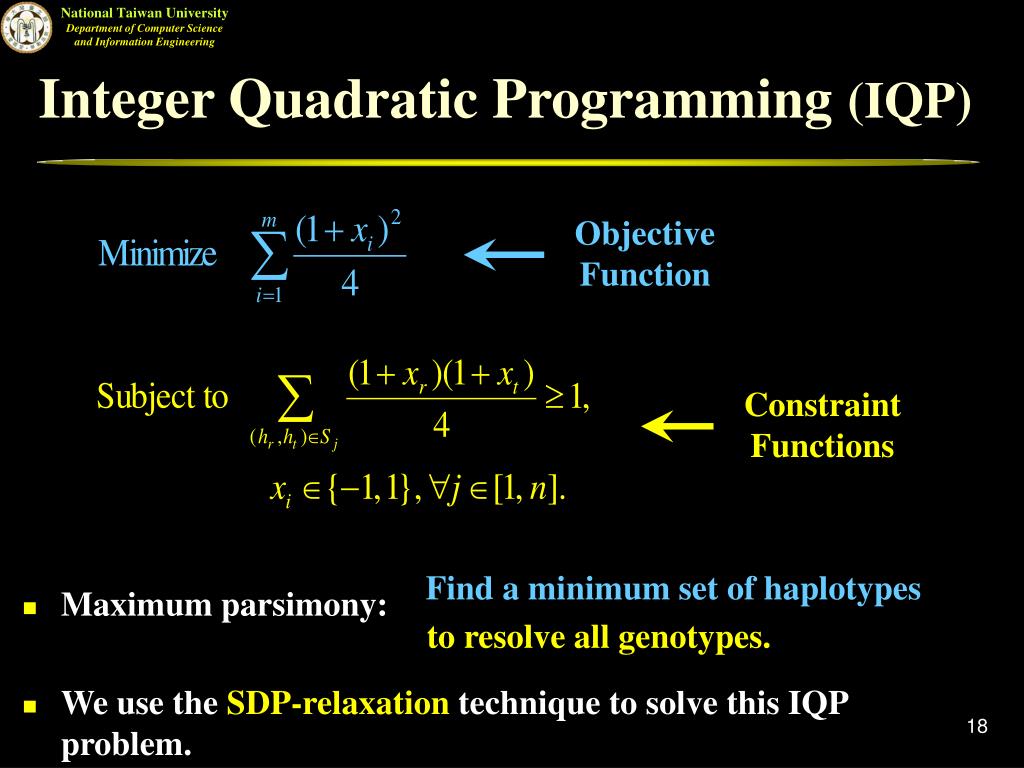

  18. Objective Function Constraint Functions Integer Quadratic Programming (IQP) • Maximum parsimony: • We use the SDP-relaxation technique to solve this IQP problem. Find a minimum set of haplotypes to resolve all genotypes.

  19. NP-hard P Relax the integer constraint Reformulation No, repeat this algorithm. Existing SDP solver All genotypesresolved? Yes, done. Randomizedrounding IncompleteCholeskydecomposition The Flow of the Iterative SDP Relaxation Algorithm Integer Quadratic Programming Vector Formulation Semidefinite Programming Vector Solution SDP Solution Integral Solution

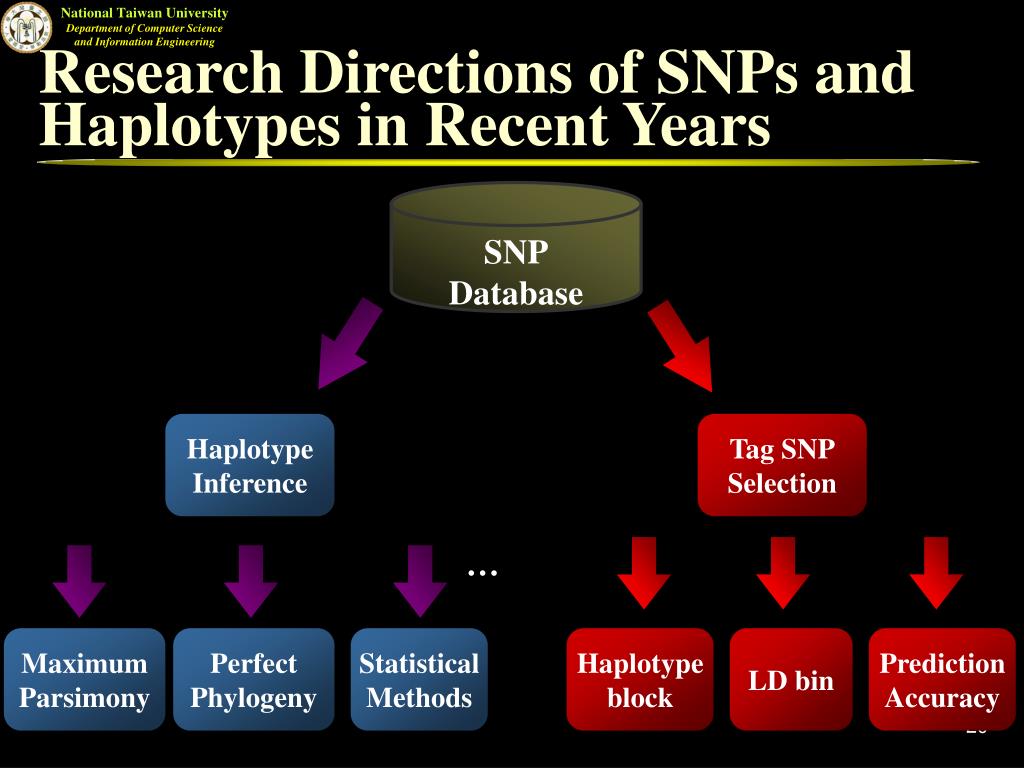

  20. Research Directions of SNPs and Haplotypes in Recent Years SNPDatabase HaplotypeInference Tag SNPSelection … MaximumParsimony Perfect Phylogeny Statistical Methods Haplotype block LD bin PredictionAccuracy

  21. Problems of Using SNPs for Association Studies • The number of SNPs is still too large to be used for association studies. • There are millions of SNPs in a human body. • To reduce the SNP genotyping cost, we wish to use as few SNPs as possible for association studies. • Tag SNPs are a small subset of SNPs that is sufficient for performing association studies without losing the power of using all SNPs. • There are many definitions of tag SNPs. • We will first study one definition of tag SNPs based on haplotype blocks model.

  22. Haplotype Blocks and Tag SNPs • Recent studies have shown that the chromosome can be partitioned into haplotype blocks interspersed by recombination hotspots (Daly et al, Patil et al.). • Within a haplotype block, there is little or no recombination occurred. • The SNPs within a haplotype block tend to be inherited together. • Within a haplotype block, a small subset of SNPs (called tag SNPs) is sufficient to distinguish each pair of haplotype patterns in the block. • We only need to genotype tag SNPs instead of all SNPs within a haplotype block.

  23. Haplotype patterns P1 P2 P3 P4 Recombinationhotspots S1 S2 S3 S4 : Major allele Haplotypeblocks S5 SNP loci S6 : Minor allele S7 S8 S9 S10 S11 S12 Chromosome Recombination Hotspots and Haplotype Blocks

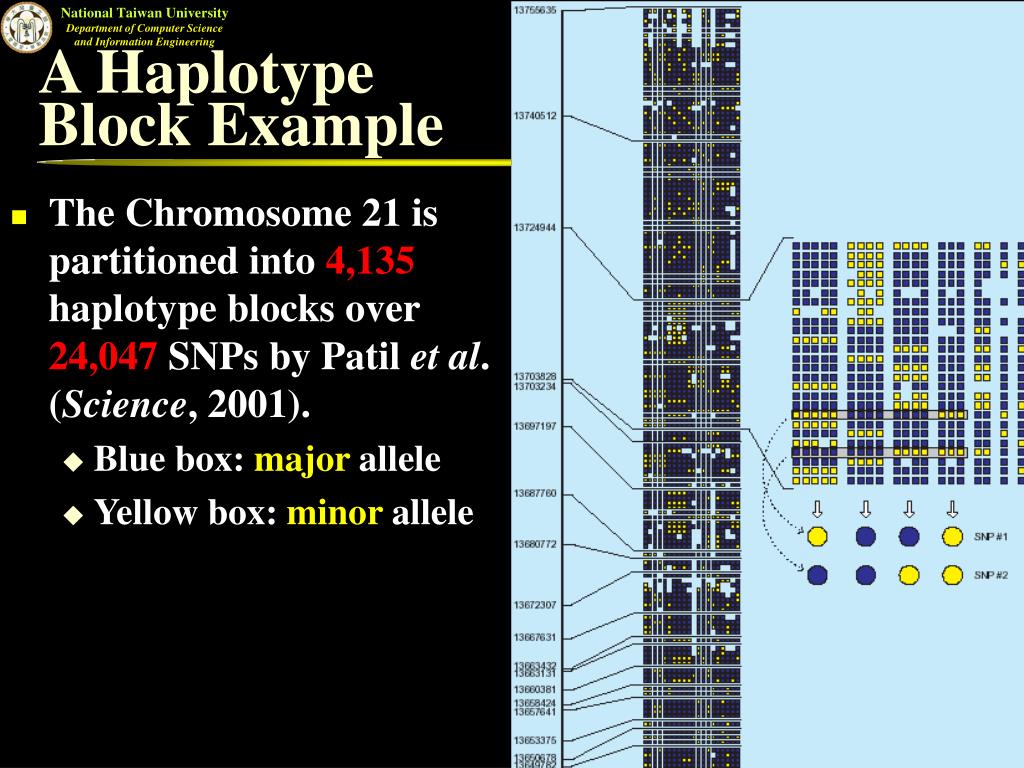

  24. A Haplotype Block Example • The Chromosome 21 is partitioned into 4,135 haplotype blocks over 24,047 SNPs by Patil et al. (Science, 2001). • Blue box:major allele • Yellow box:minor allele

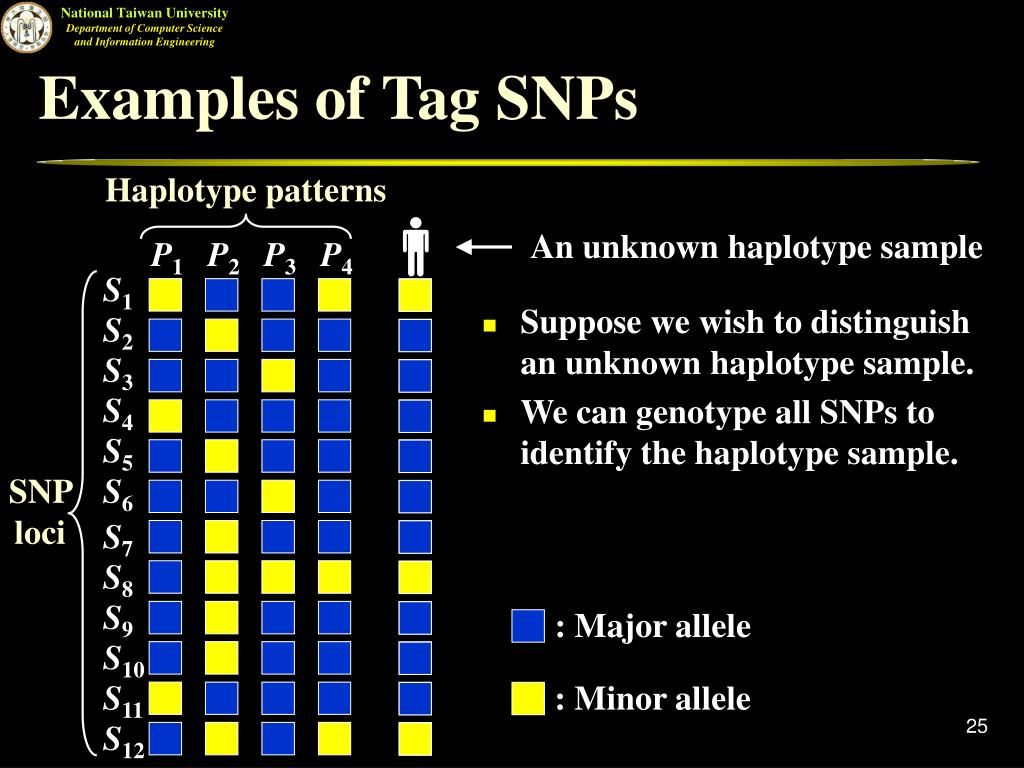

  25. Examples of Tag SNPs Haplotype patterns An unknown haplotype sample P1 P2 P3 P4 S1 • Suppose we wish to distinguish an unknown haplotype sample. • We can genotype all SNPs to identify the haplotype sample. S2 S3 S4 S5 S6 SNP loci S7 S8 S9 : Major allele S10 S11 : Minor allele S12

  26. Examples of Tag SNPs Haplotype pattern P1 P2 P3 P4 S1 • In fact, it is not necessary to genotype all SNPs. • SNPs S3, S4, and S5 can form a set of tag SNPs. S2 S3 S4 S5 S6 SNP loci P1 P2 P3 P4 S7 S8 S3 S9 S4 S10 S5 S11 S12

  27. Examples of Wrong Tag SNPs Haplotype pattern P1 P2 P3 P4 S1 • SNPsS1, S2, and S3 can not form a set of tag SNPs because P1 and P4 will be ambiguous. S2 S3 S4 S5 S6 SNP loci P1 P2 P3 P4 S7 S1 S8 S2 S9 S3 S10 S11 S12

  28. Examples of Tag SNPs Haplotype pattern • SNPs S1 and S12 can form a set of tag SNPs. • This set of SNPs is the minimum solution in this example. P1 P2 P3 P4 S1 S2 S3 S4 S5 S6 SNP loci S7 S8 P1 P2 P3 P4 S9 S1 S10 S12 S11 S12

  29. S3 S4 S2 There are pairs of patterns. Problem Formulation P1 P2 P3 P4 • The relation between SNPs and haplotypes can be formulated as a bipartite graph. • S1can distinguish (P1, P3), (P1, P4), (P2, P3), and (P2, P4). • S2 can distinguish (P1, P4), (P2, P4), (P3, P4). S1 S2 S3 S4 S1 (1,2) (1,3) (1,4) (2,3) (2,4) (3,4)

  30. P1 P2 P3 P4 S1 S2 S3 S1 S3 S4 S2 Observation • The SNPs can form a set of tag SNPs ifeach pair of patterns is connected by at least one edge. • e.g., S1 and S3 can form a set of tag SNPs. • e.g., S1 and S2 can not be tag SNPs. (1,2) (1,3) (1,4) (2,3) (2,4) (3,4) Each pair of patterns is connected by at least one edge.

  31. Problems of Finding Tag SNPs • The problem of finding the minimum set of tag SNPs is known to be NP-hard. • This problem is the minimum test set problem. • A number of methods have been proposed to find the minimum set of tag SNPs (Bafna et al., Zhang, et al.). • In reality, we may fail to obtain some tag SNPs if they do not pass the threshold of data quality. • In the current genotyping environment, the missing rate of SNPs is around 5~10%. • We proposed two greedy algorithms and one linear programming relaxation algorithm to solve this problem.

  32. References: • Huang, Y.-T., Zhang, K., Chen, T. and Chao, K.-M., 2005, “Selecting Additional Tag SNPs for Tolerating Missing Data in Genotyping,” BMC Bioinformatics, 6: 263. • Chang, C.-J., Huang, Y.-T., and Chao, K.-M., 2006, “A Greedier Approach for Finding Tag SNPs,” Bioinformatics, 22: 685-691.

  33. Research Directions of SNPs and Haplotypes in Recent Years SNPDatabase HaplotypeInference Tag SNPSelection … MaximumParsimony Perfect Phylogeny Statistical Methods Haplotype block LD bin PredictionAccuracy

  34. Linkage Disequilibrium • The problem of finding tag SNPs can be also solved from the statistical point of view. • We can measure the correlation between SNPs and identify sets of highly correlated SNPs. • For each set of correlated SNPs, only one SNP need to be genotyped and can be used to predict the values of other SNPs. • Linkage Disequilibrium (LD) is a measure that estimates such correlation between two SNPs. • We will formally introduce the detailed information of LD later.

  35. Linkage Disequilibrium Bins • The statistical methods for finding tag SNPs are based on the analysis of LD among all SNPs. • An LD bin is a set of SNPs such that SNPs within the same bin are highly correlated with each other. • The value of a single SNP in one LD bin can predict the values of other SNPs of the same bin. • These methods try to identify the minimum set of LD bins.

  36. An Example of LD Bins (1/3) • SNP1 and SNP2 can not form an LD bin. • e.g., A in SNP1 may imply either G or A in SNP2.

  37. An Example of LD Bins (2/3) • SNP1, SNP2, and SNP3 can form an LD bin. • Any SNP in this bin is sufficient to predict the values of others.

  38. An Example of LD Bins (3/3) • There are three LD bins, and only three tag SNPs are required to be genotyped (e.g., SNP1, SNP2, and SNP4).

  39. Difference between Haplotype Blocks and LD bins • Haplotype blocks are based on the assumption that SNPs in proximity region should tend to be correlated with each other. • The probability of recombination occurs in between is less. • LD bins can group correlated of SNPs distant from each other. • A disease is usually affected by multiple genes instead of single one. • The SNPs in one LD bin can be shared by other bins. • The SNPs in a haplotype block do not appear in another block.

  40. A B a B a b Introduction to Linkage Disequilibrium A, B: major alleles a, b: minor alleles PA: probability for A alleles at SNP1 Pa: probability for a alleles at SNP1 PB: probability for B alleles at SNP2 PB: probability for b alleles at SNP2 PAB: probability for AB haplotypes Pab: probability for ab haplotypes A b SNP2 SNP1

  41. Linkage Equilibrium • PAB = PAPB • PAb = PAPb = PA(1-PB) • PaB = PaPB = (1-PA) PB • Pab = PaPb = (1-PA) (1-PB) SNP2 SNP1

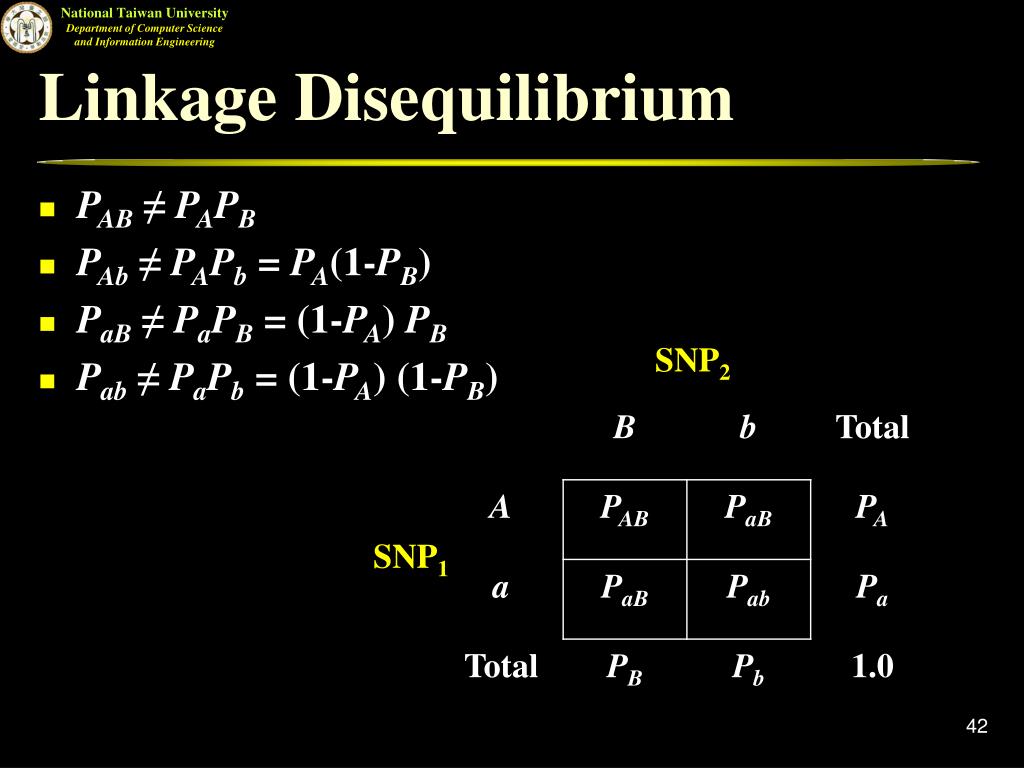

  42. Linkage Disequilibrium • PAB≠ PAPB • PAb≠ PAPb = PA(1-PB) • PaB≠ PaPB = (1-PA) PB • Pab≠ PaPb = (1-PA) (1-PB) SNP2 SNP1

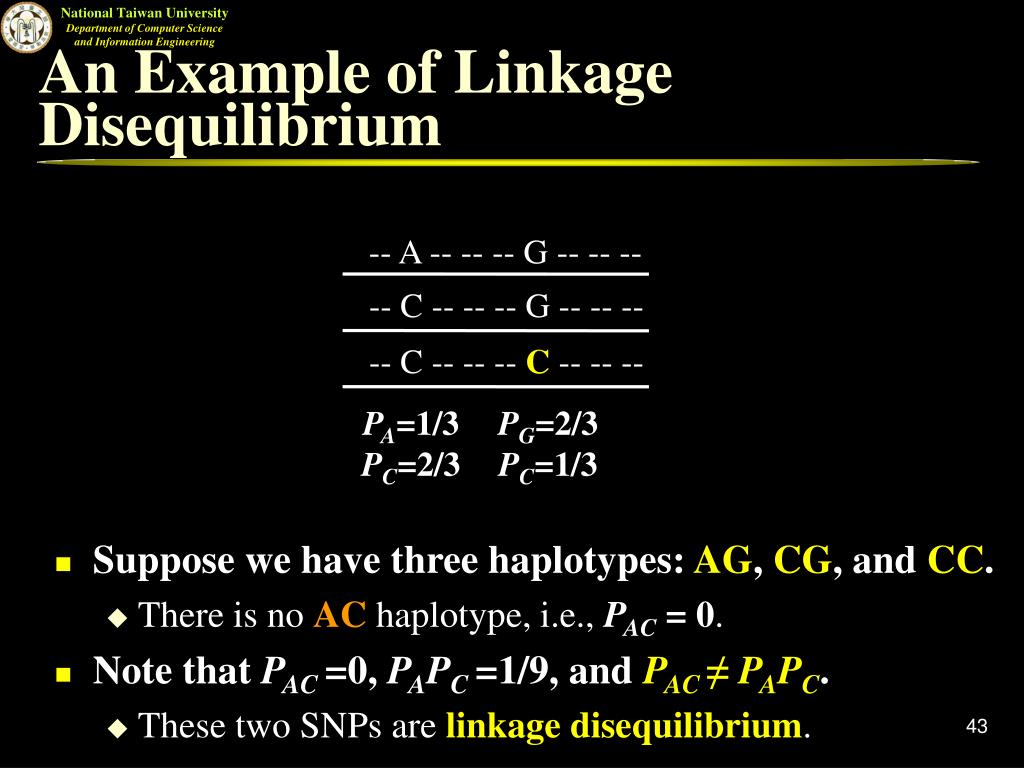

  43. An Example of Linkage Disequilibrium • Suppose we have three haplotypes: AG, CG, and CC. • There is no AC haplotype, i.e., PAC = 0. • Note that PAC=0, PAPC=1/9, and PAC ≠ PAPC. • These two SNPs are linkage disequilibrium. -- A -- -- -- G -- -- -- -- C -- -- -- G -- -- -- -- C -- -- -- C -- -- -- PA=1/3PC=2/3 PG=2/3PC=1/3

  44. An Example of Linkage Equilibrium Before recombination After recombination • After recombination, • PAG = PAPG = 1/4, • PCG = PCPG = 1/4, • PCC = PCPC = 1/4, and • PAC = PAPC = 1/4. • These two SNPs are linkage equilibrium. -- A -- -- -- G -- -- -- -- A -- -- -- G -- -- -- -- C -- -- -- G -- -- -- -- C -- -- -- G -- -- -- -- C -- -- -- C -- -- -- -- C -- -- -- C -- -- -- -- A -- -- -- C -- -- -- PA=1/2PC=1/2 PG=1/2PC=1/2

  45. Linkage Disequilibrium • There are many formulas to compute LD between two SNPs, and most of them areusually normalized between -1~1 or 0~1. • LD = 1 (perfect positive correlation) • LD = 0 (no correlation or linkage equilibrium) • LD = -1 (perfect negative correlation) • LD = 0.8 (strong positive correlation) • LD = 0.12 (weak positive correlation)

  46. Linkage Disequilibrium Formulas • Mathematical formulas for computing LD: • r2 or Δ2: • D’: • Chi-square Test. • P value.

  47. Correlation Coefficient • The correlation between two random variables A and B can be measured by the correaltion coefficient:

  48. Examples of Computing LD

  49. Minimum Clique Cover Problem • This problem asks for a minimum set of LD bins. • The minimum LD value required between two SNPs in one bin is usually set to 0.8. • This problem is known to be the minimum clique cover problem (by Huang and Chao, 2005). • Consider each SNP as nodes on the graph. • There exists an edge between two nodes iff the LD of these two SNPs ≥ 0.8.

  50. Relaxation of This Problem • The minimum clique cover problem is not easy to be approximated. • The relaxed problem asks for a minimum set of LD bins such that at least one SNP in an LD bin has r2≥ 0.8 with other SNPs in the same bin. • The relaxed problem is known to be the minimum dominating set problem. • The minimum dominating set problem is still NP-hard but is easier to be approximated.
