Introduction to Muscle Anatomy

Introduction to Muscle Anatomy. Types of Muscle. 1. Skeletal Elongated Cells Multi nucleated Striated – striped appearance Voluntary Produces powerful contractions Tires easily, needs rest (fatigue). Covers bony skeleton (motility). Longitudinal View

Faraday
Télécharger la présentation

Introduction to Muscle Anatomy

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to Muscle Anatomy

  2. Types of Muscle 1.Skeletal • Elongated Cells • Multi nucleated • Striated – striped appearance • Voluntary • Produces powerful contractions • Tires easily, needs rest (fatigue). • Covers bony skeleton (motility) Longitudinal View Notice striations and nuclei around outside of cell. Cross Section Notice nuclei around outside of cell.

  3. Skeletal Muscle Composite Sketch

  4. 2. Smooth • Spindle-shaped Cell • Single nucleus in each cell • No Striations • Involuntary • Slow, sustained contractions • In hollow visceral organs (stomach, bladder, respiratory passages) Cross Section Nucleus is in center of cell. Cells much smaller.

  5. Smooth Muscle Composite Sketch

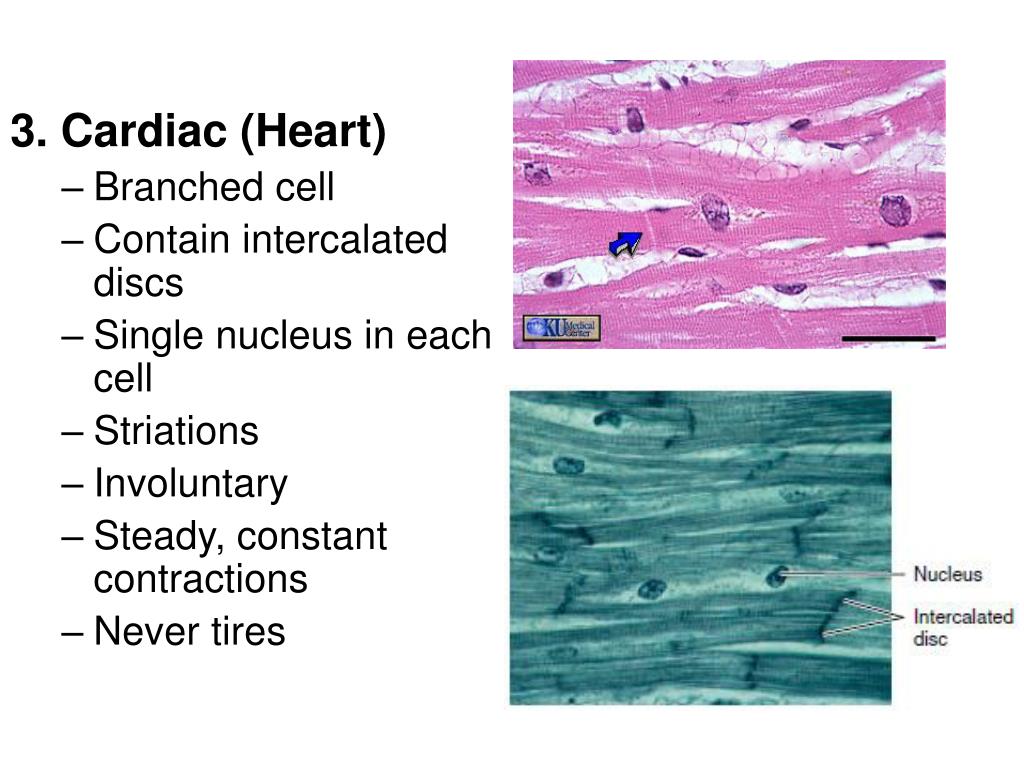

  6. 3. Cardiac (Heart) • Branched cell • Contain intercalated discs • Single nucleus in each cell • Striations • Involuntary • Steady, constant contractions • Never tires

  7. Cardiac Muscle Composite Sketch

  8. Muscle Functions • Produce movement • locomotion & manipulation • Help blood move through veins & food thru small intestines • Maintain posture • Stabilize joints • Body temp homeostasis • Shivering: movement produces heat energy

  9. Muscle Requirements Axon of neuron Motor end plate (terminus) • Demands continuous oxygen/nutrient supply. • Lots of arteries/capillaries to muscle. • Each muscle cell w/ its own nerve ending controlling its activity. • Produce much metabolic waste due to constant activity.

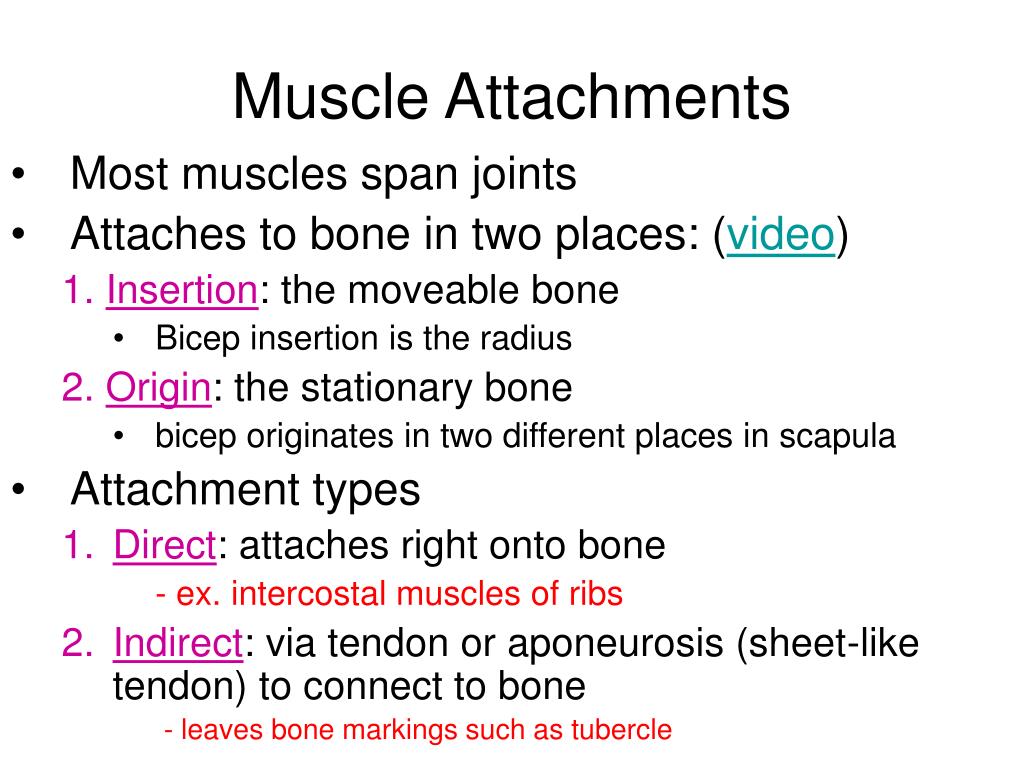

  10. Muscle Attachments • Most muscles span joints • Attaches to bone in two places: (video) 1.Insertion: the moveable bone • Bicep insertion is the radius 2.Origin: the stationary bone • bicep originates in two different places in scapula • Attachment types • Direct: attaches right onto bone - ex. intercostal muscles of ribs • Indirect: via tendon or aponeurosis (sheet-like tendon) to connect to bone - leaves bone markings such as tubercle

  11. Muscle Organization Muscles are complex bundled structures: fibers within fibers

  12. Muscle organization Muscle (organ) Fascicle Muscle fiber (cell) Myofibril Sarcomere Myofilaments: Actin & Myosin

  13. Muscle Fibers • A Muscle Fiber = Muscle Cell • HUGE cell: • 10 - 100m in diameter • can be hundreds of centimeters long (created by cytoplasmic fusion of multiple embryonic cells) • extends the length of the muscle • Main content: bundles of proteins (actin and myosin) • Multinucleated • to maintain high rate of protein synthesis. • Muscle fiber nucleus = myonucleus

  14. Insulation of Muscles • Muscle cells must be insulated from one another by specialized membranes • Muscle cells work electrically • if not insulated, nerves cannot control individual muscles.

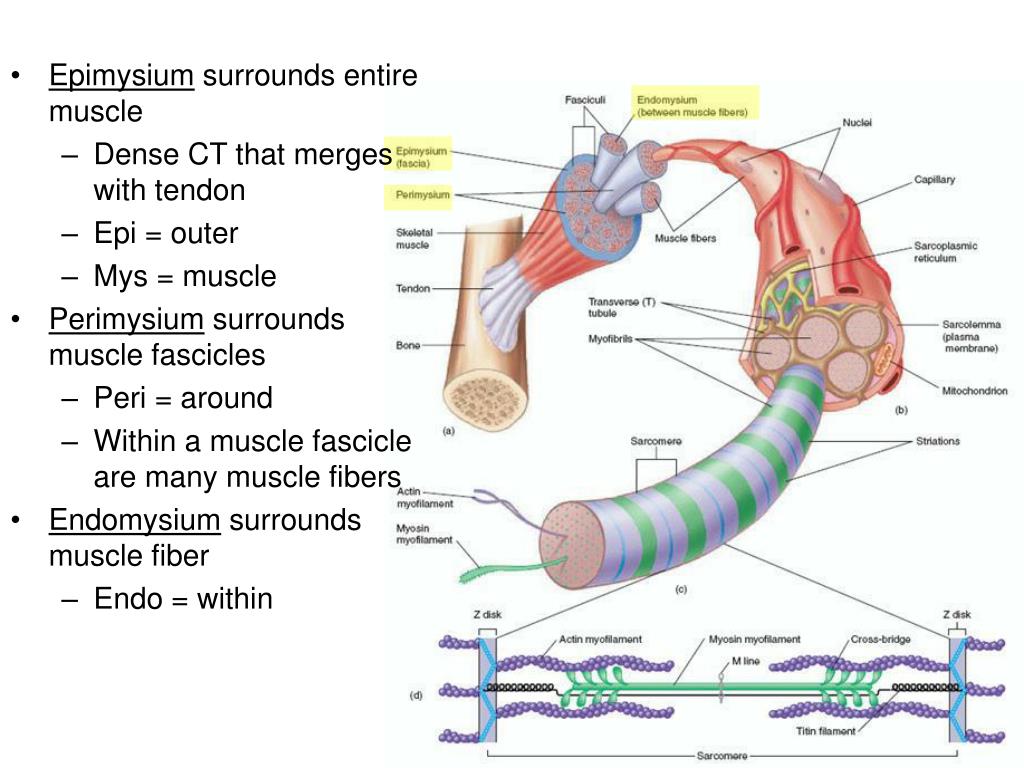

  15. Epimysium surrounds entire muscle • Dense CT that merges with tendon • Epi = outer • Mys = muscle • Perimysium surrounds muscle fascicles • Peri = around • Within a muscle fascicle are many muscle fibers • Endomysium surrounds muscle fiber • Endo = within

  16. Structural Terminology Associated with Muscle Fibers Prefixes: myo, mys, and sarco all refer to muscle • Sacroplasmic Reticulum = Smooth ER of muscle (regulates calcium levels for muscle contraction) • Sarcoplasm = Cytoplasm • To maintain ATP production during cellular respiration, contains high amounts of: • mitochondria • glycosomes that store sugar • oxygen binding protein called myoglobin • Sarcolemma = Plasma Membrane • T tubules - The sarcolemma of muscle cells are not just on the outside, rather forms tubes that dive into the muscle cells • Myosin and Actin= muscle proteins that create muscle cytoskeletal filaments for contraction

  17. myofibril Sarcoplasmic Reticulum Myosin (red) and Actin (blue) T-tubule sarcolemma

  18. Microstructures • Each muscle fiber (muscle cell), is composed of many myofibrils. • Organized system of cytoskeleton filaments of actin and myosin proteins that do the actual contracting • Myofibrils are NOT CELLS • A sarcomere is one segment of a myofibril (muscle segments). • The series of sarcomeres produce the striated appearance of muscles

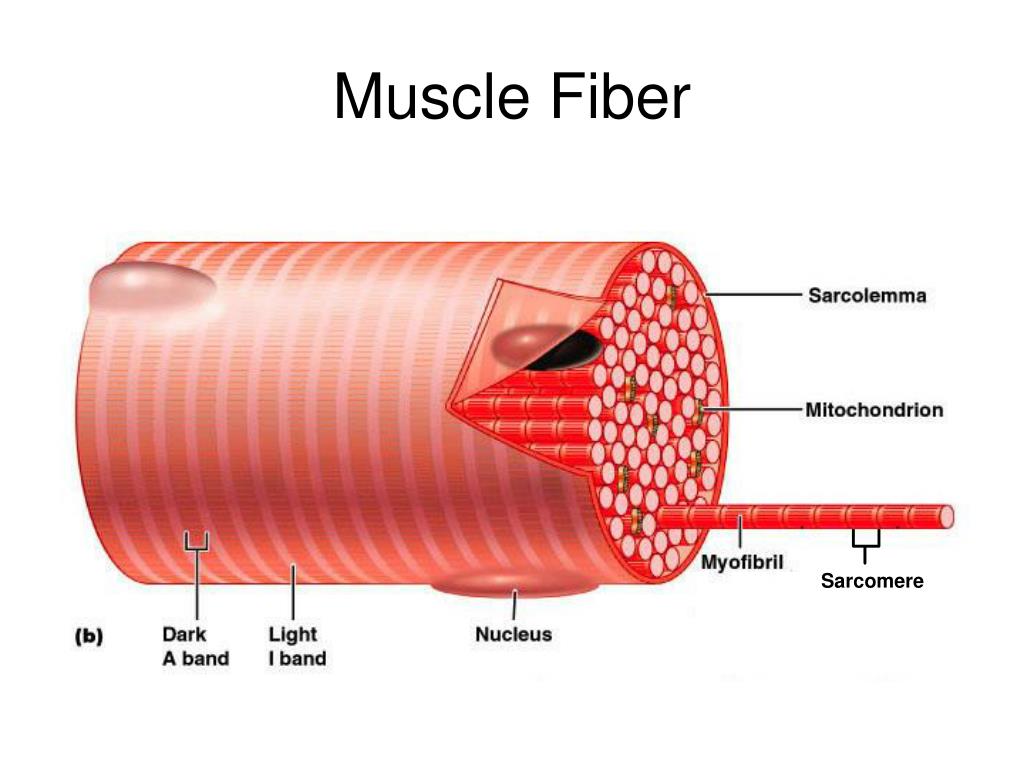

  19. Muscle Fiber Sarcomere

  20. Sarcomere organization • Myofibril composed of repeating series of sarcomeres with dark A and light I bands. • I bands intersected by Z discs mark the outer edges of each sarcomere. • Contraction happens within one sarcomere.

  21. Sarcomere Banding Pattern

  22. How do muscle contract? Let’s sketch the sarcomere together and discuss the sliding filament model of muscle contraction
