MIPS Assembly Tutorial

1. MIPS Assembly Tutorial

2. Types of Instructions • There are 3 main types of assembly instructions • Arithmetic - add, sub, mul, shifts, and, or, etc. • Load/store • Conditional - branches

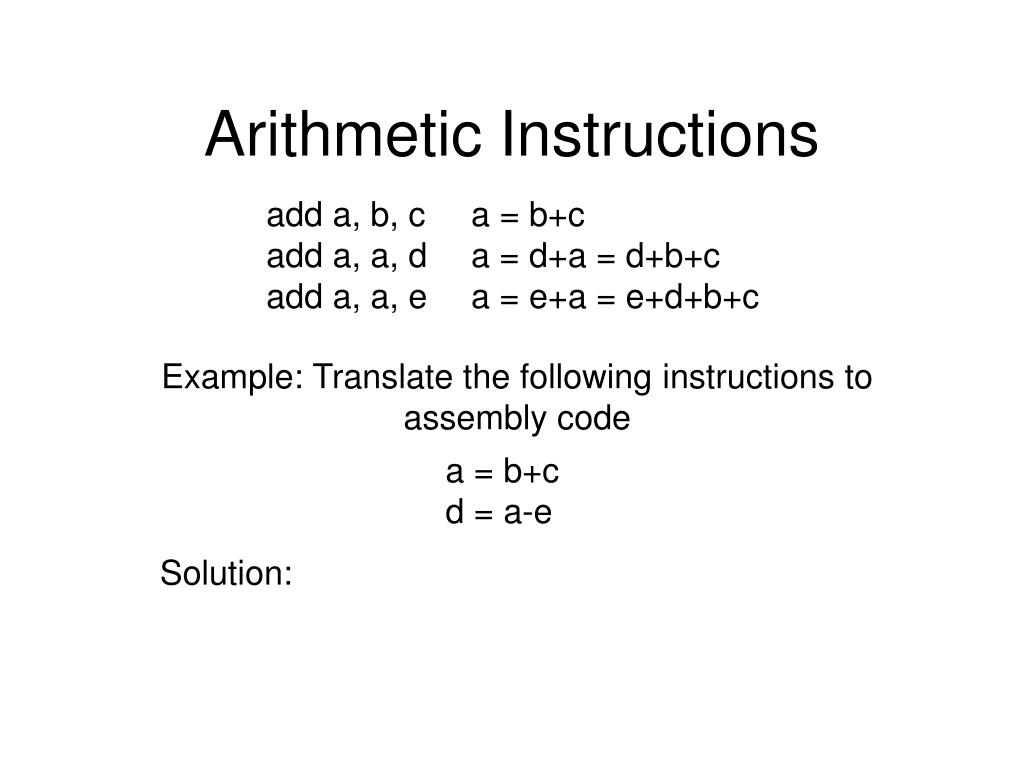

3. Arithmetic Instructions add a, b, c a = b+c add a, a, d a = d+a = d+b+c add a, a, e a = e+a = e+d+b+c Example: Translate the following instructions to assembly code a = b+c d = a-e Solution: add a, b, c sub d, a, e

4. Arithmetic Instructions Example: Translate the following instructions to assembly code. Remember with RISC, only 1 operation per instruction! HINT - you may need temporary variables f = (g+h) - (i+j) Solution: add t0, g, h add t1, i, j sub f, t0, t1

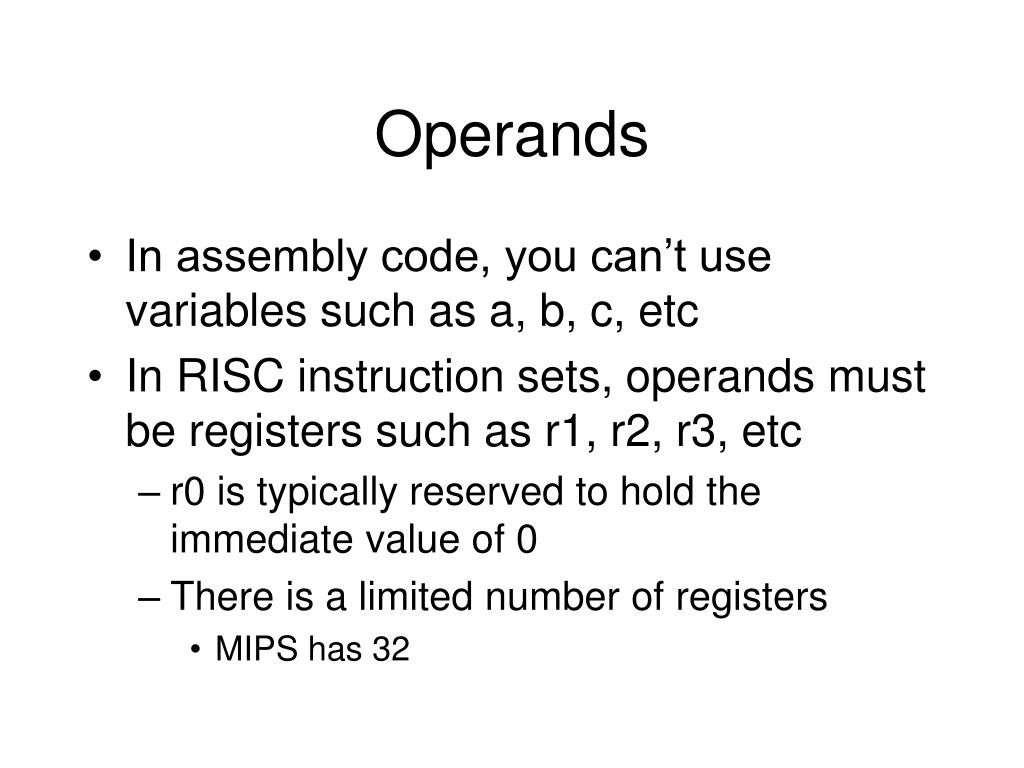

5. Operands • In assembly code, you can’t use variables such as a, b, c, etc • In RISC instruction sets, operands must be registers such as r1, r2, r3, etc • r0 is typically reserved to hold the immediate value of 0 • There is a limited number of registers • MIPS has 32

6. Arithmetic Instructions Using Registers Example: Translate the following instructions to assembly code. Assume that g, h, i, and j are already stored in r1, r2, r3, and r4. Store f in r5 f = (g+h) - (i+j) Solution: add r6, r1, r2 add r7, r3, r4 sub r5, r6, r7

7. What about more data?? • With only a limited number of registers, not all data can be stored in registers at the same time. • Registers only store data that is currently being operated on • Variables are stored in memory and then loaded into registers when needed using data transfer instructions • Load word (lw) and store word (sw)

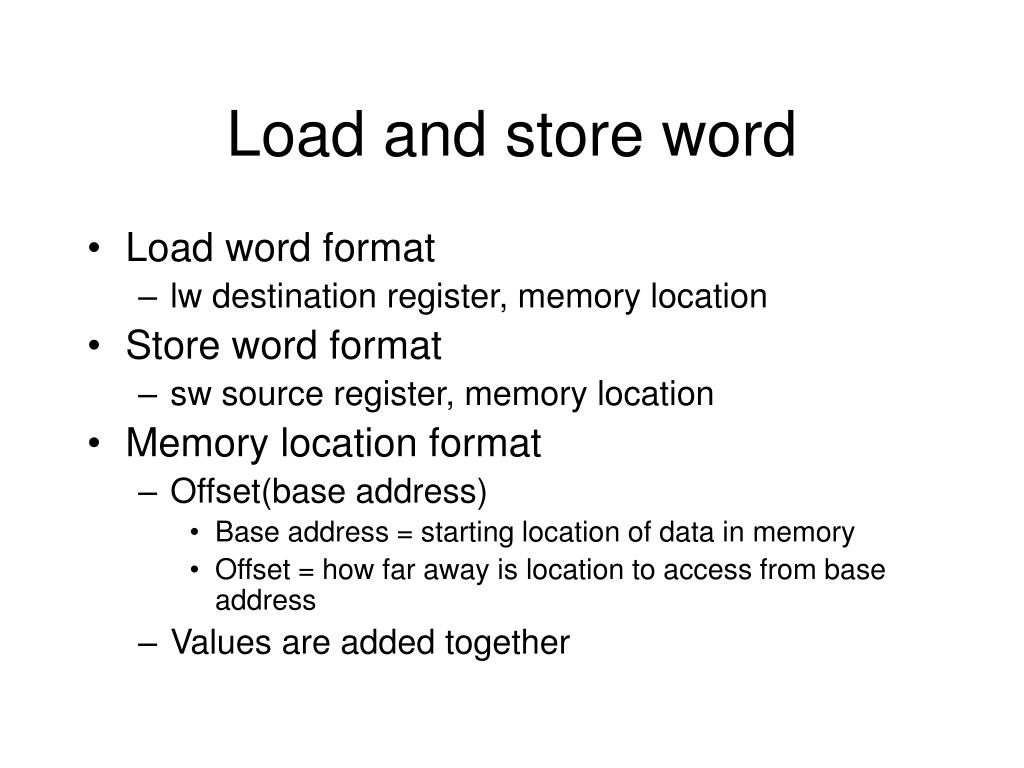

8. Load and store word • Load word format • lw destination register, memory location • Store word format • sw source register, memory location • Memory location format • Offset(base address) • Base address = starting location of data in memory • Offset = how far away is location to access from base address • Values are added together

9. LW Example Example: Assume that A is an array of 100 words. Assume the base address is stored in r3, g is in r1 and h is in r2 g = h + A[8] Solution: Offset This is simplified, more details later… lw r4, 8(r3) add r1, r2, r4 Base Address

10. Data in Memory • All variables/data are stored in memory • You will need to do this in your assembler • Your ISS will need a data structure to hold main memory • Array is fine

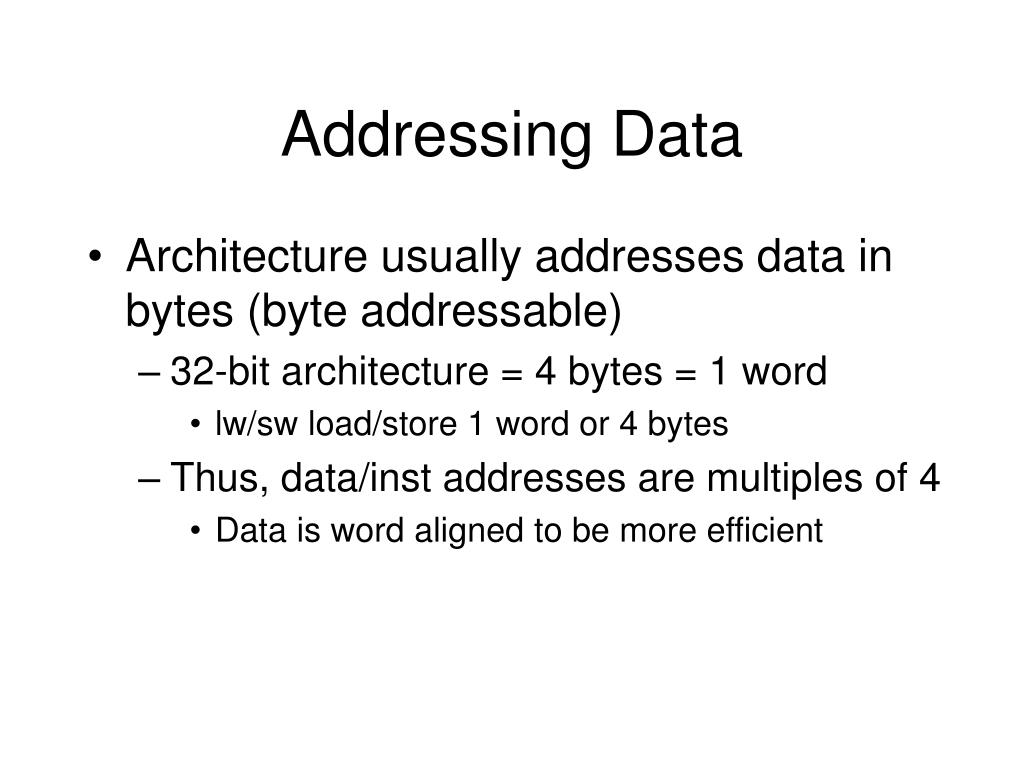

11. Addressing Data • Architecture usually addresses data in bytes (byte addressable) • 32-bit architecture = 4 bytes = 1 word • lw/sw load/store 1 word or 4 bytes • Thus, data/inst addresses are multiples of 4 • Data is word aligned to be more efficient

12. Data in Memory ... ... 12 8 4 0 100 10 101 1 Address Data

13. LW/SW Example Example: Assume that A is an array of 100 words. Assume the base address is stored in r3 and h is stored in r2. You may directly calculate the offset. Remember, each data piece is 4 bytes when calculating the offset A[12] = h+A[8] Solution: lw r1, 32(r3) add r4, r2, r1 sw r4, 48(r3)

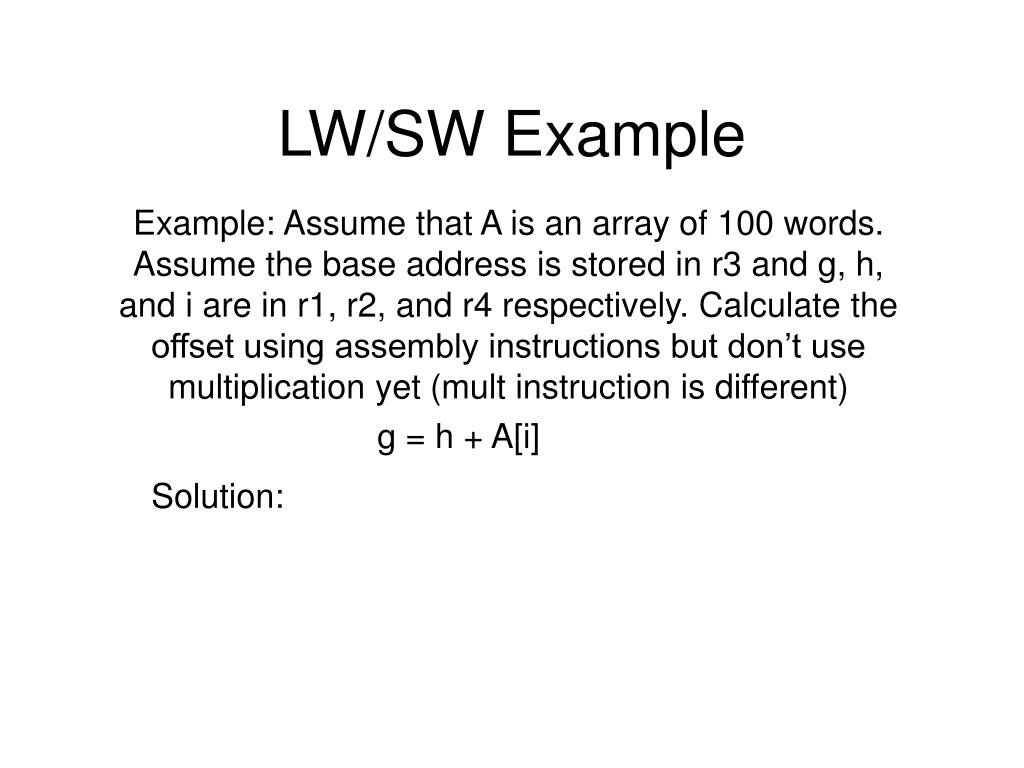

14. LW/SW Example Example: Assume that A is an array of 100 words. Assume the base address is stored in r3 and g, h, and i are in r1, r2, and r4 respectively. Calculate the offset using assembly instructions but don’t use multiplication yet (mult instruction is different) g = h + A[i] Solution: add r5, r4, r4 # Temp reg r5=2*i add r5, r5, r5 # Temp reg r5=4*i add r5, r5, r3 # t1 = addr of A[i] (4*i+r3) lw r6, 0(r5) # Temp reg r0=a[i] add r1, r6, r2 # g=h+a[i]

15. Translating MIPS Assm Language to Machine Language • Translate human readable assembly code to machine readable code (binary) • I will show examples in decimal for readability • This is what you assembler will do but it will output in binary.

16. 000000 0 00000 0 00001 1 00010 2 00000 0 32 100000 MIPS -> Machine Language Example: Show the real MIPS language version of the following instruction in both decimal and binary add r0, r1, r2 Solution: decimal binary 6 bits 5 bits 5 bits 5 bits 5 bits 6 bits Each segment is referred to as a field. Details to come….

17. op rs rt rd shamt funct MIPS Fields • MIPS fields are giving names to make them easier to discuss 6 bits 5 bits 5 bits 5 bits 5 bits 6 bits • op: Basic operation of the instruction, typically called the opcode • rs: The first register source operand • rt: The second register source operand • rd: The register destination operand, it gets the result of the operation • shamt: Shift amount (0 if not shift instruction) • funct: Function. This field selects the specific variant of the operation in the op field, and is sometimes called the function code

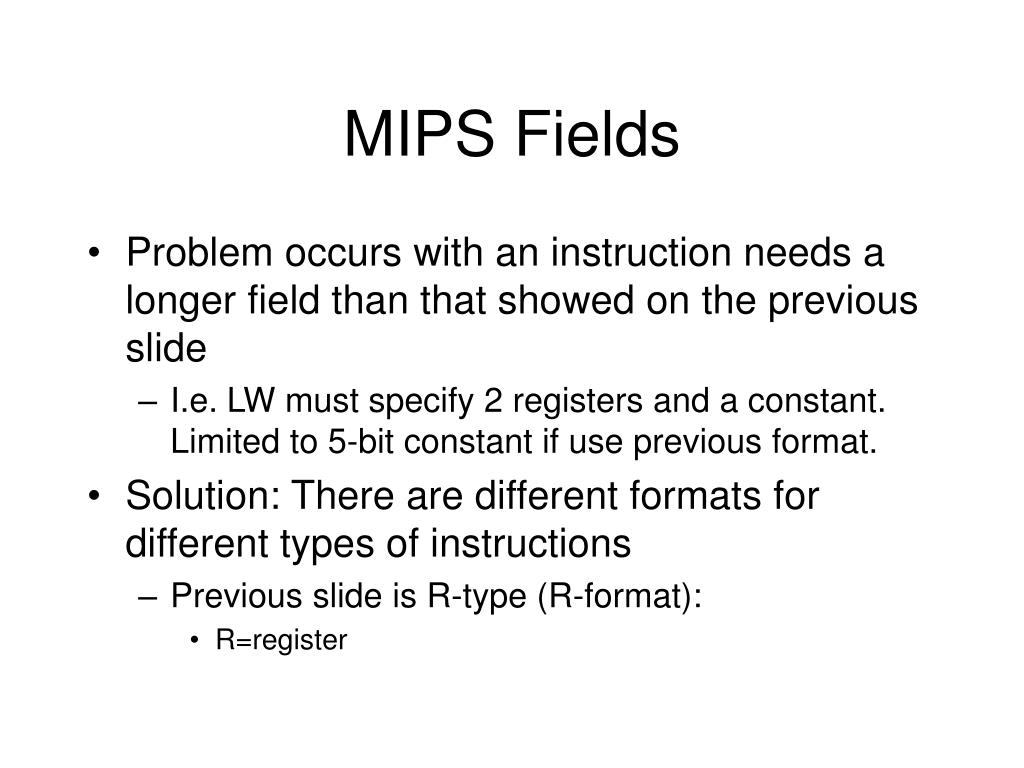

18. MIPS Fields • Problem occurs with an instruction needs a longer field than that showed on the previous slide • I.e. LW must specify 2 registers and a constant. Limited to 5-bit constant if use previous format. • Solution: There are different formats for different types of instructions • Previous slide is R-type (R-format): • R=register

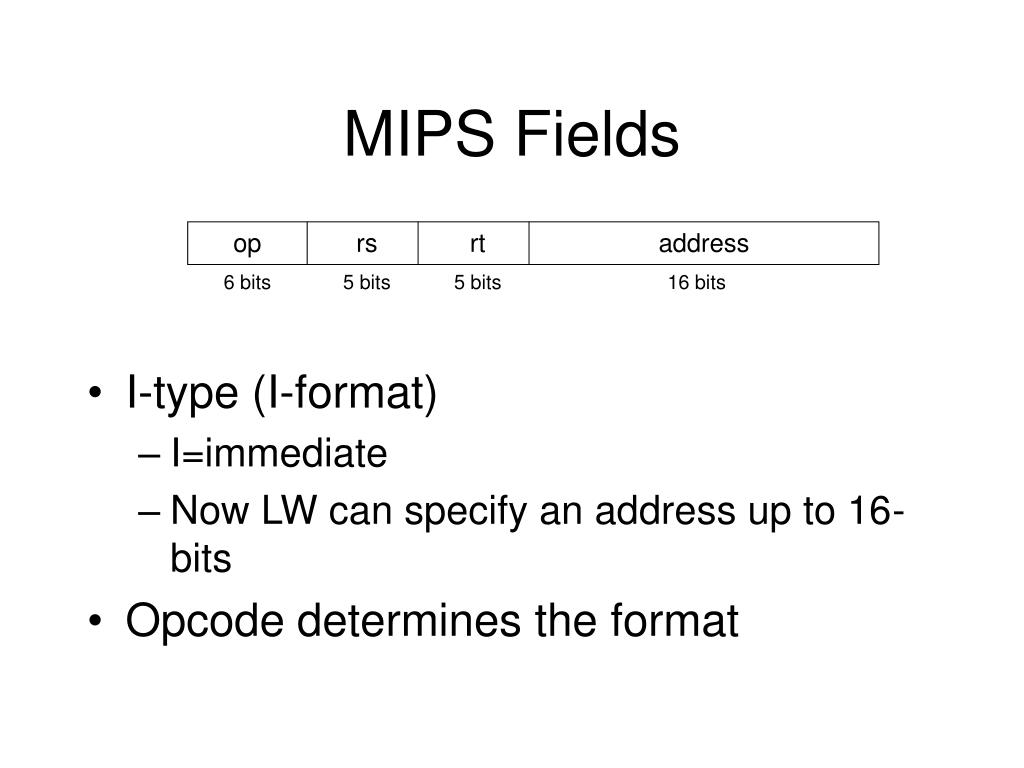

19. op rs rt address 6 bits 5 bits 5 bits 16 bits MIPS Fields • I-type (I-format) • I=immediate • Now LW can specify an address up to 16-bits • Opcode determines the format

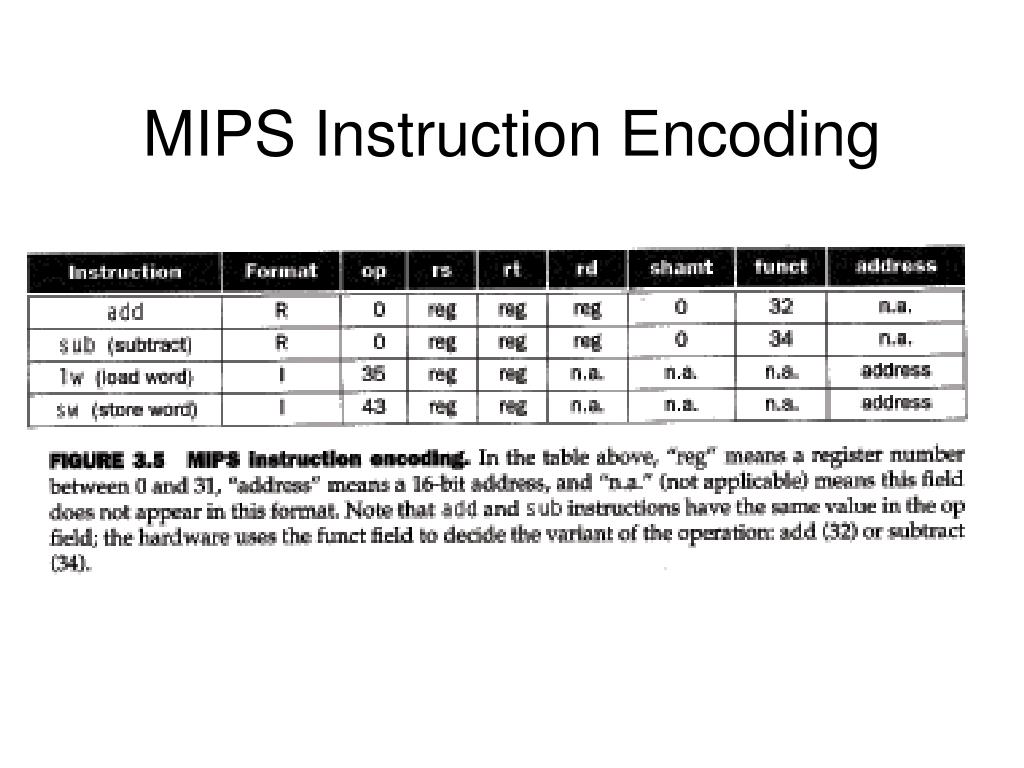

20. MIPS Instruction Encoding

21. MIPS Asm -> Machine Language Example: Assume r1 is the base of A and r2 corresponds to h, the C statement: is compiled to: What is the MIPS machine code for these three instructions? (Use figure 3.5) A[300] = h + A[300] lw r0, 1200(r1) add r0, r2, r0 sw r0, 1200(r1)

22. 101011 100011 43 35 00000 00000 0 0 00001 1 1 00001 0000 0100 1011 0000 1200 1200 0000 0100 1011 0000 0 000000 00000 0 00010 2 0 00000 00000 0 32 32 MIPS Asm -> Machine Language lw r0, 1200(r1) add r0, r2, r0 sw r0, 1200(r1) Solution: decimal Address/shamt op rs rt rd funct binary

23. Decision Instructions • Branch/jump instructions • Conditional branches • beq register1, register2, Label • bne register1, register2, Label • Unconditional branches • j Label

24. Decision Instructions Example: Assume f->r0, g->r1, h->r2, i->r3, j->r4 if ( i==j ) goto L1 f = g+h L1: f = f-i Solution: beq r3, r4, L1 add r0, r1, r2 L1: sub r0, r0, r3 Labels will need to be translated to instruction address in your assembler

25. Decision Instructions Example: Assume f->r0, g->r1, h->r2, i->r3, j->r4 if ( i==j ) f = g+h L1: else f = g-h L2: Solution: bne r3, r4, L1 add r0, r1, r2 j L2 L1: sub r0, r1, r2 L2:

26. Decision Instructions Example: A is 100 elements with the base address in r5. g->r1, h->r2, i->r3, j->r4 Loop: g = g+A[i] i = i+j if ( i!=h ) goto Loop Solution: Loop: add r6, r3, r3 add r6, r6, r6 add r6, r6, r5 lw r7, 0(r6) add r1, r1, r7 add r3, r3, r4 bne r3, r2, Loop

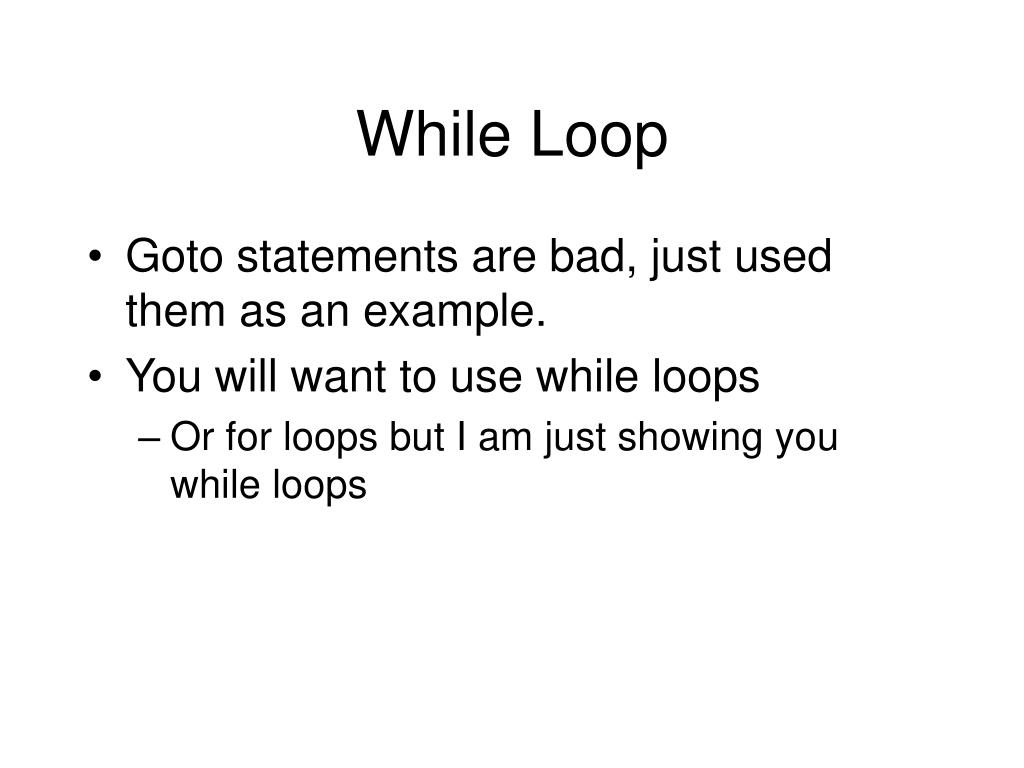

27. While Loop • Goto statements are bad, just used them as an example. • You will want to use while loops • Or for loops but I am just showing you while loops

28. While Loop Example: Base address of save is in r6. i->r3, j->r4, k->r5 while ( save[i] == k ) i = i+j Solution: Loop: add r1, r3, r4 add r1, r1, r1 add r1, r1, r6 lw r0, 0(r1) bne r0, r5, Exit add r3, r3, r4 j Loop Exit:

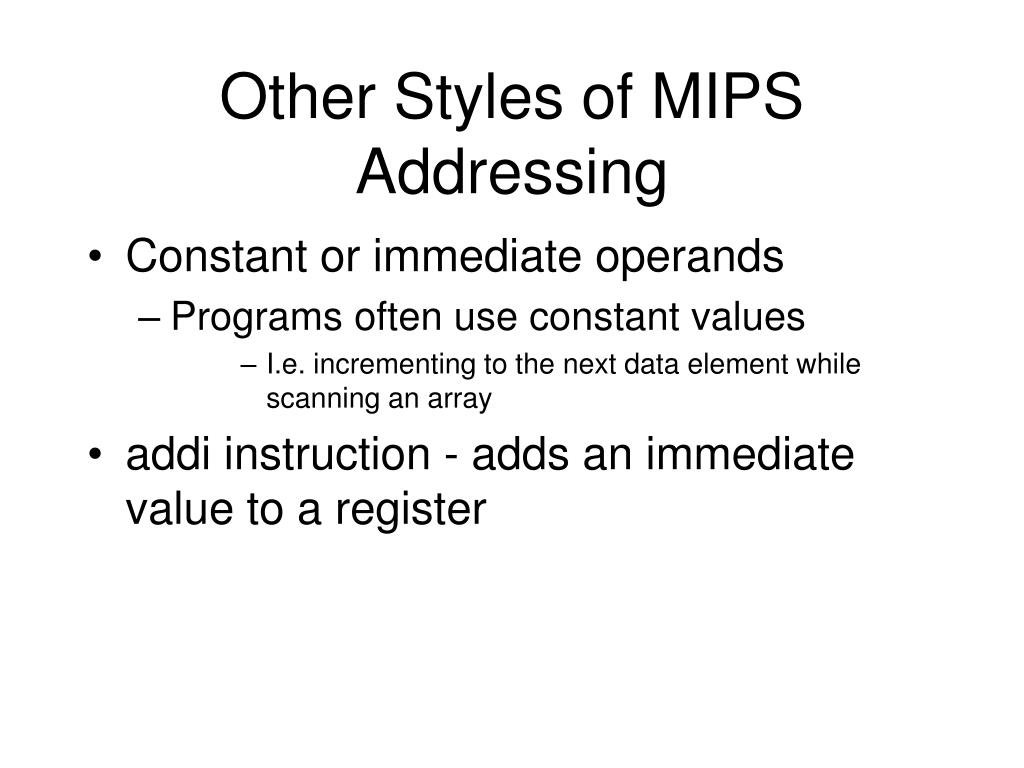

29. Other Styles of MIPS Addressing • Constant or immediate operands • Programs often use constant values • I.e. incrementing to the next data element while scanning an array • addi instruction - adds an immediate value to a register

30. 001000 8 00100 4 4 00100 0000 0000 0000 0100 4 Immediate Operands Example: What is the machine code for the following? (Remember the I-format instruction) addi r4, r4, 4 Solution: decimal op rs rt Immediate binary

31. opcode Target address Addressing in Branches and Jumps • Last instruction format - J-type (J-format) • Branches do not use J-type. • Must specify 2 registers to compare • Use I-type
