  1. ASI Controls ASI Controls Reliability · Performance · Value Reliability · Performance · Value HVAC Control Building AutomationEnergy Management Since 1986 HVAC Control Building AutomationEnergy Management Since 1986

  2. Digital Control Products • Telecommunication • Commercial • Industrial • Educational • Institutional • Governmental

  3. Application Flexibility • HVAC and Lighting • Facility Automation • Refrigeration/Cold Storage • Remote Monitoring • Energy Management and Cost Control

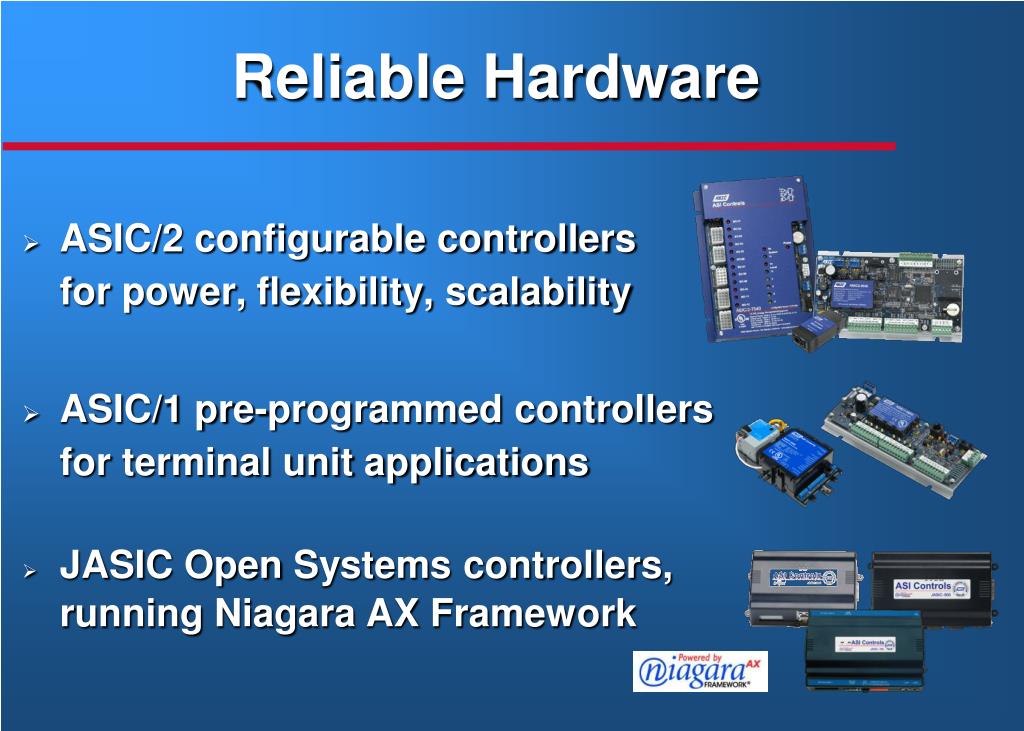

  4. Reliable Hardware • ASIC/2 configurable controllersfor power, flexibility, scalability • ASIC/1 pre-programmed controllers for terminal unit applications • JASIC Open Systems controllers, running Niagara AX Framework

  5. Intuitive Software • PC-based web front ends • Automated alarm notification • Database ODBC R/W capability • Graphical configuration • Optional embedded front end and configuration software

  6. Open Systems Interfaces JASIC Open Systems use Niagara AX Framework to integrate LON and other legacy BAS protocols

  7. Interoperability Options • JASIC Open Systems, powered by Niagara AX, with drivers for BACnet, LON, Modbus, etc. • WebLink OPC-client front end with ODBC R/W • ASIC/2 controllers with Modbus RTU Master • BACnet-IP system and BACnet MS/TP controller interfaces

  8. System Architectures • Choice of Niagara AX or ASI Controls basedsystem architectures • Scalable open systems • Range of choices for cost-effective Ethernet connectivity

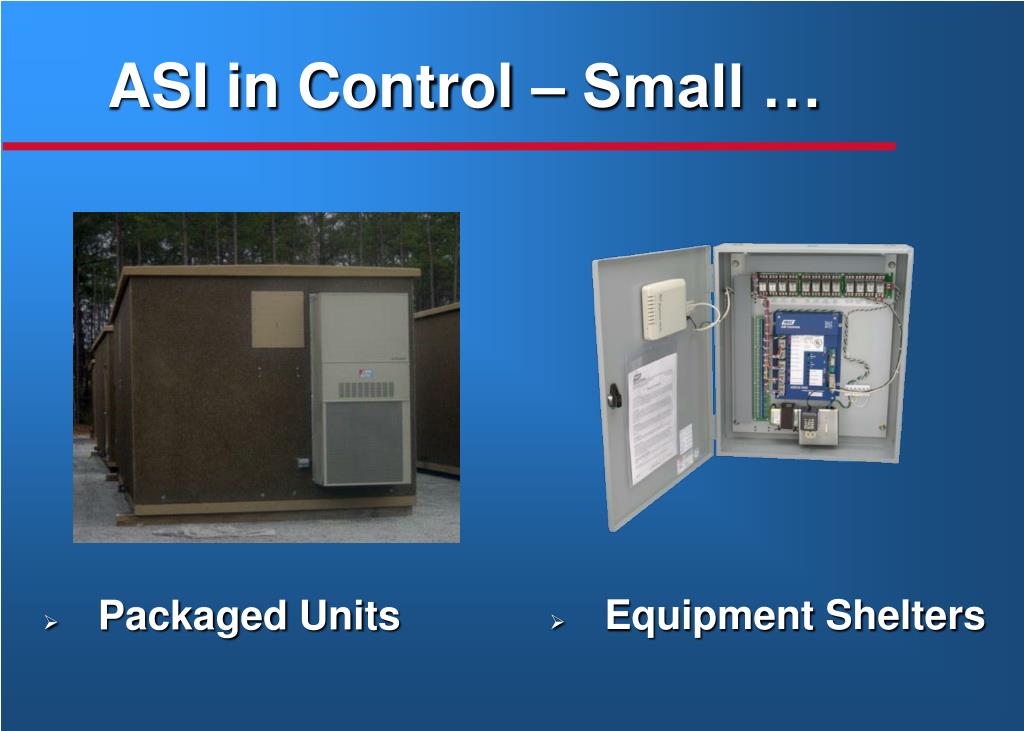

  9. ASI in Control – Small … • Equipment Shelters • Packaged Units

  10. Medium … • Hotel, Retail Network, Factory, Office Building …

  11. … Large • Multi-zone & networked buildings • Integrated control of large facilities BOMA Large Building of the Year, 1994

  12. ASIC/2-7540 Configurable • 16 universal inputs (multiplex to 64) • 8 analog + 12 binary outs • RS-485 (2), RS-232, USB • Modbus RTU Master • Real time clock, onboard configuration storage

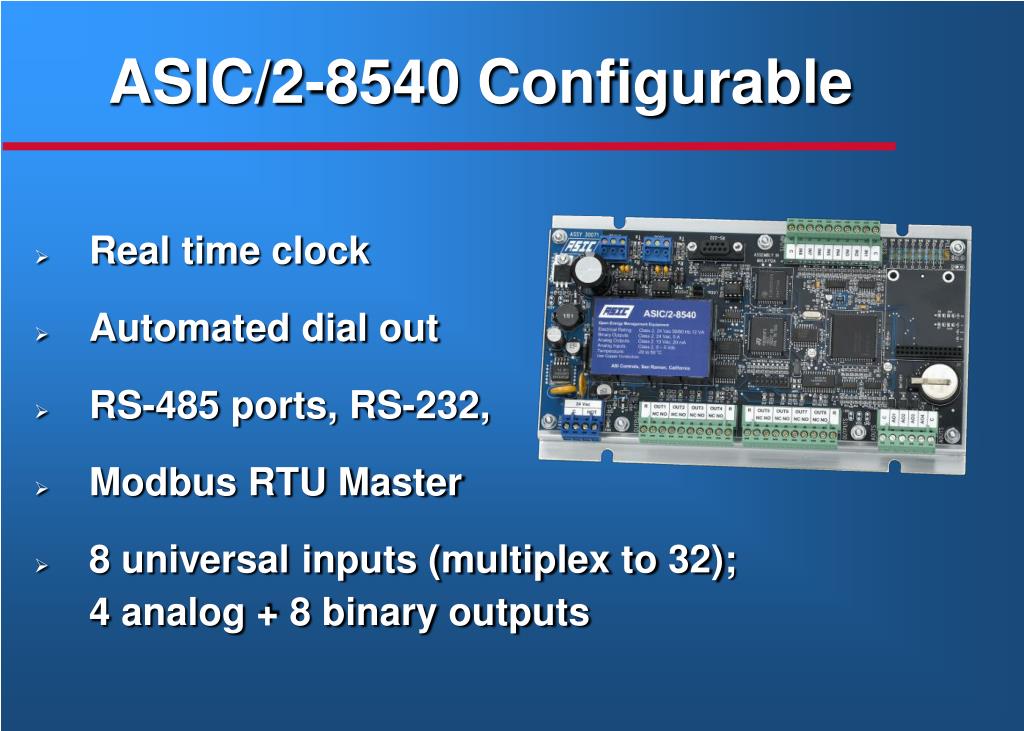

  13. ASIC/2-8540 Configurable • Real time clock • Automated dial out • RS-485 ports, RS-232, • Modbus RTU Master • 8 universal inputs (multiplex to 32); 4 analog + 8 binary outputs

  14. ASIC/2-8540-BAC • All the features of ASIC/2-8540 plus a BACnet MS/TP bus • Second RS-232 bus supports either ASI or Modbus communication

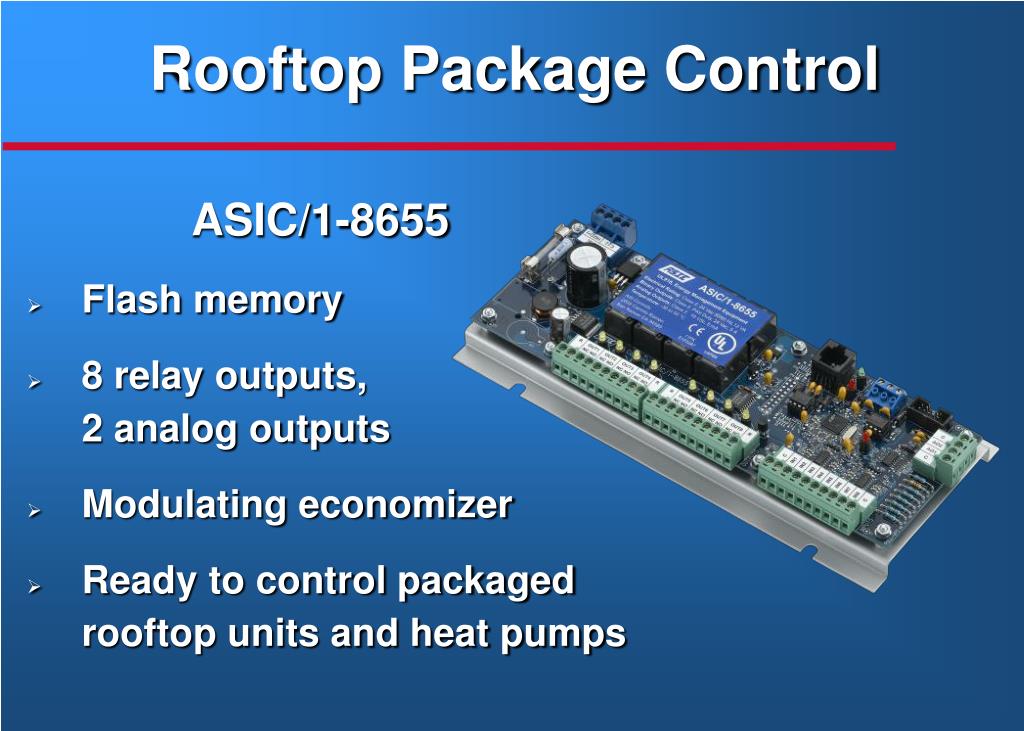

  15. Rooftop Package Control ASIC/1-8655 • Flash memory • 8 relay outputs, 2 analog outputs • Modulating economizer • Ready to control packagedrooftop units and heat pumps

  16. VAV Control • Integrated actuator • Airflow sensor • Screw terminals • 5 analog + airflow inputs; 3 binary + 1 analog, 2 floating damper outputs ASIC/1-6000

  17. BACnet VAV Control • Integrated actuator • Airflow sensor • Screw terminals • 5 analog + airflow inputs • 3 binary + 1 analog, 2 floating damper outputs ASIC/1-6100

  18. VAV Control ASIC/1-6000-MB, -PD, -PD-MB • -PD option for pressure-dependent applications • -MB models with metal base, no actuator (for retrofit applications)

  19. Dual Duct & Exhaust Tracking Ready for common dual duct applications 2 calibrated airflow sensors included Exhaust tracking forpositive or negative pressure ASIC/1-8800

  20. Network Communication • Ethernet-to-serial router, either RS-232 or RS-485 • SNTP supports timekeeping& synchronization functions • Intelligent forwarding of alarms & events • Web server for configuration

  21. JASIC-700 Controller • RS-232, RS-485, 2 USB, 2 Gigabit Ethernet • Embedded Web Front End with 3D HVAC graphics • Optional drivers to tie into most common protocols • Real-time clock, with batteryor external power backup

  22. JASIC-600 Controller RS-232, RS-485, 2xEthernet, USB port Embedded web front end with library of HVAC graphics, and optional configuration tools Drivers for many protocols Onboard clock, battery backup

  23. JASIC-200 Controller • RS-232, RS-485, 2xEthernet, USB port • Embedded web front end with library of HVAC graphics, and optional configuration tools • Drivers for many protocols • Onboard clock, battery backup

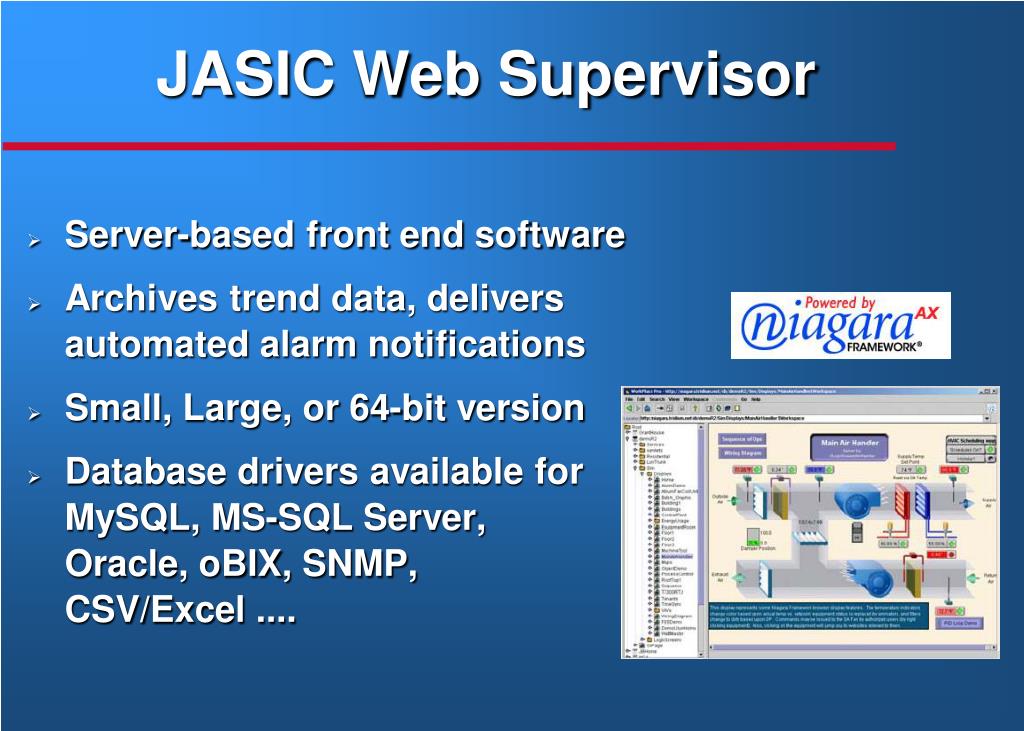

  24. JASIC Web Supervisor Server-based front end software Archives trend data, delivers automated alarm notifications Small, Large, or 64-bit version Database drivers available for MySQL, MS-SQL Server, Oracle, oBIX, SNMP, CSV/Excel ....

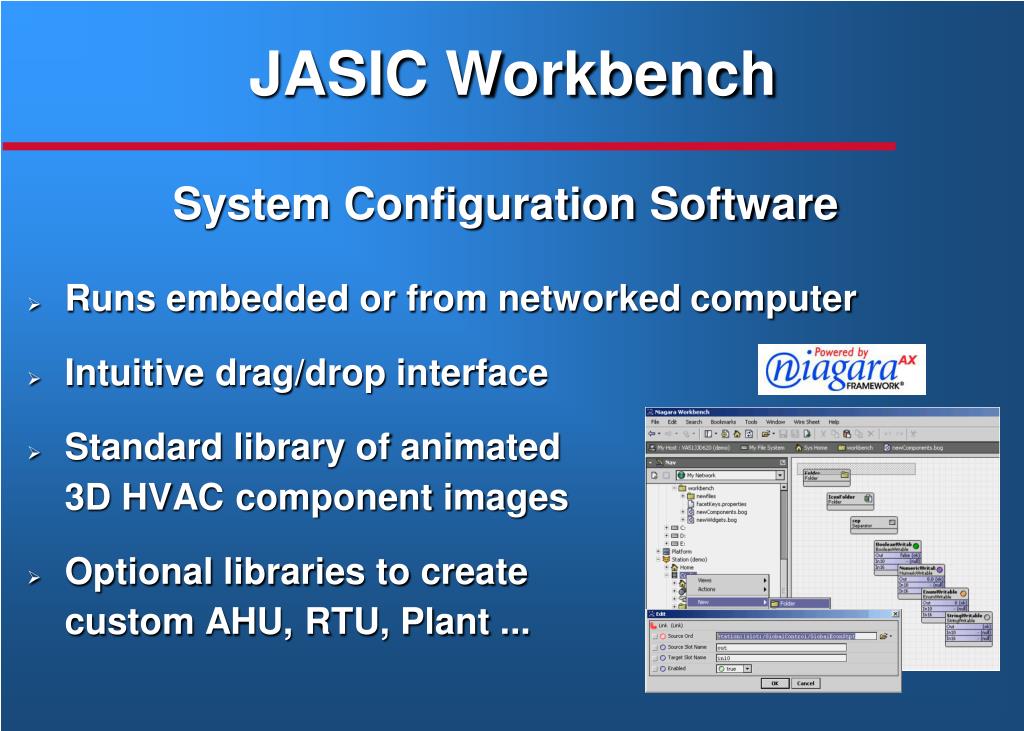

  25. JASIC Workbench Runs embedded or from networked computer Intuitive drag/drop interface Standard library of animated 3D HVAC component images Optional libraries to create custom AHU, RTU, Plant ... System Configuration Software

  26. Color Touchscreen HMI’s • Interfaces to ASIC/2 controllers • Support for JPG, BMP, GIF image formats • 3.5”, 5.7” @480x320; 8”, 10.4”, 12.1” @800x600

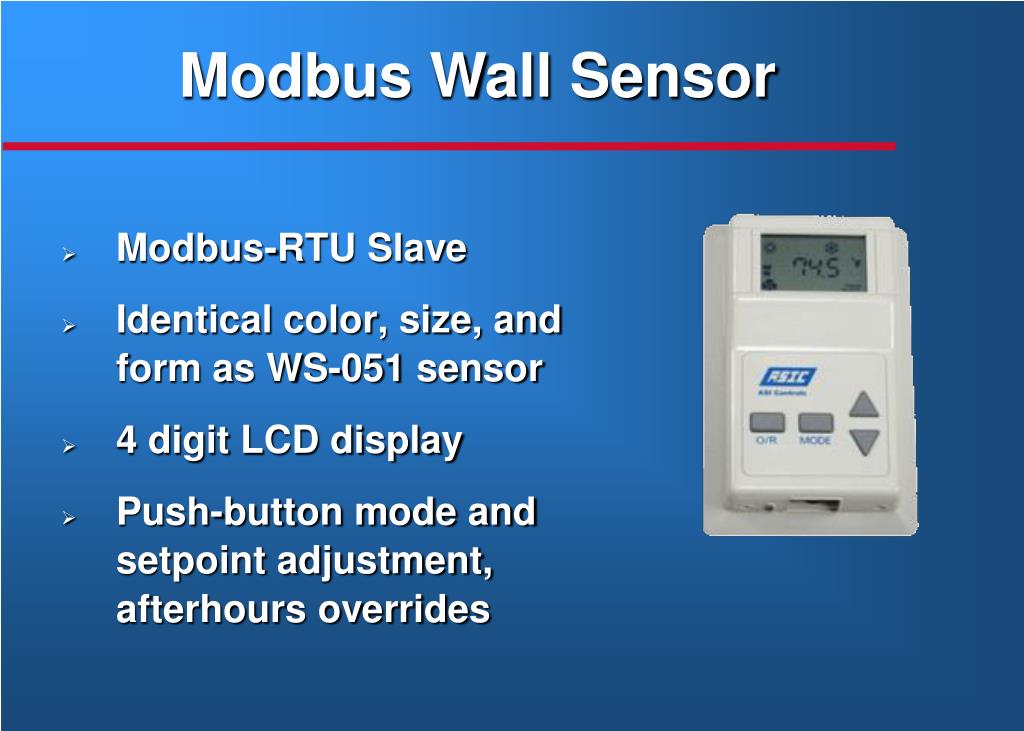

  27. Modbus-RTU Slave Identical color, size, and form as WS-051 sensor 4 digit LCD display Push-button mode and setpoint adjustment, afterhours overrides Modbus Wall Sensor

  28. Temperature Sensors • Digital display panel • Setpoint adjust • After-hours over-ride • Display and controller read same sensor • Outside Air, Duct Insertion, Averaging, Strap-on, and Immersion WS-051 WS-001 WS-011 WS-021 WS-031 • Built-in thermostat • Setpoint adjust • Sensor only, + push button, + user adjust, + PB & UA WS-041

  29. Pressure, RH Sensors • Differential Pressure Transmitters in multiple ranges • Relative Humidity, RH+Temp sensors • Bulk polymer resistance for accuracy • Room, Duct, and Outside Air options

  30. Network & System Interface • Polling, Broadcasting & Event Notification • Dual RS-232 access for PC, Modem, LAN • Dual local buses • RS-232 to RS-485 converter

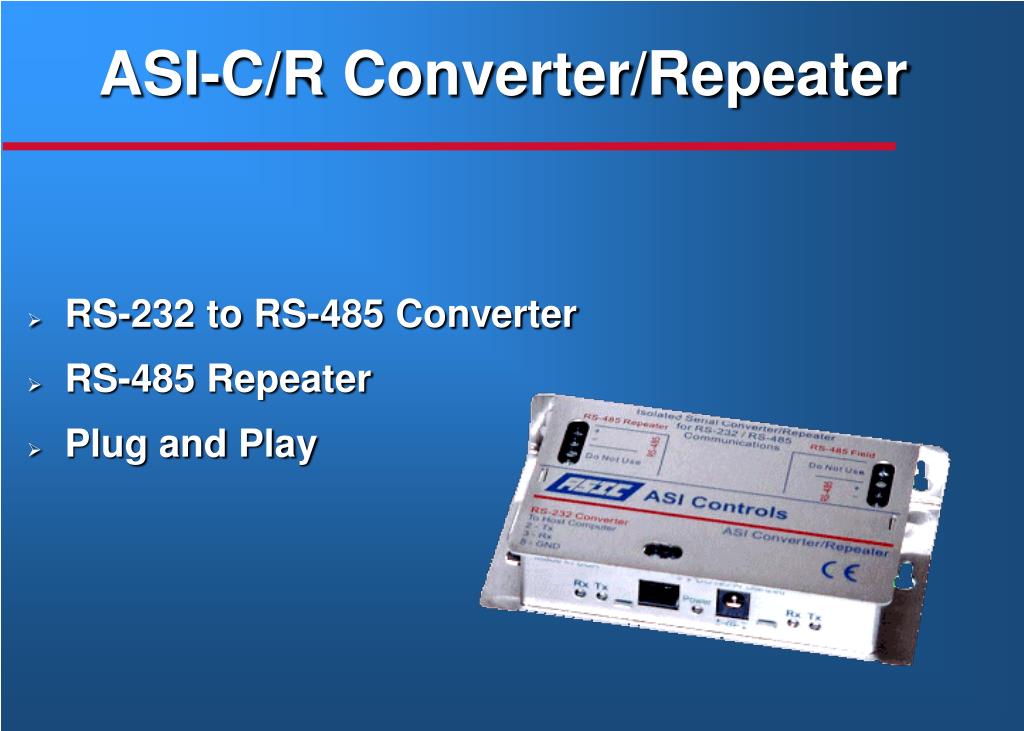

  31. ASI-C/R Converter/Repeater • RS-232 to RS-485 Converter • RS-485 Repeater • Plug and Play

  32. ASI Visual Expert • Graphical, drag & drop configuration without line programming • Real-time data display • Password protection • Re-use sequences between projects Sample configuration screen

  33. ASI WebLink • Web browser based system front ends • Customizable screen graphics, audio, video • Drag and drop screen editor, OPC tag browser • OPC for interoperability

  34. ASI WebLink Supports SSL/HTTPS

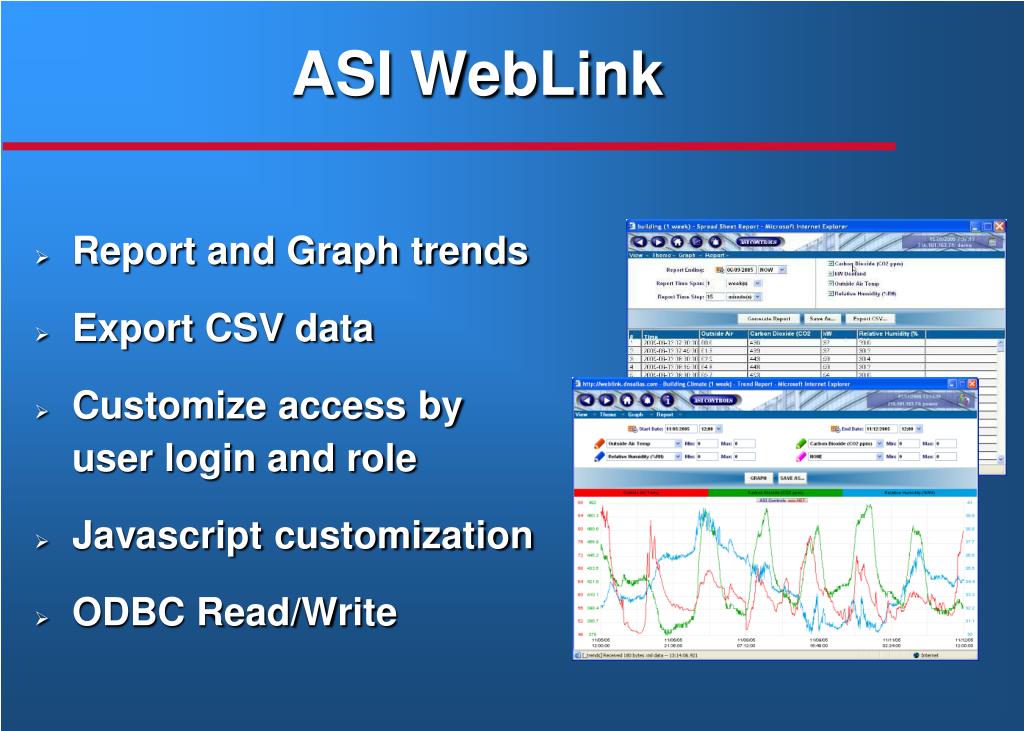

  35. ASI WebLink • Report and Graph trends • Export CSV data • Customize access by user login and role • Javascript customization • ODBC Read/Write

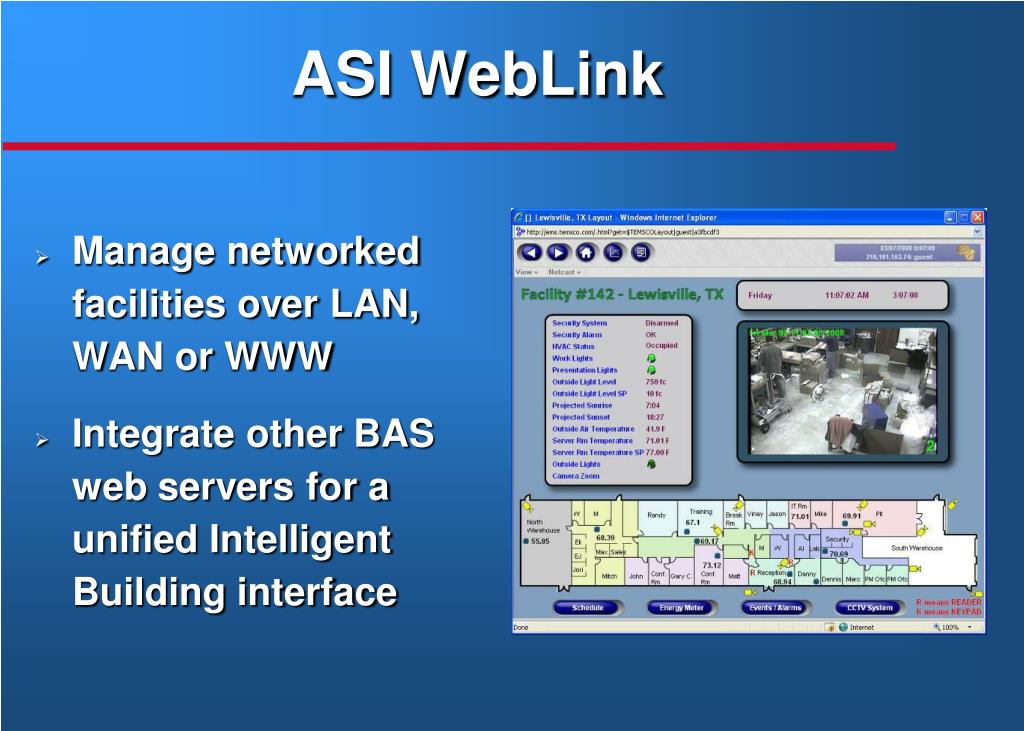

  36. ASI WebLink • Manage networked facilities over LAN, WAN or WWW • Integrate other BAS web servers for a unified Intelligent Building interface

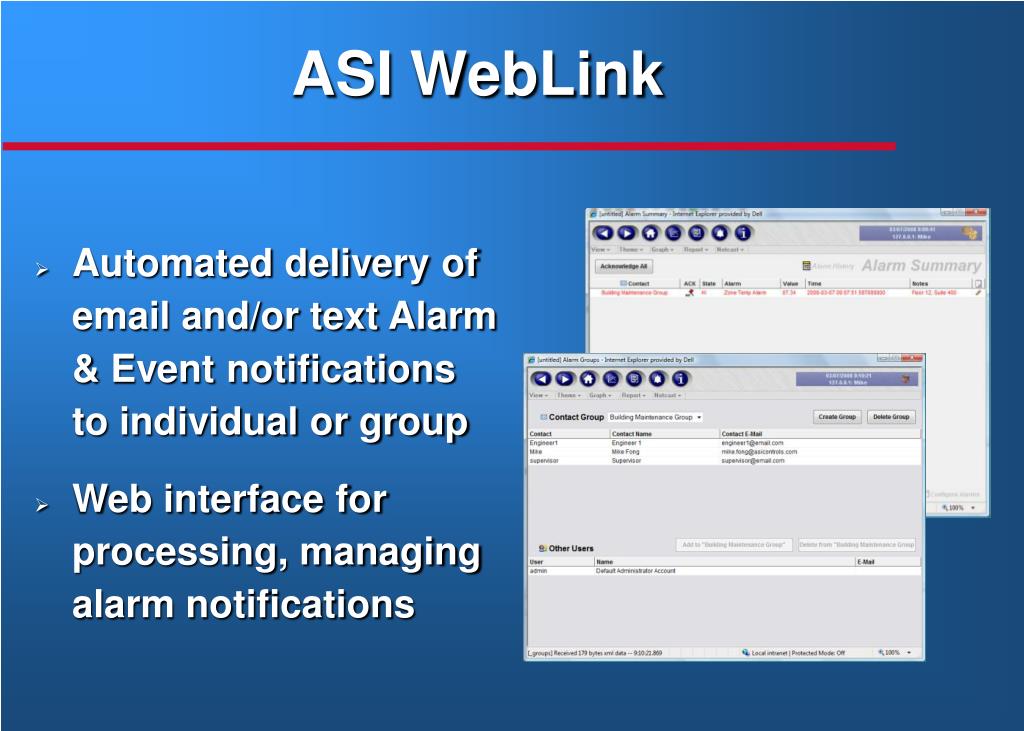

  37. ASI WebLink • Automated delivery of email and/or text Alarm & Event notifications to individual or group • Web interface for processing, managing alarm notifications

  38. ASI WebLink • Monitor and control remote facilities via Ethernet network • Update network or sub-network with a single command

  39. ASI Atlas Map ASI points into BACnet UI through BACnet-IP interface ASI templates for common applications and configurations Users can create re-usable templates

  40. 191 Peachtree Tower, Atlanta • Long-term support for back compatibility • 1.2M square feet • 1,500 ASIC/1 VAV’s with Fan Speed Control, Trane central Plant controls • Upgrade facility awarded BOMA Large Building of the Year, 1998

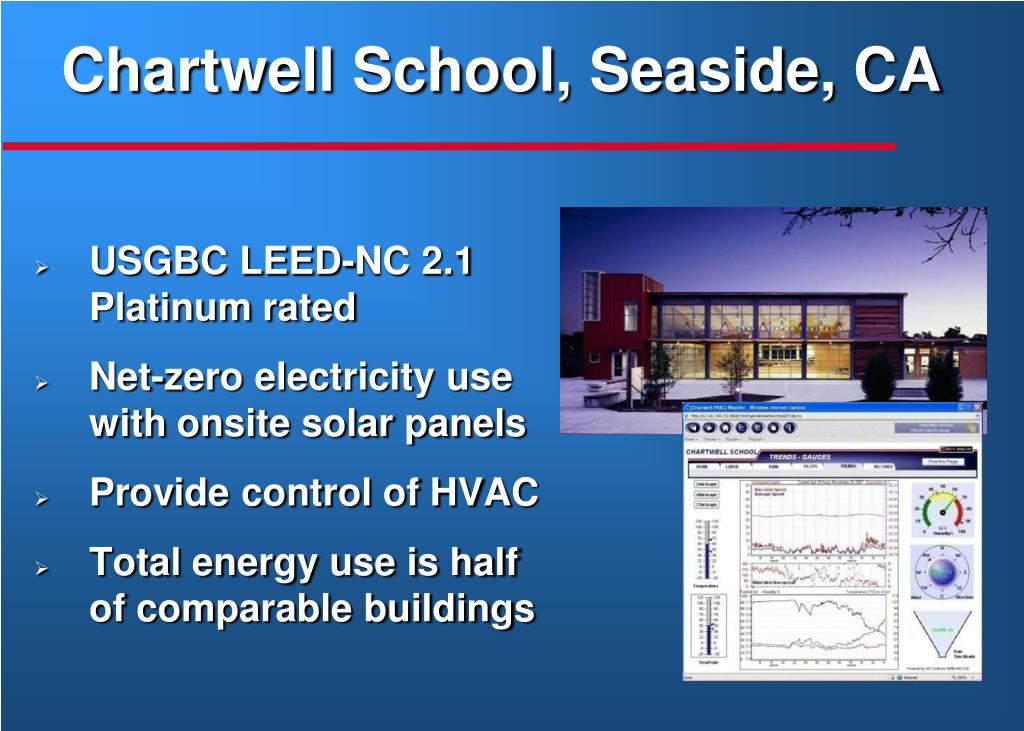

  41. Chartwell School, Seaside, CA • USGBC LEED-NC 2.1 Platinum rated • Net-zero electricity use with onsite solar panels • Provide control of HVAC • Total energy use is half of comparable buildings

  42. Nankang Software Park, Taipei • Over 5,000 ASIC/2 & ASIC/1 controllers • 70,000+ total points Finalist ICF Intelligent Building of the Year, 2005

  43. Other Notable Projects • 3,000+ telecommunications buildings • Hilton hotels in Anaheim, Chicago, New York, San Francisco and other flagship locations • McChord AFB, WA – 45 networked buildings • West Virginia DEP, LEED-NC Silver rated • Hospitals, Retail Networks, Schools, College Campuses, Shopping Malls, Clean Rooms…

  44. Our Goals • Supply reliable, innovative and cost-effective control system hardware and software • Provide VARs with tools for complete Energy Management, Building Automation & other control solutions • Comprehensive training and customer support Reliability · Performance · Value

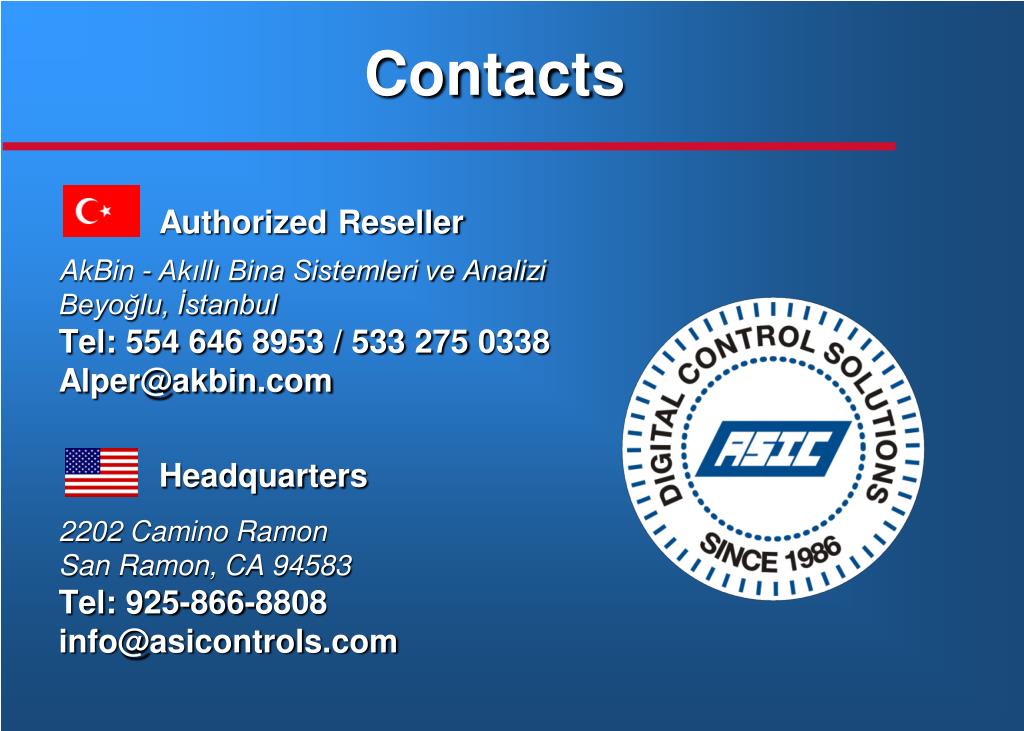

  45. Contacts Authorized Reseller AkBin - Akıllı Bina Sistemleri ve Analizi Beyoğlu, İstanbul Tel: 554 646 8953 / 533 275 0338 Alper@akbin.com Headquarters 2202 Camino Ramon San Ramon, CA 94583 Tel: 925-866-8808 info@asicontrols.com
