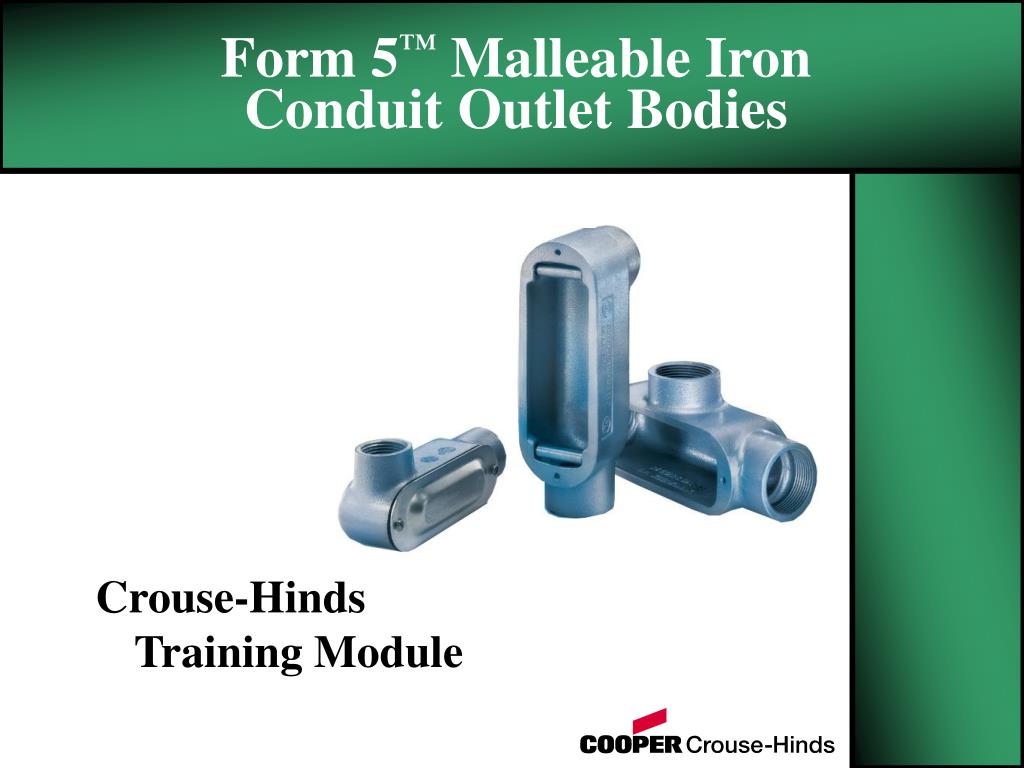

  1. Form 5™ Malleable Iron Conduit Outlet Bodies Crouse-Hinds Training Module

  2. Form 5™ Malleable Iron Conduit Outlet Bodies Outline • Applications • Features • Certifications and Compliances • Body Configuration • Covers • Creating a catalog number • Marketing Materials

  3. Form 5 Conduit Outlet Bodies are used in conduit systems to: Act as pull boxes for conductors being installed Provide openings for making splices and taps in conductors Act as mounting outlets for lighting fixtures and wiring devices Form 5™ Malleable IronConduit Outlet Bodies Applications

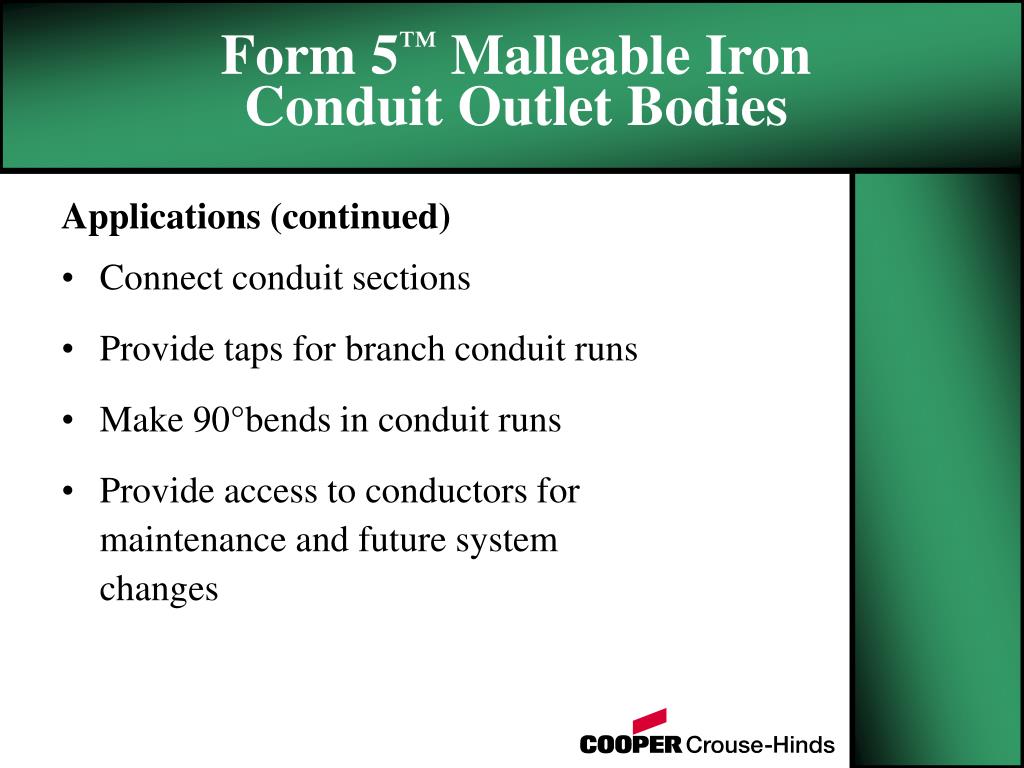

  4. Connect conduit sections Provide taps for branch conduit runs Make 90°bends in conduit runs Provide access to conductors for maintenance and future system changes Form 5™ Malleable Iron Conduit Outlet Bodies Applications (continued)

  5. Form 5™ Malleable Iron Conduit Outlet Bodies Features Malleable iron construction provides high impact resistance and ductility Built-in rollers on 1 1/4” to 4” Type C and LB bodies to facilitate wire pulling Available threaded for rigid / IMC conduit Available in SnapPack Pre-packaged body, cover and neoprene gasket

  6. Form 5™ Malleable Iron Conduit Outlet Bodies Features Smooth and rounded integral bushings for protection of wire insulation Interchangeable with Appleton® Form 35® and O-Z/Gedney® malleable iron conduit outlet bodies Appleton and Form 35 are registered trademarks of EGS/Appleton Electric. O-Z/Gedney is a registered trademark of EGS/O-Z/Gedney.

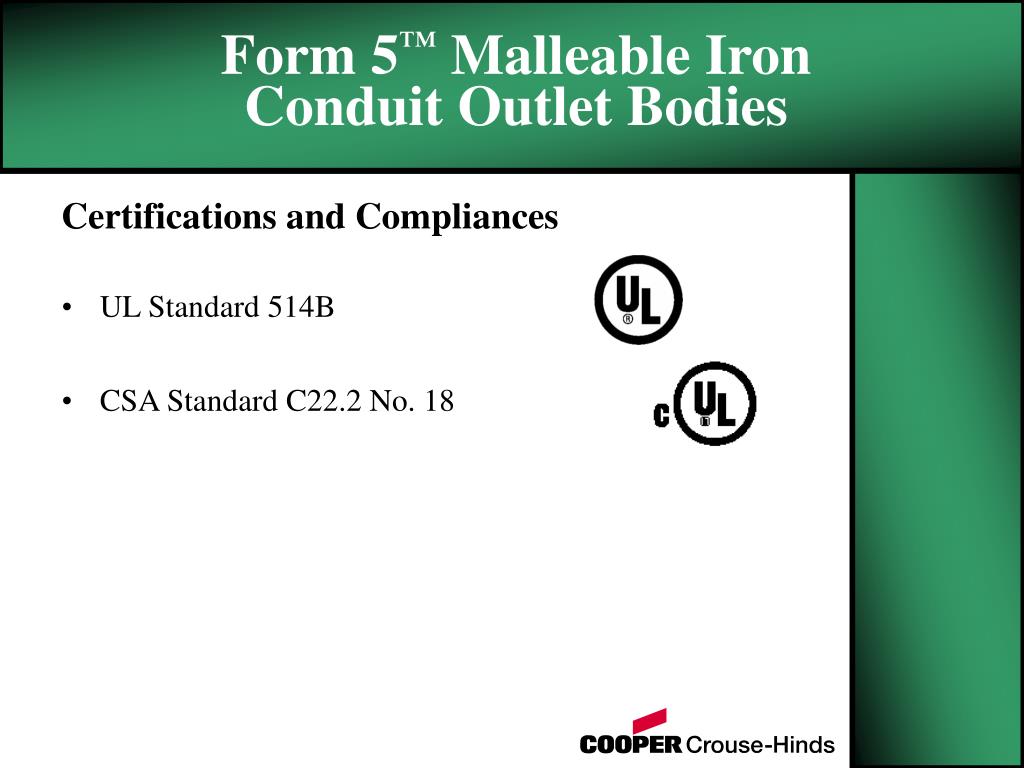

  7. UL Standard 514B CSA Standard C22.2 No. 18 Form 5™ Malleable Iron Conduit Outlet Bodies Certifications and Compliances

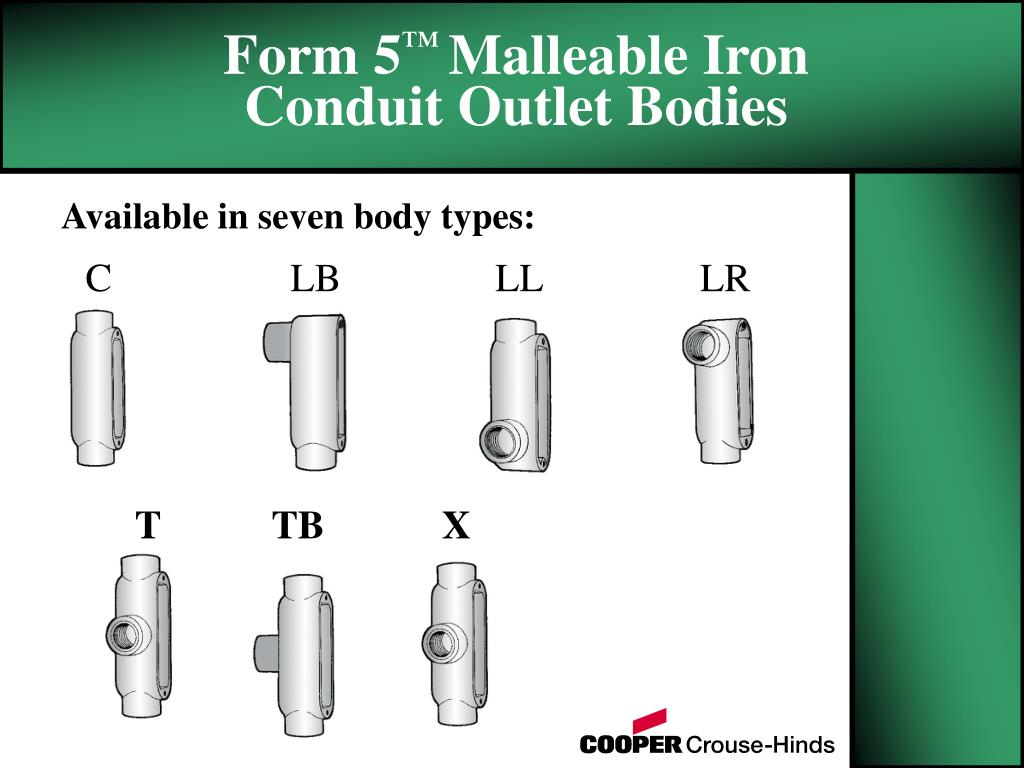

  8. C LB LL LR Form 5™ Malleable Iron Conduit Outlet Bodies Available in seven body types: TTBX

  9. Domed for additional cubic capacity Stainless steel self retaining cover screws Form 5™ Malleable Iron Covers Sheet Steel Covers Neoprene Gaskets • Perforated center that can be easily removed

  10. Form 5™ Malleable Iron Covers Form 5 Cast Covers • Available in ½” – 4” • ½” through 2” covers are a flat design • 2½” through 4” are domed design. • Captive, stainless steel screws for attachment of cover to body. • Certified to UL and cUL standards.

  11. Form 5™ Malleable Iron Covers Integral Gasketed Covers • The Sheet Steel cover features a raised dome supplied with stainless steel screws supplied with nylon washers and gasket • Simplifies installation, reduces inventory and labor cost • UL and cUL listed and are NEMA 4 rated • Available in ½” – 4”

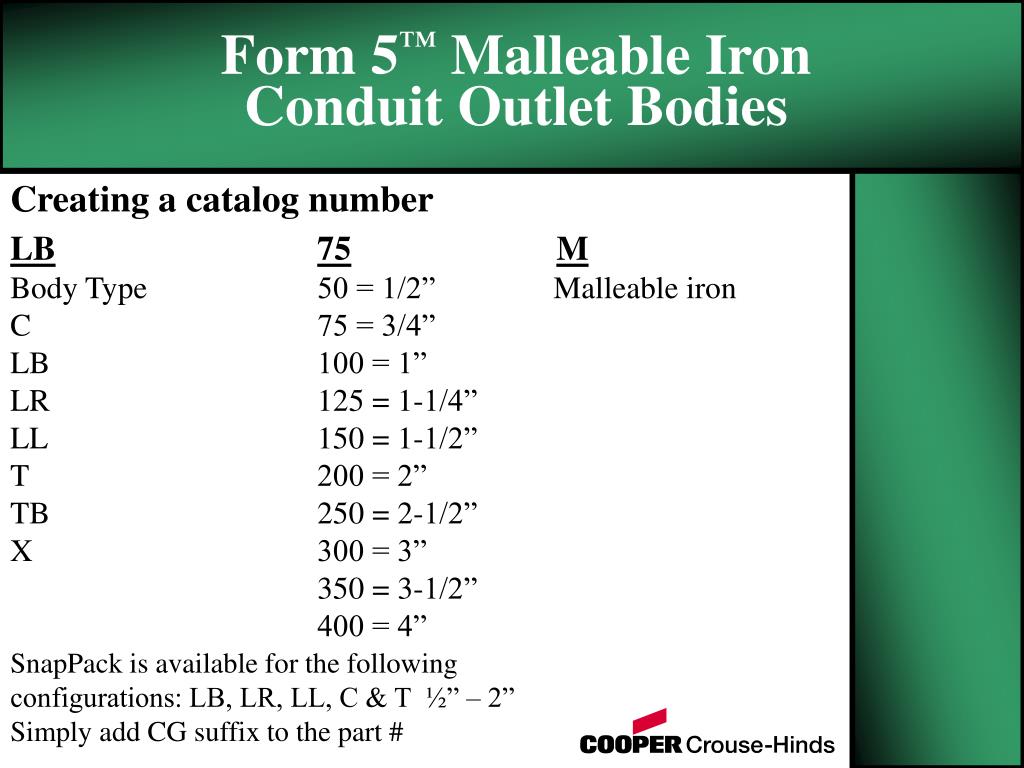

  12. Form 5™ Malleable Iron Conduit Outlet Bodies Creating a catalog number LB75M Body Type 50 = 1/2” Malleable iron C 75 = 3/4” LB 100 = 1” LR 125 = 1-1/4” LL 150 = 1-1/2” T 200 = 2” TB 250 = 2-1/2” X 300 = 3” 350 = 3-1/2” 400 = 4” SnapPack is available for the following configurations: LB, LR, LL, C & T ½” – 2” Simply add CG suffix to the part #

  13. Form 5™ Malleable Iron Conduit Outlet Bodies Marketing Materials • New Form 5™ Brochure • Competitive Cross Reference • www.crouse-hinds.com • Samples
