XPath in Chrome for Selenium: Best Practices and Examples

Learn XPath best practices in Chrome for Selenium automation. Includes functions, examples, and common fixes for XPath errors.

James1182
Télécharger la présentation

XPath in Chrome for Selenium: Best Practices and Examples

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Table of Contents 1. Introduction 2. Types of XPath 3. Finding XPath in Chrome 4. XPath Functions and Operators 5. Best Practices for Writing XPath 6. Examples in Selenium 7. Common Errors and Fixes 8. Conclusion

  2. 1. Introduction When working with Selenium for web automation, one of the most important tasks is locating elements on a webpage. Without accurate element locators, test scripts become unreliable. XPath, short for XML Path Language, is one of the most powerful locators supported by Selenium. It allows testers to navigate through a webpage’s HTML structure and precisely identify elements, even when attributes like IDs or classes are not consistent. Since most testers use Google Chrome as their primary browser for automation and debugging, it is crucial to understand how to find XPath in Chrome for Selenium. By mastering this process, testers can create reliable locators that improve the stability of their automation scripts. This guide explains how XPath works, how to generate it in Chrome DevTools, and how to apply it effectively in Selenium scripts. 2. Types of XPath XPath can be written in two primary ways: 2.1 Absolute XPath ● Begins from the root element (<html>) and specifies the complete path to the target element. ● It is precise but fragile; any small change in the webpage structure may cause the XPath to break. Example: /html/body/div[1]/form/input[1] 2.2 Relative XPath ● Does not start from the root. Instead, it begins with // and searches for elements anywhere in the document. ● More flexible and widely used in Selenium, especially for dynamic web pages. Example:

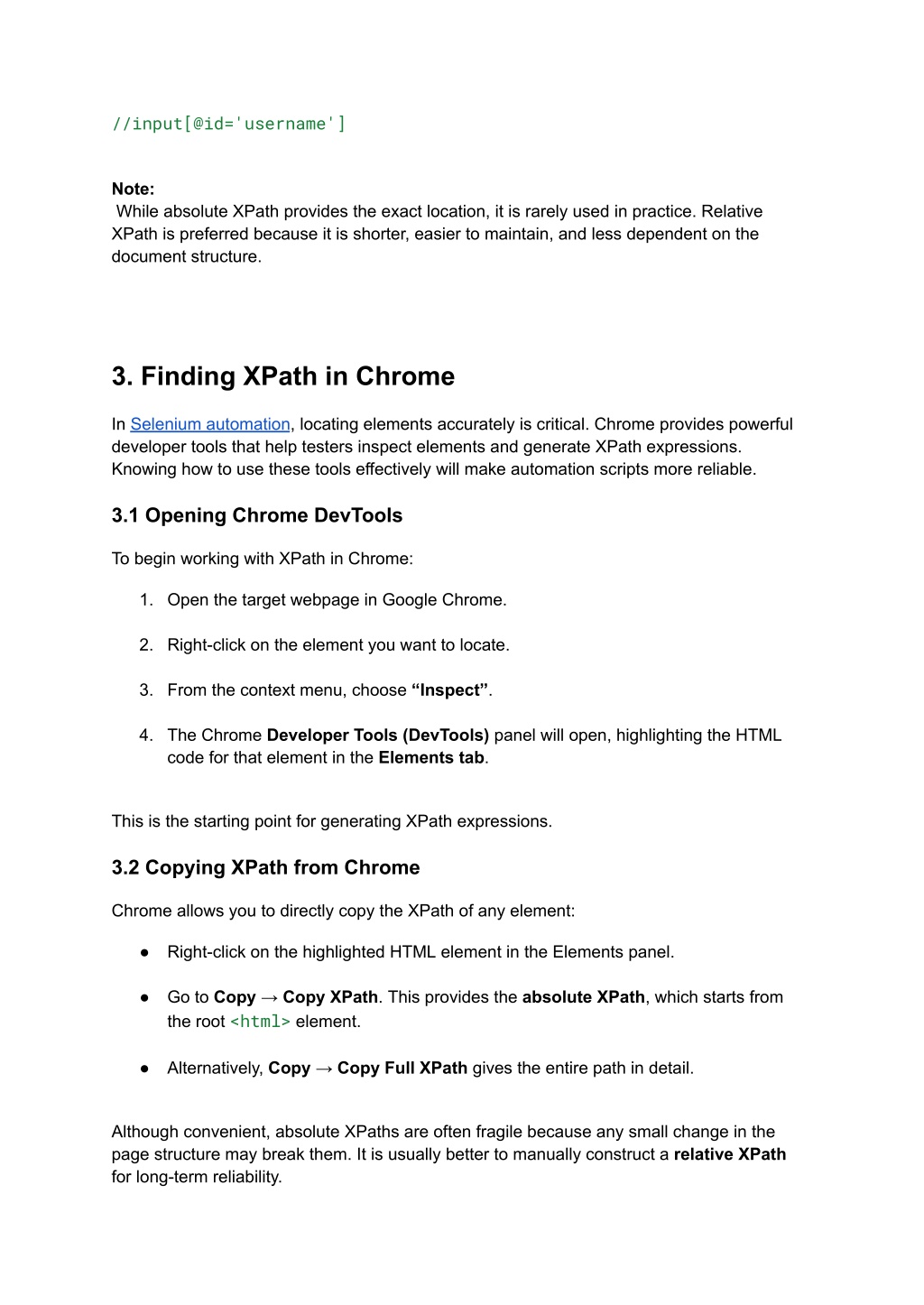

  3. //input[@id='username'] Note: While absolute XPath provides the exact location, it is rarely used in practice. Relative XPath is preferred because it is shorter, easier to maintain, and less dependent on the document structure. 3. Finding XPath in Chrome In Selenium automation, locating elements accurately is critical. Chrome provides powerful developer tools that help testers inspect elements and generate XPath expressions. Knowing how to use these tools effectively will make automation scripts more reliable. 3.1 Opening Chrome DevTools To begin working with XPath in Chrome: 1. Open the target webpage in Google Chrome. 2. Right-click on the element you want to locate. 3. From the context menu, choose “Inspect”. 4. The Chrome Developer Tools (DevTools) panel will open, highlighting the HTML code for that element in the Elements tab. This is the starting point for generating XPath expressions. 3.2 Copying XPath from Chrome Chrome allows you to directly copy the XPath of any element: ● Right-click on the highlighted HTML element in the Elements panel. ● Go to Copy → Copy XPath. This provides the absolute XPath, which starts from the root <html> element. ● Alternatively, Copy → Copy Full XPath gives the entire path in detail. Although convenient, absolute XPaths are often fragile because any small change in the page structure may break them. It is usually better to manually construct a relative XPath for long-term reliability.

  4. 3.3 Verifying XPath in Chrome Before using an XPath in Selenium, it is a good practice to test it in Chrome DevTools. ● With DevTools open, press Ctrl + F (Windows/Linux) or Command + F (Mac). A search box will appear at the bottom of the Elements panel. ● Enter your XPath expression into the search box. ● Chrome will highlight all elements that match your XPath. If no elements are highlighted, the XPath is invalid or too restrictive. Example: Suppose we want to locate a login button. In the DevTools search bar, enter: //button[text()='Login'] If the button exists, Chrome highlights it immediately. This ensures that the XPath works before you place it in your Selenium code. 3.4 Practical Considerations ● Copied XPaths are good for quick inspection but not always suitable for automation. ● Testers should learn to write clean and flexible relative XPaths using attributes like id, name, class, or text content. ● Always verify XPaths in Chrome before adding them to Selenium scripts. 4. XPath Functions and Operators XPath offers a variety of functions and operators that allow testers to locate elements in a flexible way. These functions are extremely useful when attributes are dynamic, partially known, or when multiple elements share similar properties. 4.1 Commonly Used Functions 1. text() ● Used to locate an element based on its visible text.

  5. ● Works best when the text is unique and unlikely to change. Example: //button[text()='Login'] This locates a button whose visible text is exactly “Login”. 2. contains() ● Useful when the attribute or text value is partially known. ● Helps when elements have dynamic IDs or long strings. Example: //input[contains(@id, 'user')] This selects an input field where the id attribute contains the word “user”. 3. starts-with() ● Locates elements where the attribute value begins with a specific substring. Example: //div[starts-with(@class, 'alert')] This selects a <div> element whose class starts with “alert”, such as “alert-danger” or “alert-success”. 4. last() ● Selects the last element in a list of matching nodes. Example:

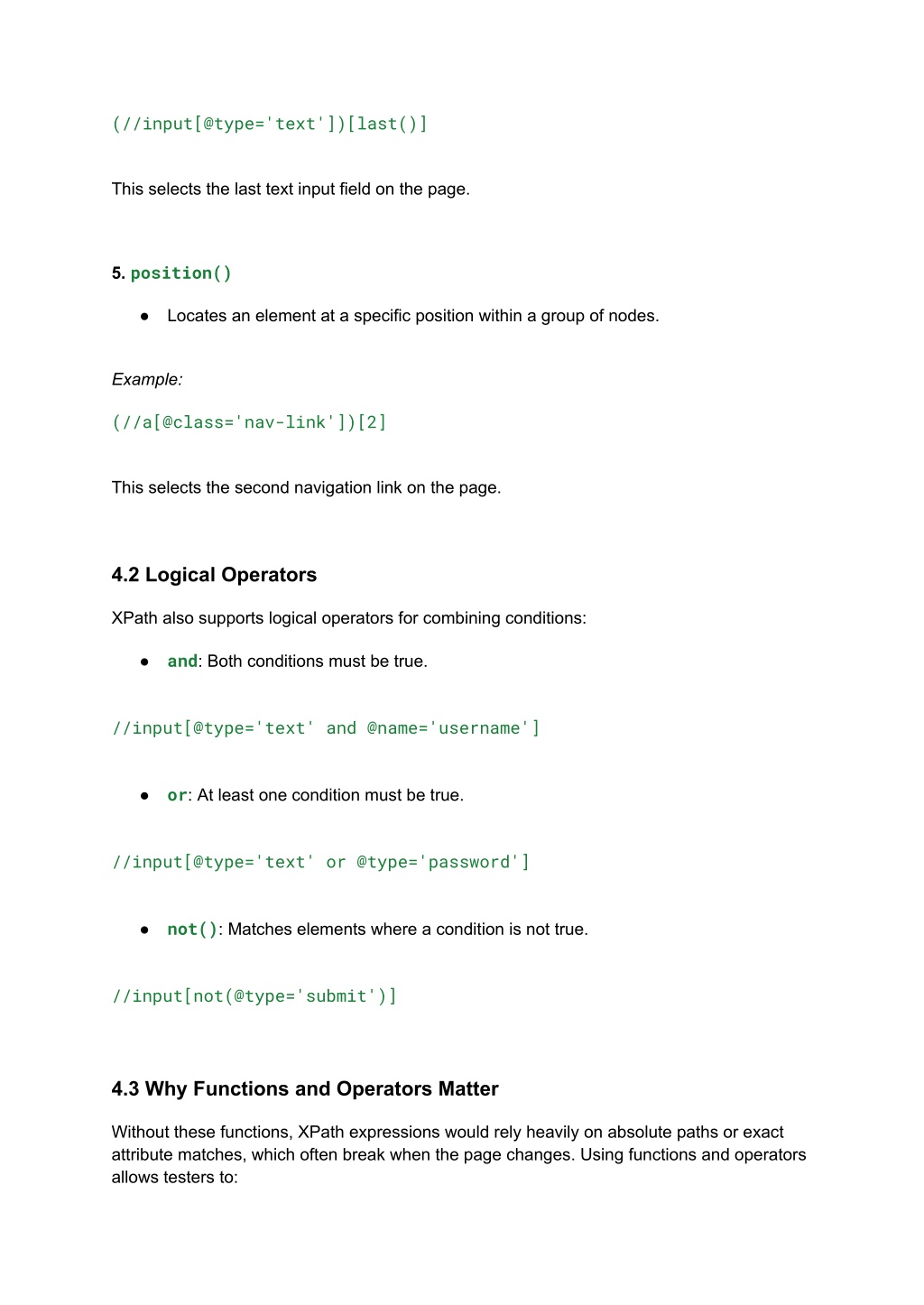

  6. (//input[@type='text'])[last()] This selects the last text input field on the page. 5. position() ● Locates an element at a specific position within a group of nodes. Example: (//a[@class='nav-link'])[2] This selects the second navigation link on the page. 4.2 Logical Operators XPath also supports logical operators for combining conditions: ● and: Both conditions must be true. //input[@type='text' and @name='username'] ● or: At least one condition must be true. //input[@type='text' or @type='password'] ● not(): Matches elements where a condition is not true. //input[not(@type='submit')] 4.3 Why Functions and Operators Matter Without these functions, XPath expressions would rely heavily on absolute paths or exact attribute matches, which often break when the page changes. Using functions and operators allows testers to:

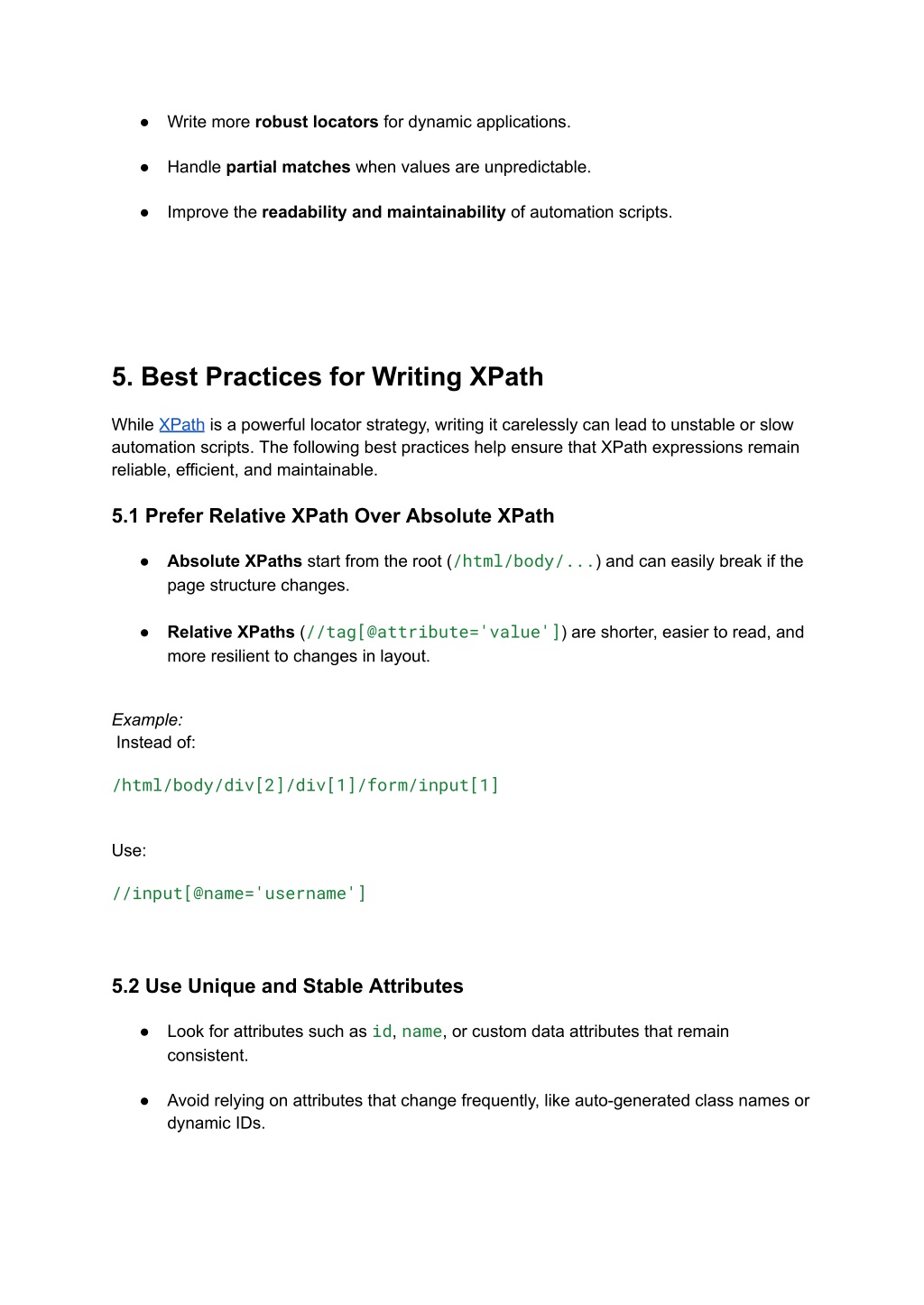

  7. ● Write more robust locators for dynamic applications. ● Handle partial matches when values are unpredictable. ● Improve the readability and maintainability of automation scripts. 5. Best Practices for Writing XPath While XPath is a powerful locator strategy, writing it carelessly can lead to unstable or slow automation scripts. The following best practices help ensure that XPath expressions remain reliable, efficient, and maintainable. 5.1 Prefer Relative XPath Over Absolute XPath ● Absolute XPaths start from the root (/html/body/...) and can easily break if the page structure changes. ● Relative XPaths (//tag[@attribute='value']) are shorter, easier to read, and more resilient to changes in layout. Example: Instead of: /html/body/div[2]/div[1]/form/input[1] Use: //input[@name='username'] 5.2 Use Unique and Stable Attributes ● Look for attributes such as id, name, or custom data attributes that remain consistent. ● Avoid relying on attributes that change frequently, like auto-generated class names or dynamic IDs.

  8. Example: //button[@id='submit-login'] is more stable than //button[@class='btn123 random-style'] 5.3 Keep XPath Expressions Short and Readable ● Long and complex XPaths are difficult to debug. ● Use meaningful attributes or text values instead of traversing multiple parent/child nodes. Bad Practice: /html/body/div[2]/div[3]/div[1]/ul/li[4]/a Good Practice: //a[text()='Contact Us'] 5.4 Leverage XPath Functions ● Use functions like contains(), starts-with(), or text() to handle dynamic or partial values. ● These functions make locators flexible and more likely to survive UI changes. Example: //input[contains(@id, 'user')] 5.5 Verify XPath in Chrome Before Using in Selenium ● Always test your XPath in Chrome DevTools (using Ctrl + F in the Elements panel).

  9. ● This ensures that the expression actually locates the intended element before placing it in a script. 5.6 Avoid Overuse of Indexing ● Using positional indices like [1], [2] is fragile since they change when the DOM updates. ● Prefer attribute- or text-based identification whenever possible. Instead of: (//input[@type='text'])[3] Better: //input[@name='email'] 5.7 Maintain Consistency ● Use a consistent style for writing XPath expressions across the project. ● This improves readability for the entire team and reduces errors in long-term maintenance. 6. Examples in Selenium Once an XPath expression has been created and tested, it can be directly used in Selenium scripts to interact with web elements. Below are some practical examples demonstrating how to work with XPath in Selenium.

  10. 6.1 Basic Element Location Example: Locate a text field using XPath and send input WebDriver driver = new ChromeDriver(); driver.get("https://example.com"); // Locate username field using XPath WebElement usernameField = driver.findElement(By.xpath("//input[@name='username']")); usernameField.sendKeys("test_user"); 6.2 Clicking a Button Example: Locate a button by visible text and click // Locate button with text 'Login' WebElement loginButton = driver.findElement(By.xpath("//button[text()='Login']")); loginButton.click(); 6.3 Using contains() for Dynamic Elements Example: Locate an element with a partially known attribute // Input field with dynamic ID containing 'user' WebElement inputField = driver.findElement(By.xpath("//input[contains(@id,'user')]")); inputField.sendKeys("sample_value"); 6.4 Using and / or Operators Example: Locate an input field that could be either username or email WebElement loginField = driver.findElement( By.xpath("//input[@name='username' or @name='email']") ); loginField.sendKeys("test@example.com");

  11. 6.5 Handling Lists of Elements Example: Find multiple elements with the same class // Locate all menu items List<WebElement> menuItems = driver.findElements(By.xpath("//ul[@id='menu']//li/a")); for (WebElement item : menuItems) { System.out.println(item.getText()); } 6.6 Selecting by Position Example: Locate the second item in a list WebElement secondItem = driver.findElement(By.xpath("(//ul[@id='menu']//li)[2]")); secondItem.click(); 6.7 Verifying Elements Example: Check if an element exists List<WebElement> elements = driver.findElements(By.xpath("//div[@class='alert']")); if (!elements.isEmpty()) { System.out.println("Alert message is displayed: " + elements.get(0).getText()); } These examples show how XPath can be applied in real Selenium test cases to interact with various elements reliably.

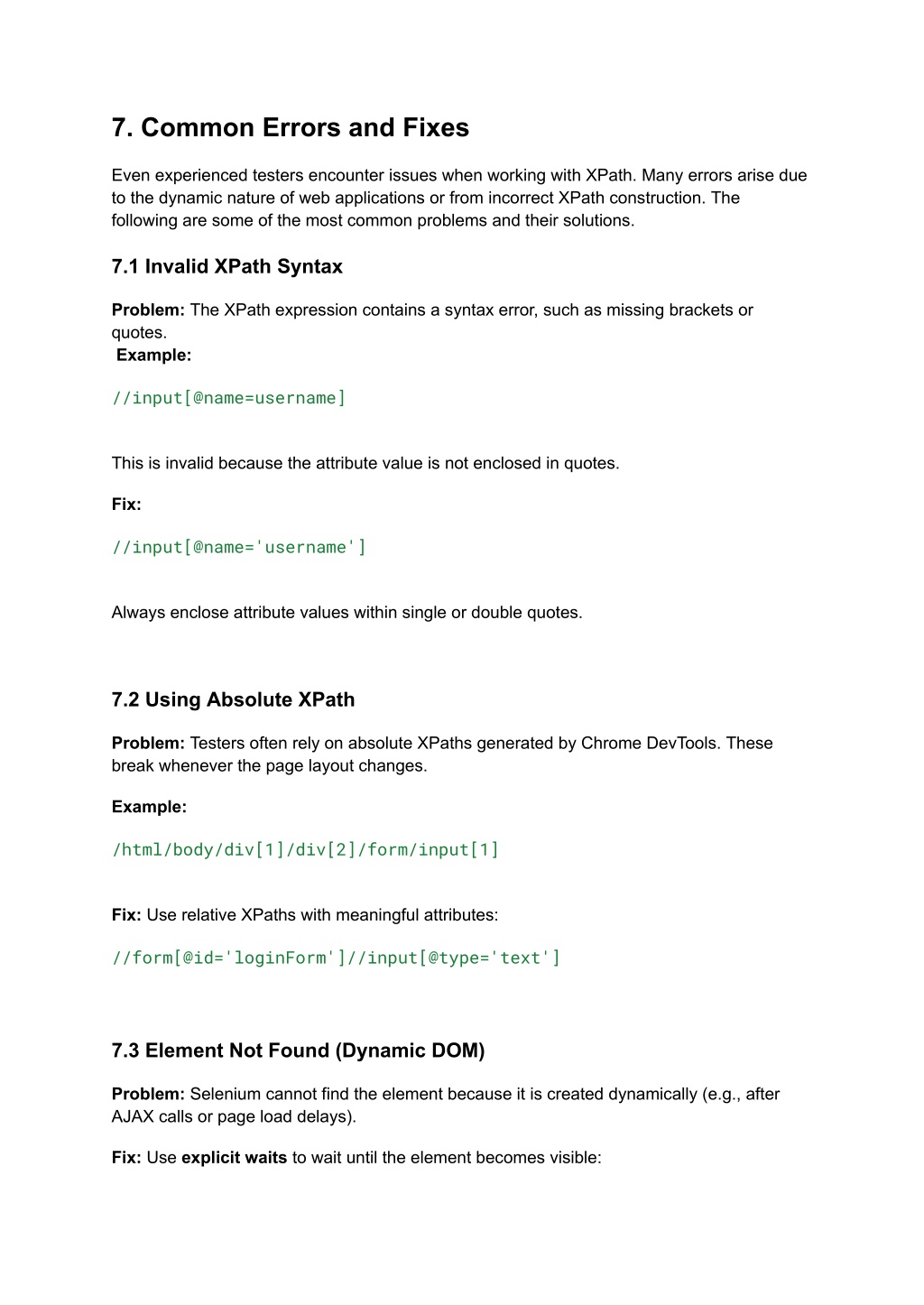

  12. 7. Common Errors and Fixes Even experienced testers encounter issues when working with XPath. Many errors arise due to the dynamic nature of web applications or from incorrect XPath construction. The following are some of the most common problems and their solutions. 7.1 Invalid XPath Syntax Problem: The XPath expression contains a syntax error, such as missing brackets or quotes. Example: //input[@name=username] This is invalid because the attribute value is not enclosed in quotes. Fix: //input[@name='username'] Always enclose attribute values within single or double quotes. 7.2 Using Absolute XPath Problem: Testers often rely on absolute XPaths generated by Chrome DevTools. These break whenever the page layout changes. Example: /html/body/div[1]/div[2]/form/input[1] Fix: Use relative XPaths with meaningful attributes: //form[@id='loginForm']//input[@type='text'] 7.3 Element Not Found (Dynamic DOM) Problem: Selenium cannot find the element because it is created dynamically (e.g., after AJAX calls or page load delays). Fix: Use explicit waits to wait until the element becomes visible:

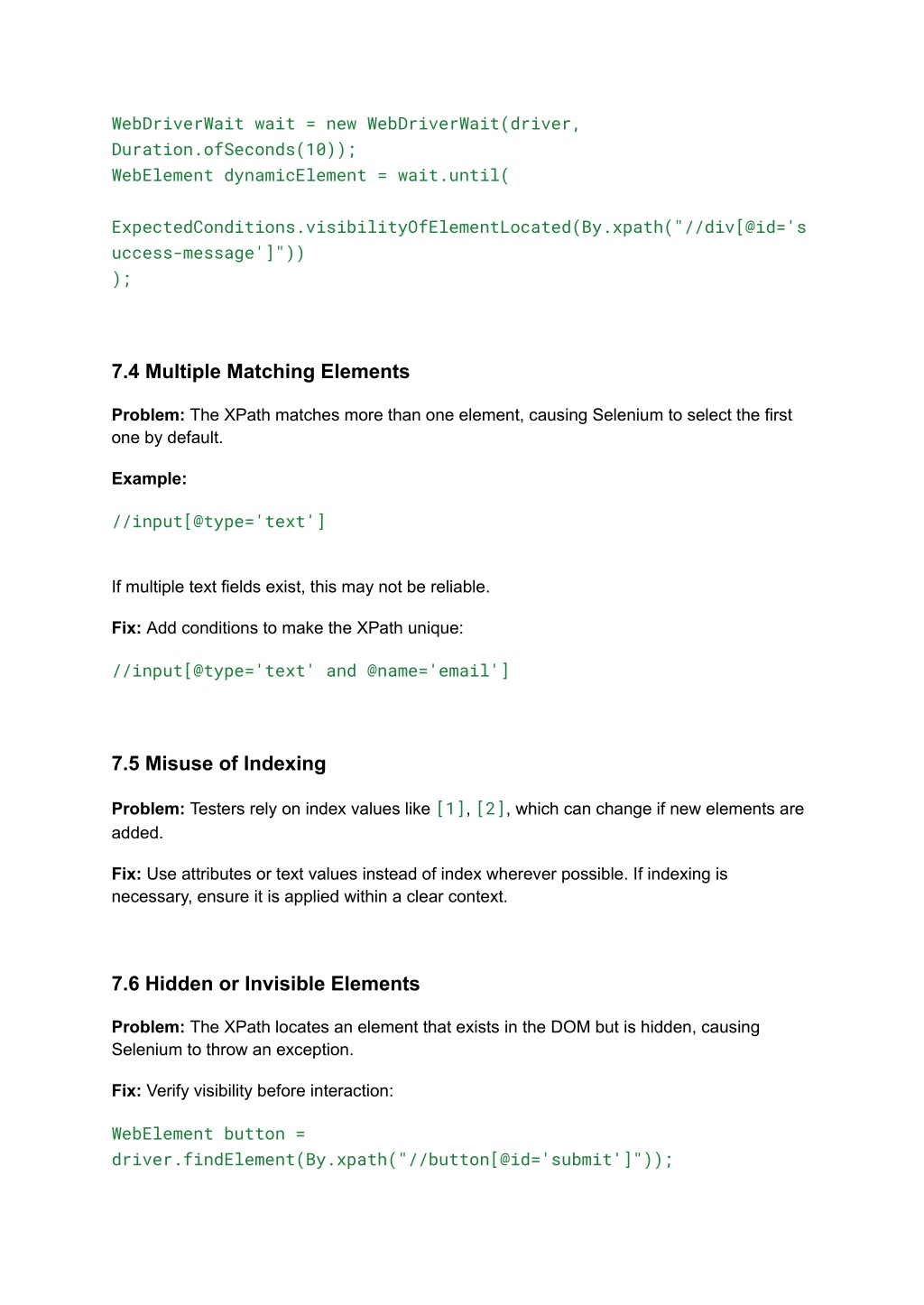

  13. WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(10)); WebElement dynamicElement = wait.until( ExpectedConditions.visibilityOfElementLocated(By.xpath("//div[@id='s uccess-message']")) ); 7.4 Multiple Matching Elements Problem: The XPath matches more than one element, causing Selenium to select the first one by default. Example: //input[@type='text'] If multiple text fields exist, this may not be reliable. Fix: Add conditions to make the XPath unique: //input[@type='text' and @name='email'] 7.5 Misuse of Indexing Problem: Testers rely on index values like [1], [2], which can change if new elements are added. Fix: Use attributes or text values instead of index wherever possible. If indexing is necessary, ensure it is applied within a clear context. 7.6 Hidden or Invisible Elements Problem: The XPath locates an element that exists in the DOM but is hidden, causing Selenium to throw an exception. Fix: Verify visibility before interaction: WebElement button = driver.findElement(By.xpath("//button[@id='submit']"));

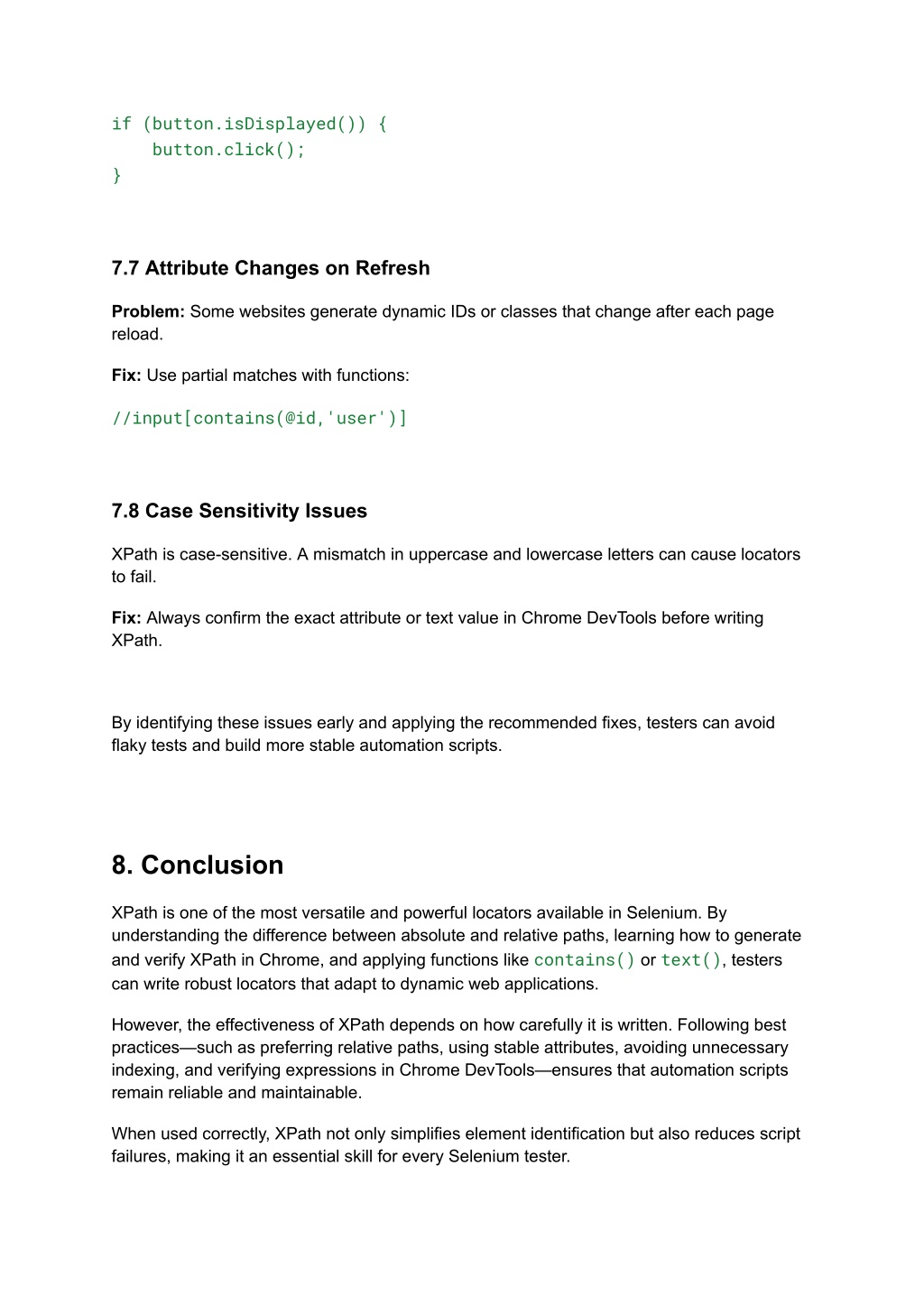

  14. if (button.isDisplayed()) { button.click(); } 7.7 Attribute Changes on Refresh Problem: Some websites generate dynamic IDs or classes that change after each page reload. Fix: Use partial matches with functions: //input[contains(@id,'user')] 7.8 Case Sensitivity Issues XPath is case-sensitive. A mismatch in uppercase and lowercase letters can cause locators to fail. Fix: Always confirm the exact attribute or text value in Chrome DevTools before writing XPath. By identifying these issues early and applying the recommended fixes, testers can avoid flaky tests and build more stable automation scripts. 8. Conclusion XPath is one of the most versatile and powerful locators available in Selenium. By understanding the difference between absolute and relative paths, learning how to generate and verify XPath in Chrome, and applying functions like contains() or text(), testers can write robust locators that adapt to dynamic web applications. However, the effectiveness of XPath depends on how carefully it is written. Following best practices—such as preferring relative paths, using stable attributes, avoiding unnecessary indexing, and verifying expressions in Chrome DevTools—ensures that automation scripts remain reliable and maintainable. When used correctly, XPath not only simplifies element identification but also reduces script failures, making it an essential skill for every Selenium tester.
