Presentation Transcript

  1. Presents UAV Workshop Presented By North American Solutions for Surveillance Reconnaissance & Target Acquisition Proprietary Data Bye Aerospace, Inc., Surveil, LLC Page 1

  2. Unmanned and unwomanned Proprietary Data Bye Aerospace, Inc., Surveil, LLC Page 2

  3. Goals of the Workshop Provide a US industry perspective on the history and some observations on current development. Moderate an interactive discussion amongst audience members to share experience and expectations from UAS platforms Bye Aerospace, Inc. Proprietary Data

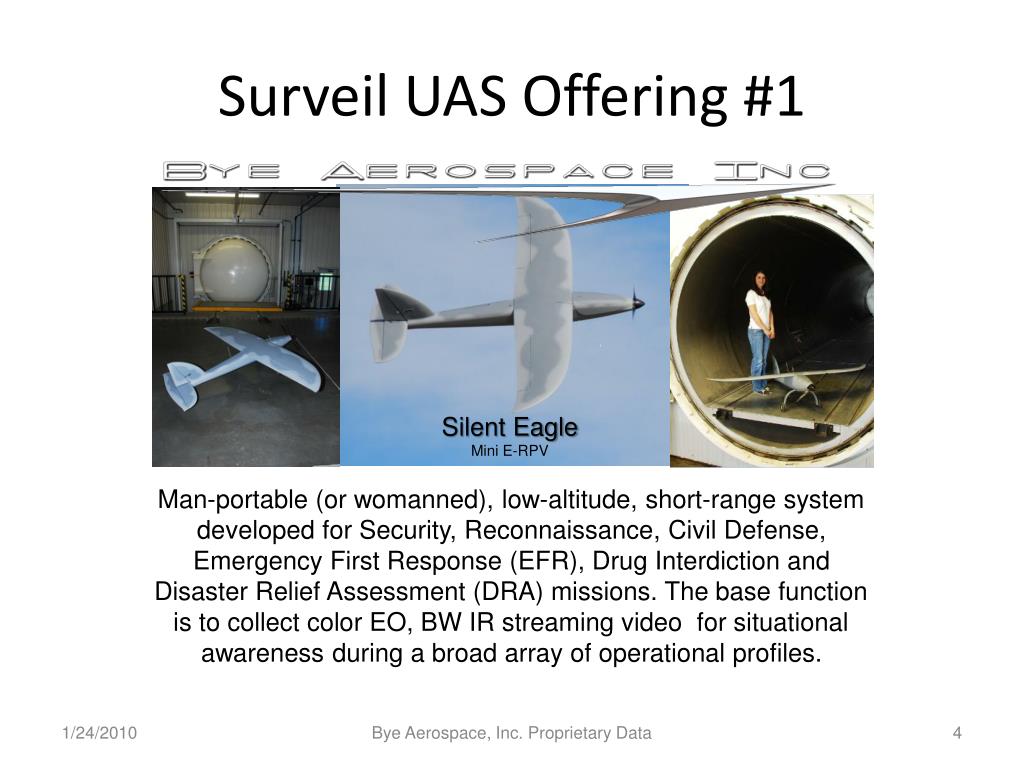

  4. Surveil UAS Offering #1 Silent Eagle Mini E-RPV 7 ft short wing POC in Flight Man-portable (or womanned), low-altitude, short-range system developed for Security, Reconnaissance, Civil Defense, Emergency First Response (EFR), Drug Interdiction and Disaster Relief Assessment (DRA) missions. The base function is to collect color EO, BW IR streaming video for situational awareness during a broad array of operational profiles. Bye Aerospace, Inc. Proprietary Data

  5. Surveil Offering #2“Coyote” Scion Aviation is leading the effort to combine proven mechanical systems of the MD 500, composite blades from Kaman Aerospace and propulsion from Rolls Royce to create an advanced composite modular VTOL/UAV that will fulfill a multitude of missions with greater efficiency and effectiveness than other systems such as the Northrop Grumman MQ-8B. Proprietary & Confidential, Surveil, LLC & Scion Aviation

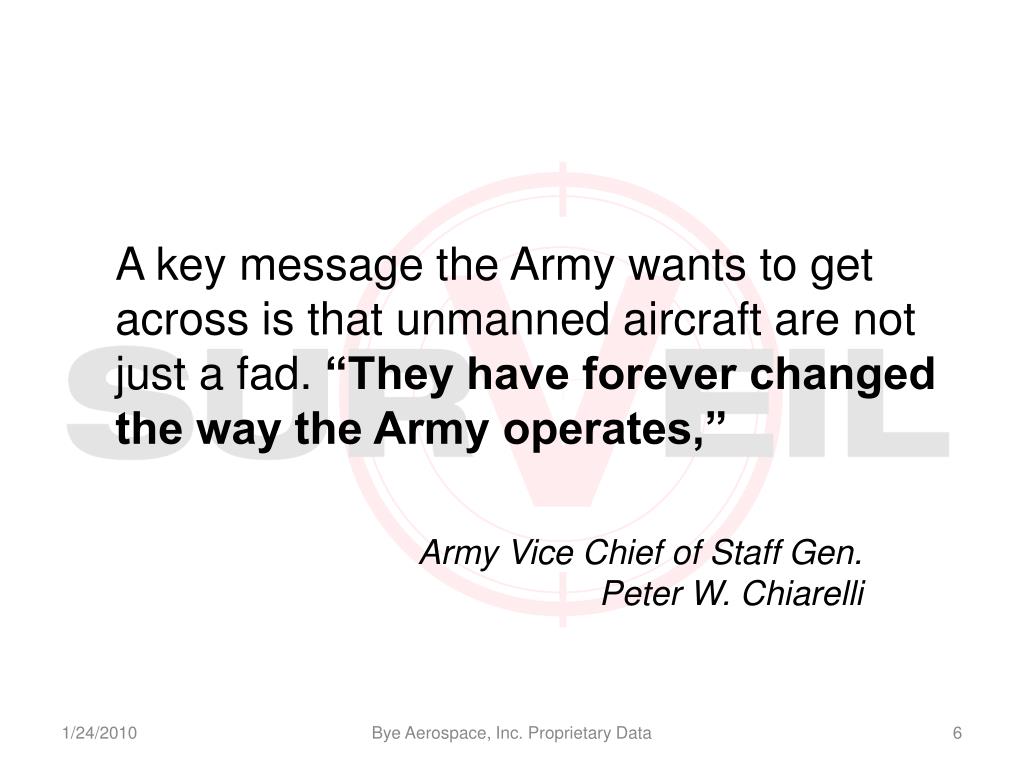

  6. A key message the Army wants to get across is that unmanned aircraft are not just a fad. “They have forever changed the way the Army operates,” Army Vice Chief of Staff Gen. Peter W. Chiarelli Bye Aerospace, Inc. Proprietary Data

  7. Context

  8. Bye Aerospace, Inc. Proprietary Data

  9. UAV Advantages

  10. Observation #1 The UAV/UAS market is like the automobile business in the 1920’s and the personal computer business in the early 80’ Bye Aerospace, Inc. Proprietary Data

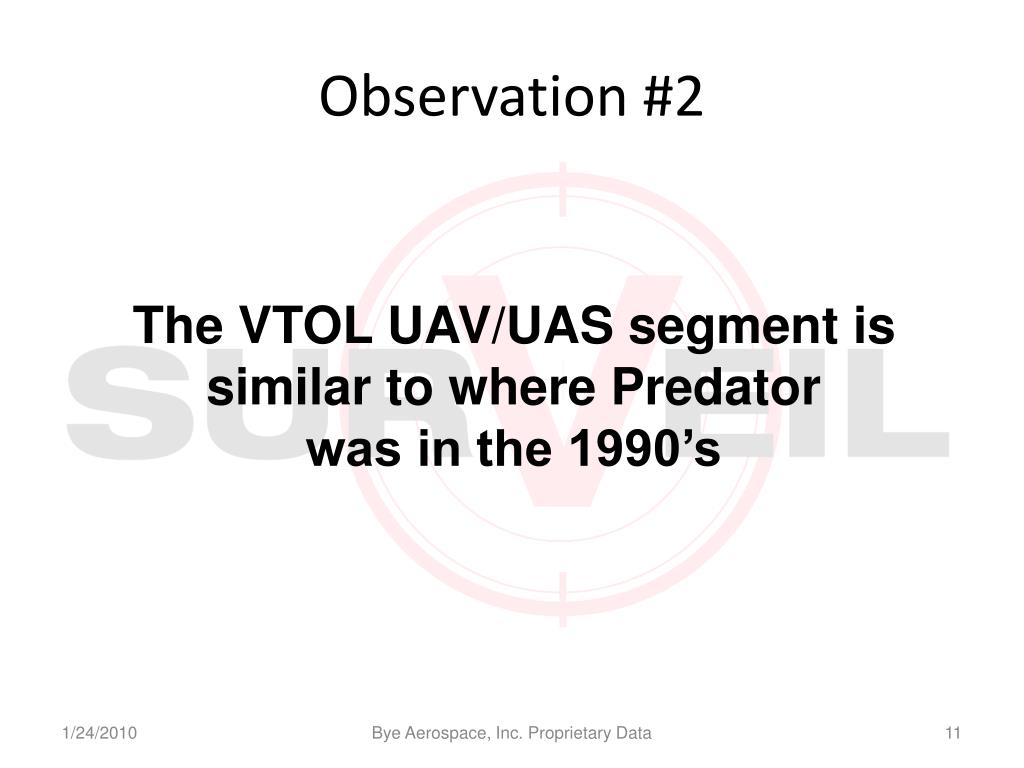

  11. Observation #2 The VTOL UAV/UAS segment is similar to where Predator was in the 1990’s Bye Aerospace, Inc. Proprietary Data

  12. Observation #2 In 2009 the US Navy placed a $2.2 billion order for 200+ MQ-8B Fire Scouts from Northrop Grumman The VTOL UAV/UAS segment is at a position similar to Predetor in the 1990’s Bye Aerospace, Inc. Proprietary Data

  13. A Plug for “Coyote” 1600 lbs. Useful Load Remaining Balance Useful Load 1100 lbs. Fuel Avionics Communications Pilot Hellfire Class Missiles 4 x ~108lbs. each ~435 lbs. TacFLIR III EO / IR ~60lbs. Proprietary & Confidential, Surveil, LLC & Scion Aviation

  14. Observation #3 The UAV/UAS market is driving advancements in new and innovative propulsion systems including Liquid Hydrogen and Hybrid Gas / Electric Bye Aerospace, Inc. Proprietary Data

  15. Global Observer Persistent Communications & Remote Sensing Endurance - Up to 1 week Payload - Up to 400 lbs. Altitude - 65,000 feet Propulsion - Liquid Hydrogen Global Observer is an unmanned aircraft system (UAS) to be the first to provide robust, cost-effective and persistent communications and surveillance over any location on the globe. The unique combination of both extreme flight duration and stratospheric operating altitude is designed to deliver advantages in cost, capacity, coverage, flexibility, and reliability that make it a compelling complement to existing satellite, aerial and terrestrial assets. Bye Aerospace, Inc. Proprietary Data

  16. Silent Sentinel Photovoltaic Wing Service Turbine Engine Propeller driven by Electric Motor Bye Aerospace, Inc. Proprietary Data

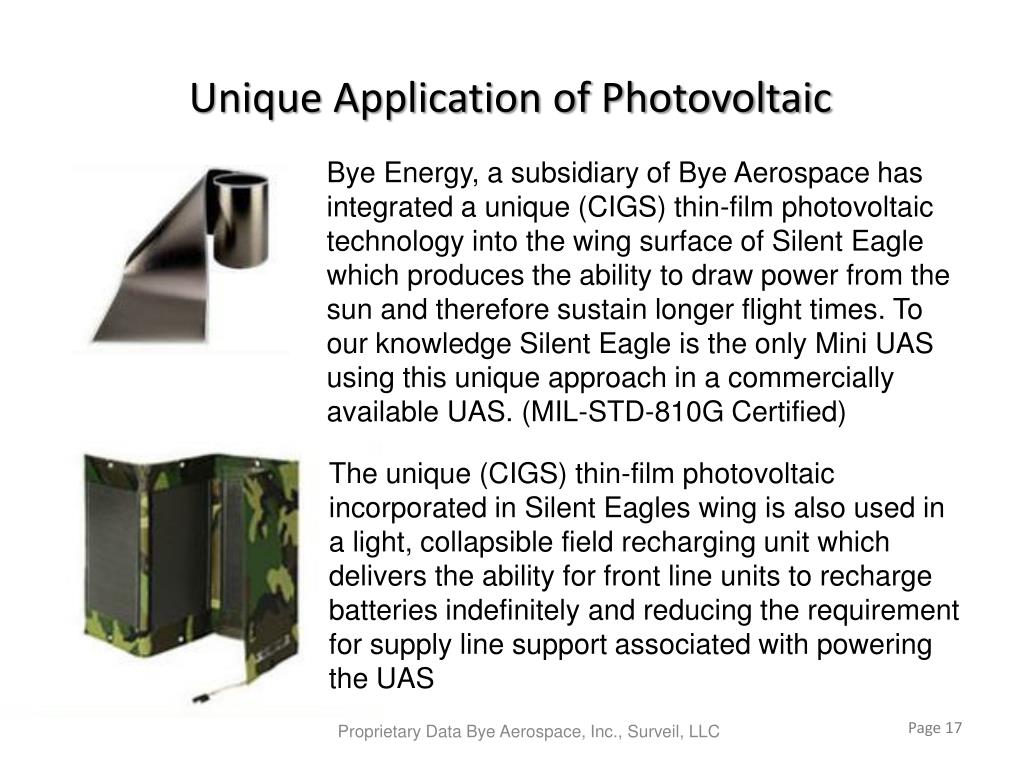

  17. Unique Application of Photovoltaic Bye Energy, a subsidiary of Bye Aerospace has integrated a unique (CIGS) thin-film photovoltaic technology into the wing surface of Silent Eagle which produces the ability to draw power from the sun and therefore sustain longer flight times. To our knowledge Silent Eagle is the only Mini UAS using this unique approach in a commercially available UAS. (MIL-STD-810G Certified) The unique (CIGS) thin-film photovoltaic incorporated in Silent Eagles wing is also used in a light, collapsible field recharging unit which delivers the ability for front line units to recharge batteries indefinitely and reducing the requirement for supply line support associated with powering the UAS Proprietary Data Bye Aerospace, Inc., Surveil, LLC Page 17

  18. Observation #4 The UAV/UAS market is driving advancements in new and innovative ways to apply carbon fiber composite materials Bye Aerospace, Inc. Proprietary Data

  19. Benefits of Carbon Fiber Construction • Strength and Durability • Lighter airframe enables greater payload • Retention of Aerodynamic Characteristics Proprietary Data Bye Aerospace, Inc., Surveil, LLC Page 19

  20. Observation #5 The UAV/UAS market is driving advancements in new, smaller and cost effective sensors and autopilots Bye Aerospace, Inc. Proprietary Data

  21. Examples of Small, Cheaper Systems Proprietary Data Bye Aerospace, Inc., Surveil, LLC Page 21

  22. Observations and Experience from The Audience Bye Aerospace, Inc. Proprietary Data

  23. Thank You Bye Aerospace, Inc. Proprietary Data
