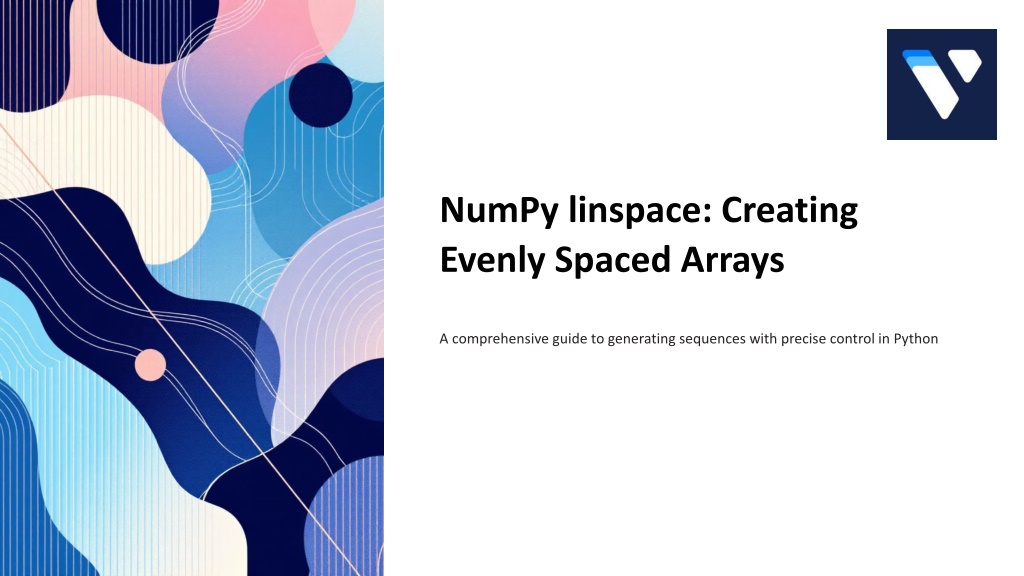

  1. NumPy linspace: Creating Evenly Spaced Arrays A comprehensive guide to generating sequences with precise control in Python

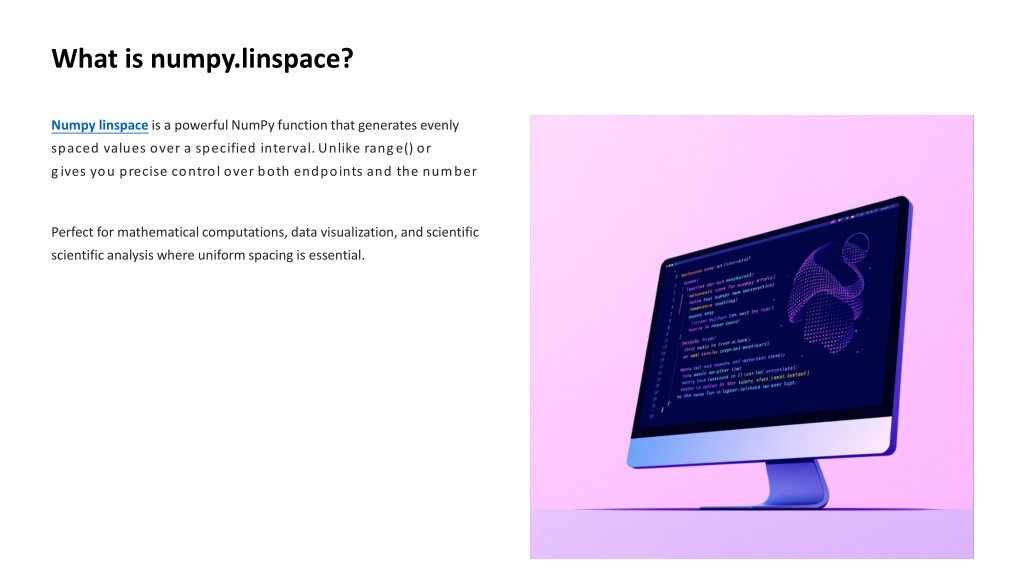

  2. What is numpy.linspace? Numpylinspaceis a powerful NumPy function that generates evenly spaced values over a specified interval. Unlike range() or arange(), linspace gives you precise control over both endpoints and the number of values. Perfect for mathematical computations, data visualization, and scientific analysis where uniform spacing is essential.

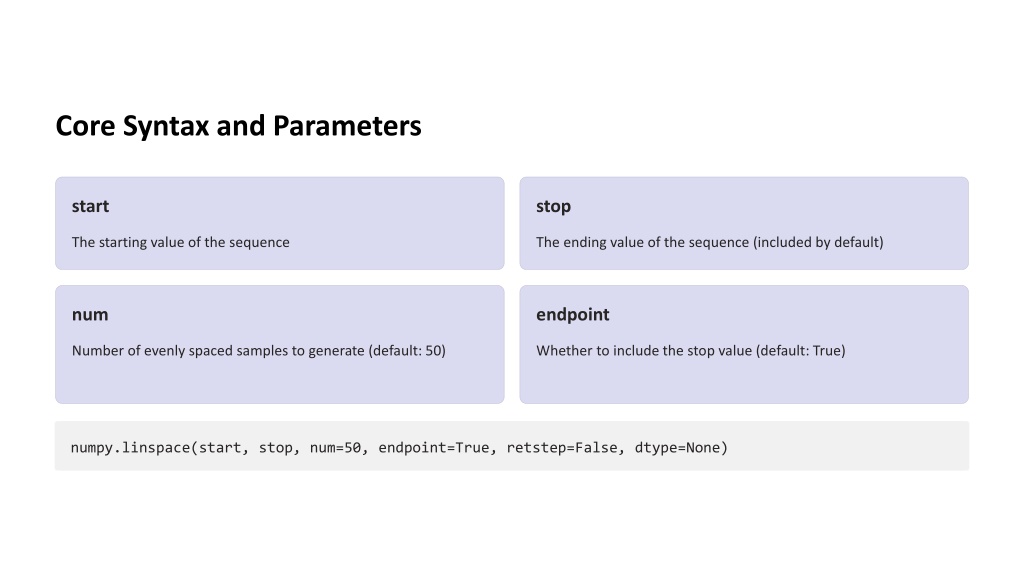

  3. Core Syntax and Parameters start stop The starting value of the sequence The ending value of the sequence (included by default) num endpoint Number of evenly spaced samples to generate (default: 50) Whether to include the stop value (default: True) numpy.linspace(start, stop, num=50, endpoint=True, retstep=False, dtype=None)

  4. Basic Usage Examples Simple Linear Spacing import numpy as np# Generate 5 values from 0 to 10arr = np.linspace(0, 10, 5)# Output: [0. 2.5 5. 7.5 10.]# Generate 10 values from 1 to 100arr = np.linspace(1, 100, 10) Notice how the endpoint is always included by default, making calculations predictable and intuitive.

  5. linspace vs. arange: Key Differences numpy.linspace numpy.arange • Specify the number of elements • Specify the step size • Endpoint included by default • Endpoint excluded by default • Better for plotting and mathematical functions • Similar to Python's built-in range() • More predictable floating-point behavior • Can have unexpected results with floats Choose linspace when you need precise control over the number of points; use arange when step size matters more.

  6. Advanced Features Return Step Size Custom Data Types Exclude Endpoint Use retstep=True to get both the array and the spacing between values, useful for numerical analysis. Specify dtype parameter to control output precision: int, float32, float64, or complex. Set endpoint=False to exclude the stop value, creating open intervals for specific mathematical needs.

  7. Practical Applications 01 02 Data Visualization Signal Processing Generate smooth curves for plotting mathematical functions like sine waves, polynomials, and statistical distributions. Create time arrays for sampling signals at consistent intervals in audio processing and telecommunications. 03 04 Numerical Analysis Machine Learning Discretize continuous intervals for integration, differentiation, and solving differential equations. Generate feature ranges for hyperparameter tuning and create evenly distributed test datasets.

  8. Real-World Code Example import numpy as npimport matplotlib.pyplot as plt# Generate 100 points between 0 and 2πx = np.linspace(0, 2*np.pi, 100)# Calculate sine and cosine valuesy_sin = np.sin(x)y_cos = np.cos(x)# Plot both functionsplt.plot(x, y_sin, label='sin(x)')plt.plot(x, y_cos, label='cos(x)')plt.legend()plt.show()

  9. Best Practices and Tips Choose appropriate num values Be mindful of memory Use more points (100+) for smooth plots, fewer points (10-20) for computational efficiency in large datasets. Large num values create large arrays. Consider memory constraints when generating millions of points. Use retstep for debugging Combine with other NumPy functions The step size helps verify your spacing calculations and catch potential issues early. Leverage linspace with meshgrid, vectorized operations, and broadcasting for powerful numerical computing.

  10. Thank You Contact Information Address:319 Clematis Street - Suite 900West Palm Beach, FL 33401 Email:support@vultr.com Website: https://vultr.com/
