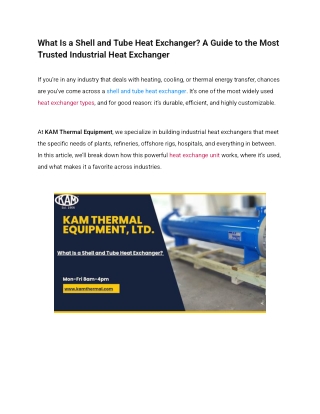

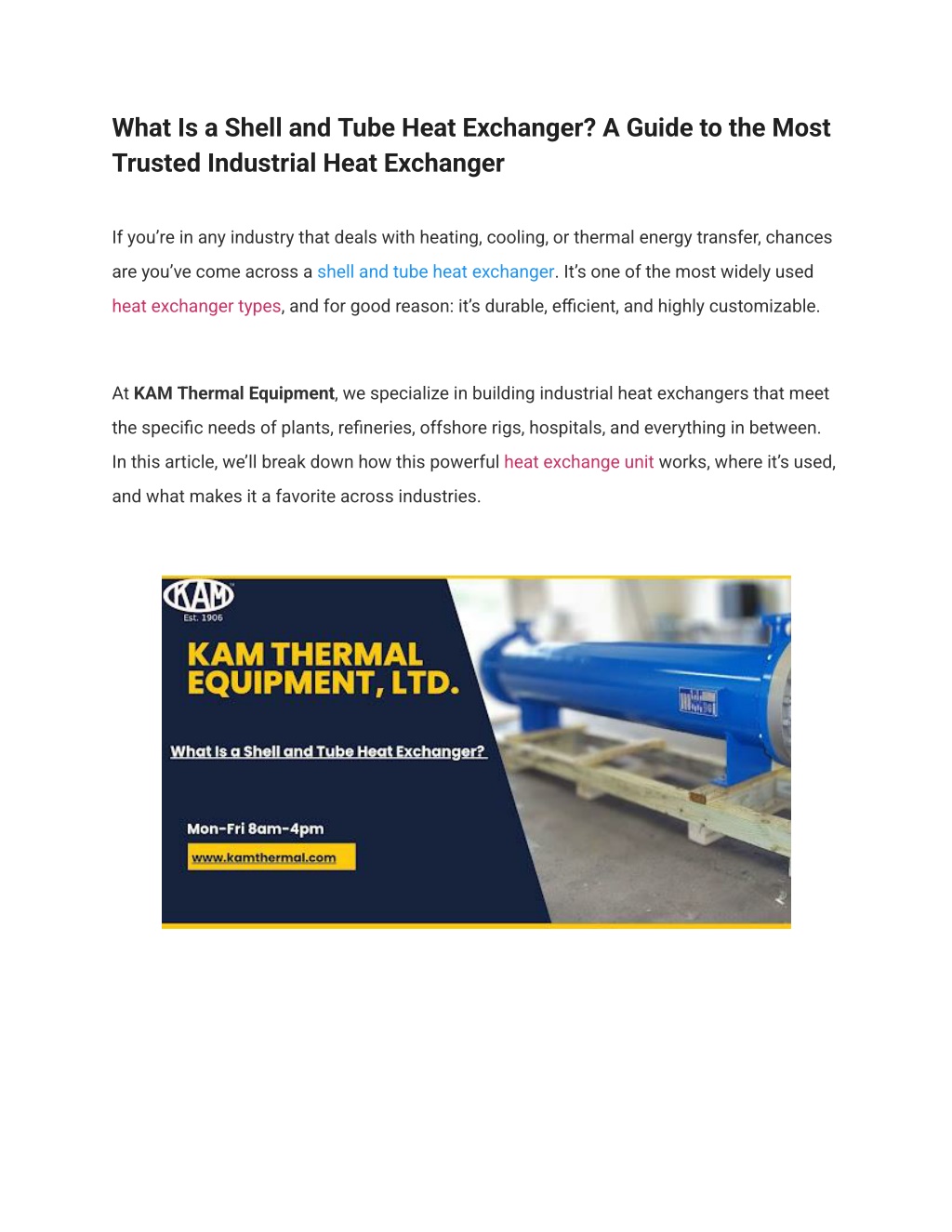

  1. What Is a Shell and Tube Heat Exchanger? A Guide to the Most Trusted Industrial Heat Exchanger If you’re in any industry that deals with heating, cooling, or thermal energy transfer, chances are you’ve come across a shell and tube heat exchanger. It’s one of the most widely used heat exchanger types, and for good reason: it’s durable, efficient, and highly customizable. At KAM Thermal Equipment, we specialize in building industrial heat exchangers that meet the specific needs of plants, refineries, offshore rigs, hospitals, and everything in between. In this article, we’ll break down how this powerful heat exchange unit works, where it’s used, and what makes it a favorite across industries.

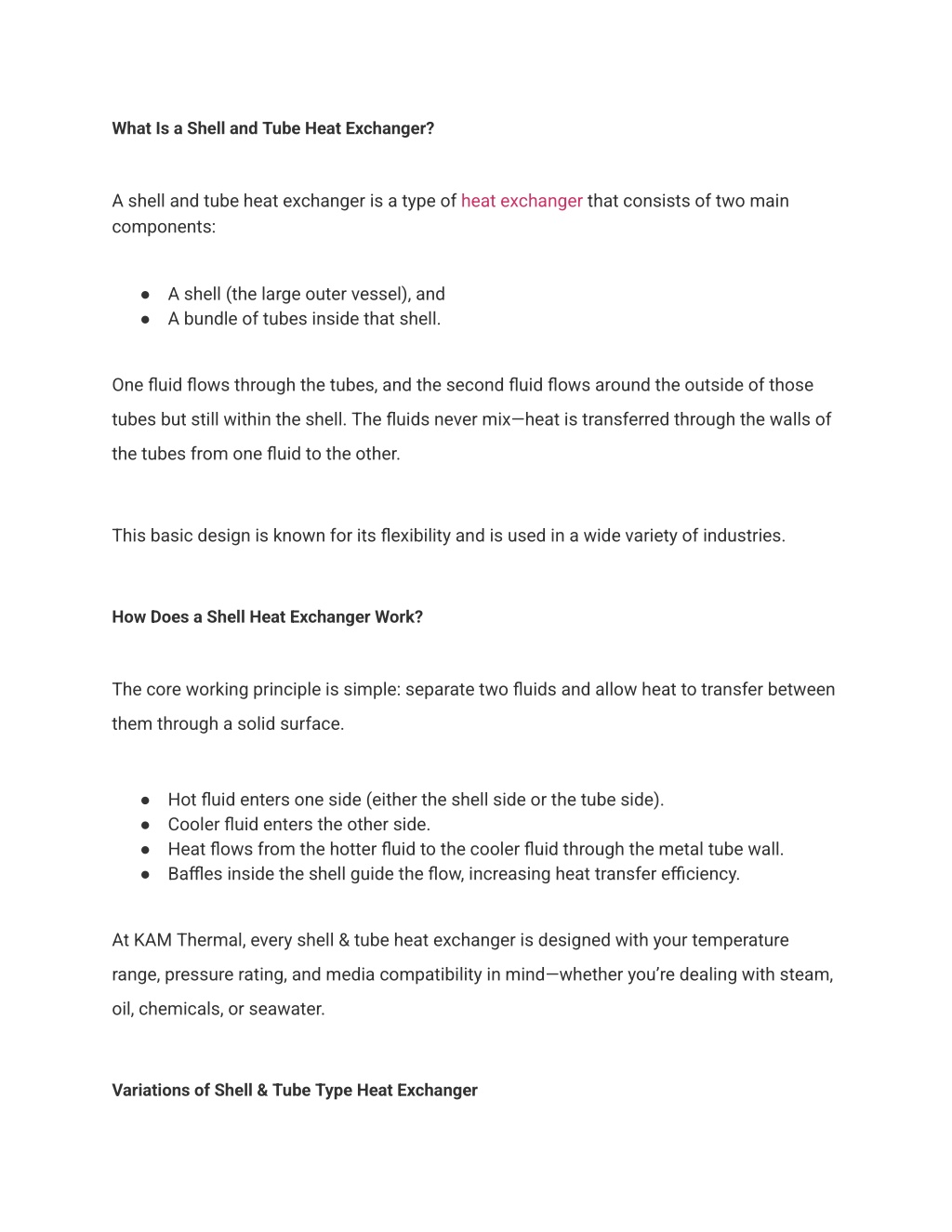

  2. What Is a Shell and Tube Heat Exchanger? A shell and tube heat exchanger is a type of heat exchanger that consists of two main components: ● A shell (the large outer vessel), and ● A bundle of tubes inside that shell. One fluid flows through the tubes, and the second fluid flows around the outside of those tubes but still within the shell. The fluids never mix—heat is transferred through the walls of the tubes from one fluid to the other. This basic design is known for its flexibility and is used in a wide variety of industries. How Does a Shell Heat Exchanger Work? The core working principle is simple: separate two fluids and allow heat to transfer between them through a solid surface. ● Hot fluid enters one side (either the shell side or the tube side). ● Cooler fluid enters the other side. ● Heat flows from the hotter fluid to the cooler fluid through the metal tube wall. ● Baffles inside the shell guide the flow, increasing heat transfer efficiency. At KAM Thermal, every shell & tube heat exchanger is designed with your temperature range, pressure rating, and media compatibility in mind—whether you’re dealing with steam, oil, chemicals, or seawater. Variations of Shell & Tube Type Heat Exchanger

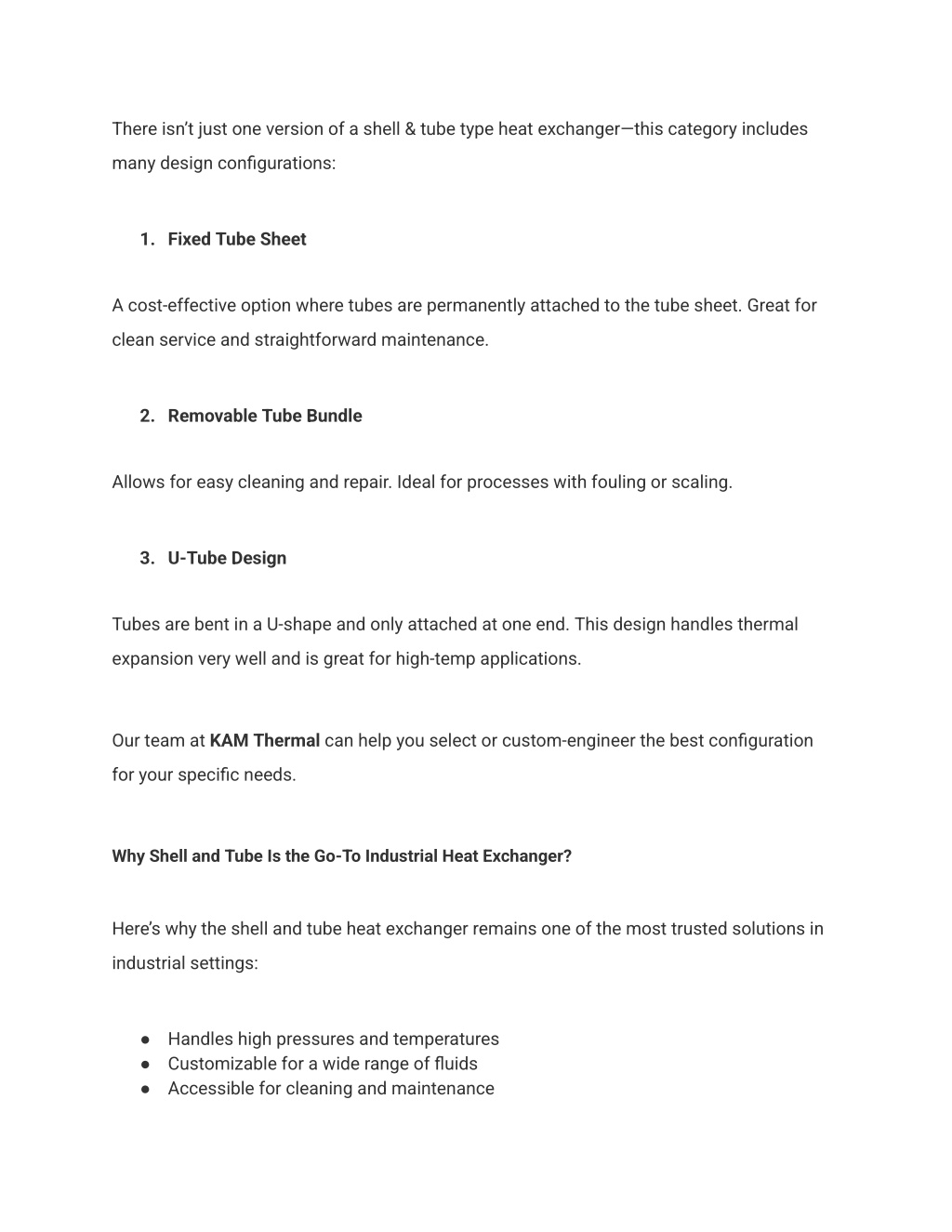

  3. There isn’t just one version of a shell & tube type heat exchanger—this category includes many design configurations: 1. Fixed Tube Sheet A cost-effective option where tubes are permanently attached to the tube sheet. Great for clean service and straightforward maintenance. 2. Removable Tube Bundle Allows for easy cleaning and repair. Ideal for processes with fouling or scaling. 3. U-Tube Design Tubes are bent in a U-shape and only attached at one end. This design handles thermal expansion very well and is great for high-temp applications. Our team at KAM Thermal can help you select or custom-engineer the best configuration for your specific needs. Why Shell and Tube Is the Go-To Industrial Heat Exchanger? Here’s why the shell and tube heat exchanger remains one of the most trusted solutions in industrial settings: ● Handles high pressures and temperatures ● Customizable for a wide range of fluids ● Accessible for cleaning and maintenance

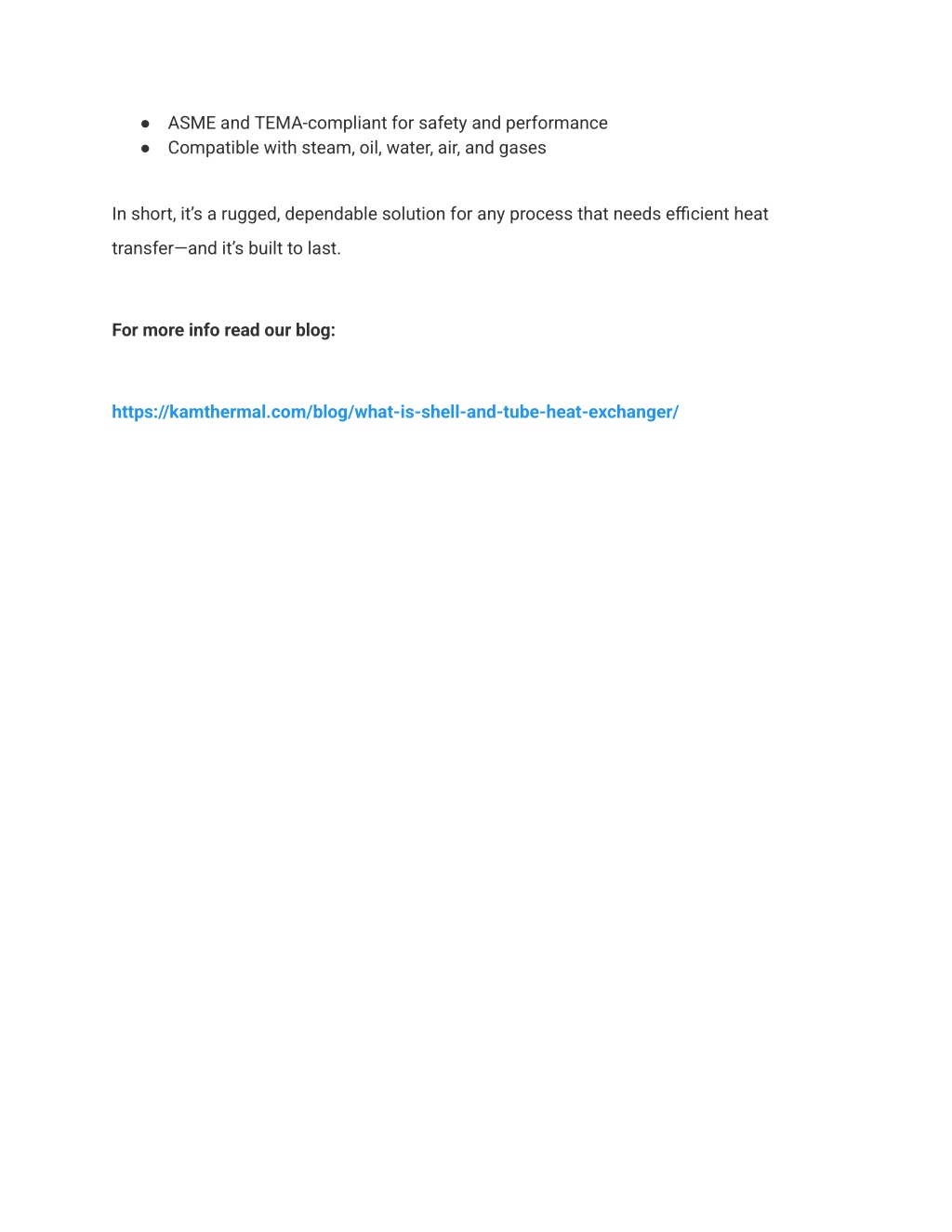

  4. ● ASME and TEMA-compliant for safety and performance ● Compatible with steam, oil, water, air, and gases In short, it’s a rugged, dependable solution for any process that needs efficient heat transfer—and it’s built to last. For more info read our blog: https://kamthermal.com/blog/what-is-shell-and-tube-heat-exchanger/
