Dosimeter

Dosimeter is specially designed for measuring and monitoring the cumulative exposure of x-ray, u03b2, and u03b3 radiation over a period of time and provides accurate data<br>on the amount of radiation absorbed by an individual or an object. This dosimeter covers energy ranges from X-ray and gamma radiation, spanning from 40 KeV to<br>3.0 MeV, as well as beta radiation ranging from 0.5 to 3.0 MeV.

Kimber4
Télécharger la présentation

Dosimeter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

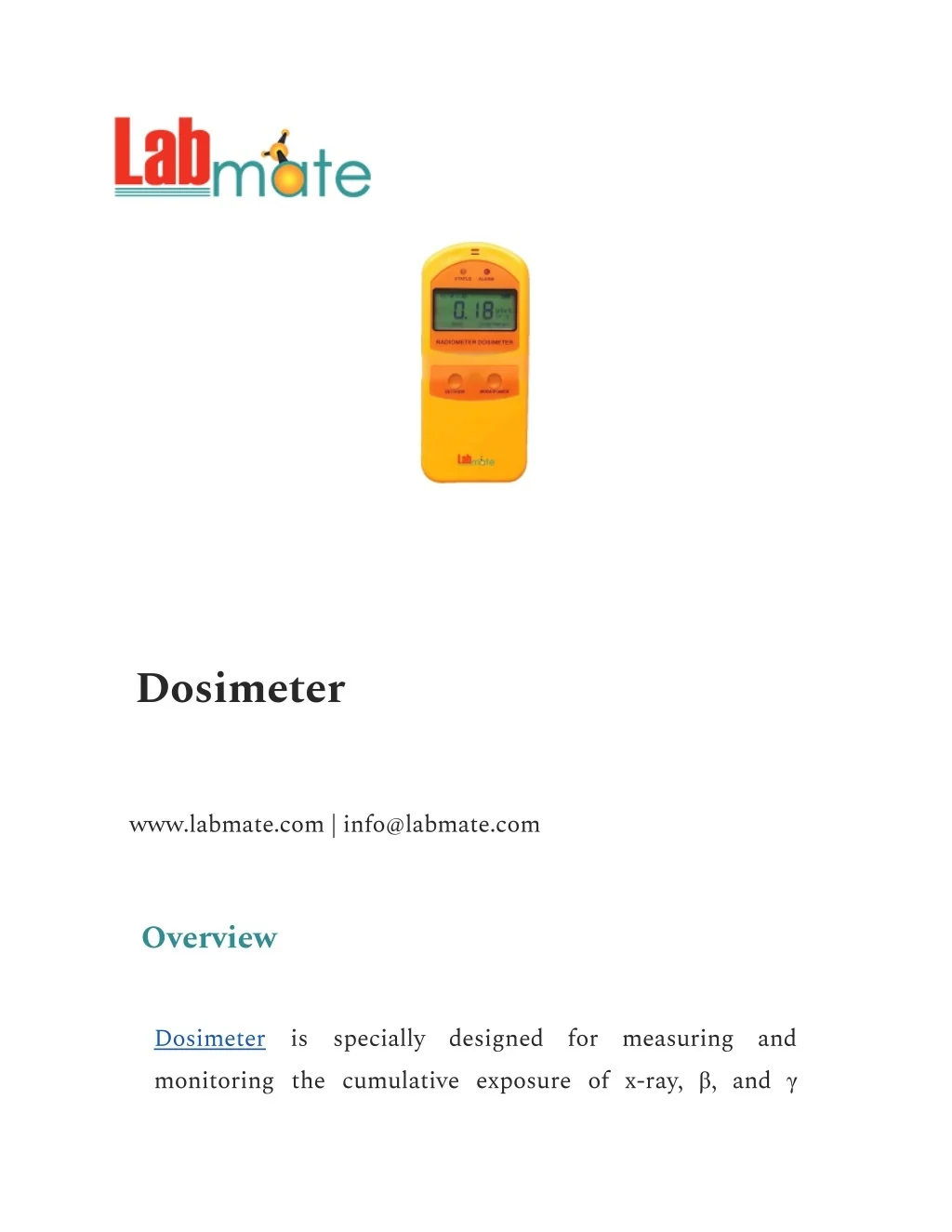

  1. Dosimeter www.labmate.com | info@labmate.com Overview Dosimeter monitoring the cumulative exposure of x-ray, β, and γ is specially designed for measuring and

  2. radiation over a period of time and provides accurate data on the amount of radiation absorbed by an individual or an object. This dosimeter covers energy ranges from X-ray and gamma radiation, spanning from 40 KeV to 3.0 MeV, as well as beta radiation ranging from 0.5 to 3.0 MeV. Specifications : Temperature -20°С to +50°С Range Measurement Dose equivalent rate (137 Cs): 0.01 μ Ranges Sv/h to 10 m Sv/h Dose equivalent (137 Cs): 0.01 u Sv to 9999 Sv Energy Ranges X-ray: 40 KeV to 3.0 MeV

  3. Gamma radiation: 40 KeV to 3.0 MeV Beta radiation: 0.5 to 3.0 MeV Display Unit Dose rate: µ Sv/h, m Sv/h, Sv/h automatic conversion Dose: µ Sv, m Sv, Sv automatic conversion Detector GM counter Energy ≤ ± 25 % (relative to 137 Cs) Dependence Relative Errors ≤ ± 10 % (in 20 u Sv/h) Threshold Value Adjustable

  4. Protective Alarm < 3 seconds (in 10 uSv/h) Response Time Sensitivity 2000 CPM /(mR/h) Humidity ≤ 85% RH Power-One AAA battery Dimension 125 × 55 × 26 mm Weight 120 g Features : - It features an automatic failure detection function and measures x, gamma, and beta radiation dose rates from background to elevated levels - The digital LCD display includes backlighting and specifies measurements in various units

  5. - Alerts for low battery levels, measurement errors, surface so? and hard beta-particle flux density, threshold levels, and real-time data - Incorporated with a magnifying tube enables quick detection and localization of gamma and beta radiation sources within seconds - Equipped with a built-in gamma and beta-sensitive Geiger-Muller counter, enhancing its sensitivity to these types of radiation - Automatically sets intervals and ranges, saves dose values, and detects failures for increased reliability - Customizable multiple alarm response including voice and dose rate alarms with adjustable cumulative dose thresholds, instant light, and vibration activation - It includes ore-containing materials for detecting radioactive substances and a cobalt source for electronic accelerator radiation detection Applications : Dosimeters are widely used for radiation detection in nuclear facilities, environmental monitoring, agriculture,

  6. medical treatments, and materials inspection, including Cobalt sources and electronic accelerators. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
