Integrating EtherCAT TSN into Your Control System

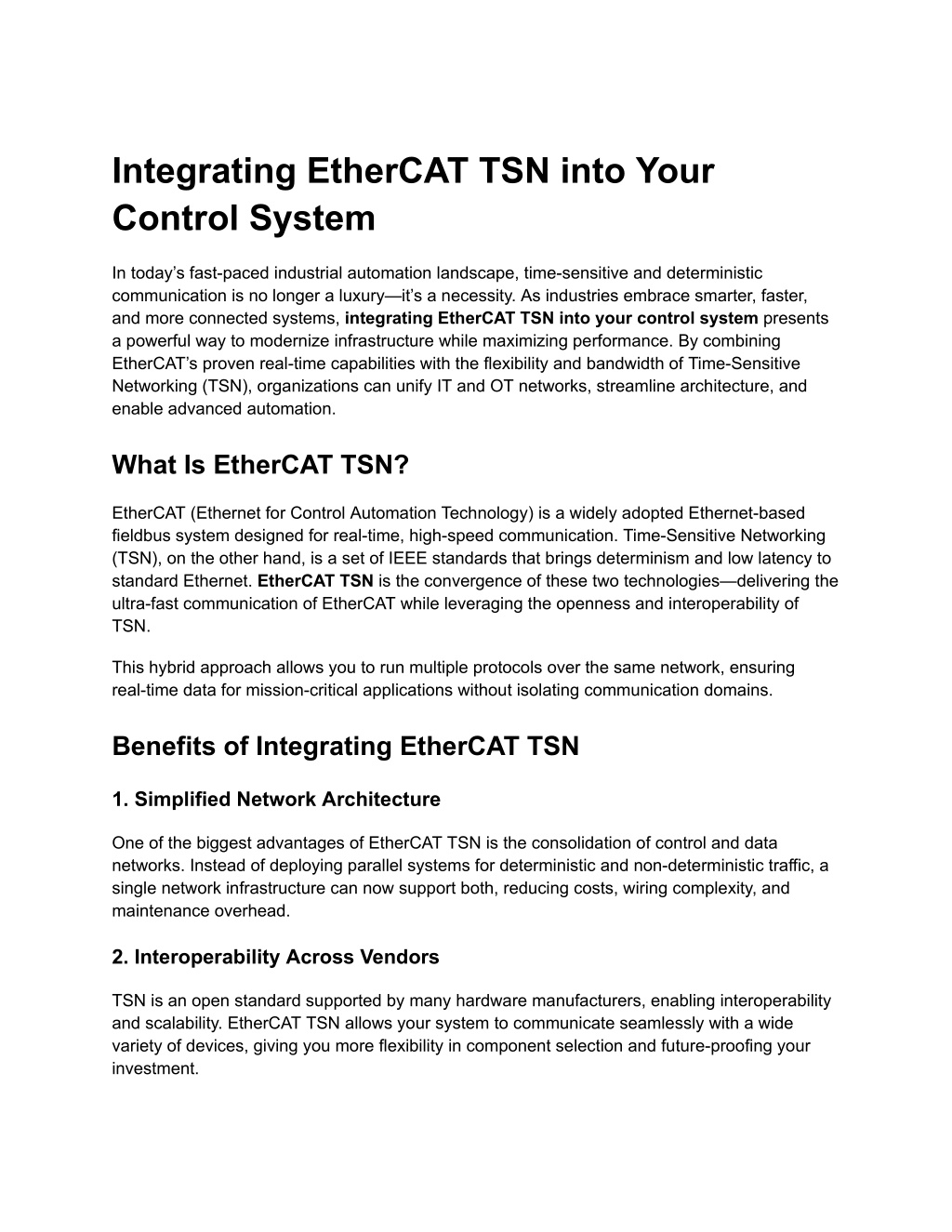

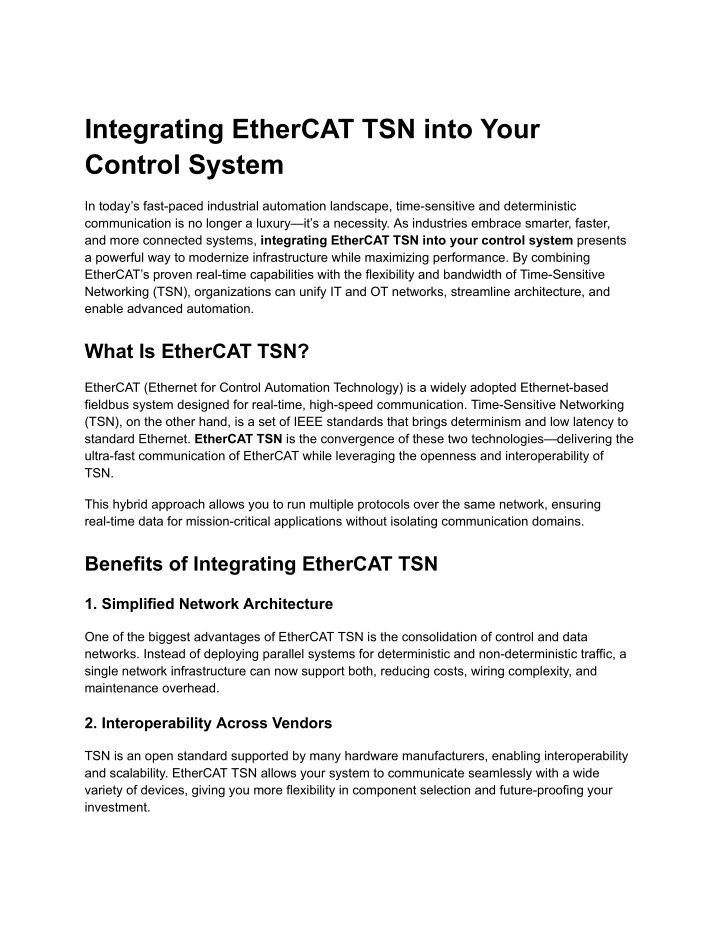

1. Integrating EtherCAT TSN into Your Control System In today’s fast-paced industrial automation landscape, time-sensitive and deterministic communication is no longer a luxury—it’s a necessity. As industries embrace smarter, faster, and more connected systems, integrating EtherCAT TSN into your control system presents a powerful way to modernize infrastructure while maximizing performance. By combining EtherCAT’s proven real-time capabilities with the flexibility and bandwidth of Time-Sensitive Networking (TSN), organizations can unify IT and OT networks, streamline architecture, and enable advanced automation. What Is EtherCAT TSN? EtherCAT (Ethernet for Control Automation Technology) is a widely adopted Ethernet-based fieldbus system designed for real-time, high-speed communication. Time-Sensitive Networking (TSN), on the other hand, is a set of IEEE standards that brings determinism and low latency to standard Ethernet. EtherCAT TSN is the convergence of these two technologies—delivering the ultra-fast communication of EtherCAT while leveraging the openness and interoperability of TSN. This hybrid approach allows you to run multiple protocols over the same network, ensuring real-time data for mission-critical applications without isolating communication domains. Benefits of Integrating EtherCAT TSN 1. Simplified Network Architecture One of the biggest advantages of EtherCAT TSN is the consolidation of control and data networks. Instead of deploying parallel systems for deterministic and non-deterministic traffic, a single network infrastructure can now support both, reducing costs, wiring complexity, and maintenance overhead. 2. Interoperability Across Vendors TSN is an open standard supported by many hardware manufacturers, enabling interoperability and scalability. EtherCAT TSN allows your system to communicate seamlessly with a wide variety of devices, giving you more flexibility in component selection and future-proofing your investment.

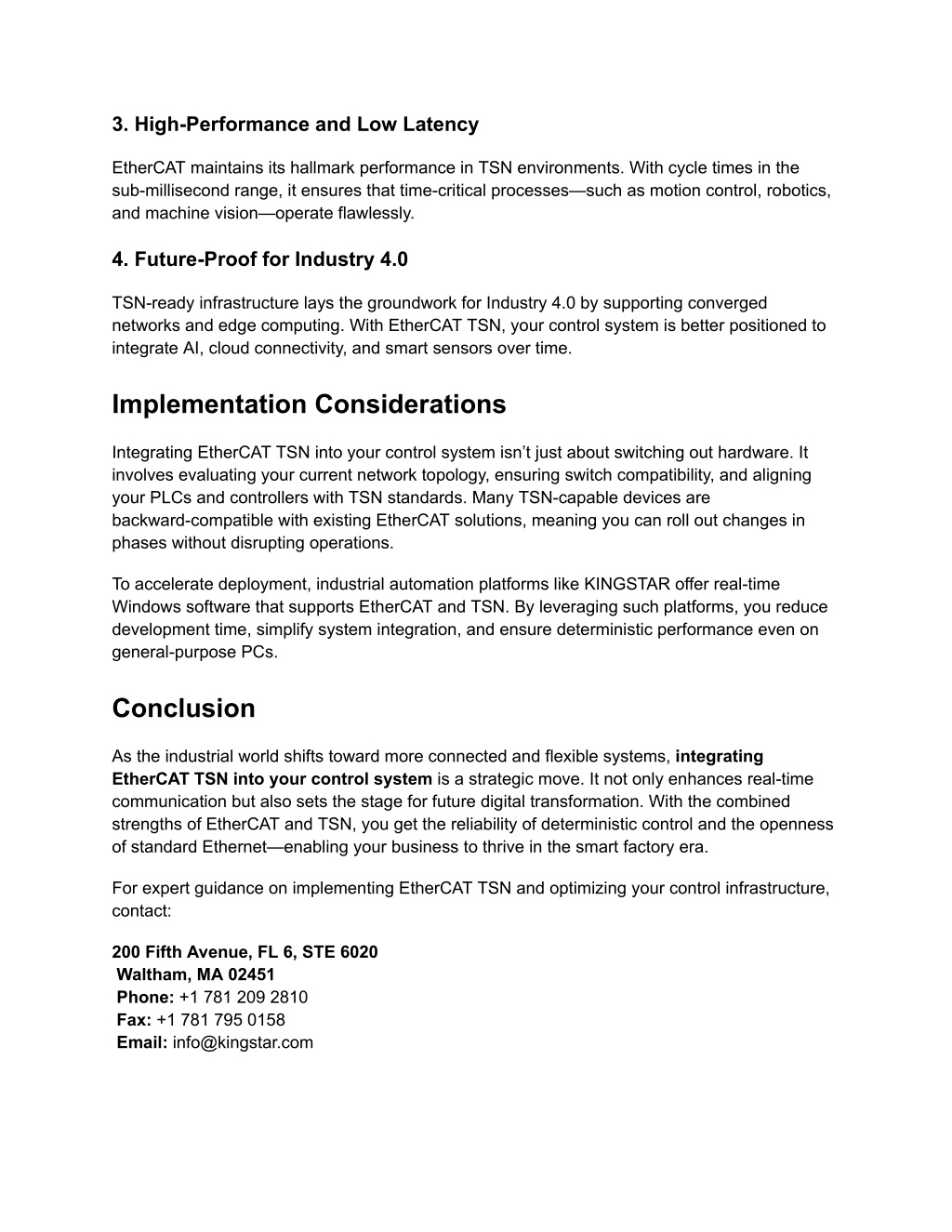

2. 3. High-Performance and Low Latency EtherCAT maintains its hallmark performance in TSN environments. With cycle times in the sub-millisecond range, it ensures that time-critical processes—such as motion control, robotics, and machine vision—operate flawlessly. 4. Future-Proof for Industry 4.0 TSN-ready infrastructure lays the groundwork for Industry 4.0 by supporting converged networks and edge computing. With EtherCAT TSN, your control system is better positioned to integrate AI, cloud connectivity, and smart sensors over time. Implementation Considerations Integrating EtherCAT TSN into your control system isn’t just about switching out hardware. It involves evaluating your current network topology, ensuring switch compatibility, and aligning your PLCs and controllers with TSN standards. Many TSN-capable devices are backward-compatible with existing EtherCAT solutions, meaning you can roll out changes in phases without disrupting operations. To accelerate deployment, industrial automation platforms like KINGSTAR offer real-time Windows software that supports EtherCAT and TSN. By leveraging such platforms, you reduce development time, simplify system integration, and ensure deterministic performance even on general-purpose PCs. Conclusion As the industrial world shifts toward more connected and flexible systems, integrating EtherCAT TSN into your control system is a strategic move. It not only enhances real-time communication but also sets the stage for future digital transformation. With the combined strengths of EtherCAT and TSN, you get the reliability of deterministic control and the openness of standard Ethernet—enabling your business to thrive in the smart factory era. For expert guidance on implementing EtherCAT TSN and optimizing your control infrastructure, contact: 200 Fifth Avenue, FL 6, STE 6020 Waltham, MA 02451 Phone: +1 781 209 2810 Fax: +1 781 795 0158 Email: info@kingstar.com
