  1. Addressing Mode Wannachai Wannasawade Department of Computer Education Faculty of Technical Education, KMITNB.

  2. Addressing Mode ในการพัฒนาโปรแกรมต่าง ๆ มีการอ้างถึงตำแหน่งของข้อมูล ตามที่มีในคำสั่งของไมโครโพรเซสเซอร์ ซึ่งมีหลายวิธีในการติดต่อ ดังนั้นสิ่งที่จะต้องเรียนรู้คือ Addressing Modeหรือวิธีการอ้างตำแหน่ง • วิธีการอ้างตำแหน่งแบ่งได้ 3 แบบคือ • Data Addressing Mode • Program Memory Addressing Mode • Stack Memory Addressing Mode

  3. Data Addressing Mode • Register addressing • Immediate addressing • Direct addressing • Register indirect address • Base-plus-index addressing • Register relative addressing • Base relative-plus-index addressing • Scaled-index address

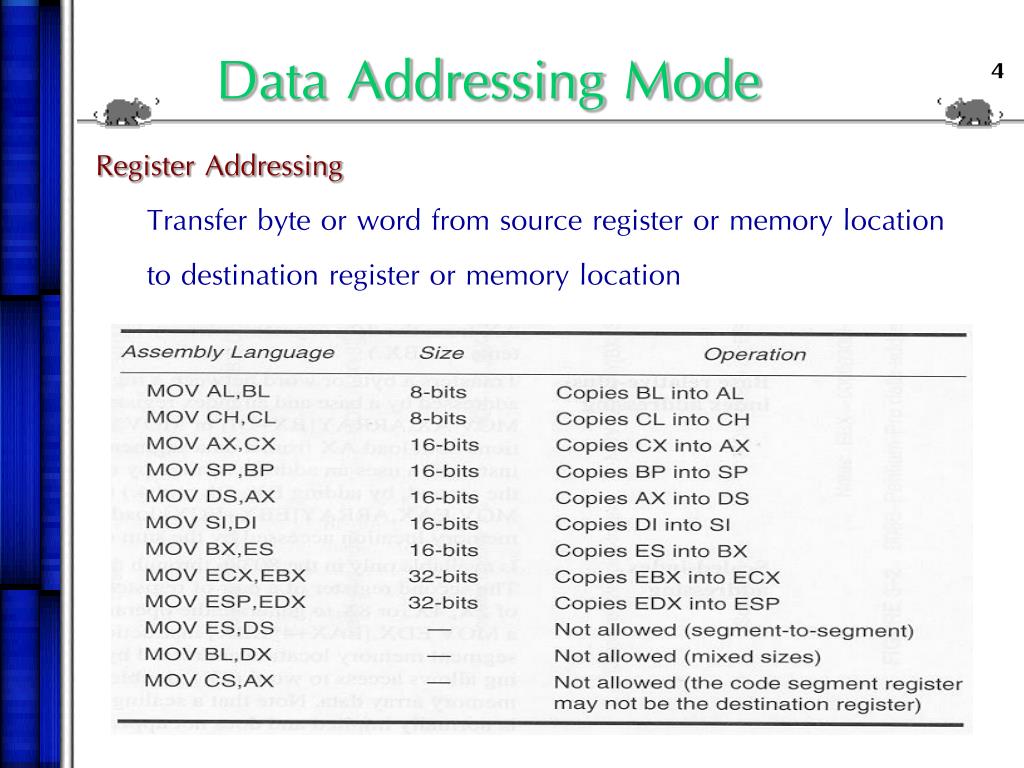

  4. Data Addressing Mode • Register Addressing • Transfer byte or word from source register or memory location to destination register or memory location

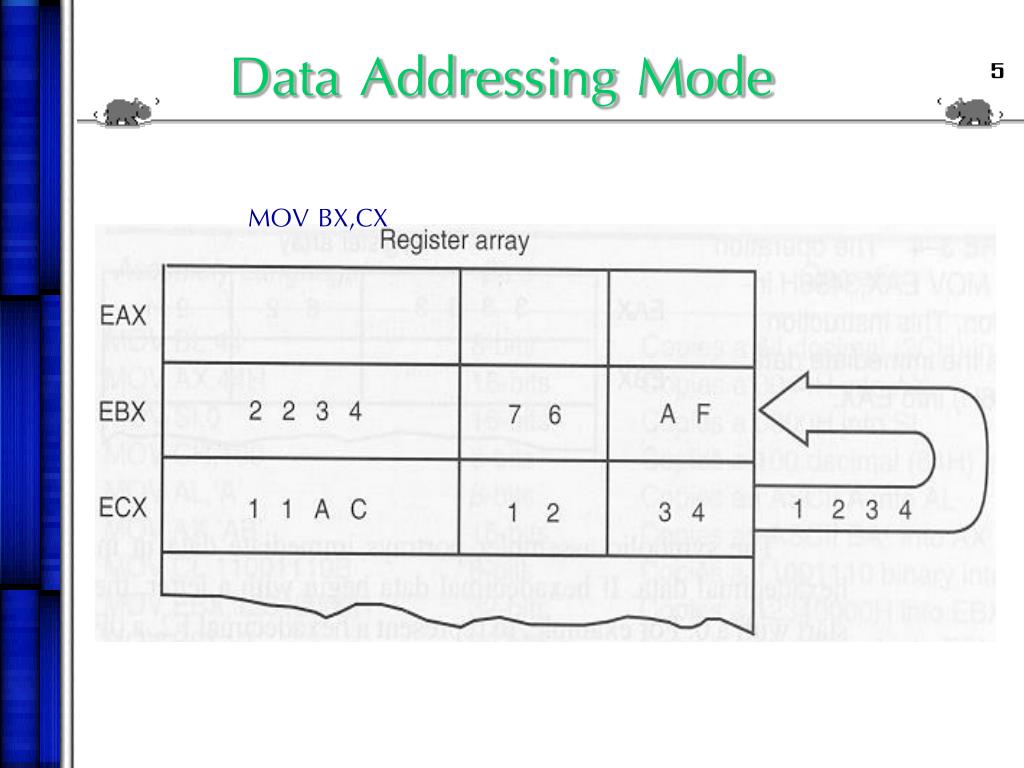

  5. Data Addressing Mode MOV BX,CX

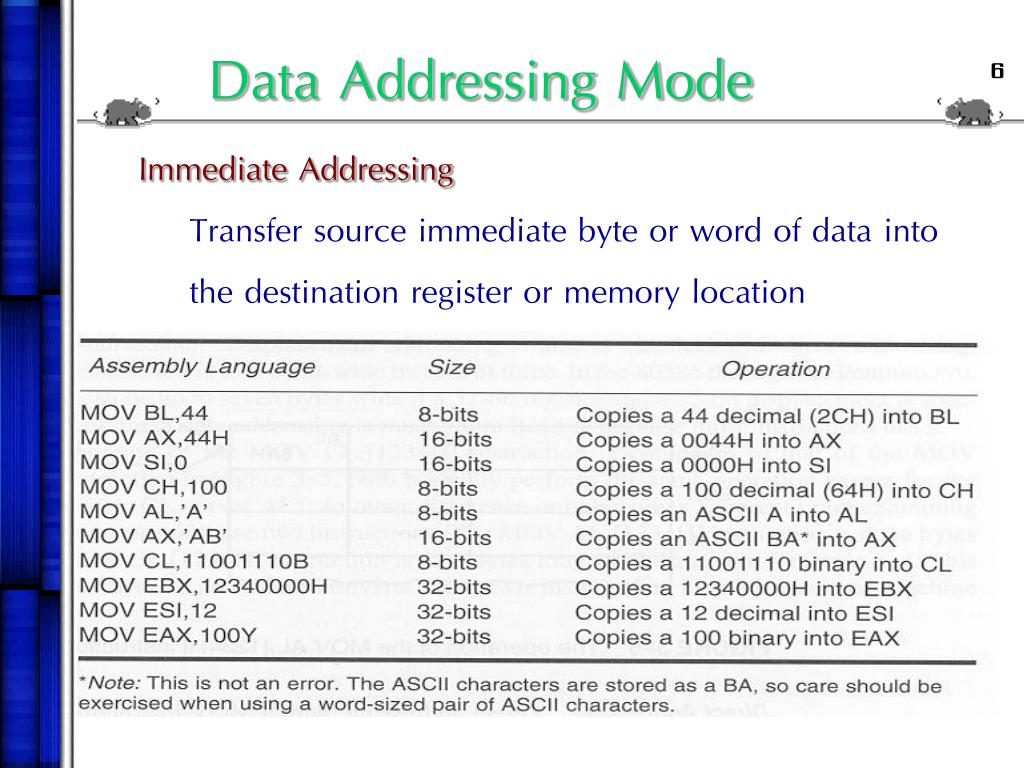

  6. Data Addressing Mode • Immediate Addressing • Transfer source immediate byte or word of data into the destination register or memory location

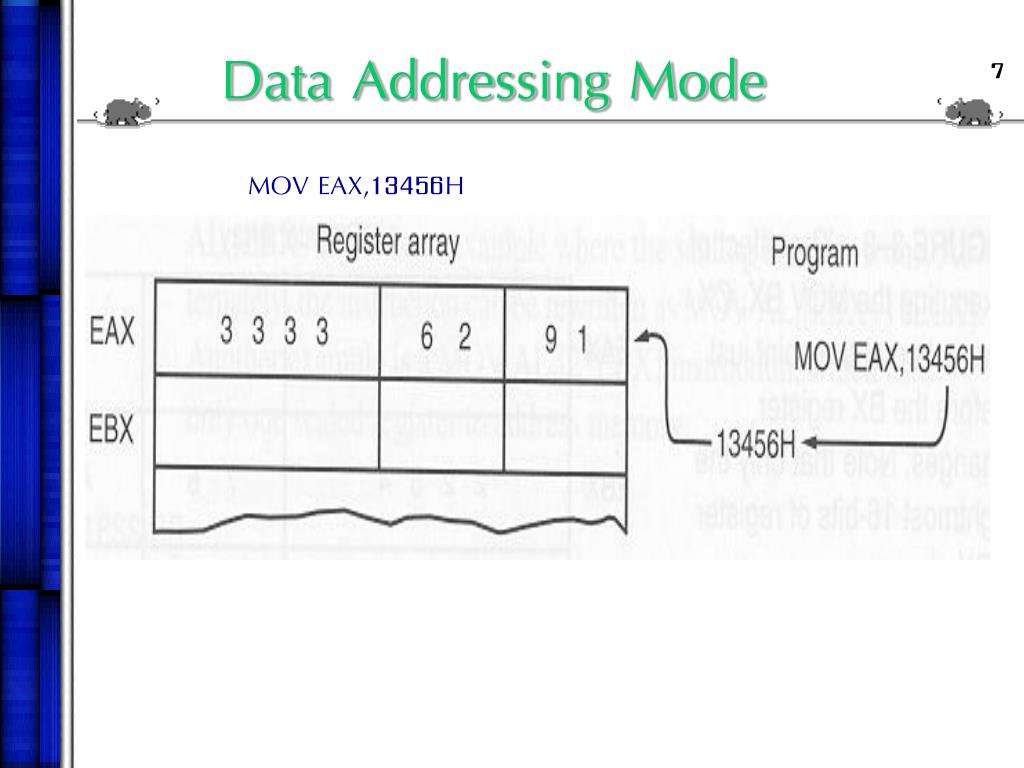

  7. Data Addressing Mode MOV EAX,13456H

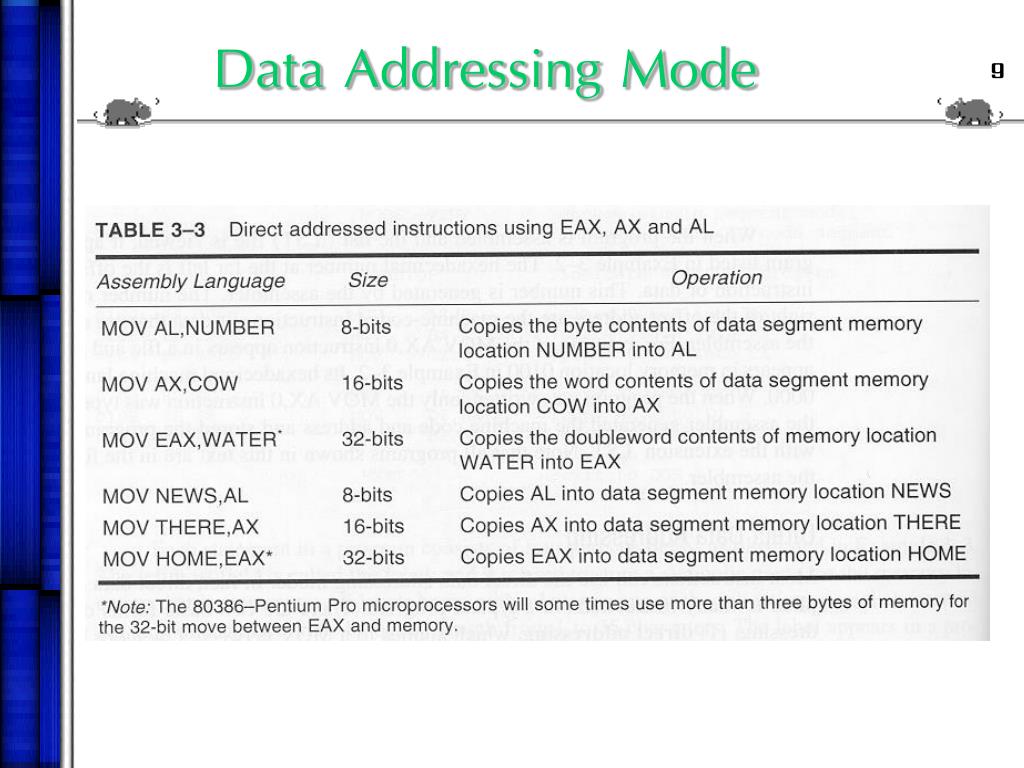

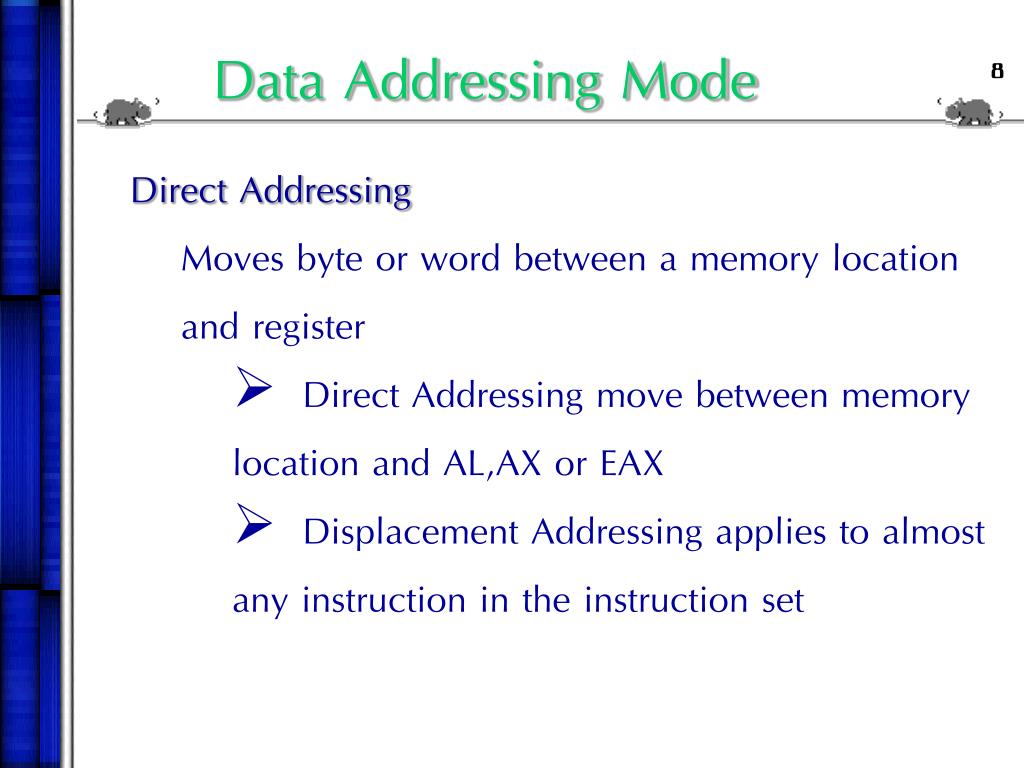

  8. Data Addressing Mode • Direct Addressing • Moves byte or word between a memory location and register • Direct Addressing move between memory location and AL,AX or EAX • Displacement Addressing applies to almost any instruction in the instruction set

  9. Data Addressing Mode

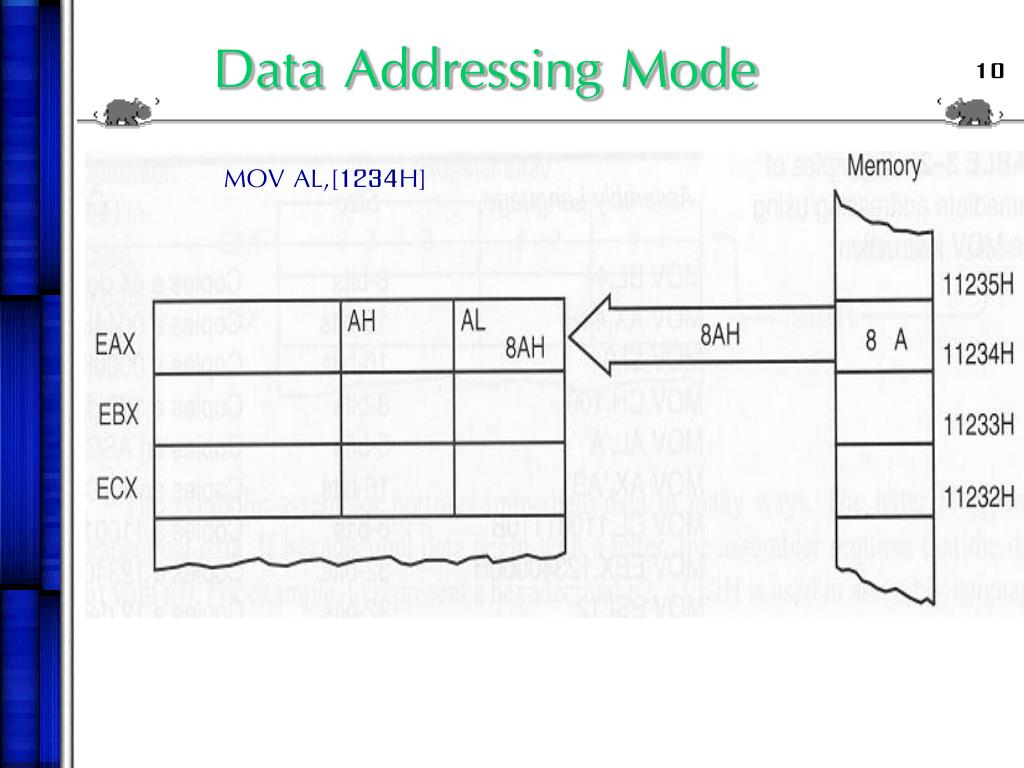

  10. Data Addressing Mode MOV AL,[1234H]

  11. Data Addressing Mode • Register Indirect Addressing • Transfer byte or word between register and memory location address by index or base register

  12. Data Addressing Mode MOV AX,[BX]

  13. Data Addressing Mode • Base-Plus-Index Addressing • Transfer byte or word between register and memory location address by base register (BX or BP) plus index register (DI or SI)

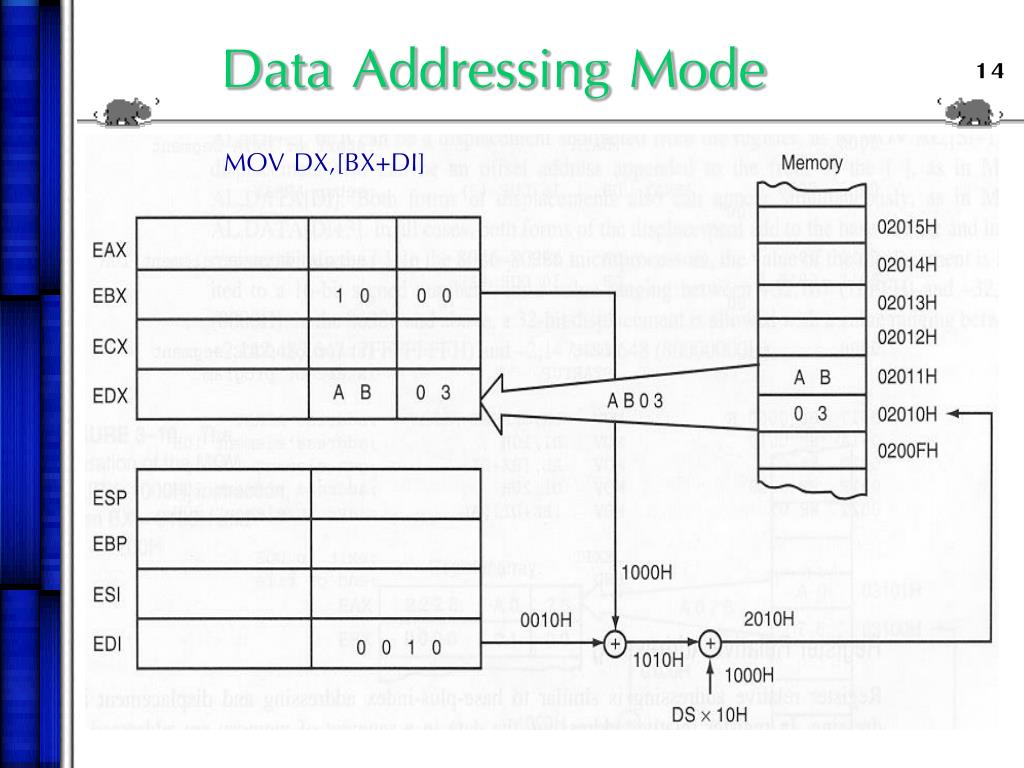

  14. Data Addressing Mode MOV DX,[BX+DI]

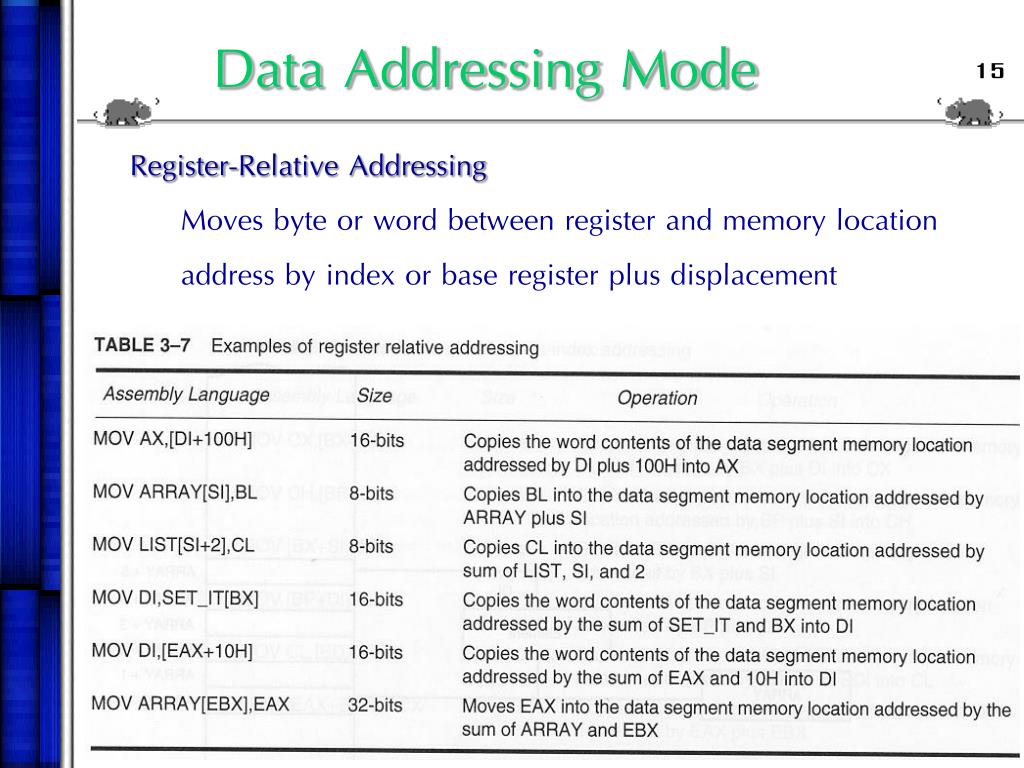

  15. Data Addressing Mode • Register-Relative Addressing • Moves byte or word between register and memory location address by index or base register plus displacement

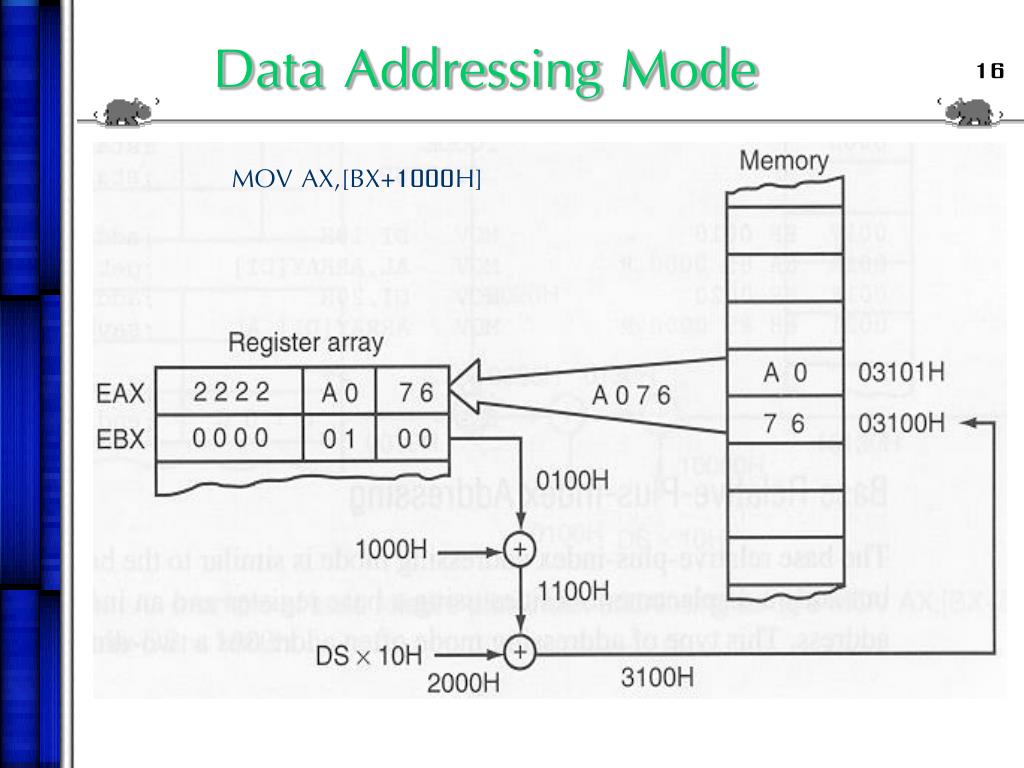

  16. Data Addressing Mode MOV AX,[BX+1000H]

  17. Data Addressing Mode • Base Relative-Plus-Index Addressing • Transfer byte or word between register and memory location address by base register and index register plus displacement

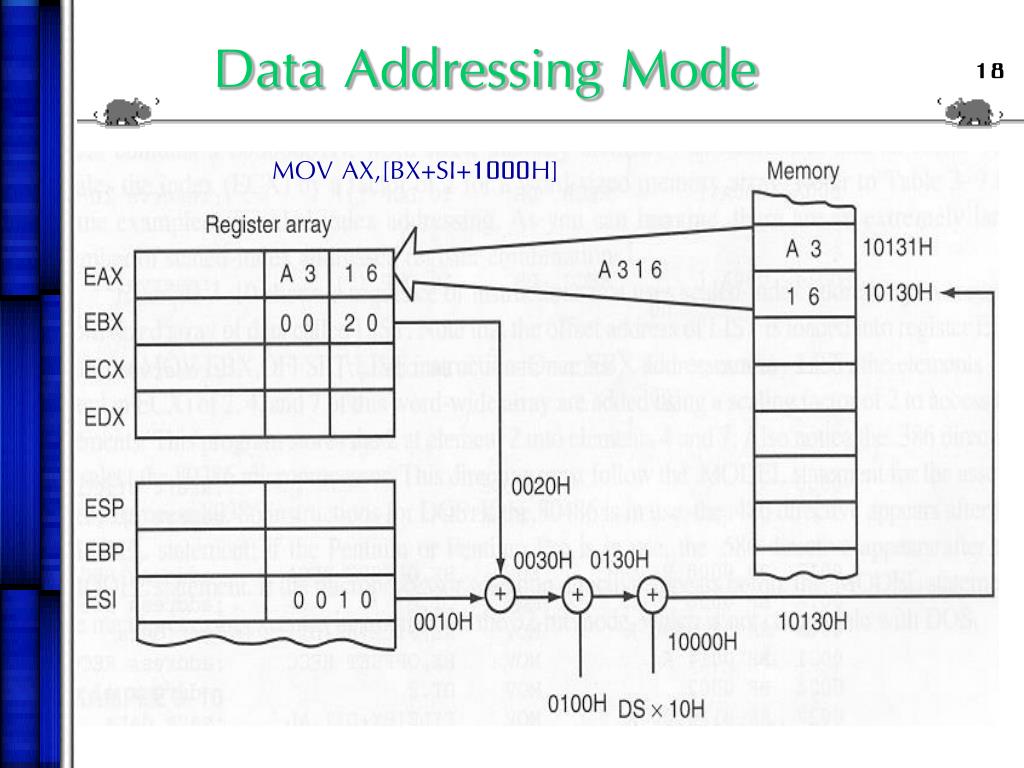

  18. Data Addressing Mode MOV AX,[BX+SI+1000H]

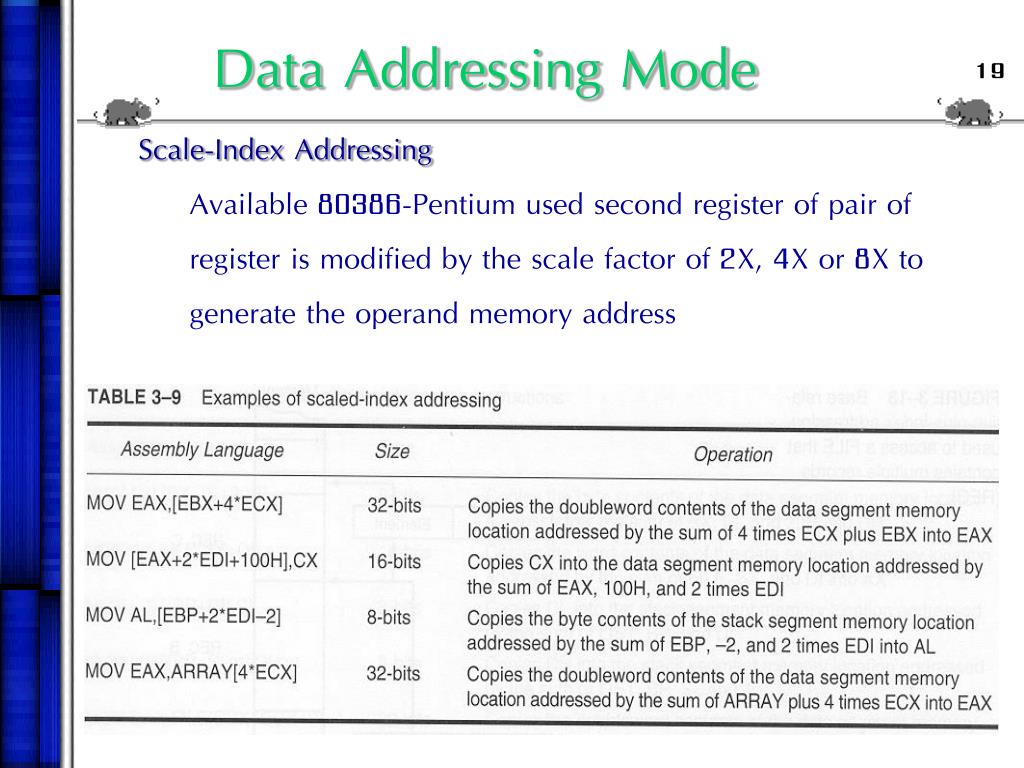

  19. Data Addressing Mode • Scale-Index Addressing • Available 80386-Pentium used second register of pair of register is modified by the scale factor of 2X, 4X or 8X to generate the operand memory address

  20. Program Memory Addressing Mode • Used with the JMP and CALL instruction • มีใช้งาน 3 แบบคือ • Direct Program Memory Addressing • Relative Program Memory Addressing • Indirect Program Memory Addressing

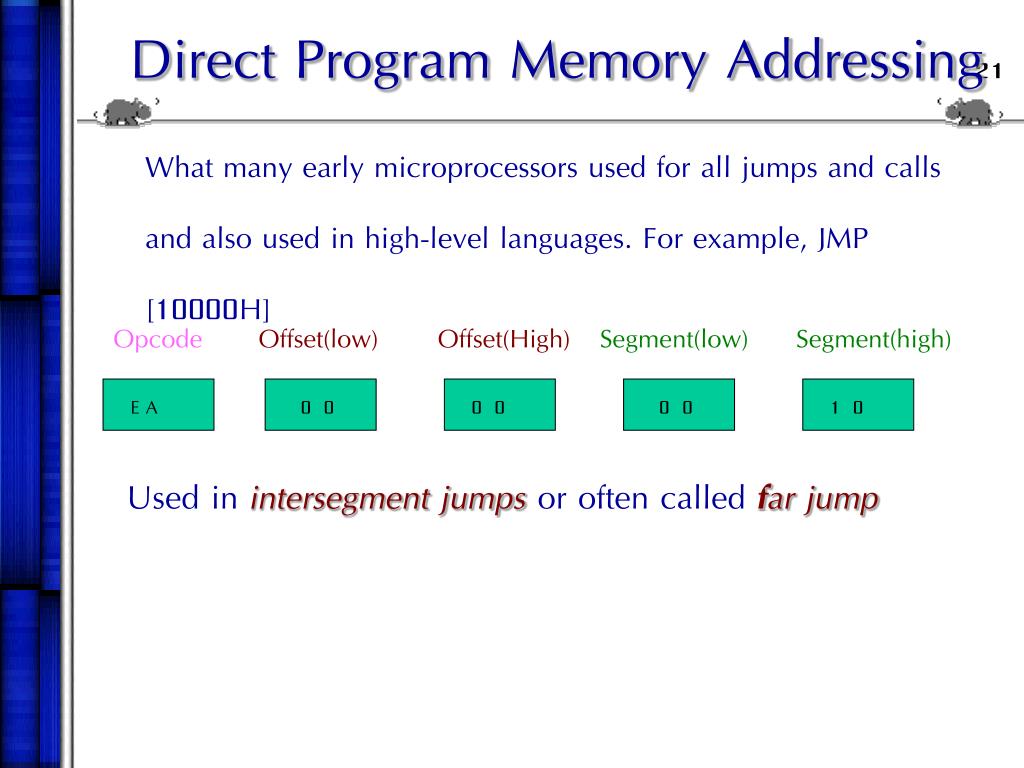

  21. Opcode Offset(low) Offset(High) Segment(low) Segment(high) E A 0 0 0 0 0 0 1 0 Direct Program Memory Addressing What many early microprocessors used for all jumps and calls and also used in high-level languages. For example, JMP [10000H] Used in intersegment jumps or often called far jump

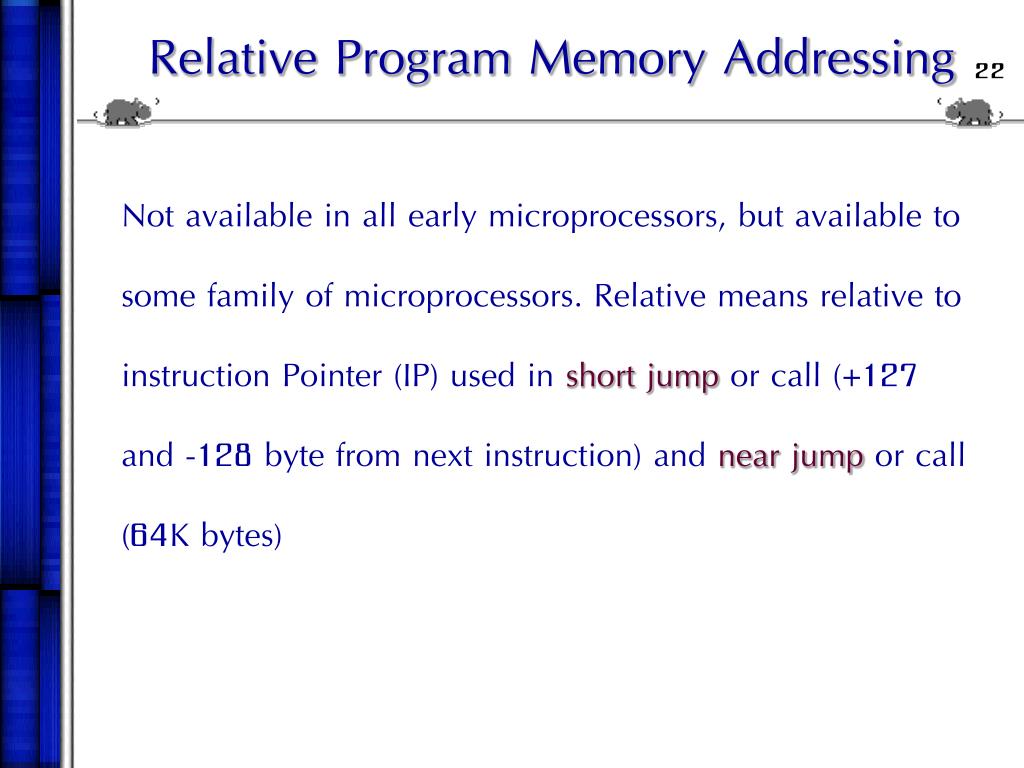

  22. Relative Program Memory Addressing Not available in all early microprocessors, but available to some family of microprocessors. Relative means relative to instruction Pointer (IP) used in short jump or call (+127 and -128 byte from next instruction) and near jump or call (64K bytes)

  23. Indirect Program Memory Addressing Allows several forms of program indirect memory addressing for JMP and CALL. This type of jump is sometimes called indirect-indirector double-indirect jump • Examples of indirect program memory addressing • JMP AX • JMP CX • JMP NEAR PTR [BX] • JMP TABLE [BX] • JMP ECX

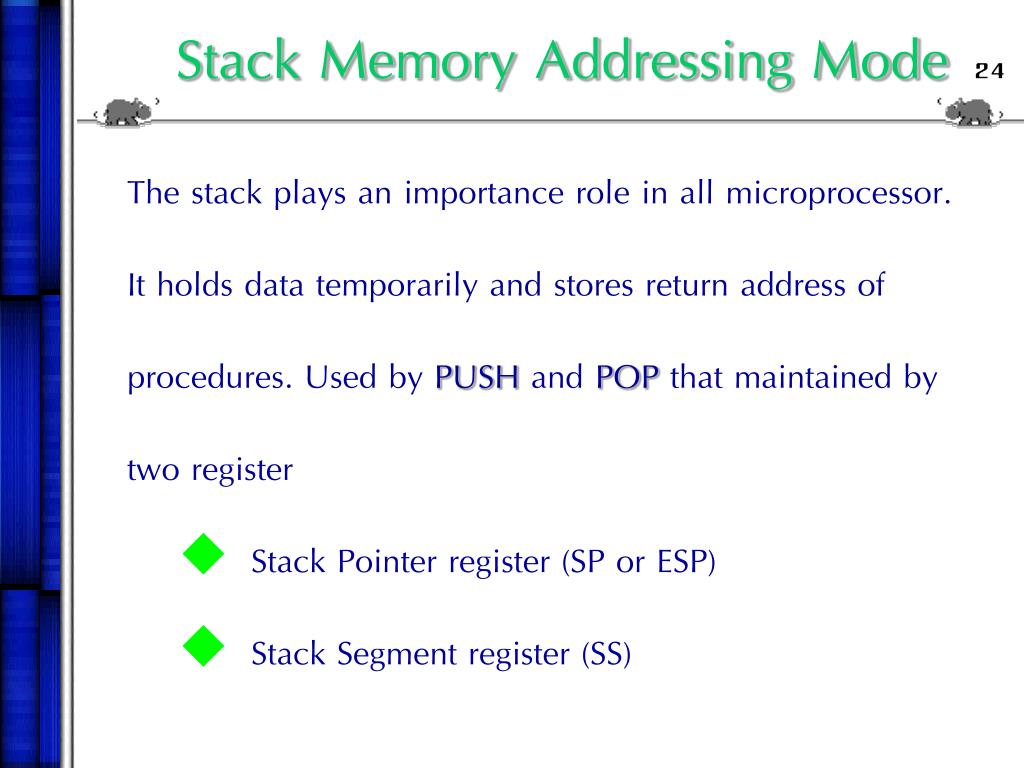

  24. Stack Memory Addressing Mode • The stack plays an importance role in all microprocessor. It holds data temporarily and stores return address of procedures. Used by PUSH and POP that maintained by two register • Stack Pointer register (SP or ESP) • Stack Segment register (SS)

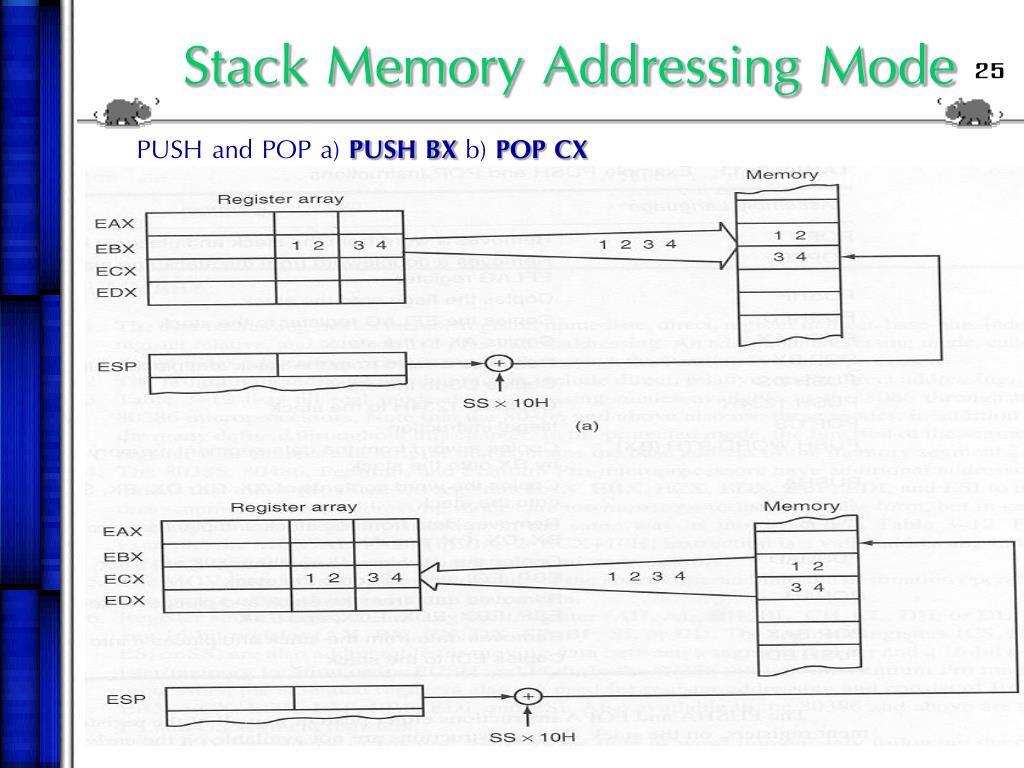

  25. Stack Memory Addressing Mode PUSH and POP a) PUSH BX b) POP CX

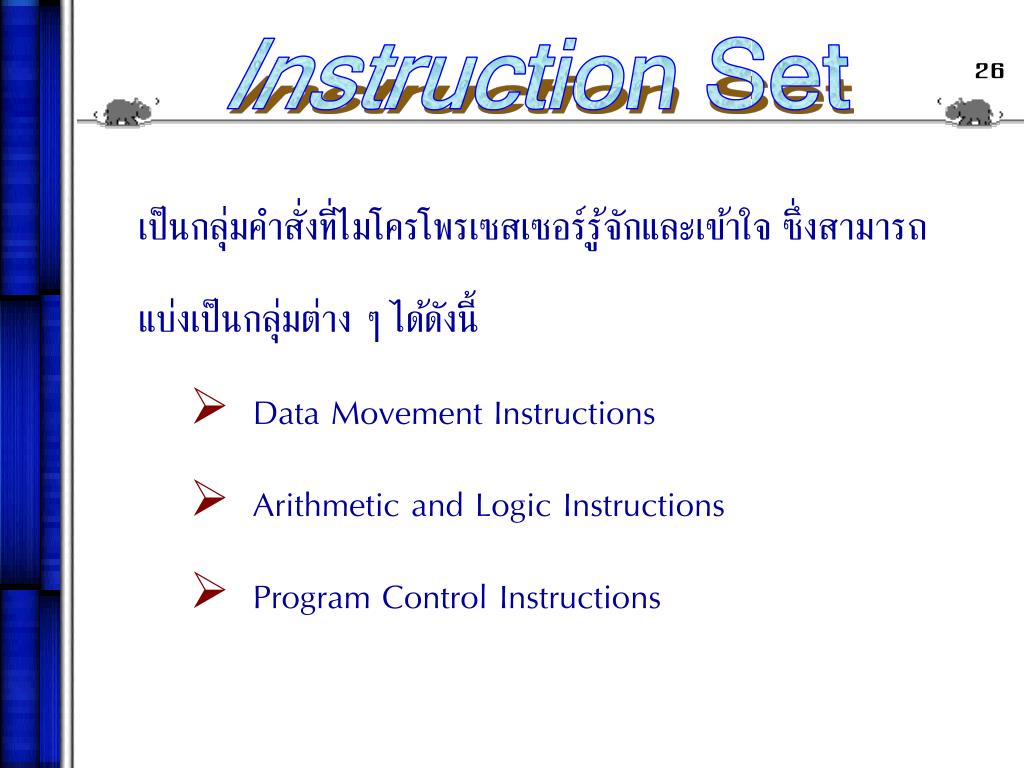

  26. Instruction Set เป็นกลุ่มคำสั่งที่ไมโครโพรเซสเซอร์รู้จักและเข้าใจ ซึ่งสามารถแบ่งเป็นกลุ่มต่าง ๆ ได้ดังนี้ • Data Movement Instructions • Arithmetic and Logic Instructions • Program Control Instructions

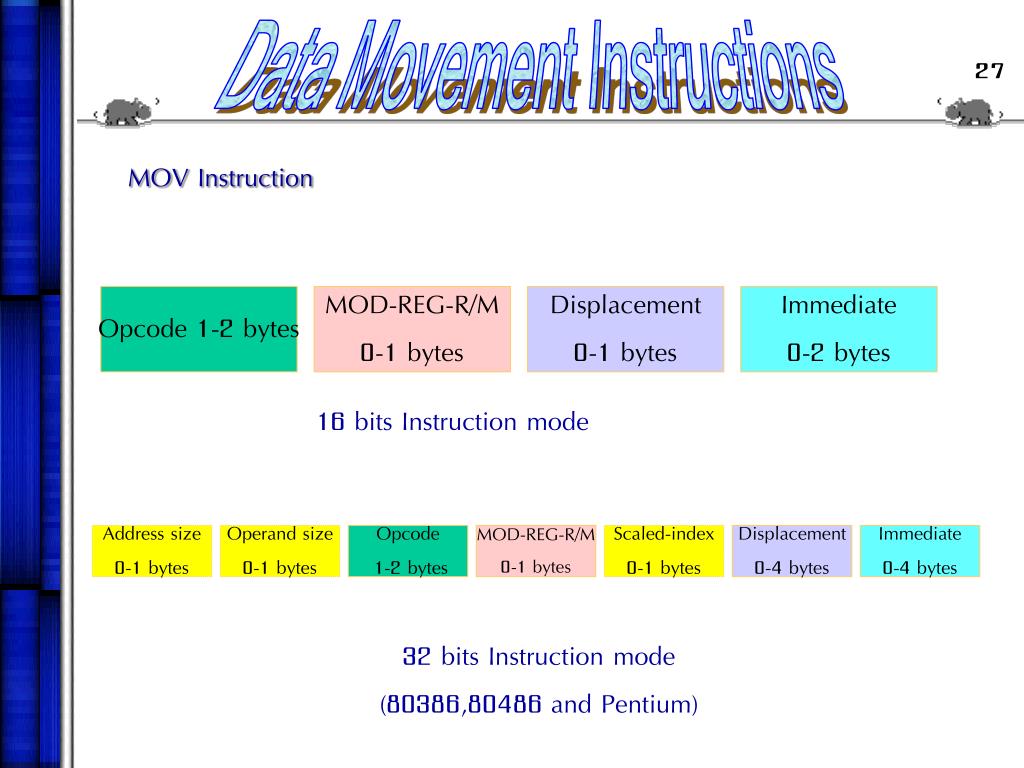

  27. Data Movement Instructions MOV Instruction Opcode 1-2 bytes MOD-REG-R/M 0-1 bytes Displacement 0-1 bytes Immediate 0-2 bytes 16 bits Instruction mode Address size 0-1 bytes Operand size 0-1 bytes Opcode 1-2 bytes MOD-REG-R/M 0-1 bytes Scaled-index 0-1 bytes Displacement 0-4 bytes Immediate 0-4 bytes 32 bits Instruction mode (80386,80486 and Pentium)

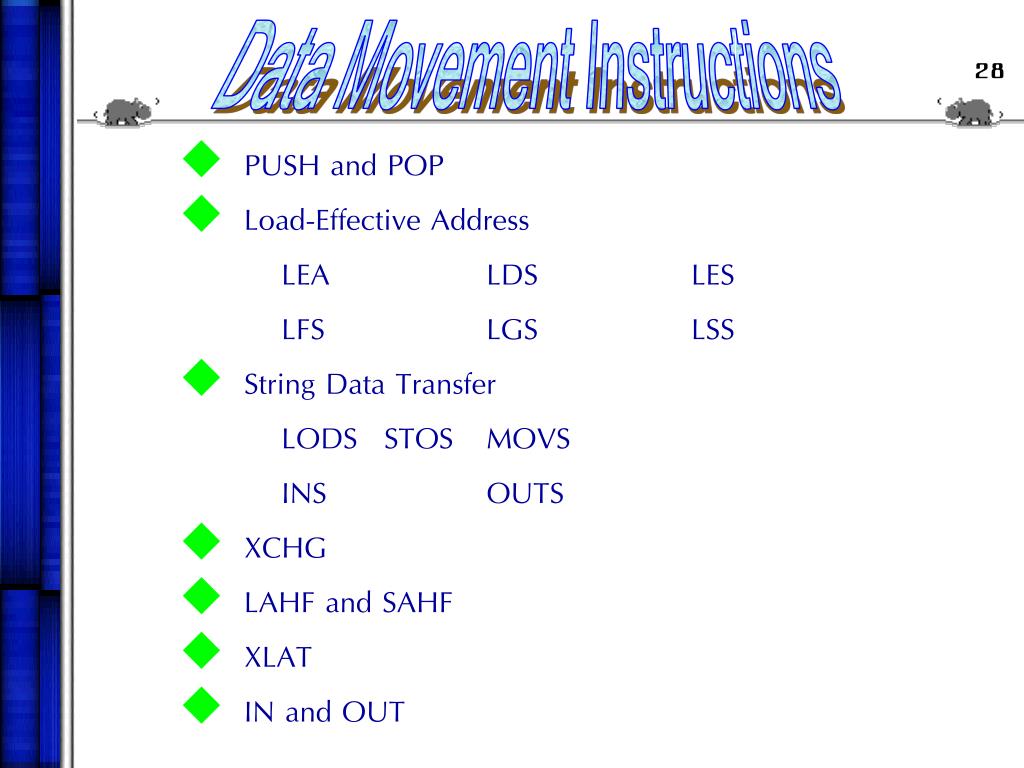

  28. Data Movement Instructions • PUSH and POP • Load-Effective Address LEA LDS LES LFS LGS LSS • String Data Transfer LODS STOS MOVS INS OUTS • XCHG • LAHF and SAHF • XLAT • IN and OUT

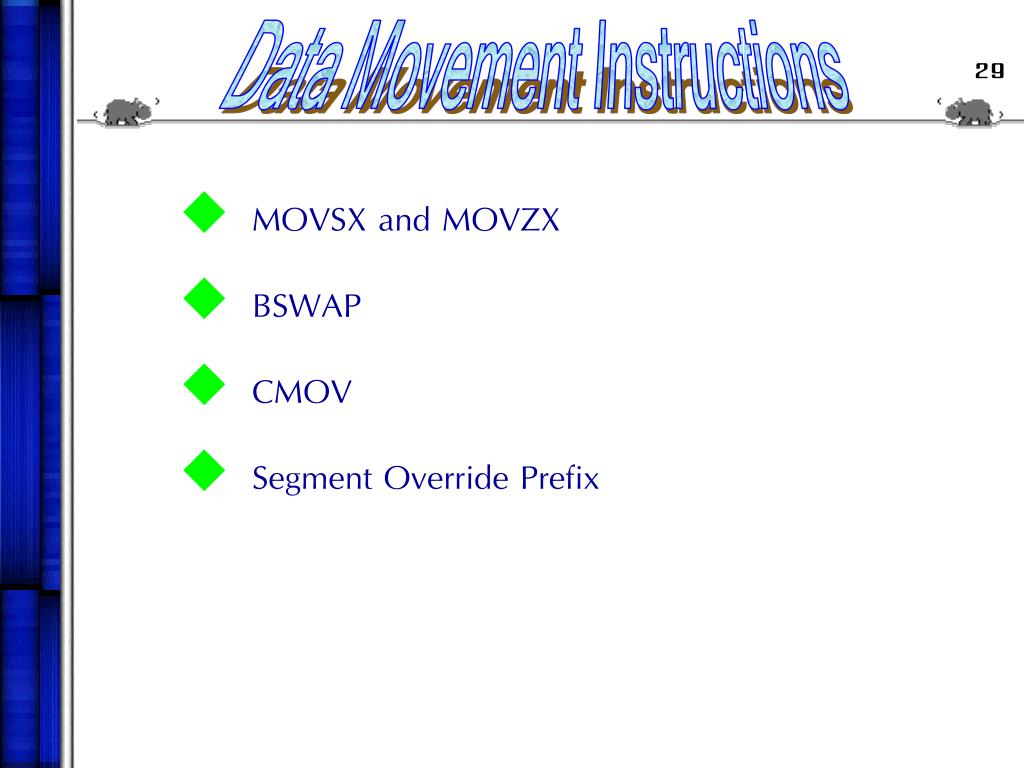

  29. Data Movement Instructions • MOVSX and MOVZX • BSWAP • CMOV • Segment Override Prefix

  30. Arithmetic and Logic Instructions Addition • Register Addition • Immediate Addition • Memory to Register Addition • Array Addition • Increment Addition • Addition with Carry

  31. Arithmetic and Logic Instructions Subtraction • Register Subtraction • Immediate Subtraction • Decrement Subtraction • Subtract with Borrow

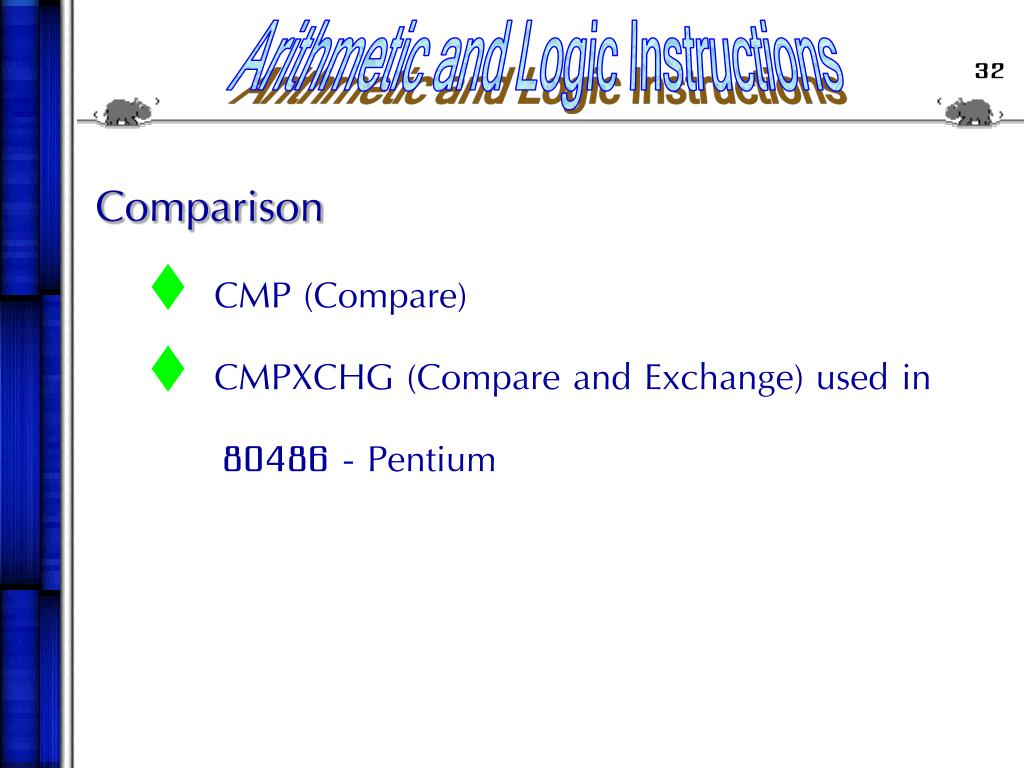

  32. Arithmetic and Logic Instructions Comparison • CMP (Compare) • CMPXCHG (Compare and Exchange) used in 80486 - Pentium

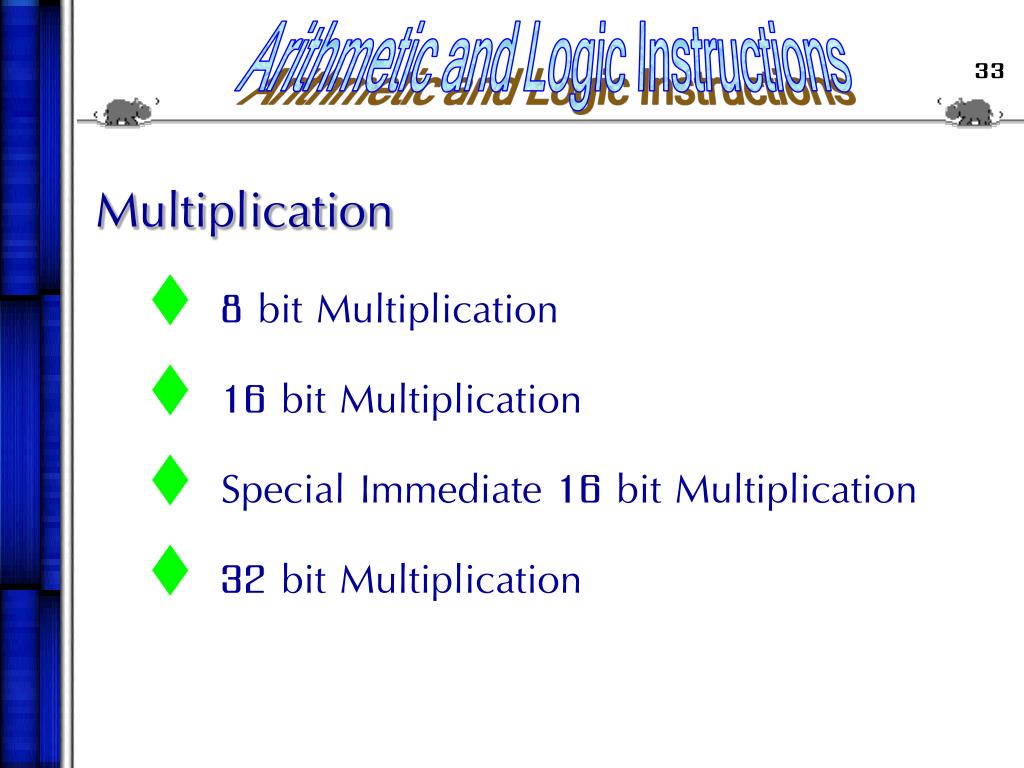

  33. Arithmetic and Logic Instructions Multiplication • 8 bit Multiplication • 16 bit Multiplication • Special Immediate 16 bit Multiplication • 32 bit Multiplication

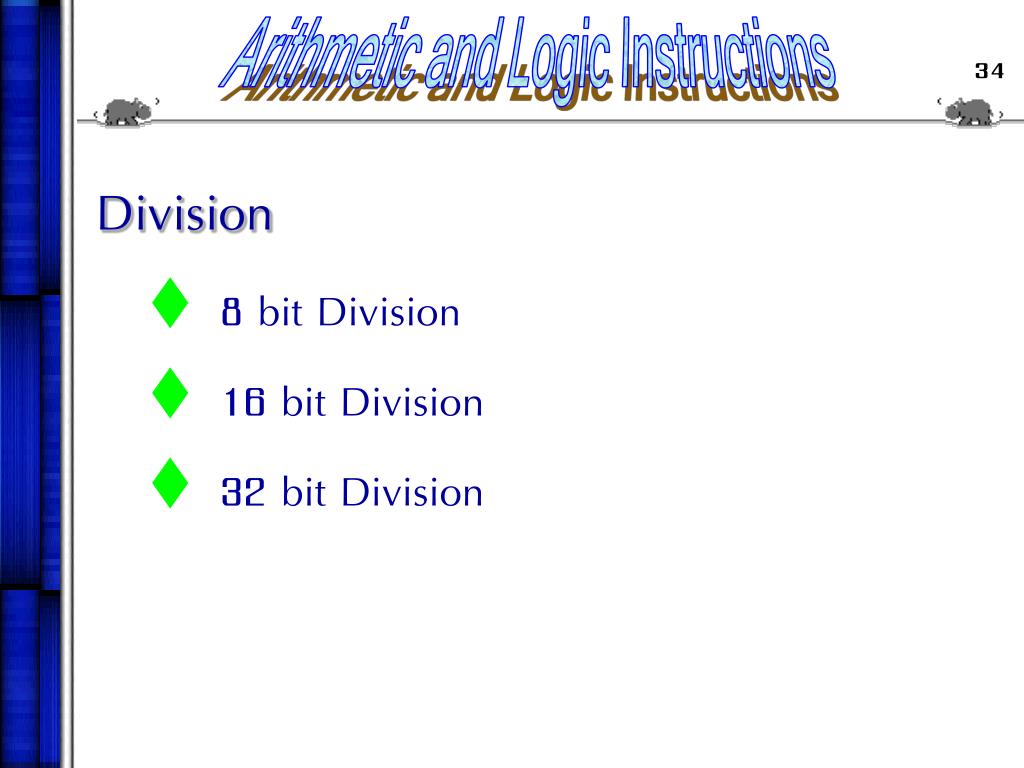

  34. Arithmetic and Logic Instructions Division • 8 bit Division • 16 bit Division • 32 bit Division

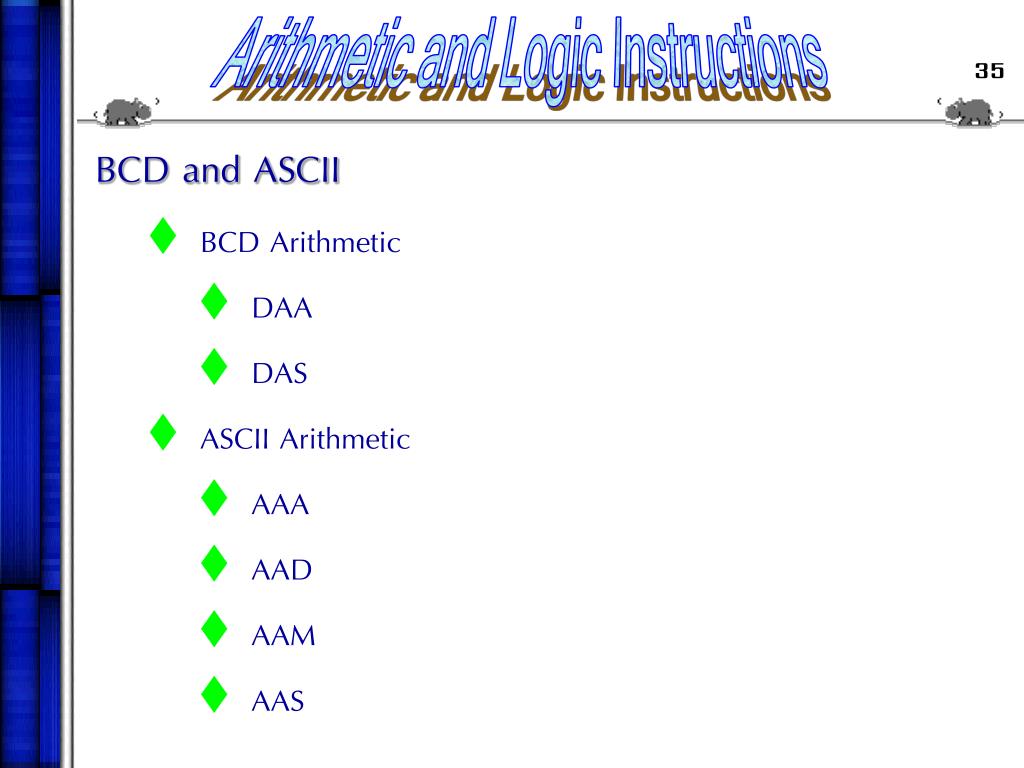

  35. Arithmetic and Logic Instructions BCD and ASCII • BCD Arithmetic • DAA • DAS • ASCII Arithmetic • AAA • AAD • AAM • AAS

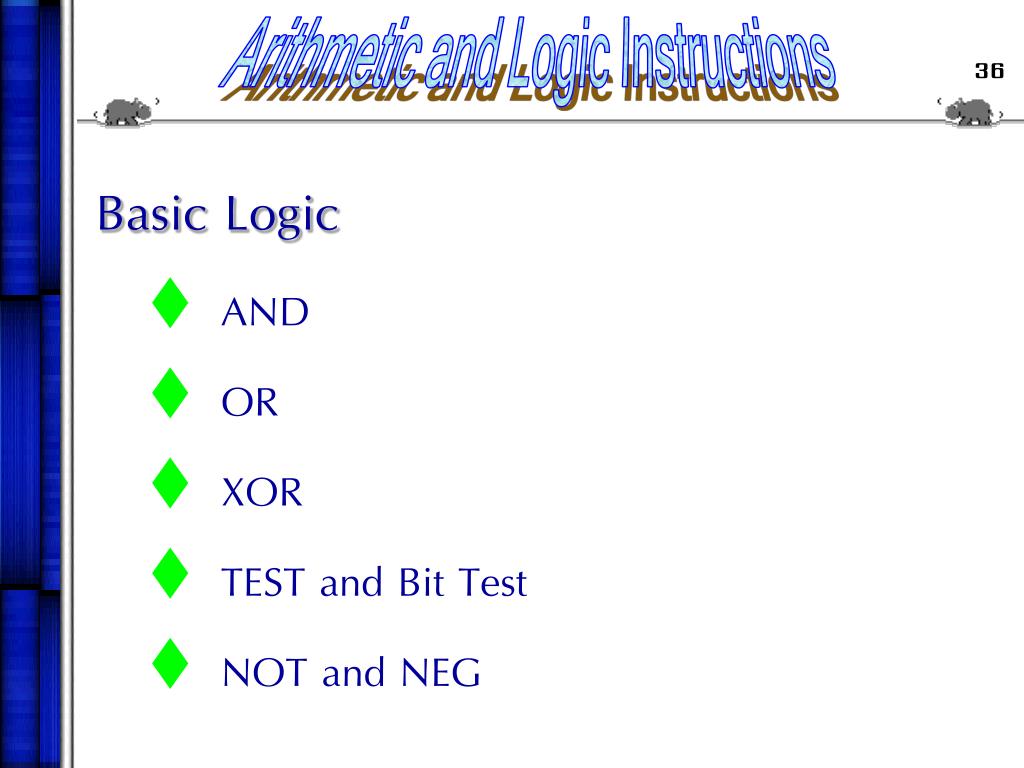

  36. Arithmetic and Logic Instructions Basic Logic • AND • OR • XOR • TEST and Bit Test • NOT and NEG

  37. Arithmetic and Logic Instructions Shift • SHL • SHR • SAR • SAL • SHLD • SHRD

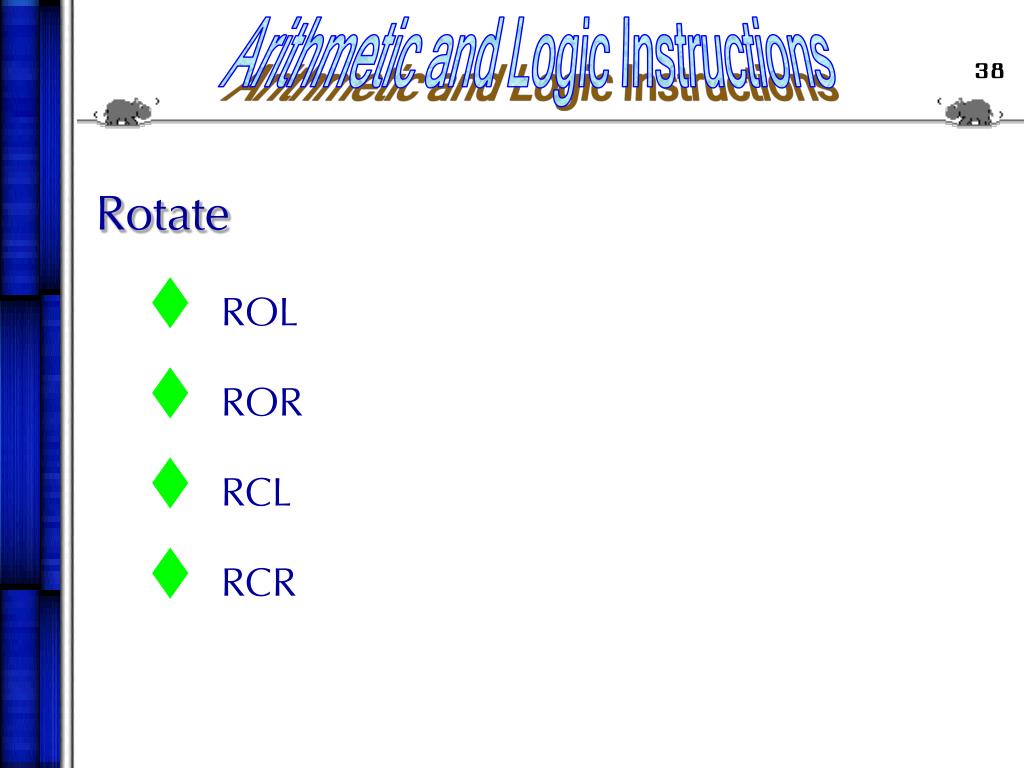

  38. Arithmetic and Logic Instructions Rotate • ROL • ROR • RCL • RCR

  39. Arithmetic and Logic Instructions Bit Scan Instruction • BSF • BSR StringComparisons • SCAS • CMPS

  40. Program Comtrol Instructions Jump Group • Unconditional Jump (JMP) • Short Jump • Near Jump • Far Jump • Jumps with Register Operands • Indirect Jumps Using Index

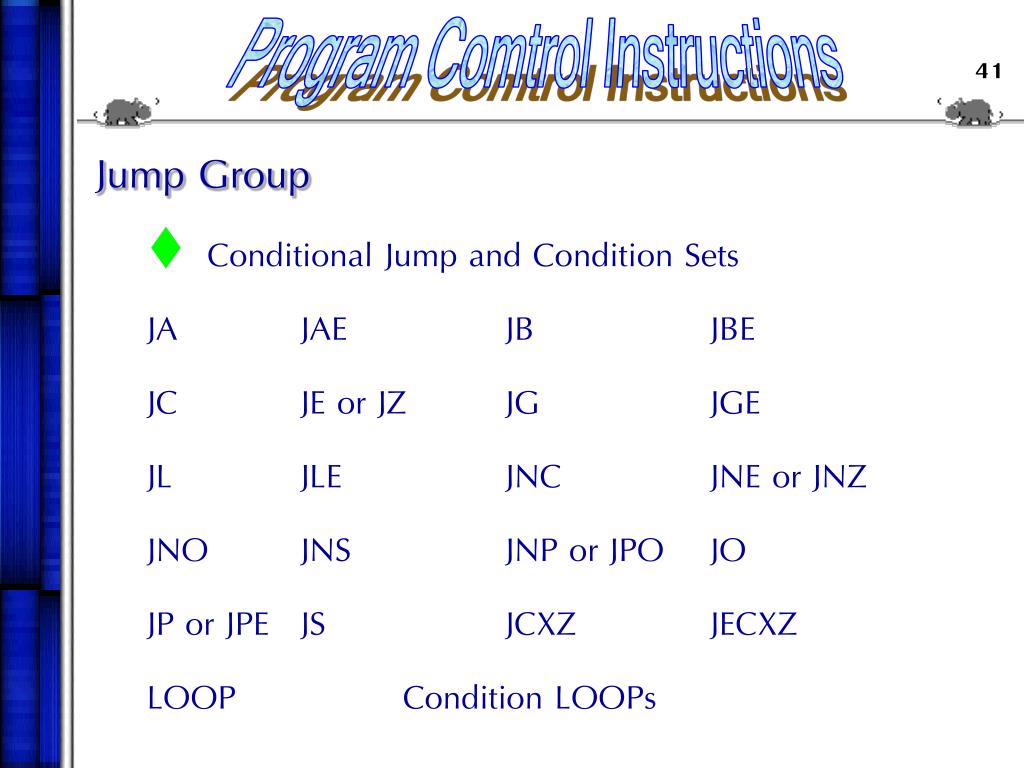

  41. Program Comtrol Instructions Jump Group • Conditional Jump and Condition Sets JA JAE JB JBE JC JE or JZ JG JGE JL JLE JNC JNE or JNZ JNO JNS JNP or JPO JO JP or JPE JS JCXZ JECXZ LOOP Condition LOOPs

  42. Program Comtrol Instructions Procedures • CALL • Near CALL • Far CALL • CALL with Register Operands • CALL with Indirect Memory Address • RET

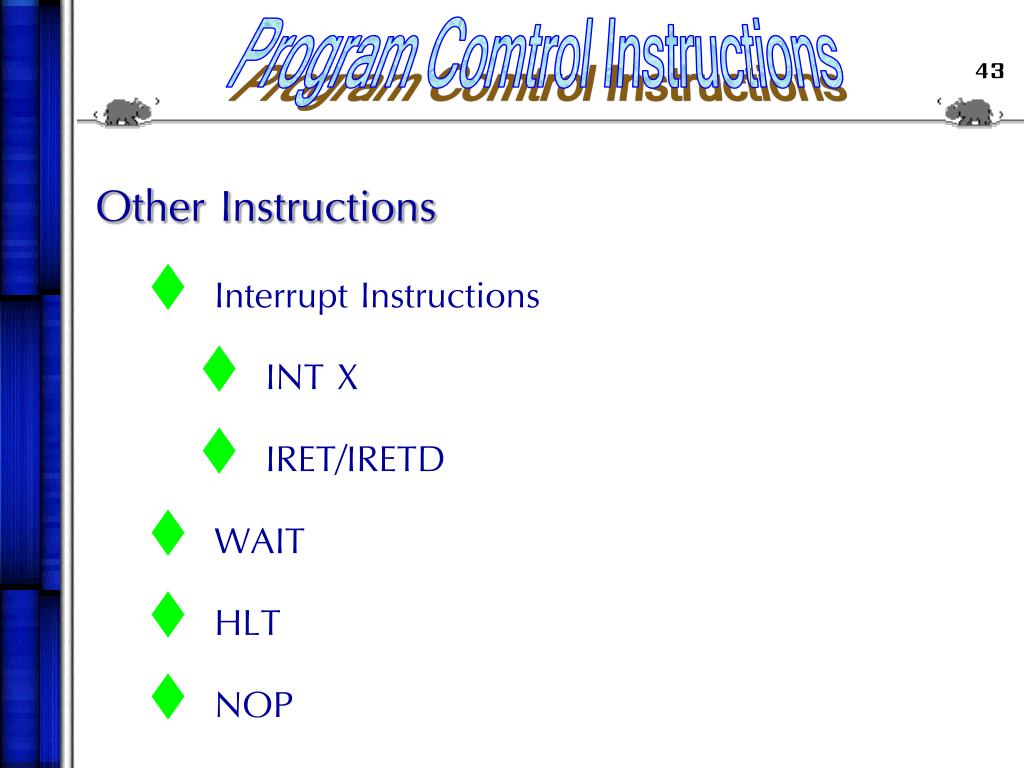

  43. Program Comtrol Instructions Other Instructions • Interrupt Instructions • INT X • IRET/IRETD • WAIT • HLT • NOP

  44. Program Comtrol Instructions Other Instructions • LOCK Prefix • ESC • BOUND • ENTER and LEAVE
