Automatic-Softening-Point-Tester

DESCRIPTION

Automatic Softening Point Tester is a sophisticated benchtop analytical tester, meticulously crafted for the precise determination of softening points in two samples simultaneously of various materials, including bituminous compounds, petroleum asphalts, coal pitch, and others. The temperature measurement can be controlled between a range of 32u2103 to 160u2103 and provides accurate and consistent measurements. Utilized across a spectrum of industries, including asphalt manufacturing firms, highway and bridge construction companies, laboratories, universities, and scientific research institutes, among

Télécharger la présentation

Automatic-Softening-Point-Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

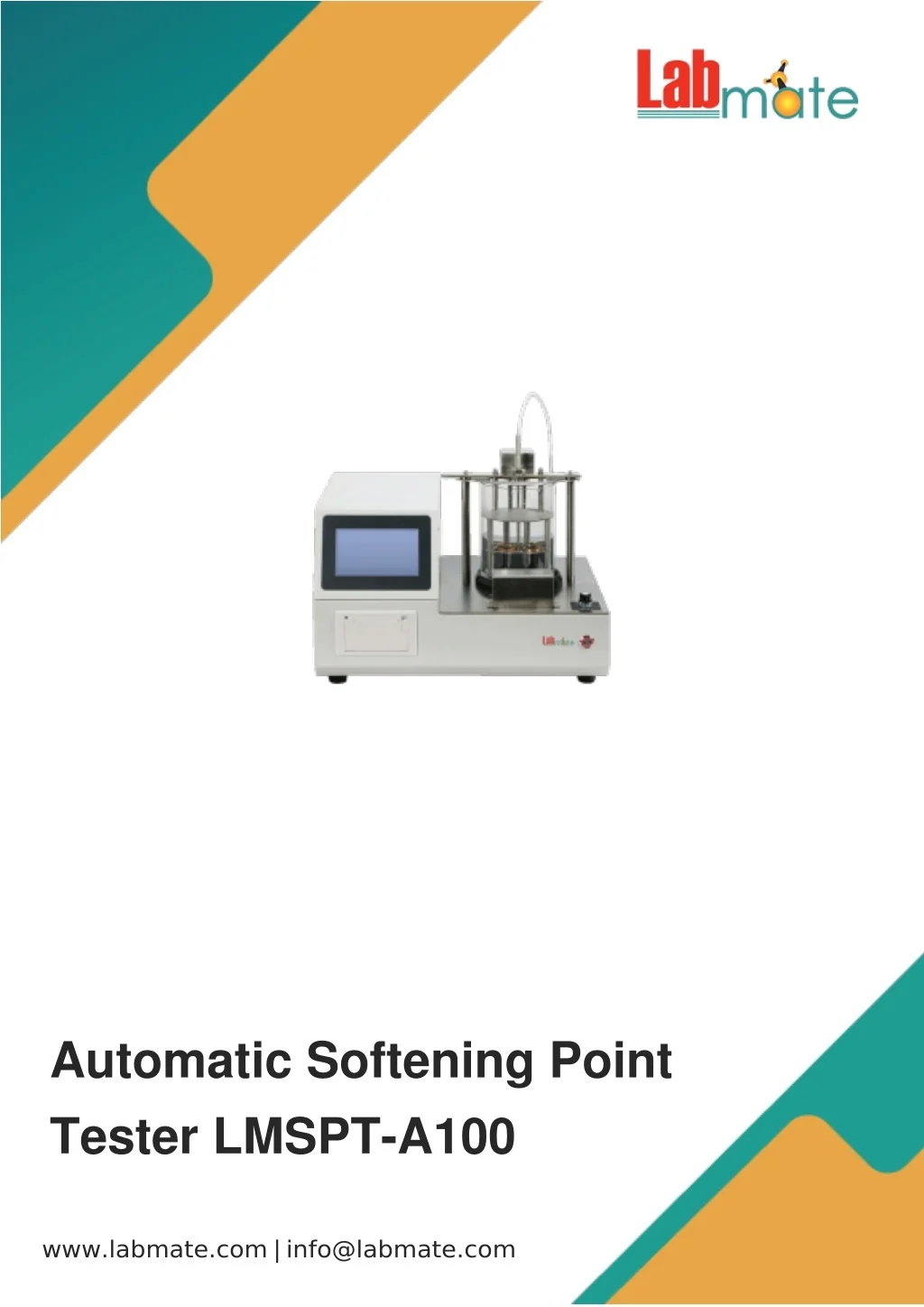

  1. Automatic Softening Point Tester LMSPT-A100 www.labmate.com info@labmate.com |

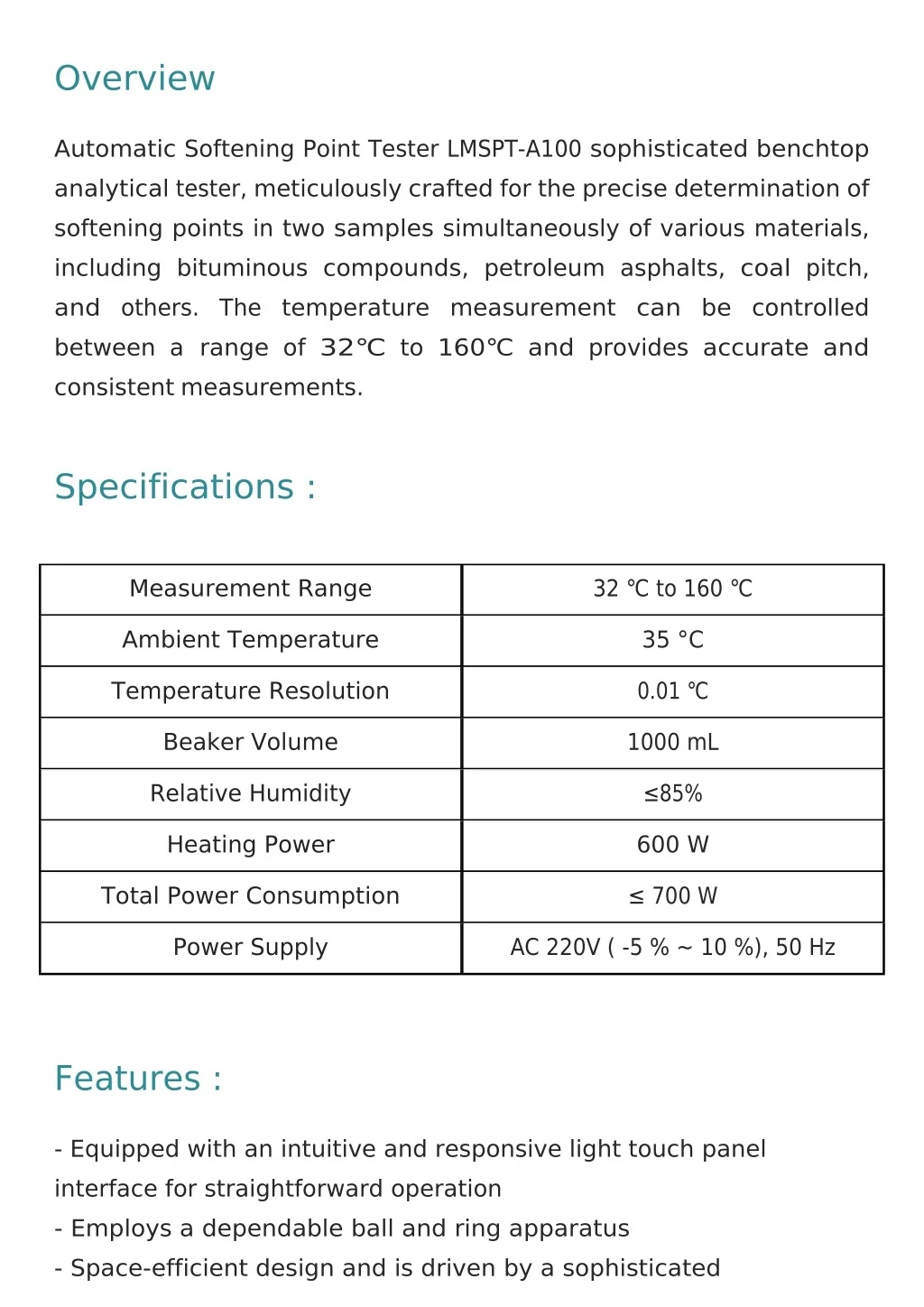

  2. Overview Automatic Softening Point Tester LMSPT-A100 sophisticated benchtop analytical tester, meticulously crafted for the precise determination of softening points in two samples simultaneously of various materials, including bituminous compounds, petroleum asphalts, coal pitch, and others. The temperature measurement can be controlled between a range of 32℃ to 160℃ and provides accurate and consistent measurements. Specifications : Measurement Range 32 ℃ to 160 ℃ Ambient Temperature 35 °C Temperature Resolution 0.01 ℃ Beaker Volume 1000 mL Relative Humidity ≤85% Heating Power 600 W Total Power Consumption ≤ 700 W Power Supply AC 220V ( -5 % ~ 10 %), 50 Hz Features : - Equipped with an intuitive and responsive light touch panel interface for straightforward operation - Employs a dependable ball and ring apparatus - Space-efficient design and is driven by a sophisticated

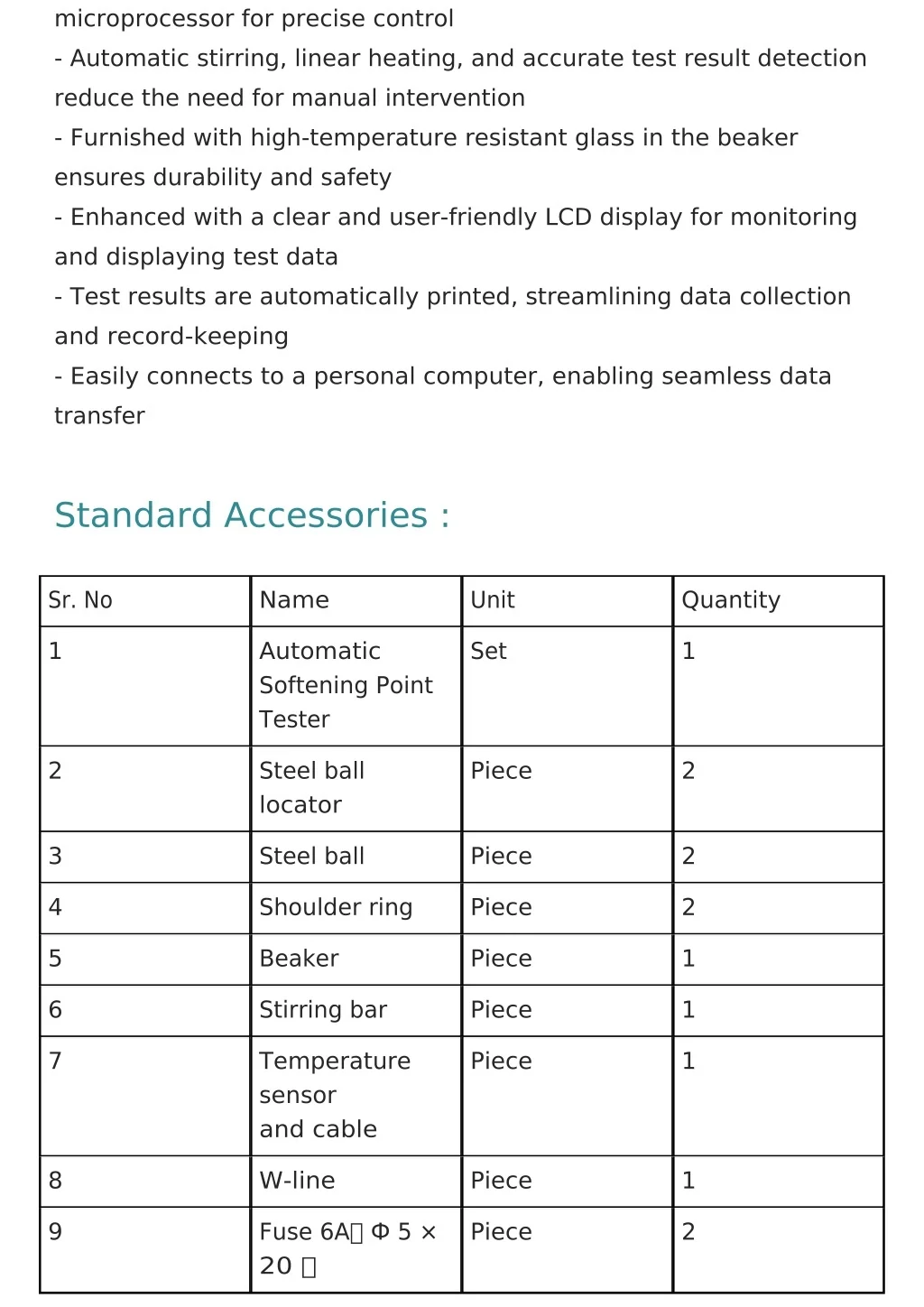

  3. microprocessor for precise control - Automatic stirring, linear heating, and accurate test result detection reduce the need for manual intervention - Furnished with high-temperature resistant glass in the beaker ensures durability and safety - Enhanced with a clear and user-friendly LCD display for monitoring and displaying test data - Test results are automatically printed, streamlining data collection and record-keeping - Easily connects to a personal computer, enabling seamless data transfer Standard Accessories : Sr. No Name Unit Quantity 1 Automatic Softening Point Tester Set 1 2 Steel ball locator Piece 2 3 Steel ball Piece 2 4 Shoulder ring Piece 2 5 Beaker Piece 1 6 Stirring bar Piece 1 7 Temperature sensor and cable Piece 1 8 W-line Piece 1 9 Fuse 6A（ Ф 5 × 20 ） Piece 2

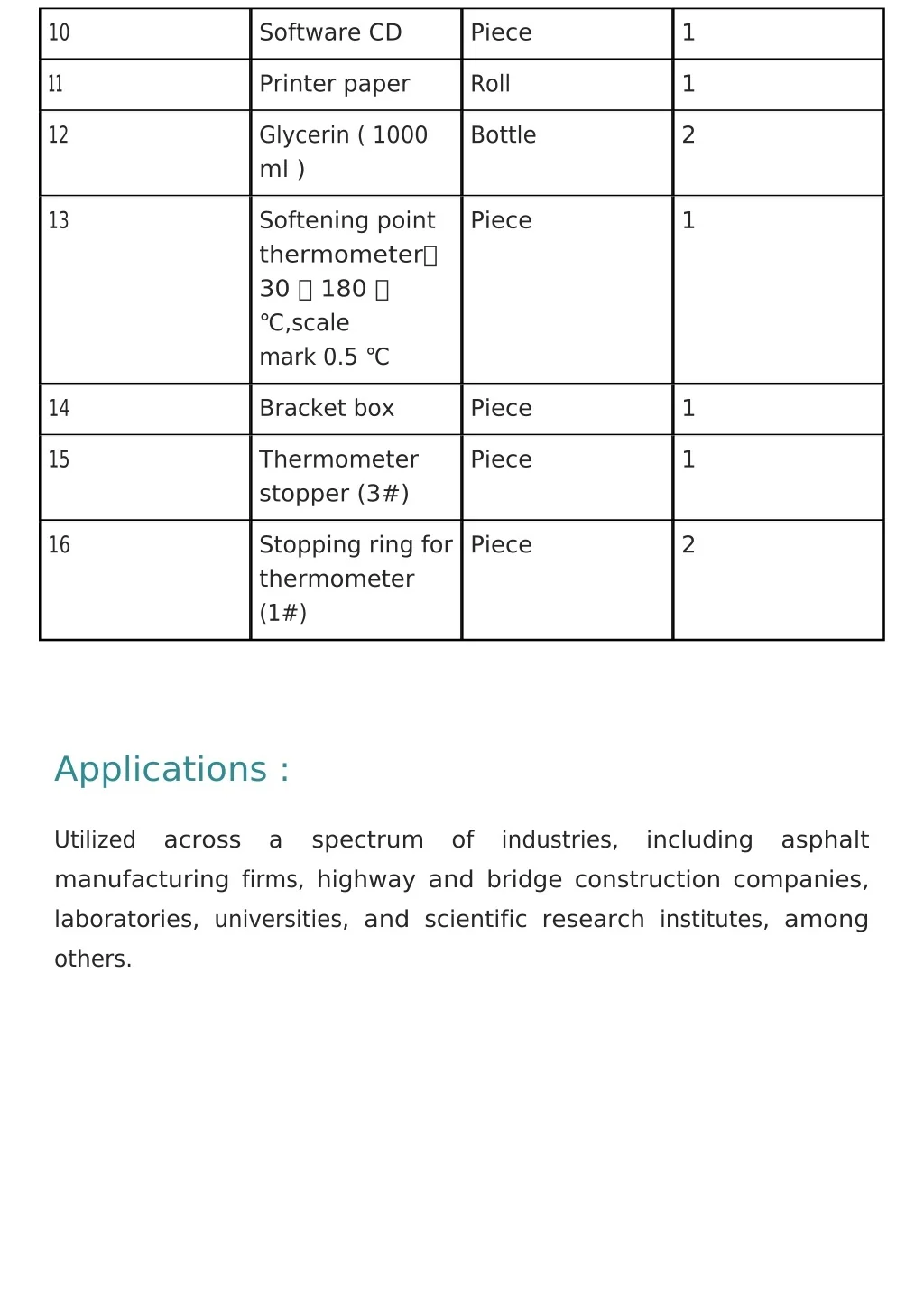

  4. 10 Software CD Piece 1 11 Printer paper Roll 1 12 Glycerin ( 1000 ml ) Bottle 2 13 Softening point thermometer（ 30 ～ 180 ） ℃,scale mark 0.5 ℃ Piece 1 14 Bracket box Piece 1 15 Thermometer stopper (3#) Piece 1 16 Stopping ring for thermometer (1#) Piece 2 Applications : Utilized across a spectrum of industries, including asphalt manufacturing firms, highway and bridge construction companies, laboratories, universities, and scientific research institutes, among others.

  5. Labmate Scientific | Website: Email: info@labmate.com www.labmate.com
