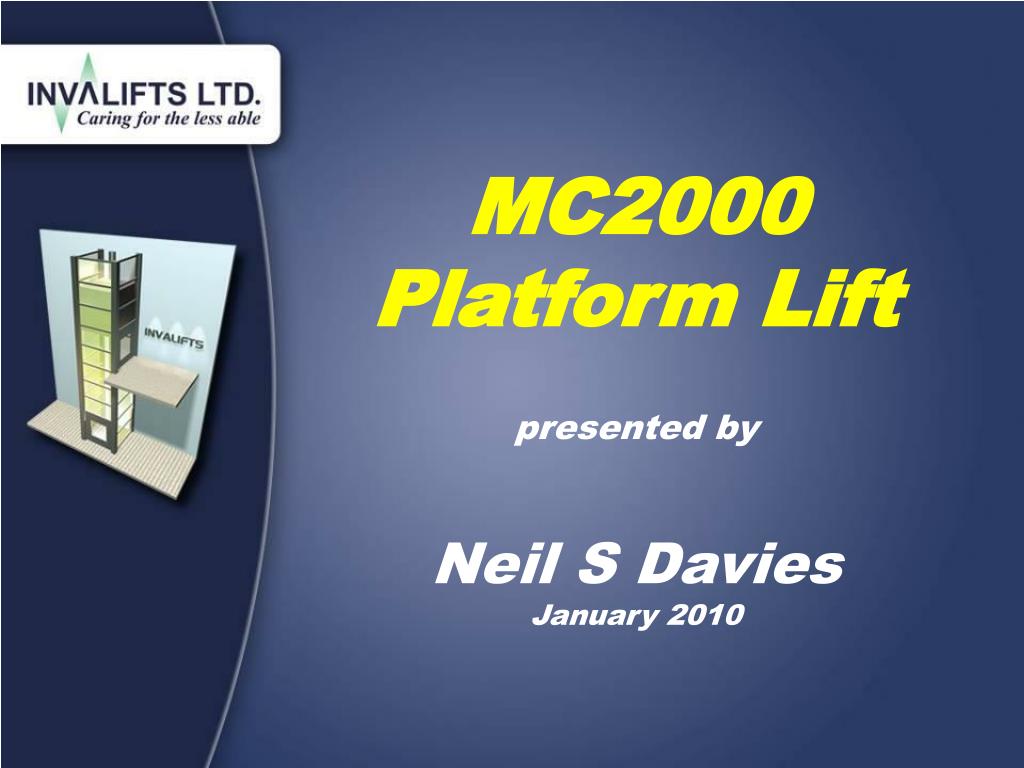

  1. MC2000 Platform Lift presented by Neil S Davies January 2010

  2. MC2000 Platform Lift

  3. Hampshire Police HQ

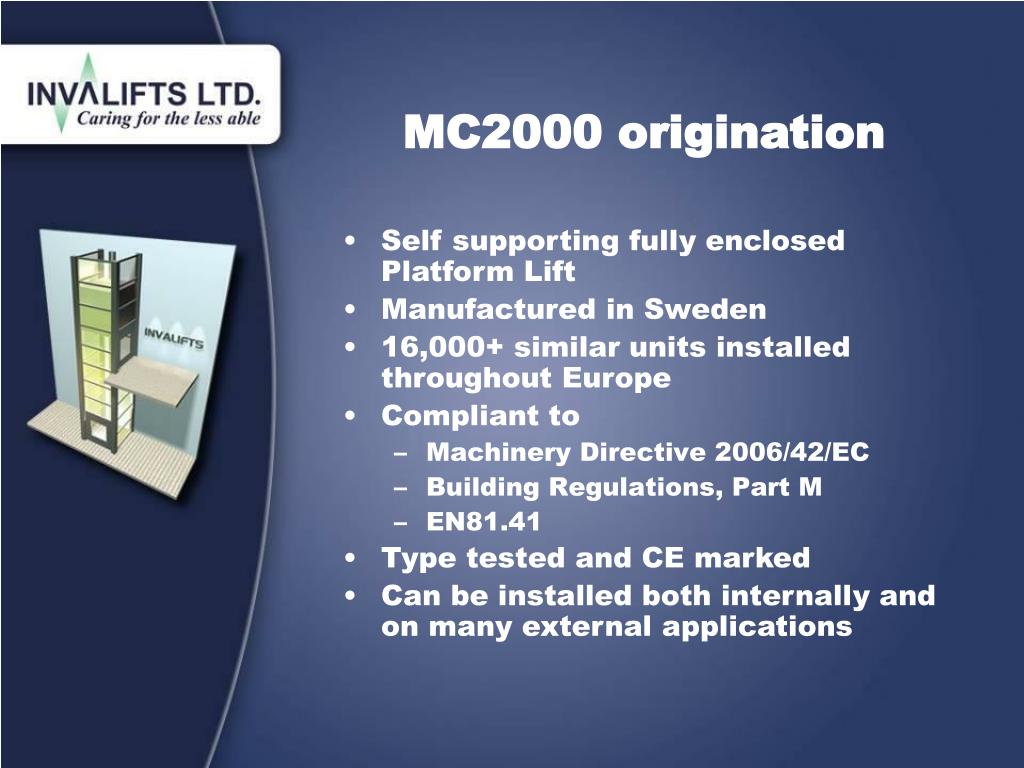

  4. MC2000 origination • Self supporting fully enclosed Platform Lift • Manufactured in Sweden • 16,000+ similar units installed throughout Europe • Compliant to • Machinery Directive 2006/42/EC • Building Regulations, Part M • EN81.41 • Type tested and CE marked • Can be installed both internally and on many external applications

  5. MC2000 features • Up to 13.0m travel serving 5 levels • 400kg / 5 persons capacity • Speed - 0.15 metres per second • Modular self supporting enclosure • Insulated, aluzinc treated steel panels • Doors can be fitted on 3 sides, either hand • Standard powder coat colour – white RAL9010 • Controller integral within enclosure

  6. MC2000 features (2) • 240v operation inc. frequency drive • Manual doors with self closers • Easy to use, large, constant pressure tactile push buttons • Single press buttons on landings • Platform here indicators • Electrical emergency lowering over 2m travel • Load weighing device • Voice annunciation with integrated arrival gong • Stainless steel handrail • Braille pushes in contrasting colour

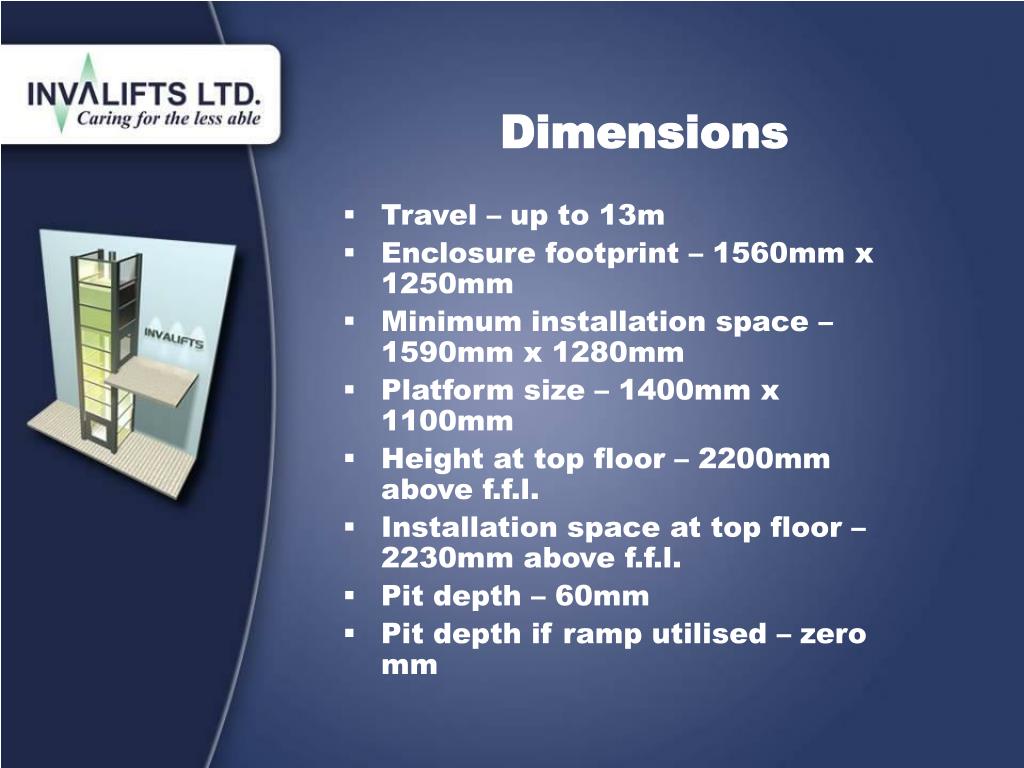

  7. Dimensions • Travel – up to 13m • Enclosure footprint – 1560mm x 1250mm • Minimum installation space – 1590mm x 1280mm • Platform size – 1400mm x 1100mm • Height at top floor – 2200mm above f.f.l. • Installation space at top floor – 2230mm above f.f.l. • Pit depth – 60mm • Pit depth if ramp utilised – zero mm

  8. MC2000 Configuration Drive shaft Gear & motor assembly Controller cabinet Chain guides Door closer Control console L - shaped Platform

  9. MC2000 drive system • 240v frequency drive • 0.55kw a.c. motor • Coupled gearbox and motor situated in controller • Drive shaft above enclosure ceiling • 2 x looped guided chains concealed in enclosure uprights • Self-supervising overspeed governor with safety gear • Emergency hand-lowering in event of power failure 10 YEAR WARRANTY ON CHAINS 5 YEAR WARRANTY ON MOTOR/GEARBOX

  10. MC2000 drive components Control cabinet at top floor Platform guide Drive shaft incorporating overspeed governor Chain loop within nylon guides

  11. MC2000 options • Glazing to all sides • Mixing of glazed and solid panels • Special platform sizes • Special platform finishes • Choices of door design • Fire doors • Intelligent automatic doors • 1300mm high doors at top floor - under 3m travel • RAL colours

  12. MC2000 options (2) • Key switch operation • School parking / locking facility • Communication devices • Uninterrupted Power Supply (UPS), back up • Contrasting colour doors

  13. Special platform finishes

  14. Door types (colours optional) 1d 1a 1c 1e 2c fire door 1h 1g

  15. Installation • Factory trained, competent engineers • 2 / 3 days for 2 floor • Completion of work in one visit • Little interface required with builders

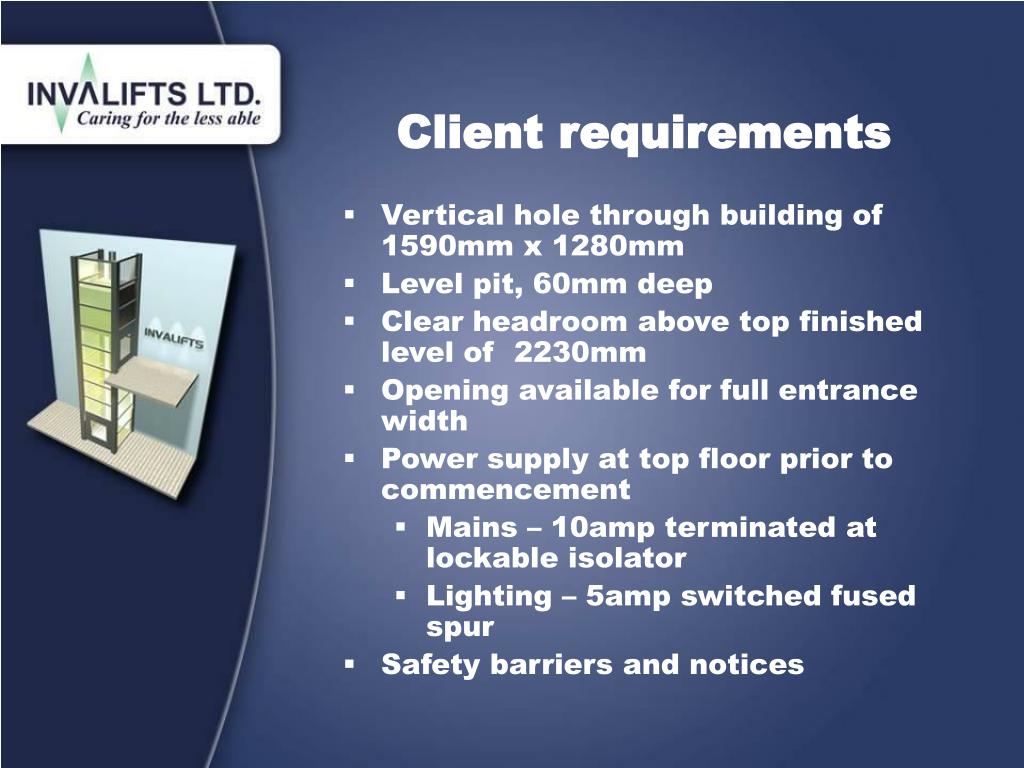

  16. Client requirements • Vertical hole through building of 1590mm x 1280mm • Level pit, 60mm deep • Clear headroom above top finished level of 2230mm • Opening available for full entrance width • Power supply at top floor prior to commencement • Mains – 10amp terminated at lockable isolator • Lighting – 5amp switched fused spur • Safety barriers and notices

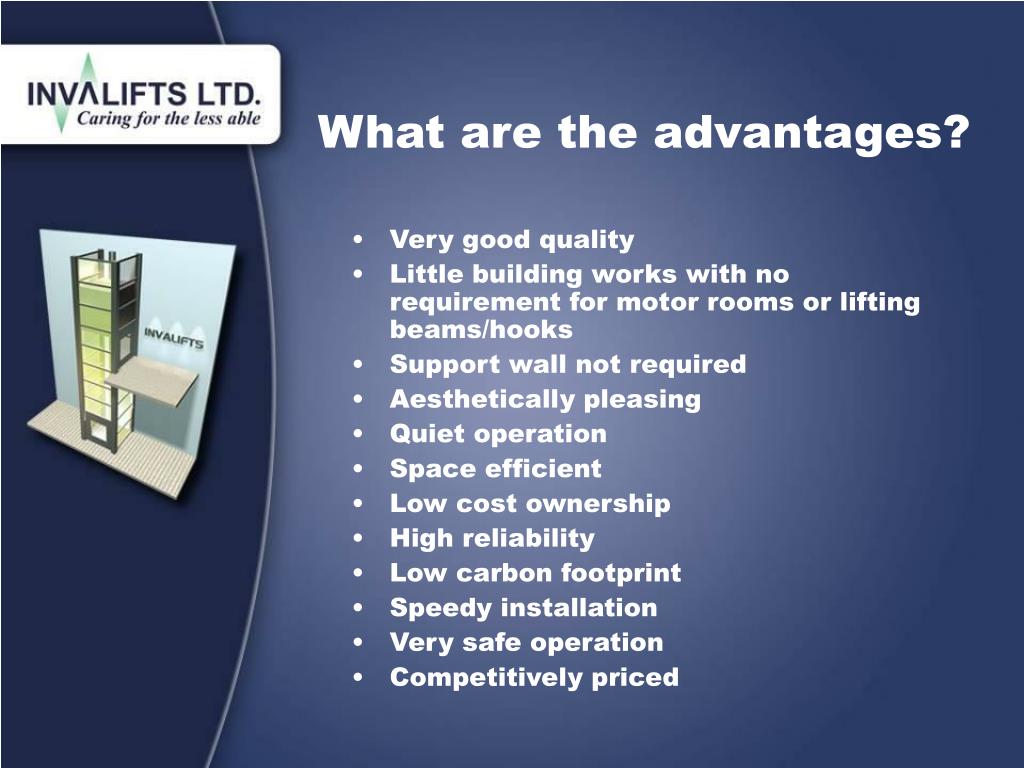

  17. What are the advantages? • Very good quality • Little building works with no requirement for motor rooms or lifting beams/hooks • Support wall not required • Aesthetically pleasing • Quiet operation • Space efficient • Low cost ownership • High reliability • Low carbon footprint • Speedy installation • Very safe operation • Competitively priced

  18. Solid and glazed units

  19. Waterproof enclosures • Rectangular hollow section structure • Kingspan microrib panels • 70mm insulation to give correct U ratings • Totally waterproof • Rainwater goods included • MC2000 installed within

  20. Thank you for taking the time to view our slideshow To find out more about the highest quality Platform Lift on the market please contact Neil Davies on either 0845 468 2543 or 07986 250286 MC2000 LARGEST INSIDE SMALLEST OUTSIDE
