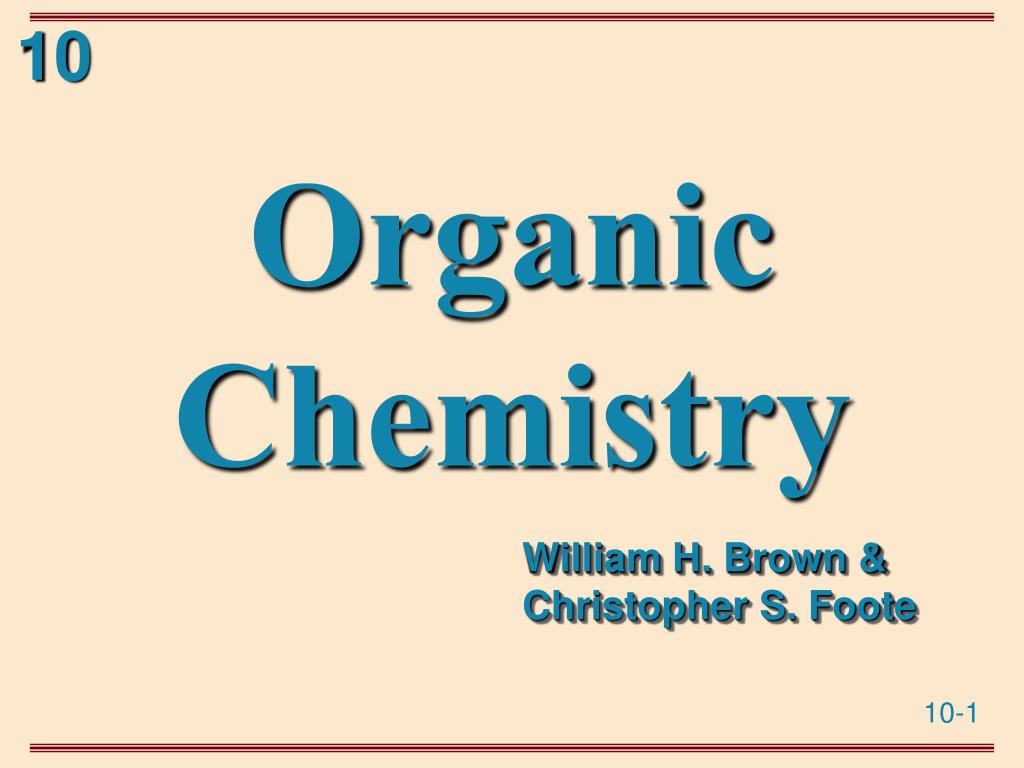

  1. Organic Chemistry William H. Brown & Christopher S. Foote

  2. Alkynes Chapter 10 Chapter 10

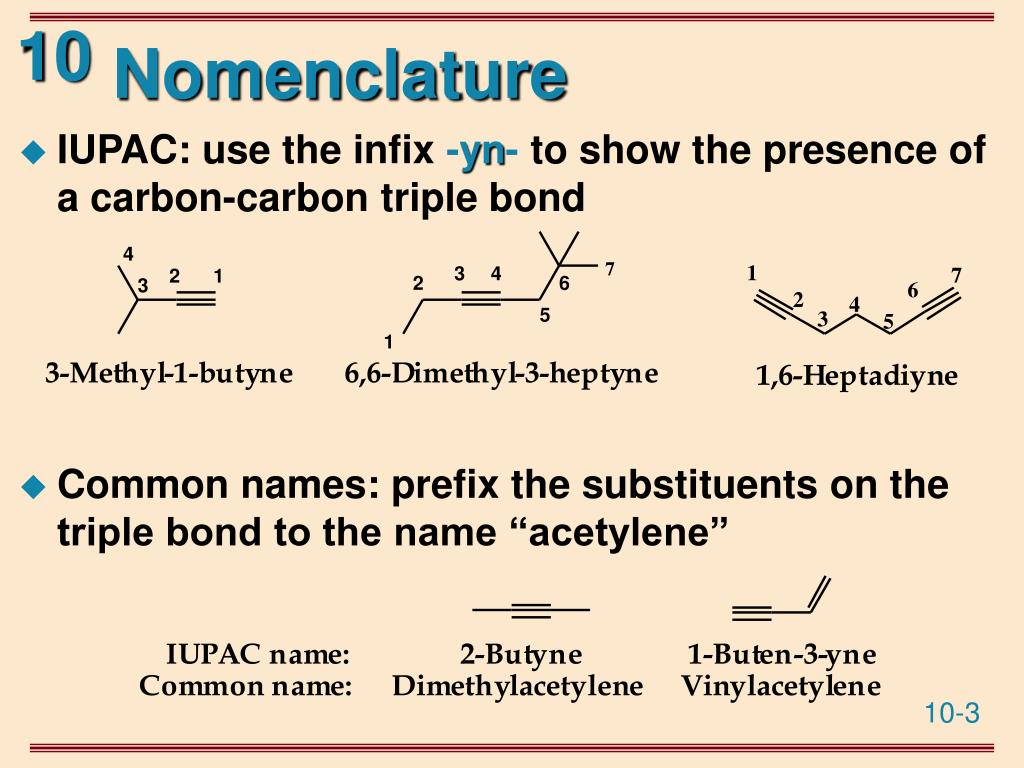

  3. Nomenclature • IUPAC: use the infix -yn- to show the presence of a carbon-carbon triple bond • Common names: prefix the substituents on the triple bond to the name “acetylene”

  4. Cycloalkynes • The smallest cycloalkyne isolated is cyclononyne • the C-C-C bond angle about the triple bond is approximately 156°

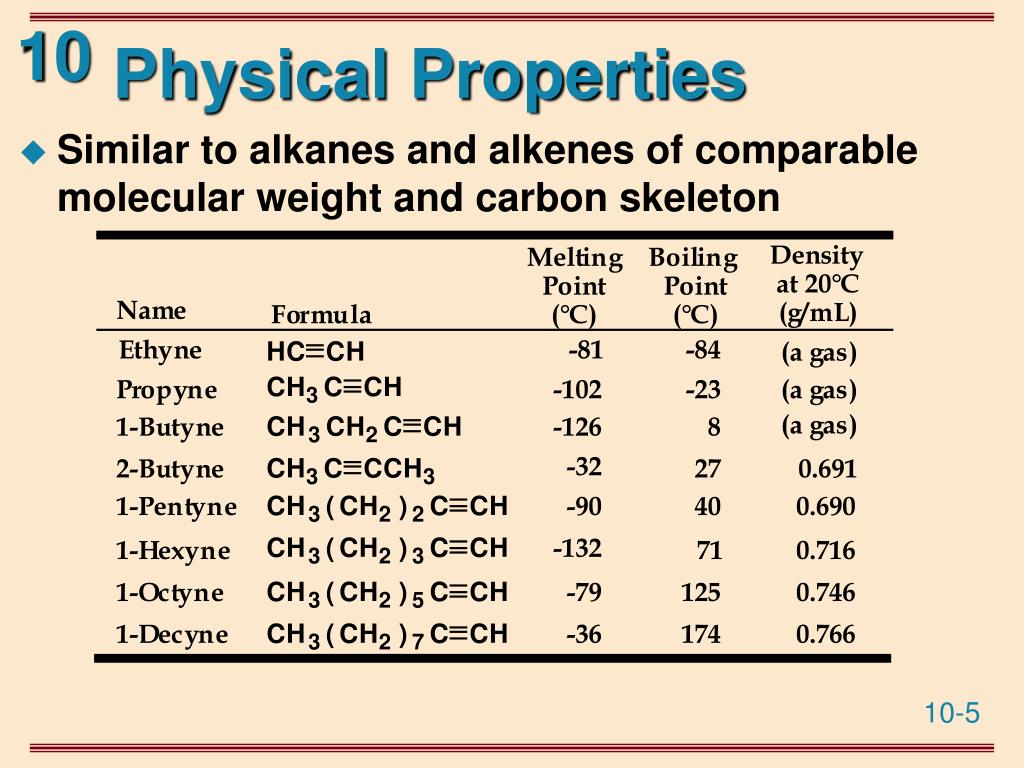

  5. Physical Properties • Similar to alkanes and alkenes of comparable molecular weight and carbon skeleton

  6. Acidity • A major difference between the chemistry of alkynes and that of alkenes and alkanes is the acidity of the hydrogen bonded to a triply bonded carbon (Section 4.4E) • the pKa of acetylene is approximately 25, which makes it a stronger acid than ammonia but weaker than alcohols

  7. Acidity • Acetylene reacts with sodium amide to form sodium acetylide • it can also be converted to its metal salt by reaction with sodium hydride or lithium diisopropylamide (LDA)

  8. Acidity • Water is a stronger acid than acetylene; hydroxide ion is not a strong enough base to convert acetylene to its anion

  9. Alkylation of Acetylides • Acetylide anions are both strong bases and good nucleophiles • They undergo SN2 reactions with alkyl halides, tosylates, and mesylates to form new C-C bonds to alkyl groups; that is, they undergo alkylation • because acetylide anions are also strong bases, alkylation is practical only with methyl and 1° halides • with 2° and 3° halides, E2 is the major reaction.

  10. Alkylation of Acetylides • Alkylation of acetylide anions is the most convenient method for the synthesis of terminal alkynes

  11. Alkylation of Acetylides • Alkylation can be repeated and a terminal alkyne can be converted to an internal alkyne

  12. Alkylation of Acetylides • With 2° and 3° alkyl halides, E2 is the major reaction

  13. Preparation • Treatment of a vicinal dibromoalkane with two moles of base, most commonly sodium amide, results in two successive E2 reactions and formation of an alkyne

  14. Preparation • Alkynes are also prepared by double dehydrohalogenation of geminal dihalides

  15. Preparation • An alkene can be converted to an alkyne • for a terminal alkene to a terminal alkyne, 3 moles of NaNH2 are required • for an internal alkene to an internal alkyne, only 2 moles of NaNH2 are required

  16. Preparation • A side product may be an allene, a compound containing adjacent carbon-carbon double bonds, C=C=C

  17. Allenes • Most allenes are less stable than their isomeric alkynes, and are generally only minor products in alkyne-forming dehydrohalogenation reactions

  18. Reduction • Treatment of an alkyne with hydrogen in the presence of a transition metal catalyst, most commonly Pd, Pt, or Ni, converts the alkyne to an alkane

  19. Reduction • With the Lindlar catalyst, reduction stops at addition of one mole of H2 • this reduction shows syn stereoselectivity

  20. Reduction • Reduction of an alkyne with Na or Li in liquid ammonia converts an alkyne to an alkene with anti stereoselectivity

  21. Na/NH3(l) Reduction • Step 1: a one-electron reduction of the alkyne gives a radical anion • Step 2: an acid-base reaction gives an alkenyl radical and amide ion

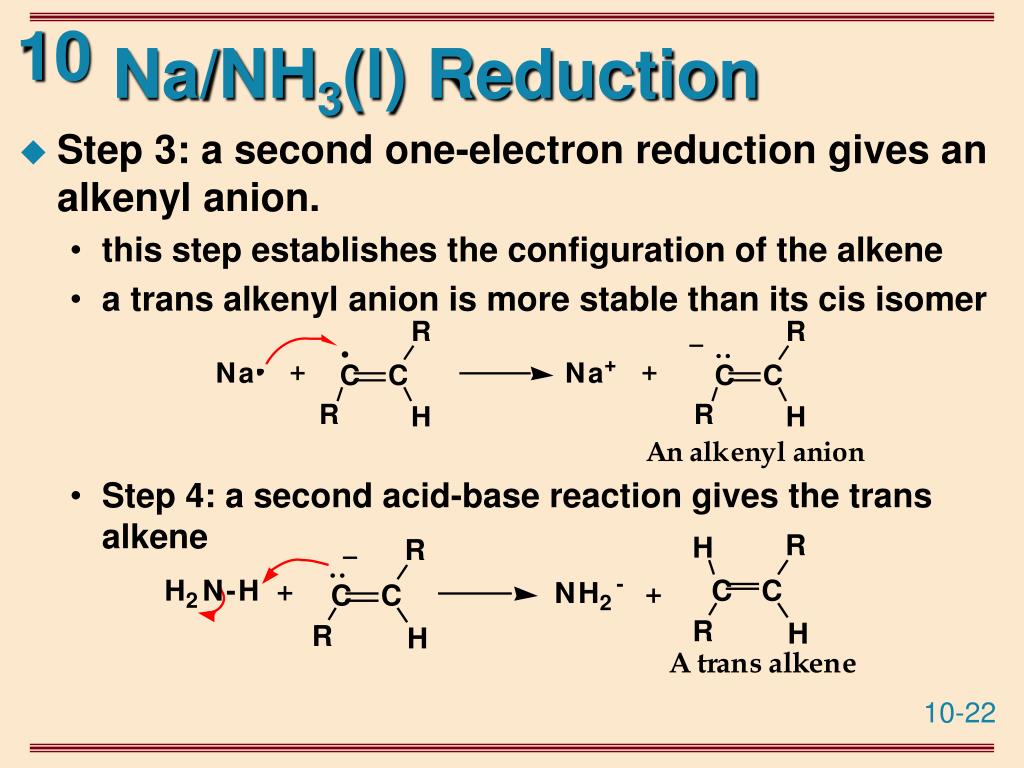

  22. Na/NH3(l) Reduction • Step 3: a second one-electron reduction gives an alkenyl anion. • this step establishes the configuration of the alkene • a trans alkenyl anion is more stable than its cis isomer • Step 4: a second acid-base reaction gives the trans alkene

  23. Hydroboration • Addition of borane to an internal alkynes gives a trialkenylborane • Treatment of a trialkenylborane with acetic acid results in stereoselective replacement of B by H

  24. Hydroboration • To prevent dihydroboration with terminal alkynes, it is necessary to use a sterically hindered dialkylborane, such as (sia)2BH

  25. Hydroboration • Treatment of a terminal alkyne with (sia)2BH results stereospecific and regioselective hydroboration

  26. Hydroboration • Treatment of an alkenylborane with H2O2 in aqueous NaOH gives an enol

  27. Hydroboration • Enol:a compound containing an OH group on one carbon of a C=C • The enol is in equilibrium with a compound formed by migration of a hydrogen atom from oxygen to carbon and the double bond from C=C to C=O • The enol and keto forms aretautomersand their interconversion is called tautomerism • the keto form generally predominates at equilibrium • we discuss keto-enol tautomerism in detail in Section 16.11

  28. Hydroboration • Hydroboration/oxidation of an internal alkyne gives a ketone

  29. Hydroboration • Hydroboration/oxidation of a terminal alkyne gives an aldehyde

  30. Addition of X2 • Alkynes add one mole of bromine to give a dibromoalkene • addition shows anti stereoselectivity

  31. Addition of X2 • The intermediate in bromination of an alkyne is a bridged bromonium ion

  32. Addition of HX • Alkynes undergo regioselective addition of first one mole of HX and then a second mole to give a dibromoalkane

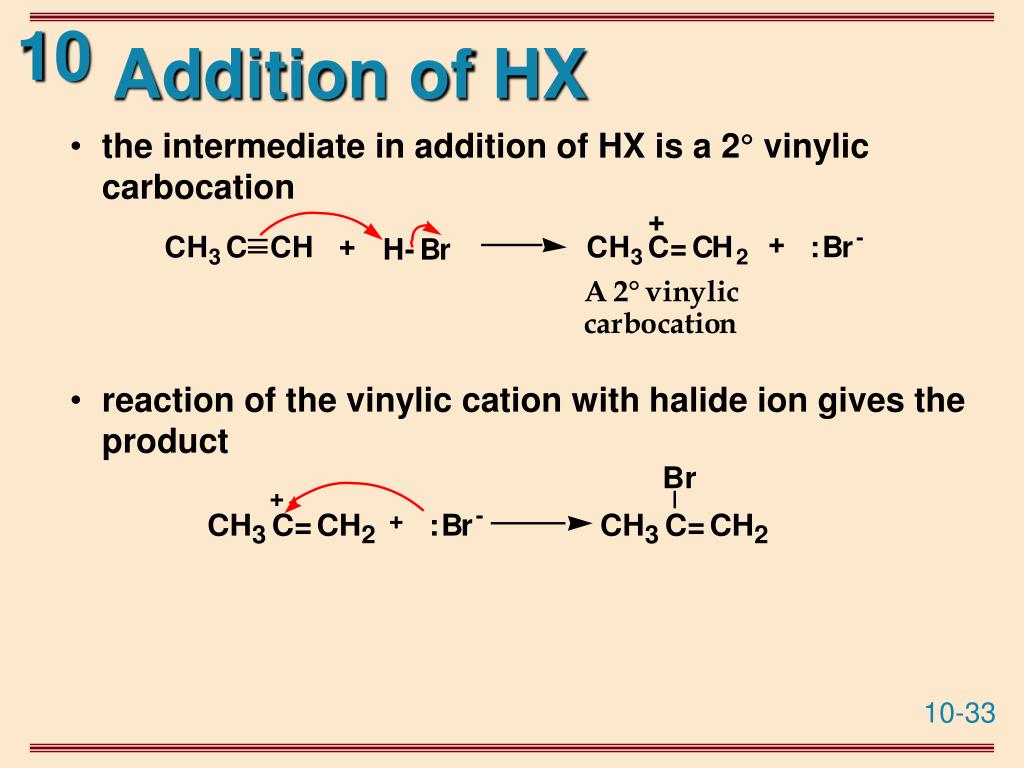

  33. Addition of HX • the intermediate in addition of HX is a 2° vinylic carbocation • reaction of the vinylic cation with halide ion gives the product

  34. Addition of H2O:hydration • In the presence of sulfuric acid and Hg(II) salts, alkynes undergo addition of water

  35. Addition of H2O:hydration • Step 1: attack of Hg2+ gives a bridged mercurinium ion intermediate, which contains a three-center, two-electron bond • Step 2: water attacks the bridged mercurinium ion intermediate from the side opposite the bridge

  36. Addition of H2O:hydration • Step 3: proton transfer to solvent • Step 4: tautomerism of the enol gives the keto form

  37. Addition of H2O:hydration • Step 5: proton transfer to the carbonyl oxygen gives an oxonium ion • Steps 6 and 7: loss of Hg2+ gives an enol; tautomerism of the enol gives the ketone

  38. Organic Synthesis • A successful synthesis must • provide the desired product in maximum yield • have the maximum control of stereochemistry and regiochemistry • do minimum damage to the environment (it must be a “green” synthesis) • Our strategy will be to work backwards from the target molecule

  39. Organic Synthesis • We analyze a target molecule in the following ways • the carbon skeleton: how can we put it together. Our only method to date for forming new a C-C bond is the alkylation of acetylide anions (Section 10.5) • the functional groups: what are they, how can they be used in forming the carbon-skeleton of the target molecule, and how can they be changed to give the functional groups of the target molecule

  40. Organic Synthesis • We use a method called a retrosynthesis and use an open arrow to symbolize a step in a retrosynthesis • Retrosynthesis: a process of reasoning backwards from a target molecule to a set of suitable starting materials

  41. Organic Synthesis • Target molecule: cis-3-hexene

  42. Organic Synthesis • starting materials are acetylene and bromoethane

  43. Organic Synthesis • Target molecule: 2-heptanone

  44. Organic Synthesis • starting materials are acetylene and 1-bromopentane

  45. Prob 10.9 Predict bond angles about each highlighted atom.

  46. Prob 10.10 State the orbital hybridization of each highlighted atom.

  47. Prob 10.11 Describe each highlighted carbon-carbon bond in terms of the overlap of atomic orbitals.

  48. Prob 10.12 How many stereoisomers are possible for enanthotoxin?

  49. Prob 10.13 Show how to prepare each alkyne from the given starting material.

  50. Prob 10.15 Complete each acid-base reaction and predict whether the equilibrium lies toward the left or toward the right.
