Penny Stock Image Managed List

1. Penny Stock Image Managed List Text Analyzer Scenario Configuration Guide

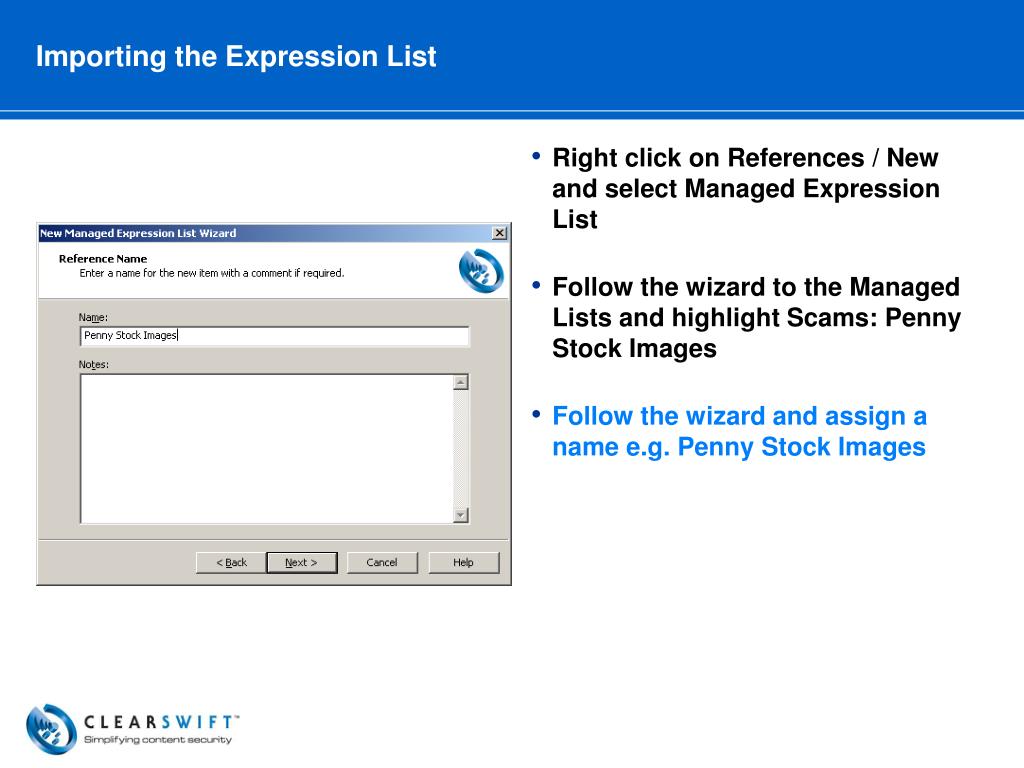

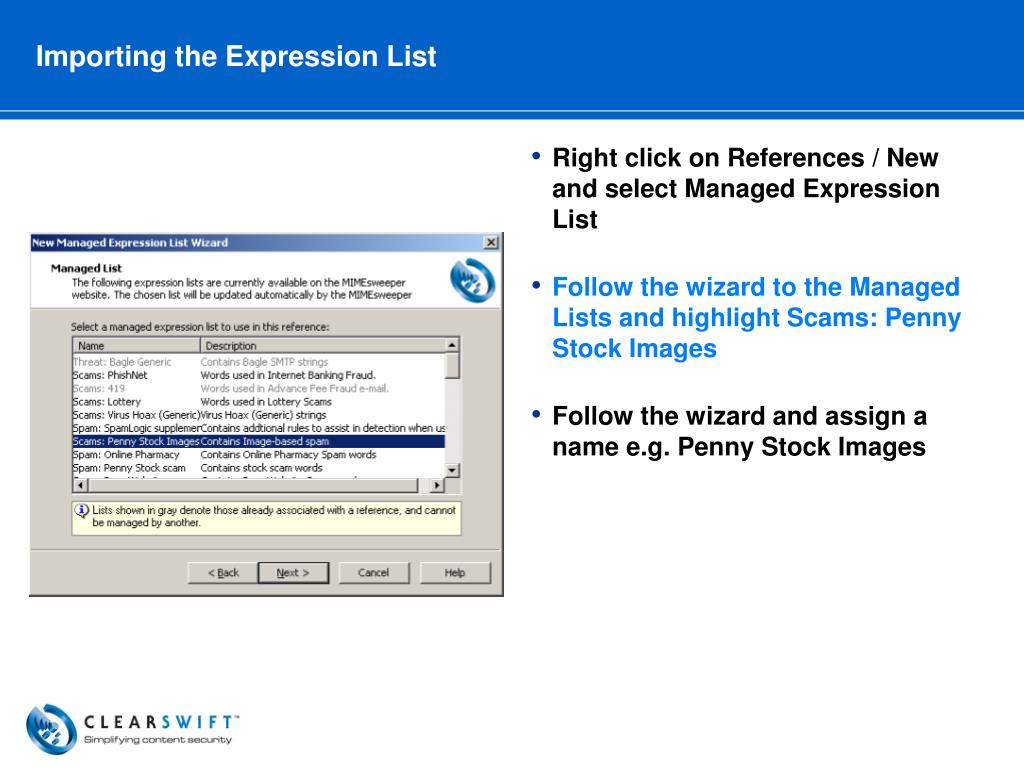

2. Importing the Expression List • Right click on References / New and select Managed Expression List • Follow the wizard to the Managed Lists and highlight Scams: Penny Stock Images • Follow the wizard and assign a name e.g. Penny Stock Images

3. Importing the Expression List • Right click on References / New and select Managed Expression List • Follow the wizard to the Managed Lists and highlight Scams: Penny Stock Images • Follow the wizard and assign a name e.g. Penny Stock Images

4. Importing the Expression List • Right click on References / New and select Managed Expression List • Follow the wizard to the Managed Lists and highlight Scams: Penny Stock Images • Follow the wizard and assign a name e.g. Penny Stock Images

5. Importing the Expression List • Right click on References / New and select Managed Expression List • Follow the wizard to the Managed Lists and highlight Scams: Penny Stock Images • Follow the wizard and assign a name e.g. Penny Stock Images

6. Importing the Expression List

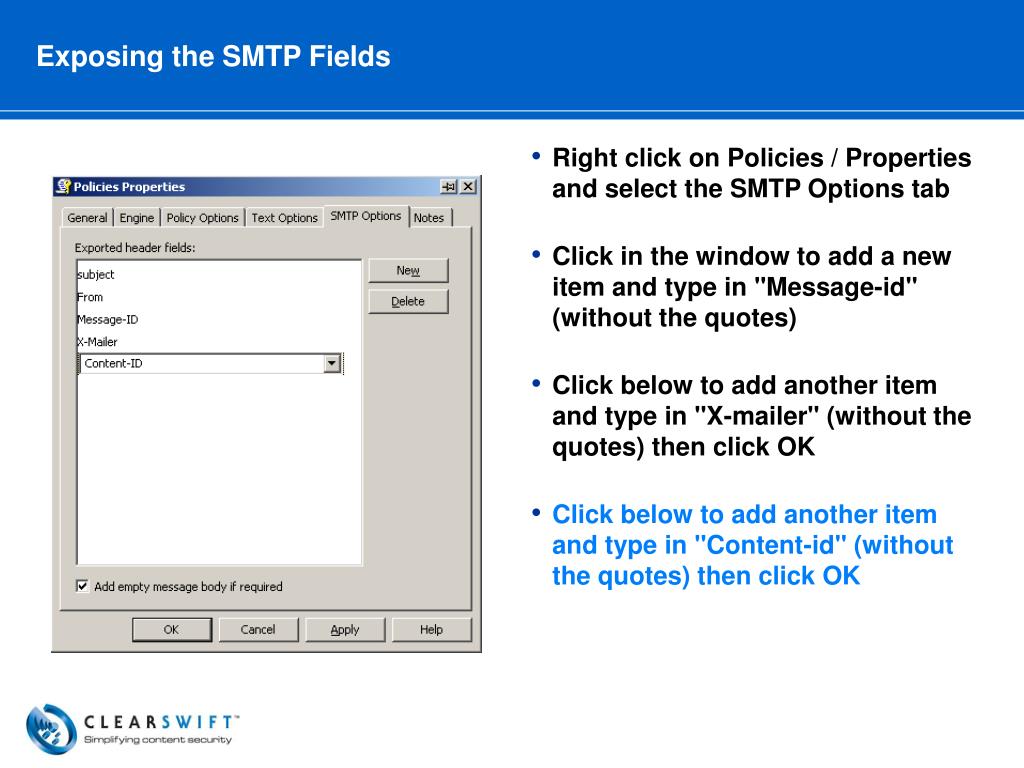

7. Exposing the SMTP Fields • Right click on Policies / Properties and select the SMTP options tab • Click in the window to add a new item and type in "Message-id" (without the quotes) • Click below to add another item and type in "Content-id" (without the quotes) then click OK • Click below to add another item and type in "X-mailer" (without the quotes) then click OK

8. Exposing the SMTP Fields • Right click on Policies / Properties and select the SMTP Options tab • Click in the window to add a new item and type in "Message-id" (without the quotes) • Click below to add another item and type in "X-mailer" (without the quotes) then click OK • Click below to add another item and type in "Content-id" (without the quotes) then click OK

9. Exposing the SMTP Fields • Right click on Policies / Properties and select the SMTP Options tab • Click in the window to add a new item and type in "Message-id" (without the quotes) • Click below to add another item and type in "X-mailer" (without the quotes) then click OK • Click below to add another item and type in "Content-id" (without the quotes) then click OK

10. Exposing the SMTP Fields • Right click on Policies / Properties and select the SMTP Options tab • Click in the window to add a new item and type in "Message-id" (without the quotes) • Click below to add another item and type in "X-mailer" (without the quotes) then click OK • Click below to add another item and type in "Content-id" (without the quotes) then click OK

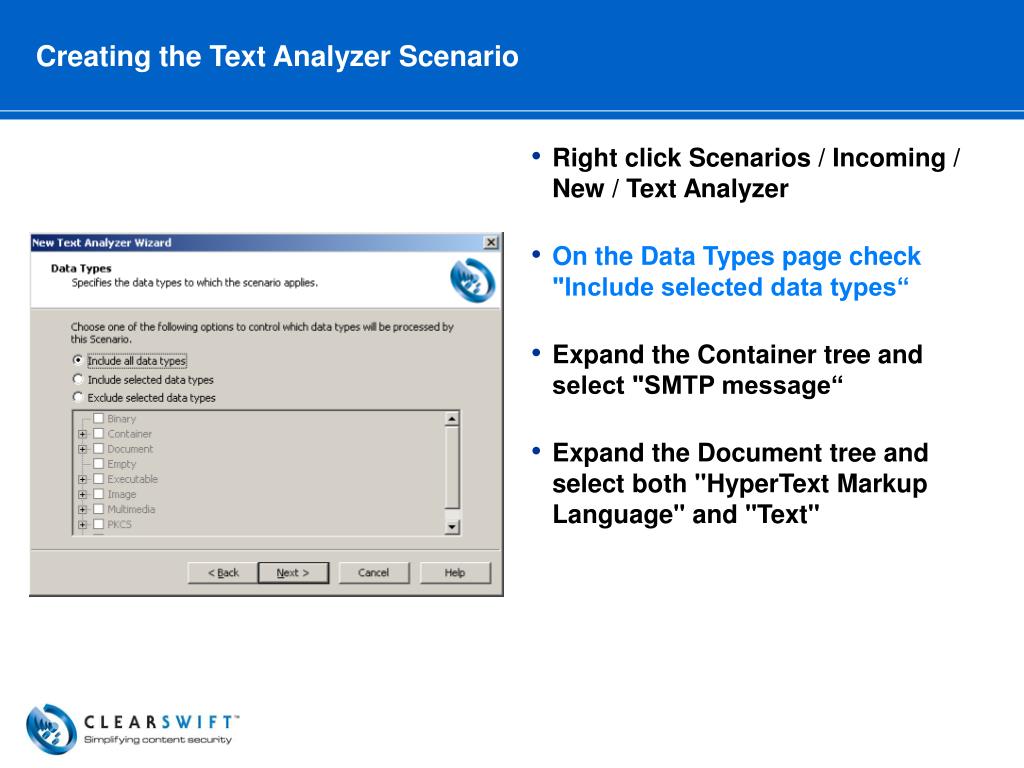

11. Creating the Text Analyzer Scenario • Right click Scenarios / Incoming / New / Text Analyzer(N.B. Do not be tempted to use the expression list in a SpamLogic scenario as this will not detect as effectively as the Text Analyzer.) • On the Data Types page check "Include selected data types“ • Expand the Container tree and select "SMTP message“ • Expand the Document tree and select both "HyperText Markup Language" and "Text"

12. Creating the Text Analyzer Scenario

13. Creating the Text Analyzer Scenario • Right click Scenarios / Incoming / New / Text Analyzer • On the Data Types page check "Include selected data types“ • Expand the Container tree and select "SMTP message“ • Expand the Document tree and select both "HyperText Markup Language" and "Text"

14. Creating the Text Analyzer Scenario • Right click Scenarios / Incoming / New / Text Analyzer • On the Data Types page check “Include selected data types” • Expand the Container tree and select “SMTP message” • Expand the Document tree and select both “HyperText Markup Language” and “Text”

15. Creating the Text Analyzer Scenario • Right click Scenarios / Incoming / New / Text Analyzer • On the Data Types page check “Include selected data types” • Expand the Container tree and select “SMTP message”

16. Creating the Text Analyzer Scenario • Right click Scenarios / Incoming / New / Text Analyzer • On the Data Types page check “Include selected data types” • Expand the Container tree and select “SMTP message”

17. Creating the Text Analyzer Scenario • Expand the Document tree and select both “HyperText Markup Language” and “Text”

18. Creating the Text Analyzer Scenario • Expand the Document tree and select both “HyperText Markup Language” and “Text”

19. Creating the Text Analyzer Scenario • Expand the Document tree and select both “HyperText Markup Language” and “Text file”

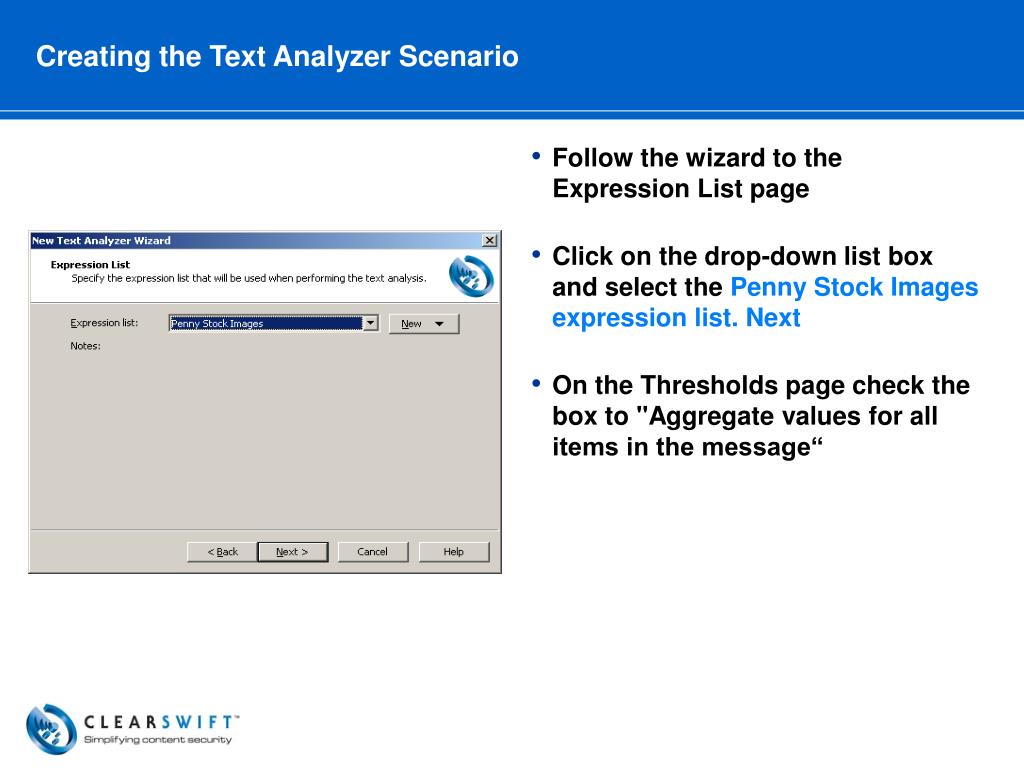

20. Creating the Text Analyzer Scenario • Follow the wizard to the Expression List page • Click on the drop-down list box and select the Penny Stock Images expression list. Next • On the Thresholds page check the box to “Aggregate values for all items in the message”

21. Creating the Text Analyzer Scenario • Follow the wizard to the Expression List page • Click on the drop-down list box and select the Penny Stock Images expression list. Next • On the Thresholds page check the box to "Aggregate values for all items in the message“

22. Creating the Text Analyzer Scenario • Follow the wizard to the Expression List page • Click on the drop-down list box and select the Penny Stock Images expression list • On the Thresholds page check the box to "Aggregate values for all items in the message"

23. Creating the Text Analyzer Scenario • Follow the wizard to the Expression List page • Click on the drop-down list box and select the Penny Stock Images expression list • On the Thresholds page check the box to "Aggregate values for all items in the message"

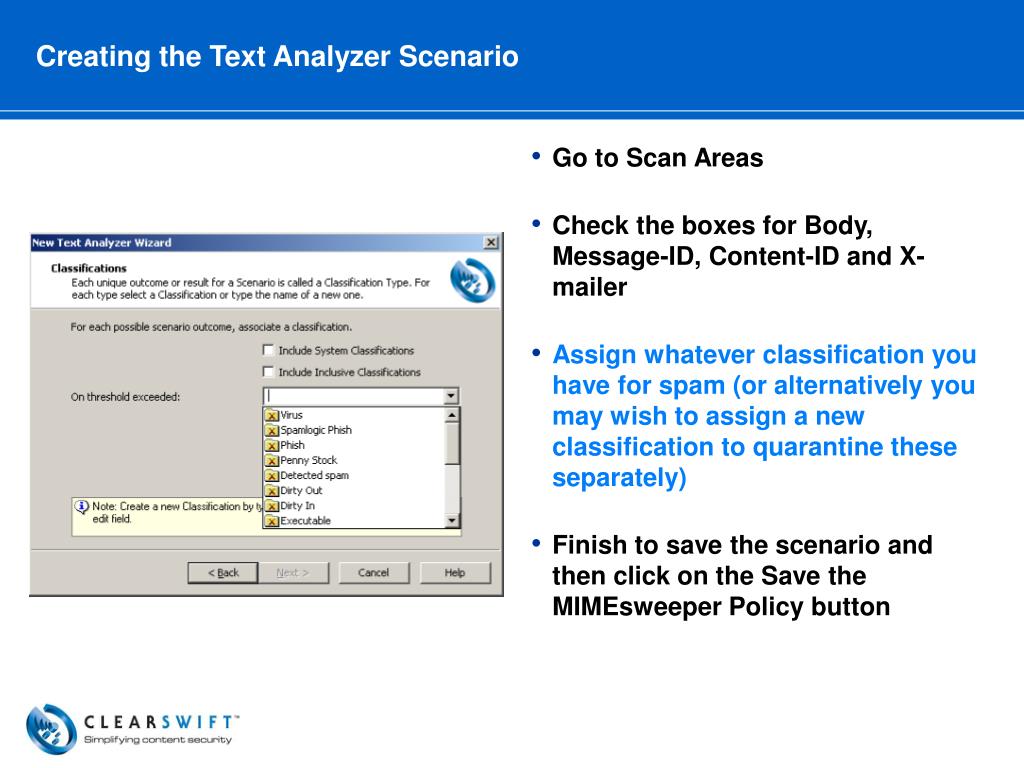

24. Creating the Text Analyzer Scenario • Go to Scan Areas • Check Specific Areas • Check the boxes for Body, Message-id, Content-id and X-mailer • Assign whatever classification you have for spam (or alternatively you may wish to assign a new classification to quarantine these separately) • Finish to save the scenario and then click on the Save the MIMEsweeper Policy button

25. Creating the Text Analyzer Scenario • Go to Scan Areas • Check Specific Areas • Check the boxes for Body, Message-ID, Content-ID and X-Mailer • Assign whatever classification you have for spam (or alternatively you may wish to assign a new classification to quarantine these separately) • Finish to save the scenario and then click on the Save the MIMEsweeper Policy button

26. Creating the Text Analyzer Scenario • Go to Scan Areas • Check the boxes for Body, Message-ID, Content-ID and X-mailer • Assign whatever classification you have for spam (or alternatively you may wish to assign a new classification to quarantine these separately) • Finish to save the scenario and then click on the Save the MIMEsweeper Policy button

27. Creating the Text Analyzer Scenario • Go to Scan Areas • Check the boxes for Body, Message-ID, Content-ID and X-mailer • Assign whatever classification you have for spam (or alternatively you may wish to assign a new classification to quarantine these separately – you need to have created this Classification in advance) • Finish to save the scenario and then click on the Save the MIMEsweeper Policy button

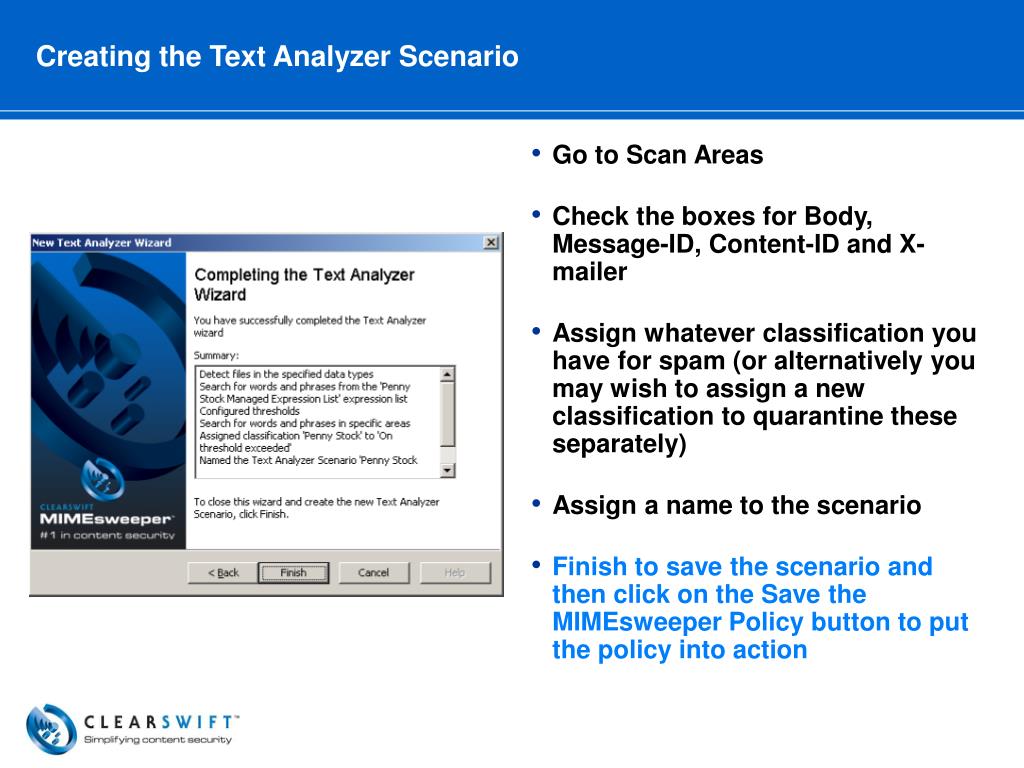

28. Creating the Text Analyzer Scenario • Go to Scan Areas • Check the boxes for Body, Message-ID, Content-ID and X-mailer • Assign whatever classification you have for spam (or alternatively you may wish to assign a new classification to quarantine these separately) • Assign a name to the scenario • Finish to save the scenario and then click on the Save the MIMEsweeper Policy button

29. Creating the Text Analyzer Scenario • Go to Scan Areas • Check the boxes for Body, Message-ID, Content-ID and X-mailer • Assign whatever classification you have for spam (or alternatively you may wish to assign a new classification to quarantine these separately) • Assign a name to the scenario • Finish to save the scenario and then click on the Save the MIMEsweeper Policy button to put the policy into action
