  1. Parking Dimensions Ezekiel Dada & Mike Furuya

  2. Introduction • Study initiated by City of Calgary • Will be a part of Land Use Bylaw (LUB) • To determine what changes are needed to the existing standards

  3. Existing Parking Dimensions in the City of Calgary Standard Stall Length – 5.4m-5.9m Width – 2.5m-2.6m Width (with obstruction) – 3.1m Aisle – 7.2m Module – 18.0m Height – 2.1m Handicap Width – 4.0m

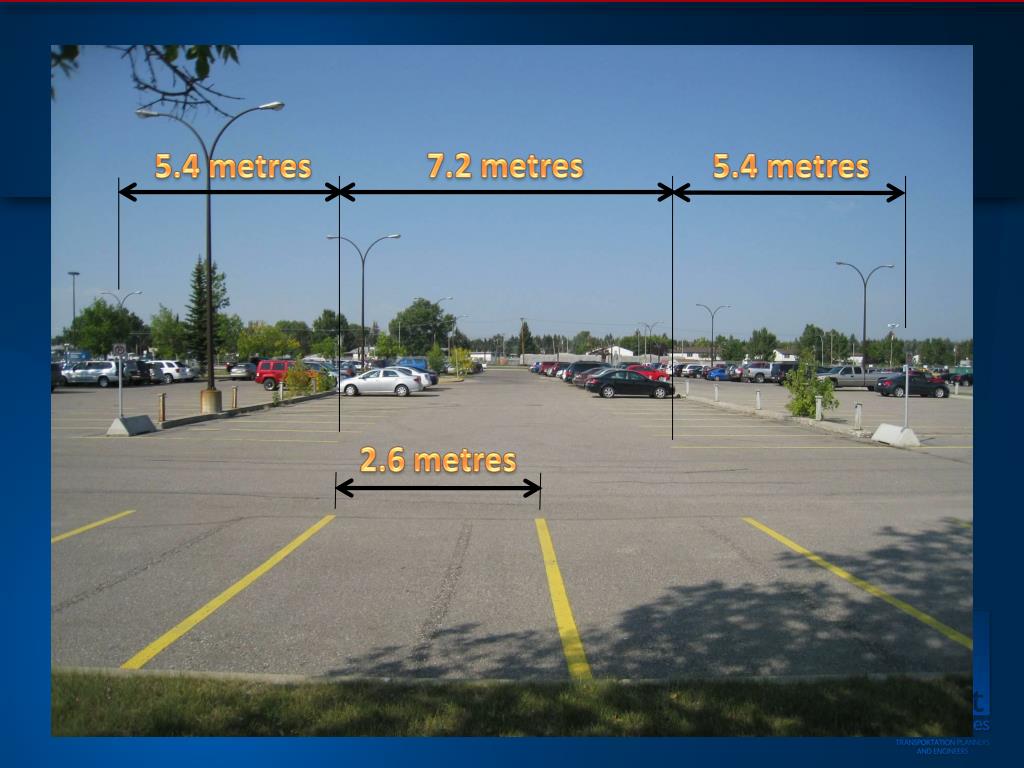

  4. 7.2 metres 5.4 metres 5.4 metres 2.6 metres

  5. Other Municipalities

  6. Sample Size Surveyed: 3225 vehicles 785 Cars 1068 SUVs 74 Mini Vans 1298 Pick-up trucks 289 vehicle lengths 169 vehicle widths 226 vehicle heights

  7. Sample Size Table 3.5: Summary of Number of Different Sizes of Vehicle Models

  8. Assessment of Optimum Dimensions Table 3.6: Results of the Statistical Analysis – All Vehicle Models

  9. 85th Percentile Sizes Length 5.66m Width 1.99m Height 1.95m

  10. Implications of 85th Percentile Sizes: Length 85th percentile length is longer than: 90% of cars 100% of minivans 98% of SUVs 62% of pick-up trucks

  11. Implications of 85th Percentile Sizes:Width 85th percentile width is wider than: 96% of cars 99% of minivans 90% of SUVs 52% of pick-up trucks

  12. Implications of 85th Percentile Sizes:Height 85th Percentile height is higher than: 100% of cars 100% of minivans 87% of SUVs 72% of pick-up trucks

  13. Dimensions Based on 85th Percentile Length 5.66m + 0.15m = 5.81m Width 1.99m + 0.56m = 2.55m Obstruction 1 Side 1.99m + 0.56m + 0.28m = 2.83m 2 Side 1.99m + 0.56m + 0.56m = 3.11m Height 1.95m + 0.15m = 2.10m Aisle 6.0m + 1.2m = 7.2m

  14. Recommended Stall Dimensions Length 5.4m Width 2.5m – 2.6m Width (obstruction 1 side) 2.85m Width (obstruction 2 sides) 3.10m Height 2.1m Module 18.0m

  15. Implication of Recommended Stall Sizes on Larger Personal Vehicles Larger Vehicles F150 Super Cab – 6.33m F150/F250/F350/F450 – 6.65m Chevrolet Silverado – 6.55m GMC Sierra – 6.55m Dodge Ram – 6.33m Toyota Tundra – 6.26m

  16. Conclusions Retain Existing Stall Sizes Length = 5.4m Width = 2.5-2.6m Height = 2.1m Aisle = 7.2m Module = 18m
