Performance Testing Using JMeter for Beginners

JMeter is an open-source testing tool used to analyze and measure software and product performance. The tool is completely Java-based and provides performance, load testing.

Pixel6
Télécharger la présentation

Performance Testing Using JMeter for Beginners

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

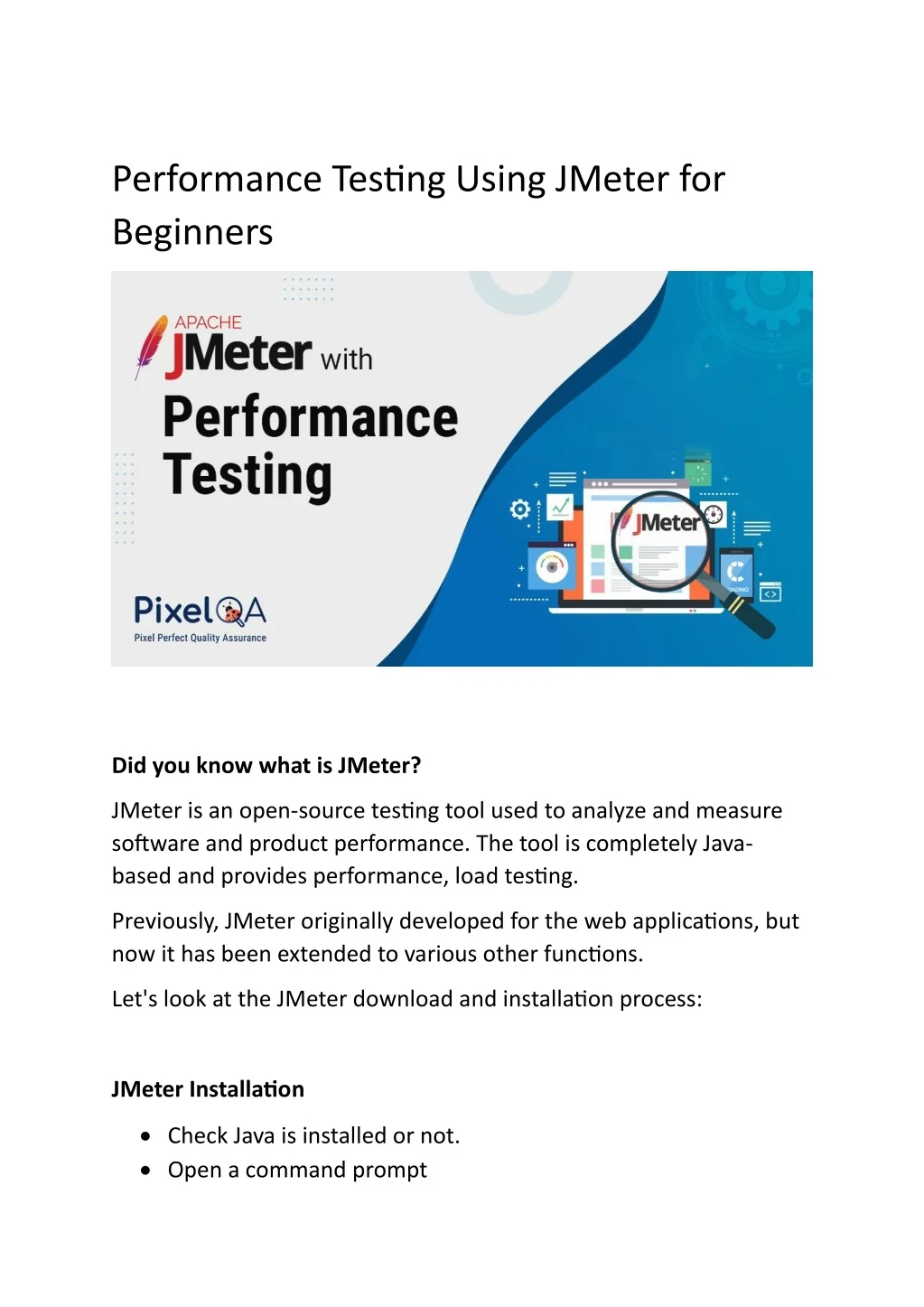

  1. Performance Testing Using JMeter for Beginners Did you know what is JMeter? JMeter is an open-source testing tool used to analyze and measure software and product performance. The tool is completely Java- based and provides performance, load testing. Previously, JMeter originally developed for the web applications, but now it has been extended to various other functions. Let's look at the JMeter download and installation process: JMeter Installation •Check Java is installed or not. •Open a command prompt

  2. •Enter the command Java version If Java is installed on your system, then the command will display the version of the Java installed. Otherwise, you must install Java before proceeding with the installation of JMeter. Download Process of JMeter To download JMeter, visit the Apache JMeter website https://jmeter.apache.org/download.cgi On the website, you have to go download section you can see the binary zip file. Wait for the zip file folder to download Installation process of JMeter It will take some time to open; you have seen the download and install JMeter on your system. Now you can installed JMeter and can run tests on it.

  3. Create a test plan for Jmeter The first step is creating a test plan is to Add the Thread Group •Open a JMeter window. •A window is separate into the two parts. On the left, there are all the added items, while on the right, there is the configuration of all the items. •You have to rename a test plan and then save it. •Rename it to First JMeter. •Right click on the test plan. •Go to Add & Thread (User)& thread Group

  4. Now after clicking on the Thread Group, three important things will appear on the screen, add the load test: •A number of threads - This is the number of threads and users that JMeter will simulate. Let's do 100. •Acceleration period (in seconds): This is the amount of time JMeter will pass before the thread is restarted. Let's leave it at 12. •Run Count: This is the test run count. And that, let's set it to 1. Add the HTTP Request •Right-click on First JMeter and again add Select Sampler in the dropdown

  5. •These are all the query types that JMeter can handle. •Now choose the simplest HTTP request. •Here you need to provide the address of a homepage or website. Now rename it Home. Here in the Server name or IP box, you need to enter the server name or IP. Let's choose a site; for now, let's take blazedemo.com as an example. Copy the URL Return to the JMeter window and paste it into the Server name box. Do not provide HTTP or HTTPS, as these are the protocols that will appear in another box. Then leave a slash in the path dialog.They will be retrieved automatically in the event of an HTTP request Now once the HTTP test is ready, the next step is to run the test on it. Run the test: Add the Listeners: To determine the results, you have to add other test items.

  6. Right-click on the first JMeter Go to Listener Options In the box that appears, there are different types of reports provided by JMeter, Now you have to select two of these: •Show results in table •Show results tree •Run test •Save test now and run it •To run a test, click the green button •Go now to test results •After viewing the results, go to the table

  7. You may see a green status, which means the test passed. Tag Name: First, you can see JMeter and sample time. Then you have to check the view results tree Green status or pass status can also be seen here. The will be tested against the number of users, startup period, and a number of loops configured in the first step. Performance results can be obtained after execution.

  8. About Author Ajay Makwana started his career in June 2019. He started his career as a trainee and is now a QA Executive in The One Technologies - a load and performance testing company. He learned task prioritization when he was a junior QA, which helped me in his career. In the future, he wants to develop expertise in automation, database, and performance testing. In his free time, he loves long drives and watching cricket.
